JAYO UV Resin ABS Like/Standard/Plant based/Nylon Like/Water-Wash 1KG 405nm Liquid Rapid UV Curing For LCD 3D Printing Material

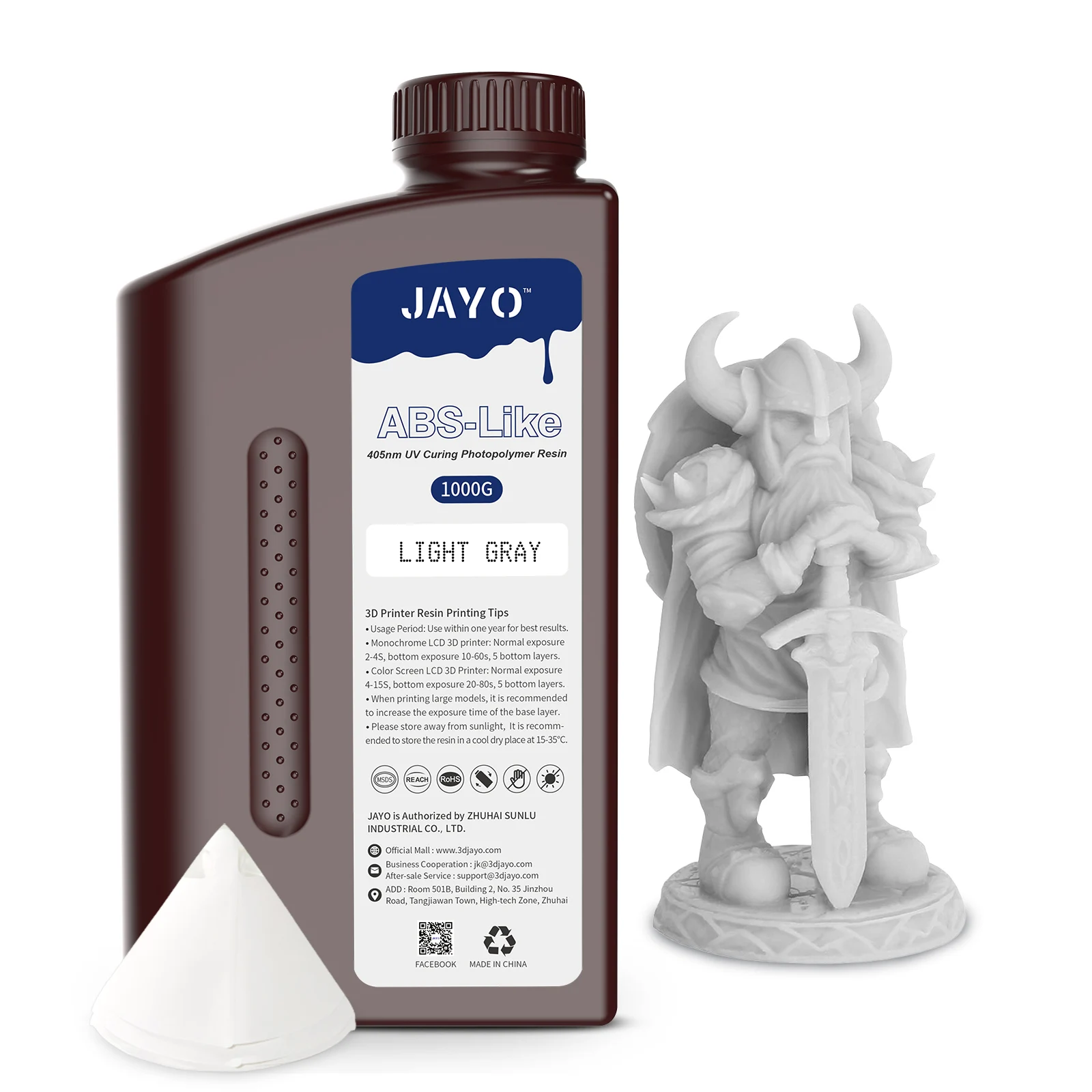

1. Like-ABS Resin Parameter & Features ：

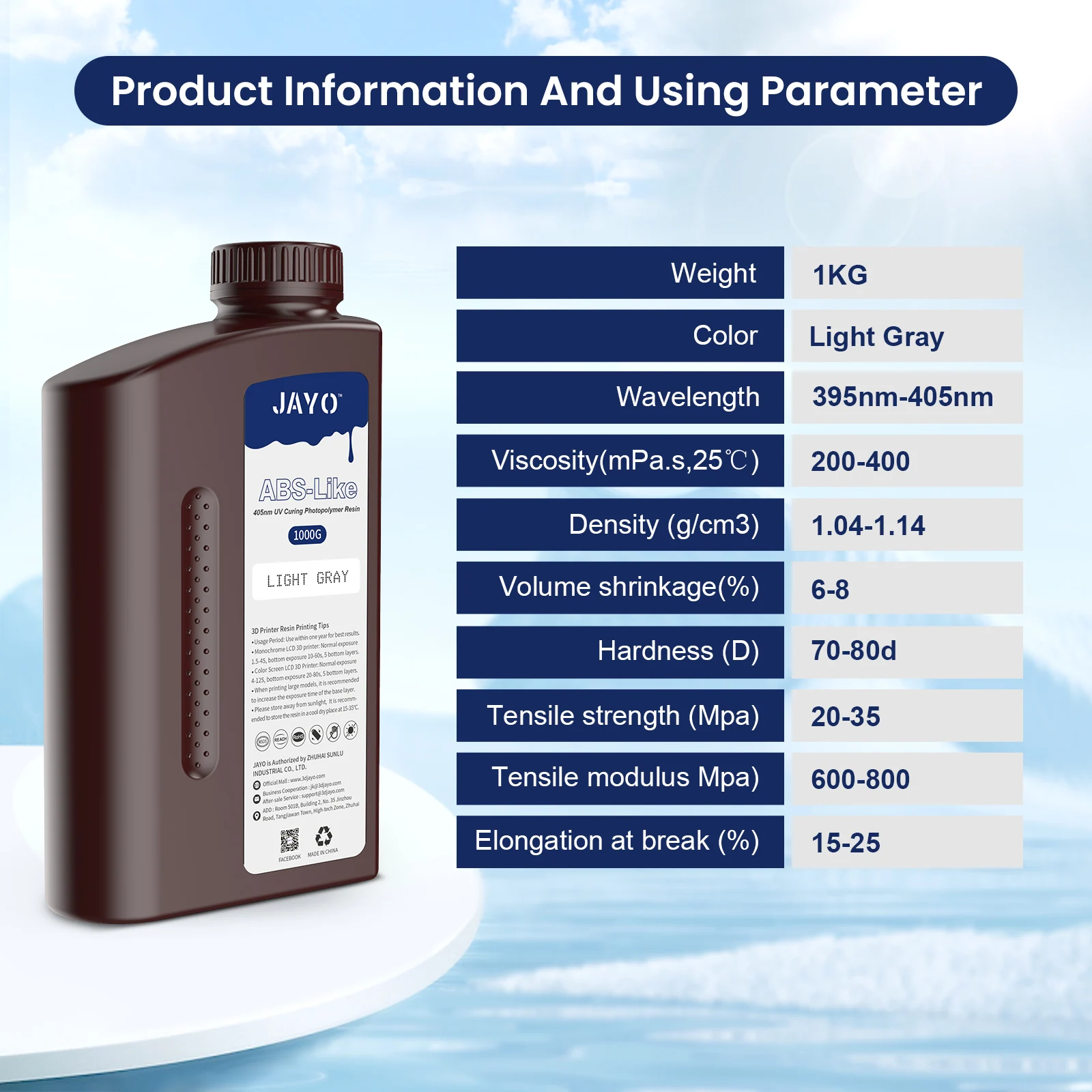

ABS-Like Photosensitive Resin Parameter:

1．Material: ABS-like Photosensitive Resin
3．Net Weight: 1000g
4．Gross weight: 1.3KG
5．Color: black, white, light gray,beige,deep gray
6.Wavelength: 395nm-405nm
7.Viscosity(mPa.s,25℃): 200-400
8.Density (g/cm3): 1.04-1.14
9.Volume shrinkage(%): 6-8
10.Hardness (D): 70-80d
11.Tensile strength (Mpa) : 20-35
12.Tensile modulus Mpa) : 600-800
13.Elongation at break (%): 15-25
14. Lifting distance (mm): 6-10
15. Lifting speed (mm/min): 60-90
16. Lifting speed (mm/min): 120-180

ABS-Like Resin Features:

1. 【Good molding performance】: The molding performance is similar to that of ABS, and it is a product with better material properties for applications such as structural sample production.
2.【High hardness】: JAYO ABS-Like Resin will bring you models with high hardness. It's hard enough to be some widgets in your life. With ABS-Like Resin, you can print some parts you need at any time, very convenient.
3.【High Precision】: Our JAYO-like ABS photopolymer resin has low shrinkage. High-precision models can be printed with smooth surfaces and clear details. Using resin to print beautiful decorations for your home is a great option.
4.【High Toughness】: The model printed by JAYO ABS-Like Resin brings high toughness. You can use resin to print impact-resistant parts and apply them to mechanical components. And the model is strong enough to withstand this unexpected drop from time to time.
3.【Easy molding】: JAYO 3D resin has excellent fluidity, which improves the printing speed and fast curing saves you printing time.
4.【Low Odor】: JAYO resin is made of high-quality materials and does not contain VOCs or irritating gases. The resin contains high quality pigments and photoinitiators, and models printed with resin have pure and stunning colors.

2. Standard Resin Parameter & Features ：

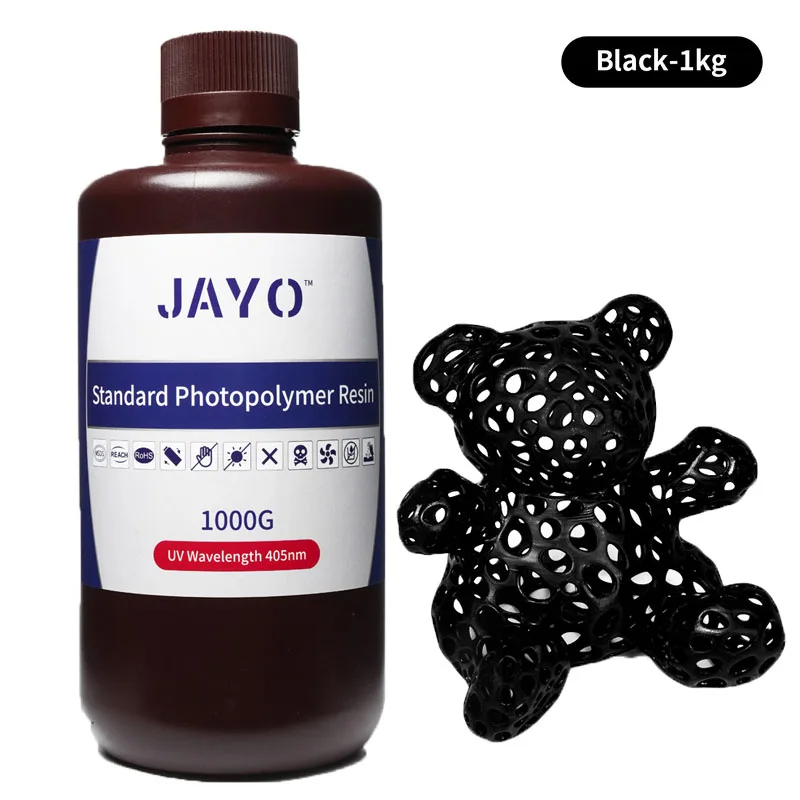

Standard Photosensitive Resin Parameter:

1．Material: Standard Photosensitive Resin
2．Form: Liquid
3．Net Weight: 1000g/bottle
4．UV curing wavelength: 405nm
5．Color: black, white, gray,transparent,beige
6．Bottom Exposure: 50s
7．Temps: 25-40℃
8．Normal Exposure: 8s
9. Surface hardness (Shore D): 80-85
10. Body contraction (%): 7%-9%
11. Tensile strength (MPa): 20MPa-40MPa
12. Elongation at break (%): 5%-15%
13. Bending strength (Mpa): 25Mpa-45Mpa
14. Flexural modulus (Mpa): 650Mpa-900Mpa
15. Bottom exposure time (s): 20-80 for color screen machine, 10-60 for black and white machine
16. Bottoms: 3-5
17. Normal layer exposure time (s): 4-15 for color screen machine, 1.5-4 for black and white machine
18. Lifting distance (mm): 6-10mm
19. Lifting speed (mm/s): 1-2mm/s)

Standard Photosensitive Resin Features:

1. 【Standard photosensitive resin】: suitable for beginners and model hand printing.
2.【Easy to Mold】: JAYO 3D resin has excellent fluidity, which improves the printing speed, and fast curing saves you printing time.
3.【Good precision】: The high precision makes the printing model smooth, and the model with higher precision can be printed to meet your printing needs.
4.【Low Odor】: JAYO resin is made of high-quality material and does not contain VOC or irritating gas. Resin contains high quality pigments and photoinitiators, and models printed with resin have pure and stunning colors.
5.【Stability and toughness】: UV resin has good toughness, strong adhesion to the model, and easy separation after molding. After curing, it exhibits good stability in wet and corrosive environments.

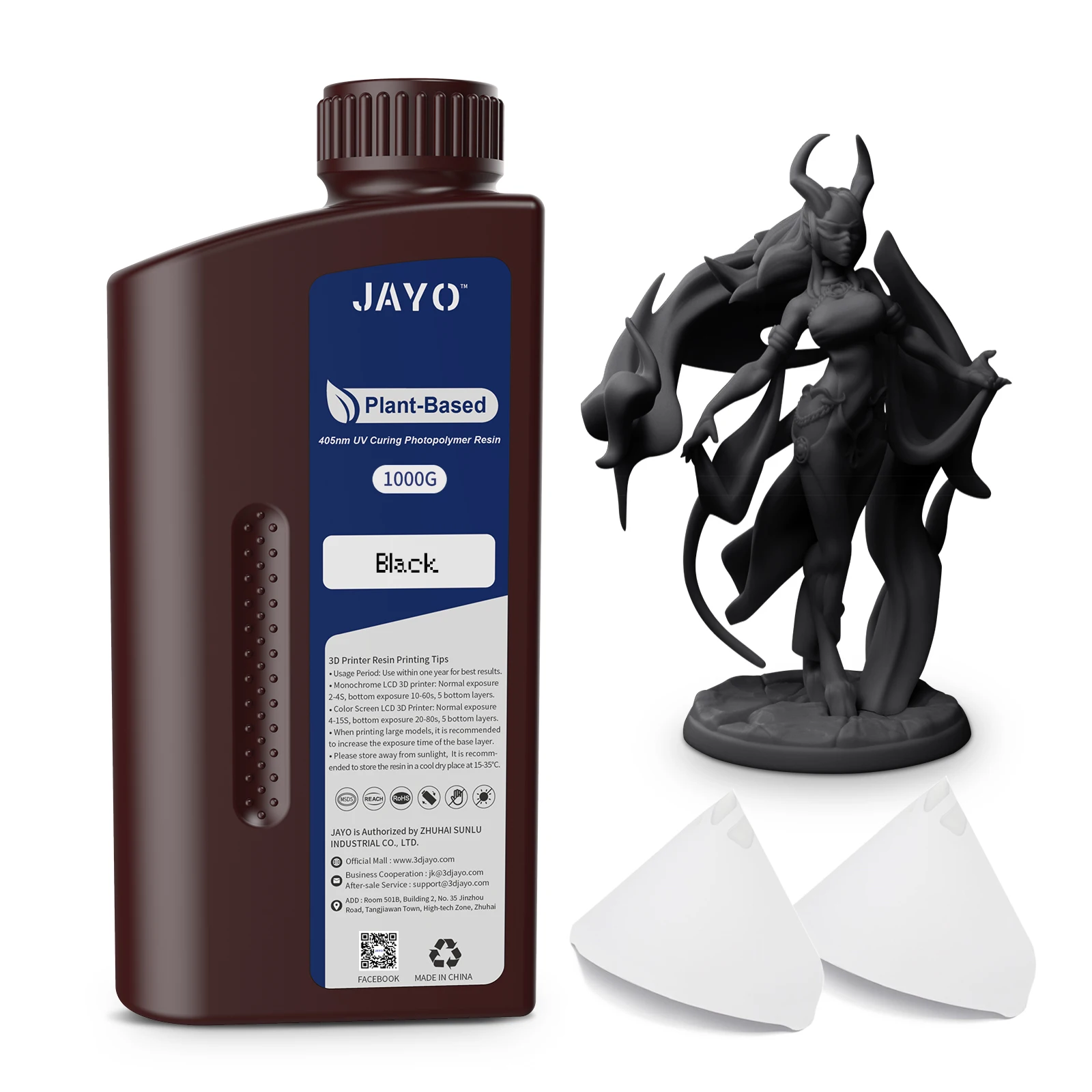

3. Plant base Resin Parameter & Features ：

Plant base Resin Parameter:

1．Material: Plant based Resin
2．Form: Liquid
3．Net Weight: 1000g/bottle
4．UV curing wavelength: 405nm
5．Color: black, white, gray,transparent,beige
6．Flexural modulus(MPa): 600-800s
7．Bending strength(MPa): 20-40℃
8．Normal Exposure: 8s
9. Surface hardness (Shore D): 80-85
10. Body contraction (%): 7%-9%
11. Tensile strength (MPa): 20-25MPa
12. Elongation at break (%): 5%-12%
16. Bottoms: 3-5
18. Lifting distance (mm): 6-10mm
19. Lifting speed (mm/s): 60-1200mm/s)

Plant base Resin Features:

1. 【Environmental Plant-Based】 : JAYO Plant-Based Biodegradable Resin: Made of soybean oil, it is safe and has ultra-low irritating chemical components and no harmful chemicals. Plant-based resin is a green choice for LCD lamps - curing material.
2.【High Precision】: Our JAYO-like plant base has low shrinkage. High-precision models can be printed with smooth surfaces and crisp details. Printing beautiful decorations for your home using resin is a great option.
3.【High Toughness】: JAYO plant-based printed models bring high toughness. You can use resin to print impact resistant parts and apply them to mechanical parts. And the model is sturdy enough to withstand such accidental drops from time to time.
4.【Easy molding】: JAYO 3D plant-based resin has excellent fluidity, which improves the printing speed, and the fast curing saves you printing time.

4. Water-Wash Resin Resin Parameter & Features ：

Water-Wash Resin Features:

①【Water Washable Resin】SUNLU fast curing 3D printer water washable photopolymer resin, it can be directly cleaned with water instead of IPA/alcohol, easy to clean, save time and more economics.

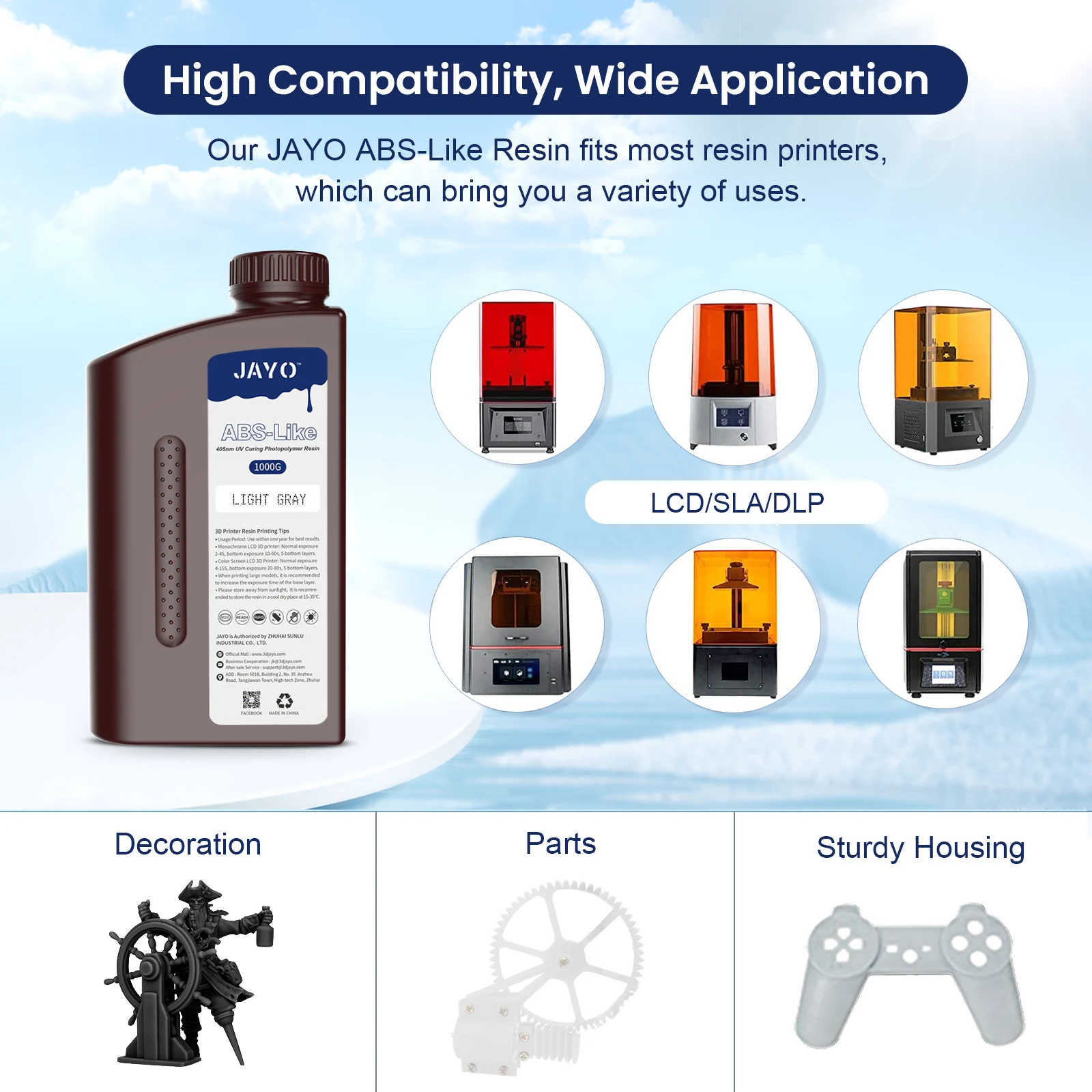

②【Fast Curing 3D Printer Resin】We 3D resin will fast cure when it absorbs 395-405nm UV light from a resin printer(or resin curing machine), suitable for most 2K/4K/8K resin 3D printers(LCD/DLP/SLA).
③【Low Shrinkage and High Precision】During the resin R&D, We focus on how to reduce resin volume shrinkage during curing to ensure high precision and good stability.
④【Easy to Clean and Light Odor】Resin can be cleaned with isopropyl alcohol or ethanol, which is very easy to clean and has a smooth surface. The smell is relatively light, and the resin odor will quickly dissipate after printing.

Water-Wash Resin Parameter :

1．Material: Water Wash Resin
2．Form: Liquid
3．Net Weight: 1000g/bottle
4．UV curing wavelength: 405nm
5．Color: black, white, gray,beige
6．Flexural modulus(MPa): 800-1100
7．Bending strength(MPa): 30-35
8. Surface hardness (Shore D): 80-85
9. Body contraction (%): 6%-8%
10. Tensile strength (MPa): 30-35MPa
11. Elongation at break (%): 8%-14%
12. Bottoms: 3-5
13. Lifting distance (mm): 6-10mm
14. Lifting speed (mm/s): 60-1200mm/s

3. PA-Like(Nylon-like ) Resin Parameter & Features ：

PA-Like Resin Parameter：

①【Nylon-like PA-like Polyamide Resin】Nylon-like resin will be cured when it absorbs 395-405nm UV light. It's recommended to print at 25°C, nylon-like resin is stronger and tougher than ABS-like or standard photopolymer 3D printing resin.
②【Super Strong and Tough Resin】Nylon-like resin has very good toughness, it's strong and not brittle. Nylon-like resin is great for printing high-precision 3D models, users do not have to worry about damaging the printed models when removing supports.
③【Ultra Durable and High Compatibility 】Nylon-like resin is very durable and has super good aging properties. During the R&D, engineers tried to bake the nylon-like resin model in a dry box at 55℃ for 3 months, the model didn't age and crack.
④【Low Shrinkage and High Precision】During the 3D printer resin development process, engineers focused on how to reduce the volume shrinkage of the resin during curing to ensure high precision, fast curing speed and good stability.

PA-Like Resin Features：

1．Material: Nylon-like ,PA-like Resin
2．Form: Liquid
3．Net Weight: 1000g/bottle
4．UV curing wavelength: 405nm
5．Color: black, white, gray,beige
6．Flexural modulus(MPa): 650-900
7．Bending strength(MPa): 25-50
8. Surface hardness (Shore D): 75-80
9. Body contraction (%): 6%-8%
10. Tensile strength (MPa): 20-45MPa
11. Elongation at break (%): 20%-50%
12. Bottoms: 3-5
13. Lifting distance (mm): 6-10mm
14. Lifting speed (mm/s): 60-90mm/s

Precautions:

1. Shake well before use. It is recommended to stand upside down three times. It is forbidden to use resin in places exposed to sunlight;

2. Do not take it orally, keep it away from children, wear gloves before use, avoid direct contact with the skin, and keep the room ventilated; do not enter the eyes, if you accidentally touch it, rinse with plenty of water as soon as possible, and seek medical attention in time if you feel unwell;

3. The printed resin model needs to be cleaned with high-concentration alcohol (recommended above 95% concentration, the higher the better) for about 30s; after cleaning, wait for the alcohol to dry and then perform secondary curing, so that the best performance can be obtained;

4. Do not pour the used resin in the trough back into the unused resin, and do not leave the resin in the trough for a long time without use. The contamination of the resin affects the printing effect;

5. Store in the dark at room temperature. The sunlight contains ultraviolet rays, which will cure the photosensitive resin; it is recommended to store it at an ambient temperature of 15-35 °C. The lower the temperature in winter, the higher the resin viscosity;

6. Sealed storage to avoid dust or moisture, which will affect the print quality

Shipping:

1.We guarantee to ship goods out within 24-96
hour after payment confirmation except
holiday.

2.We ship by safely logistic channel for you.

3.If you didn't receive the item after 45 days,
please feel free to contact us.We will make all
our effort to resolve the problem.

4.We are not responsible for delays caused by
the customs,Import duties or other customs
charges.

Warranty:

1.For wrongly-shipped items, please contact
with us in 48 hours after delivery.We will
arrange to deliver the correct items or return
all your payment.

2.For defective or faulty products,please take
photos or videos,we would resend or refund
after confirmation.

3.All items have 1 year guarantee.
