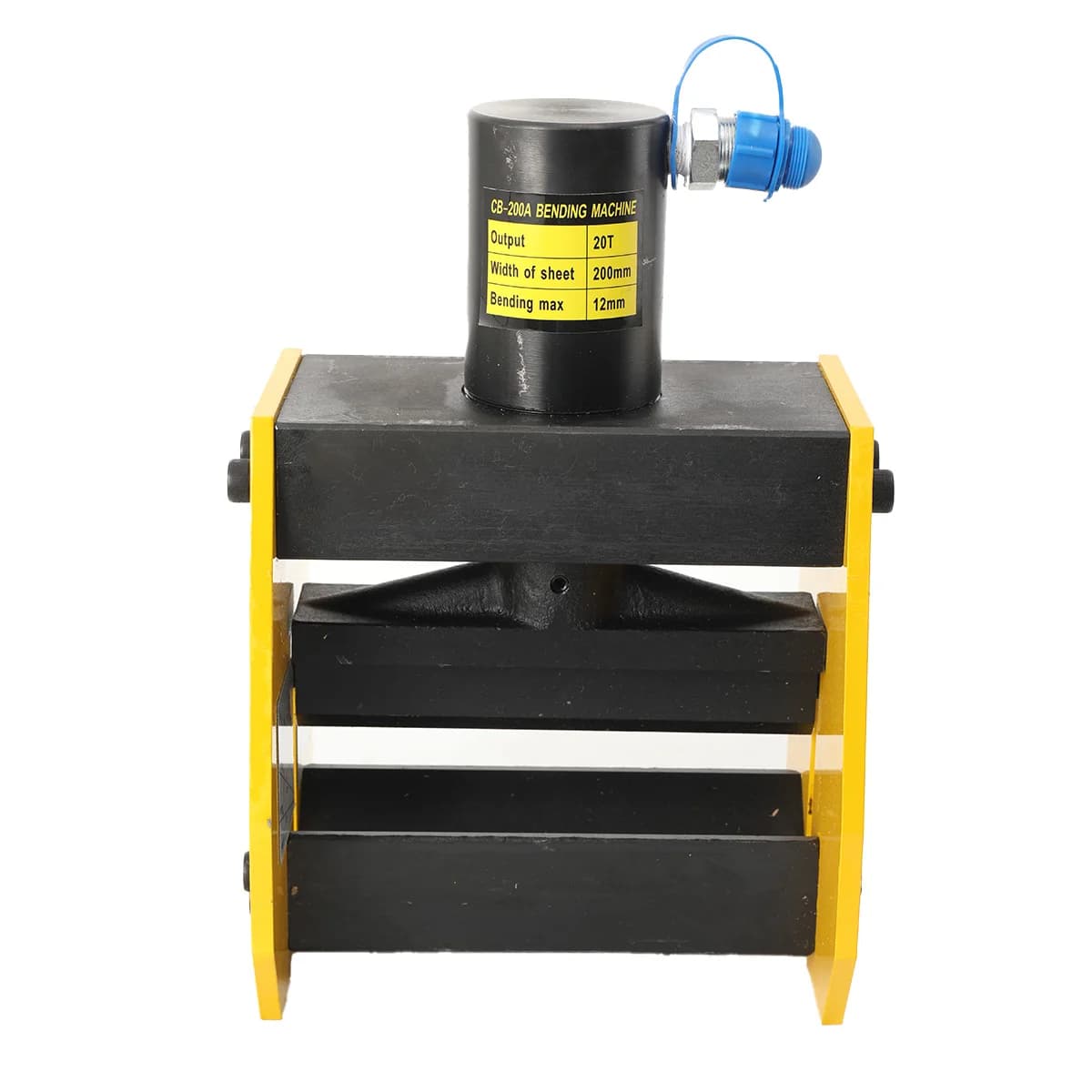

Hydraulic Copper Busbar Bender CB-200A Hydraulic Busbar Bending Machine Cu Al Bending Tool

Operations:
1.Connect the tool joint pin with box joint, fasten up, When it is not used, you can screw the plastic dustproof set on the male connector, avoid dirt to enter.
2.Put the object into the bending machine,the center of the object is aligned with the center of the piston.
3.Close the oil return swith on the Pump, wrench the handle, make the press film closer to the object , then bend.
4.Loosen the oil return swith, the press film return automatical to seat.

Specifications:
Type: Hydraulic Copper Busbar Bender
Color:Black
Material:Iron
Model:CB-200A
Output:20T
Breadth:200mm
Max.Thickness for copper and aluminum:12mm
Max.Thickness for iron:8mm
Max.Thickness for stainless steel:6mm
Package weight:24kg
Package size:40×30×23cm

Package includes:

1×Hydraulic Copper Busbar Bender
