XINPUGUANG Rigid Solar Panel 18V 100W or 16.5V 100 W Glass Solar panel Battery charger for House RV car boat outdoor generation

XINPUGUANG Rigid Solar Panel 18V 100W or 16.5V 100 W Glass Solar panel Battery charger for House RV car boat outdoor generation

Rugged and durable : High quality encapsulation material , corrosion resistant aluminum frame , IP65+ waterproof rating . Can withstand high wind (2400 Pa ) and snow load (5400 Pa ) , can work in harsh environment such as ocean , desert .
High efficiency：XINPUGUANG solar panels are made of high performance monocrystalline silicon cells with a conversion rate of 22%. Higher efficiency with sufficient light conditions.
High quality performance : The junction box has built-in bypass diode to effectively protect the solar panel . Prevent the solar panel from overheating during the power generation process and continue to work in a sheltered environment . The controller of the kit has the functions of battery overcharge protection , overload protection and short circuit protection .
Easy installation: The aluminum frame of the solar panel is pre-drilled and can be installed using the Z-bracket included in the kit. The solar panel is used with a black extension cable for quick installation and fixing.

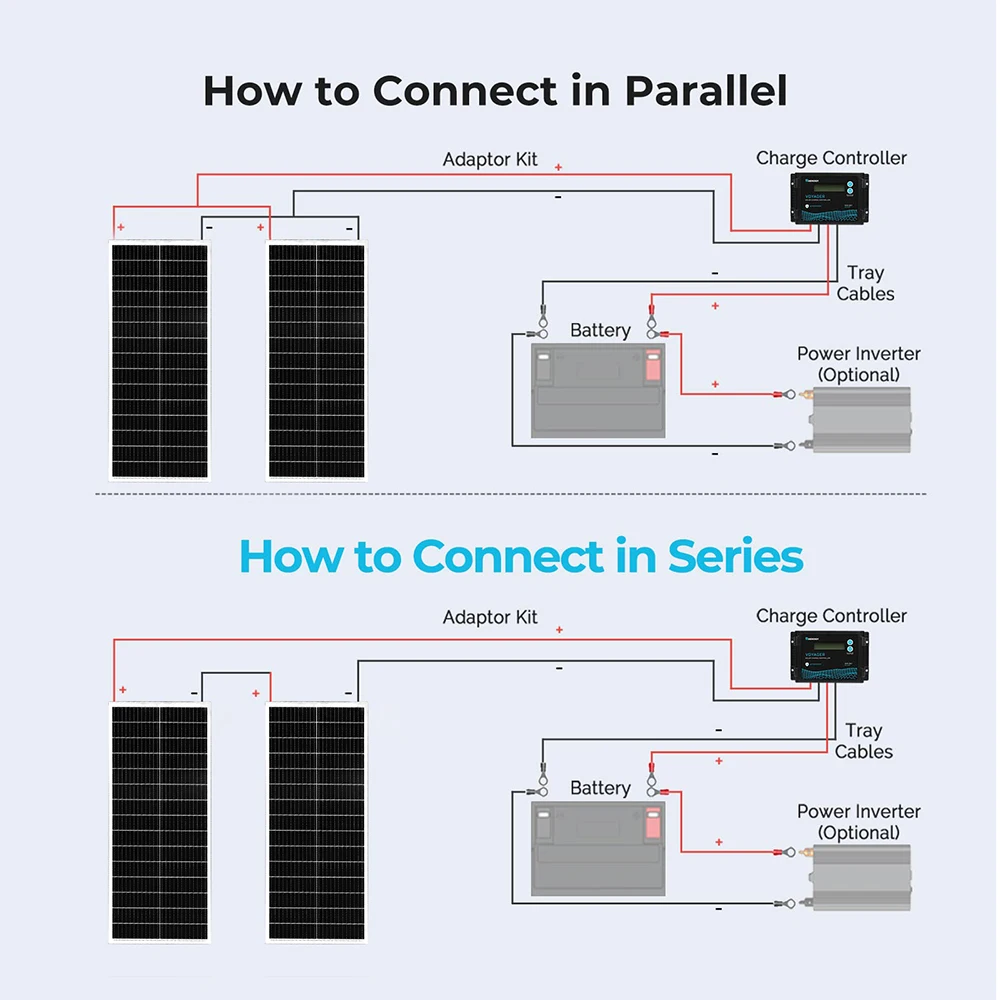

Multiple uses: The solar panel kit is ideal for 12V batteries（in Parallel ）or 24V batteries (in Series ) for off-grid applications, including RVs, rooftops, cabins, boats, trailers, caravans, trucks, homes, etc.

18V 100W Rigid solar panel Specification:

Maximum Power Output: 100W

Maximum Power Voltage (Vmp): 19.8V

Maximum Power Current (Imp): 5.05A

Open-Circuit Voltage (Voc): 23.76V

Short-Circuit Current (Isc): 5.55A

Maximum System Voltage: 700V DC

Weight：13.22lb/6kg

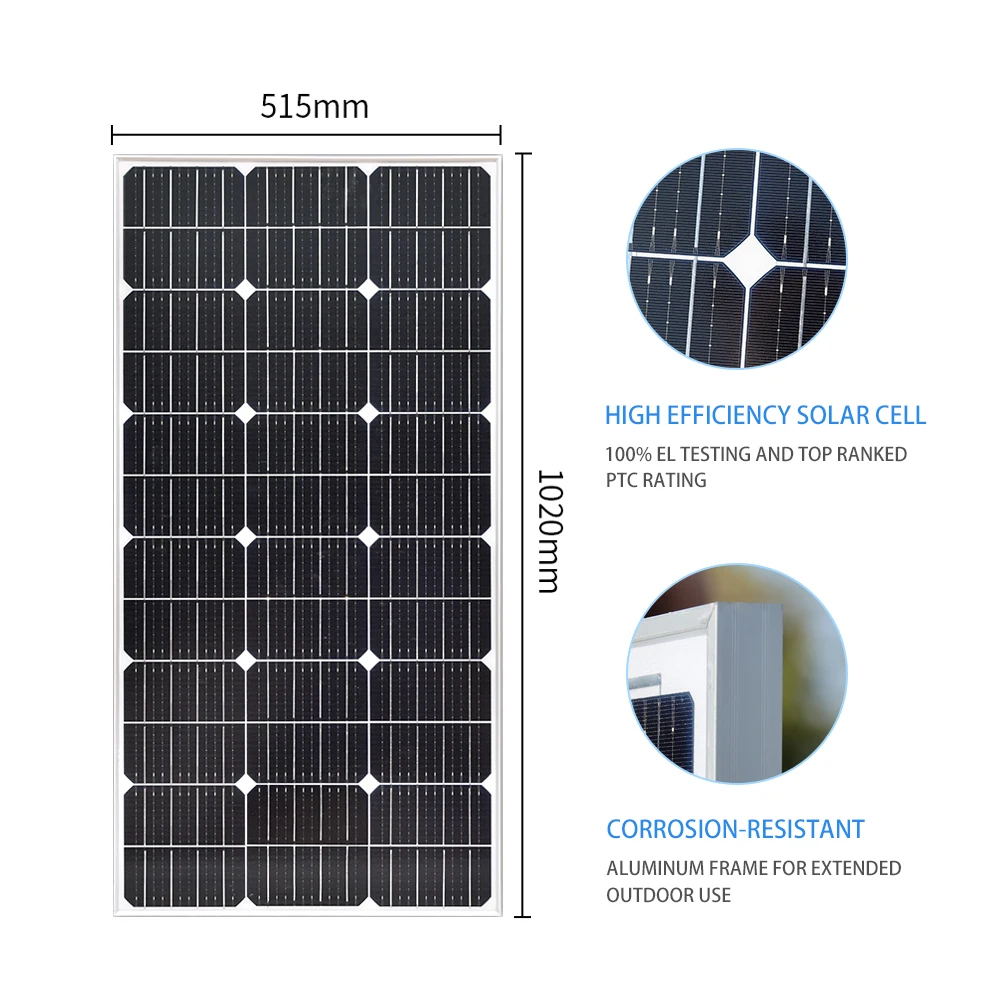

Dimensions: 102x51.5x2.5cm/106x53x2.5cm

Output tolerance ± 5%

Maximum system voltage 700V DC

Operating temperature (noct) 45 ± 2 ℃

Temperature range-40 ℃ ~ + 80 ℃

Number of cells 36 pieces

Weight 4.9Kg/11LB

Solar cell mono

Standard test conditions: lradiance 1000 w/m ^ 2, temperature 25 ℃, am = 1.5

Features:

a. Select high-efficiency 161 * 161mm monocrystalline silicon solar cells, the power generation efficiency is about 1.3 times that of conventional polysilicon, and the overall area is smaller at the same power.

b. The surface is made of Toughened glass, which is more wear-resistant and improves the absorption efficiency of sunlight.

c. With high light transmittance, safe and reliable, not afraid of high temperature, no danger of burning or explosion.

d. The junction box adopts IP67 waterproof design, contains bypass diode, and the circuit adopts overcharge and reverse current protection design.

e. Use photovoltaic special cable and PV connector, outdoor use is safe, waterproof, high temperature resistance and weather resistance. PV connector is easy to use, plug and play.

f. This product is a solar module. It is recommended to be used with controllers and batteries. It can be used in various scenarios such as households, camping, RVs, yachts, street lights and solar power stations

16.5V 100W SOLAR PANEL Specification:

Maximum power (Pmax) 100W
Output tolerance ± 5%

Maximum system voltage 1000V DC

Open-circuit voltage (Voc) 19.8V

Short circuit current (Isc) 6.06A

Maximum supply voltage (Vmp) 16.5V

Maximum power supply current (Imp) 5.55A

Cell efficiency 24%

Operating temperature (NOCT) 45±2℃

Temperature range -40℃~+80℃

Cell Monocrystalline silicon

Number of cells 30pcs

Weight 6kg

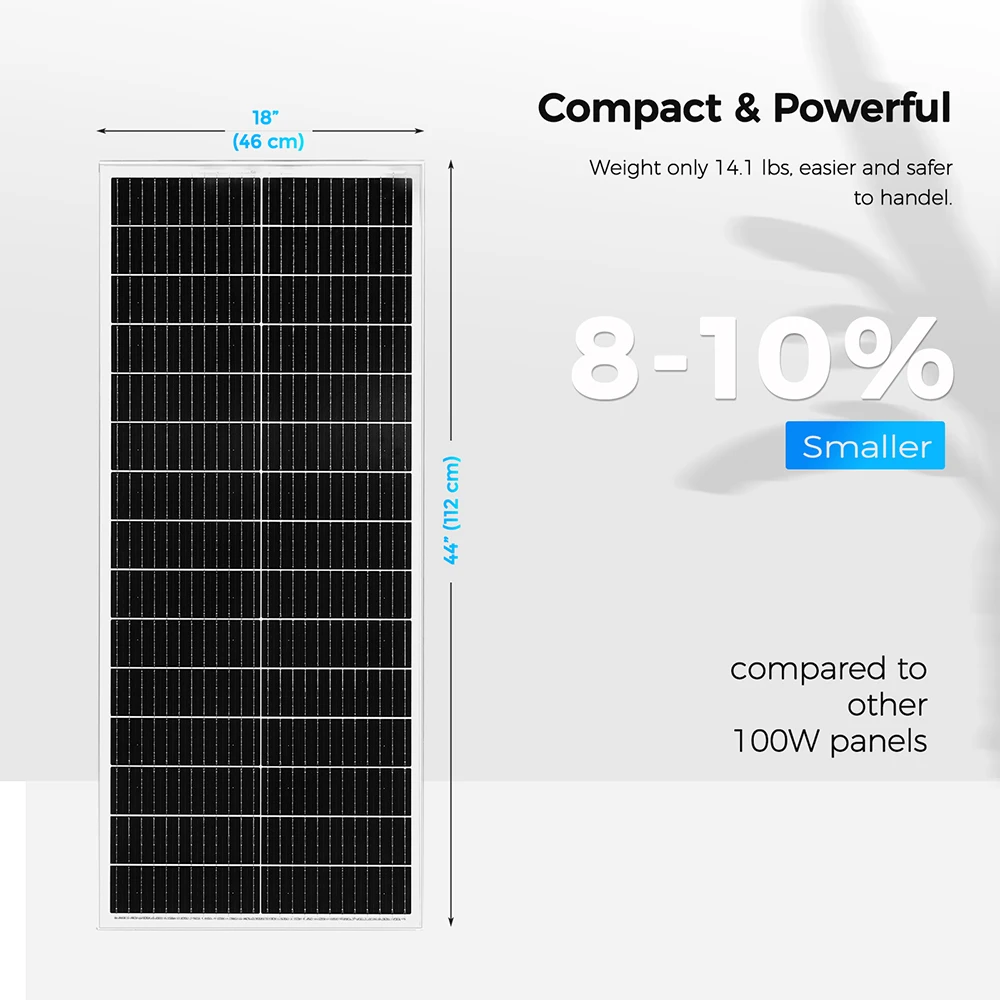

Size 1126*458*25mm /44.33*18.03*0.98 in
Surface Material Toughened glass

Back Film Color White

Standard test conditions: radiation 1000w/m^2, temperature 25℃, AM=1.5

100W solar panel Package list

1 * 100w Glass solar panel

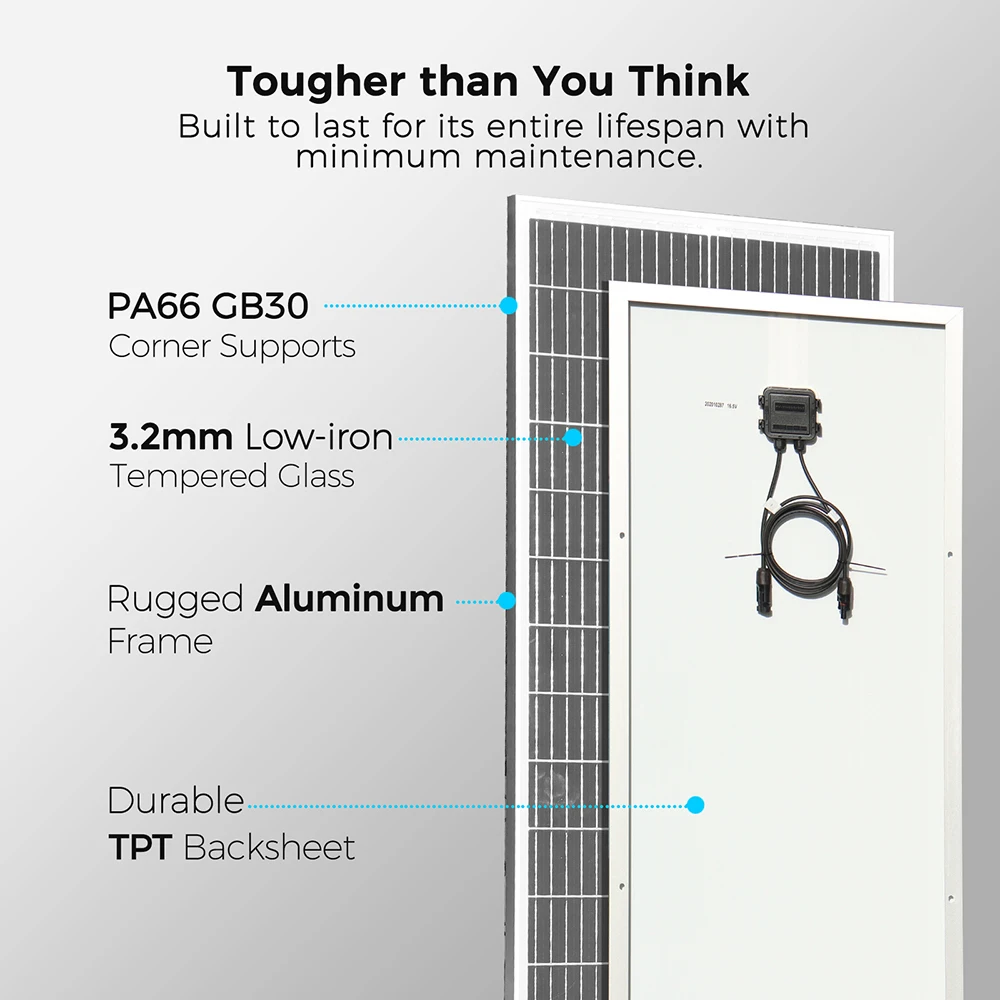

High Efficiency Monocrystalline Solar Cells, heavy duty anodized aluminum frame, the corrosion-proof aluminum frame and tempered glass coating shield the panel from weathering and wear. Lightweight and Durable:The four corners are equipped with protective cases to better protect the glass plate and be more sturdy.Easy to install with pre-drilled holes on the back of panels for fast mounting and securing.Compare with similar items

Safety Instructions:

1.Make sure your battery has enough voltage for the controller to recognize the battery type before first installation.

2.The battery cable should be as short as possible to minimize loss.

3.Please note that your controller is suitable for your battery type!

4.The charge regulator is only suitable for regulating solar modules. Never connect another charging source to the charge regulator.

System Connection:

1.Connect the battery to the charge regulator - plus and minus.it will show 1 ,if it detects 12V battery, 2 if it detects 24V battery.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

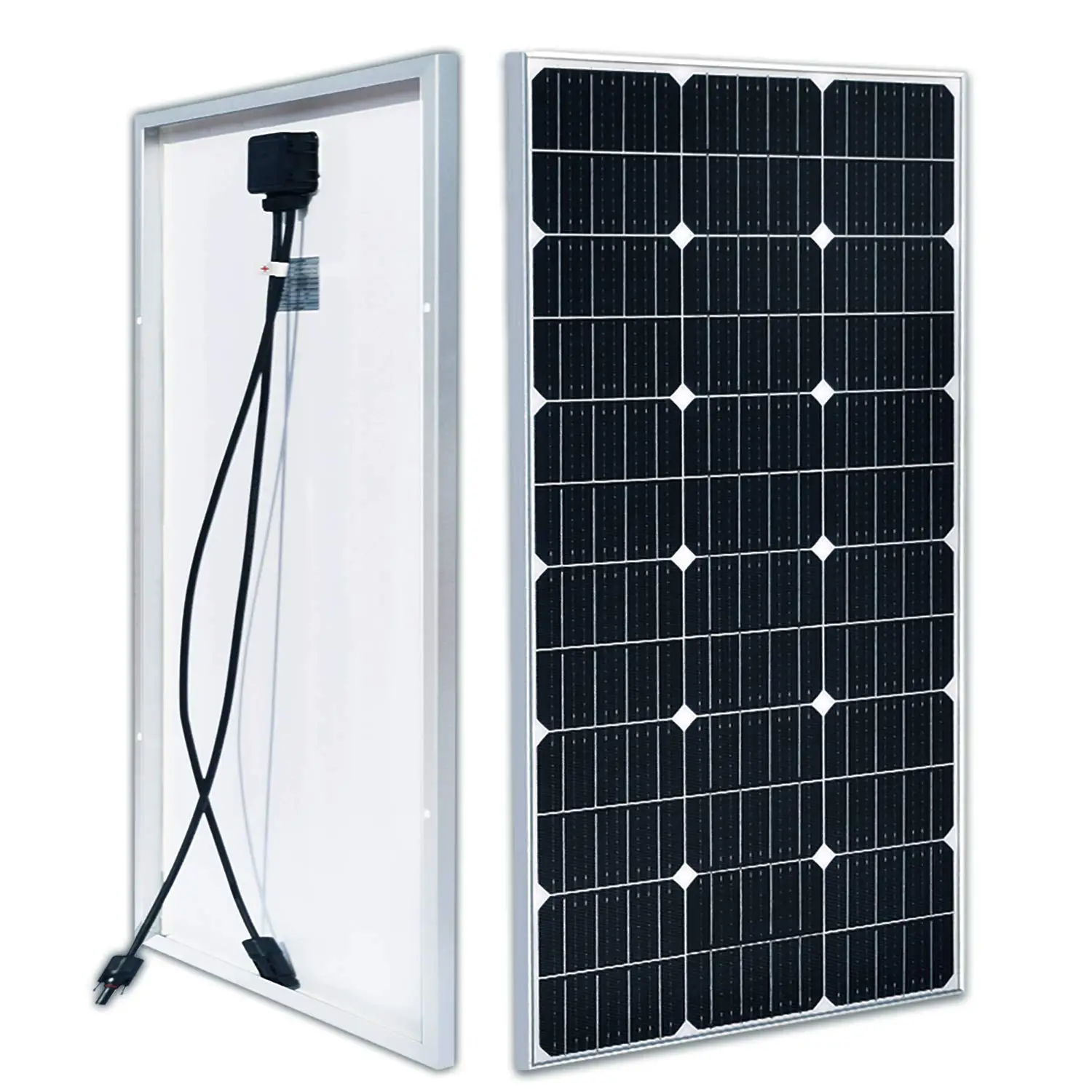

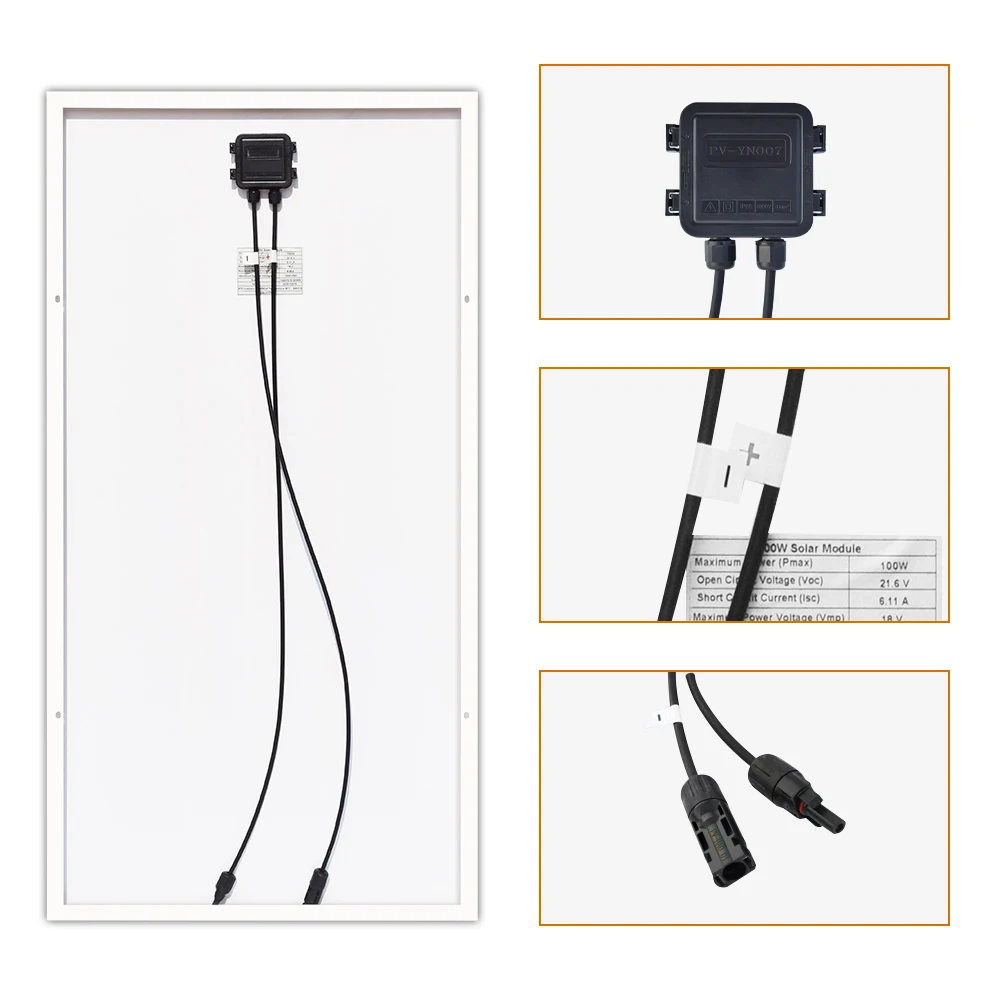

By-pass Diodes are pre-installed in junction box and a pair of 2.5MM2 cables with connectors comes with the panel automatically.

Notes for use:

a. This product must not come into contact with highly corrosive substances.

b. It is strictly forbidden to modify, disassemble, drop, and hit the junction box and products by yourself, avoid stepping on the surface and scratching the surface with hard objects during use.

c. A large number of scratches or dirt on the surface of the solar panel may cause the solar cell module to be inefficient, and in severe cases may cause burnout.

d. The suitable ambient temperature range of this product: -20 ° C-80 ° C, please do not exceed this range.

e. The solar panel must be installed in an area with good sunlight and no shadow. The long-term work of the solar cell module in the sun with shadow may have the risk of burning.

f. It is forbidden to connect the positive and negative poles of the product together, and it is forbidden to put the product into water or fire, otherwise it will damage the product.

g. The overall power of the photovoltaic module must be less than the rated power of the controller (rated voltage × rated current). It is strictly prohibited to overload the controller.

h. The total voltage of the photovoltaic module connected to the controller must be within the photovoltaic input voltage range of the controller.

i. The inverter can only be connected to the battery, not directly to the controller.
