Professional Laser Engraver NEJE Max 4 V2, 1000mm/s, 10W/20W/30W, Wood/Stone/Glass/MDF, Motorized Z-Axis, High Precision CNC

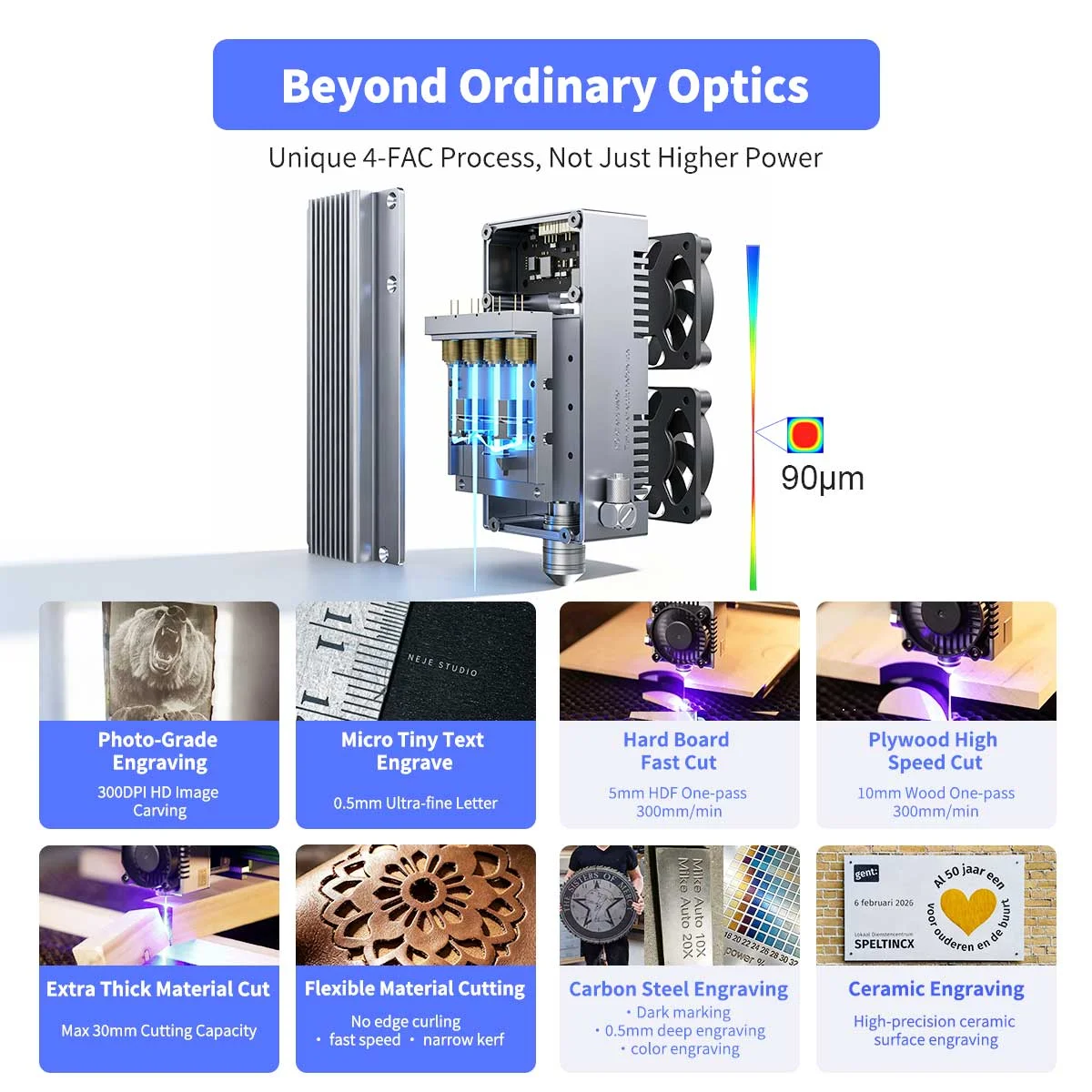

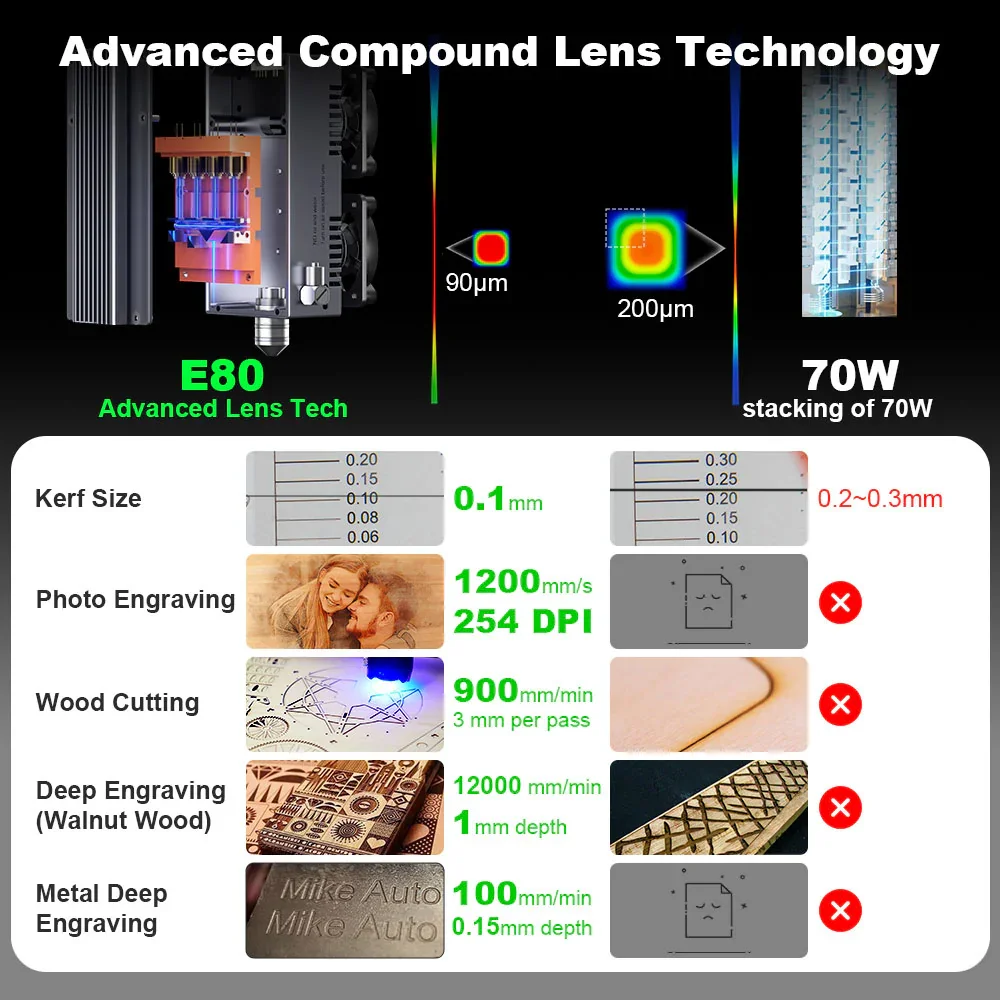

Exclusive Advanced Lens Tech

-90μm symmetrical focal spot, industry's highest power density

-1/4 smaller focal size vs 70W modules, 4x higher energy density

-Cuts 0.15mm stainless steel with 0.1mm precision, minimal carbonization, anti-flaming

-Only module achieving both high-speed cutting & fine engraving

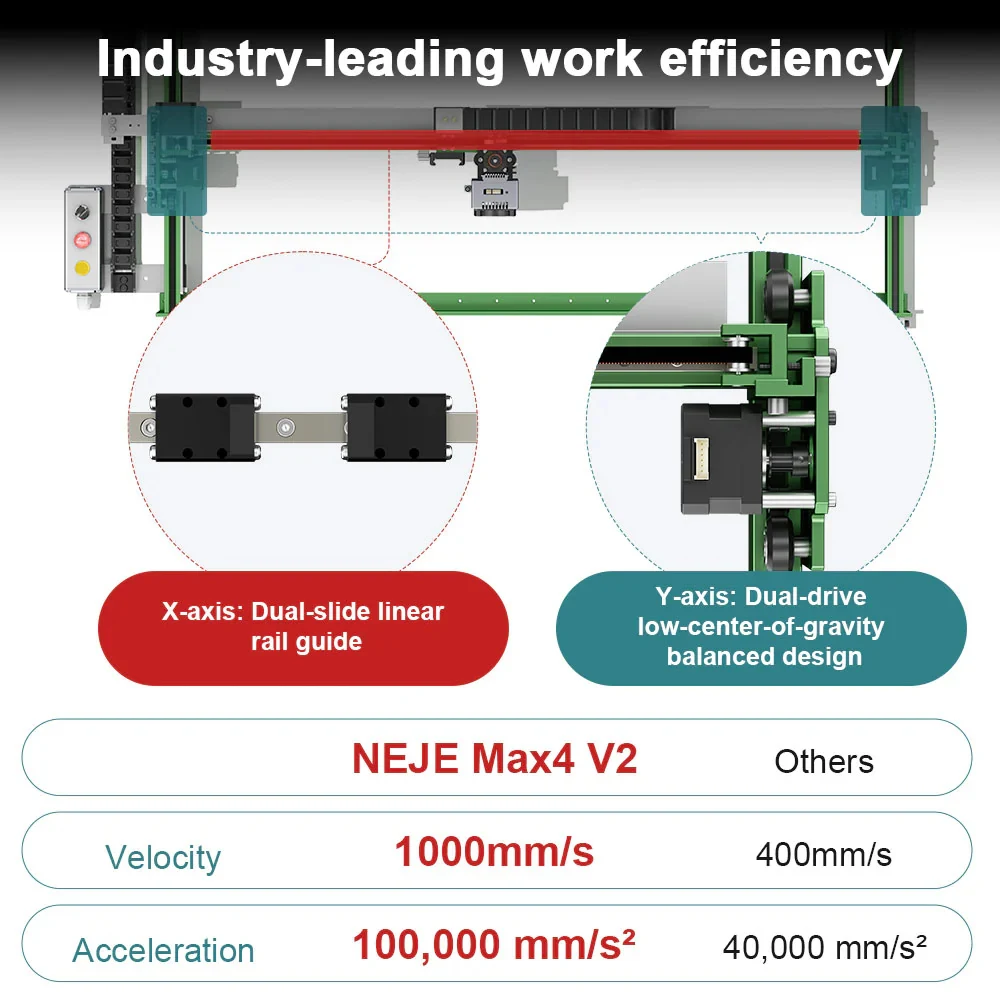

Lightweight High-Speed Design

-Industrial-grade smooth motion rails, minimal inertia

-Outperforms 40W/70W modules in motion efficiency

-Max4 V2 @1000mm/s & 100000mm/s² acceleration (E80's full potential untapped)

Lightweight High-Speed Design

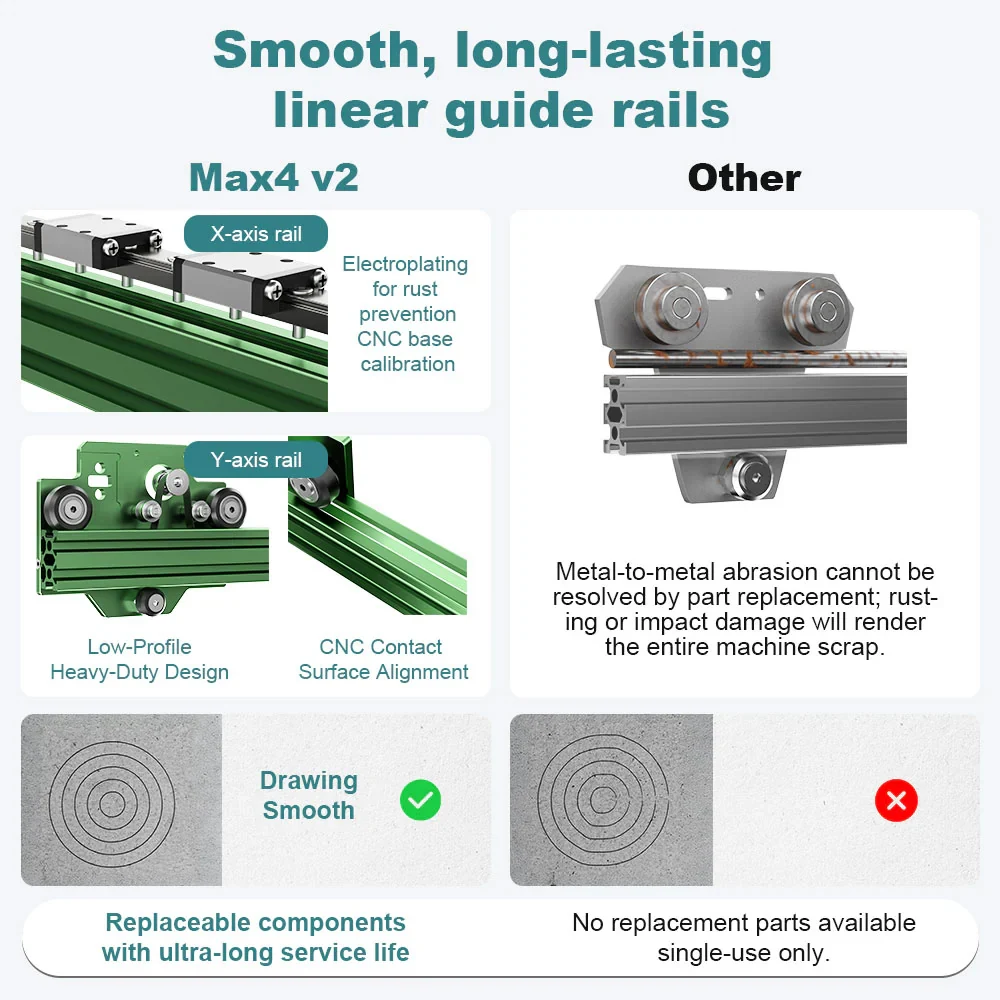

-Dual-slider rails with low wear coefficient

-Optimized gantry structure for rapid damage response

-External fan design for easy replacement

-NEJE factory-controlled quality, top-tier light source

-2-year warranty + lifetime spare parts

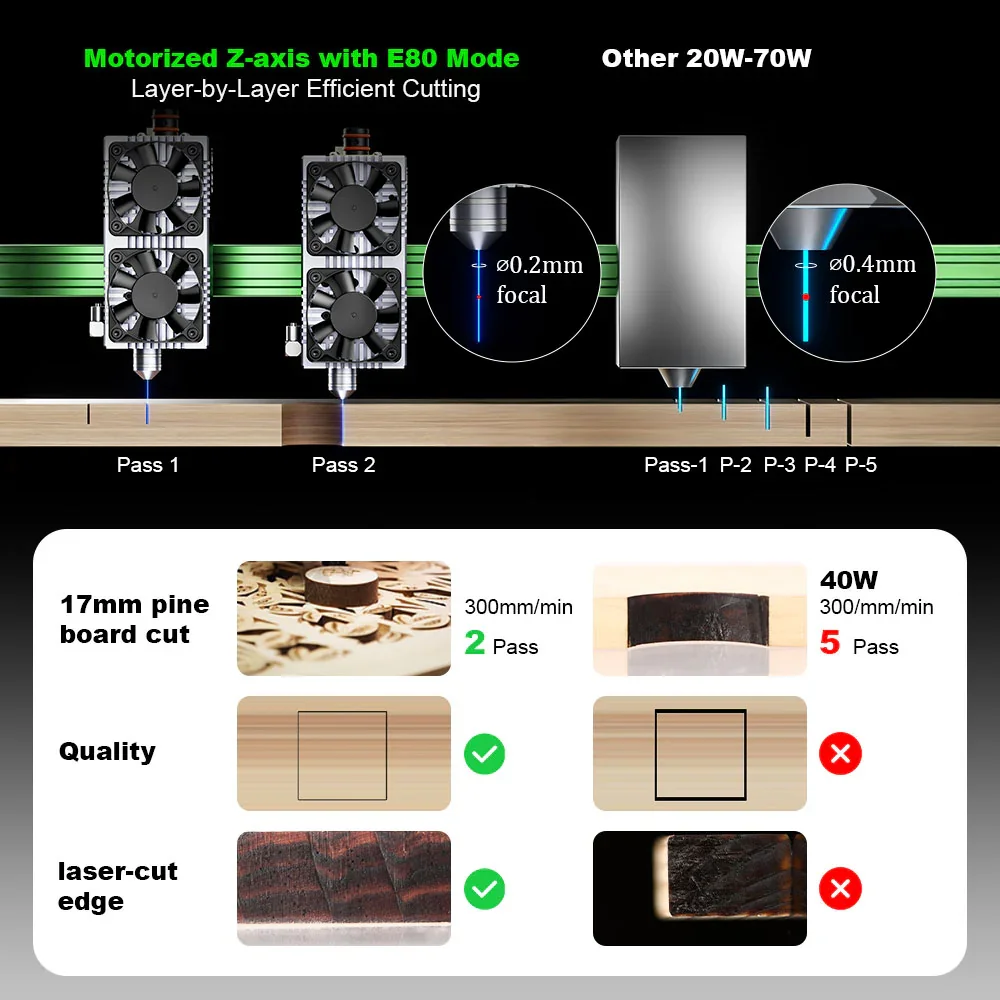

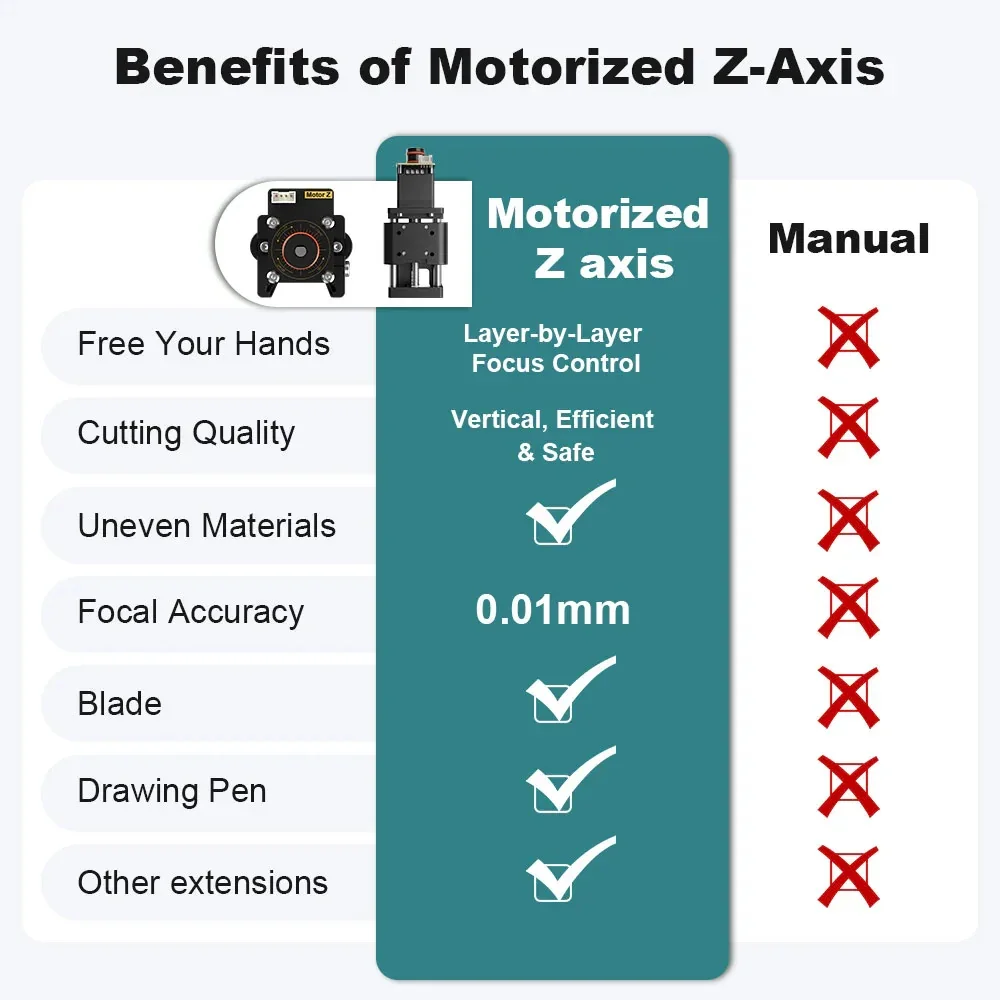

Precision Z-Axis Control

-Multi-layer electric Z-axis with 0.1mm manual focus adjustment

-Eliminates angled cuts on uneven surfaces

-Optimized for natural materials & complex engravings

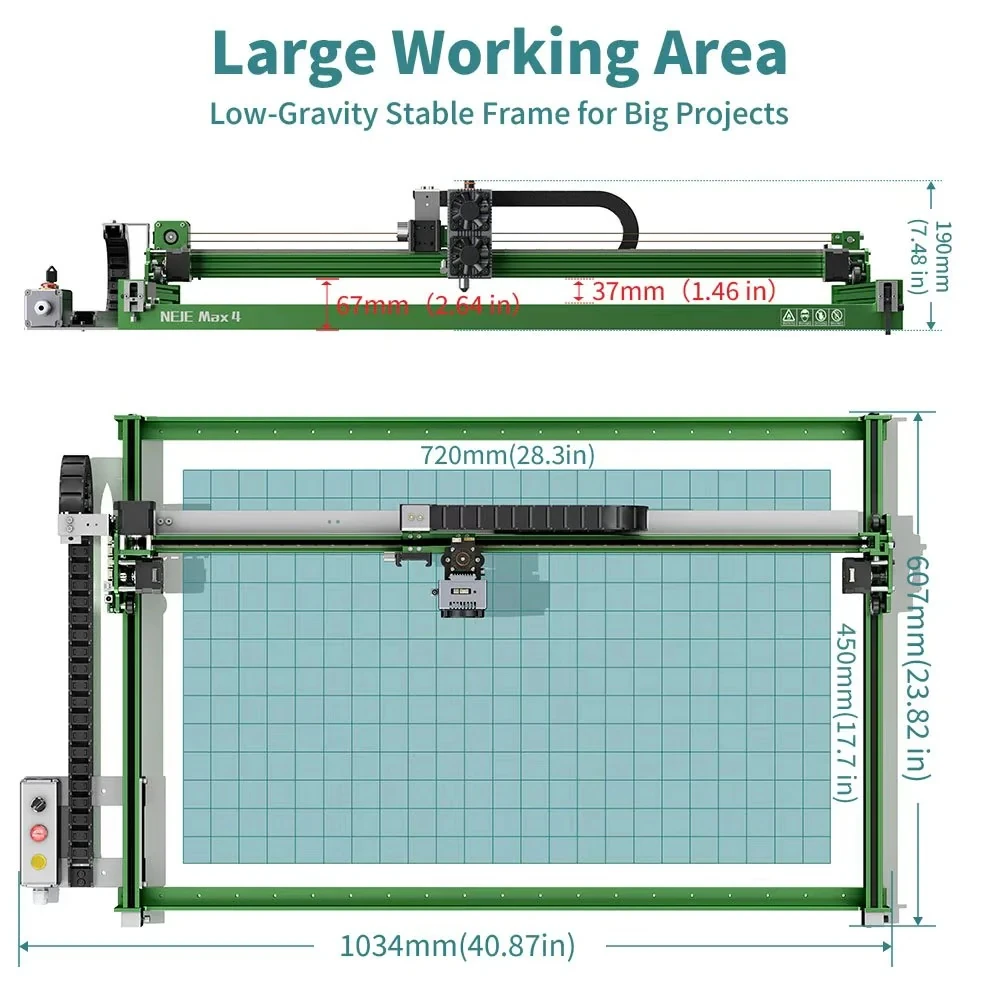

Expanded Work Area

-Standard 720×450mm + expandable to 720×1030mm

-Supports large-format projects: architectural models, lamp art, fabric/corrugated paper/canvas/wall art

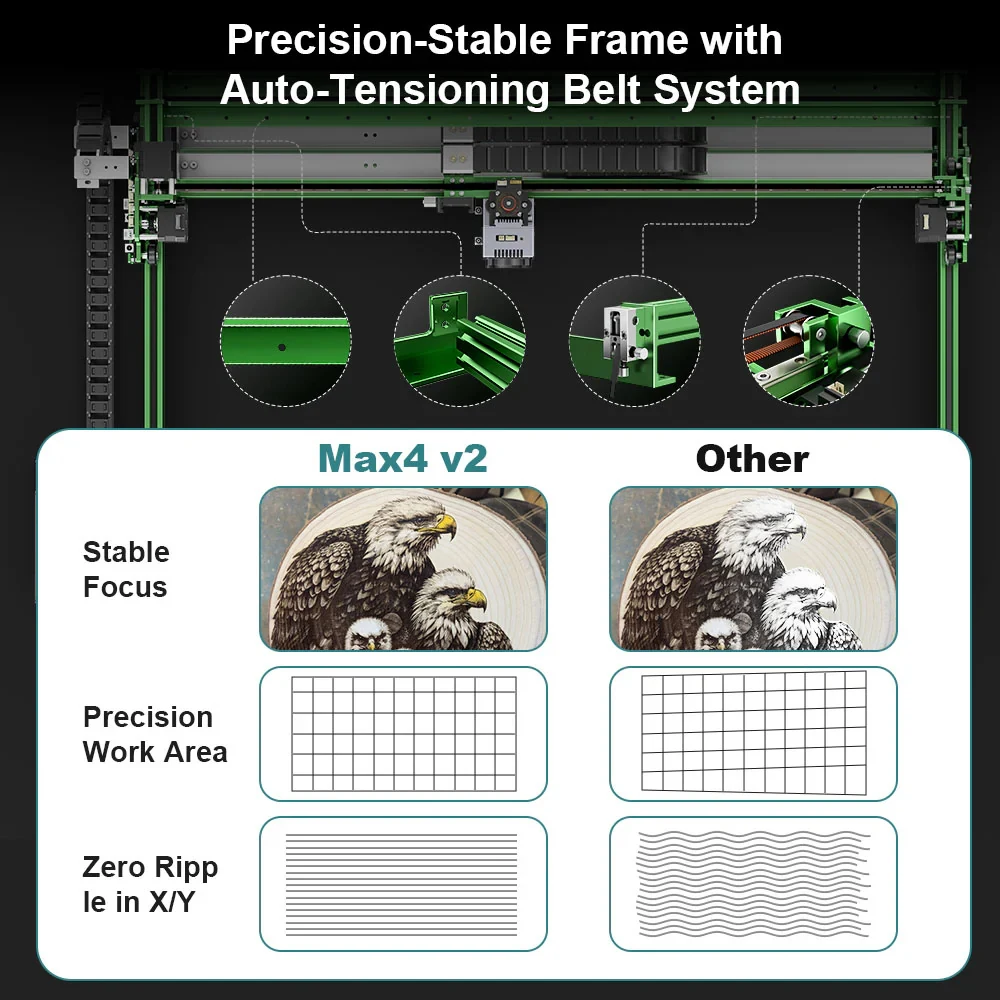

One-Click Tension System

-Single-screw tension adjustment for precise model cutting

-Enhanced stability for aerospace-grade precision

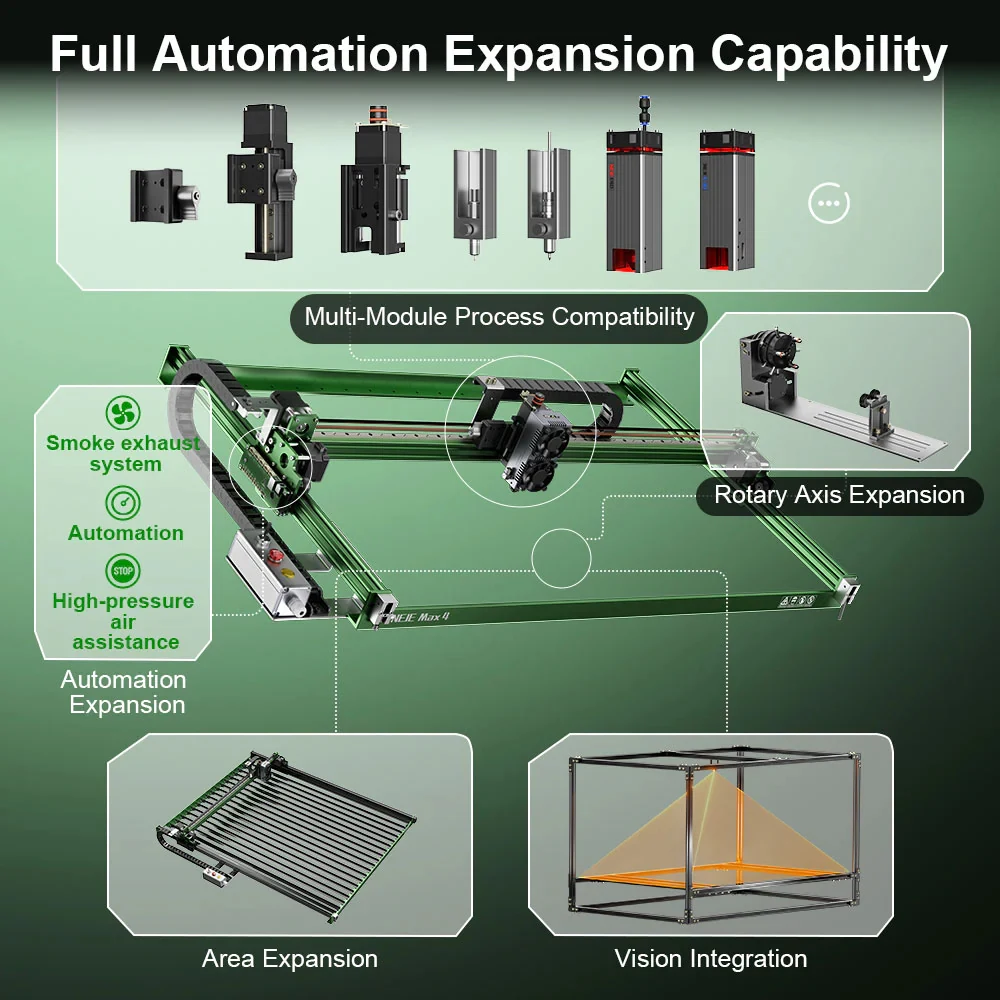

Automation Expansion

-M8/M7 Door peripheral control compatibility

-Relay/high-pressure valve modules for multi-process workflows (cutting+engraving sync)

Multi-Process Modules

-Supports Blade, Drawing Pen, Spindle, and additional laser modules

Specification

Product Model：NEJE Max4 V2
Device Size：1034x607x190mm
Engraving Size：720×450mm (28.3×17.7in）expandable to 720×1030mm (28.3×40.6in）Maximum Speed：1000mm/s with ​​100,000 mm/s²
Limit Button：None, Contactless Reset Technology
Repetition Accuracy：0.1mm
Laser Wavelength：455±5nm
Focus Adjustment Method：Motorized Z-axis with customizable focal point positioning for each element and 0.1mm manual focus adjustment precision.
Spot Size：90 µm*90 µm
Laser Optic Output Power：20W+
Transmission Method：BLE, USB
Support Systems：IOS, Android, Windows, Mac
Air Flow Rate：0-60 L/min
Air Flow Power Supply：Input 100-240V AC, 50/60HZ, output 12V 3A
MEMS Vibration Protection：Three-level adjustable
Memory：512MB
Machine Power Supply：Input GaN 100-240V AC, 50/60HZ, output 24V 5A
Quality Certification：CE, FCC, RoHS, FDA, PSE
Cutting Materials：Steel plate 0.15mm; Wood & plywood < 30 mm, MDF < 10 mm；Leather < 4 mm, PU/PVC Leather < 4 mm；Corrugated cardboard < 18 mm, Hard cardboard 3 mm, Scratch paper Weeding invitation paper, Colored A4 paper, Kraft paper; Vinyl, Non-woven, ABS sheet < 2 mm - Dark, color PVC sheet 2 mm - Dark color; Cotton, Linen, Velvet, Canvas, Fabric polyester, Fabric synthetics;
Software & Service：LaserGRBL, LightBurn, NEJE Win Software​​ (Professional multi-layer control software, featuring NEJE "REC" function and NEJE "Bridge" function)​​NEJE App​​ (Android app, Android phone-to-PC wireless transfer tool; iPhone and Mac APP)​​NEJE Cloud​​ (Content service platform)​​NEJE OTA​​ (Over-the-air software and firmware update service)

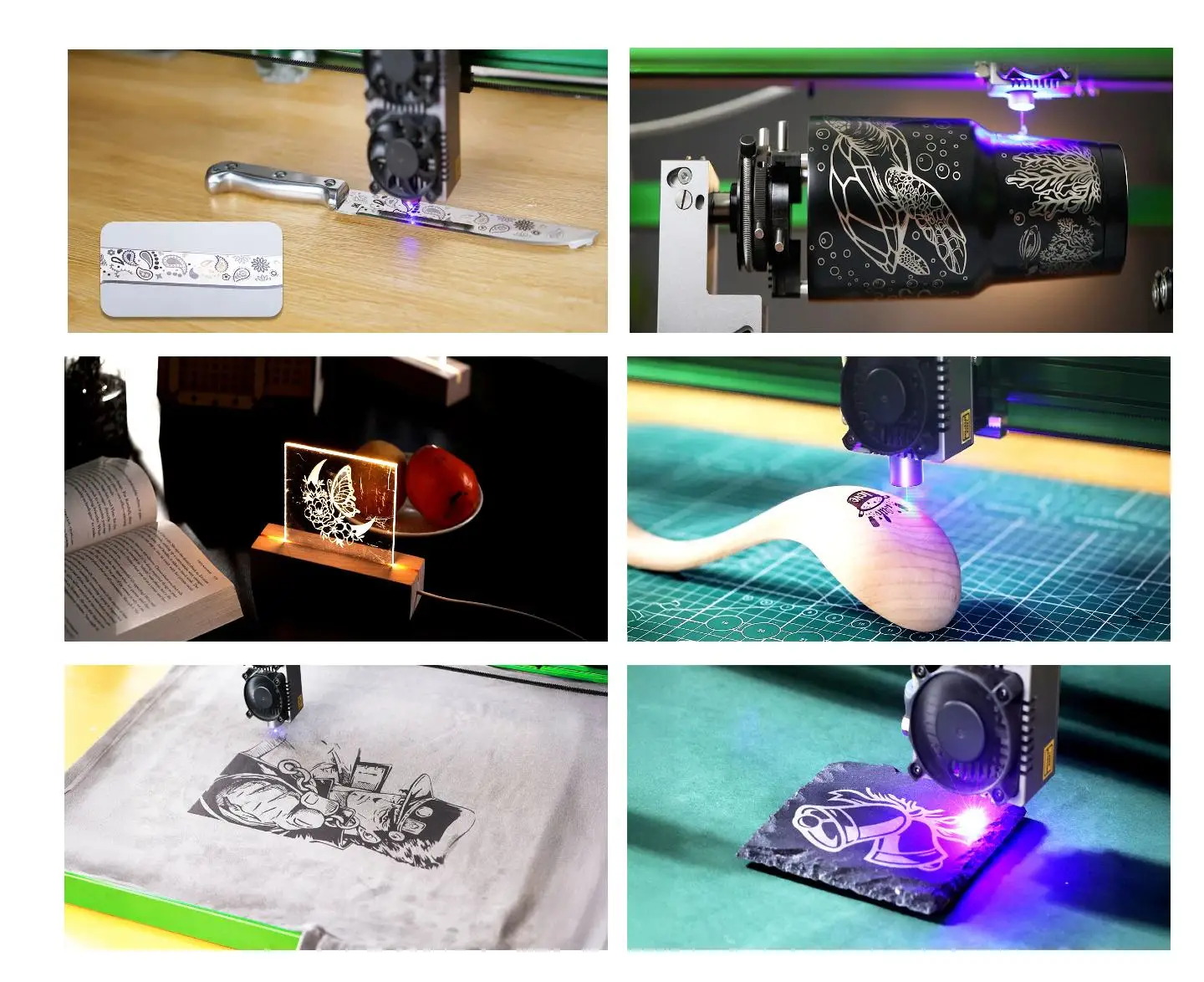

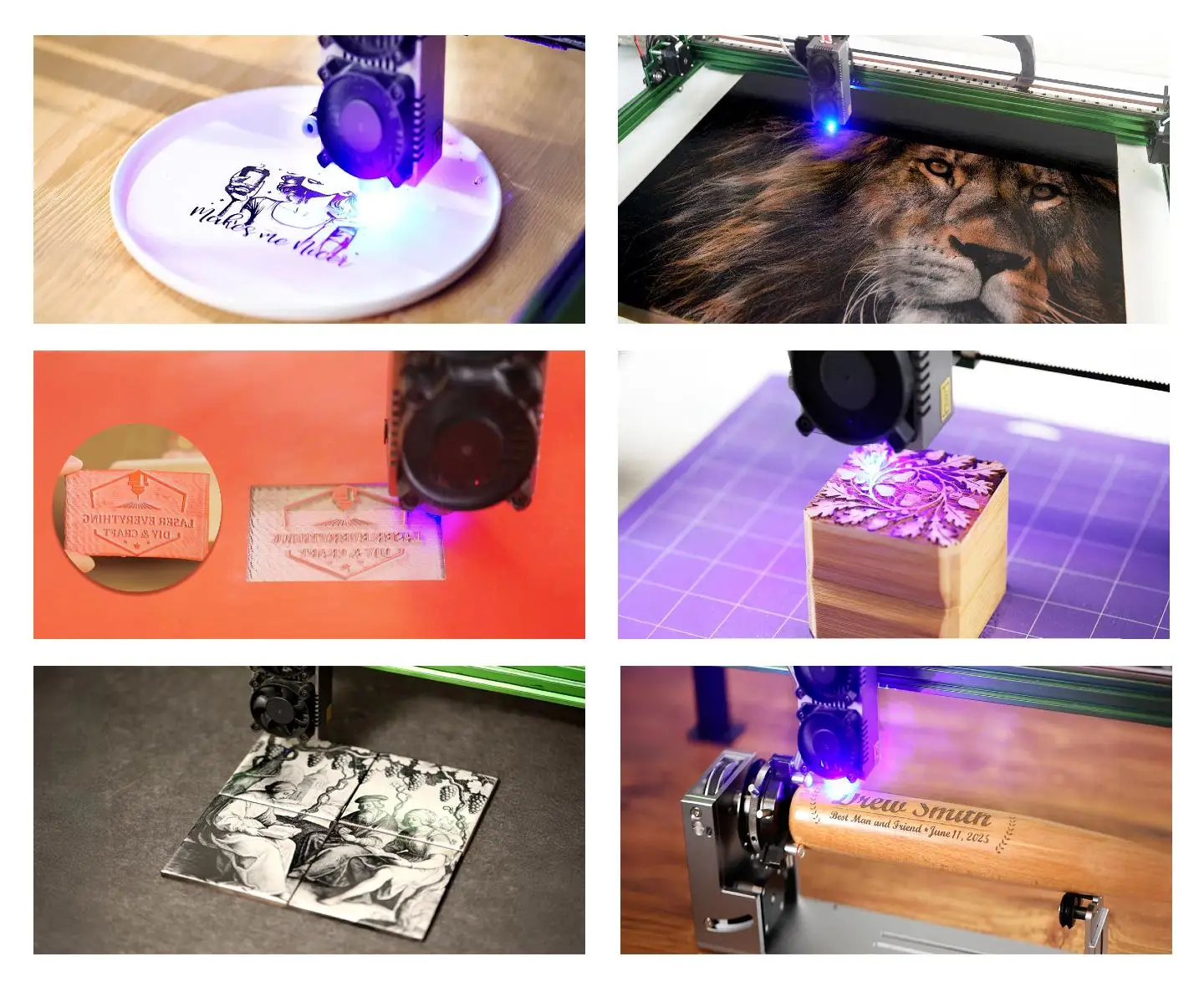

Engraving Materials：Wood, bamboo, cardboard, plastic, leather, PCB board, aluminum oxide, non-reflective electroplated and painted metal, 304 mirror stainless steel, glass, ceramics, cotton, slate;
Motion System：X-axis: 42mm × 42mm × 40mm stepper motor, Y-axis: Dual 42mm × 42mm × 30mm stepper motors (Y1 + Y2), Z-axis: 28mm stepper motor, Independent A-axis reference interface, Full 16-tooth 2GT timing pulleys;
