100mm-300mm Stroke SFU1605 C7 Ballscrew Manual Linear Actuator Sliding Table Stage Handwheel Linear Rail for CNC 3D Printer 60KG

1* Sliding Table

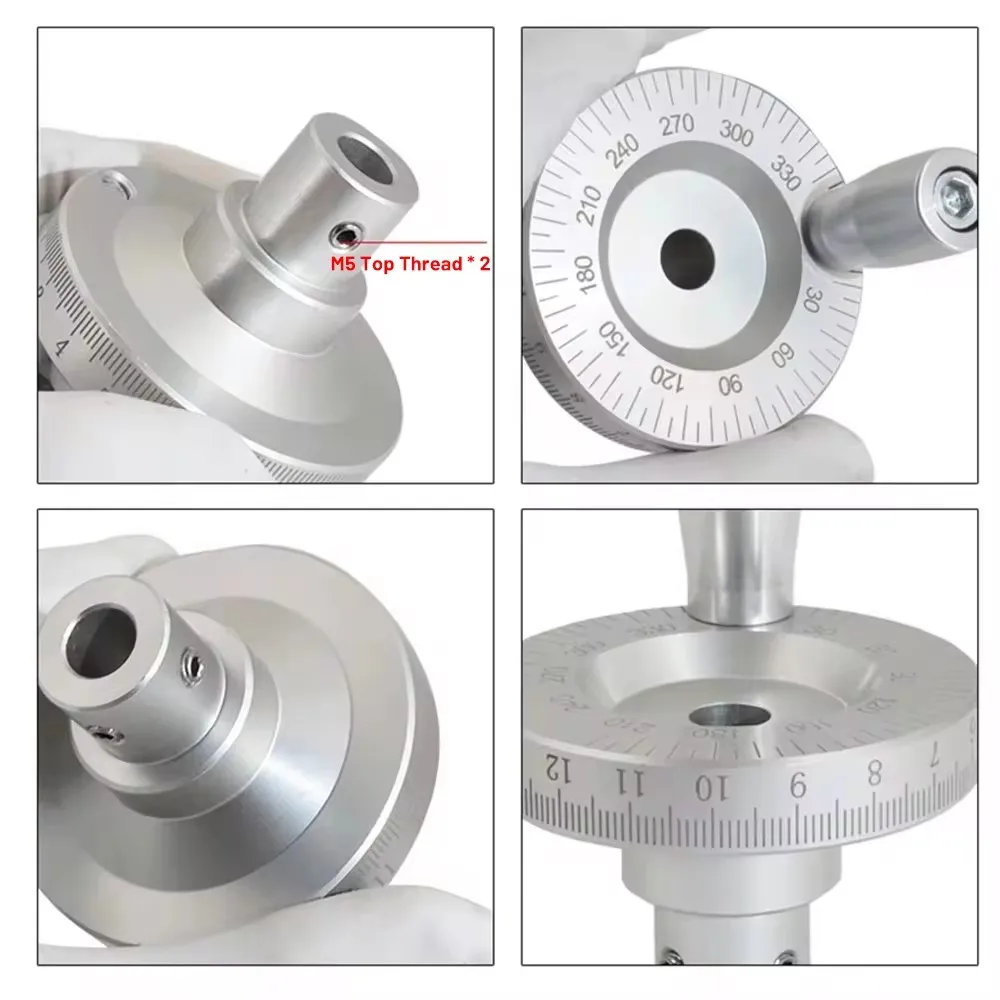

1* Metal scale handwheel

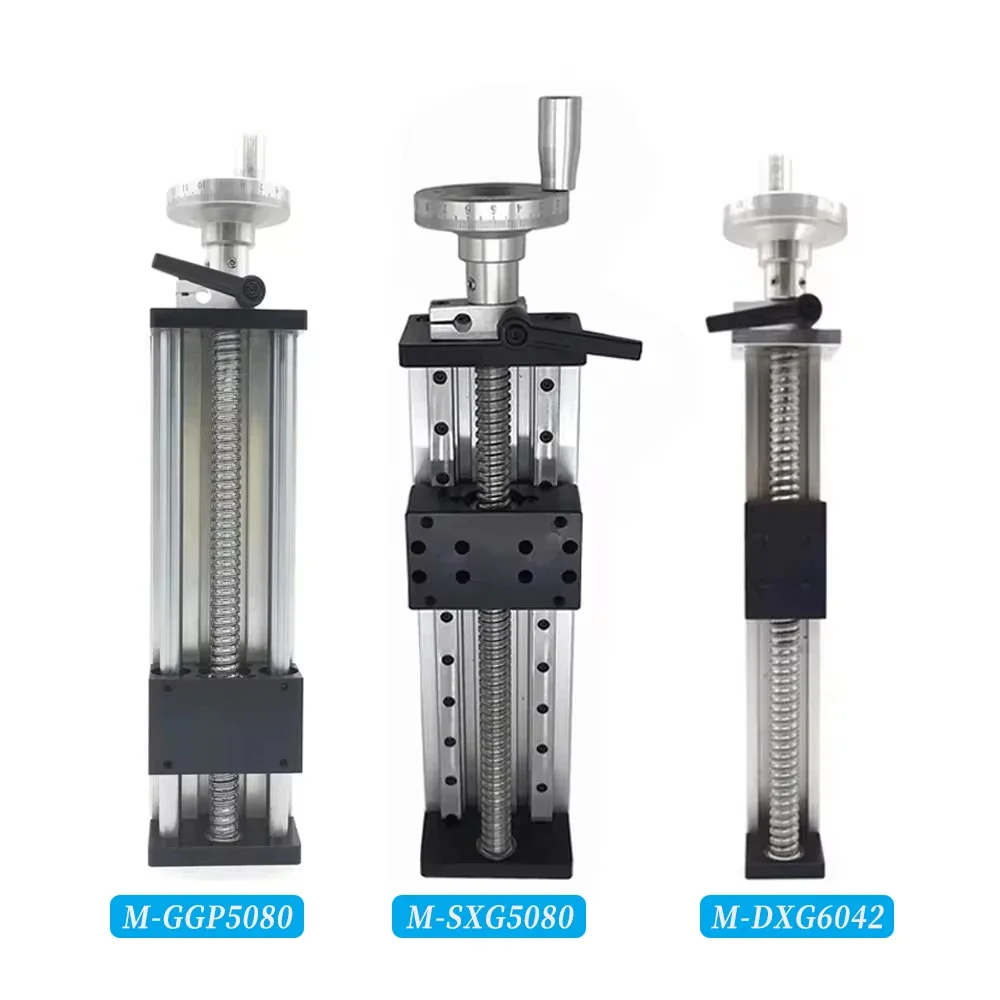

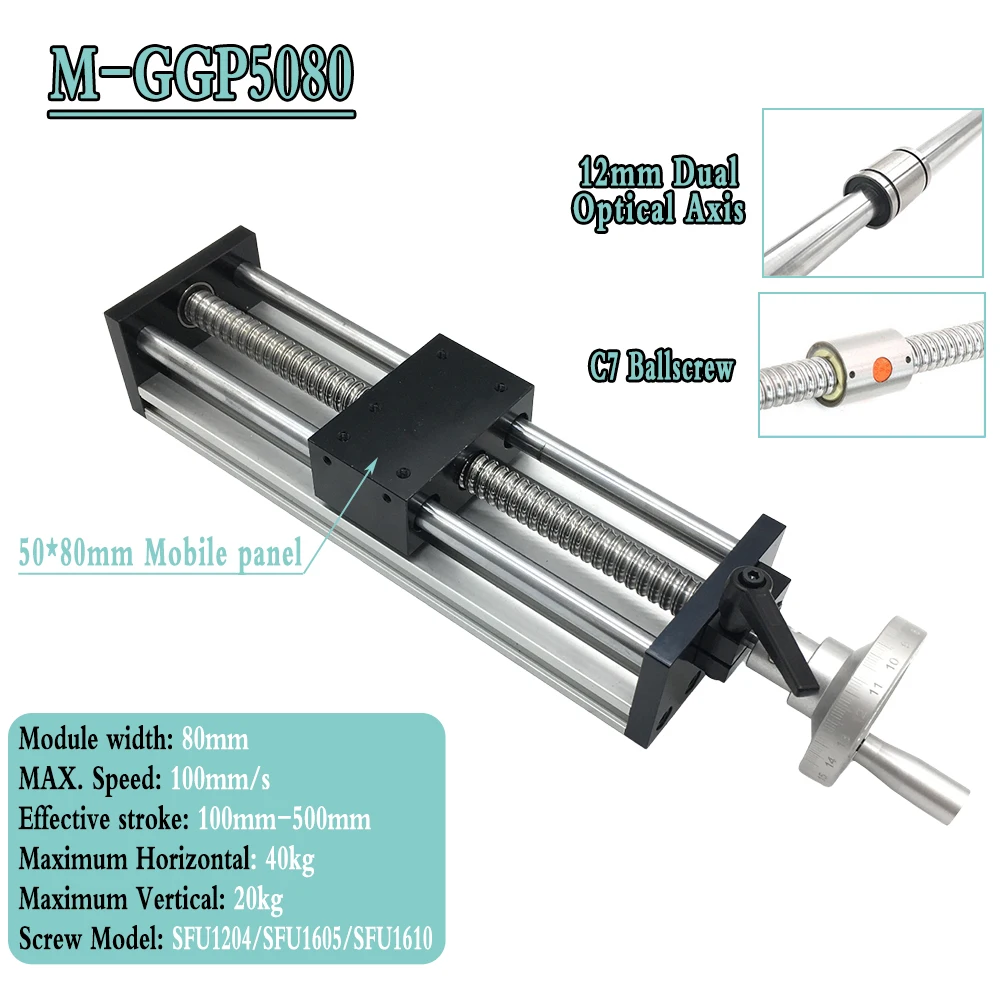

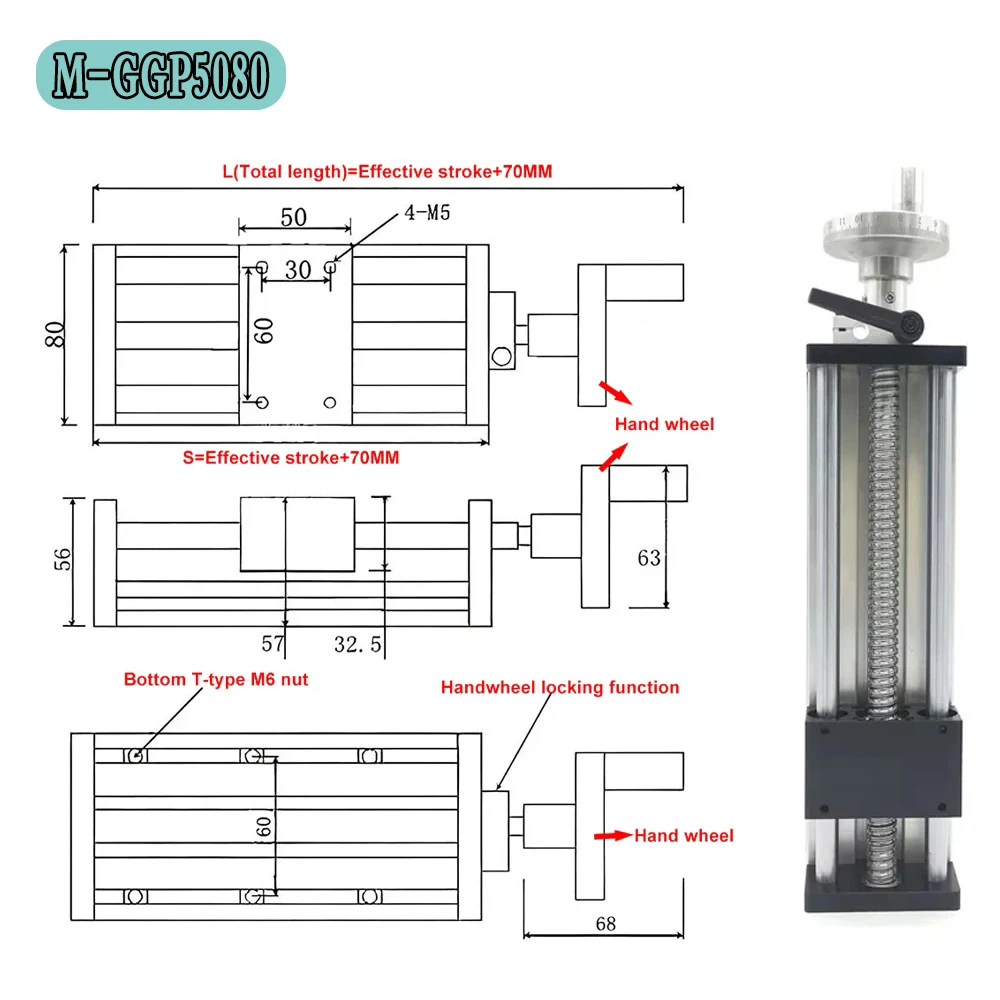

●Model: M-GGP5080
●Ballscrew type:SFU1605(SFU1605 means:Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)
●Ballscrew accuracy: C7 level
●Effective stroke: 100mm-300mm
●Total length: Effective s troke +70mm
●Mobile panel size: 50 *80mm
●Guide Type: 2*12mm optical axis rod
●Horizontal load: 40KG (Max)
●Vertical load: 20KG(Max)
●Maximum speed: 100mm/s
●Ballscrew Repeat positioning accuracy: 0.03-0.05mm
●Material: Industrial Aluminum Profile

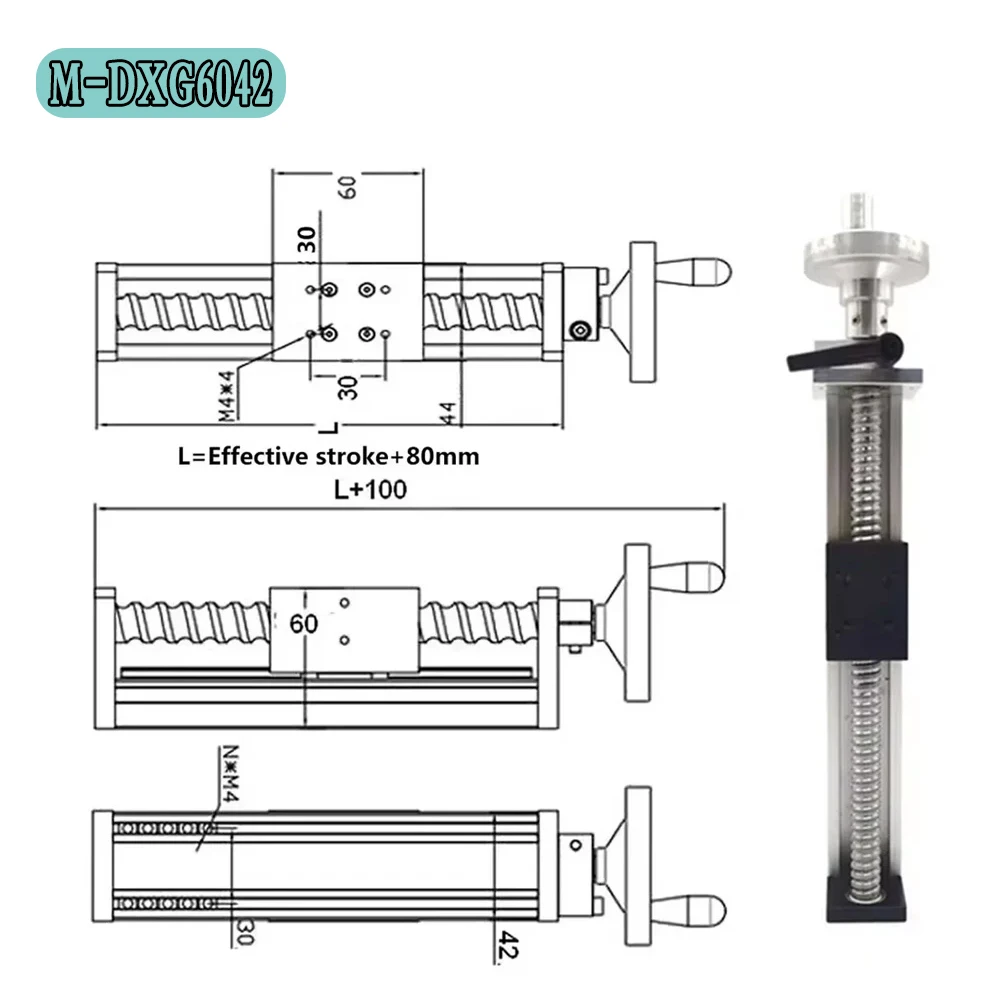

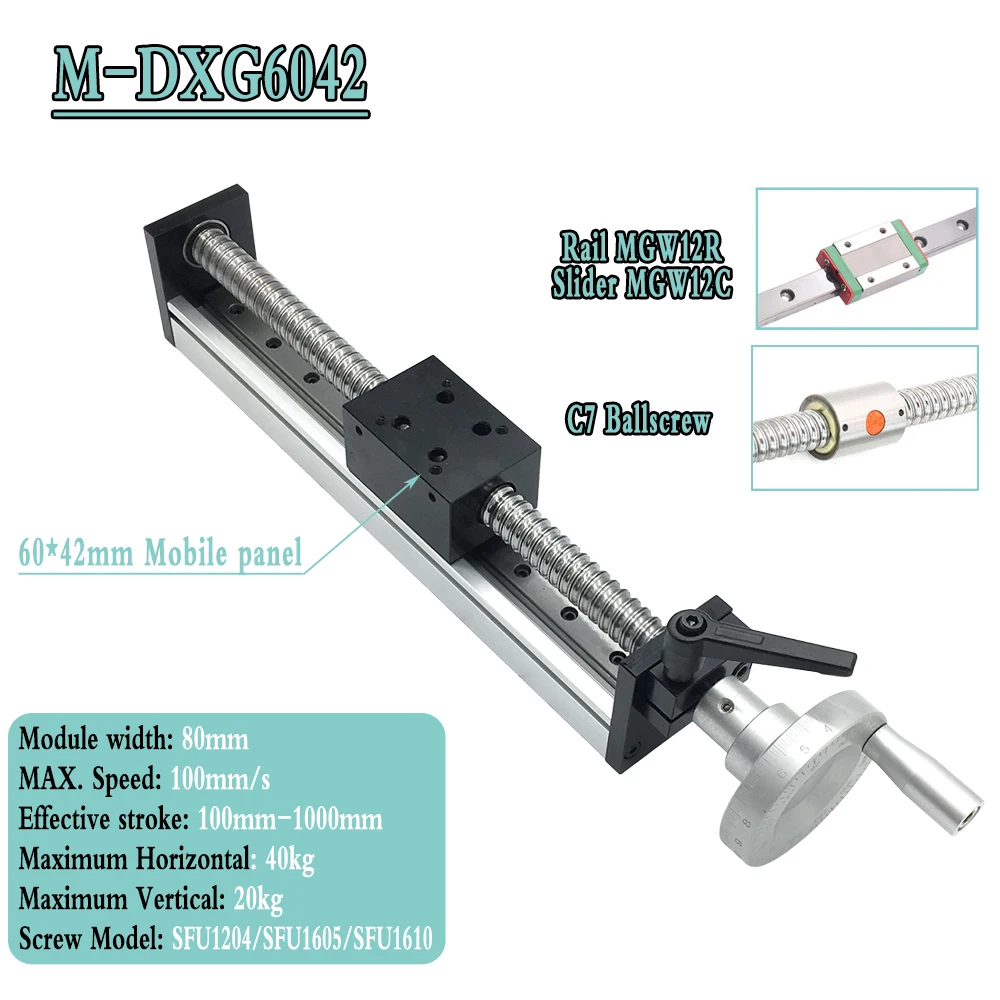

●Model: M-DXG6042
●Ballscrew type: SFU1605 (SFU1605 means:Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)
●Ballscrew accuracy: C7 level
●Effective stroke: 100mm-300mm
●Total length of slide: Effective stroke+80mm
●Mobile panel size: 60mm*42mm
●Guide diameter: 12mm
●Guide Type: MGW12R
●Slider Type: MGW12C
●Horizontal load: 40KG (Max)
●Vertical load: 20KG (Max)
●Maximum speed: 500mm/s
●Ballscrew Repeat positioning accuracy: 0.02-0.03mm
●Material: Industrial Aluminum Profile

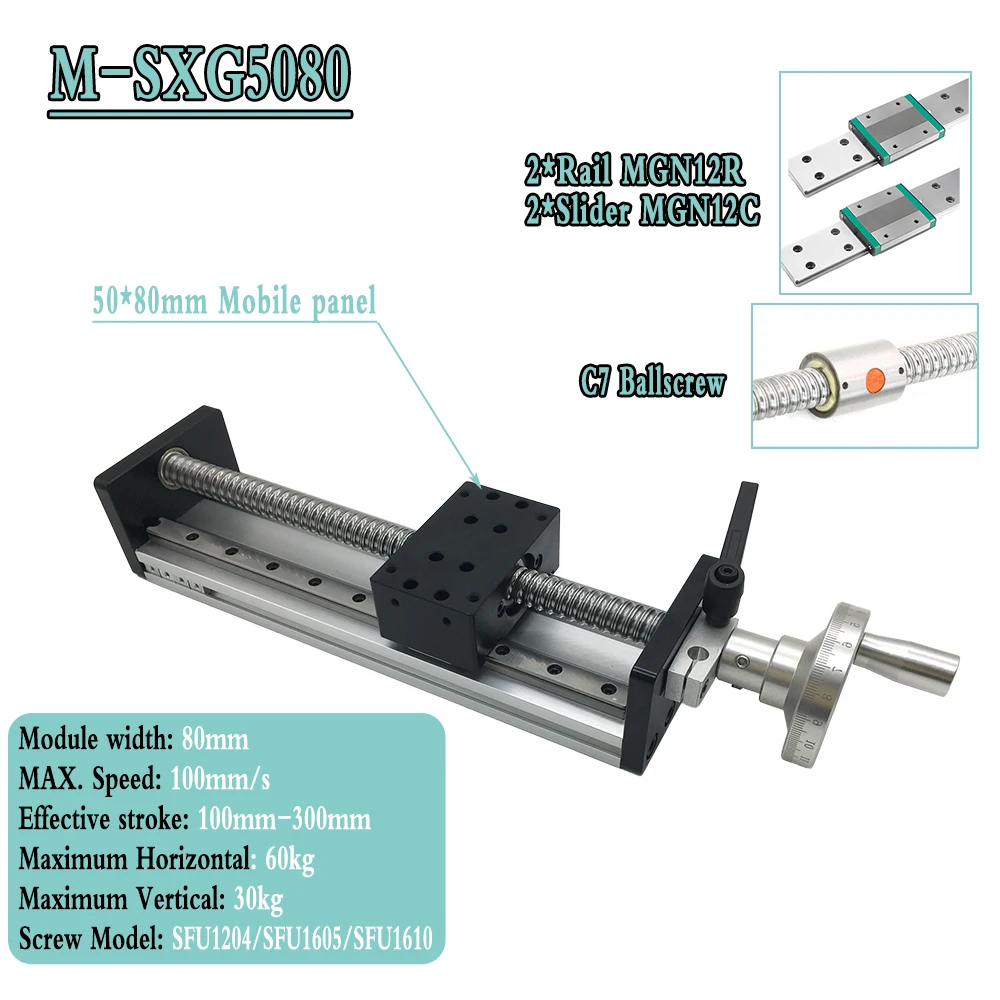

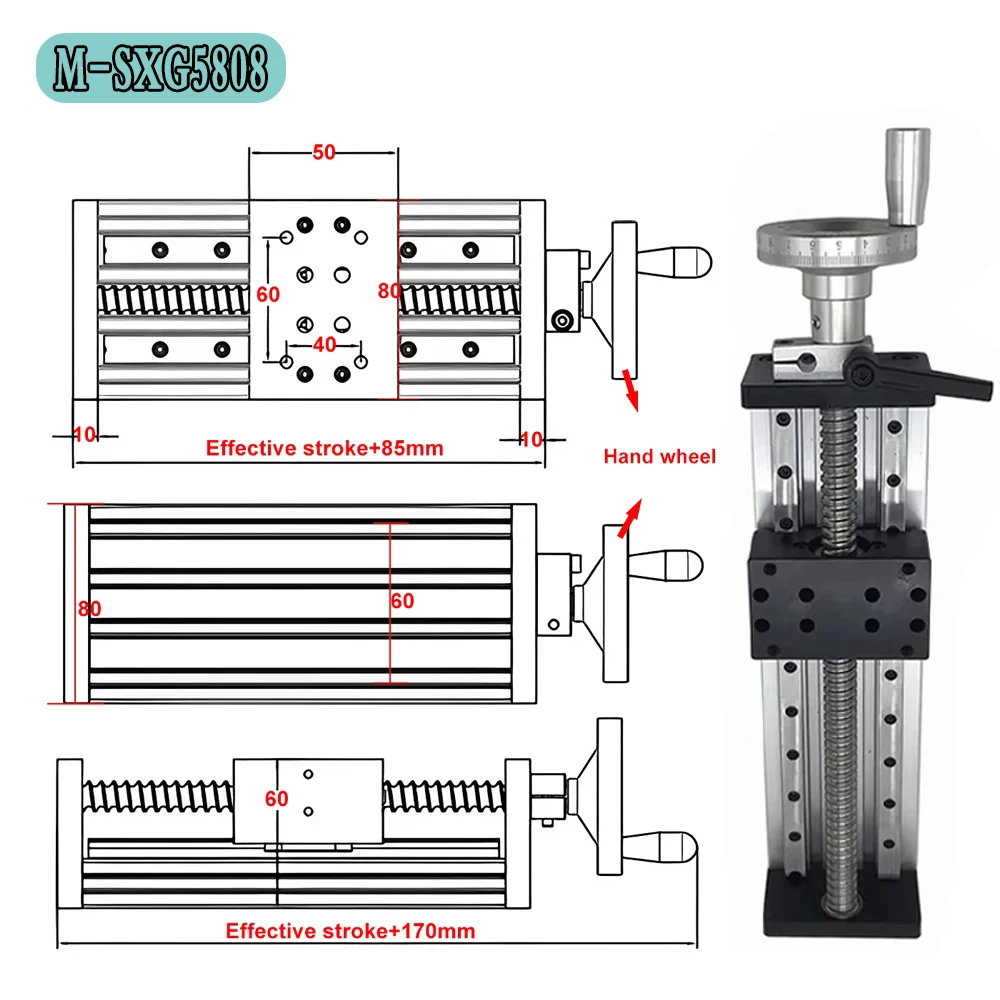

●Model: M-SXG5080
●Ballscrew type: SFU1605 (SFU1605 means:Screw Diameter 16mm, Pitch 5mm,the screw rod rotates once and the panel moves 5mm)
●Ballscrew accuracy: C7 level
●Effective stroke: 100mm-300mm
●Total length: Effective stroke+85mm
●Mobile panel size: 50*80mm
●Guide diameter: 12mm
●Guide Type: 2*MGN12R
●Slider Type: 2*MGN12H
●Horizontal load: Max 60KG
●Vertical load: Max 30KG
●Maximum speed: 500mm/s
●Ballscrew Repeat positioning accuracy: 0.02-0.03mm
●Ballscrew and linear rail material: Carbon steel and bearing steel
●Base plate material: Aluminium alloy
