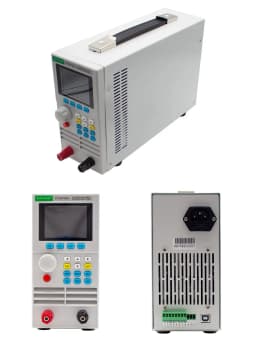

ET5410A+ Programmable DC Load Battery Capacity Tester 150V/40A/400W RS485 Interface Software Electronicload Shipping From Brazil

ET54A+ Series Programmable DC Electronic Load

General Information:

ET54A+ programmable DC electronic load provides 1mV/ 1mA high resolution and

precision with superior performance, which can be widely used in charger, switching power supply, linear power supply, battery and other production line testing, as well as the research institutions and other research and development fields.

Products Features:

Ø User-friendly Design:

l It adopts 2.8-inch TFT LCD screen with rich display contents; Support Chinese and English;

l The operation process is simple and convenient, and with visual interface display system, it is

easy to get started.

l Key lock function to prevent misoperation;

Ø High Performance Load

l It provides CC, CV, CR, CP and CC+CV, CR+CV several basic measurement modes;

l It provides professional battery test and LED test;

l The Tran test mode can test the dynamic output performance of the power supply;

l The scan test mode can test the continuity of power output within a certain range;

l The list test mode can simulate a variety of loading status changes;

l The short circuit test can be used to simulate load short circuit;

l Support external trigger input (DB9 interface is required);

l Built-in buzzer alarm;

l Maintain data storage in case of power failure;

l Remote operation via USB, RS-232 (optional) or 485 (optional) interfaces;

l Equipped with software remote compensation

Ø Multiple safety protection:

l It provides overcurrent, overvoltage, overpower, over temperature protection. The overvoltage

and overcurrent parameters can be set flexibly, so as to effectively protect the load;

l It has intelligent fan speed control function, which can effectively reduce the fan noise when it is working.

l With input polarity reverse prompt;

General technical specifications:

l Power supply voltage: 100Vac±10%~240Vac±10%，50/60Hz

l Display: 2.8-inch TFT LCD screen with resolution of 320×240

l Operating temperature: 0℃ to 40℃

l Storage temperature: -10℃ to 70℃

l Relative humidity: < 80%

l Interface: standard USB, optional RS232(or 485)

l Size: 90mm×190mm×300mm (width × height × depth)
Standard accessories:

l Power cord * 1

l Power fuse * 2

User manual* 1

Product Features

1. Equipped with a visual interface display system, simple and convenient

2. Maintain data storage in case of power failure, with input polarity reverse prompt

3. Equipped with PS2 interface, supporting external keyboard for data value setting; Multiple security protection

4. It provides overcurrent, overvoltage, overvoltage, and temperature protection. The overvoltage and overcurrent parameters can be flexibly set to effectively protect the load

5. It has intelligent fan speed control function, which can effectively reduce fan noise during operation

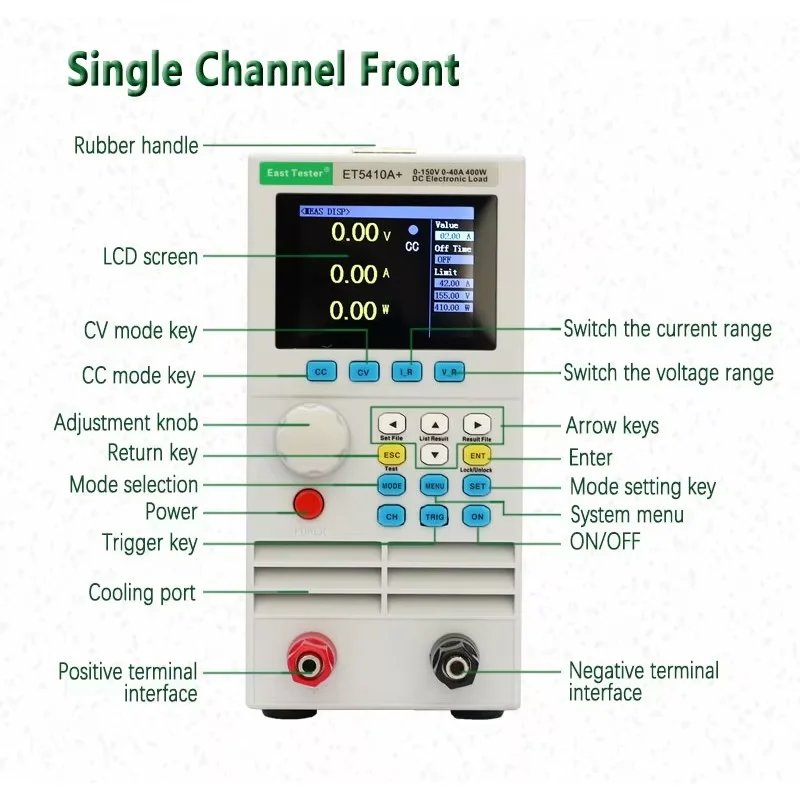

Humanized Design:

Using a 2.8-inch TFT high-definition LCD display with rich display content, supports Chinese and English display;
 The operation process is simple and convenient, and with the intuitive interface display system, it is easier to get started;
With key lock function to prevent misoperation;

High Performance Loads:

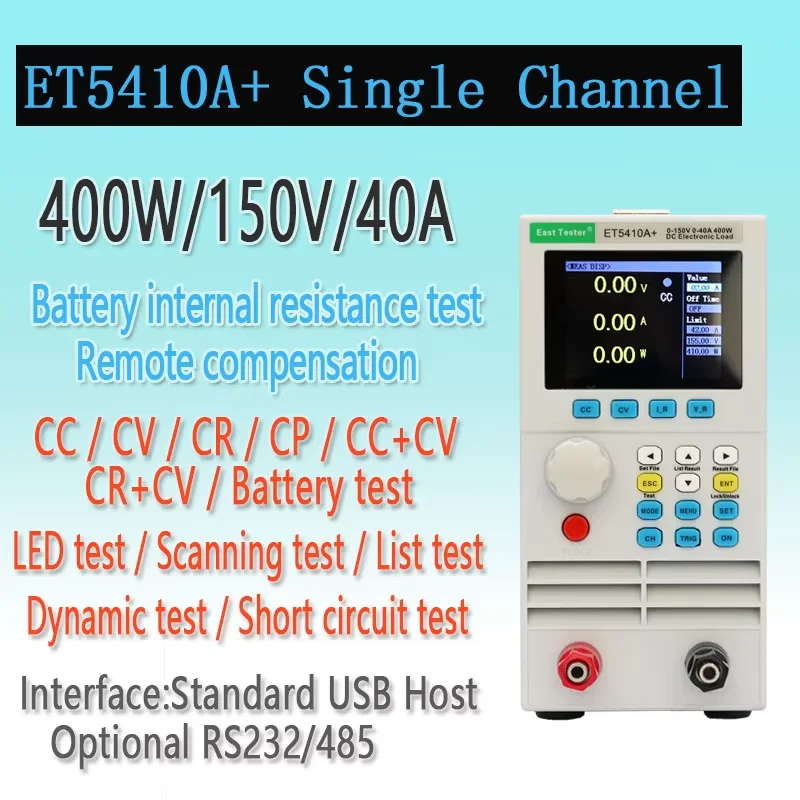

 Provides 6 basic measurement modes, CC, CV, CR, CP, CC+CV, CR+CV, and 6 professional measurement function modes;
Provide battery test function: it can be used for capacity test of various batteries;
Provide LED test function: it can be used to simulate the performance test of LED power supply;
Provide dynamic test function: it can be used to test the dynamic output performance of power supply;
Provide scan test function: it can be used to test the continuity of power supply output within a certain range;
Provide list mode function: it can be used to simulate a variety of load state changes;
Provide short circuit test function: it can be used to simulate load short circuit;
Provide battery/power supply internal resistance test function;
Provide qualified testing function;
Provide remote compensation function;
 Power off to keep data storage function;
Provide one-key entry and one-key exit operation buttons, which are easier to use and operate;
Support external trigger input;
Built-in buzzer alarm;
On-line operation can be performed through the standard USB communication interface;

Multiple Security Protections:

It has overvoltage, overcurrent and overpower protection functions, and can flexibly set overvoltage and overcurrent parameters to effectively protect the load;
It has a secondary over-temperature protection function to realize double over-temperature protection of software and hardware;
 With intelligent fan speed control function, effectively reduce fan noise during work;
With output polarity reverse protection;

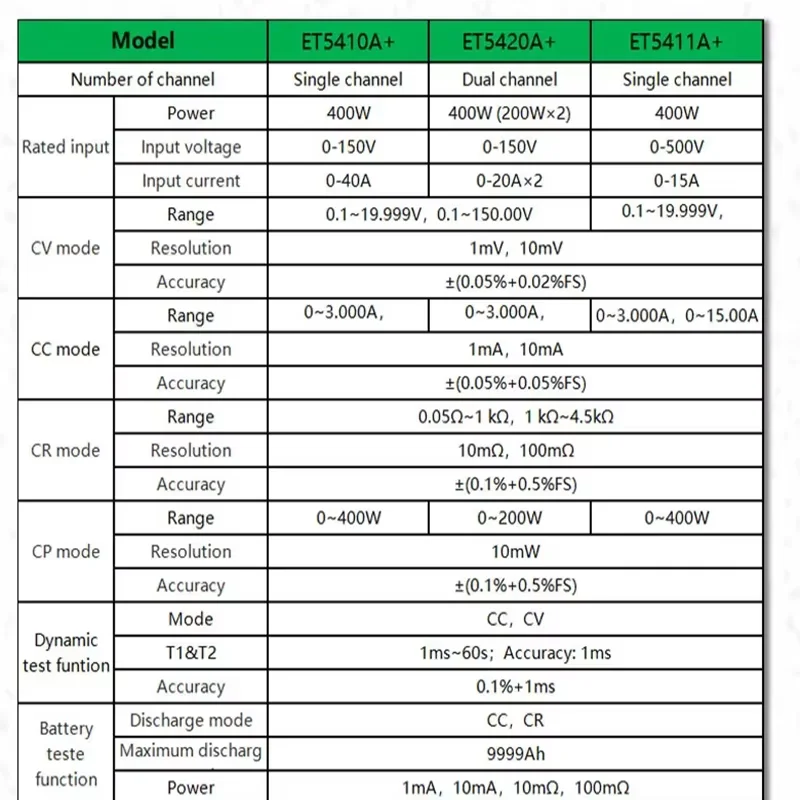

General Technical Specifications:

Power Supply Voltage: 100Vac±10%~240Vac±10% 50/60Hz
Display: 2.8-inch TFT LCD screen with resolution of 320×240
Operating Temperature: 0℃ to 40℃
Storage Temperature: -10℃ to 70℃
Relative Humidity: < 80%
Interface: Standard USB, optional RS232 (or 485)

Packaging includes:

1 x ET5410A+DC load

1 x power supply

2 x fuses

1 x English manual

Features:
**Advanced Performance and Precision**
The East Tester Programmable DC Electronic Load ET5410A+ is a state-of-the-art device designed for a wide range of applications in the electrical field. With a 150V/500W 40A 400W power capacity, this load testing tool is ideal for testing batteries, chargers, switching power supplies, and linear power supplies. The high resolution of 1mV/1mA ensures precise measurements, making it an indispensable tool for professionals and hobbyists alike.

**User-Friendly Design and Versatile Functionality**
The ET5410A+ boasts a user-friendly design with a 2.8-inch TFT LCD screen that displays rich content in both Chinese and English. The operation process is simple and convenient, thanks to the visual interface display system. The key lock function prevents misoperation, ensuring safety and reliability. The load testing tool offers a variety of measurement modes, including CC, CV, CR, CP, and CC+CV, CR+CV, catering to diverse testing needs.

**Safety and Protection Features**
Safety is paramount with the ET5410A+, featuring overcurrent, overvoltage, overpower, and over temperature protection. The overvoltage and overcurrent parameters are adjustable, allowing for customized protection settings. The intelligent fan speed control function reduces fan noise, while the input polarity reverse prompt ensures safe operation. The load testing tool is designed to maintain data storage in case of power failure, ensuring that your test results are not lost.

**Versatile Application and Support**
The ET5410A+ is not just a load testing tool; it's a versatile device that supports various scenarios, including residential electrical load calculation, Honda electronic load detector, free website load testing, and best load testing tools. It's an essential tool for load testing in JMeter, providing accurate and reliable results. With its standard USB interface and optional RS232 or 485 interfaces, the ET5410A+ is ready to integrate seamlessly into your testing workflow.
