LASER TREE 60W 40W 30W 20W Laser Module with Air Assist TTL Blue Light Module For CNC Laser Engraver Cutting Woodworking Tools

Description

The LT-4LDS-V2 is a professional cutting module designed for long-term safe cutting and fine engraving processes. It is a blue laser head with an output of 20W optical power. Compared with V1, V2 has been greatly improved with a new housing design, easier to use air assist, longer focal length and more stable cutting output power. Cut 10mm of plywood at 3mm/sec at a time, easily creating the desired effect on the pattern. If you spend most of your work time cutting, then the LT-4LDS-V2 will be a good partner for you.

20W Optical Power Output With Air Assist

1.4-Beam compressed technology, 20W ultra-strong optical power laser module.
​2.Built-in fan cooling system, effective cooling to extend the service life.
​3.Air assistance performance update;change the diameter of air tube from M5 to M8, to get stronger air pressure at air nozzle。
​4.Newly upgraded protective window design, effective filtering of blue light
​5.Compatible with various engraving machines on the market (consult customer service if you are not sure)
​6.High stable 2EDG3.81 connector, up to 7A operating current.

Specification:

Optical power: 18-22W
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm(±10nm)
Input voltage: 24V 4A
Interface parameters: support TTL signal control power

LT-K20 (Optical Power 20W) Features:

1. Ultra High Power
LaserTree K20 is a true 19-21W output optical power laser engraving and cutting module. It uses beam compressed technology to combine 4pcs 5W laser diodes into a powerful laser beam with 20W laser power.
2. Powerful Cutting Ability
12mm basswood plywood: 120mm/min, 1 pass；
12mm black acrylic: 25mm/min, 1 pass；
15mm pine wood: 100mm/min, 1 pass；
5mm MDF: 100mm/min, 1 pass.

K30 High Power Laser Module

The LASER TREE K30 is a true 28W-32W output laser engraving and cutting module designed for powerful cutting. It uses beam compression technology to combine six 5W laser diodes into a single powerful laser beam with 30W laser power.​Its power can give you a completely different cutting experience.In order to improve the compatiblity to different laser engraver machine, K30 provide a solution by adapter board for electric compatibiliy, and sliding plate with multi holes for installation compatibility. Electric compatibility can be checked easily by 'power' and 'signal' LED indicator. Focusing is more convenient, and the dual fan cooling is excellent. These features give the K30 reliable and stable performance and higher service life.​If you need to cut large amounts of thick material and speed up production, the powerful LASER TREE K30 is a good choice.

The Latest Laser Engraver Solution

🏆Built-in Air Assist & Dual Fan Cooling Design - Built-in air assist improves cutting performance, and reduces air resistance, resulting in faster, deeper, and smoother cutting with fewer burn marks, cutting accuracy and cutting quality can also be optimized to a great extent. Dual fan cooling design, excellent heat dissipation improves laser head stability and service life.
🏆High Temperature Warning Function: Due to excessive working temperatures can reduce the life time of the laser head at an accelerated rate, so LASER TREE create a solution with working temperature display for laser module K30, so that you can check the internal temperature of the module easily. The buzzer will sound an alarm when the temperature of the laser head is higher than 55℃ ( Suggested working environmental temperature <35℃.)
🏆K30 Laser Head Detail Design: a. The working frame can be positioned by red crosshair, it is helpful for improving the convenience of the secondary cutting as well; b. Focus bar design makes it easy to set the focus of the module; c. The top of the laser module adds an air tube holder and cable holder 2-in-1 stainless steel piece.

K40 8*5.5W Laser Module

LASER TREE K40 is a true 40W+ output laser engraving and cutting module designed for powerful cutting. It uses beam compression technology to combine 8*5.5W laser diodes into a single powerful laser beam with 40W+ laser power. Its power can give you a completely different cutting experience. In order to improve the compatibility with different laser engraver machines, K40 provides a solution by an adapter board for electric compatibility and a sliding plate with multi holes for installation compatibility. Electric compatibility can be checked easily by 'power' and 'signal' LED indicators. Focusing is more convenient, and the dual fan cooling is excellent. These features give the K40 reliable and stable performance and higher service life.

A One-Stop Solution For All Your Machine Upgrades

🏆Built-in eight high-performance fast-axis compression diodes, which can provide up to 44W optical power to achieve fast and efficient cutting.
🏆The bottom is equipped with a red cross positioning cursor (offset X: 0mm, Y: -21mm), which can quickly locate the starting point and ensure the accuracy of the secondary cutting operatio
🏆Detachable protective cover, removable
and removable, meeting both needs at once.
🏆Integrated dovetail guide design ensures smooth movement and stability of the equipment. The guide rail is 115mm long, allowing a wide range of height adjustment to adjust the focus position, improving the user experience.
🏆Adopt a large dual-fan design to maximize the air volume and maintain the best cooling effect while reducing noise, thereby achieving stable cutting and engraving performance.
🏆Built-in thermistor, real-time monitoring of tube core temperature ensures long-term safe and stable operation of the laser module
🏆Power and laser signal indicator lights, real-time performance monitoring

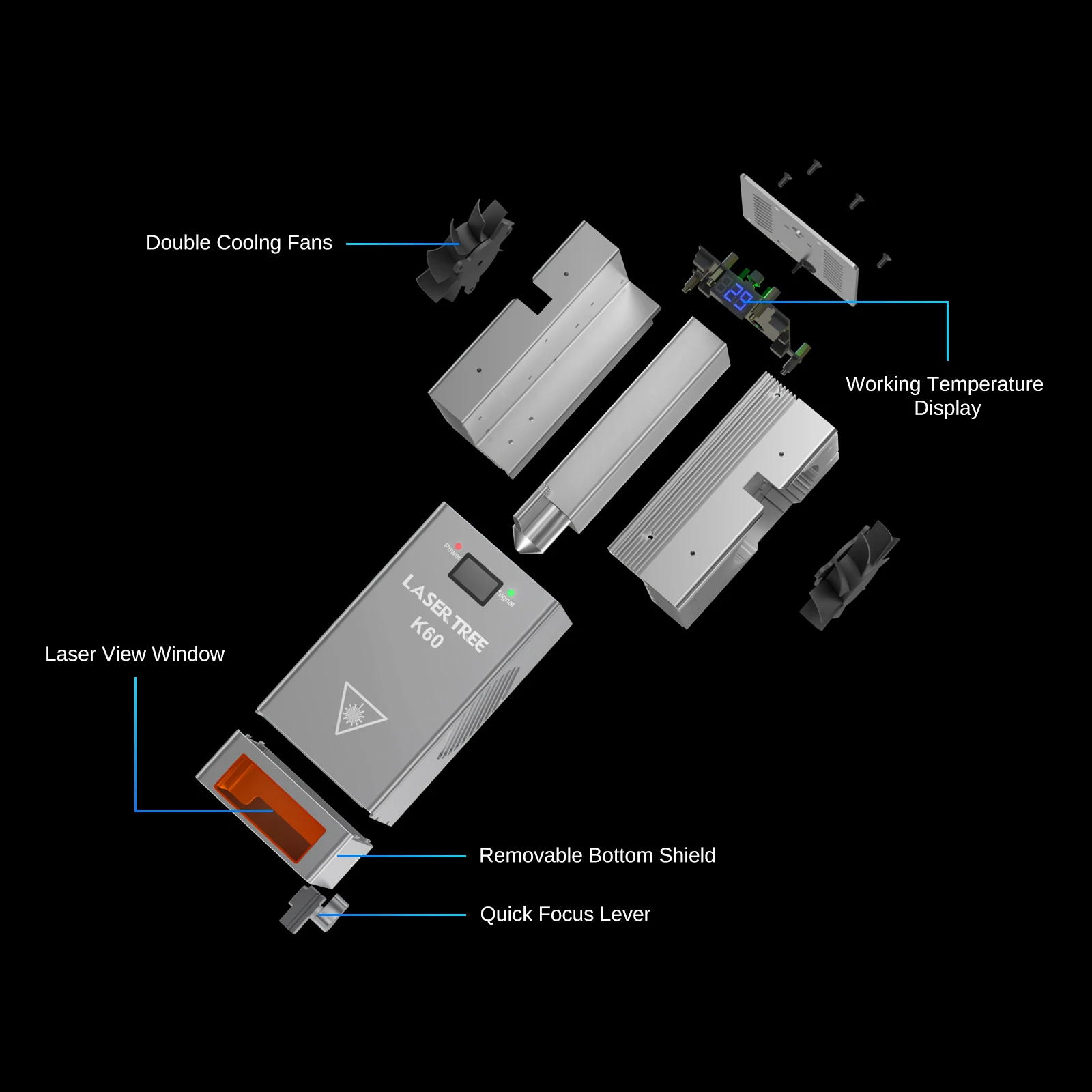

🏆The focus slider structure has been upgraded to slide more smoothly, allowing users to achieve precise cutting quickly and easily.
🏆The integrated air duct design reduces external connectors, and the air inlet and power interface are on the same plane, making it simpler and more beautiful and convenient for wire harness storage.
🏆High thermal conductivity phase change thermal conductive sheet ensures the continuous and stable operation of the drive board.

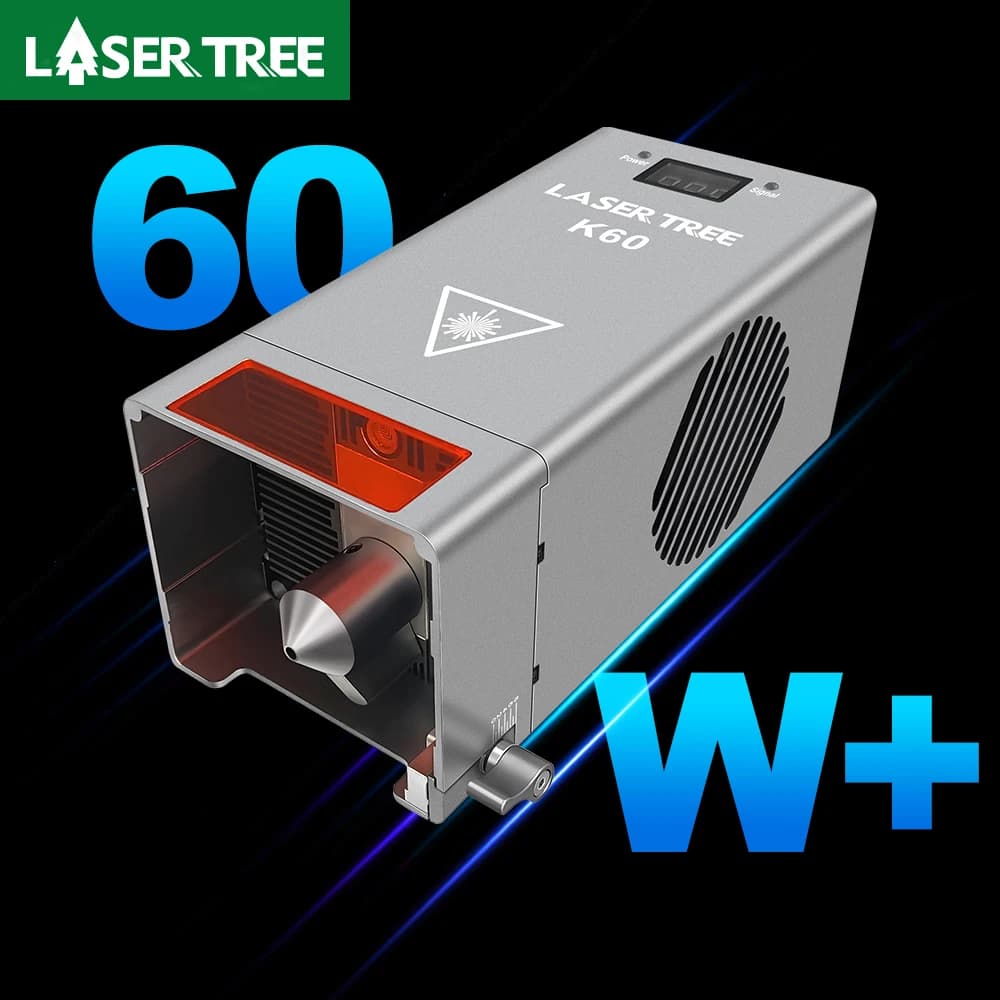

LT-K60 Features:

1. Optical Power 60W+ Laser Module.Built-in 12pcs 6W beam compressed laser diodes, which can provide up to 60W+ optical power to achieve fast and efficient cutting.

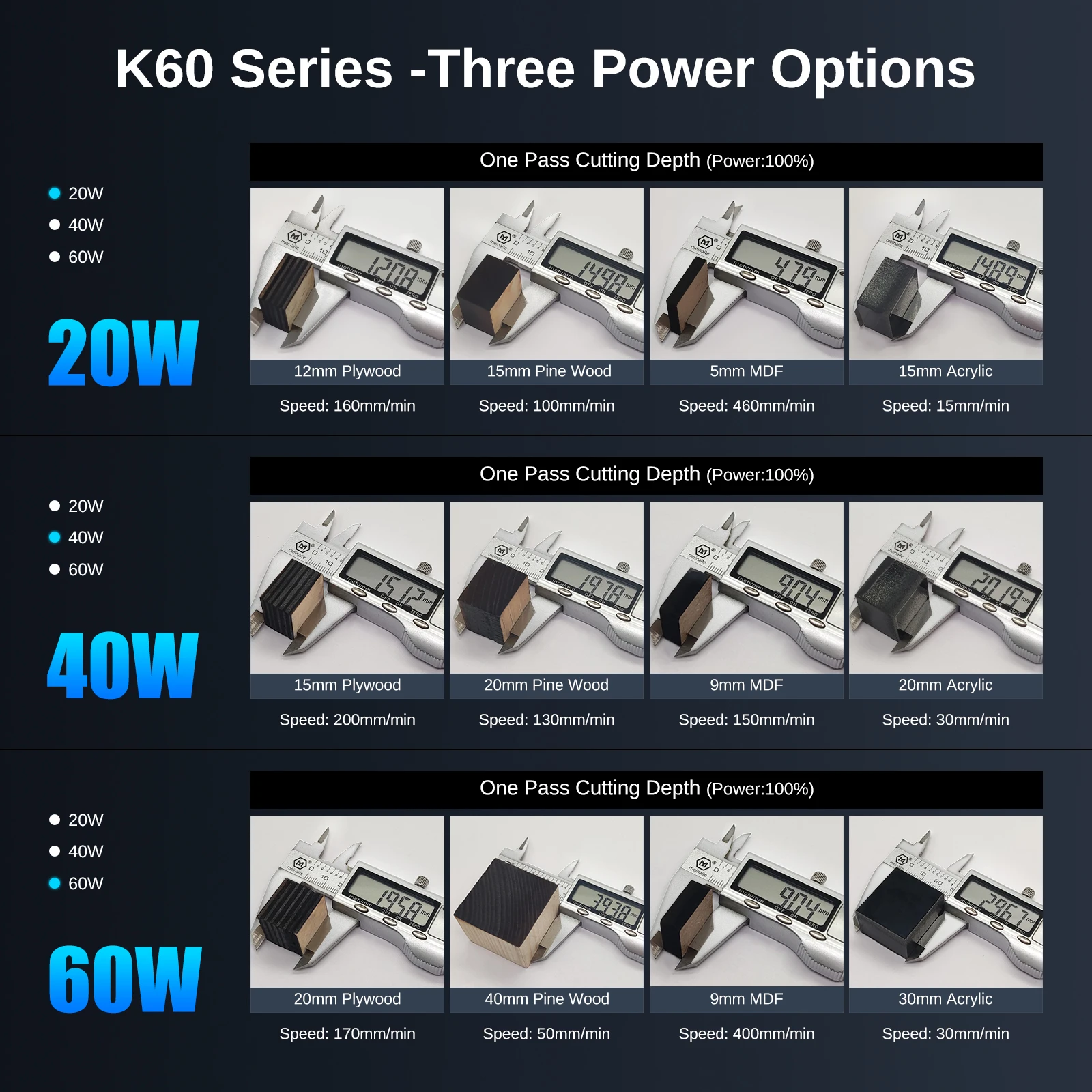

2. Powerful Cutting Ability.20mm plywood：170mm/min ；1pass40mm pine plywood : 50mm/min; 1pass30mm black acrylic : 30mm/min; 1pass9mm MDF: 400mm/min; 1pass
3.Alarm Function & Optical Power Switching.
Function 1：When an over-temperature alarm occurs, press once can turn off the buzzer alarm soundWhen the working temperature of the laser module is higher than 55'C, the buzzer will sound an alarm.To get good power stability and durability, it is suggested to keep the module working temperature below 55°c and environmental temperature below 35°C.

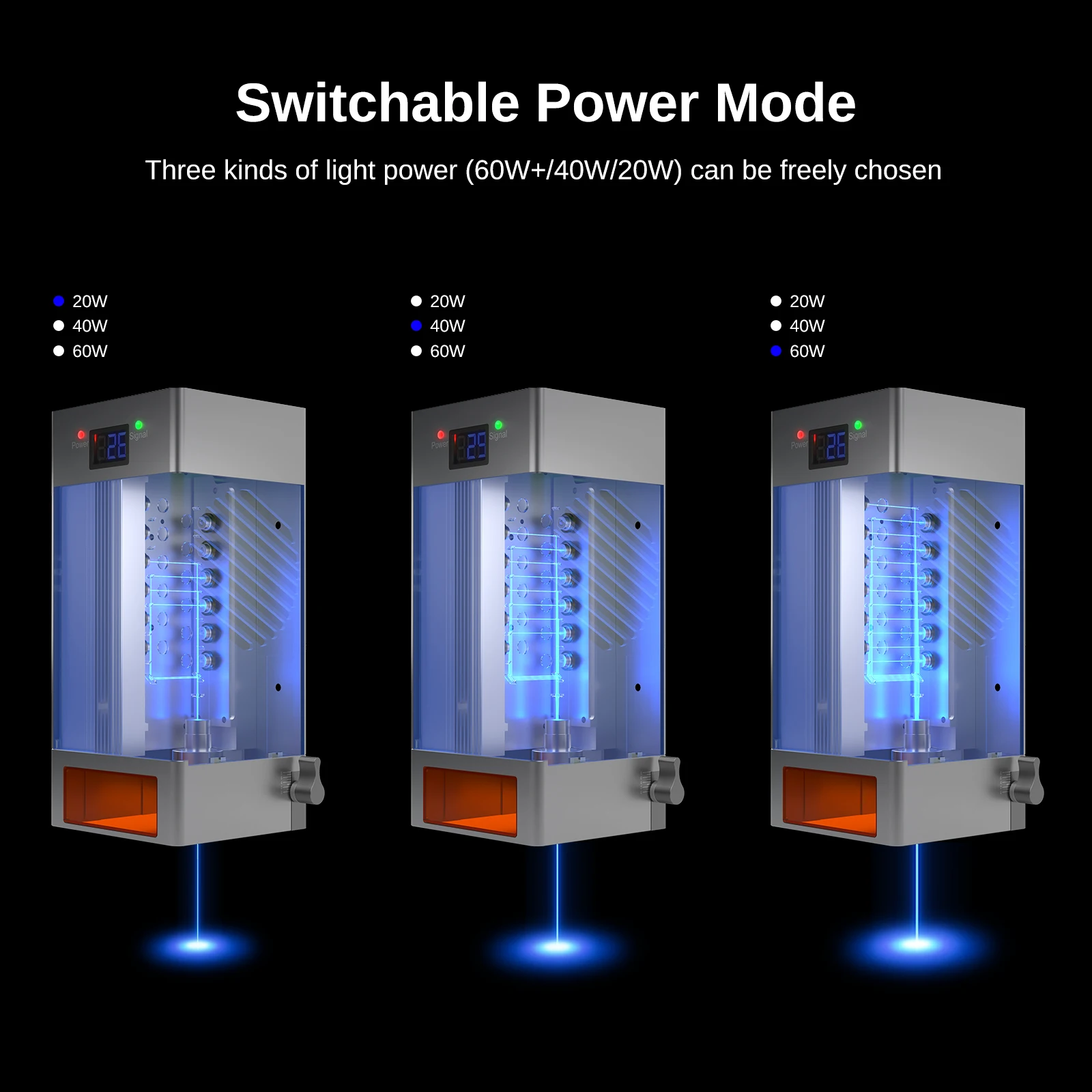

Function 2：The default power is 60W optical power, long press 5S to enter the power switching mode and switch to 40W optical power. Continuous short press can switch the optical power.Optical power switching order：60W→40W→20W
