Starter for Briggs&Stratton Engine 88-91 Lawn Mower 499521 494148 795121 49-5790

Applications
for Cub Cadet 1015 1988 - 1991
for Cub Cadet 1020 1988 - 1991
for Cub Cadet 1105 1985 - 1986
for Cub Cadet 111 1978 - 1979
for Cub Cadet 1110 1985 - 1986
for John Deere 111 1979 - 1985
for John Deere 111H 1982 - 1984
for John Deere L118 -
for Toro 11-32 1978 - 1997
for Toro 11-38 1986 - 1987
for Toro 212-H 1989 - 1991
for Toro 825 1991
for Toro LT12.5G 1995
for Toro Sand Pro5000 1992 - 1993

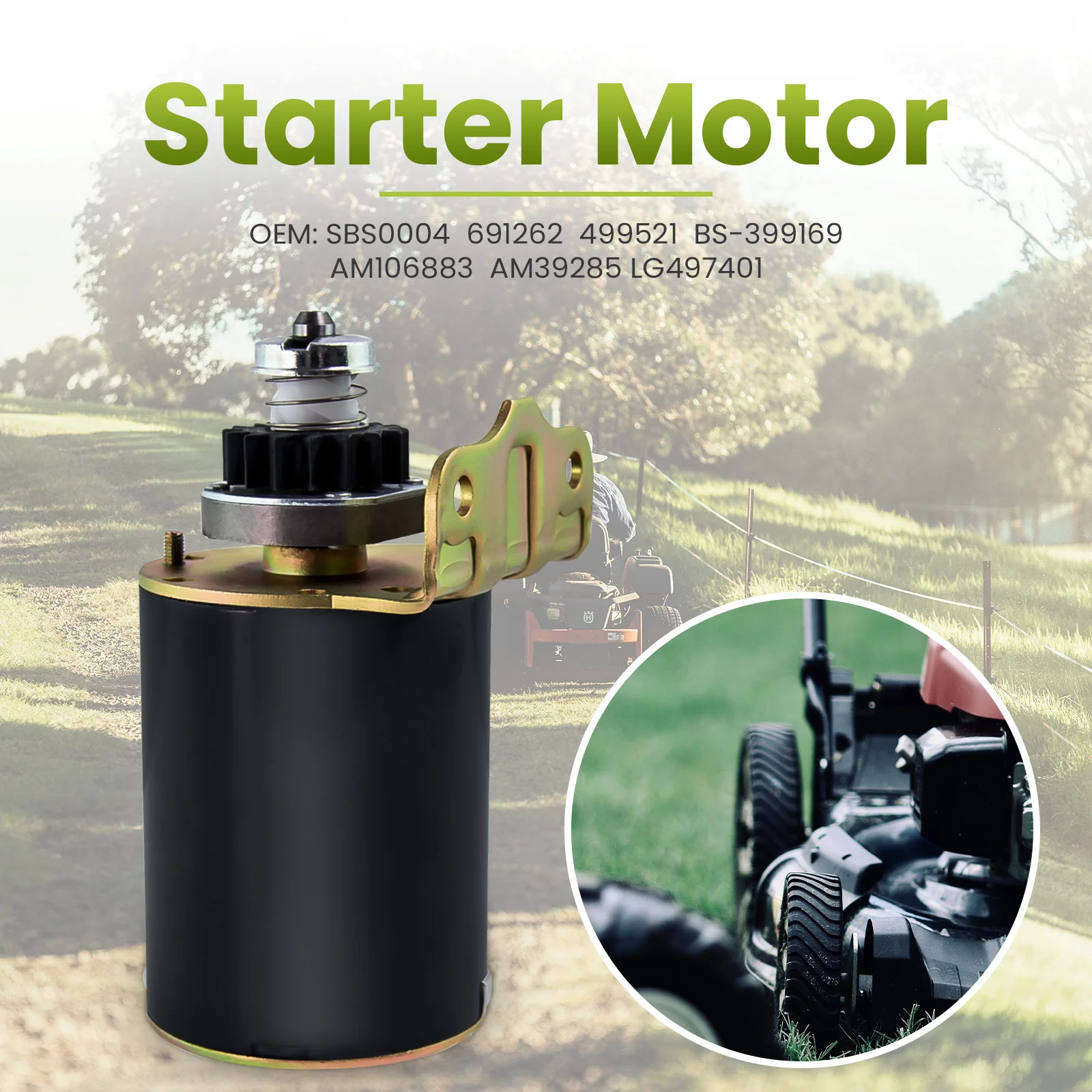

OEM Number:
for Briggs & Stratton: 499521,392749, 394805, 399169, 494148, 494198, 691262
for John Deere: AM106883, AM38136, AM39285, LG490420, LG497401
for Lester: 5746

Specifications
Voltage : 12
Rotation : CCW
Starter Type : PMDD

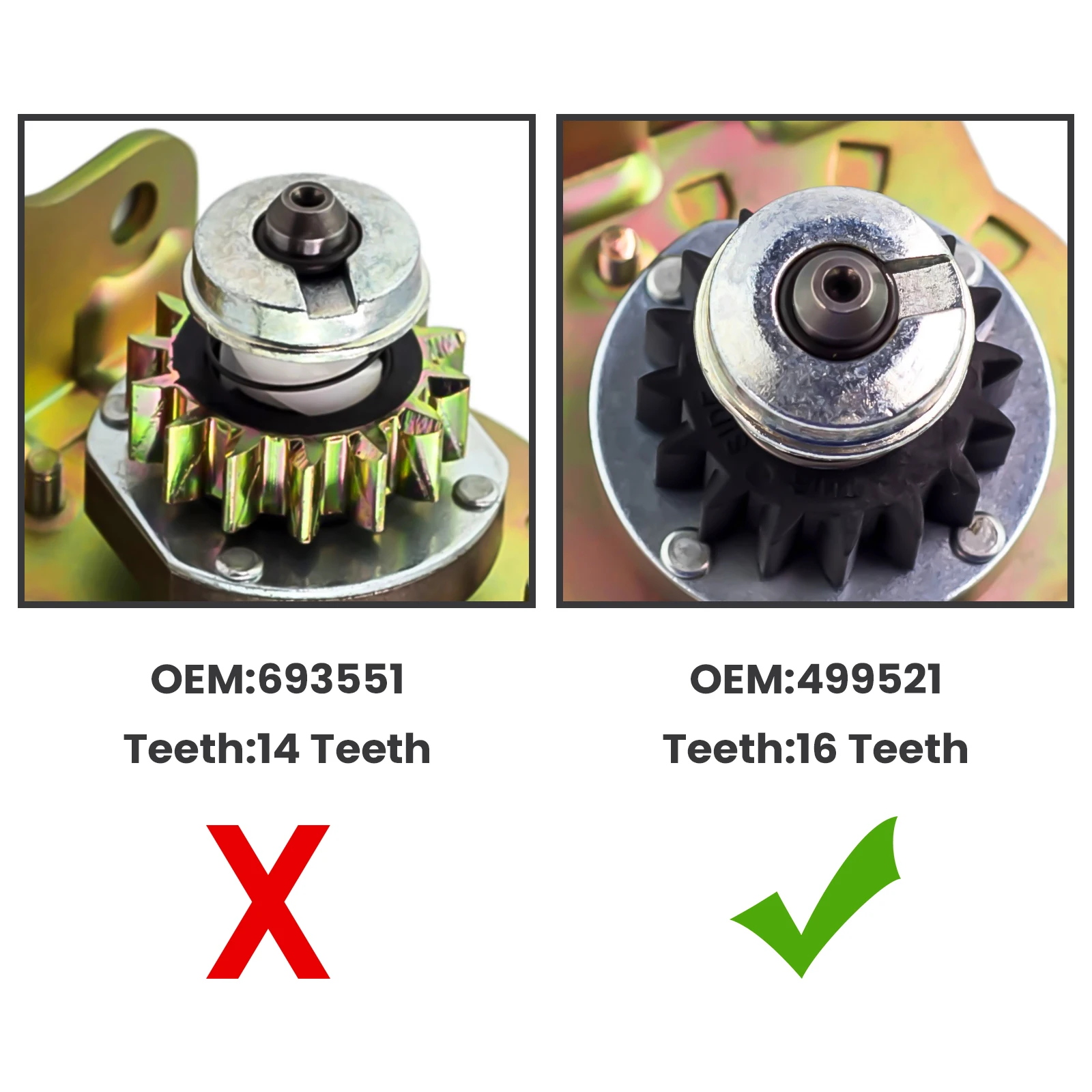

Number of Teeth : 16
Gear OD : 1.598in / 40.6mm
Mtg Ear 1 Hole : 8.0mm Unthreaded
Mtg Ear 2 Hole : 8.0mm Unthreaded
Mtg Ear 3 Hole : 8.0mm Unthreaded
Notes : 4.25"/108mm Long Field Case
Weight : 5.68 lbs / 2.58 kg
Mounting bolt spacing : approx 58.5mm
Total Length: 165mm

Notice
* Suits aluminium and plastic flywheel ring gears, will NOT suit steel gears
* Professional installation is highly recommended (No Instruction Included)
* For any needs please contact us
