ATOMASTACK R30 V2 Laser Module 1064nm Red Light Laser Engraving Head for Laser Engraving Stainless Steel Brass Metal

Features:

1. 【Global Innovation】Atomstack pioneered an industrial grade 1064nm infrared laser module with a repetition rate of 20000Hz, suitable for rapid and fine carving of metals, as well as non-metallic materials such as painted wood furniture, ABS, and plastic.

2. 【Greatly improve work efficiency】 After industrial design, the net weight of the module is only 450g (800g+for the first generation and other products in the industry). Under the same framework, the movement speed and work efficiency can be improved by 40%.

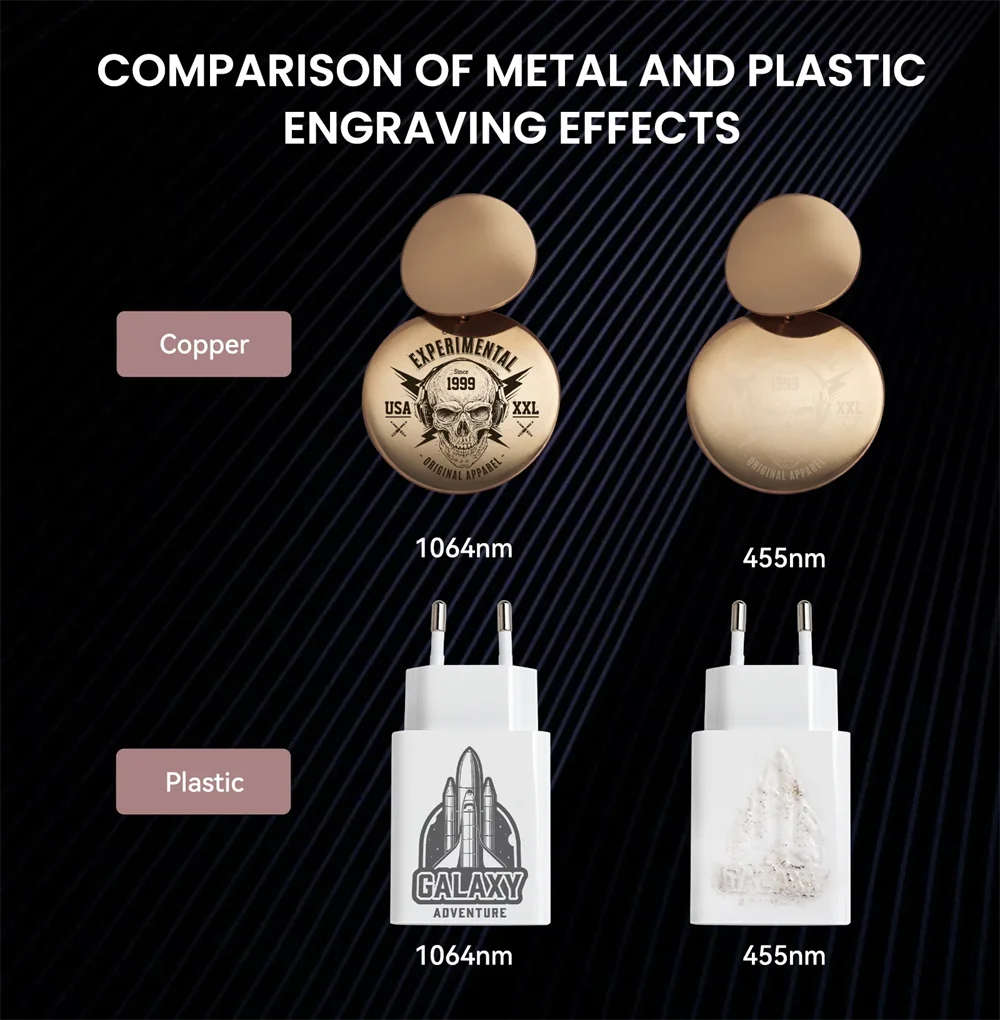

3. 【Born for metal and plastic engraving】 Infrared fiber lasers have unparalleled advantages in metal and plastic surface engraving. This is impossible for traditional diode blue lasers.

4. 【Better engraving effect】 Thanks to Atomstack light spot compression technology, the light spot of R30 laser module is compressed into a circular laser spot with a diameter of 0.03mm. This makes it very suitable for carving on custom jewelry or metal. The carving effect on the surface of the object is finer, clearer, and less prone to oxidation.

5. 【Rust removal】1064nm wavelength laser has excellent absorption ability for metal surface coatings, which can remove rust on small areas of rusted metal without the need for chemical reactions or secondary electrolysis.

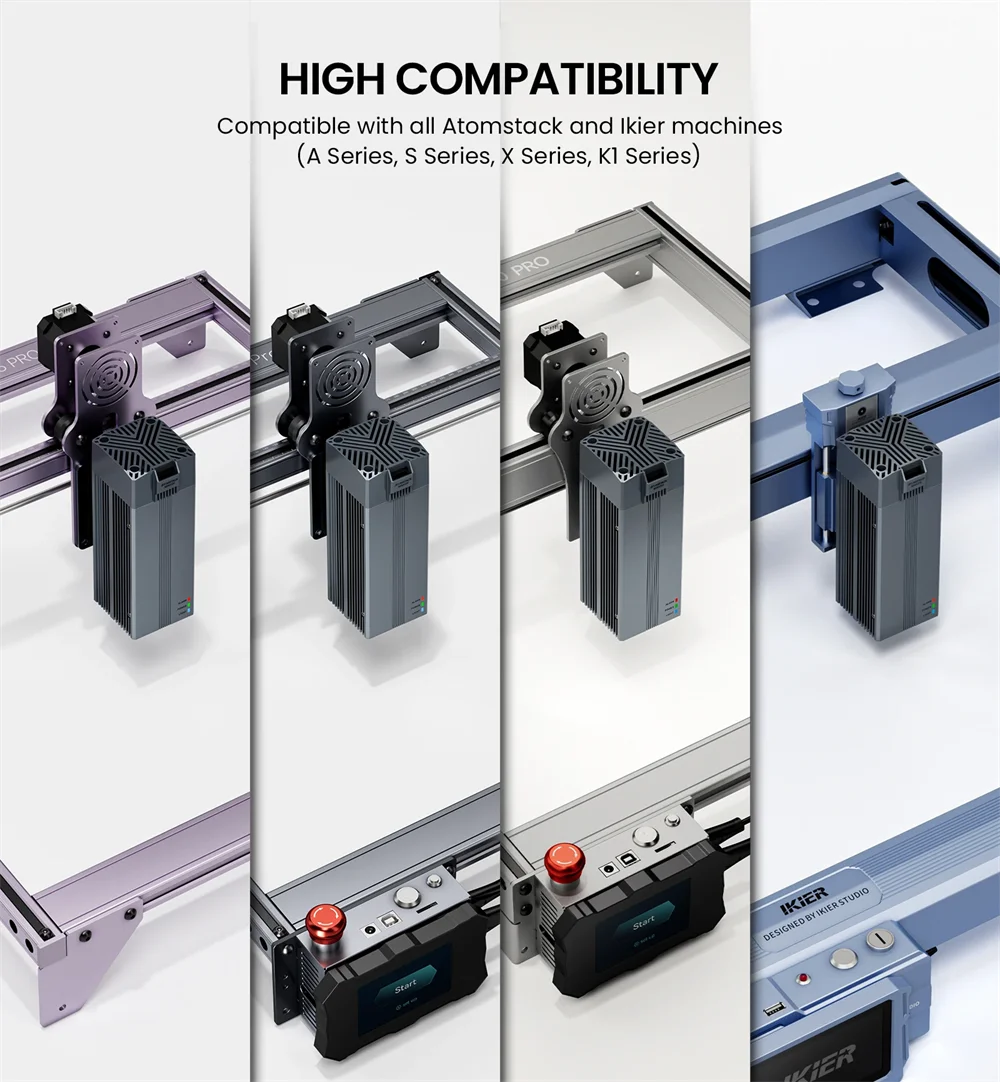

6. 【High adaptability】 R30 laser module can adapt to most Atomstack models, including:
X30 Pro, A30 Pro, S30 Pro
X20 Pro, A20 Pro, S20 Pro, A20
X7 Pro, A10 Pro, S10 Pro, X7
A5 Pro, A5 Pro+
A5 M30, A5 M40, A5 M50
A5 20W, A5 10W
P9 M50, P9 M40, P7 M40, P7 M30

7. Can adapt to other brands, such as Ortur, NEJE, Two Trees, etc., you can also install our Atomstack R30 laser module, with an adapter in the box.

8. 【Safety laser】 Compared with blue laser, infrared laser has its own safety characteristics. Non focal light is cold light, and accidental contact will not cause burns.

9.【 Long lifespan】1064nm laser output is stable, with an ultra long lifespan of 100000 hours (long-term use will result in a certain power attenuation)

Specification:

Brand：Atomstack
Model：R30 V2
Optical Output Power：2W
Material：Aluminum 6061 Anode
Circuit Board Size：44*52mm
Laser wavelength：1064nm
Circuit Board：V/PWM Modulation Board
Wire Rod：22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens：φ6/glass
Laser Beam Mode：Spot

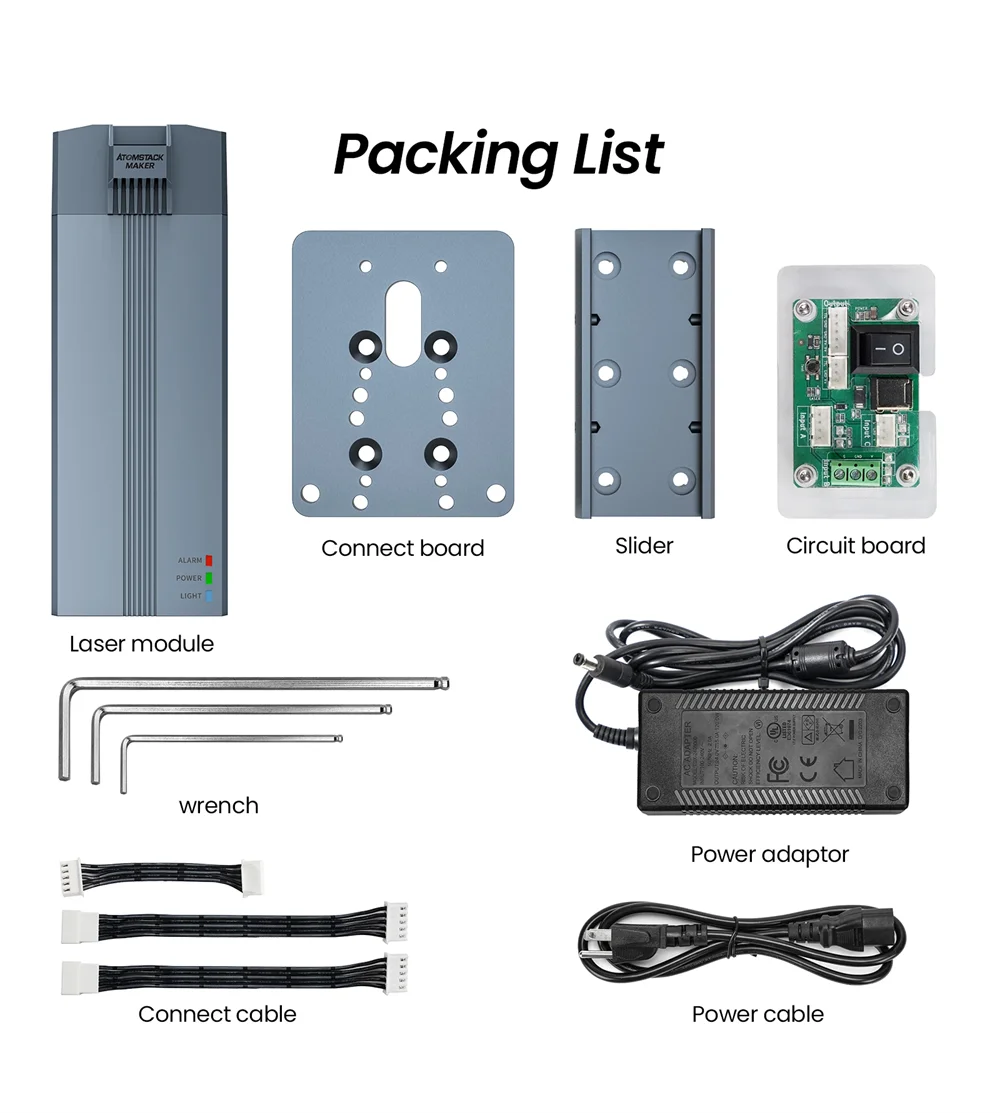

Package List:

​1 x R30 V2 Laser Module
1 x PCB Circuit Board
1 x Connect board（Other brands series use different adapter boards, please pay attention to the distinction）
1 x Slider
2 x Handle
1 x Fixed Focus Plate
2 x Connection cable
3 x Wrench
25 x Screws
1 x 12V 9A Power Supply
1 x Installation Manual
