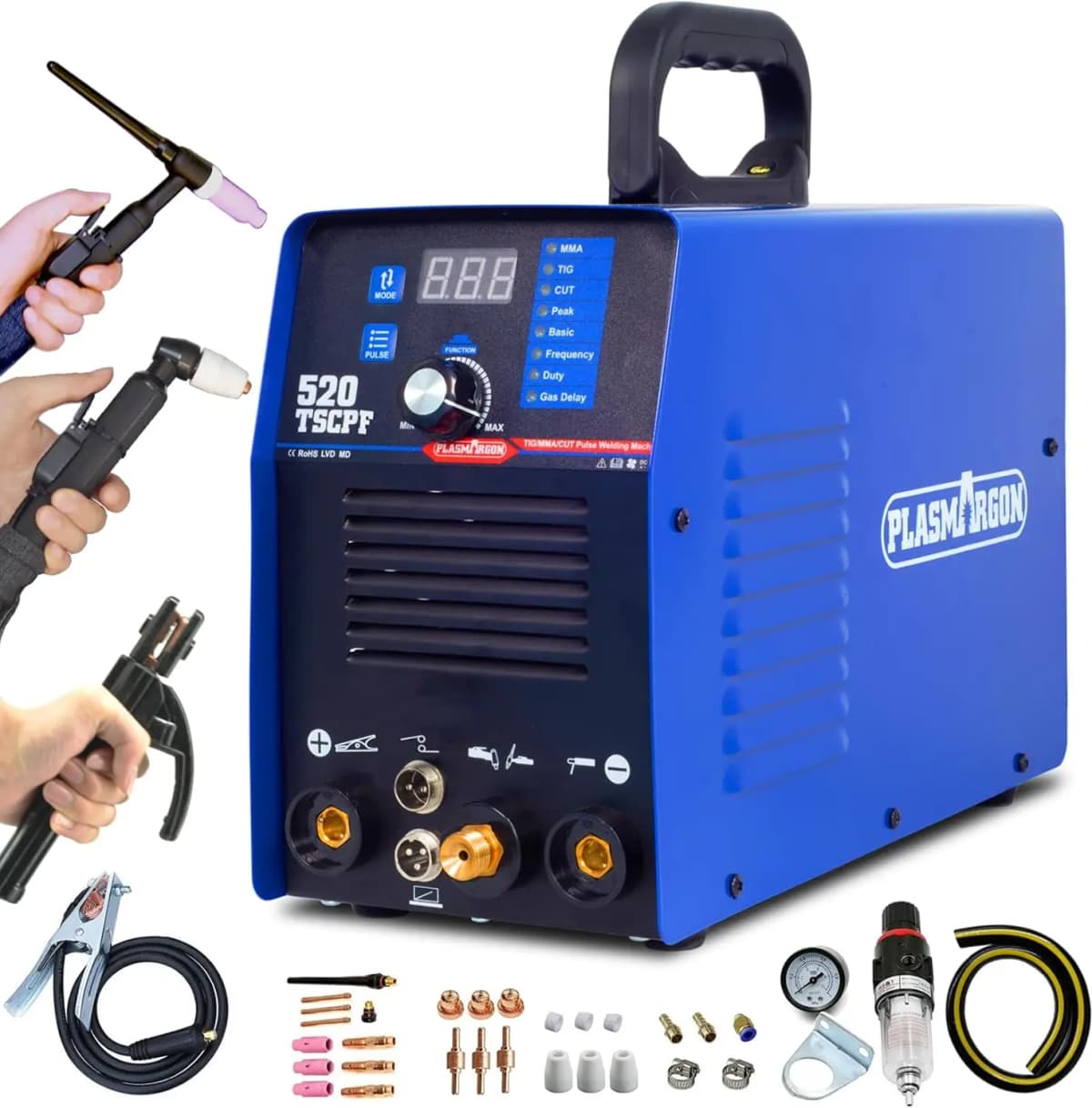

Plasma cutter 4 in 1 Welding Machine 520TSCPF DC Inverter Spot Welder TIG MMA IGBT Pulse CNC Metal Plasma Cutting Machine

Multi-function HF TIG Welder(with Pulse)/Pilot ARC Plasma Cutter/Stick Welder

Rated Input voltage: 110/220V±15%

Frequency: 50/60HZ

Application: Plasma Cutter / TIG Welder / Stick Welder

Output Current: 10-50A / 10-200A / 20-180A

Rated Input Capacity: 3.5KVA

No-load Voltage: 60V

Rated Duty Cycle: 60 %

Power Factor: 0.93

Dimensions: 37*15*24 CM ( 14.6*6*9.4 Inch)

Weight: 10 KG

Upgrade PULSE TIG Welder

New Digital Panel is Easier to Operate.

Pulse TIG welding is added, which is very friendly to novices. Can weld beautiful fish scale patterns.

Pulse Welding Can Effectively Save the Use of Electricity.

Pulse TIG welding can effectively increase the life of the tungsten needle.

Dual Voltage

The CT-418 can automatically change the voltage according to the input voltage 110V-220V. No additional operations are required.

Dual Frequency 50/60HZ.

Multiple Protection

Overheating and overload protection.

Three anti-coating protection.

Moisture-proof, dust-proof and leakage-proof.

Defying the harsh environment.

Avoid overloading.

Protection of personal safety.

Our 520TSCPF adopts high-quality heat dissipation device inside, which can discharge the heat generated by the machine more quickly.

In addition, this CT-418 adopts four-sided ventilation design to protect our machines to the greatest extent
