Bafang Motor BBSHD 52V 1000W BBS02B 750W 48V 500W BBS01B 350W 250W 36V BBS01 BBS02 BBS03 Mid Drive Motor 8FUN

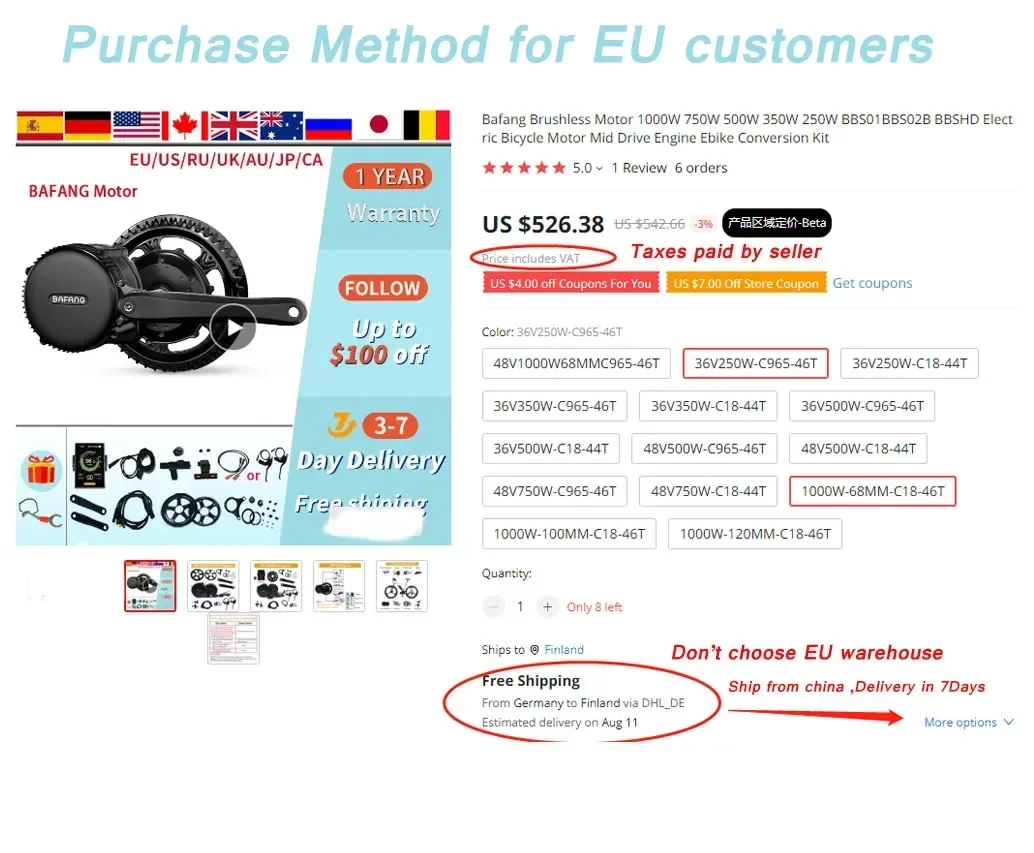

Tips for EU customers

All prices you see include VAT, but when your order exceeds €150 you have the option of shipping from China (Tax paid by the seller), but we will actually ship from an EU warehouse.
Don't worry, the price will automatically change when you pay, so you can save 19%-25% and receive your product within 3-7 working days!

Attention: Both 48V 1000W and 52V 1000W are printed 48V 1000W on the motor, just different controllers. The 52V version needs to match rated 52V battery to work. If the battery you use is rated 48V, you need choose 48V version motor. Please kindly choose the right version based on the battery you use.

Function:

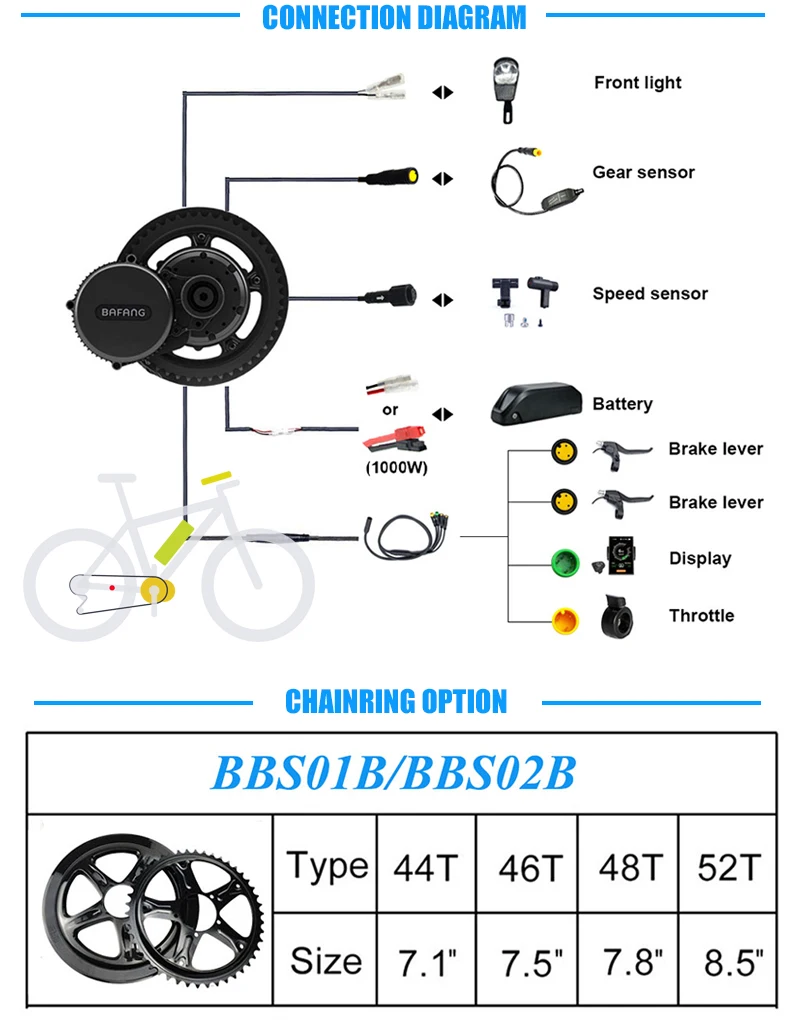

It's the 8FUN newest version has two plugs for gear shift sensor and 6V light.

Feature:

Upgrade: Upgraded IRFB3077 mosfets controller.

Four riding modes: Pure electric mode & human riding model & power assistance & push model. 4 working modes can be switched at will.

Easy Installation: Can be successfully installed into an electric bicycle in just a few time by only a few tools which can remove the crankset and the center shaft, as well as tools for installing this mid-drive motor.

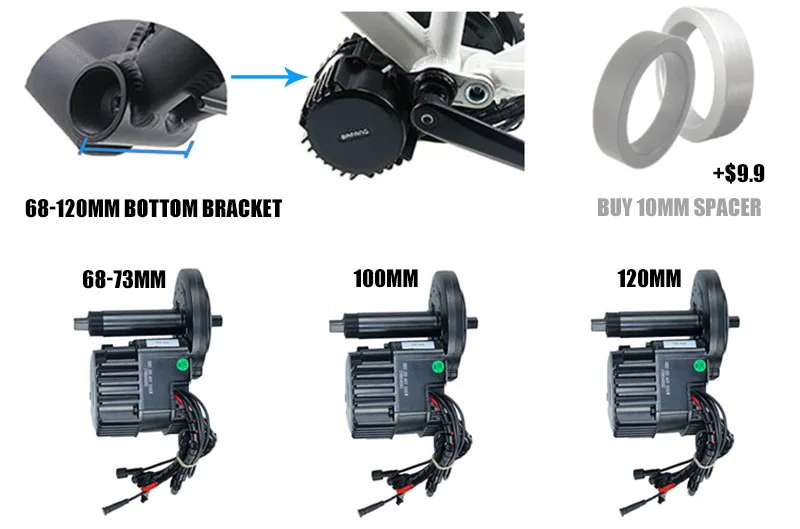

Universal Compatible: It's compatiable with mountain bike,road bike, racing bike ect bikes with 68-73mm bottom bracket.

Motor Specification:

Motor Model: BBS01B

Bafang Model: MM G340.250

Power:250W

Voltage:36V

Controller Current: 15A

No Load Speed(RPM) :83-87

Load Speed(RPM):78-83

MAX Torque:80 N.m

Efficiency: > 80%

PAS SENSOR : Speed Sensor

Reduction Ratio: 1 : 21.9

Centification:CE/EN 14764/ROHS

Waterproof Grade:IP65

Motor Weight: 3.98kg

Bracket bottom length:68mm

Operation Temperature:-20-45℃

Waterproof Grade: IP65

Display Working Temperature: -20-80C

Motor Model: BBS01B
