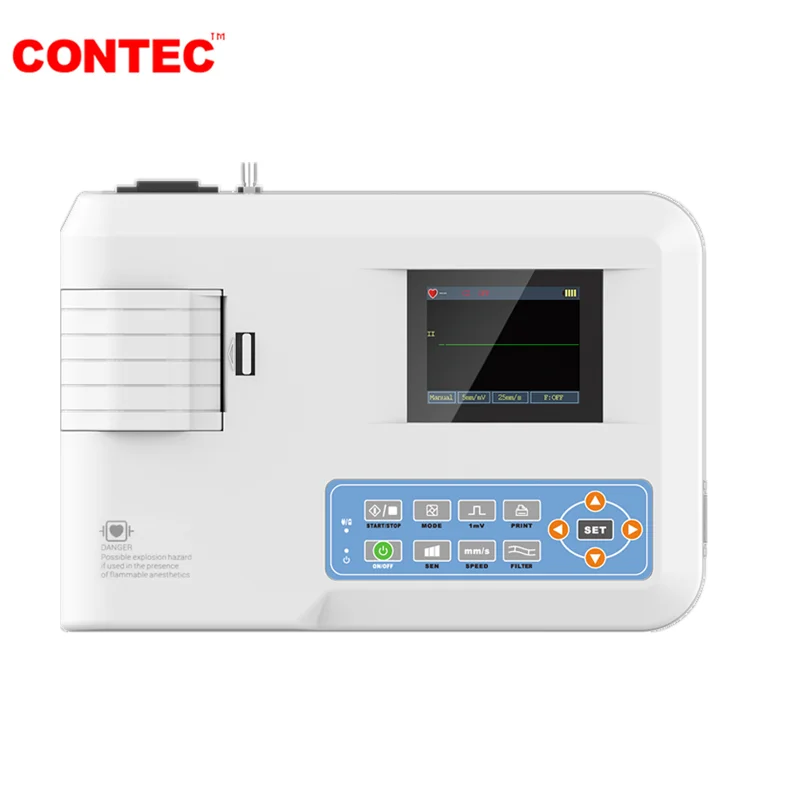

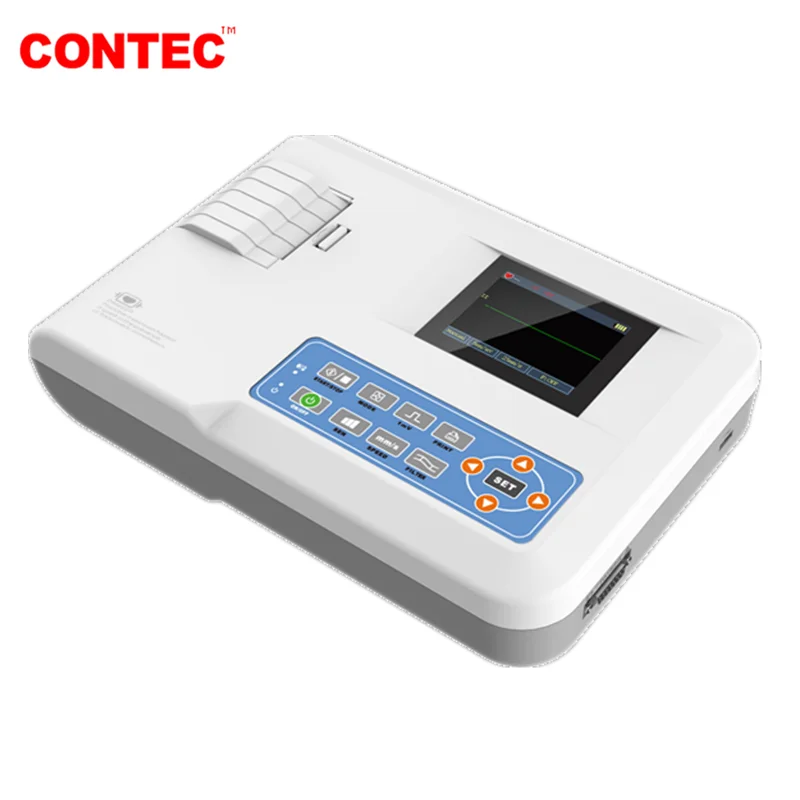

CONTEC ECG100G Single Channel Elektrokardiograph EKG Machine Monitor Cable Portable + Printer

CONTEC ECG100G Single Channel Elektrokardiograph EKG Machine

                        Monitor  Cable Portable + Printer

Function

1)Adopt digital signal processing technology and get high-quality ECG waveform via power frequency filter, baseline filter and EMG filter of ECG signal.

2)Adopt high-resolution thermal printing system(8 dot/mm), no need for any adjustments. Recording frequency: up to 150Hz.

3)Real-time and continuously record the clear and accurate ECG waveform and annotation character(including lead mark, sensitivity, paper speed and filter state, etc.).

4)In AUTO mode, finish recording by pressing the button once, which improves work efficiency.

5)Multi-language (Chinese, English, French, Italian, German, Spanish and Turkish) interface and report.

6)In optimal DC state, up to 7-hour standby time, continuous print up to 4-hour, record up to 150 ECG waveform.

Performance

Input mode: floating and defibrillation protection

Frequency response: 0.05Hz ~ 150Hz(-3dB~+0.4dB)

CMRR: >60dB, >100dB(add filter)

Time constant:≥ 3.2s

Patient leak current: <10µA

Calibration voltage: 1mV

Sensitivity: 5, 10, 20 mm/mV ±5%, standard sensitivity: 10mm/mV±2%

Noise level: ≤15µVp-p

Input circuit current: ≤50nA

Input impedance: ≥50MΩ

Sampling accuracy: 12-bit

Safety classification: class I, type CF and defibrillation-proof applied part

Recording mode: thermal printing system

Paper size: 50mm(W)×20m(L)

Sampling frequency: 800Hz

EMG interference filter: 35Hz (-3dB)

Power frequency filter: AC 50Hz/60Hz(-20dB)

Paper speed: 25, 50mm/s, ±5%

Power supply:

AC: 100V~240V(50/60Hz)

DC: 7.4V/2000mAh rechargeable lithium battery

Fuse specification: two AC time lag fuse(φ5×20mm), T1.6AL250V

Waterproof degree: IPX0

Working mode: continuous working

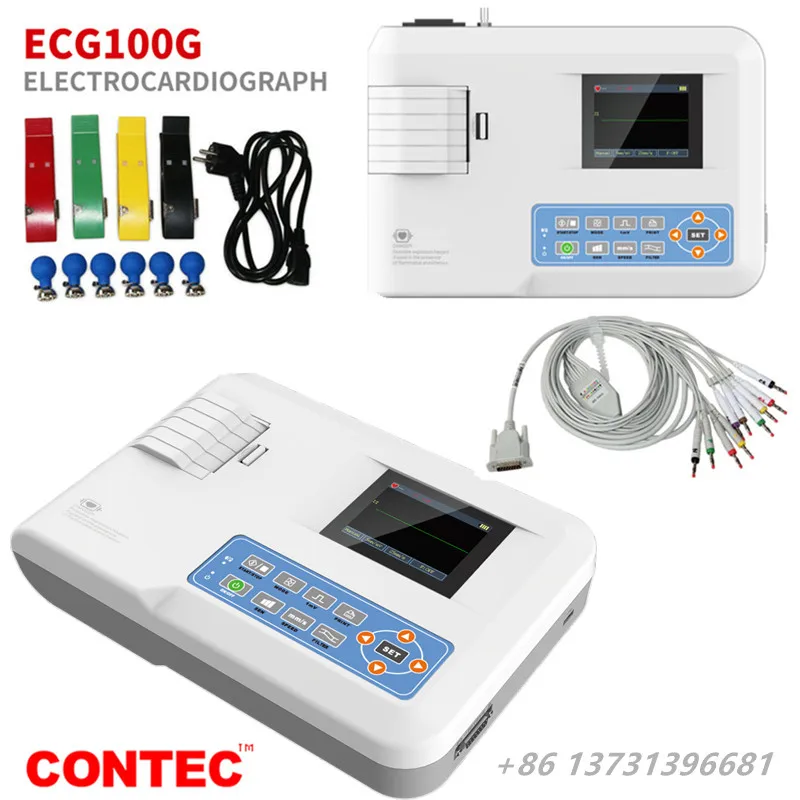

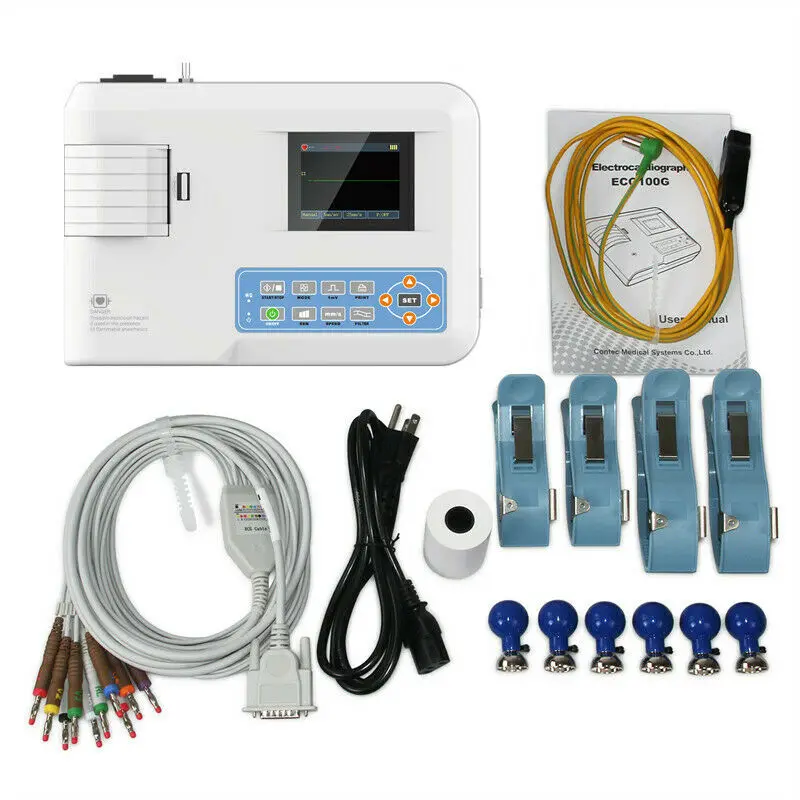

Accessories

Standard:

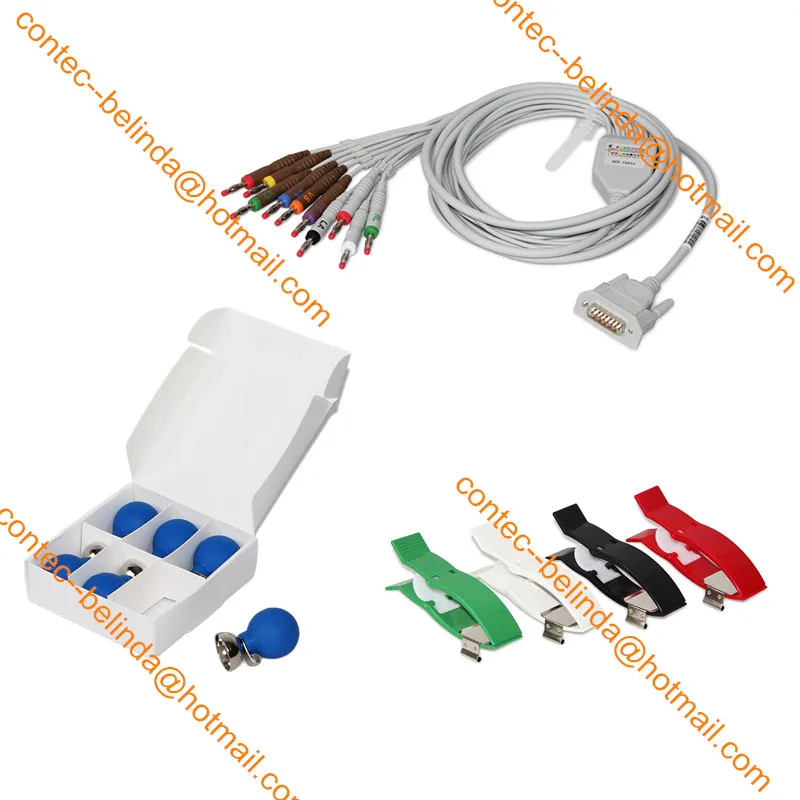

A lead cable

A limb electrode

A chest electrode

A thermal recording paper

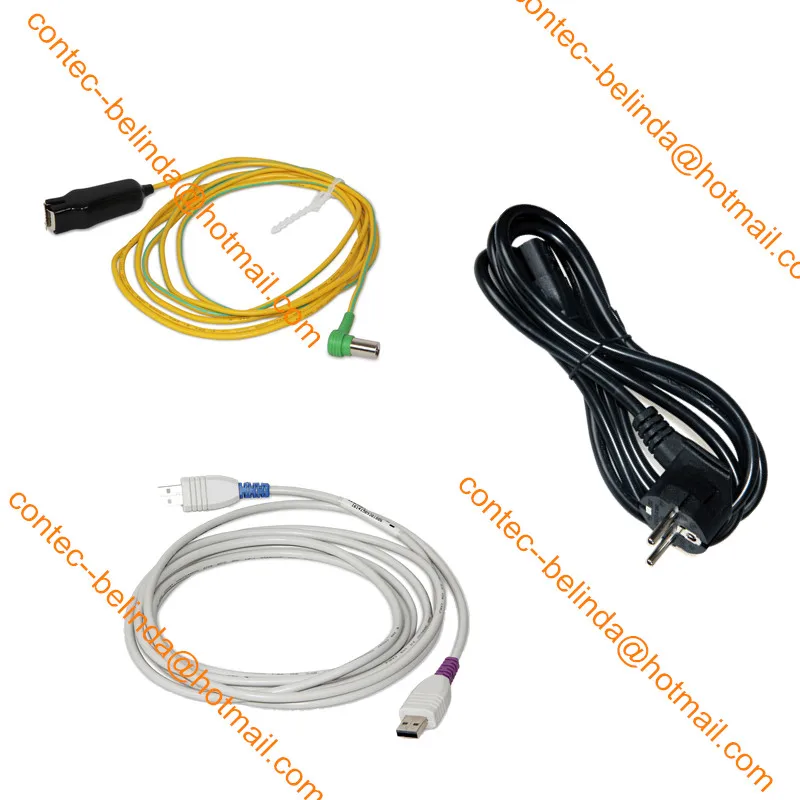

A power cord

An earth wire

A user manual

Optional:

ECG electrode

Bag

Conductive gel

Physical characteristic

Working environment

Temperature: 5℃~40℃

Relative humidity: 25%~95%(non-condensing)

Atmospheric pressure: 700hPa~1060hPa

Transport and storage environment

Temperature: -40℃~+55℃

Relative humidity: ≤95%

Atmospheric pressure: 500hPa~1060hPa

Dimension: 315mm(L) × 215mm(W) × 77mm(H)

Weigh: 1.5Kg
