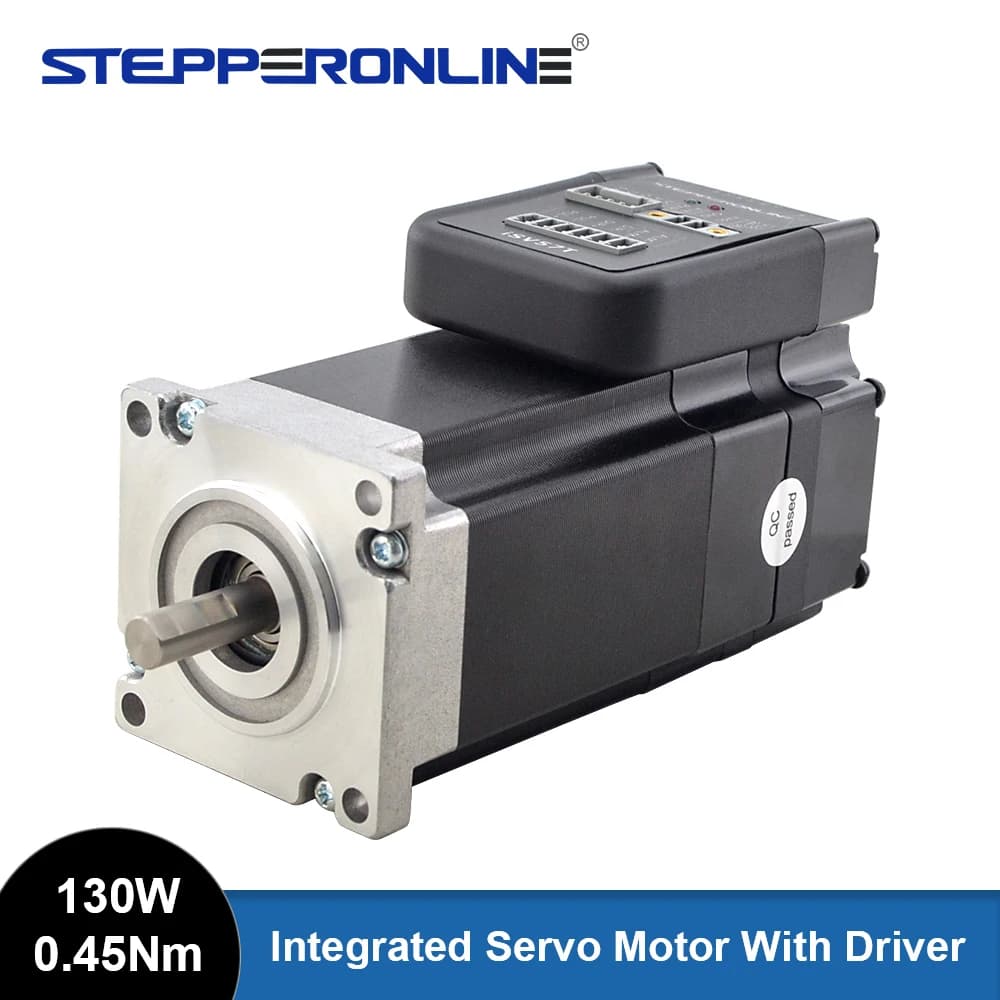

STEPPERONLINE 130W 0.45Nm Nema 23 Integrated Servo Motor with Driver 3000RPM 20-50VDC Brushless DC Servo Motor - Short Shaft

Introduction

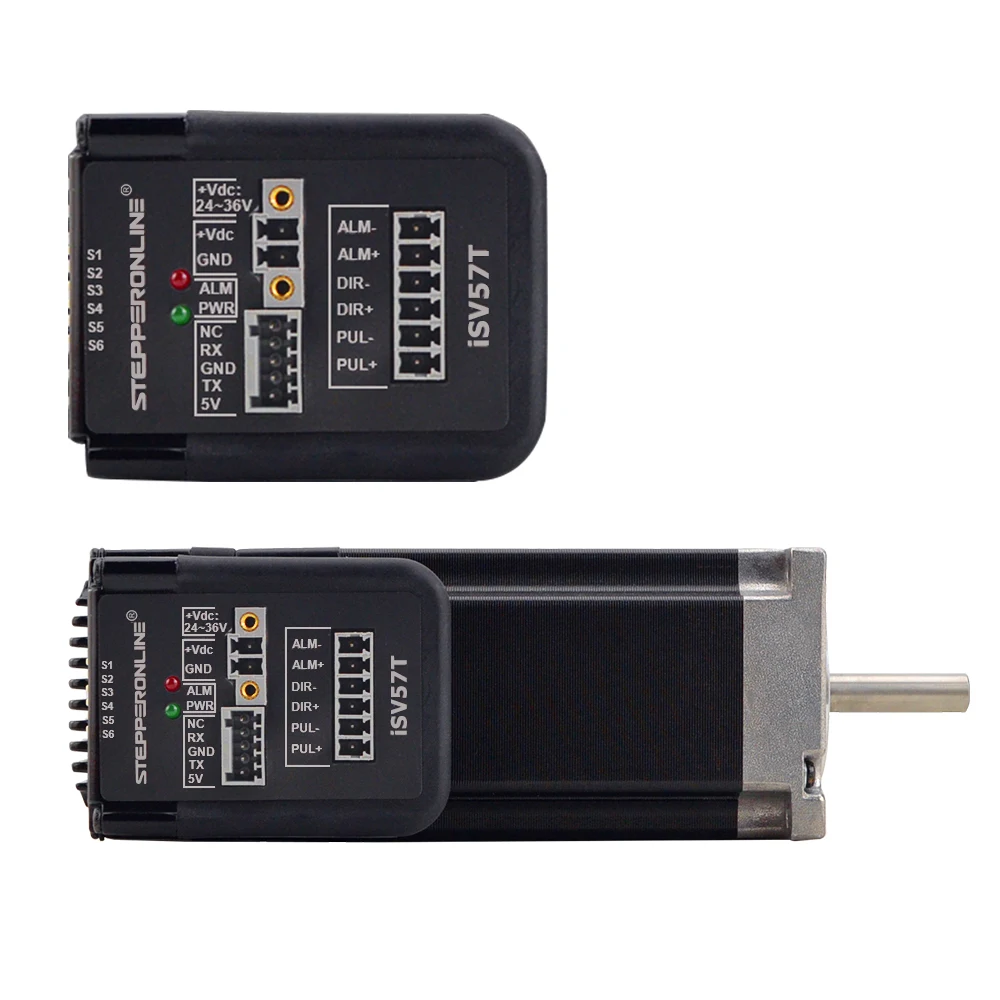

ISV57T-130S integrated servo motor is a 57mm frame size brushless motor integrated with a 16bit encoder and a servo drive. At very compact size and with all components integrated, the ISV57T-130S can save mounting space, eliminate encoder connection & motor wiring time, reduce interference, and cut/reduce cable and labor costs. Integrated compact size for saving mounting space & setup time, and reducing electrical interference.

Features

Input voltage 20-50VDC, output peak current 0-6A

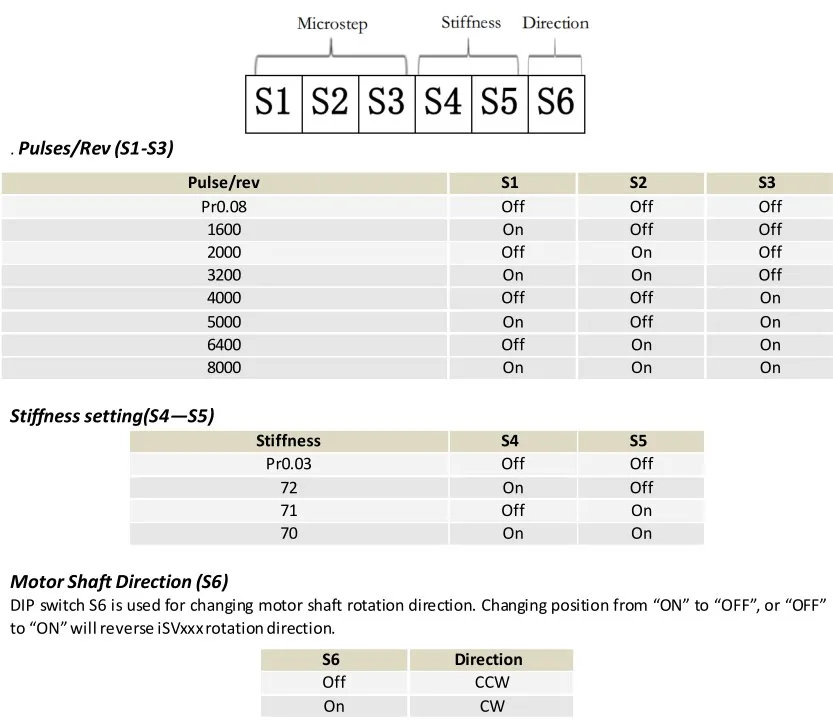

Step & direction command input for position control

Compatible mounting size with stepper motor

Smooth motor movement and excellent respond time

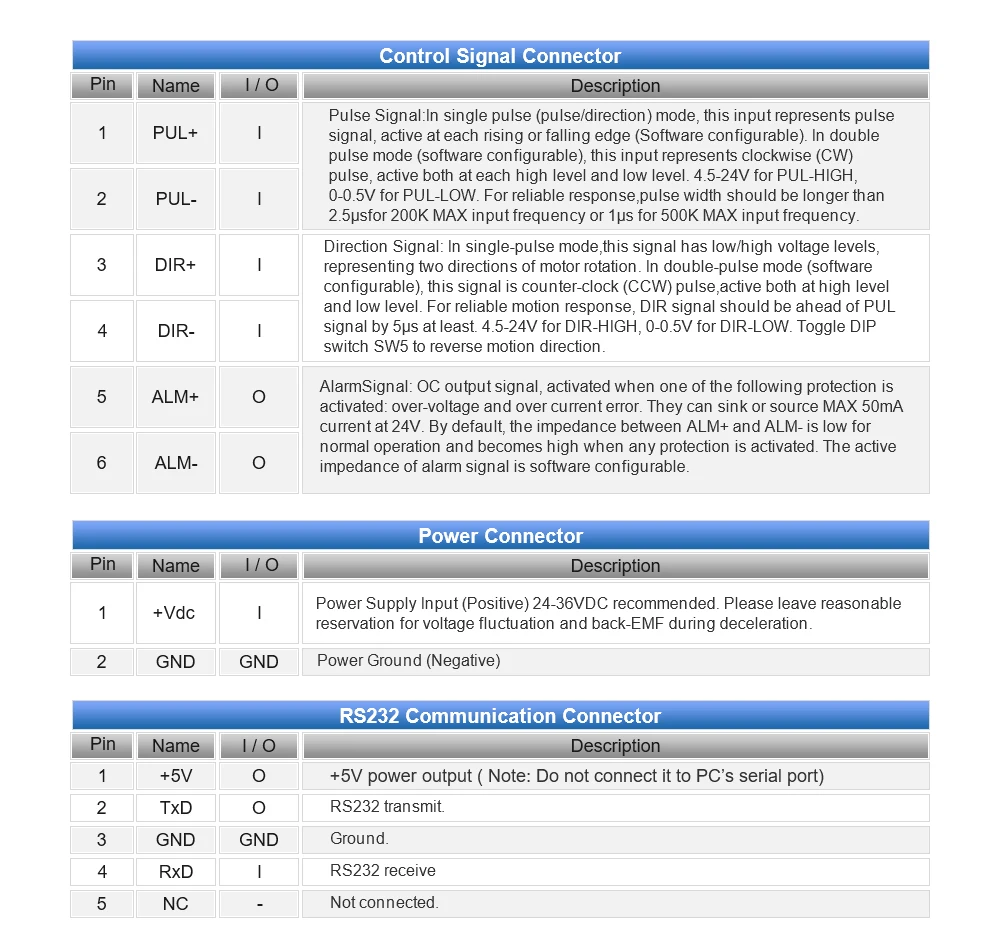

Isolated control inputs of Pulse, Direction

In-position and fault outputs to external motion controllers for complete system controls

Over voltage, over-current, and position-error protection

Manufacturer Part Number: ISV57T-130S

Rated Power(W): 130

Input Voltage: +20~50VDC (Typical 36VDC)

Rated Torque(Nm/oz.in): 0.45/63.73

Peak Torque(Nm/oz.in): 1.1/155.8

Rated Speed(rpm): 3000

Peak Speed(rpm): 4000

Output Peak Current: 0~6A

Logic Signal Current: 7~16mA (Typical 10mA)

Pulse Input Frequency: 0~300kHz

Pulse Voltage: 5V(Connect a 2K ohm resistor in series, if it is 24V)

Isolation Resistance: 100MΩ

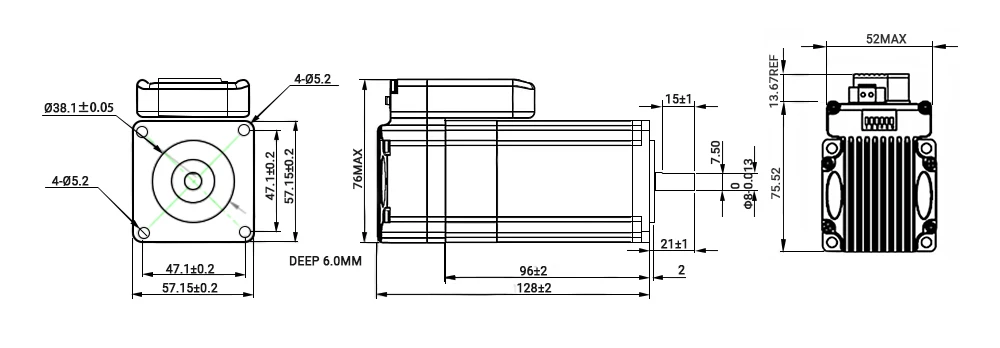

Frame Size: 57 x 57mm

Body Length: 128mm

Shaft Diameter: 8mm

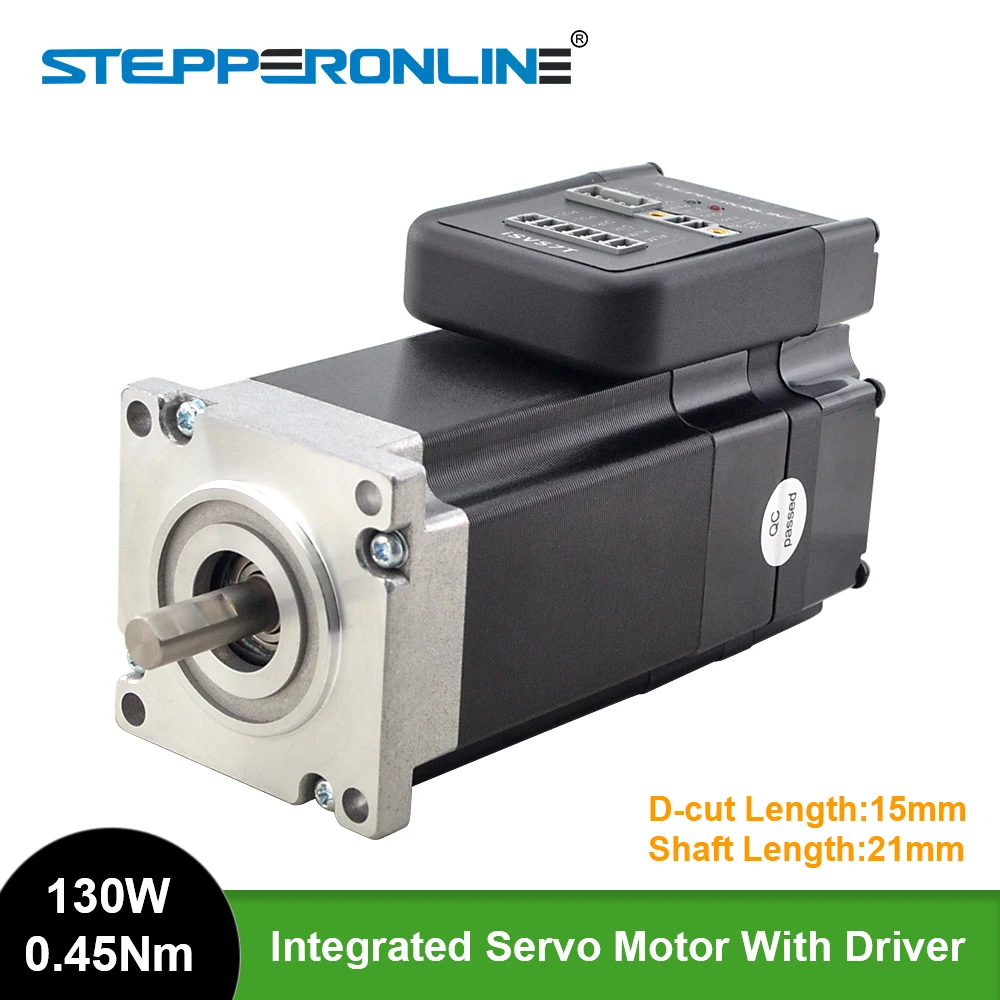

D-cut Shaft Length: 15mm

Shaft Length: 21mm

Weight: 1.25kg

Cooling: Natural Cooling or Forced cooling

Environment: Avoid dust, oil fog and corrosive gases
