48MP 1080P Articulated Arm Microscope 4K 2K HDMI/USB/VGA/Type-C Digital Microscope Camera 1-150X Lens 5-100cm Work For Soldering

YIZHAN 48MP 13MP 1080P Industrial Microscope 4K 2K HDMI USB VGA Type-C Digital Microscope Camera 1-150X Zoom C Mount Lens For Soldering

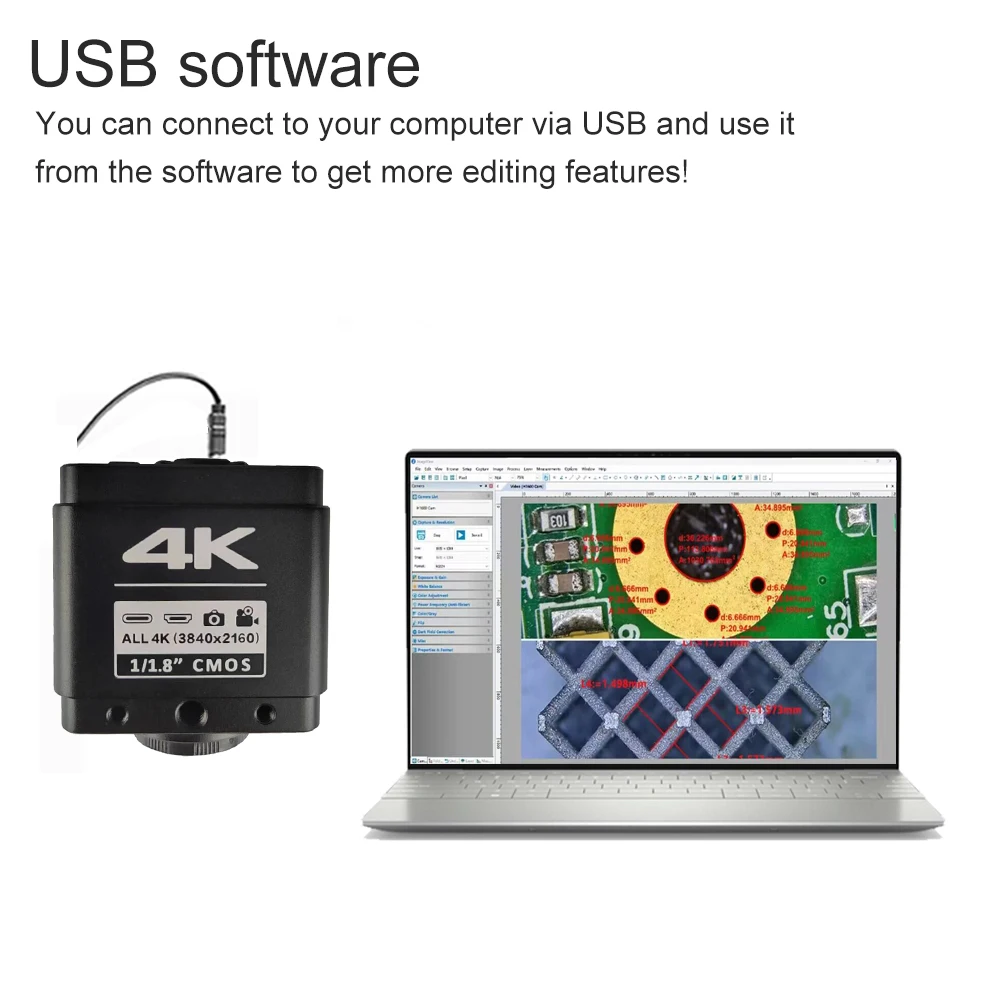

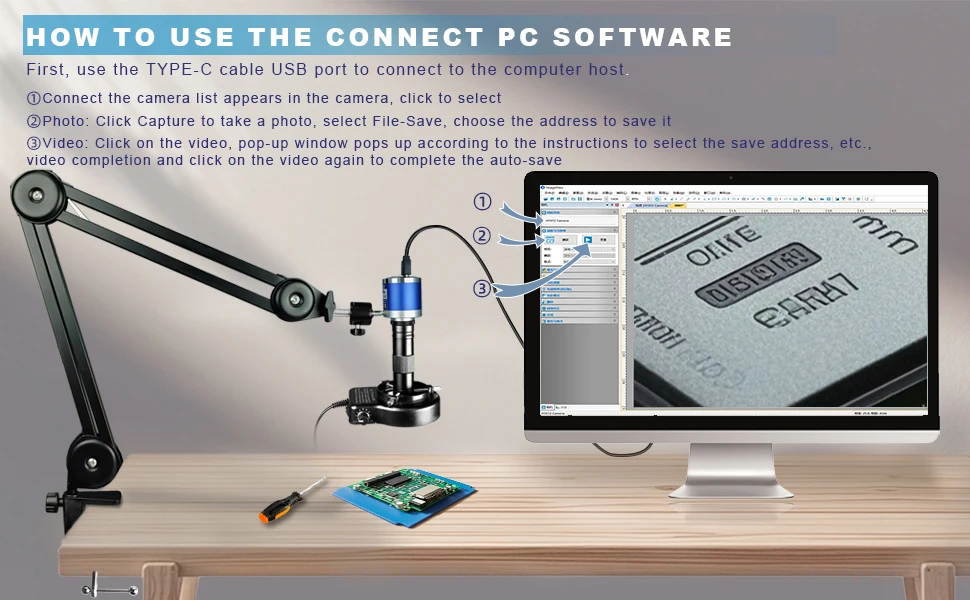

Camera software download address:

https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?usp=sharing

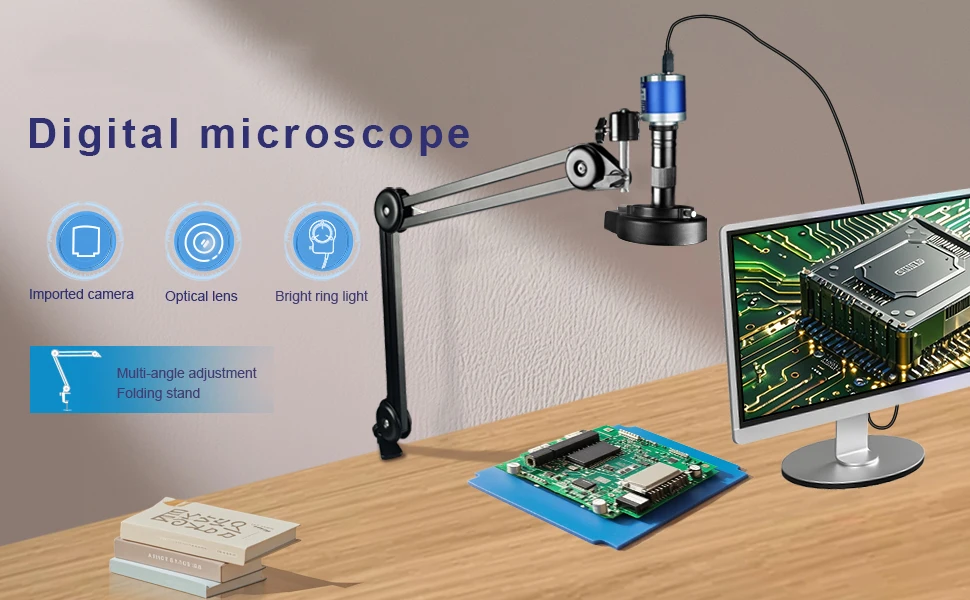

HD digital microscope, the bracket can be rotated Lifting to suit your needs,
while the lens supports 150 continuous zoom. It can definitely be a fine helper
for your daily work.
Application: QC inspection, Education purpose inspection, Print industrial,
Industrial inspection, PCB material, Jewellery & stamp collection, Textile Industrial,
Biological inspection. Electronics Repair, Luxuries Identification, Video microscopes
are easy to operate and widely used.

1X-150X Zoom C-mount Lens

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

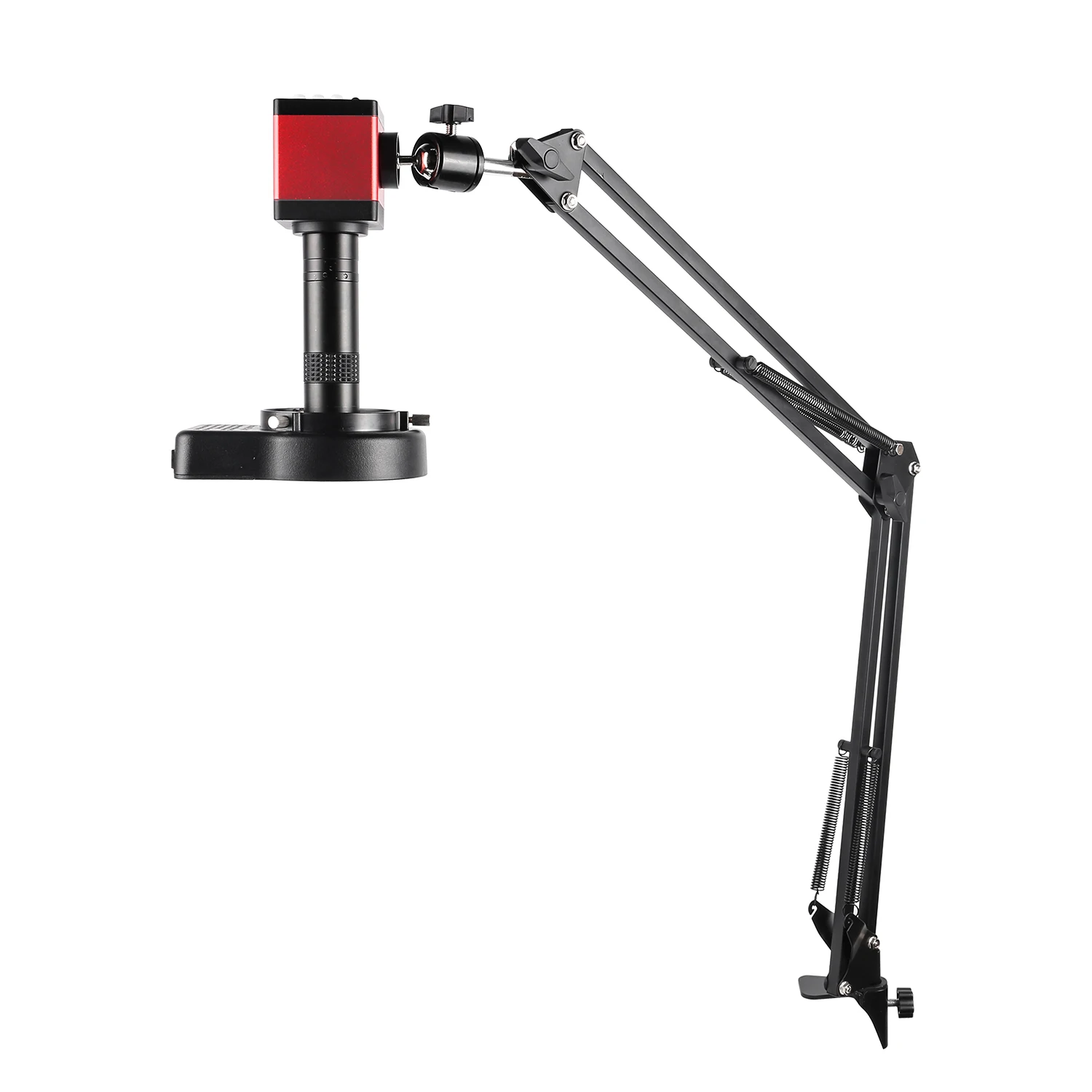

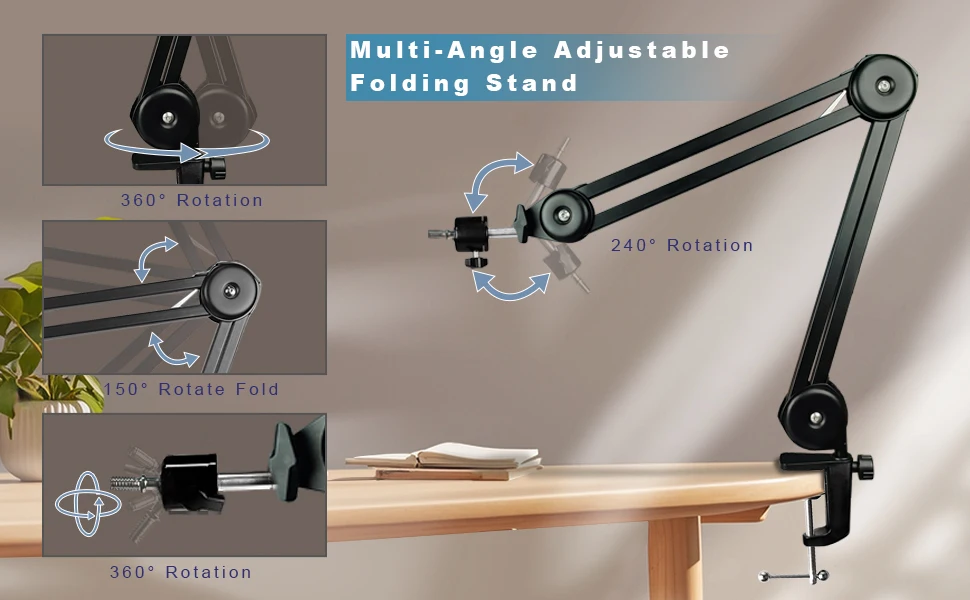

Articulated Arm Fearture:

Multi-directional folding optional installation, multi-purpose.
Size: 340 mm * 320 mm
Maximum bottom mounting size: 50mm

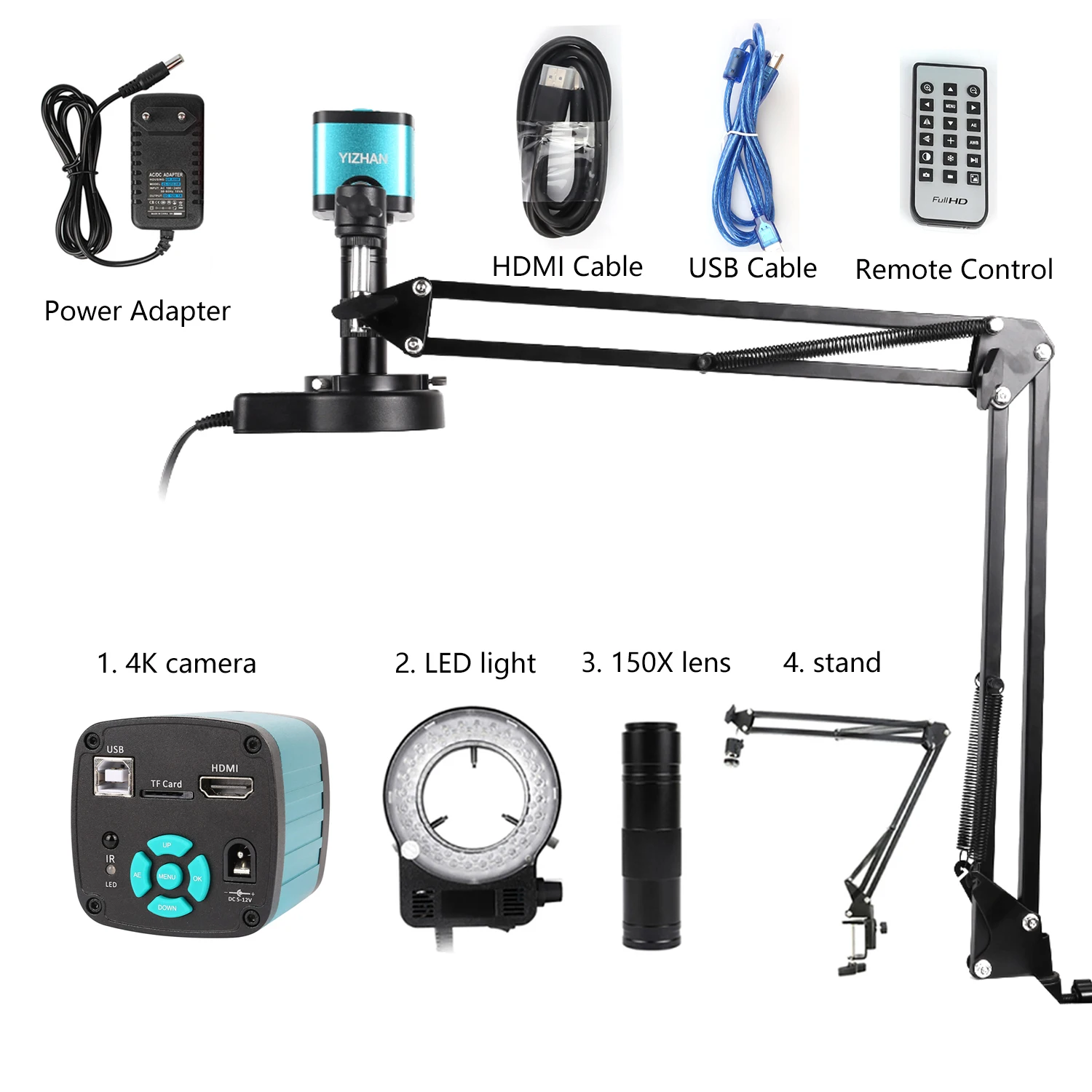

Packing list

Microscope Set:
1*camera
1*150X lens

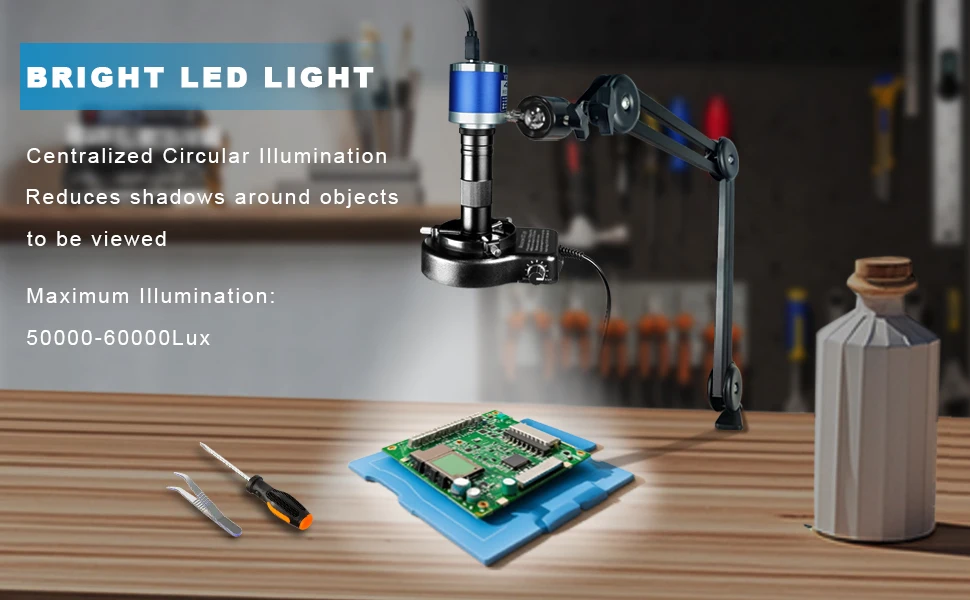

1*led ring light
1*Stand

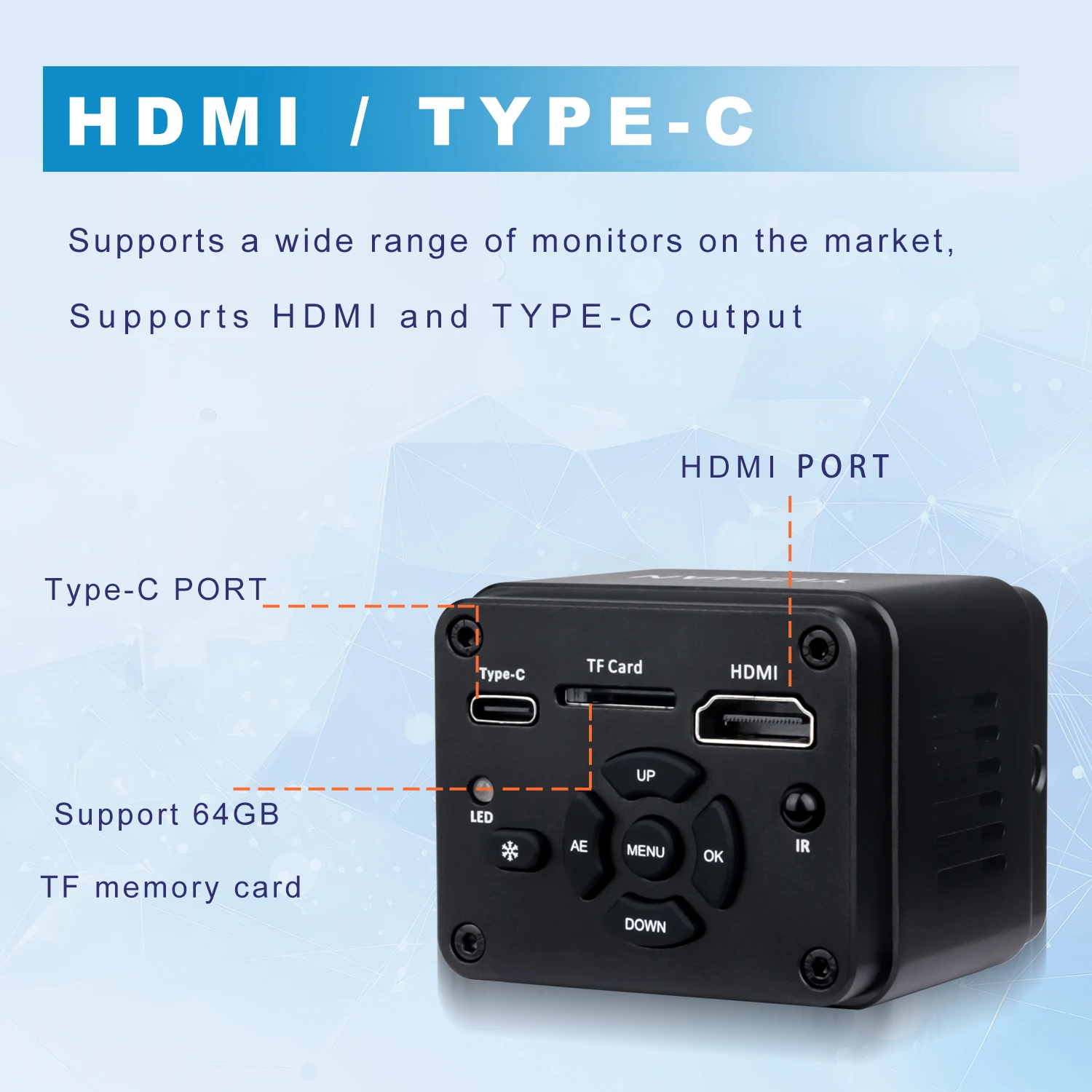

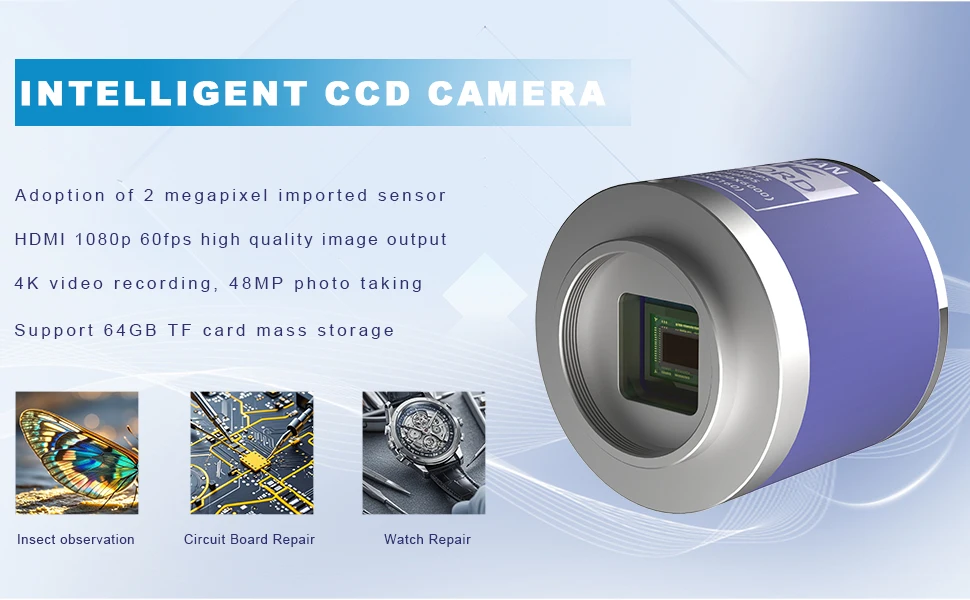

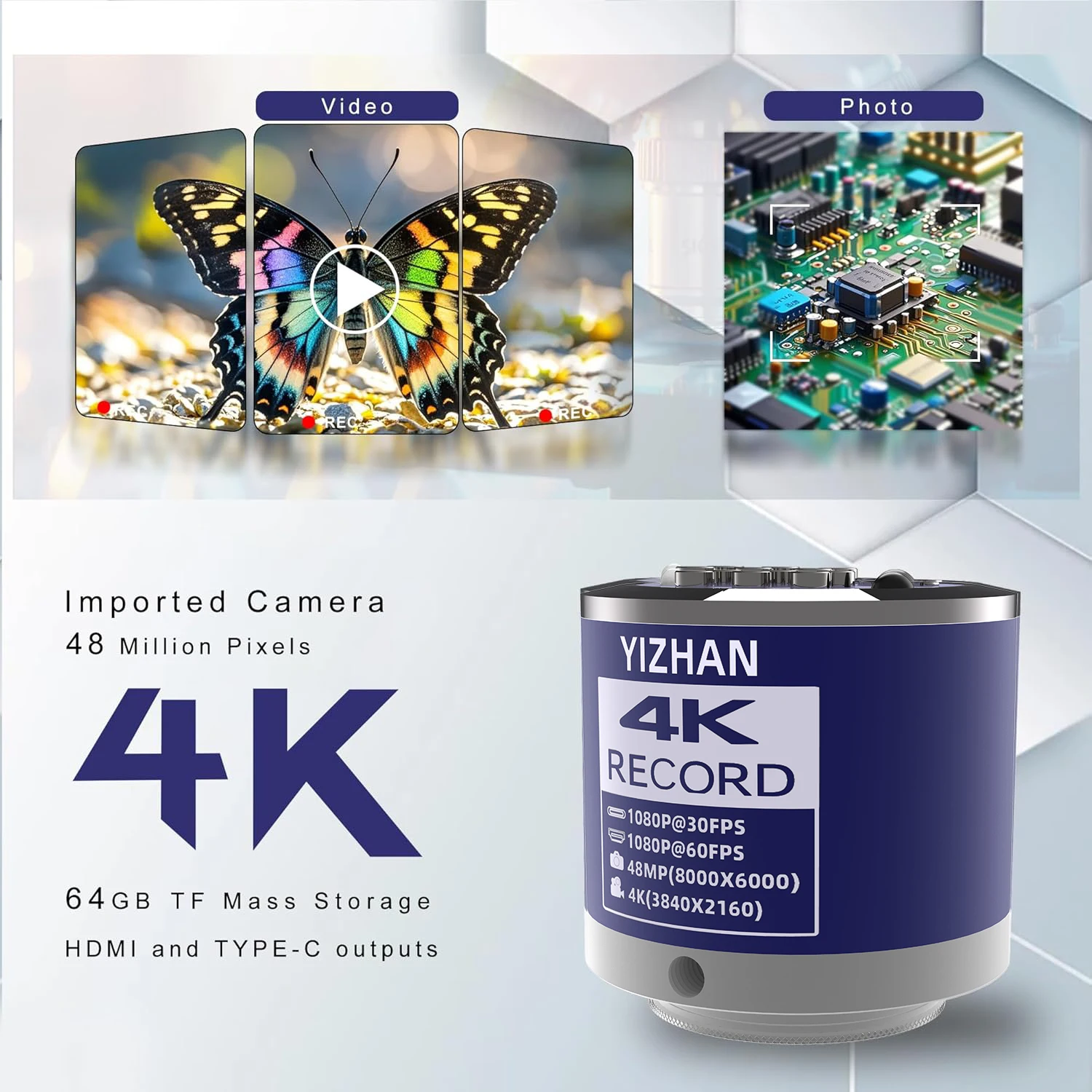

XHU4003 48MP HDMI TYPE-C Camera

◆Using a 2-megapixel imported SONY sensor;
◆With a 1 / 2.8 inch image sensor, the perspective is wider than 1 / 3 inch;
◆HDMI 1080P 60FPS image output ；
◆TYPE-C no-drive output 1080P 30-frame image output;
◆4K video recording;
◆48 Million photos, JPG format, photo size 8000x6000;
◆One-click freeze / thaw function;
◆A 48-megapixel photo recording and a 1080P video recording;
◆Electronic scaling function;
◆automatic exposure / one-click exposure, exposure compensation value adjustment;
◆automatic white balance / one-key white balance, red, green, blue adjustable;
◆Provide 16 line drawing line function, line color, thickness, adjustable position;
◆Provide the center cross-line display / close;
◆Support for TF card storage, up to 64GB support;
◆Support remote control operation, take photos without shaking the image clearer;
◆Support for Chinese and traditional Chinese and English menu languages;
◆Support the shutdown setting parameter saving;
◆Aluminum alloy shell processed by CNC fine milling technology;

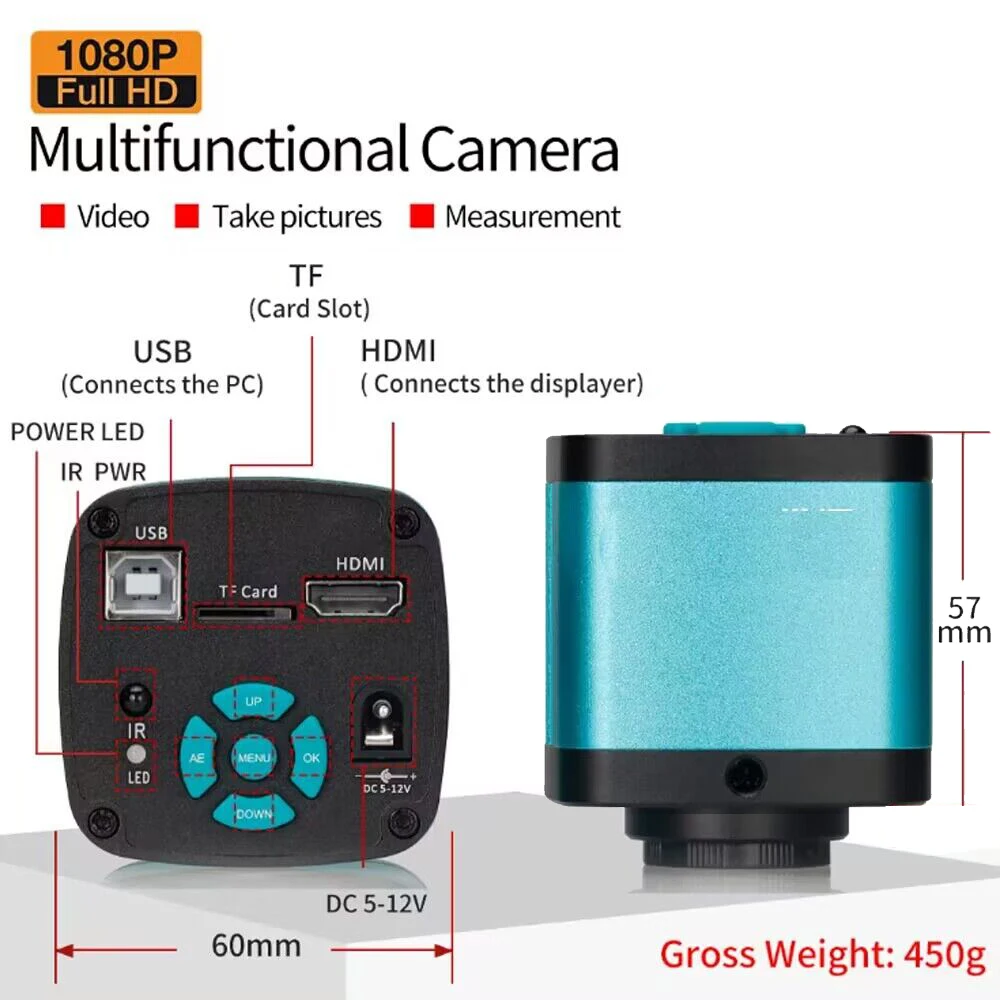

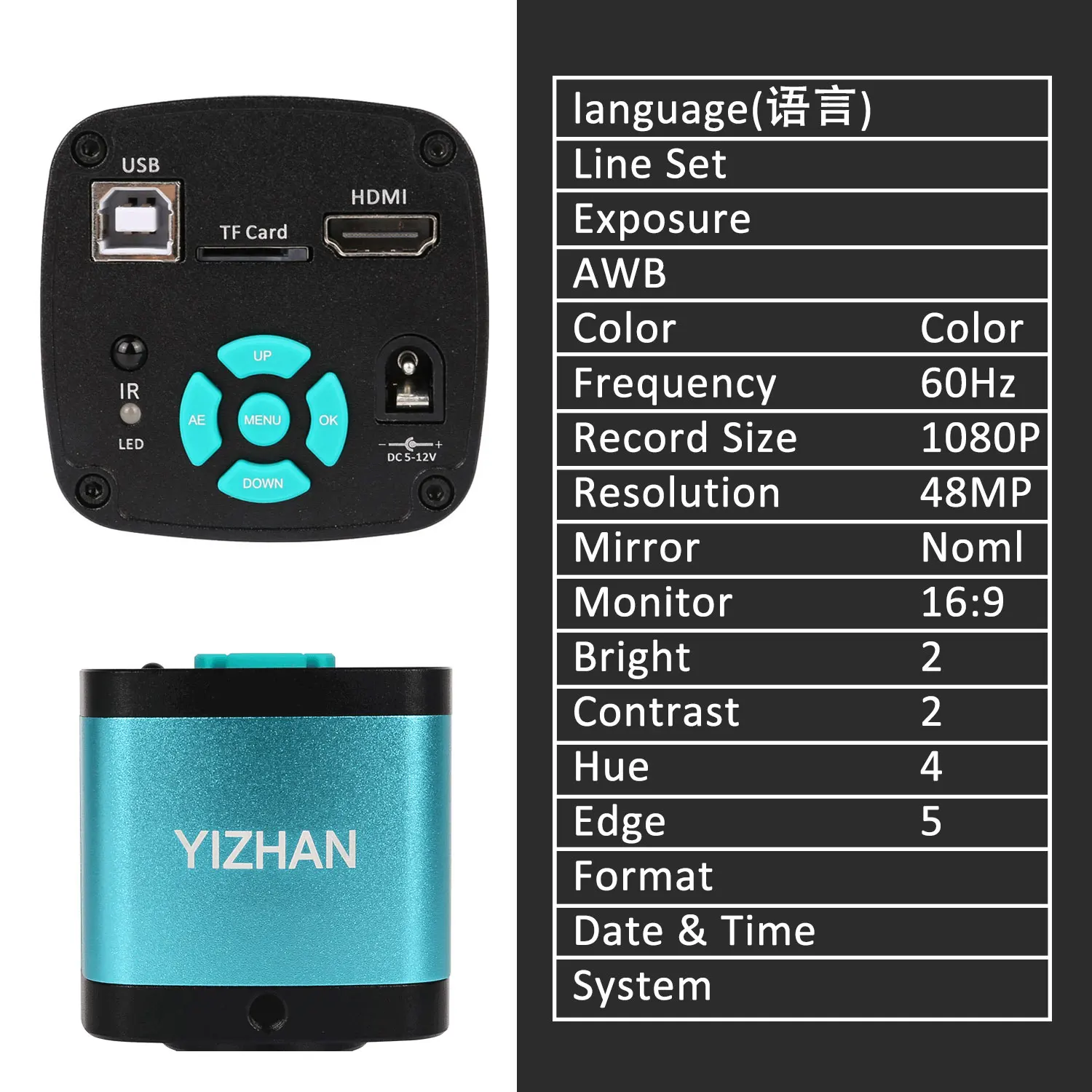

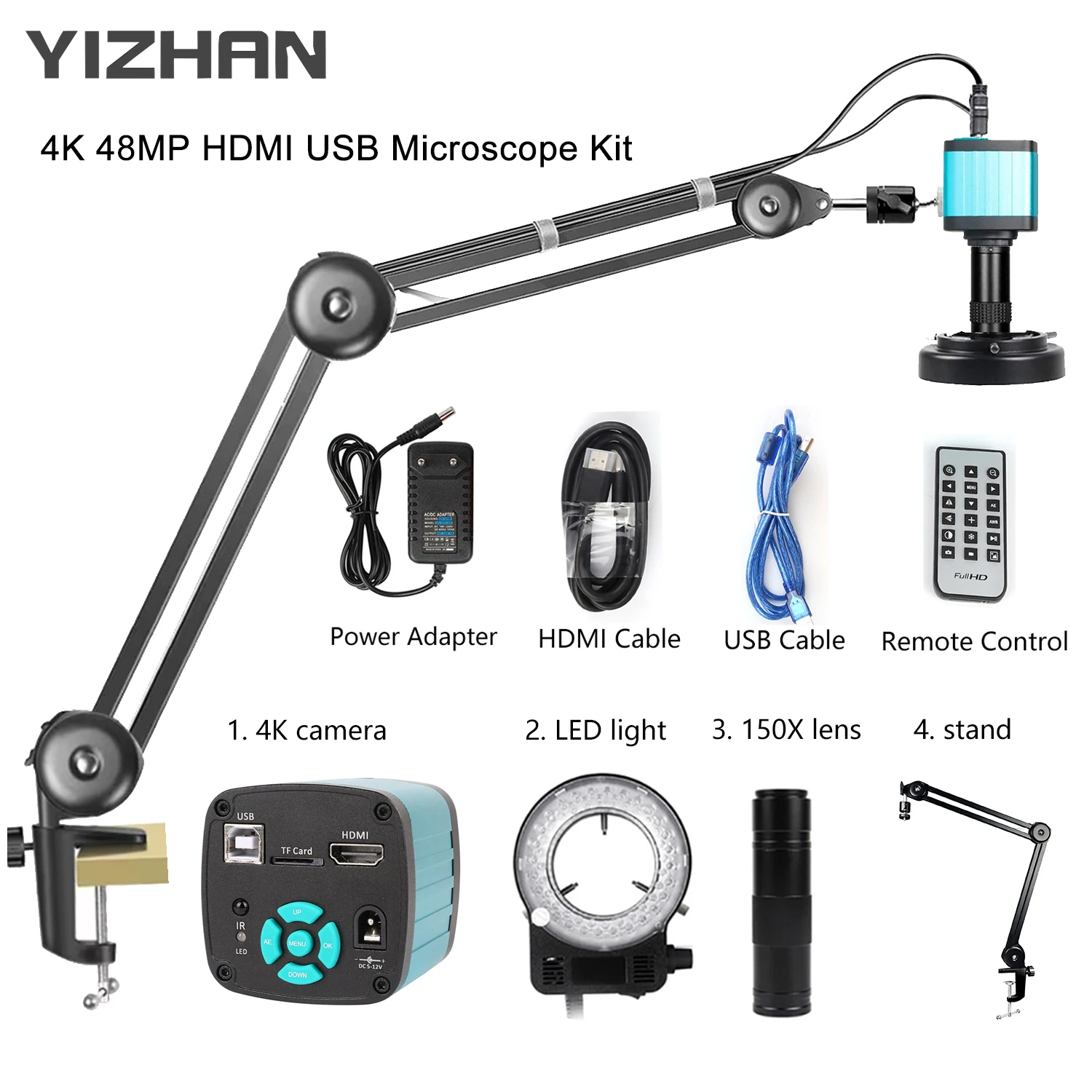

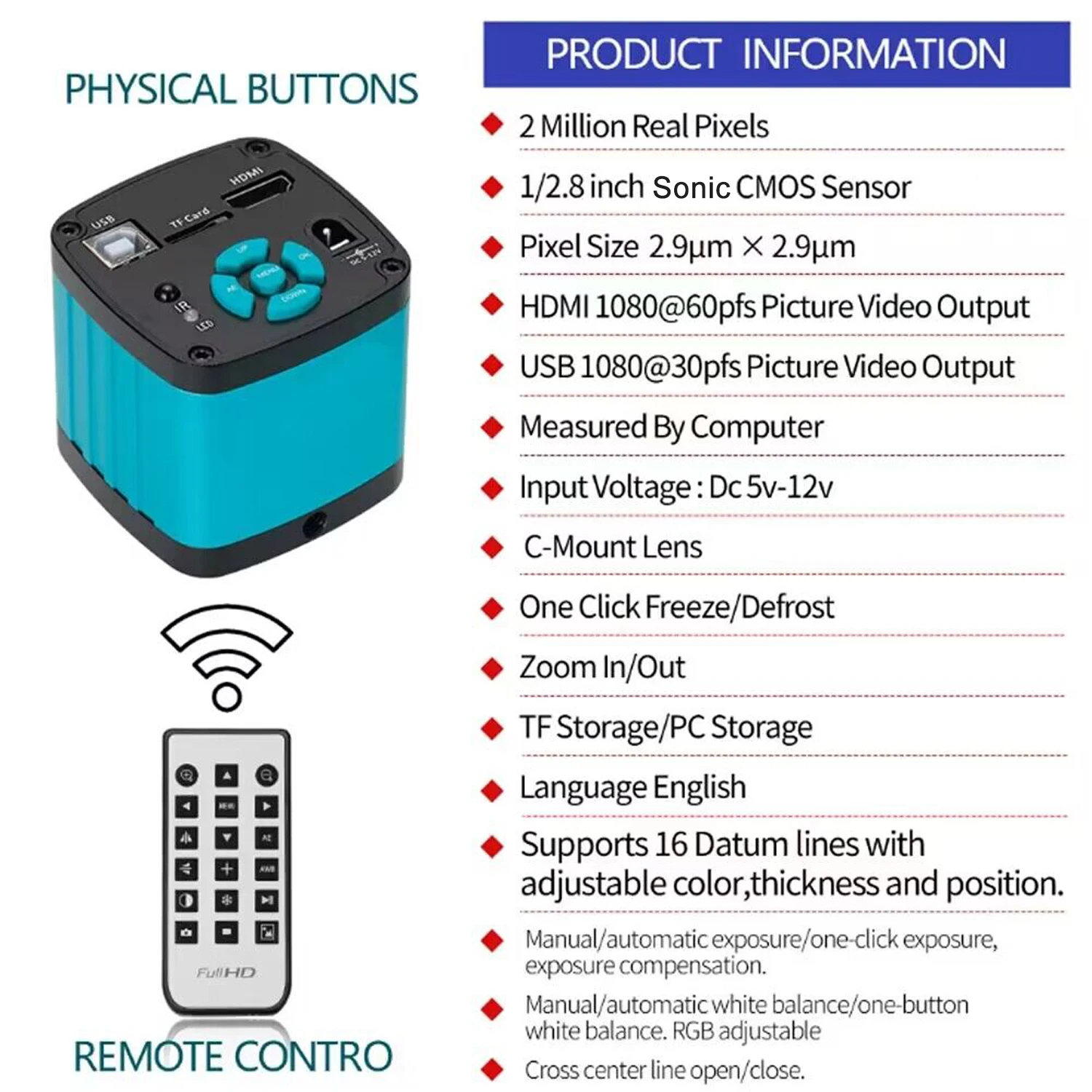

XHU4002 4K 48MP HDMI USB Camera:

Sensor: 1/2.8-inch SONY imx327 (upgraded)
HDMI output : 1920*1080 60PFS
USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Pixel size : 1.335µm × 1.335µm
Camera interface : C/CS
Exposure : Automatic/manual
Exposure compensation : Support
White balance : Automatic/manual, RGB adjustable
Storage : Supports a maximum of 64GB
Input voltage : Dc 5v-12v
line : Supports 8 straight lines with adjustable color, thickness and position
Center line : Support
Menu language : English/Chinese
Remote control : Support remote control operation
Net weight : 250g
Rough weight : 450g
Product size : 66*66*49mm
Packing size : 145*130*70mm

Packing List of camera set:
1 * Camera body
1 * Power adapter
1 * HDMI cables
1 * USB cable

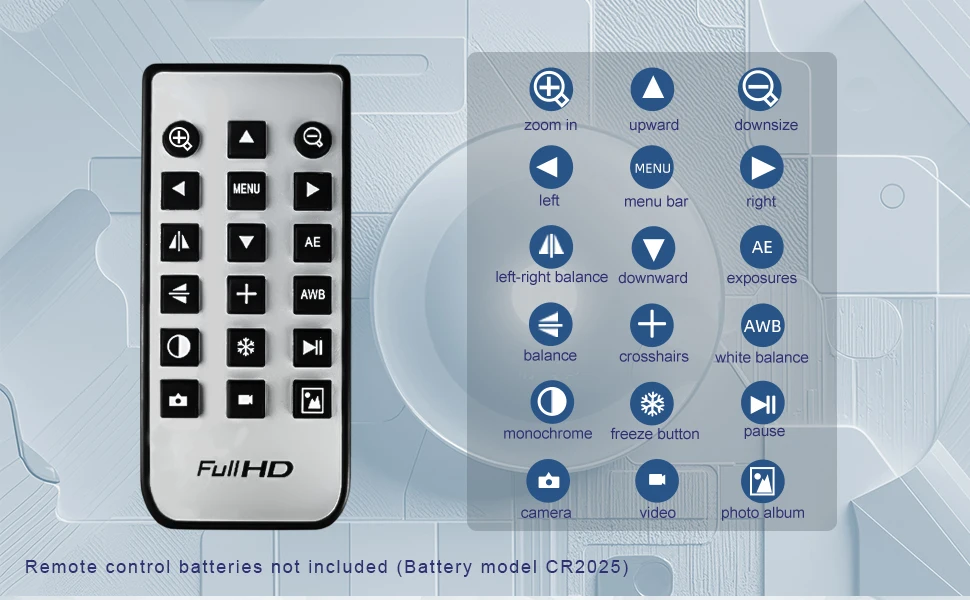

1 * Remote control (no battery due to logistics requirements)
1 * Paper instruction manual
1 * Driver software (you need to leave your email address)

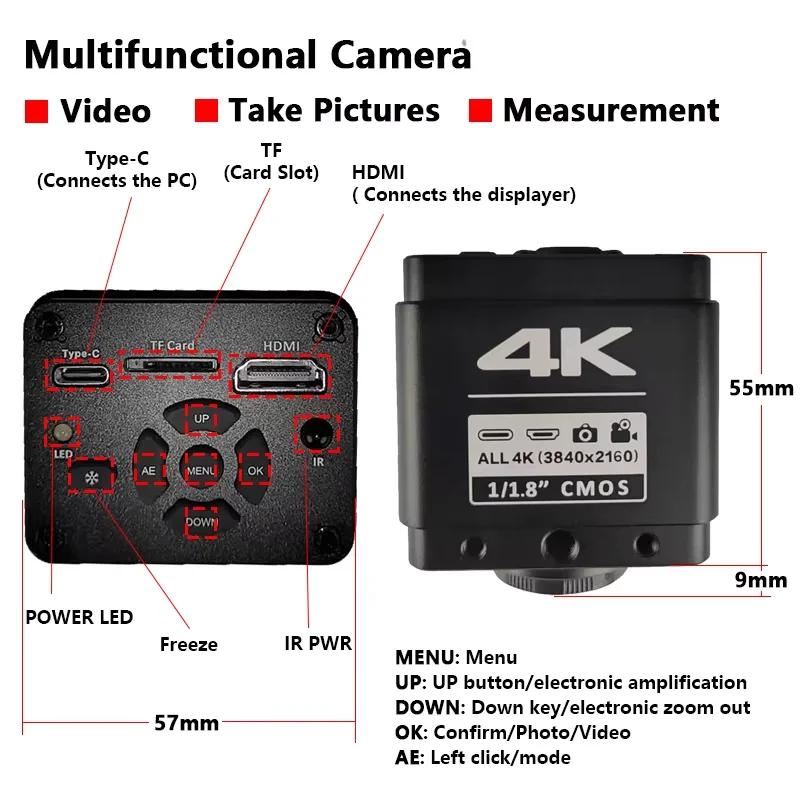

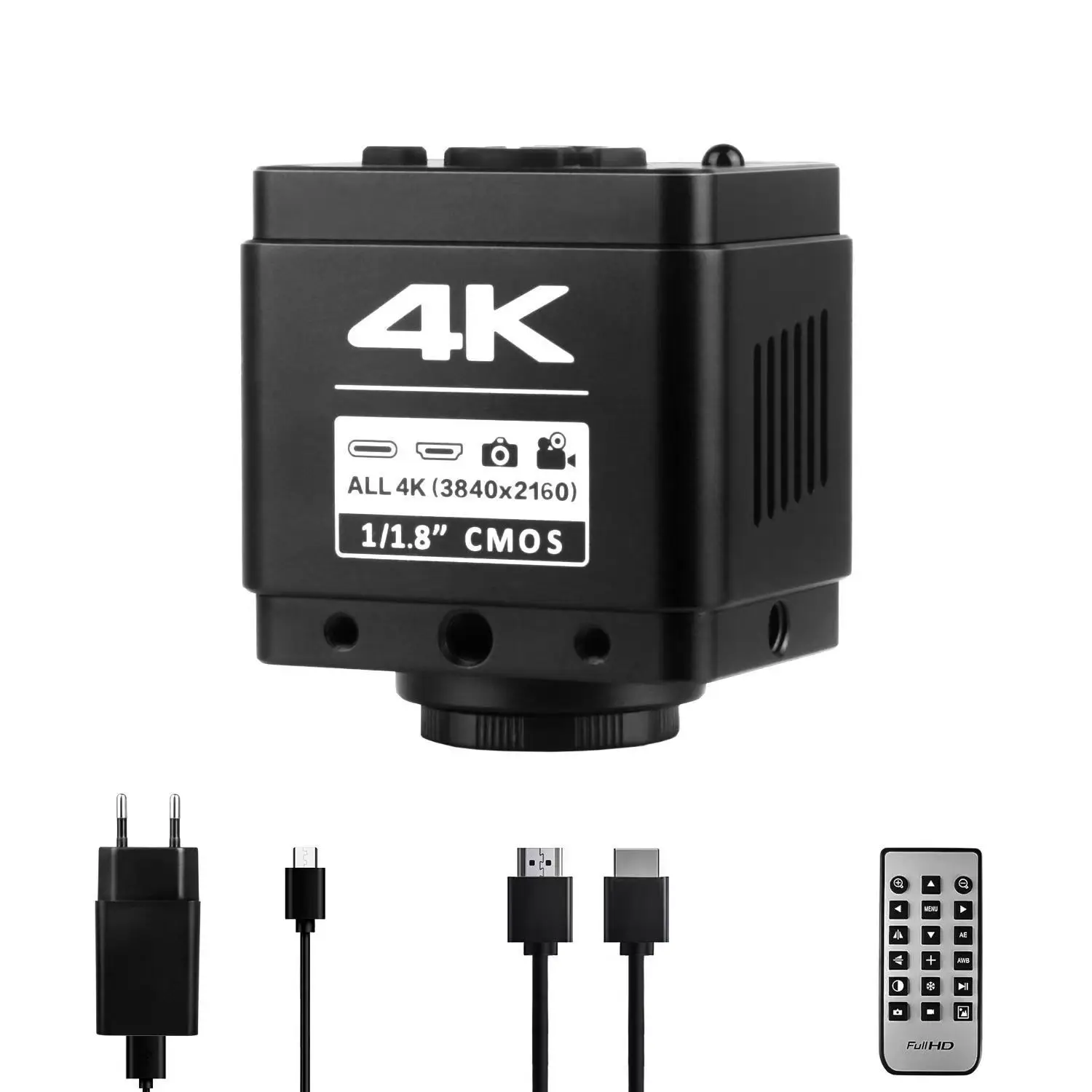

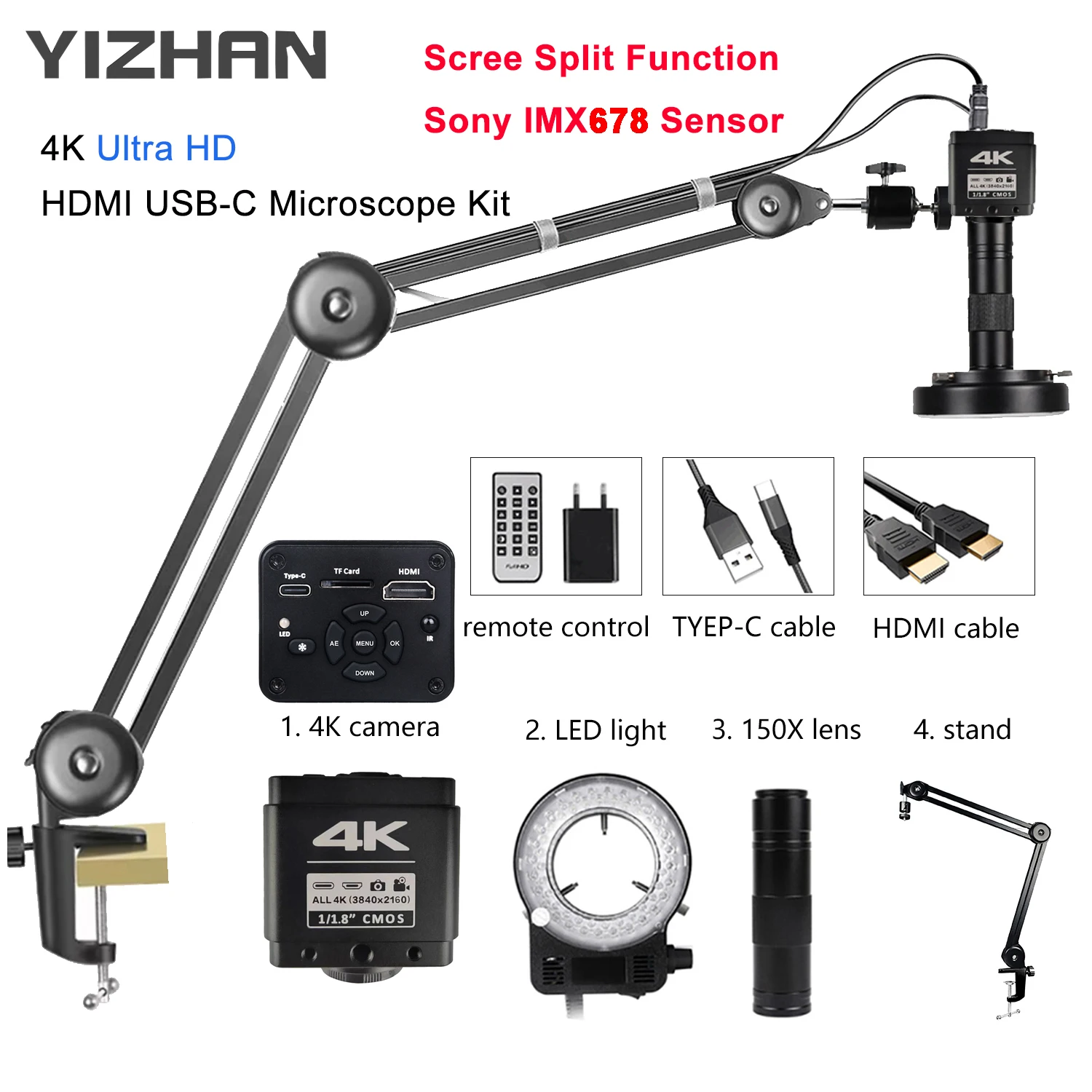

XHU3011 4K 48MP ULTRA HD HDMI TYPE-C Camera:

◆Using 8.29 million pixel Sony IMX678 CMOS image sensor;
◆Using 1/1.8 inch image sensor;
◆HDMI 3840*2160 30 frames/1080P 60 frames image output;
◆USB2.0 driver-free output 3840*2160 30 frames of image output;
◆4K video recording;
◆4K photo taking
◆One-button freeze/thaw function;
◆Split screen function
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 16-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking pictures, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;

Specifications:
Sensor: 1/1.8-inch Sony 8.29 million pixel CMOS sensor
Pixel size: 2µm × 2µm
HDMI output: 3840*2160 30 frames/1920*1080 60 frames
USB output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
Lens interface: C/CS
Exposure: automatic/manual
Exposure compensation: support
White balance: automatic/manual, support R, G, B adjustable
Storage: maximum support 64GB
Input voltage: DC 5V
Line drawing: support 16 straight lines, color, thickness and position adjustable
Center line: support
Menu language: English/Chinese/Traditional
Remote control: support
Packaging size: 145*130*70mm

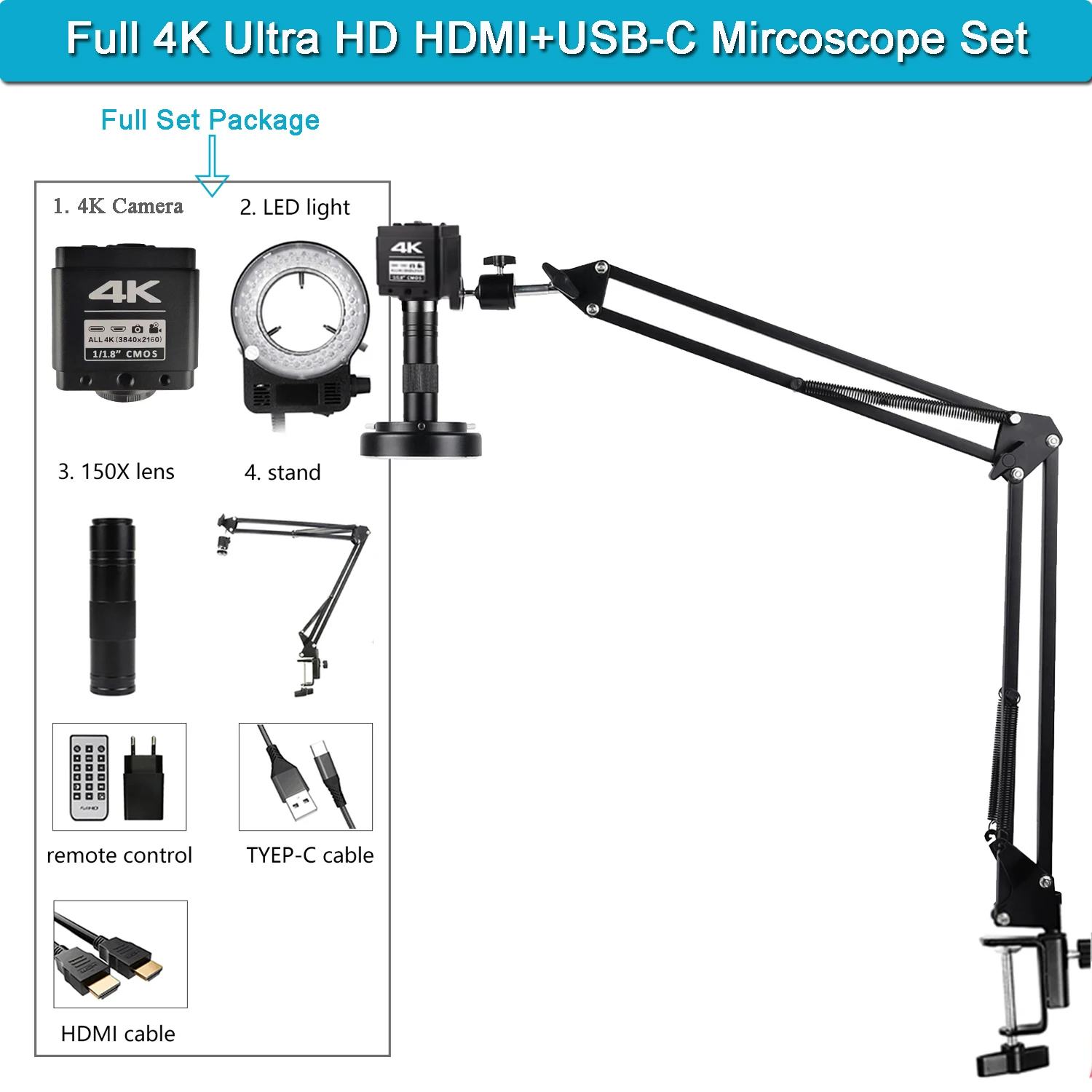

Package includes:
1*XH3011 camera
1*US/EU plug
1*HDMI cable
1*Type-C cable
1*remote control

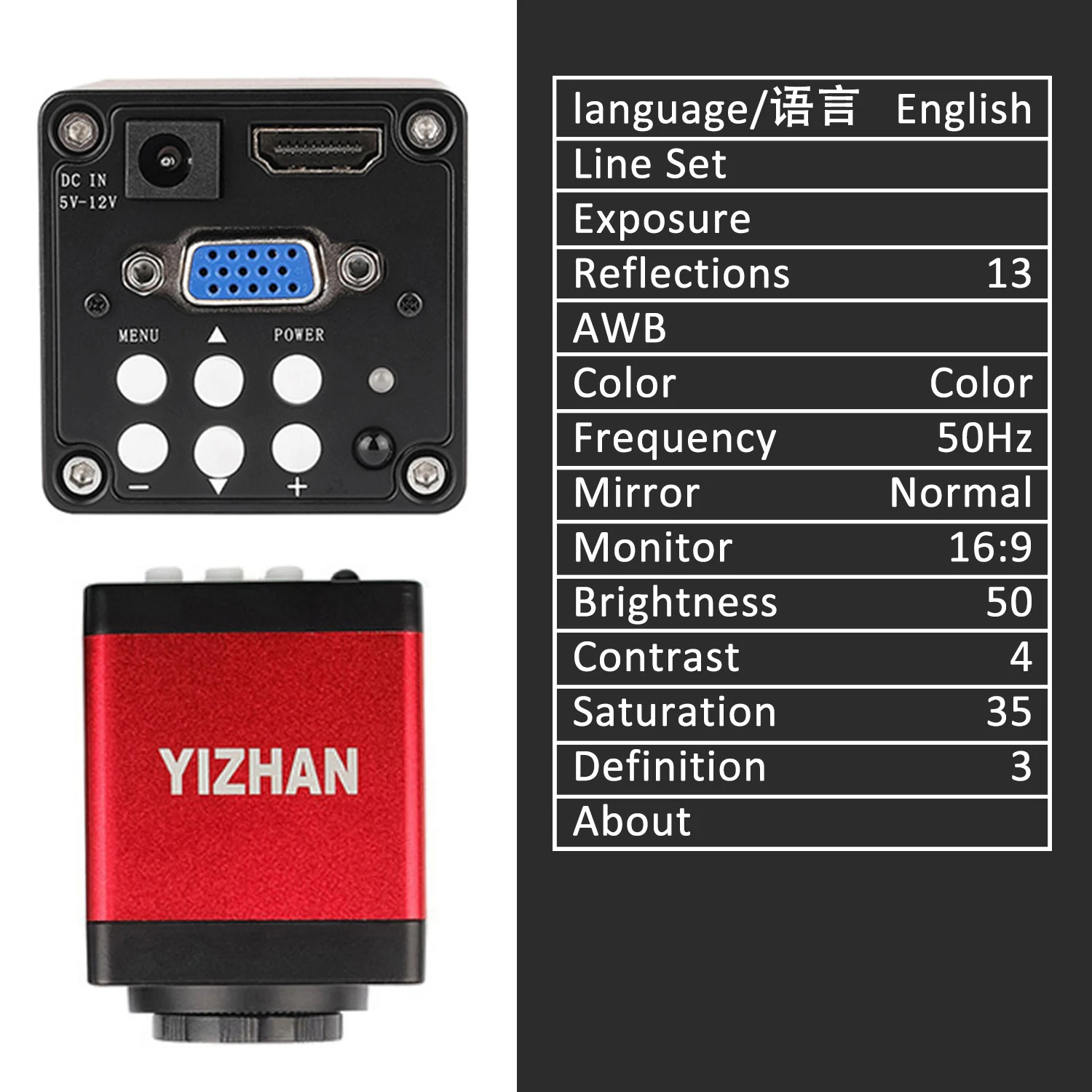

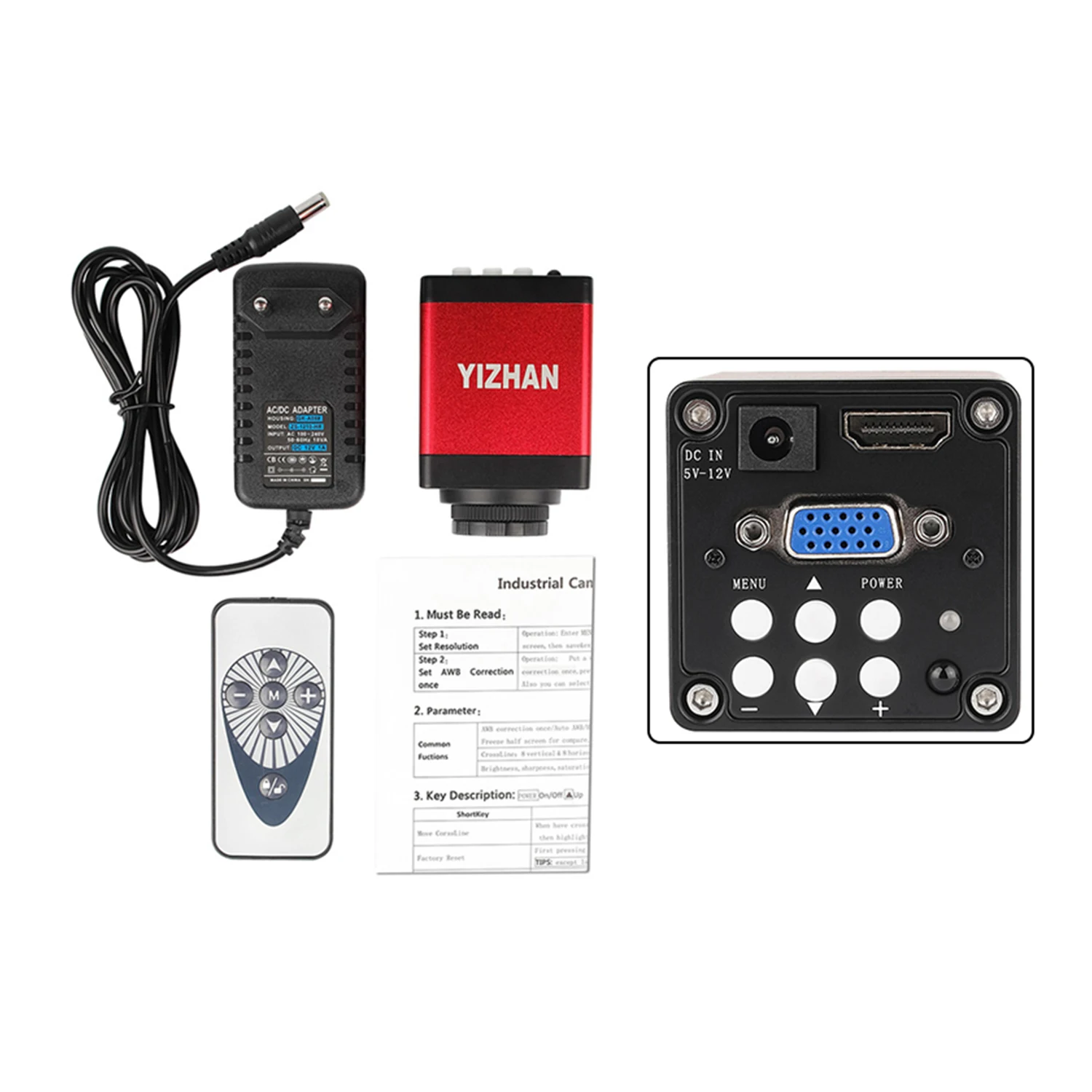

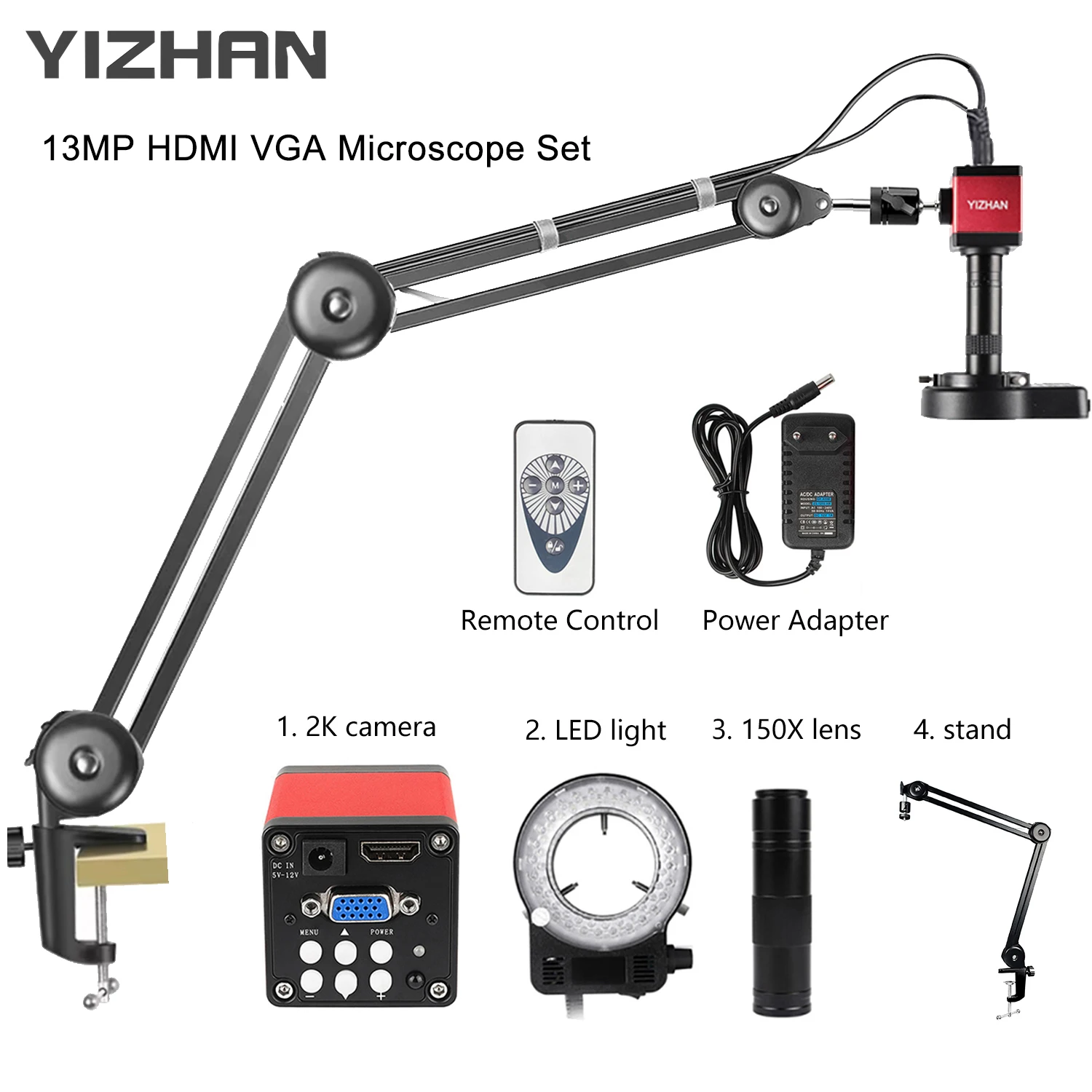

XV2003 2K HDMI VGA Camera:

The sensor: Sony IMX323
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
TV Lines:1200TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

Package incluede
1 x 13MP Camera（HDMI VGA ）Body
1 x 100V-240V power supply (EU / UK / AU Adapter for free）
1 x Camera remote

1 x Paper manual
