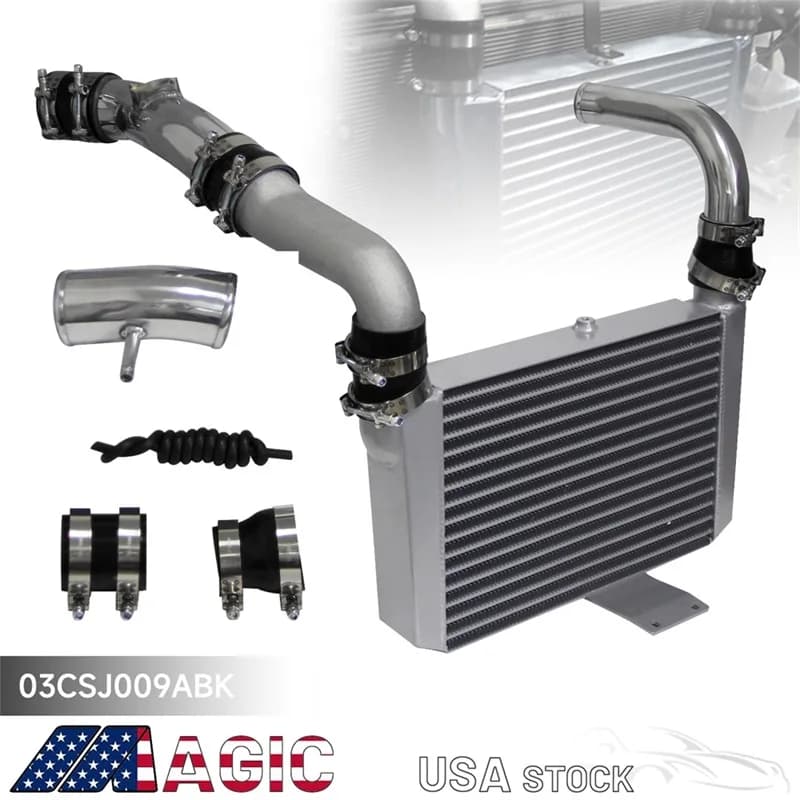

Upgrade Front Mount Intercooler Pipe Kit for Scion FR-S 2013-2016 Subaru BRZ 2013-2021 Toyota 86 2017-2021

Upgrade Front Mount Tube & Fin Intercooler Kit
Application:
For Scion FR-S 2013-2016
For Subaru BRZ 2013-2021
For Toyota 86 2017-2021
Description:
Piping kit:
Manufactured from high quality T-6061 aluminum with mandrel bent pipings for smoother air flow.
3-ply nylon reinforced silicone couplers made to withstand high temperature & high boost applications.
Smooth and light weight design for increased air flow and better performance (estimated gain of 10~20 HP).
Includes: 4 Pipes, 6 Silicon Hoses, 12 Clamps
The size of alloy pipes
2pcs 2.75"(70mm)
1pcs 2"(50mm)
1pcs 2.36"-2.75"(60-70mm)
INTERCOOLER :
TIG-welded T-6061 casted aluminum end tanks for high internal pressure.
Reduce engine inlet temperature with better cooling efficiency than stock.
Allows more horsepower at the same boost levels and even more power at higher boost levels.
max horsepower capacity: 350-400HP
Pre-welded brackets
core size: 15.3''x11.1''x2.75''(390x252x70mm)
inlet / outlet size: 2.36''(60mm)
end to end length: 20.6''(525mm)
Note:
Instruction is not included.
Professional installation is highly recommended
