XINPUGUANG 18V Rigid Glass Solar Panel, Waterproof Monocrystalline PV Module, 120W~1200W Optional 1-10pcs, Solar Battery Charger

18V Solar Panel 1200W 600W Waterproof Monocrystalline Best Solar Panel 1- 10pcs 120W China Charging Camping RV Boat battery Home

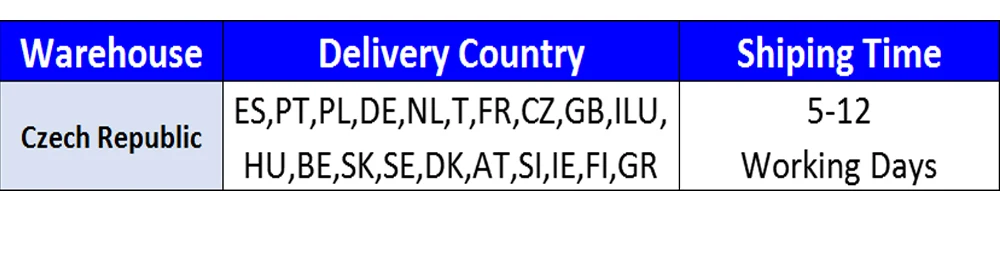

This product we have a warehouse in the Czech Republic and when you buy it, if you are in the EU, we will ship to your country, which will be fast delivery.
But the zip codes in Spain
The zip codes in Spain start with 35, 38, 51, 52.
French zip codes start with 97
Portugal's zip code starts with 9.
The above areas are local transport companies, they are remote areas, logistics companies will add a remote fee of 15 euros
We will charge the above areas remote fee of 15 euros, please use the above address to place orders buyers know, thank you.

Feature:

1. Easy maintenance.
2. Light weight and high efficiency
3. Easy to install and easy to install.
4. Wide range of applications (outdoor, mountain, grassland and other power generation, charging, portable emergency charging)

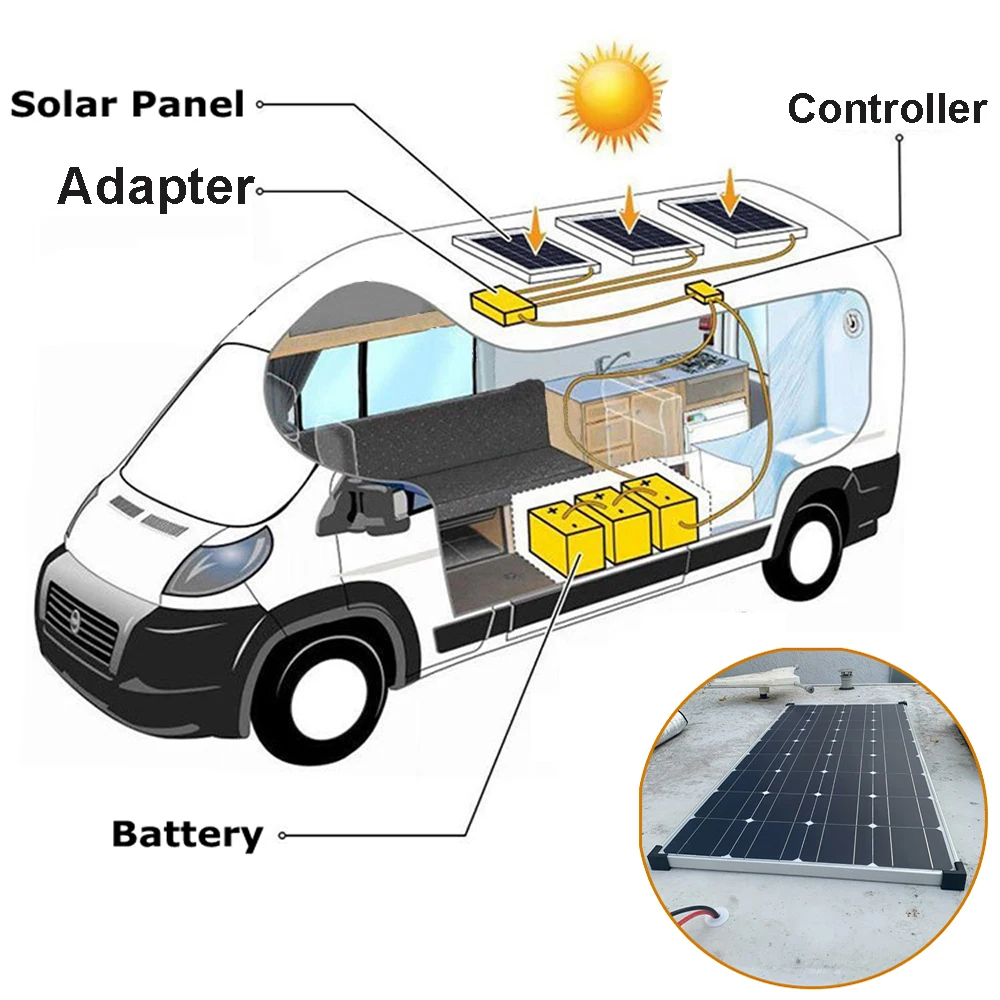

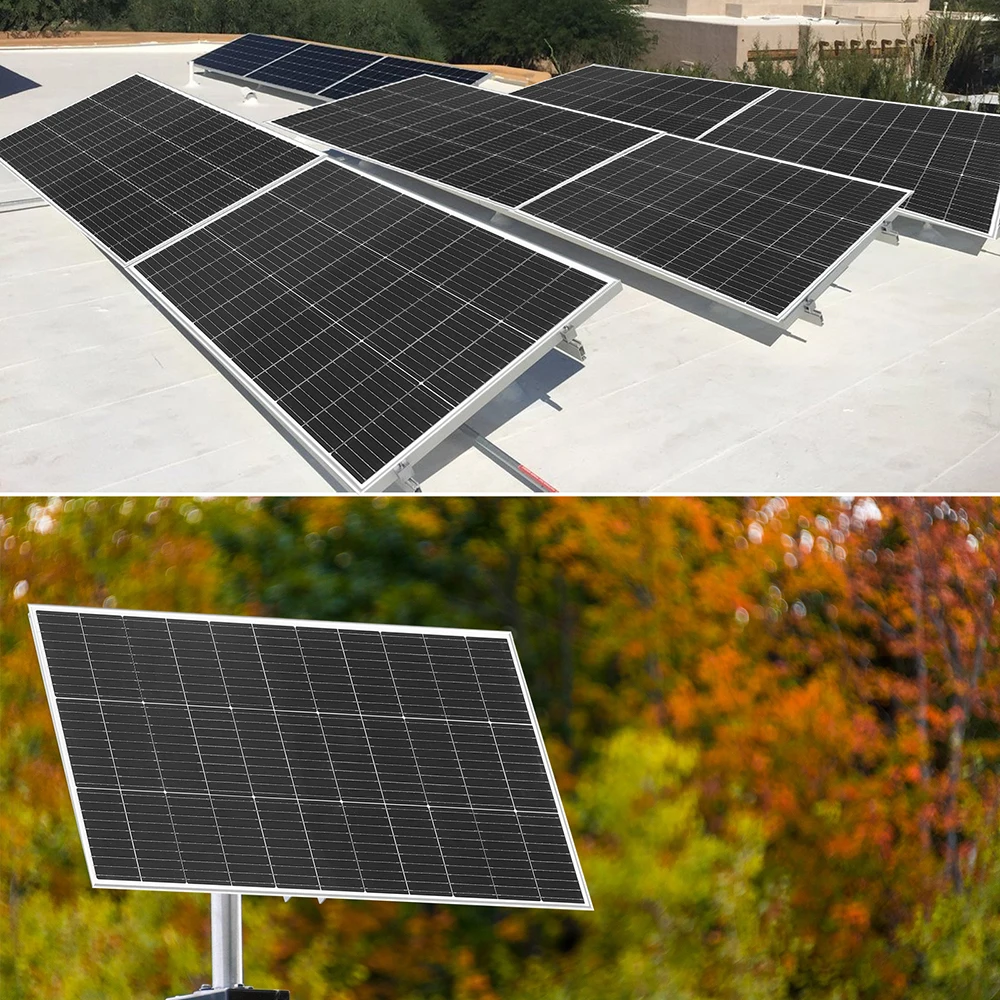

【Versatile】Use it for your RV when camping, or during beach trips with the family, either way this monocrystalline panel provides you with the most efficiency per space.Maximum Series Fuse Rating: 15A

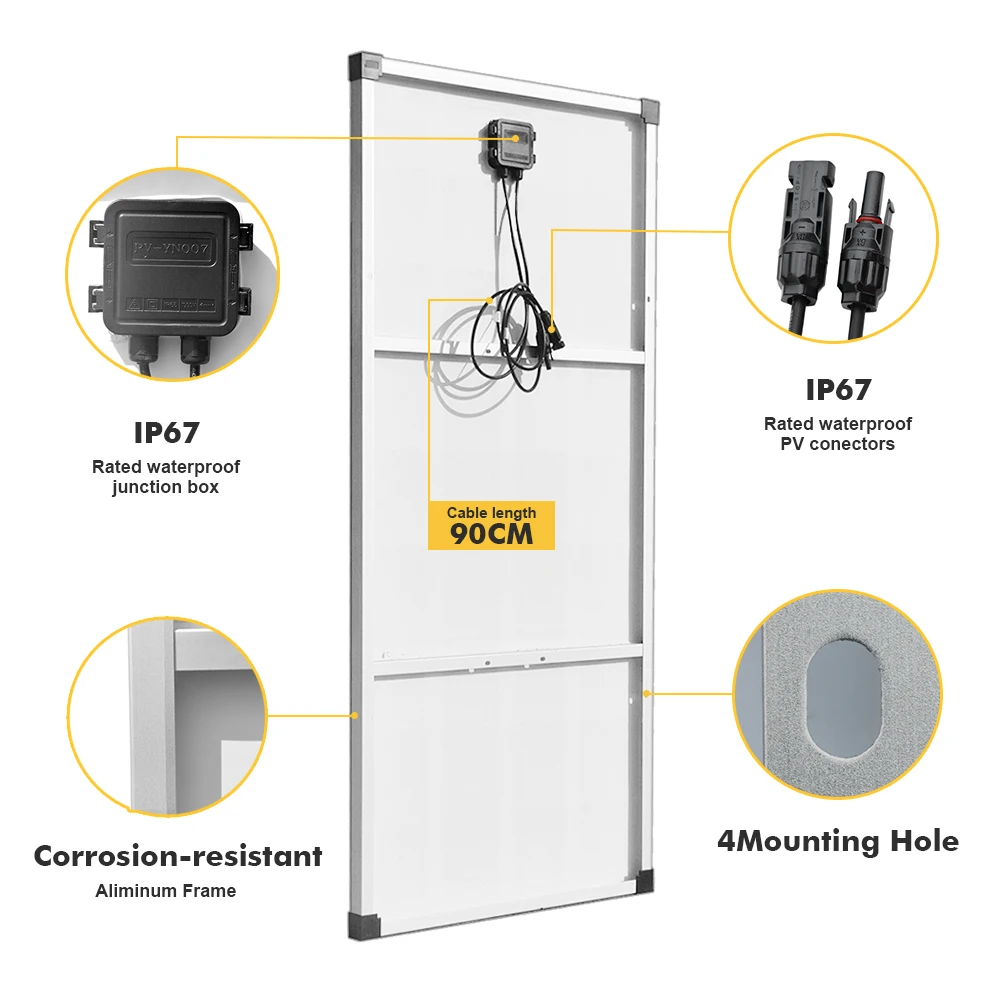

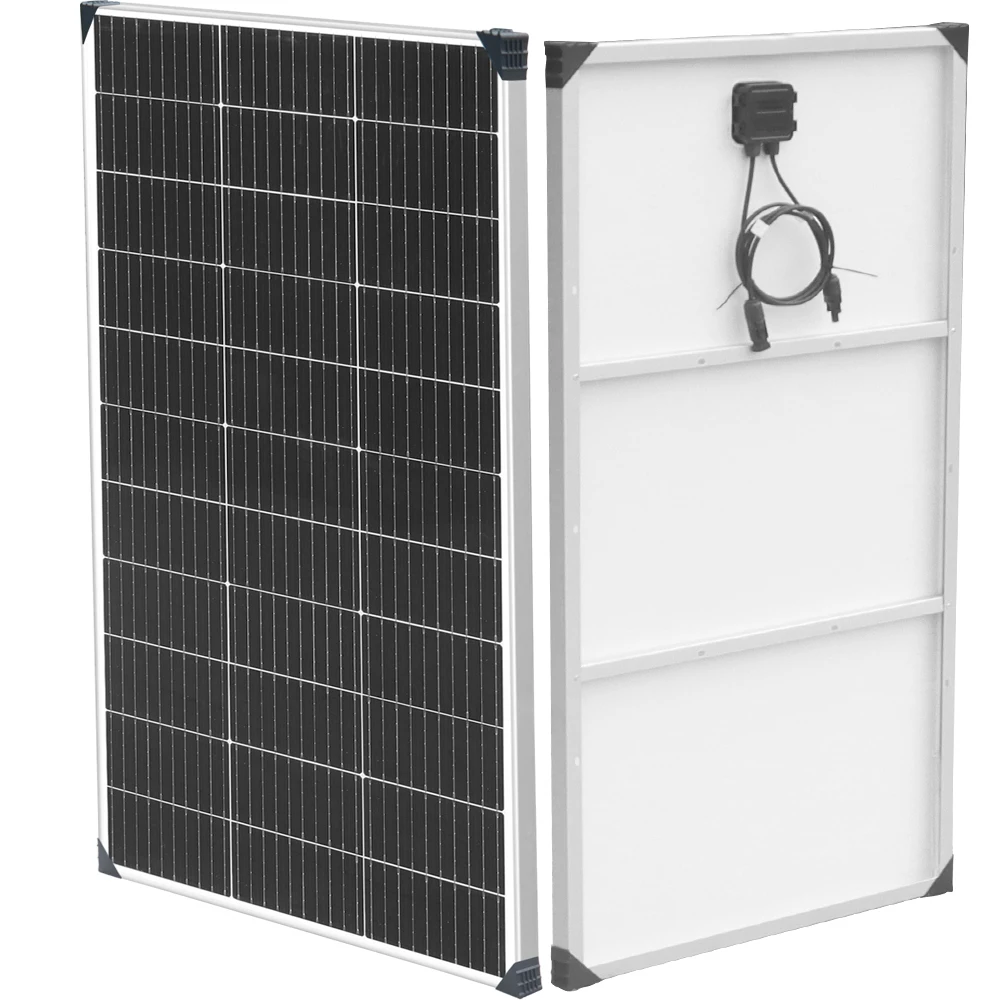

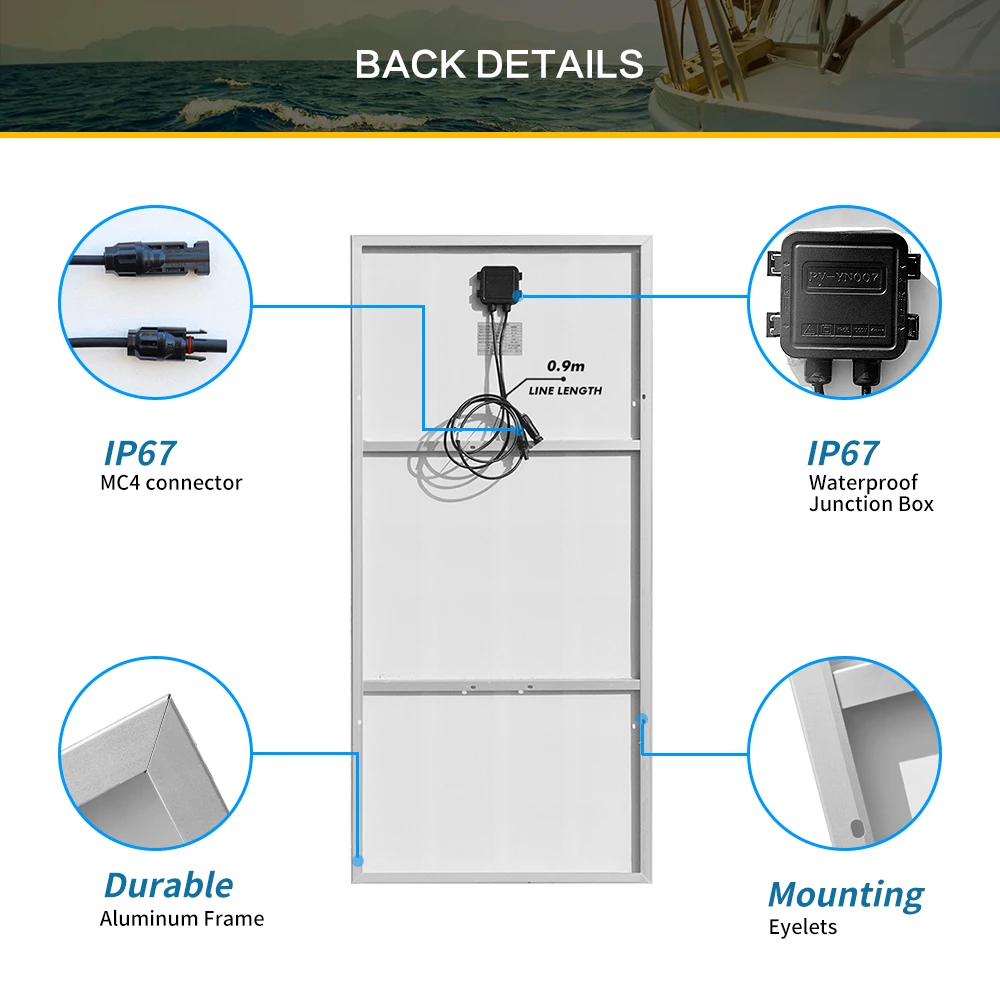

【Installation Ready】Pre-drilled holes on the back of the panel allow for fast mounting and securing. Pre-drilled holes included for grounding. Compatible with different mounting systems such as Z-Brackets, Pole Mounts and Tilt Mounts.

【Reliable】Advanced encapsulation material with multi-layered sheet laminations enhance cell performance and provide a long service life.

【Durable】Guaranteed positive output tolerance (0-3%); withstands high winds (2000Pa) and snow loads (4000Pa)

120w solar panel Specification

Material:Monocrystalline Silicon

Maximum Power(Pmax): 120W

Maximum Power Voltage(Vmp):18.15V

Maximum Power Current (Imp):6.6A

Open-Circuit Voltage (Voc): 21.78V

Short-Circuit Current (Isc):7.2A

Maximum System Voltage: DC1000V

Maximum Series Fuse:15A

Nominal Operating Cell Temp.(NOCT):-45 to 80℃

Net Weight:3.06kg

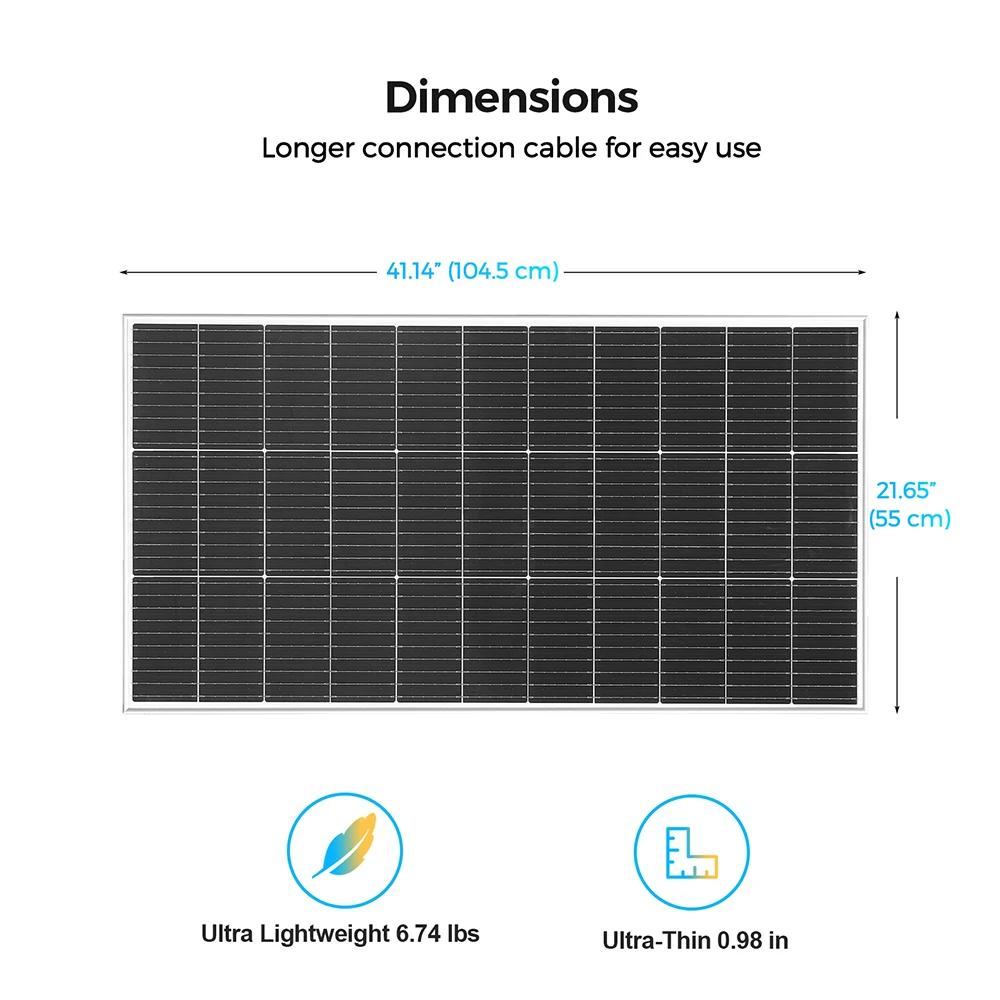

Dimension:1045*550*25mm

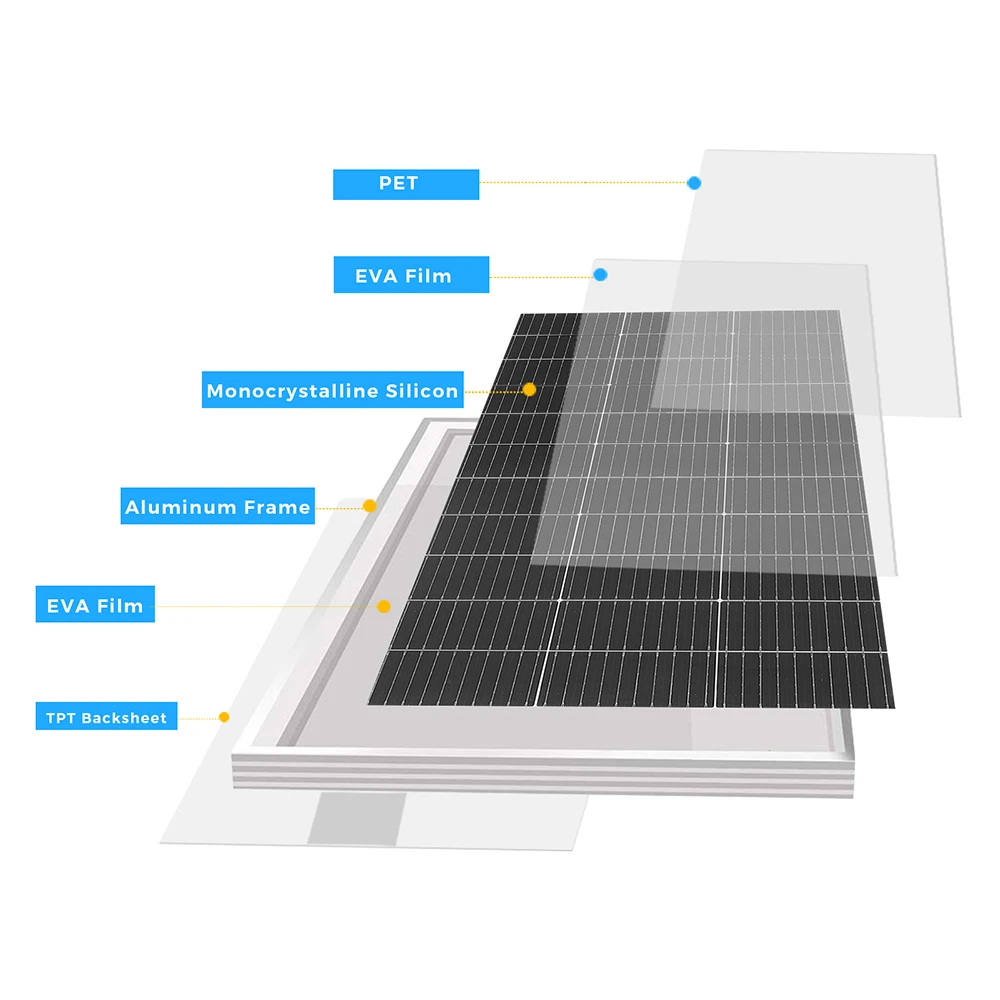

Material structure：

1 floor: PET

2 floor: EVA Film

3 floor: High Efficiency Solar Cell

4 floor: EVA Film

5 floor: EVA Film

6 floor: TPT Backsheet

aluminium frame

waterproof level：IP67（Junction Box）

(The above data is based on the laboratory standard test environment)

For field connections,use minimun No.14AWG copper wires insulated for a minimum 90℃

Standard Test Conditions:

AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃

(The size is manually measured and there is a certain error. Customers who want accurate size please don't buy，thank you）

The controller is available in two colors:

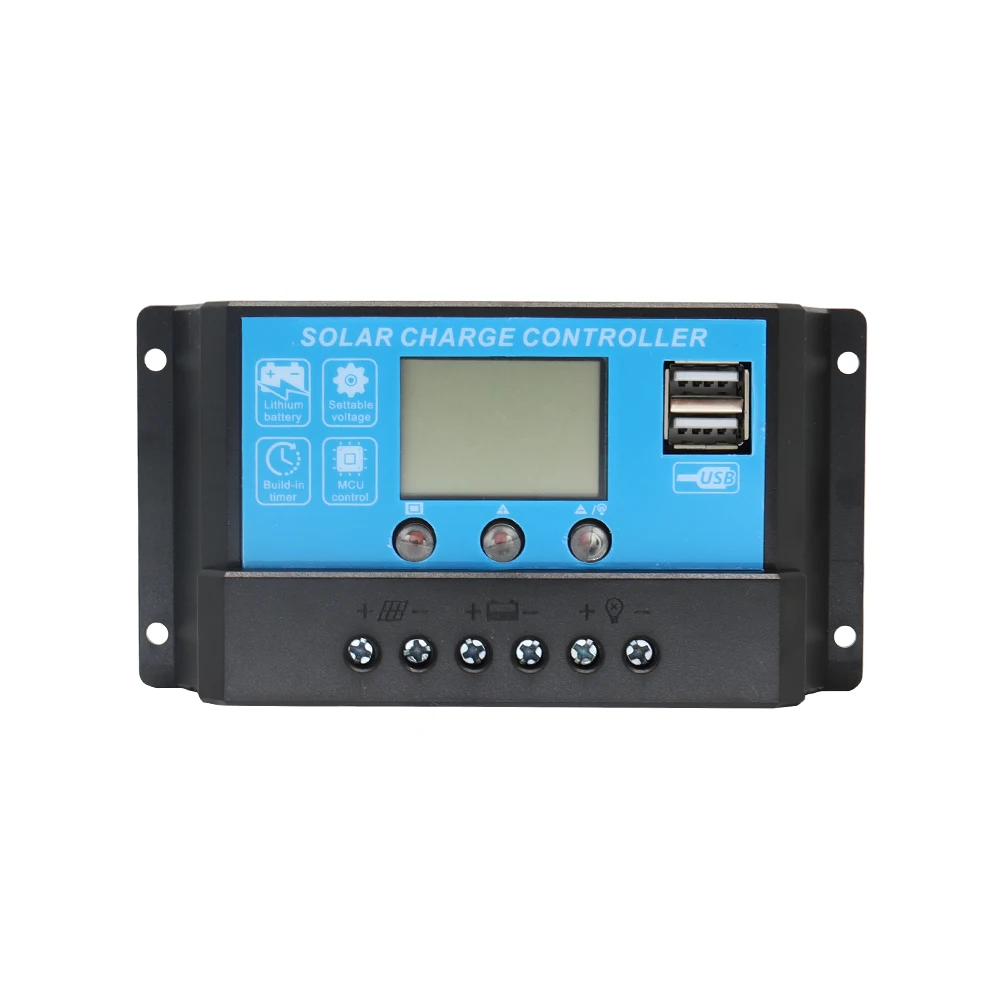

10A-20A controller is blue

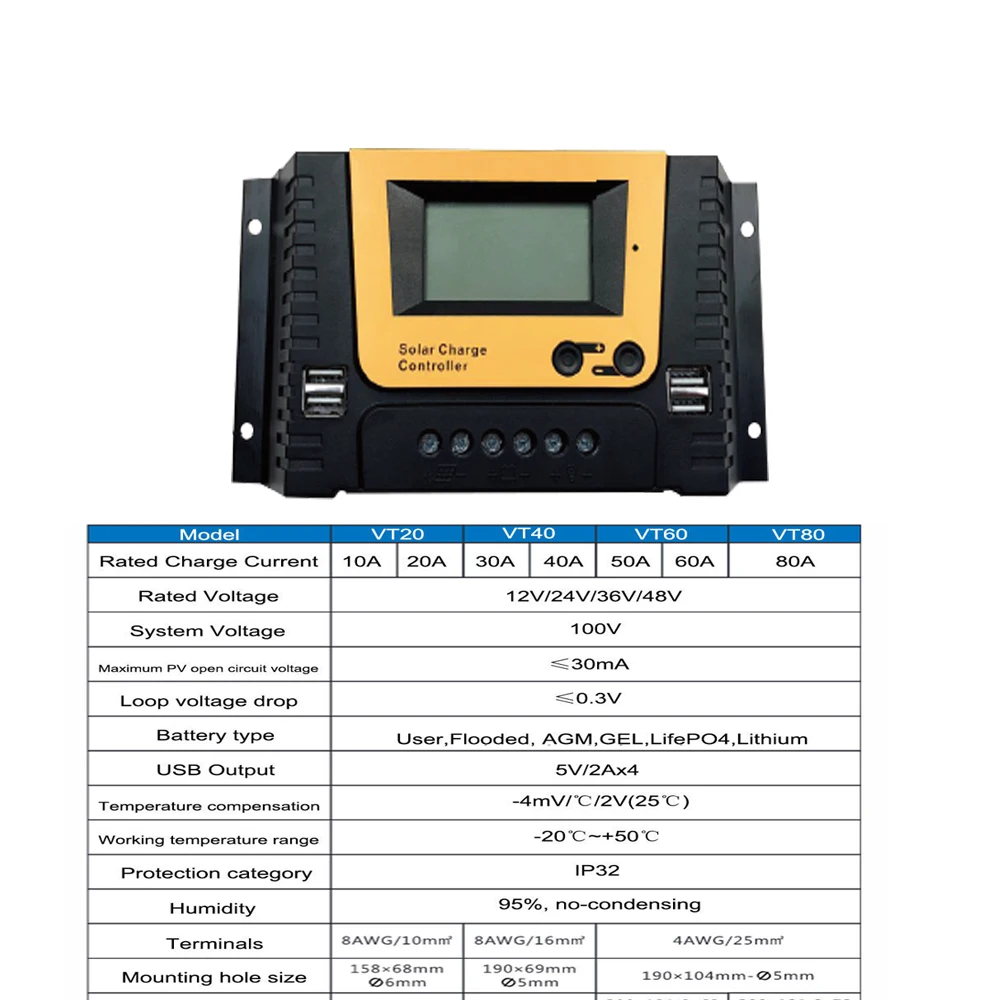

30A-60A controller is yellow
Suggestions for safe use

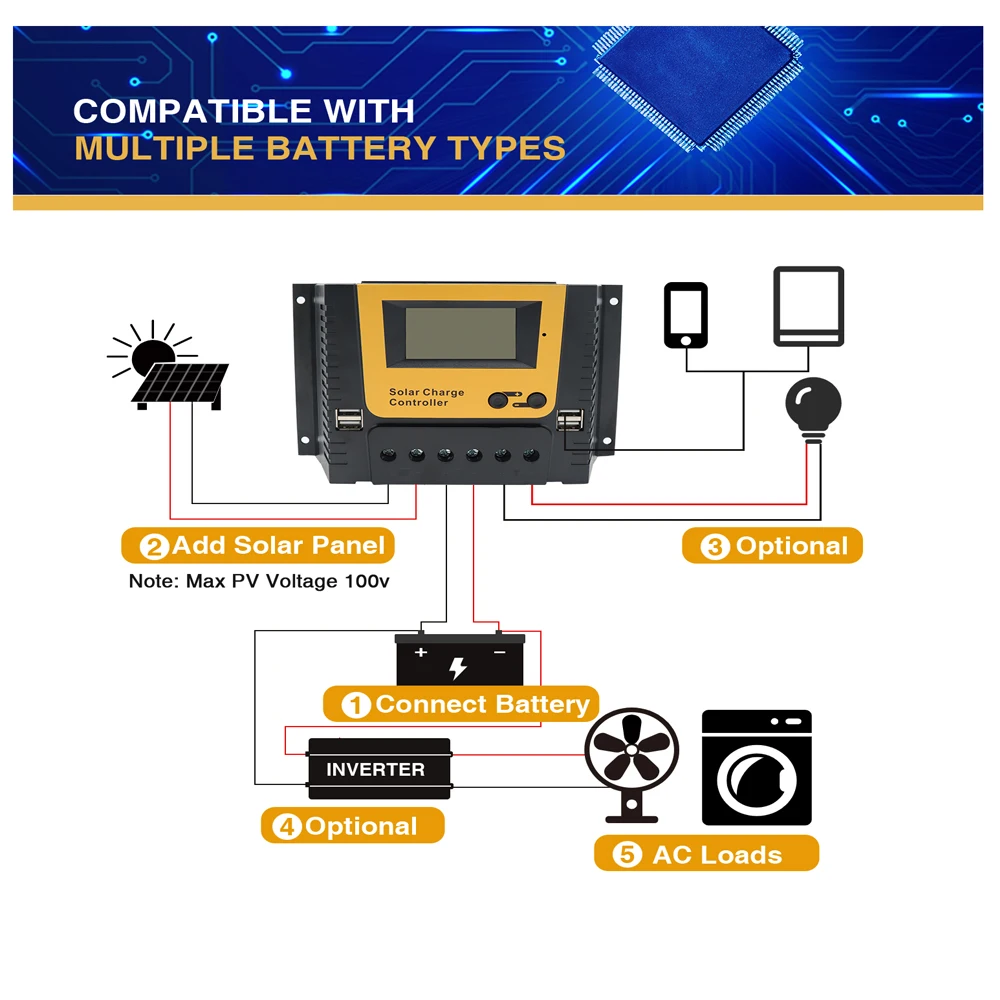

1. The controller is 12V/24V auto-adaptation, when installing the controller for the first time, please make sure the battery voltage is higher than 80% of the rated voltage so that the controller can be recognized as the correct battery type.
2. Install the controller as close to the battery as possible to avoid the wire being too long to cause voltage drop and affect the normal voltage judgment.
3.3 This controller is only applicable to all kinds of lead-acid batteries and lithium batteries (including open, sealed, gel, etc.).

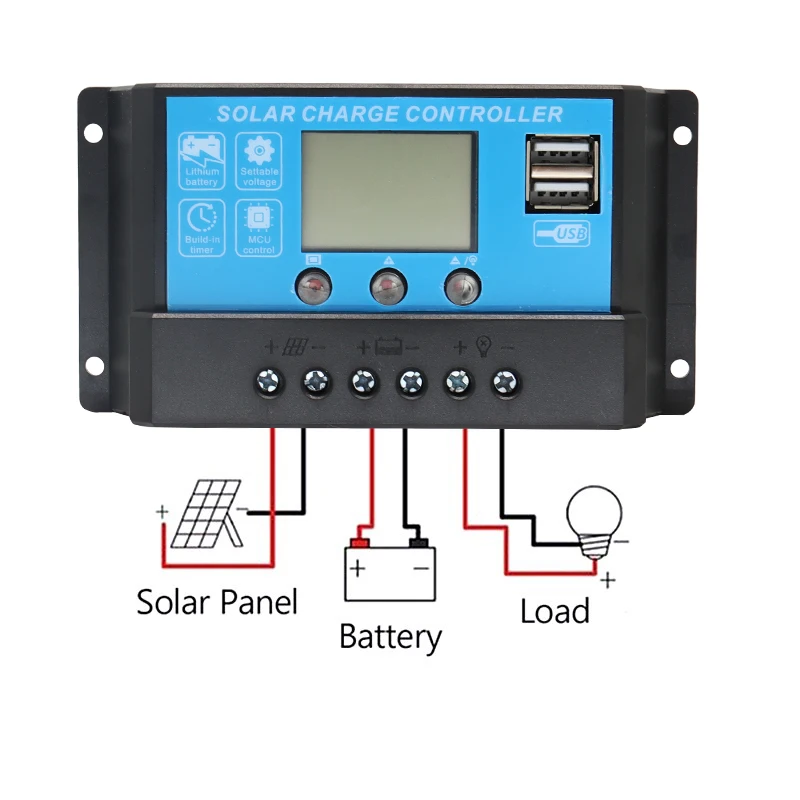

4. This controller can only use photovoltaic solar panels as the charging source, please do not use DC or other power sources as the charging source.
5. The controller will be hot when running, please pay attention to install the controller in a flat and well-ventilated place.

Product features

1. Industrial grade main control chip is used.

2. Large LCD display with adjustable charging and discharging parameters.

3. Complete 3-stage PWM charging management.

4. Built-in over-current/short-circuit protection, open-circuit protection, reverse-connection protection, all self-recovery type, no damage to the controller.

5. Double MOS anti-backflow circuit, ultra-low heat generation.

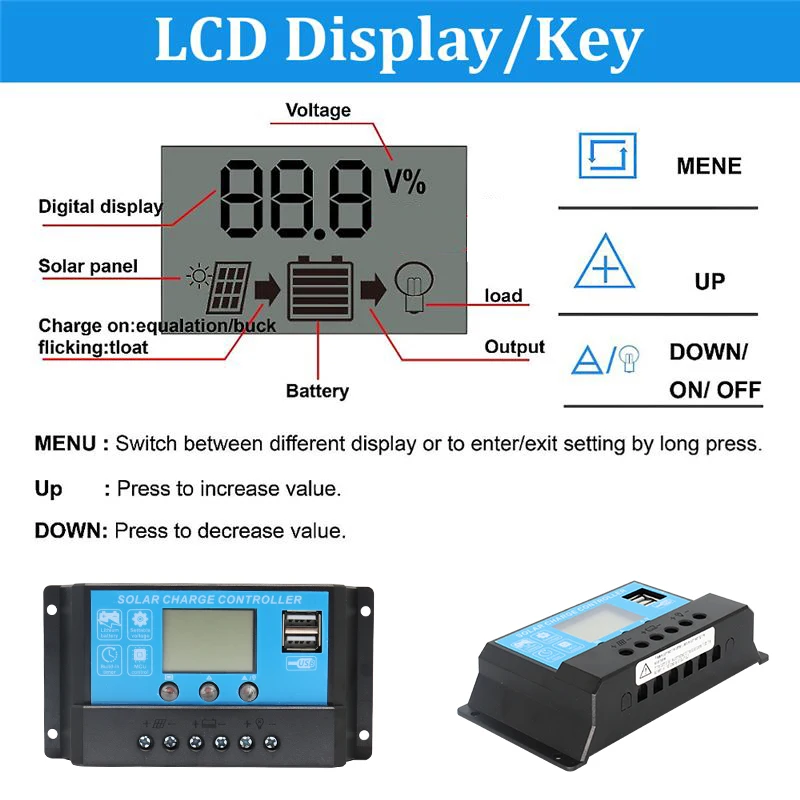

Menu key: to switch the parameter display interface, or long press 5S to enter or exit the parameter setting.
Flip up: In the parameter setting interface, press lightly once to increase the parameter by one step.
Down: In the parameter setting interface, press once to decrease the parameter by one step.

Dear Valued Customers,

Thanks for choosing AliExpress BOGUANG Official Store. Please kindly help check goods condition before sign for package.


If any question about goods, please take photos or videos, then contact us before opening a dispute, problems will be solved at first time.


If Satisfied With Our Products, Kindly Leave A 5-Star Rating And Share With Your Friend.


Answers to some frequently asked questions：


1.Do Bulk CSV/Excel drop shipping (we have discounts for large orders)


2.Fast delivery in 24-48 hours


3.No invoice or receipt included (if you want, we can provide)

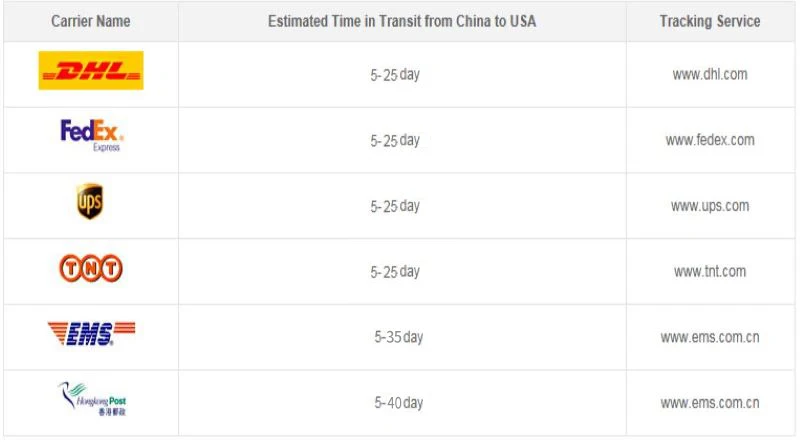

4.If choose DHL/FedEx, this is not including DHL remote cost/custom duty.
