Solar Panel 120w 18V Flexible OR Glass Monocrystalline Solar Charger Off Grid for 12V Battery RV Trailer Van Caravan Boat Home

Flexible OR Glass Solar Panel 120w 18V Monocrystalline Solar Charger Off Grid for 12V Battery RV Trailer Van Caravan Boat Home

A total of four solar panels can be selected

Package

1 pcs 120W 18V White Flexible solar panel size : 1170*540*2.5mm (White Solar Panel)

OR

1 pcs 120W 18V Black Flexible solar panel size : 1170*540*2.5mm (Black Solar Panel)

OR

1 pcs 120W 18V Glass solar panel size : 1160*530*25mm (Glass Solar Panel)

OR

1 pcs 120W 18V Frame solar panel size : 1160*530*25mm (Frame Solar Panel)

(White / Black) Flexible Solar panel Specifications:

Maximum power(Pmax) 120W

Output tolerance ± 3%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Short circuit current(Isc) 6.8 A

Maximum power voltage(Vmp) 18V

Maximum power current(Imp) 6.5A

Cell efficiency 22%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 36pcs

Weight 2200g

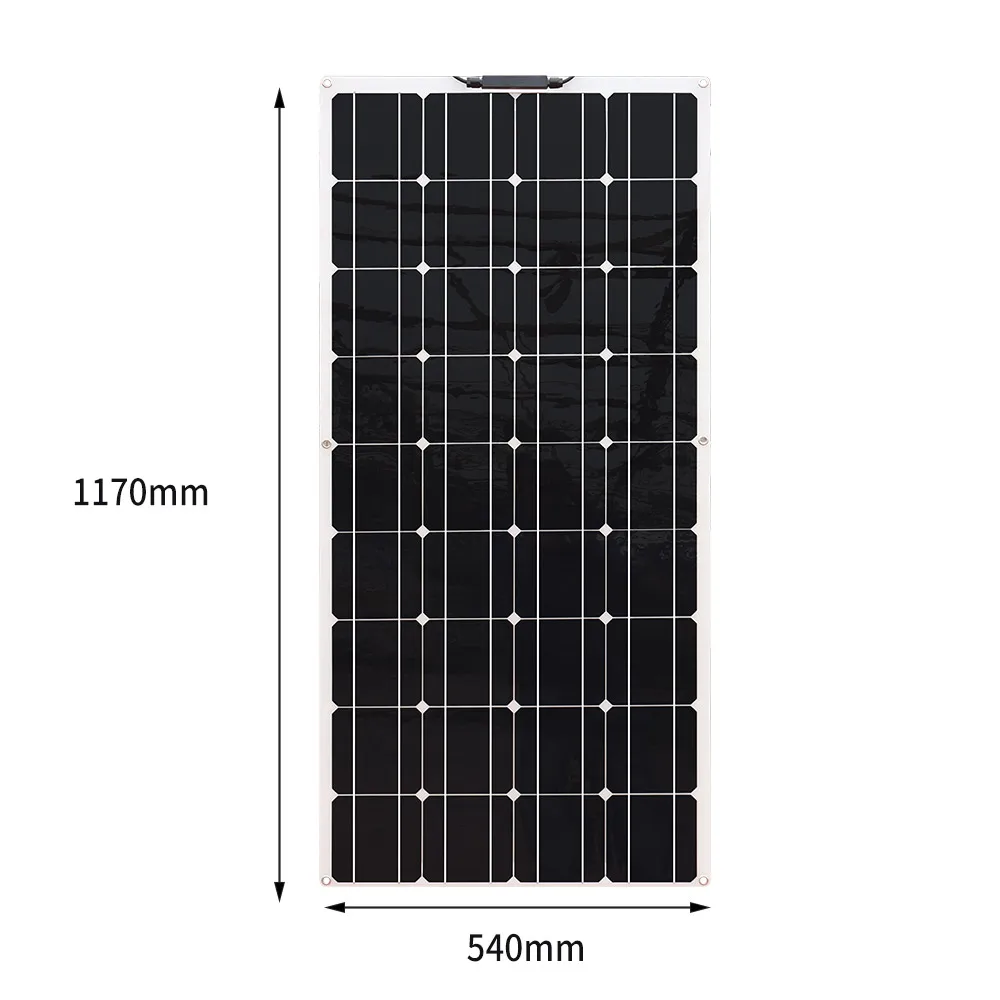

Size 1170*540*2.5mm


Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

(Glass/ Frame )Solar panel Specifications:

Maximum power(Pmax) 120W

Output tolerance ± 3%

Maximum system voltage 700V DC

Open circuit voltage(Voc) 21.6V

Short circuit current(Isc) 6.8 A

Maximum power voltage(Vmp) 18V

Maximum power current(Imp) 6.5A

Cell efficiency 22%

Operating temperature（NOCT） 45±2℃

Temperature range -40℃～+80℃

Number of cells 36pcs

Frame Solar panel Weight 3100g

Glass Solar panel Weight 5900g

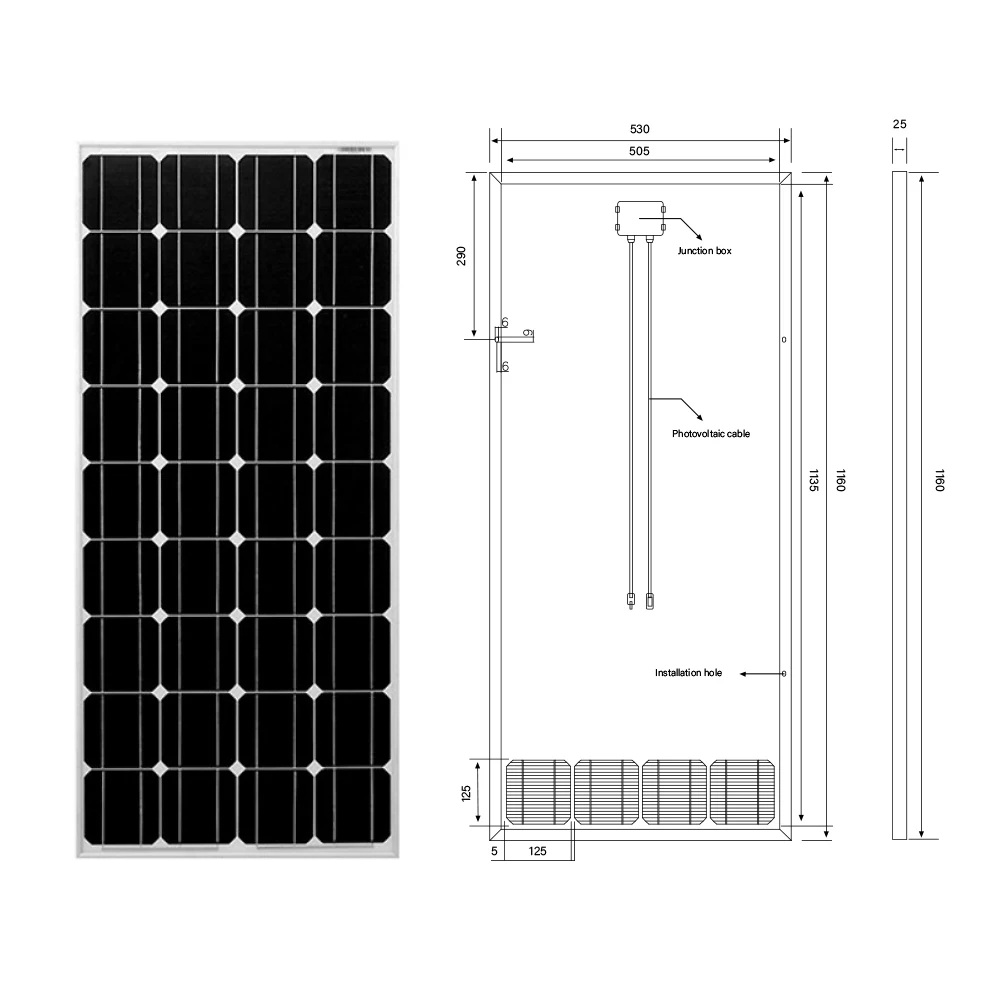

Size 1160*530*25mm


Standard Test Conditions ： lrradiance 1000w/m^2，Temperature 25℃, AM=1.5

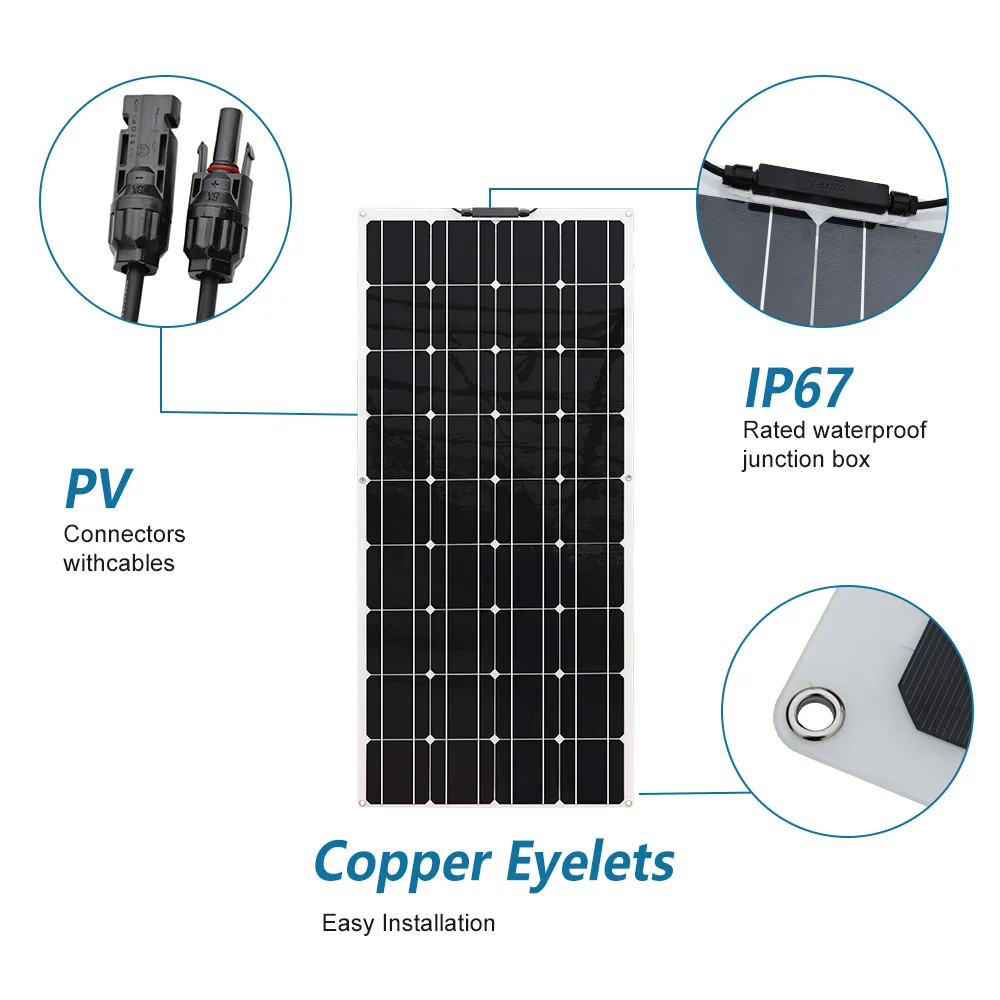

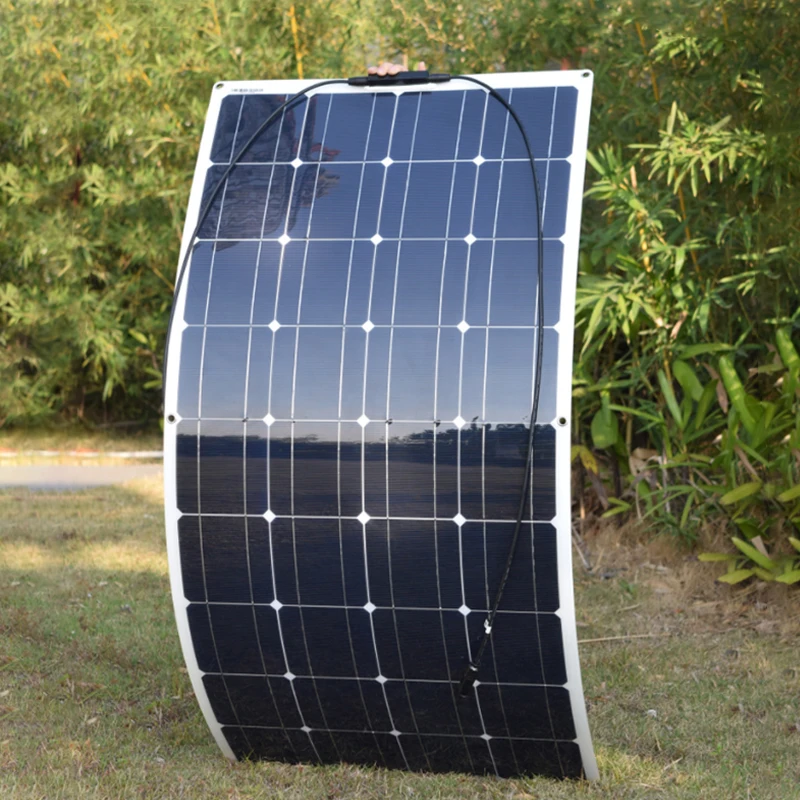

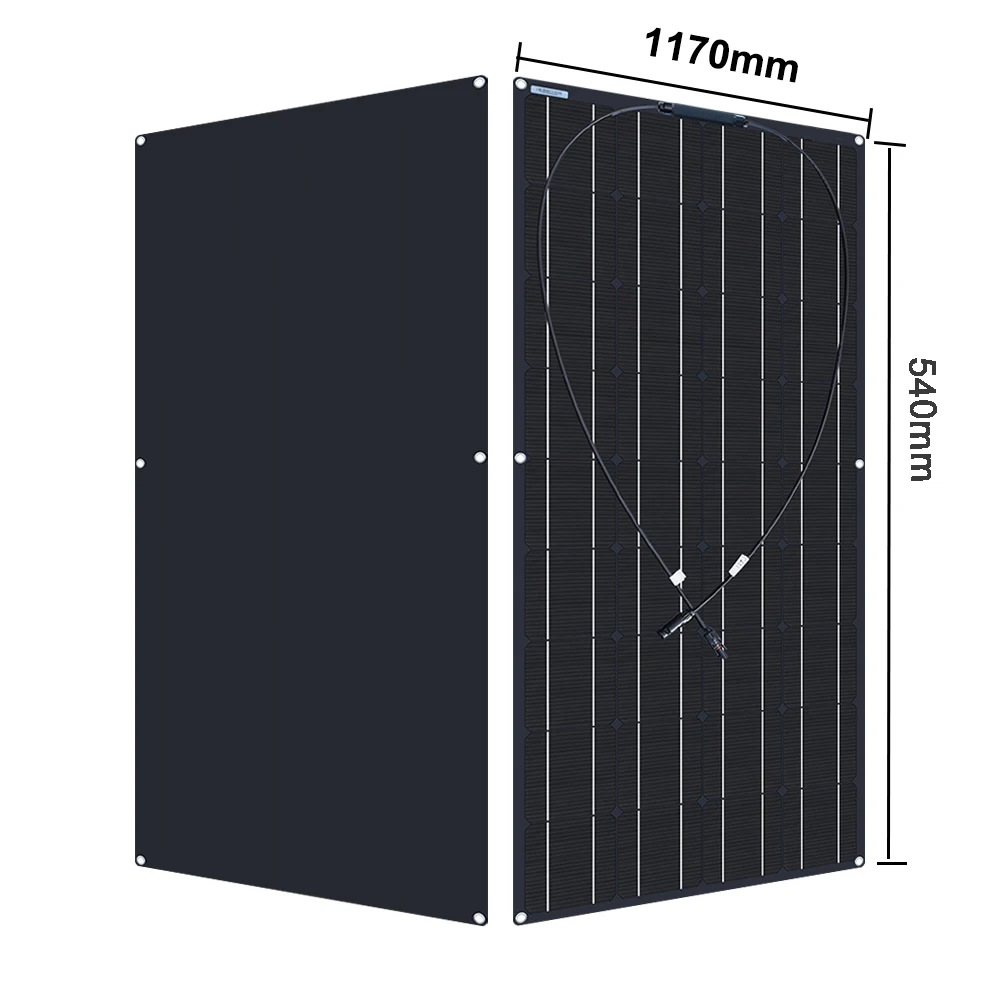

White Flexible Solar panel

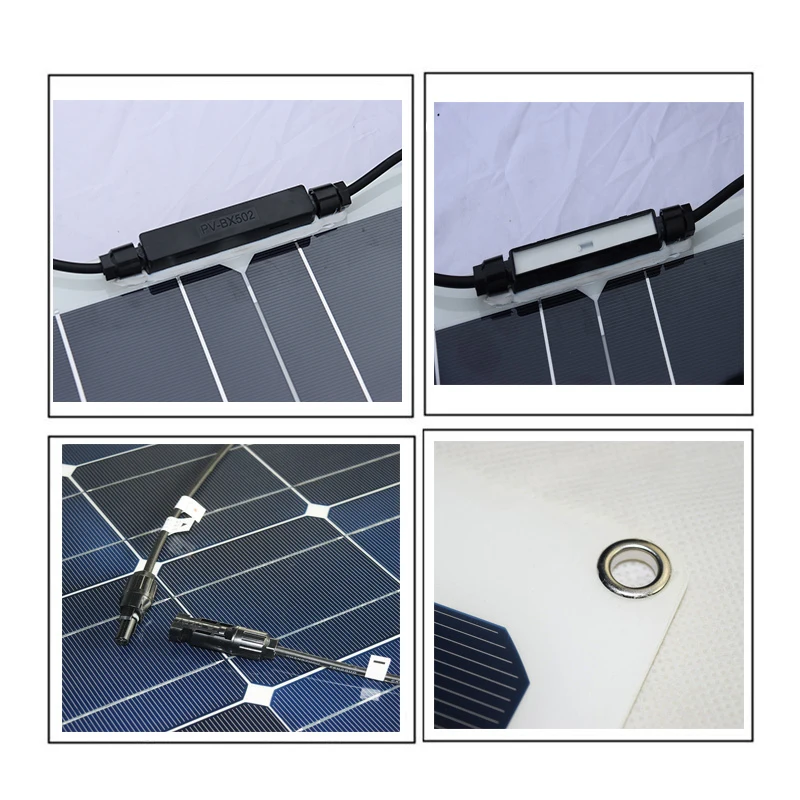

[Excellent performance] High efficiency monocrystalline solar cells offer good performance even under poor light condition,Including bypass diode, circuit with input overcurrent protection, reverse protection design

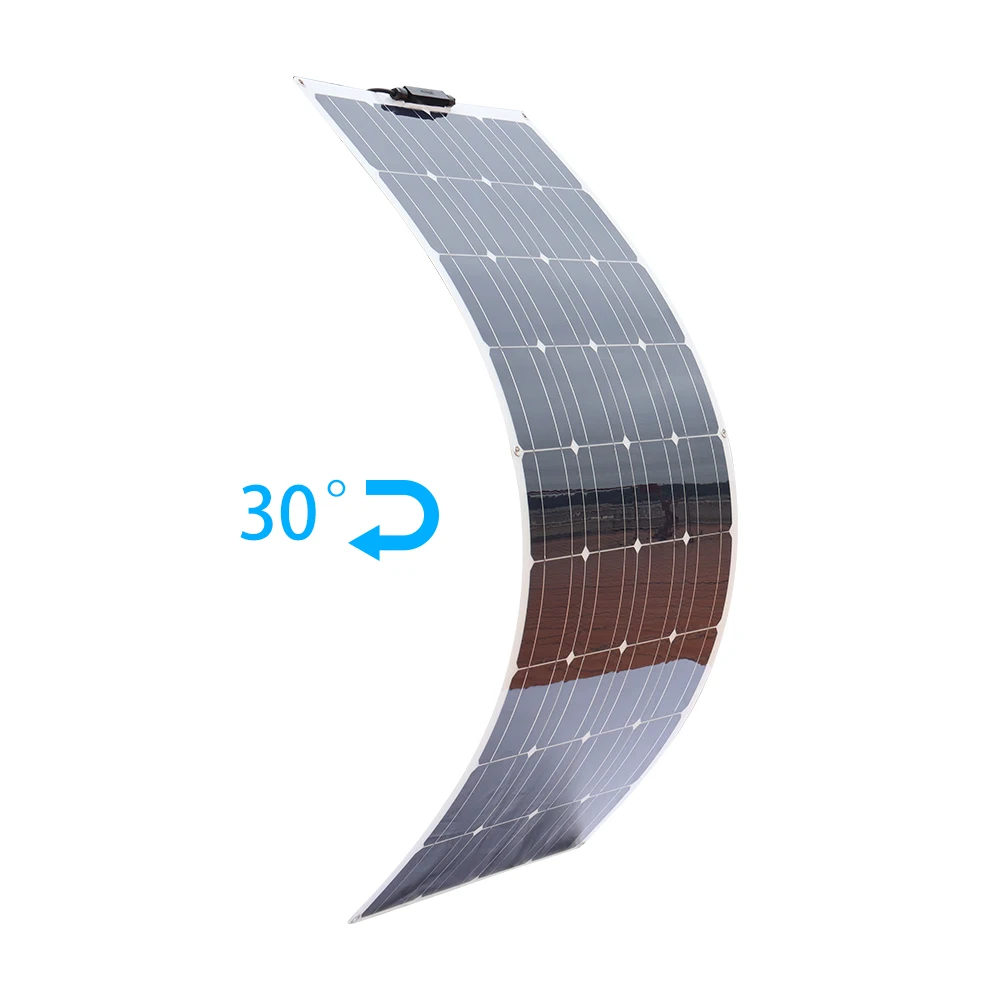

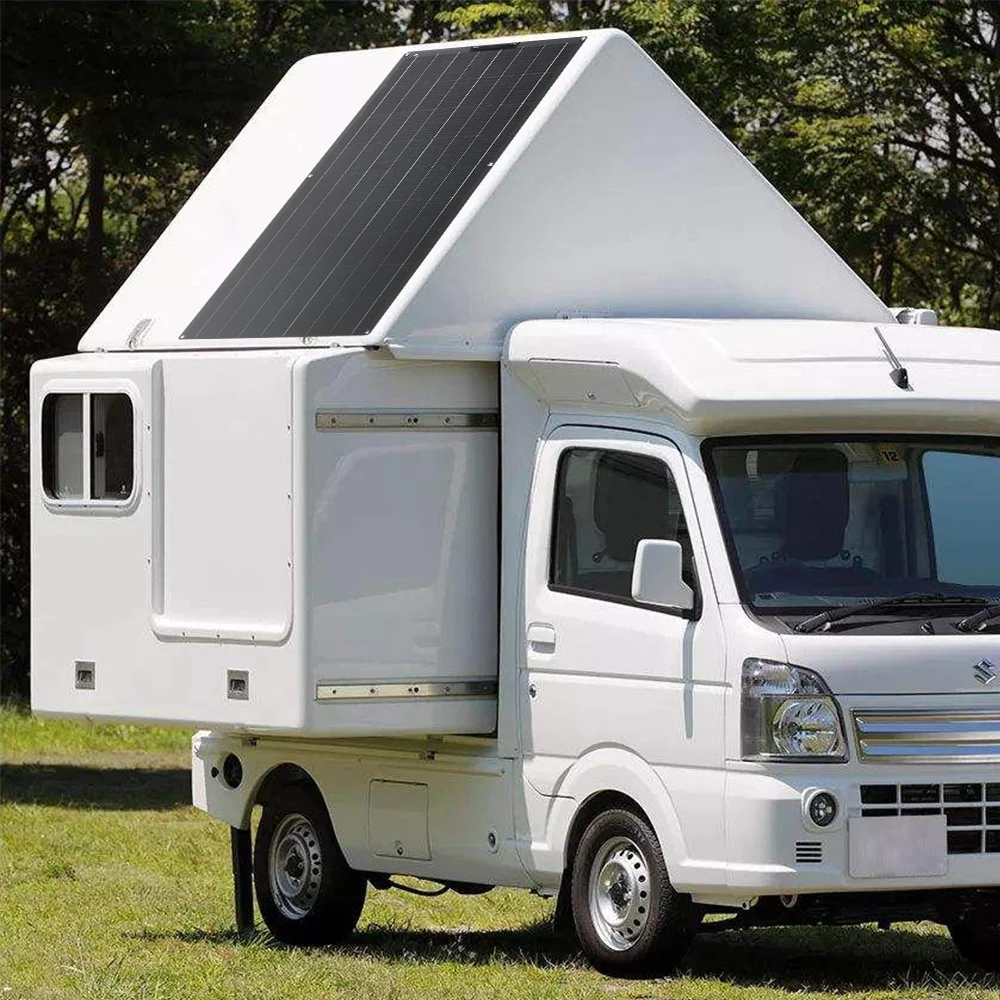

[Flexible] This flexible solar panel is a good choice for curved surfaces of RV, boat,sailboat, yacht,truck, car, coach, cabin, camper , tent , trailer, golf cart or any other irregular surface.
[Practicality] Light energy converts electricity, Practical and suitable for use in areas where electricity is not available and where the city cannot reach, such as mountains, marine, deserts, and remote areas.

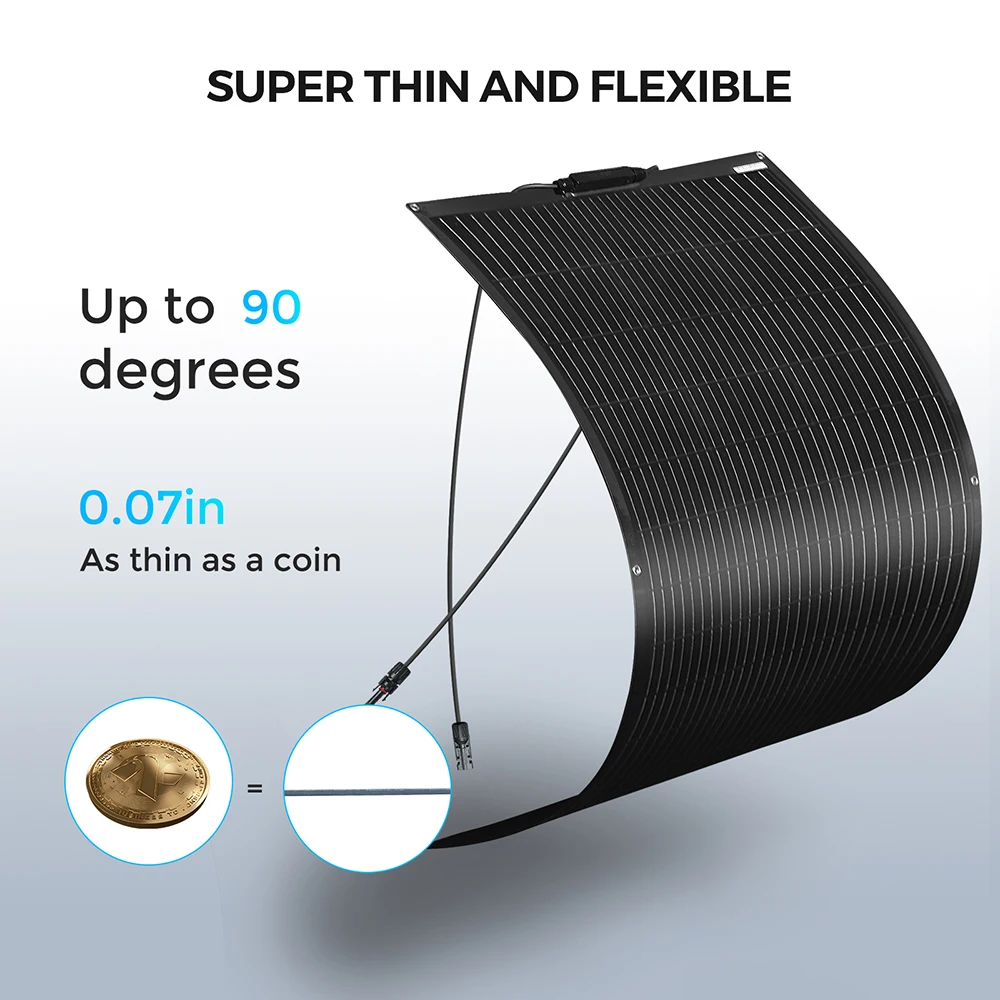

[Lightweight] Ultralight and Ultra-thin ，Better applied to the carrier with weaker bearing, attached to the surface, no space，easy to install,

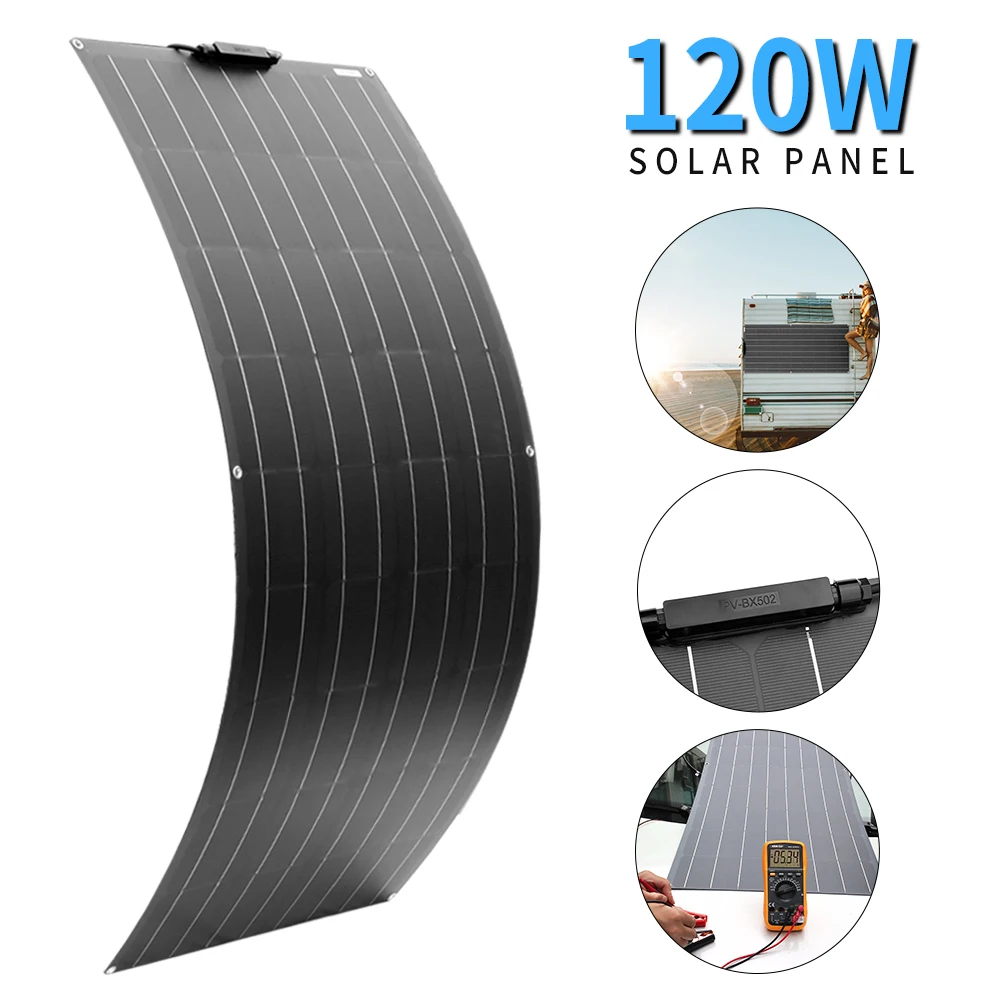

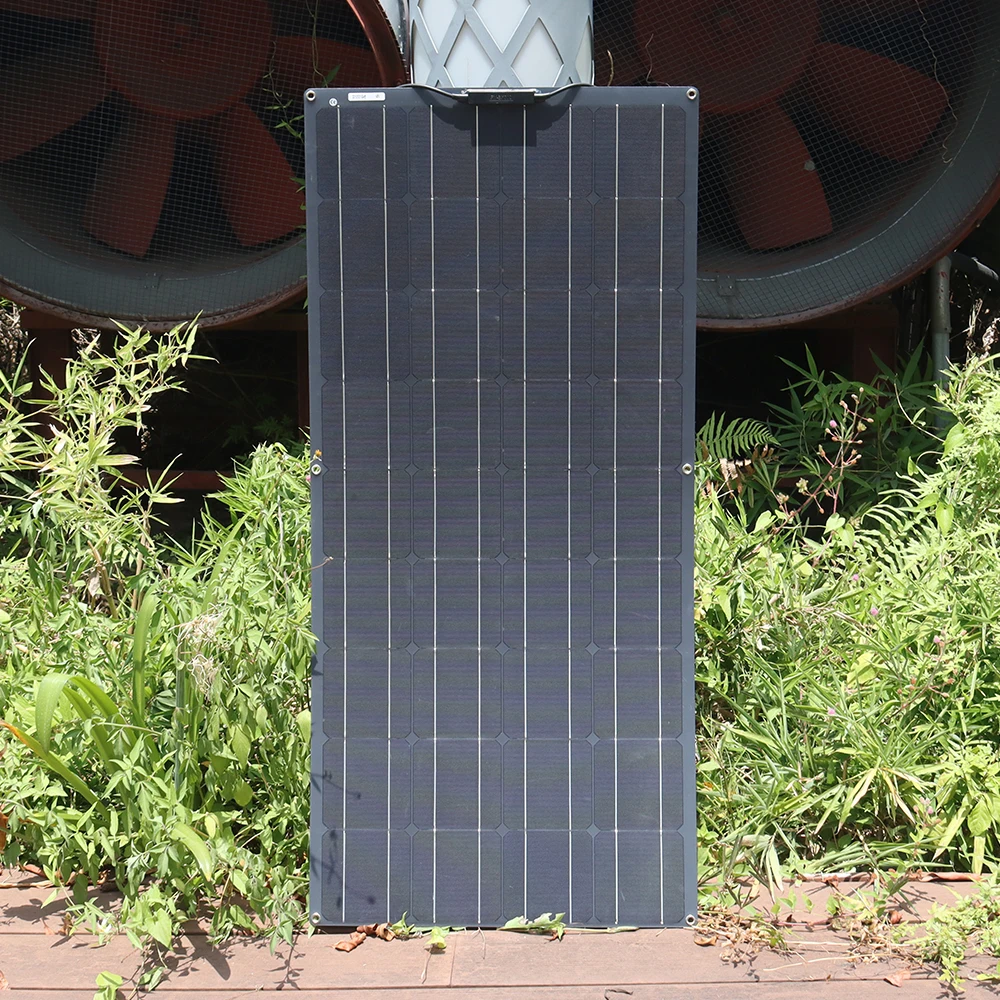

Black Flexible Solar panel

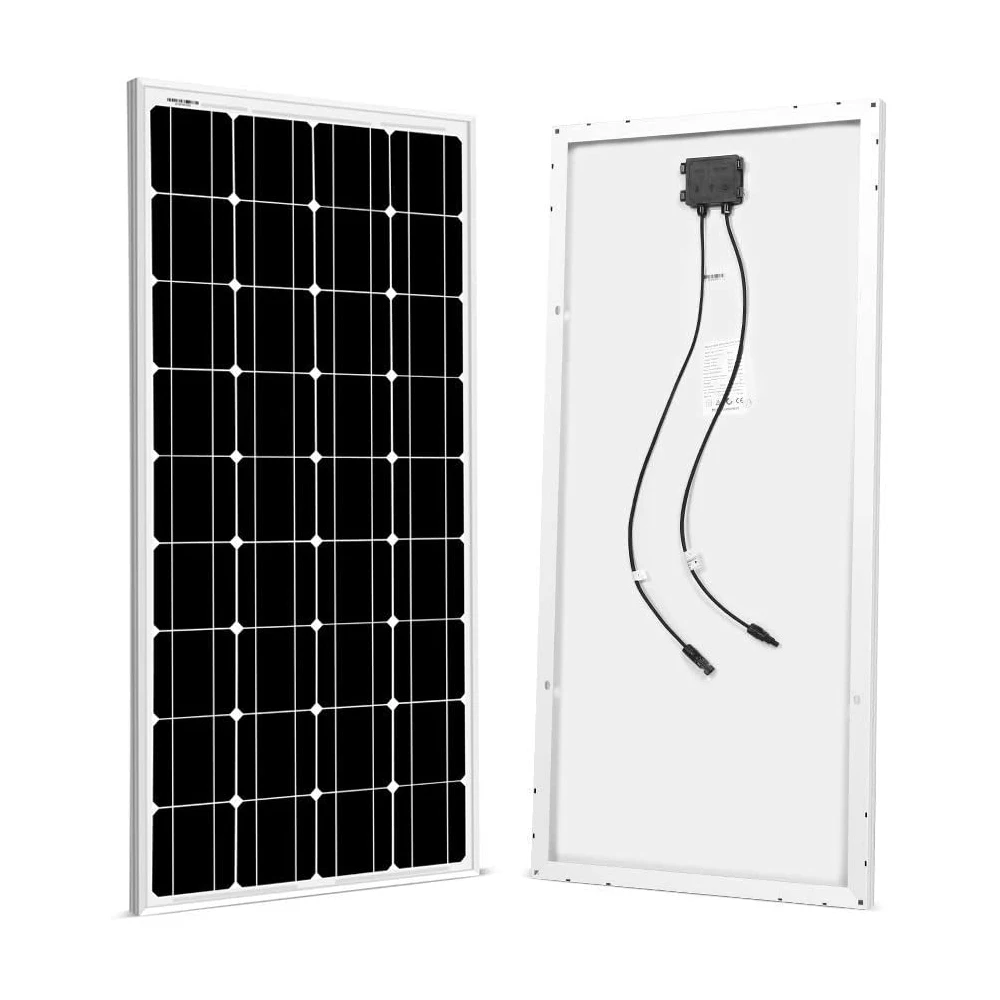

Glass Solar panel

Glass Solar Panel

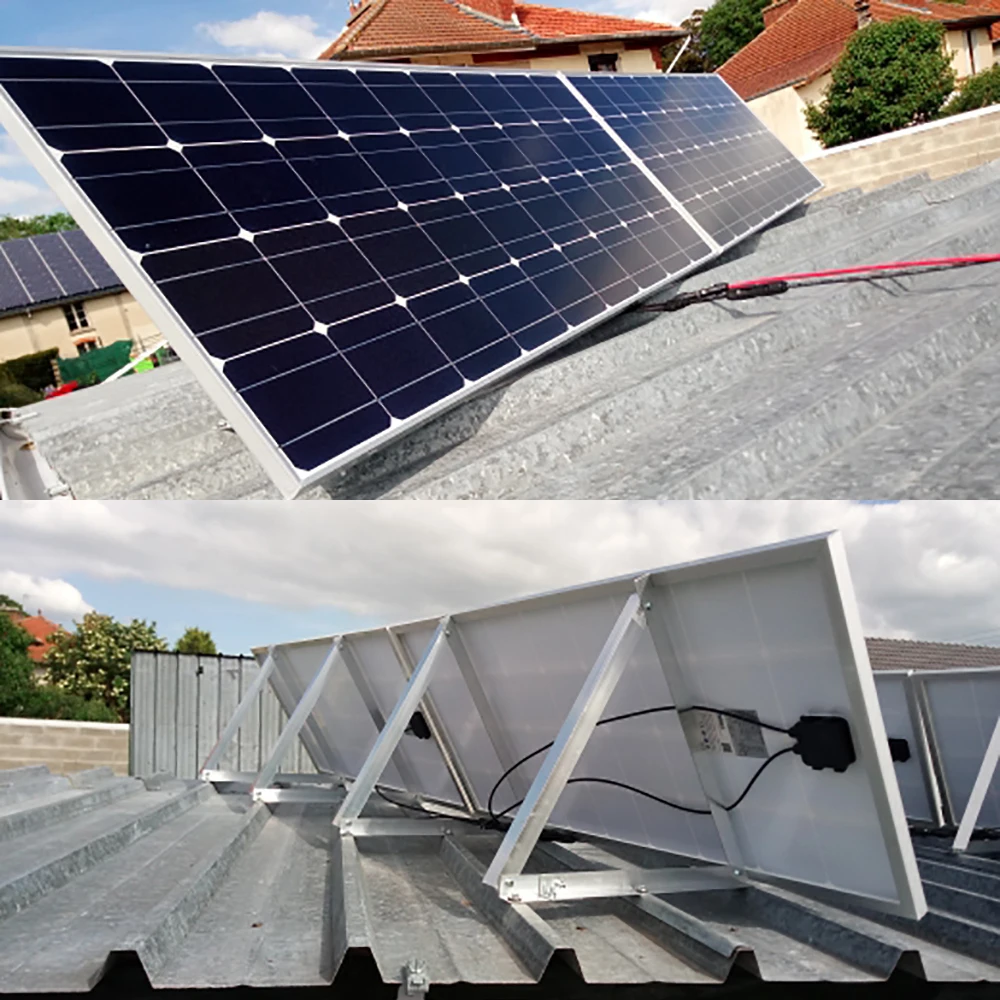

♣ Basic component for off-grid applications, such as RVs, trailers, boats, sheds, and cabins. Easy to install with Z brackets and pre-drilled holes on the back of panel for fast mounting and securing.
♣ Advanced encapsulation material with multilayered sheet laminations to enhance cell performance and provide a long service life.
♣ Corrosion-resistant aluminum frame for extended outdoor use, allowing the panels to last for decades as well as withstand high winds (2400Pa) and snow loads (5400Pa) .
♣ By-pass diodes are pre-installed in waterproof IP-65 rated juncton box to minimize power drop caused by shade and ensure excellent performance in low-light environments.

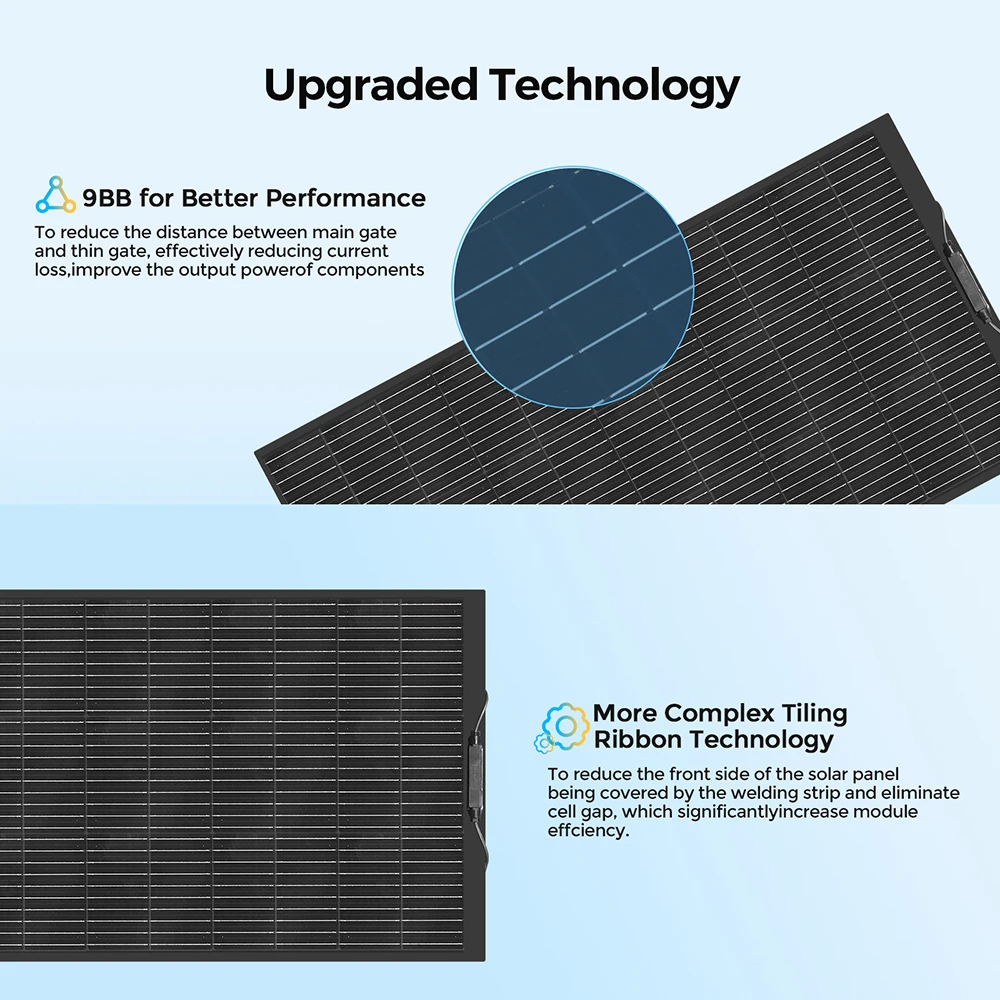

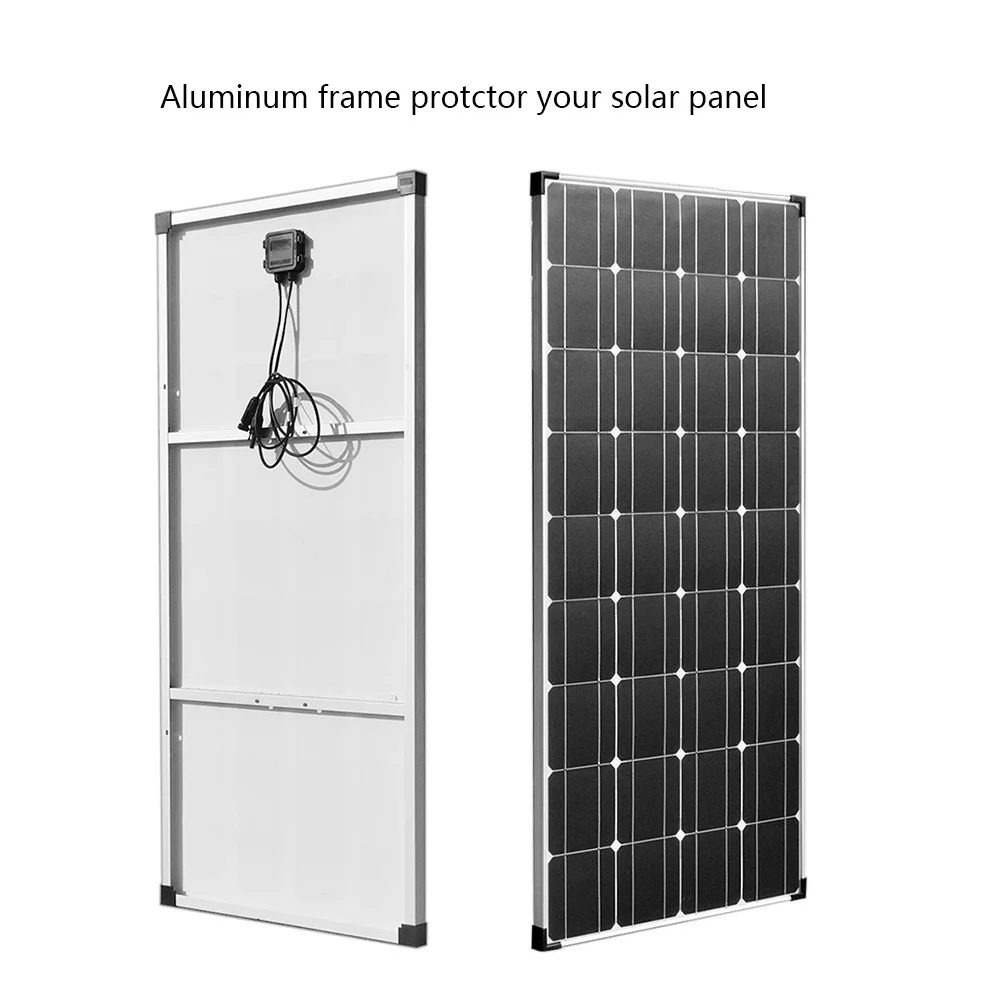

Frame Solar panel

120W solar panel Specifications

Maximum power(Pmax) 120W
Output tolerance ± 5%
Maximum system voltage 700V DC
Open circuit voltage(Voc) 21.78V
Short circuit current(Isc) 6.9 A
Maximum power voltage(Vmp) 18.15V
Maximum power current(Imp) 6.6A
Cell efficiency 24%
Operating temperature(NOCT) 45±2℃
Temperature range -40℃～+80℃
Number of cells 33pcs
Weight 2060g

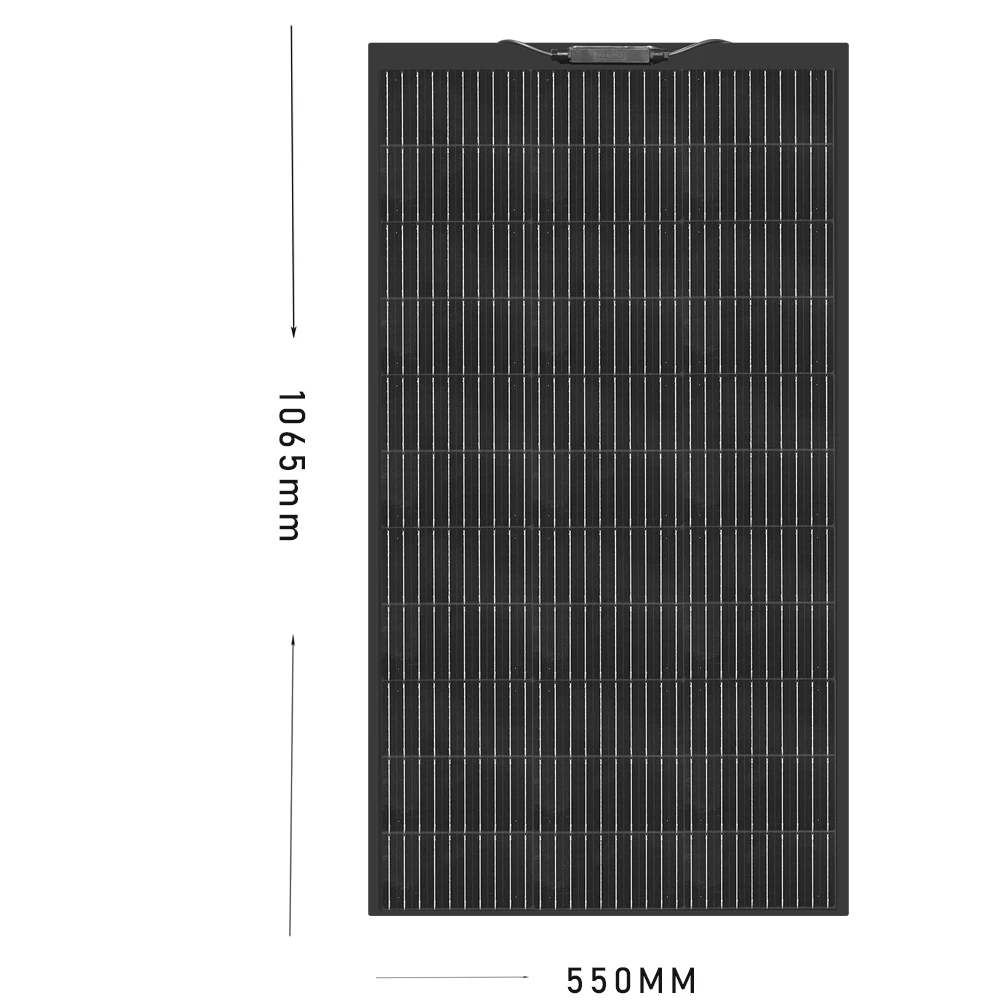

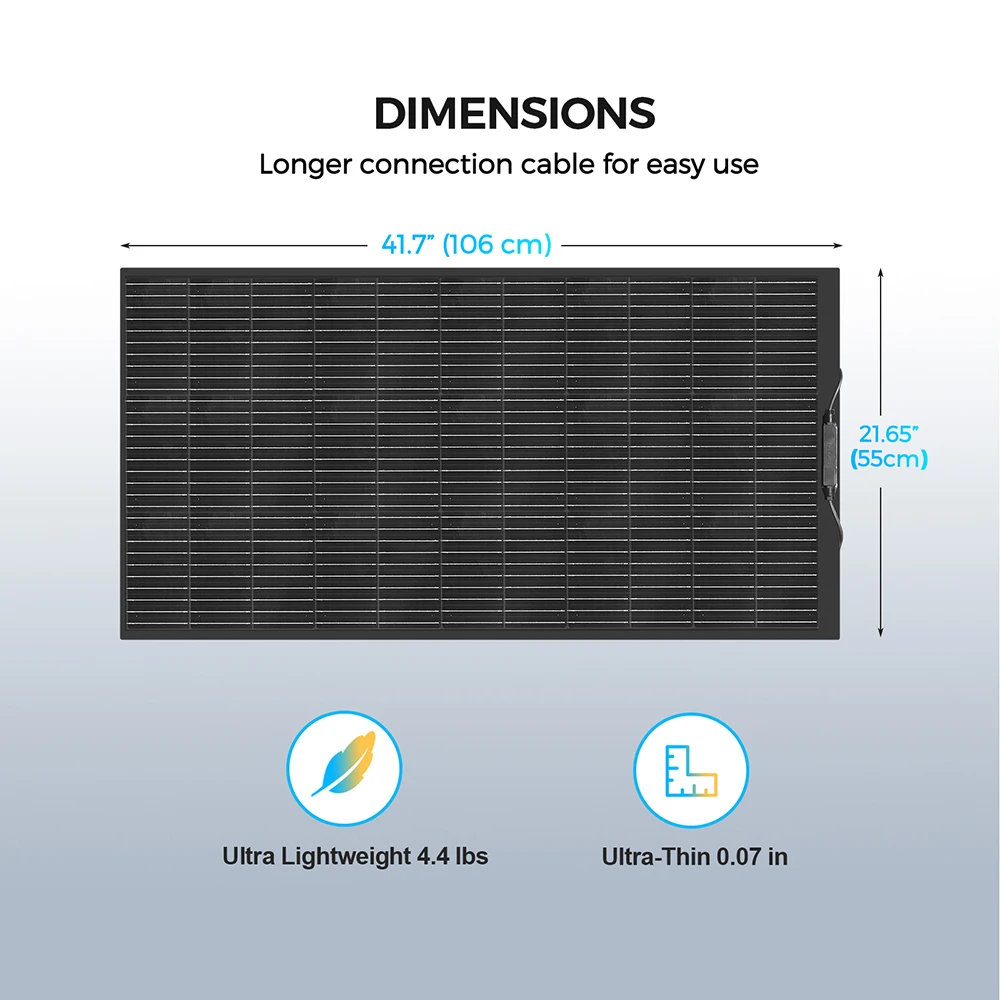

Size 1065*550*3 mm
Standard Test Conditions : lrradiance 1000w/m^2,Temperature 25℃, AM=1.5

Off-Grid Solar System User Manual Use attention

Use attention

1. Please install the solar panel system in cloudy days. If installing in strong light, pay attention to protection against electric shock.

2. Normally red color is the positive electrode and black color is the negative electrode. The positive and negative electrodes must be installed correctly. Do not directly connect the positive and negative poles of the solar panel to avoid short circuit.

3. Do not scratch or step on the solar panel during installation and use. Check in advance whether the controller, battery, inverter and other accessories are normal.

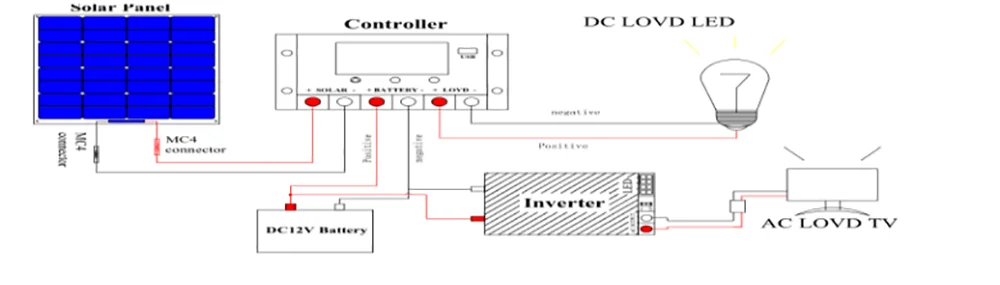

Installation process

1. First connect the battery to the controller to activate the controller. There is no display if only the solar panel is connected to the controller.

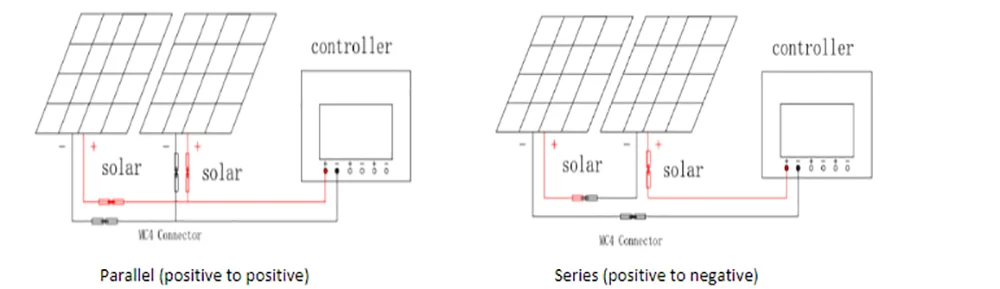

2. Then connect the solar panels, please install solar modules in a sunny and shadowless area. When using a 12V system, configuring 12V batteries and 16V/18V solar panels, so multiple solar panels need to be connected in parallel. When using a 24V system, configuring 24V batteries and 32V/36V solar panels, so every 2 solar panels need to be connected in series, then connect all pairs in parallel. And so on. The parallel requires the same voltage, especially the series requires the same current. The schematic diagrams of parallel and series connection of solar panels are as follows (the same applies to batteries):

3. Next, connect the inverter to the battery, and finally connect the load to the inverter. The low-power DC load can be directly connected to the controller, and the AC load needs to be connected to the inverter. First connect the inverter wire to the positive and negative poles of the inverter and tighten them, and then connect the other end of the wire to the positive and negative poles of the battery. It is normal if there is a small spark. Then connect the load to the inverter and turn on the inverter switch to start the load. Do not connect the inverter to the controller to avoid damage.
