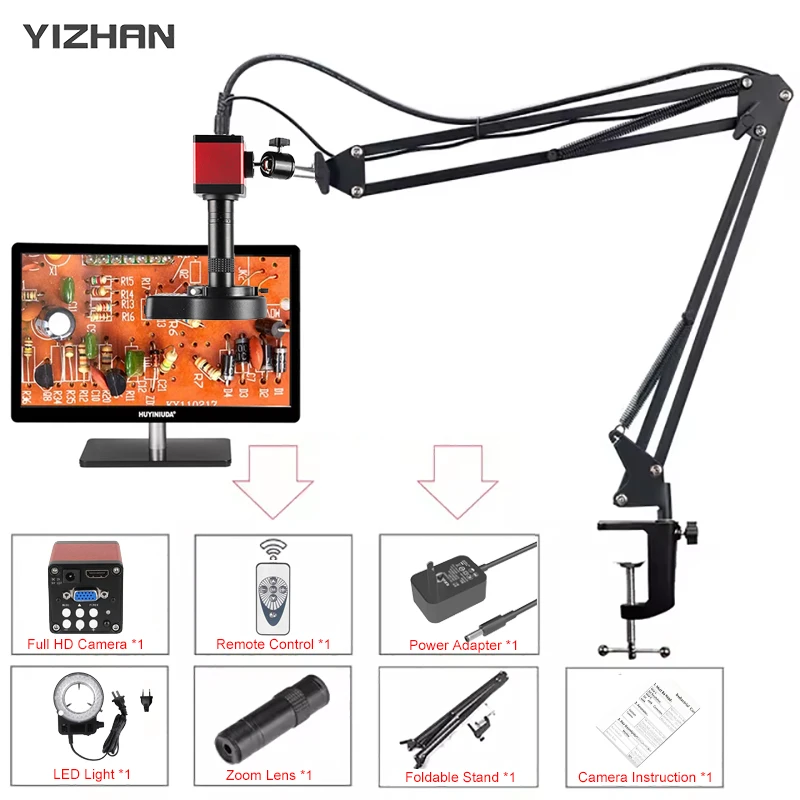

Zoom 150X Full HD Camera VGA/HDMI Port Industrial Microscope CCD Camera Adjustable Metal Stand For PCB Soldering Phone Repair

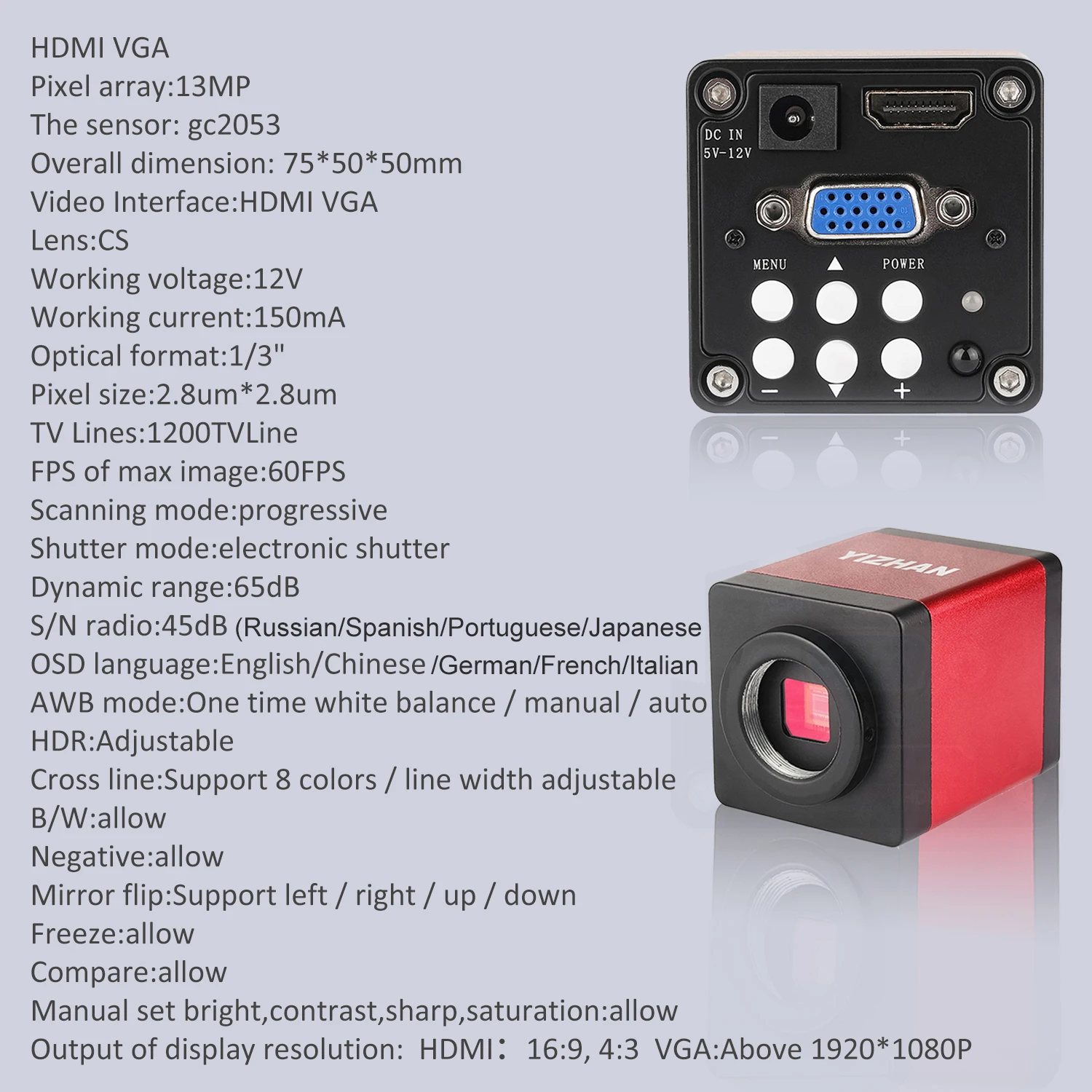

VGA/HDMI Port Microscope Parameter

Pixel array:13MP
The sensor: gc2053
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
TV Lines:1200TVLine
FPS of max image:60FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB

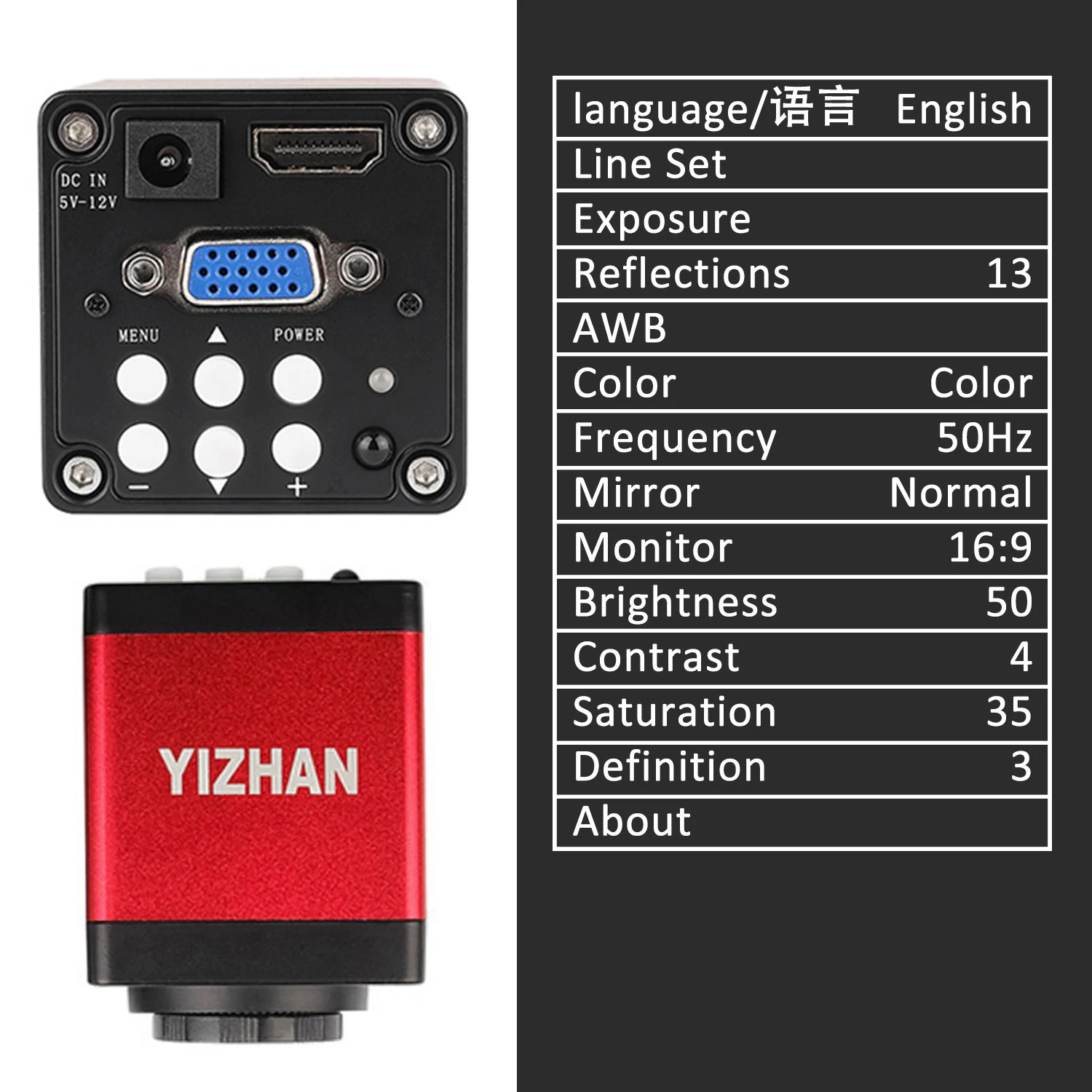

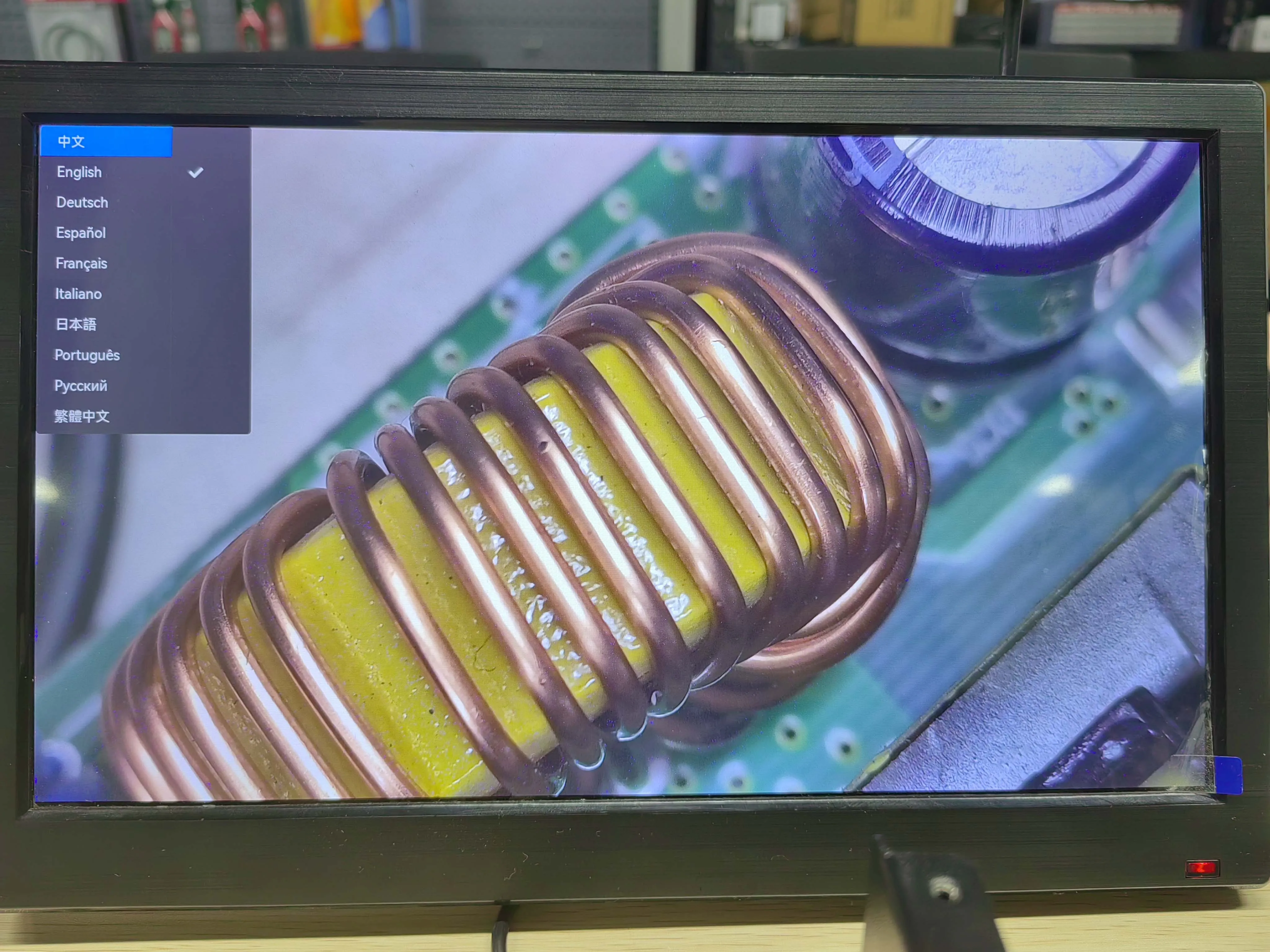

OSD language:English/German/French/Italian/Russian/Spanish/Portuguese/Japanese/Simplify Chinese/Traditional Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

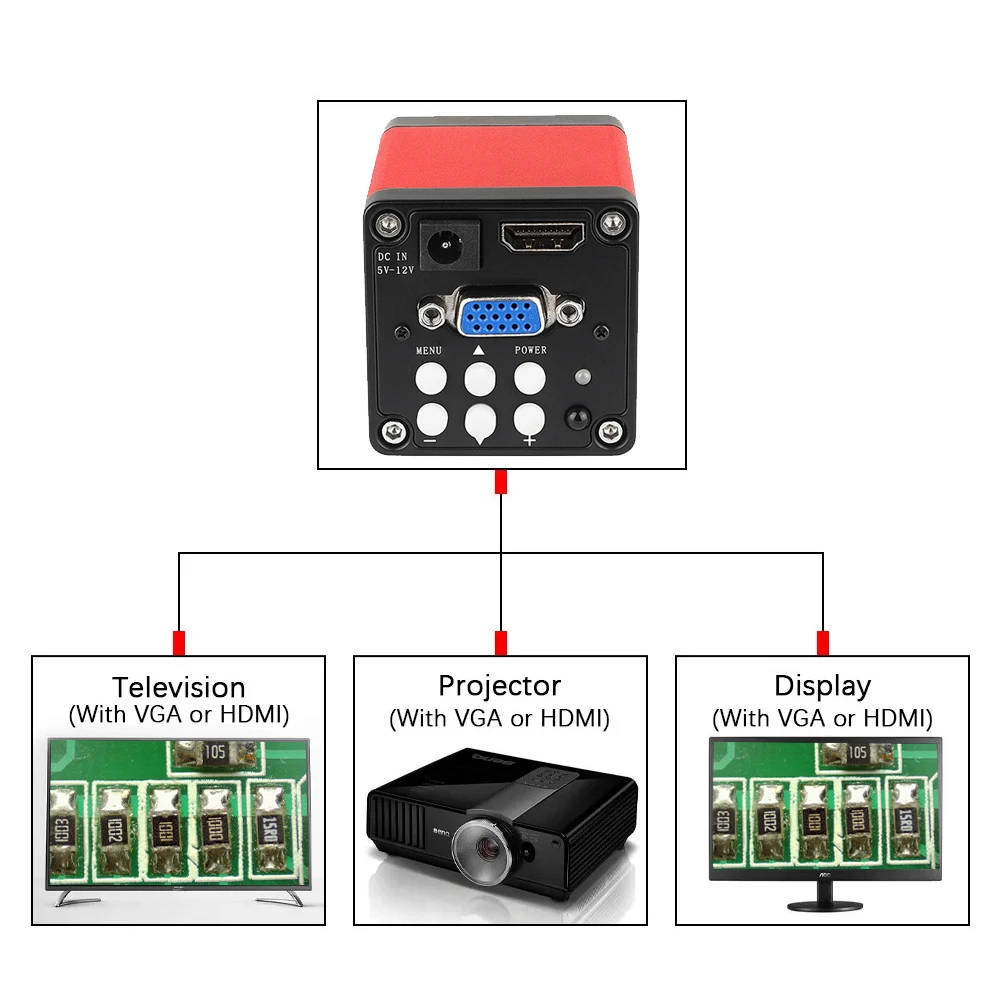

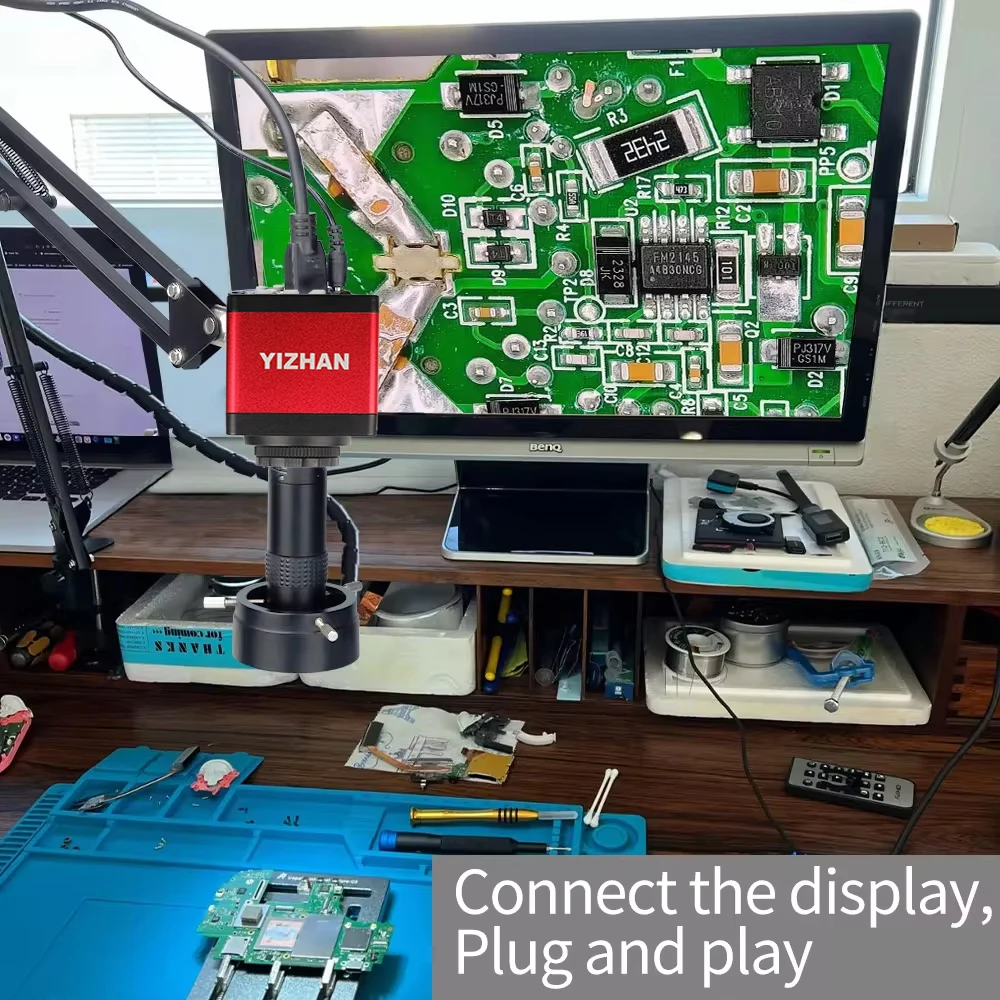

Connect Display Via HDMI Or VGA

1. Connect the monitor directly through DHMI or VGA, plug and play.
2. Connect TV, monitors, projectors and other devices with HDMI or VGA ports.
3. 1080@60 HD Picture Output

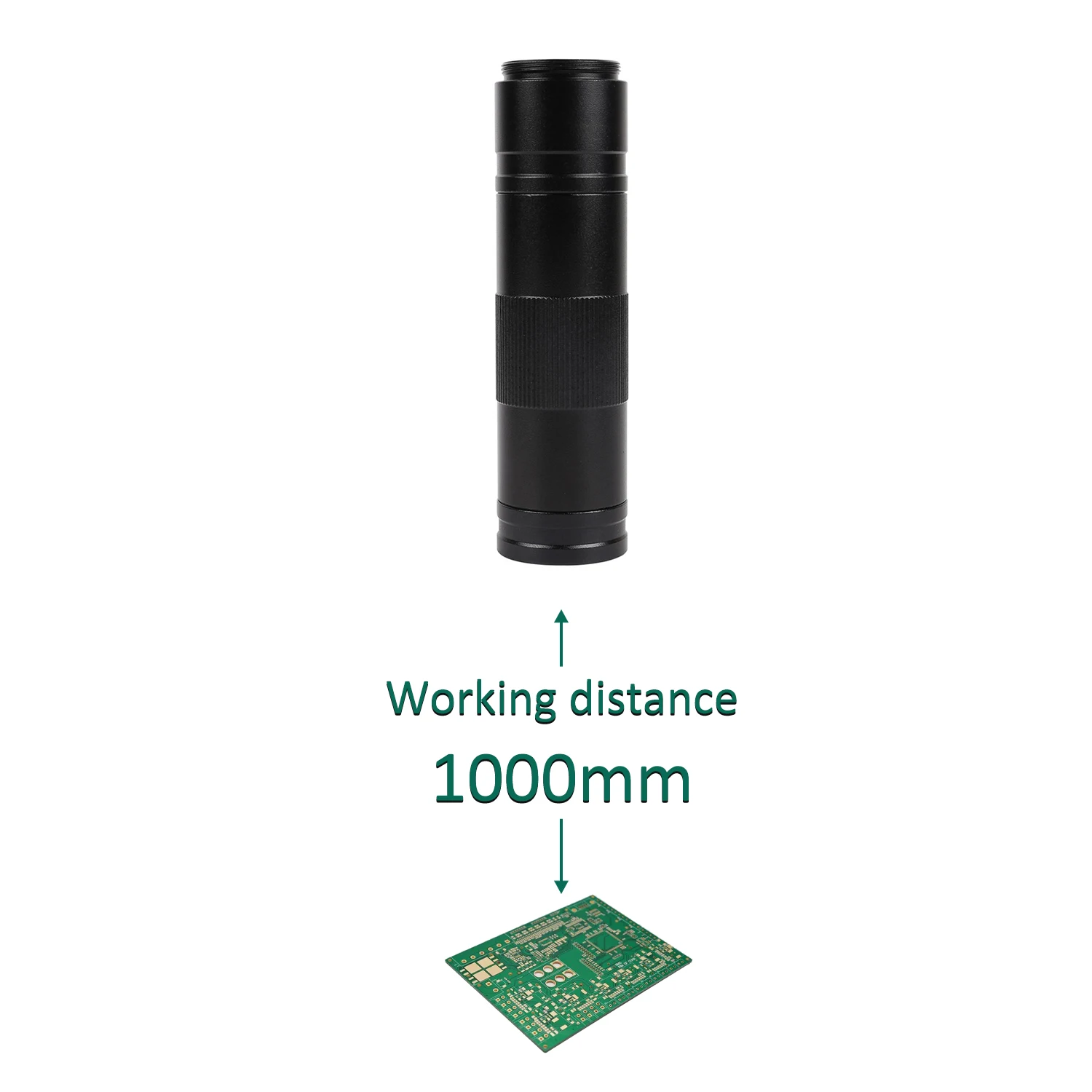

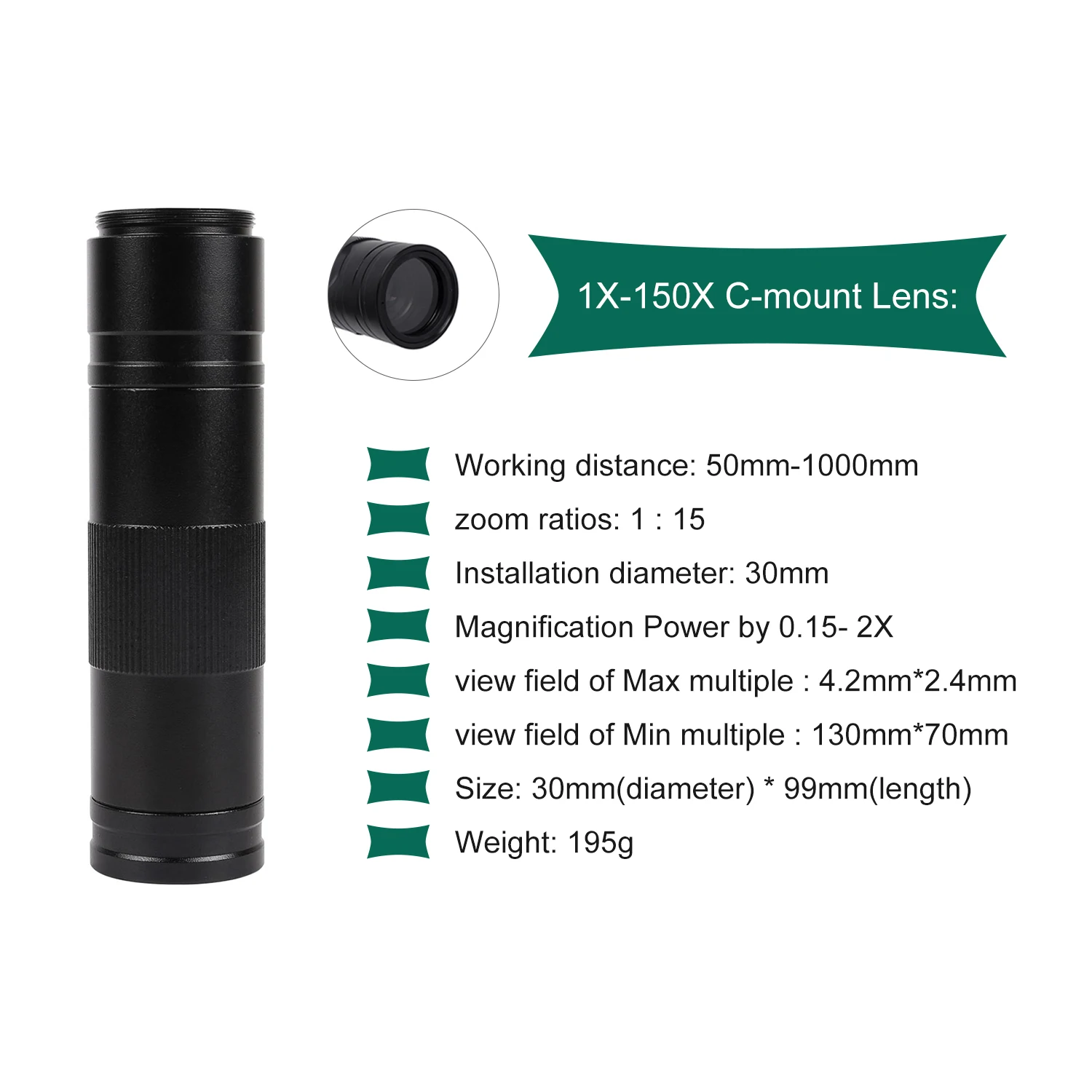

1X-150X Zoom C-mount Lens

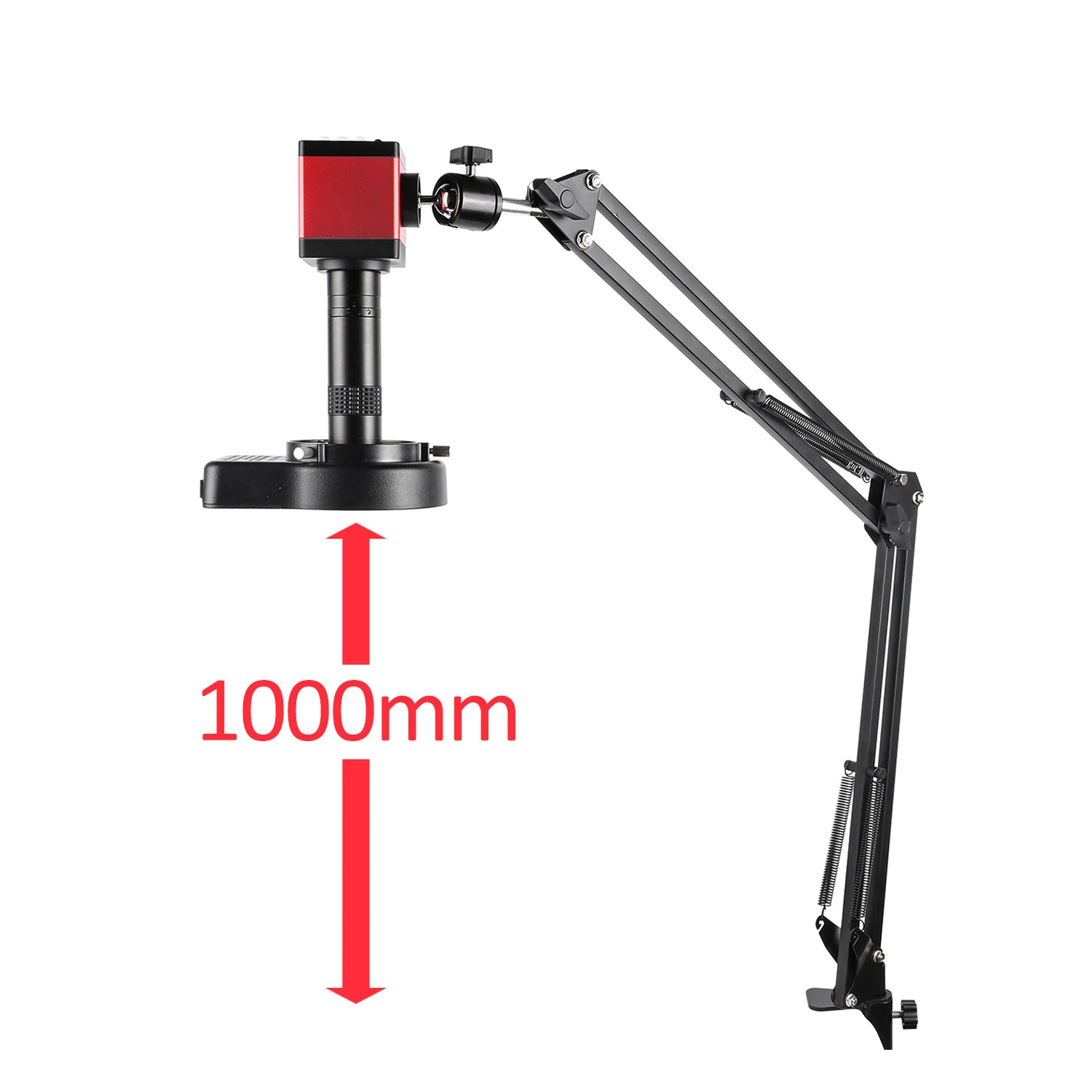

Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

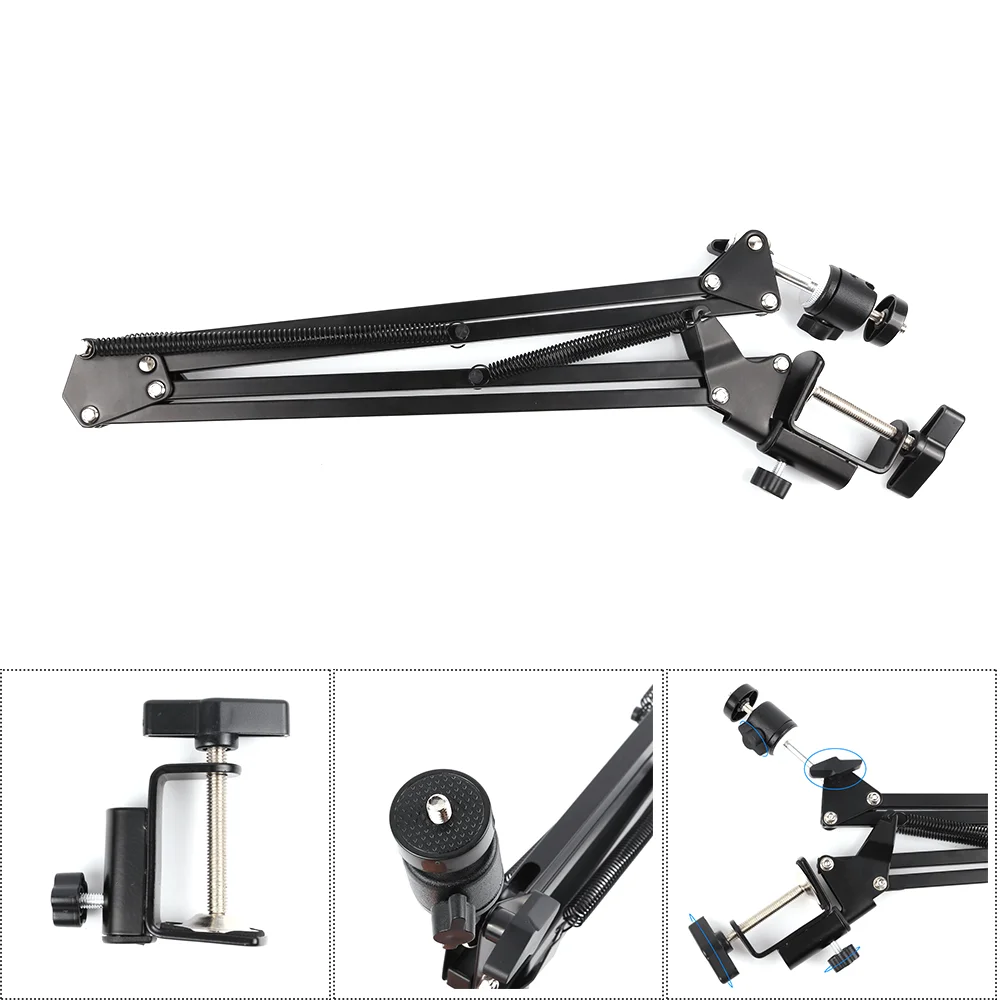

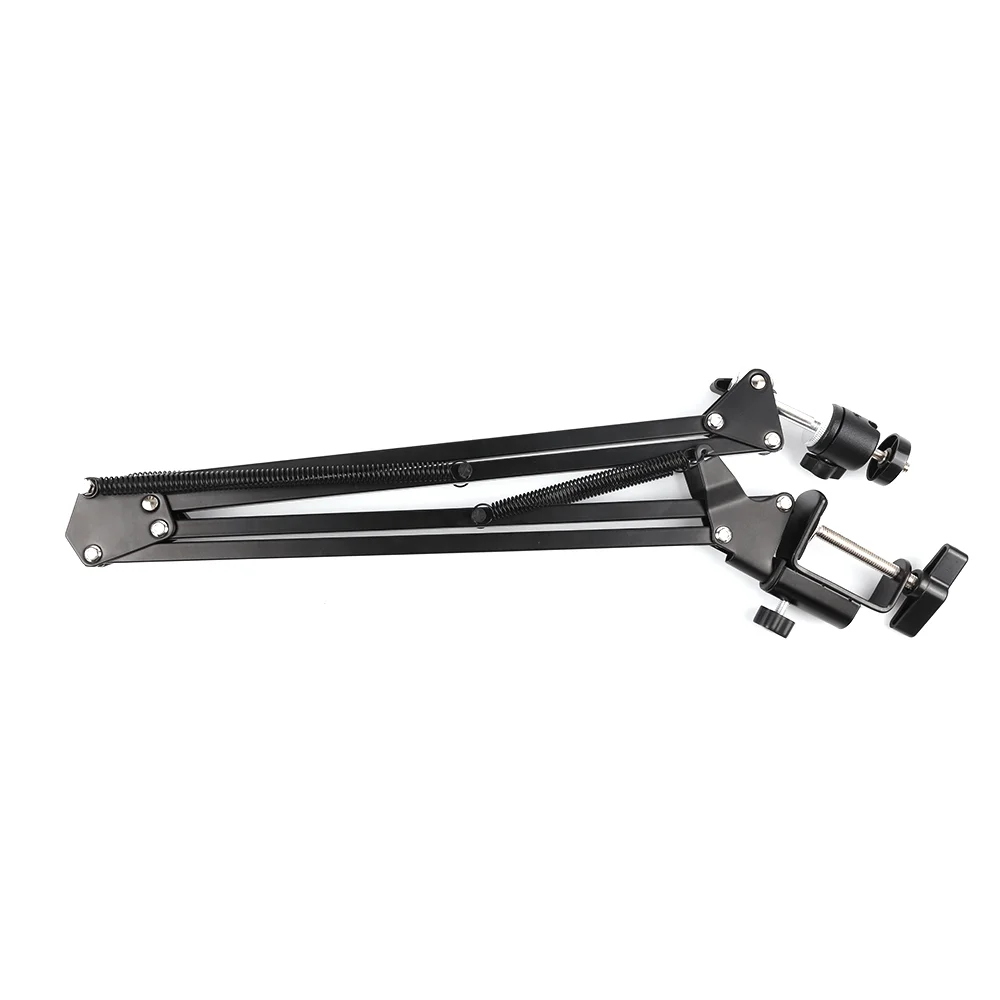

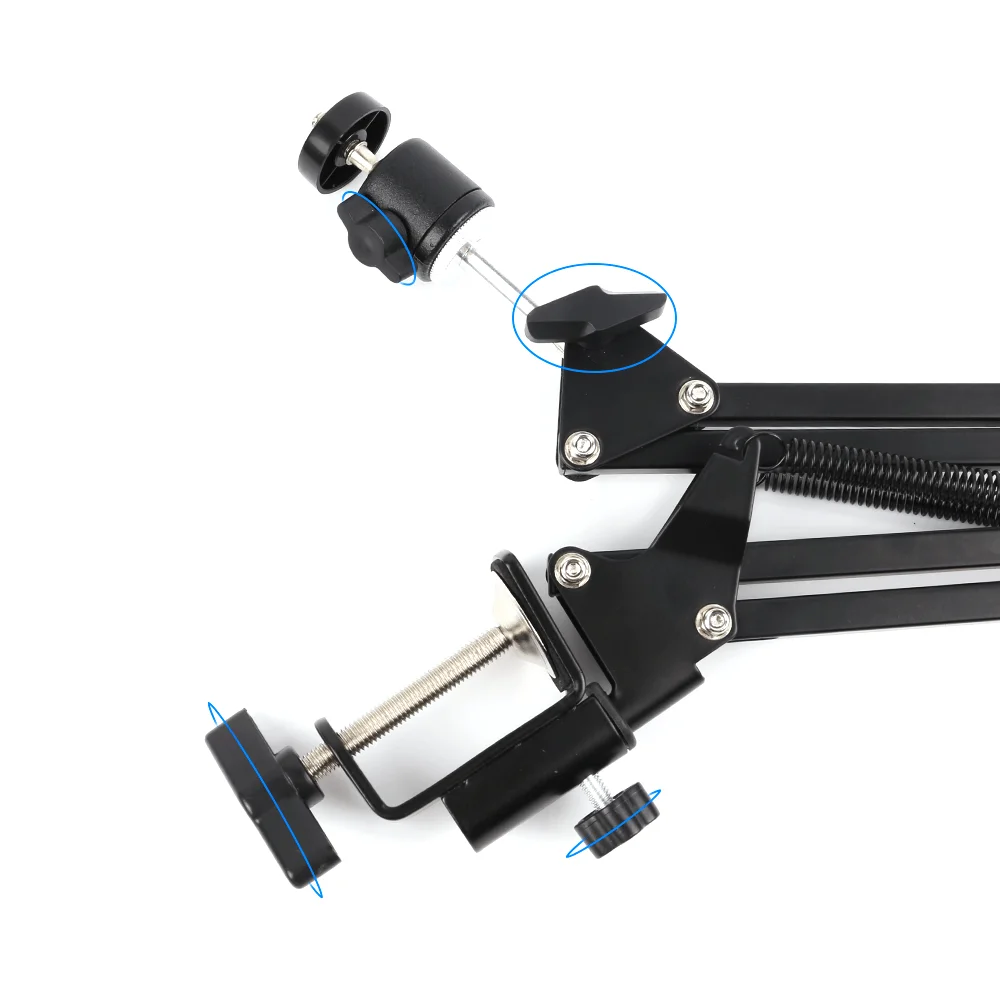

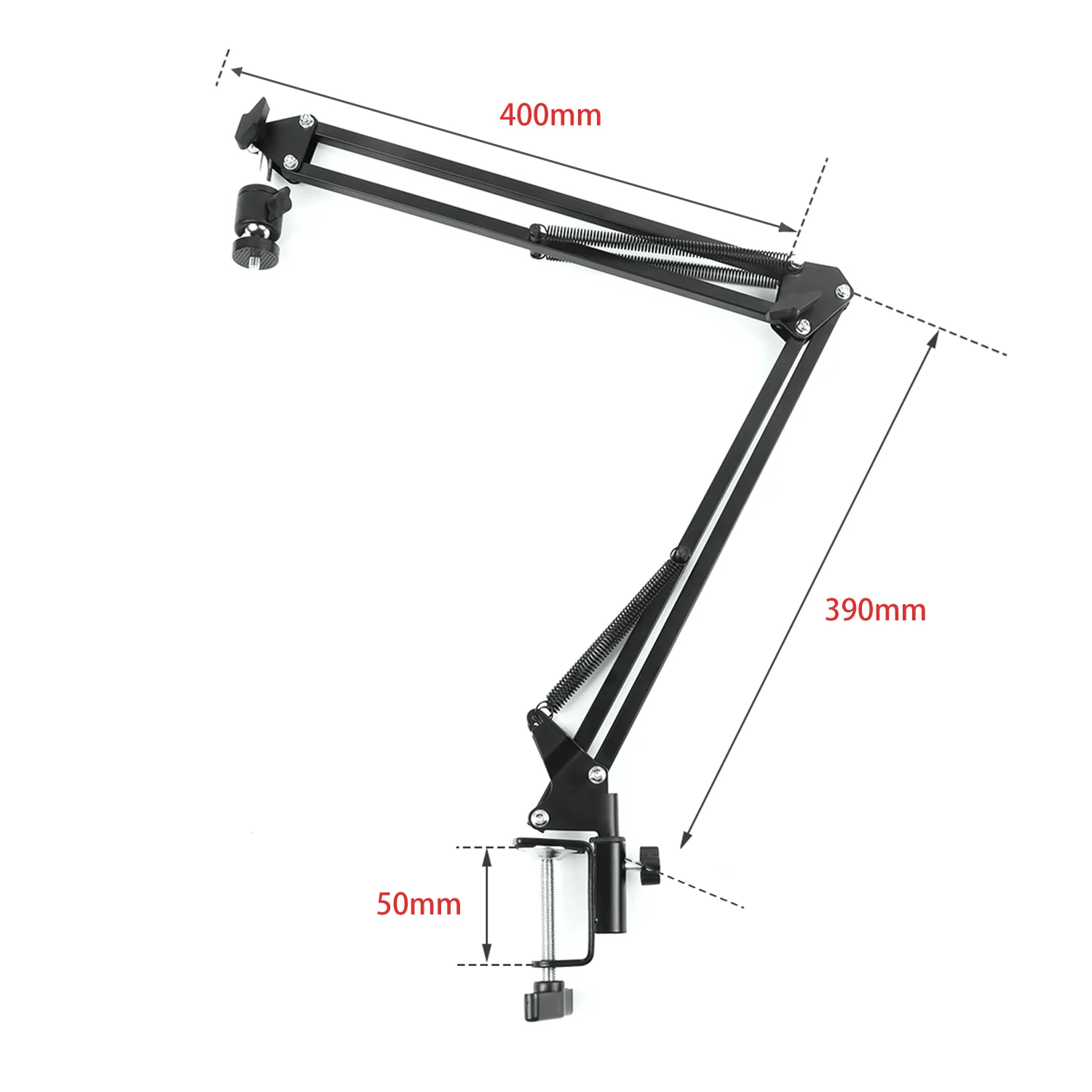

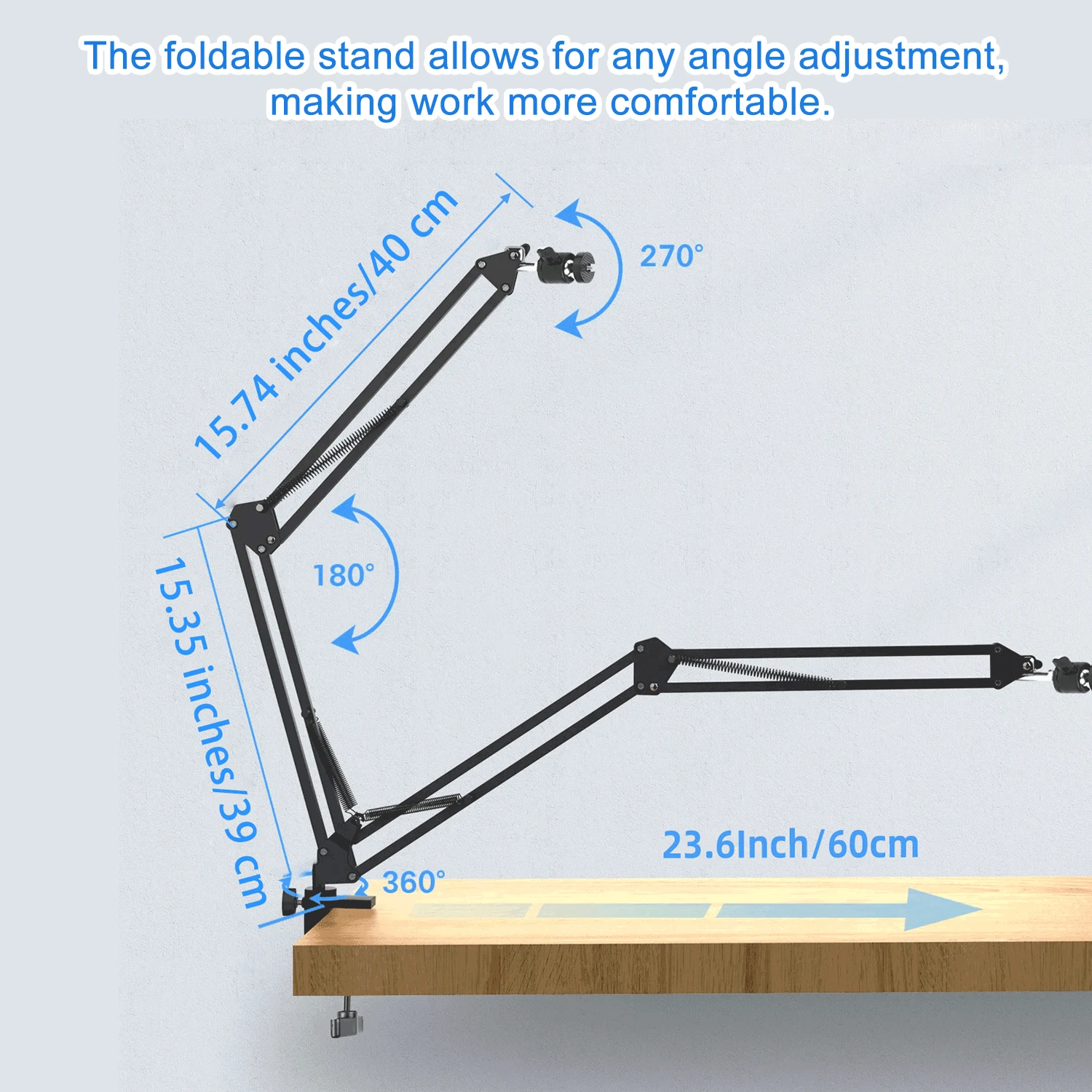

Collapsible support Feature：

Multi-directional folding optional installation, multi-purpose.
Size: 340 mm * 320 mm

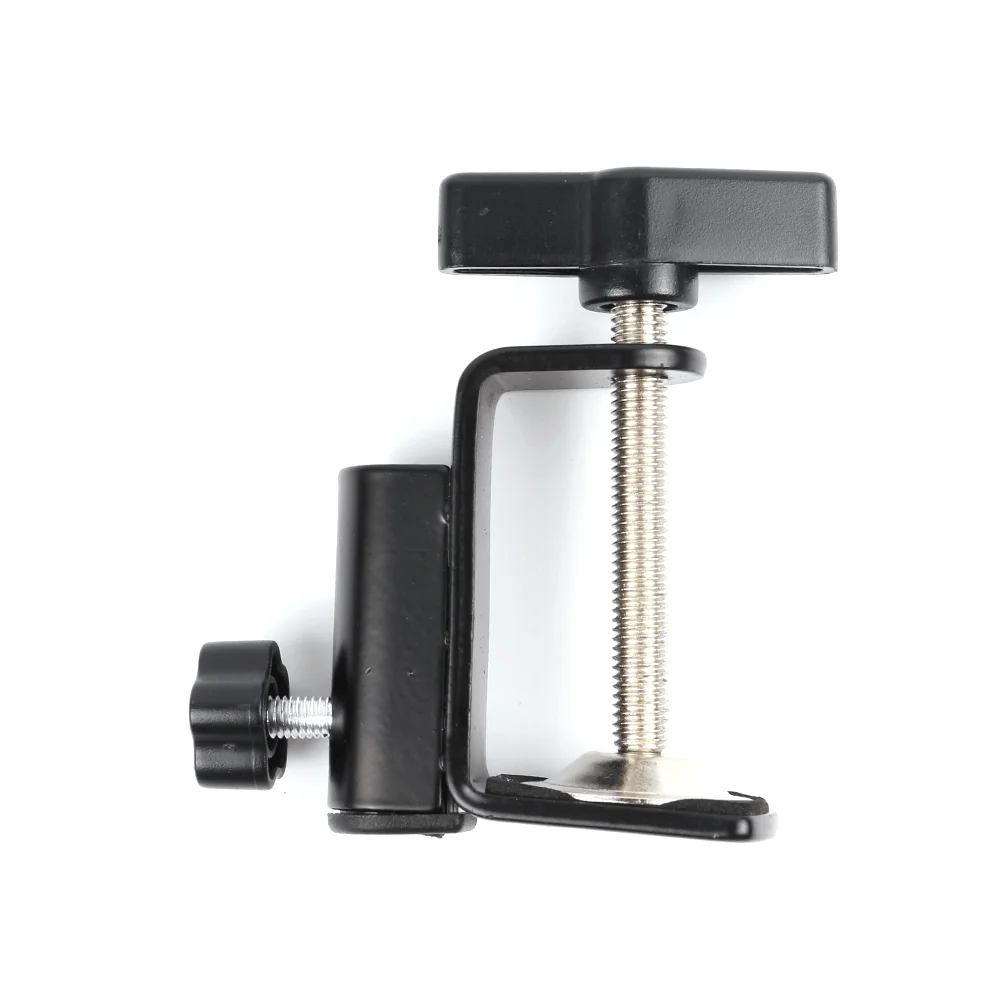

Maximum bottom mounting size: 50mm

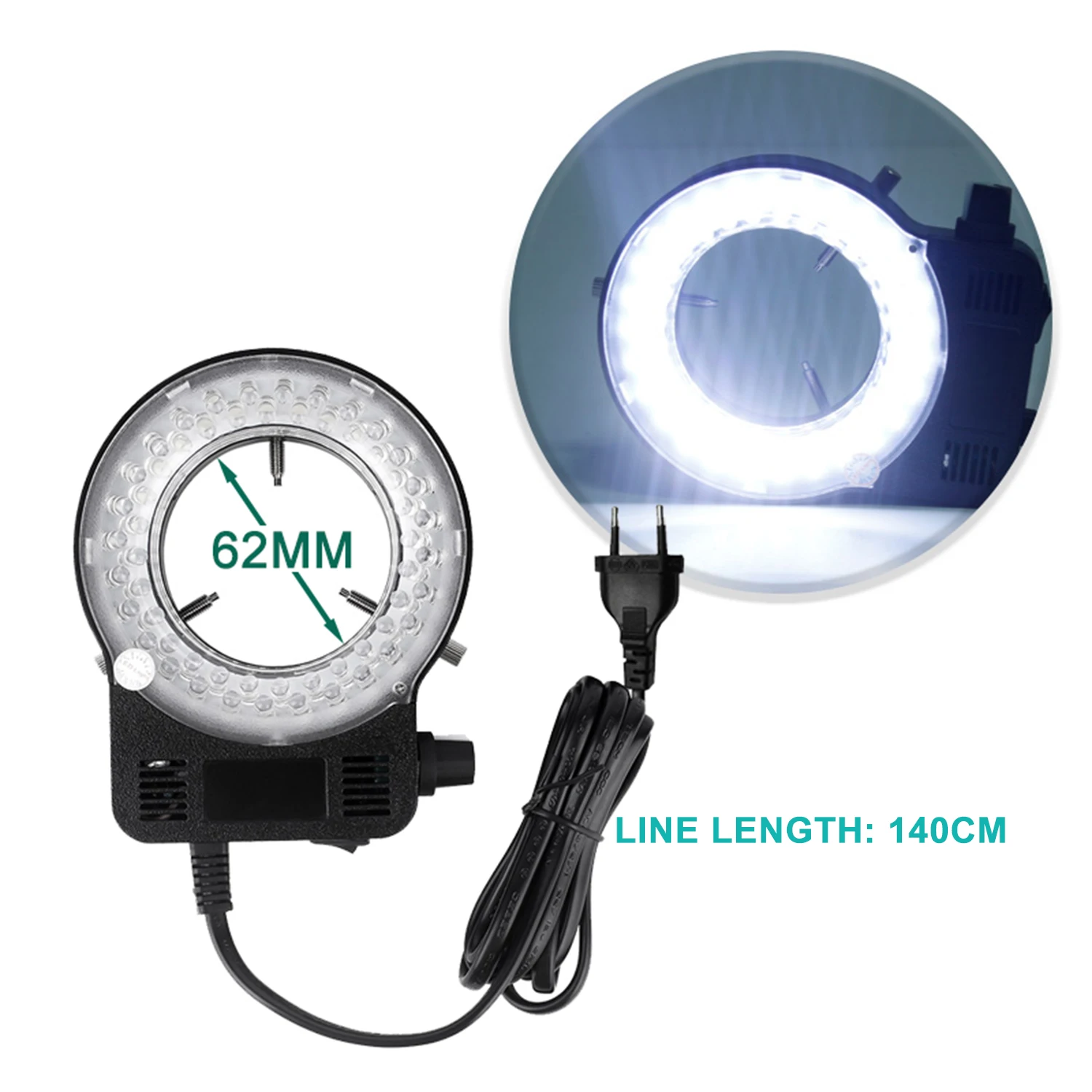

LED Light:

Input voltage: AC100-240V 50/60Hz
Output voltage: DC 12V
Output power: 5W
Protection Grade: IP40
Working distance: 40-160mm
Maximum illumination: 50000-60000Lux
Light color temperature: 6500-7000K
Brightness adjustment: 1-100%
Shell material: engineering plastic (environmentally friendly material)
Installation size: maximum 62mm, minimum 33mm
Number of LEDs: 56 particles of bright LEDs
