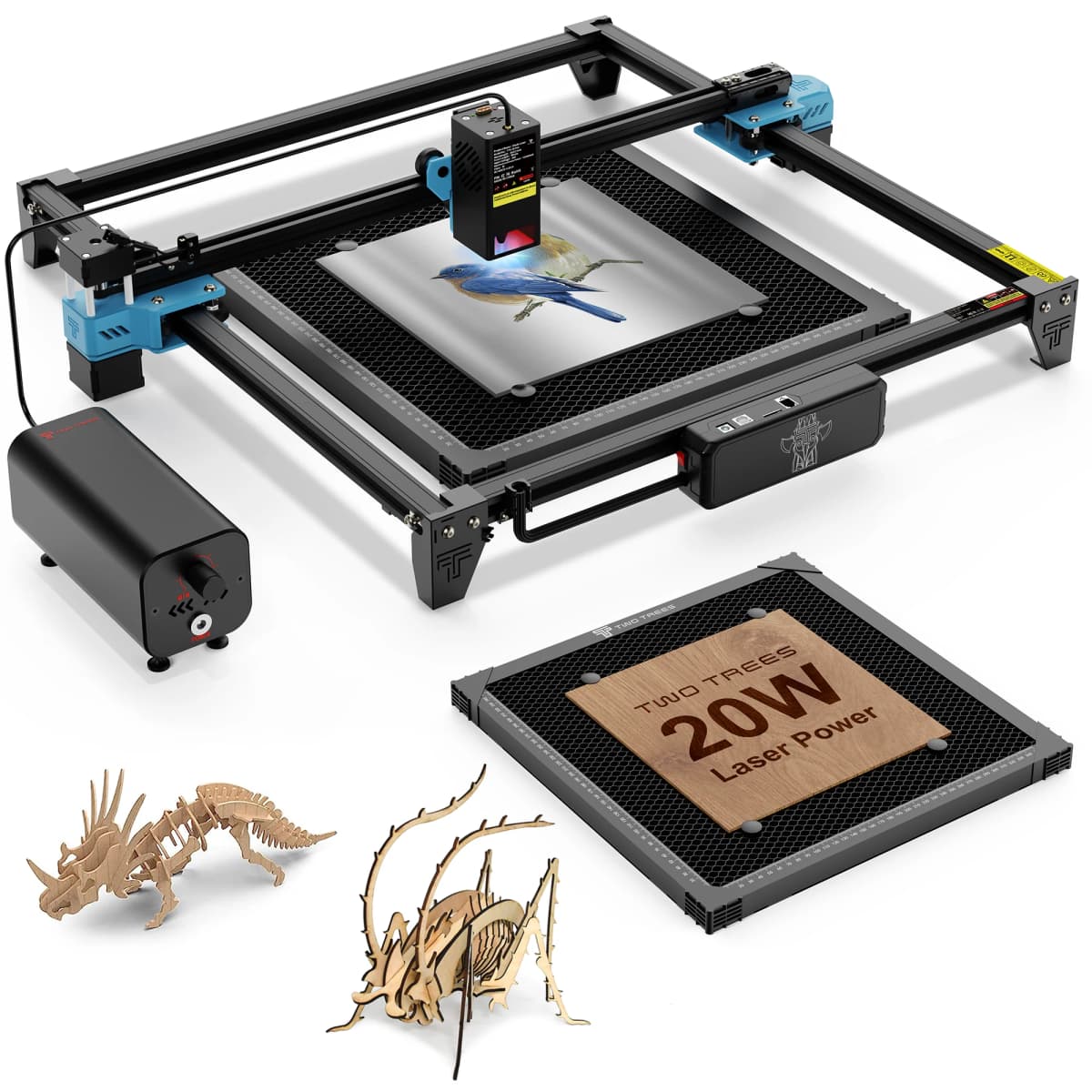

Twotrees TTS-20 Pro Metal Laser Engraver Support Offline Control 130W Laser Engraving Machine with Limit Switch Laser Cutter

Twotrees TTS-20 Pro Metal Laser Engraver Support Offline Control 130W Laser Engraving Machine with Limit Switch Laser Cutter

Please note: We only ship the machine. (Air pump and honeycomb panel are not included.)

Feature

1.New Eye Protection Design: The laser protective cover perfectly protect your eyes,filter UV light for 97%.

2.Easy to assemble for beginners : The overall frame is packaged and shipped Machine pre-installed 98% and the assembly can generally be completed within 5-10 minutes.

3.Laser Module：COS CHIP UPGRADE More Effecient thermal pathand improved heat dissipation The lighter laser head and the Y-axis dual motor design make the product have a stronger engraving speed, up to 30000mm/min, that is, 500mm/s, which greatly improves the engraving efficiency.

4.Limit Switch：The limit switch ensures thatthe laser head engraves safely and correctly.

5.Gifts included: To improve the engraving and cutting effect for users, we have included air pumps and honeycomb panels to give you a better shopping experience.

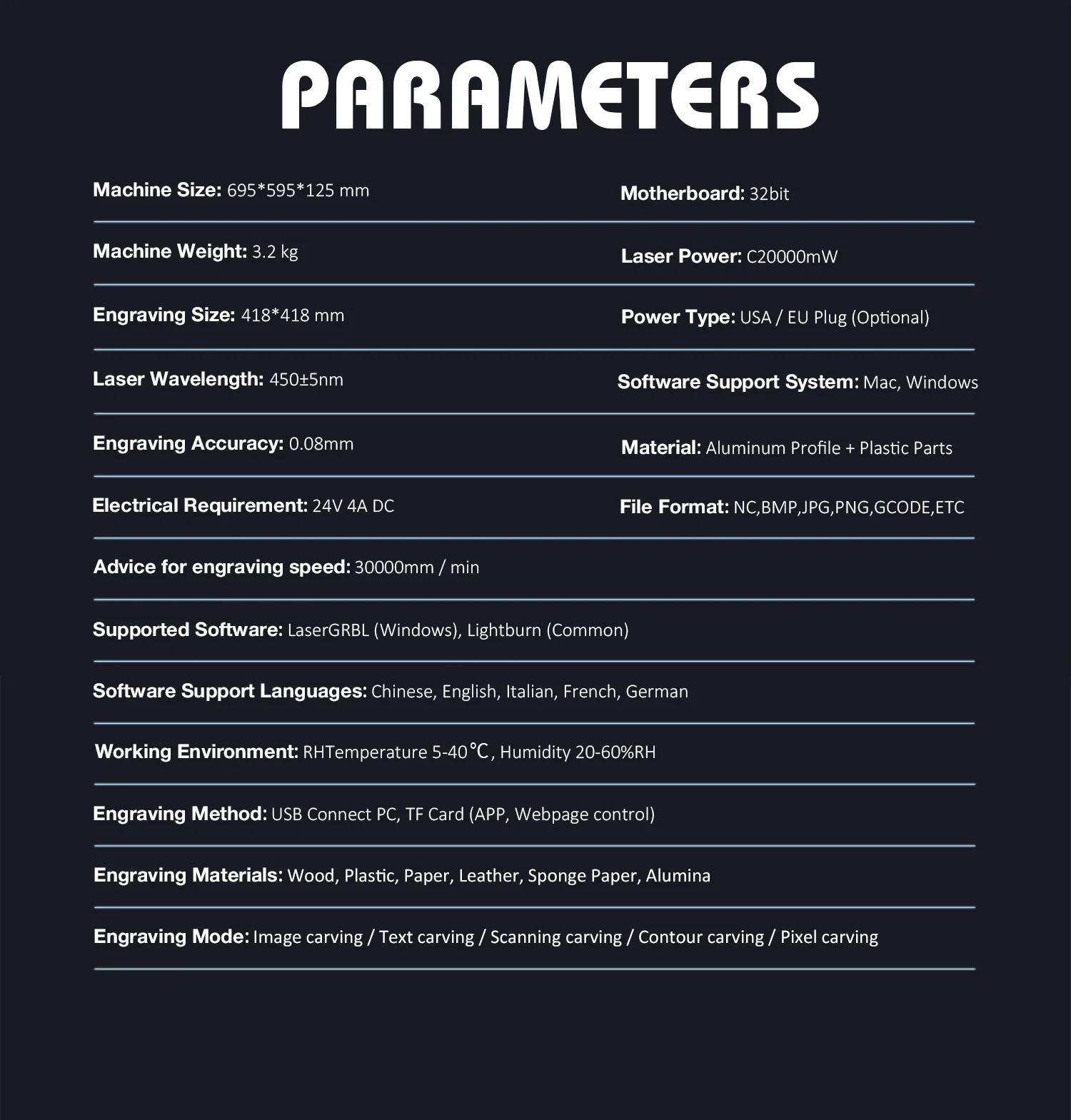

Product Description

Machine Size: 695*595*125 mm

Motherboard: 32bitMachine

Machine Weight: 3.2 kg

Package weight: 9KG

Machine Power: 130W

Laser electric power: 90W

Laser Power: 20-22W

Engraving Size: 418*418mm

iPower Type: USA/EU/Brazilian Plug(Optional)

Laser Wavelength: 450±5nm

Software Support System: Mac, Windows

Engraving Accuracy: 0.08mm

Material: Aluminum Profile+Plastic Parts

Electrical Requirement: 24V 4A DC

File Format: NC. BMP.JJPG PNG GCODE ETC

Maximum Engraving Speed: 30000mm/min

Supported Software:LASERGRBL(Window),Lightburn(Common)

Software Support Languages: English, Italian, French, German, Portuguese, Czech,Spanish,Russian,Polish,etc 13 languages

Working Environment: Rhtemperature 5-40'C, Humidity 20-60%RH

Engraving Method: USB Connect PC, TF Card(APP, Webpage control)

Engraving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, AluminaEngraving Mode: Image carving/Text carving/Scanning carving/Contour carving/Pixel carving

Questions you may care about:

1.QA: I saw the link shows 130W and 20W, but what is the difference between them?

AN: 130W is electric power, 20W is real output. This 20W determines the efficiency of the machine, currently the highest output power on the market is 20W.

2. QA: What are the features of this TTS-20 Pro that I should start with?

AN: First of all, it is the most powerful machine that can cut sheet metal. Plus, it engraves vibrant colors and higher contrast on metal. Additionally, it comes with an air assist kit and honeycomb panels.

3.QA: Because of its value, I'm afraid it will be damaged or I don't know how to operate it, how do you deal with these?

AN: Don't worry, there are instruction manuals and video tutorial QR code in the box, which will teach you how to install and operate.

Note:

- Please read the Users Manual before use.

- Please wear laser goggles during usage and avoid touching the laser directly with your eyes and skin!

- Do not engrave the mirror objects or metals with strong mirror reflectivity, which may cause injury to the operator or burn the laser.

The shelf life is 12 months from the date of purchase

1. Missing/damaged/defective parts

a. Within 7 days after the delivery date, we will replace any parts for free, including shipping

b. After 7 days from the delivery date, we will replace any parts free of charge. But customers need to pay for shipping

2. Customer damaged parts: The customer should pay for the cost of the parts and transportation costs

3. Lost, missing, damaged and defective parts by the courier company

1.Claims for lost or damaged goods must be reported to the carrier within the carrier’s claim window,

and the customer needs to notify us within 7 days after the delivery date

2. For any parts lost or damaged during transportation, the customer should take photos or videos and send the information to us

3. Once the carrier's dispute is resolved, please provide us with all communications with the carrier.

The customer is responsible for keeping us informed of all communications with the carrier in time

4. For missing parts, customers should contact customer service.

5. For damaged parts, customers should contact customer service and send photos or videos to us
