MUCAR BT200 MAX CAN FD OBD2 Scanner 15 Resets AI Car Diagnostic Tools All System Auto Scan Bi-Directional Control Free Update

NOTE!!! For Norwegian and Chilean customers Customs duties are collected by AliExpress, not us.

Methods to avoid being taxed again

1. Download the invoice from your order and provide it to the post office or customs.

2. Provide the AliExpress tax number to the post office or customs.
Norway's VOEC number is 2034638
Chile's HS code is 592541408

If you have been taxed again, please contact AliExpress buyer customer service 15 days after confirming receipt to process a tax refund.

AliExpress buyer customer service link:https://service.aliexpress.com/page/knowledge?pageId=37&category=1000022000&knowledge=1060015091&language=en

Why Should You Choose MUCAR BT200 Max?

All Softwares Lifetime Free Update
1.AI Assistant Intelligent Diagnostic System
2. Built-in CAN FD Design
3. Added GM-LAN,Ford MS-CAN and ELM327 Protocals
4. Bi-directional/Active Test Lifetime Free
5. All System Diagnosis Lifetime Free
6. 15 Reset Service Lifetime Free
7. Full OBD2 Functions Lifetime Free
8. Support 120+ Car Brands,22 Languages
9. Print Diagnostic Report+Auto VIN Scan, Live Data Stream
10.Work with dozens of popular third-party apps，sush as Torque, BimmerCode, Dashcommand, AlfaOBD （need check compatibility)

First Al Intelligent Diagnostic System

MUCAR BT200 Max is the first bluetooth obd2 scanner withan Al diagnostic system.Provide users with multi-dimensional, high-precision, industrial-grade technical support services.

Supports OBDII protocol & EOBD protocol and New Added GM-LAN,Ford MS-CAN, ELM327

1. Standard OBDII Agreement: ISO 14230-4(KWP2000)/IOS 15765-4(CAN)/ISO 9141-2(IOS)/ISO14229(UDS)/SAEJ 1850(VPW&PWM)

2. New Added GM-LAN,Ford MS-CAN, ELM327 Agreement:
MUCAR BT200 Max supports EML327, GM-LAN and Ford-MSC proprietary vehicle networks that provide access to thousands of additional parameters that are off-limits to all other wireless OBD scanners.

3. Full Obd2 Functions
Mode 1: Read live data stream
Mode 2: Read freeze frame data
Mode 3: Read DTCs(diagnostic trouble codes)
Mode 4: Clear dtcs
Mode 5: Oxygen sensor monitoring
Mode 6: System monitoring
Mode 7: Read pending DTCs
Mode 8: Control operation of on-board system
Mode 9: Read vehicle information
Mode 10: Request emissions-related diagnostic trouble codes with permanent status after a clear/reset emission-related diagnostic information.

Built-in CAN FD Protocals

MUCAR BT200 Max OBD2 scanner is compatible with CAN-FD protocol and supports the latest GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.

Supports For Chevrolet Onix 2020-2021 year
Supports For Chevrolet Tracker 2020 year
Supports For Chevrolet Suburban 2021 year
Supports For Chevrolet Tahoe 2021 year
Supports For Buick
Supports For Cadillac Escalade 2021 year
Supports For Cadillac Escalade 2021 year
Supports For GMC Yukon 2021 year
Supports For GMC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer

Support FCA Cars，Unlock More Functions

Note: FCA AutoAuth Access not free!!
There is an annual fee for Autoauth account, but the payment is charged by AutoAuth directly. THINKCAR & MUCAR is not involved in any transaction process.

FCA vehicles (Fiat Chrysler Automobiles) have been protected with an SGW security module (Secure since 2017 Gateway) to prevent unauthorized diagnostics and security attacks.This module limits diagnostic capabilities without authorized diagnostic tools. This limits functions ranging from Bi-directional testing to DTC clearing. The vehicle's SGW will need to be "unlocked" by the authenticated tester, and the Diagnostic tools.Now FCA US is using the Automatic Authentication Authority (AutoAuth) to manage user accounts for access to SGW vehicles

Use the latest software update function AutoAuth to provide systems diagnosis, active test, retrieve module info, etc., making the diagnostics more secure. Applicable to FCA vehicles(Chrysler, Dodge, Jeep, Fiat) equipped with a security gateway module (SGW) in 2017 and later.

Before purchasing a gateway account,MUCAR BT200 MAX can reading version information,reading fault codes, and reading data streams

After purchasing a gateway account,MUCAR BT200 MAX can support reading version information, reading fault codes, reading data streams, action testing, clearing fault codes and maintenance functions.

Fit for FCA Vehicles from 2017-2024 including 300/Pacifica/Challenger/Charger/Durango/Journey/Ram 1000/Ram 1500(DS)/Ram 1500(DT)/Ram 2500/Ram 3500 Cab Chassis/Ram 3500 Cab Chassis 10K/Ram 3500 Pickup/Ram 4500/Ram 5500/ProMaster City/Cherokee/Compass/Compass (Brazil, China, India, Mexico)/Grand Commander/Renegade/Wrangler (JL)/Giulia/Giulietta/Stelvio/500X/500X/500BEV/Toro/Doblo/Ducato/Novo Strada/Mobi/... More keeps growing

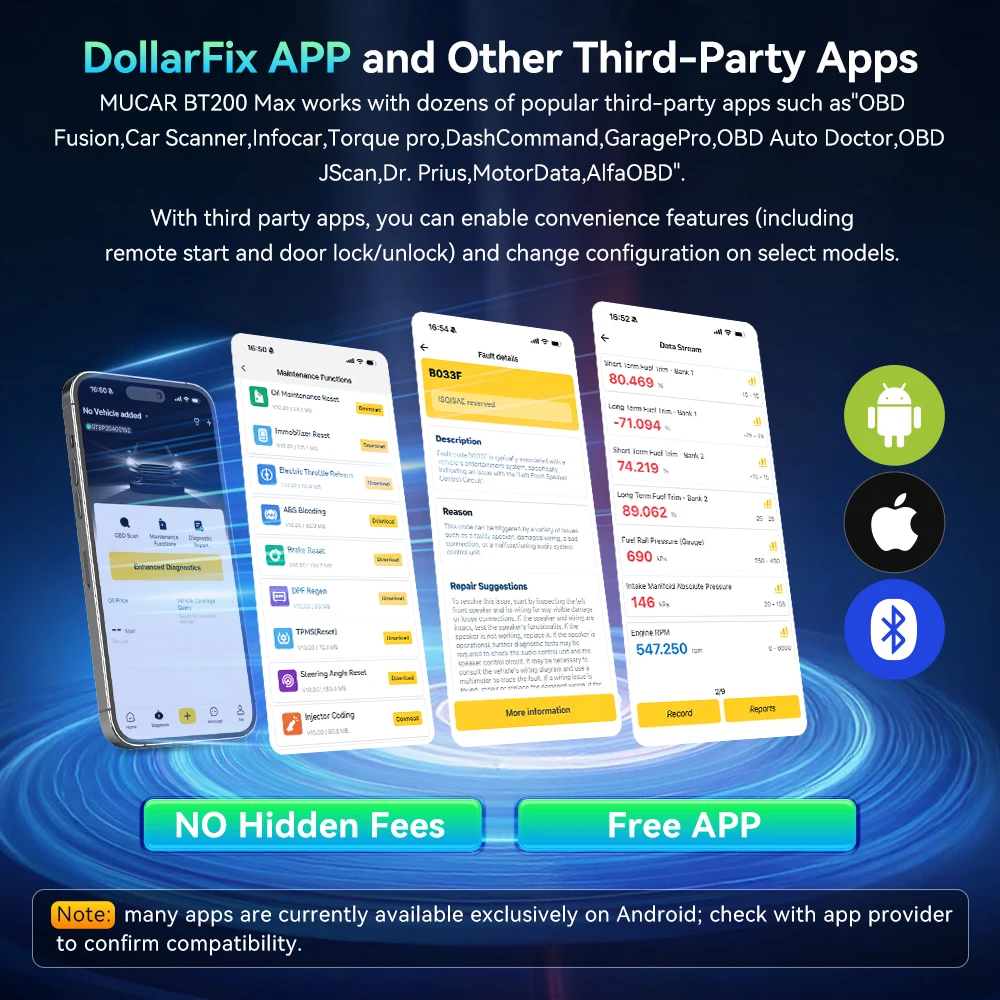

DollarFix APP and Other Third-Party Apps,NO Hidden Fees Free APP

MUCAR BT200 Max works with dozens of popular third-party apps such as""OBD Fusion,Car Scanner,Infocar,Torque pro,DashCommand,GaragePro,OBD Auto Doctor,OBD JScan,Dr. Prius,MotorData,AlfaOBD"".

With third party apps, you can enable convenience features (including remote start and door lock/unlock) and change configuration on select models.

Note: many apps are currently available exclusively on Android; check with app provider to confirm compatibility.

Bi-Directional/Active test Lifetime Free

It is capable of performing Active Tests to access vehicle-specific subsystems and component tests. The tester outputs commands to the ECU to drive the actuators in order to determine the integrity of the system or parts by reading the ECU data, or by monitoring the operation of the actuators.You can test whether the execution components work normally by bi-directionally monitoring the operation actuator.

Note: Active tests are NOT universal for all vehicles, please check compatibility with seller by Sending Car brand, model and VIN number before purchase."

All Cars Lifetime Free Full System Diagnostic Lifetime Free

MUCAR BT200 Max has the ability to access all available system and subsystems codes, and perform a comprehensive scanning on ECUs: Engines/Transmission/Airbags/Immobilizer/Key Coding/ABS/Cruise Control/Instruments/ Self Leveling Suspension systems/Seats/Doors/Gateway/Steering Angle/Air Suspension/Body Systems/Electronic Power Steering & Motor Assisted/Power Steering/Tyre Pressure/Rain Sensors/4WD System/Stabilizer/Intelligent Parking Assist/Door Motors/Audio Systems/Air Conditioning/Tiptronic/Anti Theft/Soft Top/Headlamp Leveling/Central Locking/Automatic Clutch/ DPF Reset/Electric Windows/Plip coding/Heated Rear Window/Xenon Headlights/Wash Wipe/Fuel Burning Heater/Transfer Box/Seat Memory/Oil Life Service Reset/Sliding Doors/Electronic Throttle/Navigation System/Rollover Sensor/Cruise Control/ Multi Function Steering Wheel/Aux Heating/Electronic Parking Brake/Clutch Electronics, etc.

15 Resets Function Lifetime

1. Oil Lamp Reset Service
allows you to perform reset for a new calculation of Engine Oil Life system once changed the oil.

2. EPB service
it is important in the maintenance of electronic braking system's safety and efficiency.

3. BAT battery service
allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4. DPF service
specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5. SAS service
helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6. TPMS service
makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7. IMMO Key Programming
the unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8. ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system

9. Sunroof Reset
The sunroof memory generally needs to be reset when the vehicle’s battery is replaced or the car dies

10. Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through measage system go to suspension reset or on off

11. Gearbox Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programing method of the TCU / ECU drive the car.

12. AFS Headlamp Reset
AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel

13. Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off

14. Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount ofair entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensorcommunicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair

15. EGR Adaption
This function is used to learn the EGR valve after it is cleaned or replaced.

Read Live Data Stream

Real-time data is visualized in a variety of formats, including graphs, numeric, meter displays and clear 4-in-1 data charts, allowing you to effortlessly monitor real-time performance. Data logging/reporting is available for playback and further analysis.

Tntelligent Auto VIN
With intelligent AutoVIN quick recognition, it is easy to connect to your car without the need for manual input.

Over-voltage and Battery Drain Protection

MUCAR BT200 Max Smart Wireless Diagnostic

Live Data Stream
DTC Lookup
Reading Of Fault Codes
Diagnostic Feedback
Print Diagnostic Report

MUCAR BT200 Max Support Up to 120 Car Brands, 22 Languages

It is compatibale with almost all vehilcle models of American, European,Asian Makes

1. American Car List:
Need standard obd2 and release year from 1996-now
For Chrysler, For Ford, For GM, For Jeep, For Lincoln, For Buick, For Cadillac, For Chevrolet,For Dodge, For HM, ect...

2. European Car List:
Need standard obd2 and release year from 2000-now
For Mercedes, For Benz, For Smart, For Sprinter, For BMW, For Volkswagen, For Skoda, For Audi, For Opel, For Lamborghini, For Porsche, For Maybach, For Ford, For Land Rover, For Jaguar, For Aston Martin, For Bentley, For Rolls-Royce, For Rover, For Mini, For Vauxhall, For DR, For Ferrari, For Fiat, For Abarth, For Lancia, For Alfa Romeo, For Maserati,For Bugatti, For Peugeot, For Citroen, For Renault, For Saab, For Volvo, For GM, For GMSA, For Dacia, For Seat,ect ...

3. Asian Car List:
Need standard obd2 and release year from 2008-now
For Thailand Isuzu, For Acura, For Daewoo, For Jianghuai cars (GM), For Ssangyong, For Infiniti, For Proton, For Honda, For Mazda, For Perodua, For Jiangling Automobile, For Mahindra (MAHINDRA), For Isuzu, For Suzuki, For Byd auto, For Chery cars, For Toyota, For Nissan, For Kia, For The Car, For The Great Wall in cars, For Daihatsu, For Changan automobile, For Geely automobile, For Xiamen Jinlong, For Zhongxing automobile, For Hafei automobile, For New Kay, For Gonow automobile, For Changhe automobile, For Hyundai, For Liuzhou Wuling, For Subaru, For Xiali, For Australia ford, For Mitsubishi, For TATA, For Zhongtai automobile, For Horton, For MARUTI, For Lexus

Support 22 Languges:
English, French, Spanish, German, Italian, Portuguese, Japanese, Russian, Polish, Traditional Chinese, Turkish, Greek, Korean, Hungarian, Dutch, Vietnamese, Arabic, Persian, Khmer, Lao, Burmese, Thai

How to Use the MUCAR BT200 Max?

Compatible with Andriod & IOS

1.Download DollarFix app( Andriod GET IT ON Google Play,IOS Available the App Store)

click on"Sign Up",verification code will be sent to the email you input, if you did not got, please check the spam.

2.Connect MUCAR BT200 Max in App
Enter the Device Serial Number (or scan the QR code on the instruction manual) and the activation code from the Quick Start Guide, then tap Activate to complete the process.


3.Download Software
In the "Diagnostics" section of the app, you will need to download the corresponding diagnostic software when performing the "Enhanced Diagnostics" or "OBD Functions" for the first time. Once downloaded, the software will not need to be downloaded again for future use.

4.Turn On Your Car
Turn the ignition to the "ON'' position

5.One-Click Via Bluetooth
Open the Dollarfix App, and it will automatically search for activated devices. Select your device and connect to it via Bluetooth within the app.

Note: Do not pair the device directly through your phone's Bluetooth settings. Ensure that the device is paired within the app by following the provided instructions.

6.Start Diagnosis

Dollarfix is an application platform that integrates the communityand vehicle diagnostics. It aims to create an interactive andcommunicative space. At the same time, through co-branding,Dollarfix integrates devices from different brands, such asTHINKCAR, MUCAR, DND, ANCEL, KINGBOLEN, etc. There is noneed to switch between different applications, and it become as anew bridge connecting car owners.

Configuration&Requirements

16 Pins Standard OBD Port
Android 5.1 or ios 9.0 and above
Bluetooth Version : Bluetooth V5.2
Connection range: 33 feet/10m
Supports System : Android 5.0/iOS 9.0 or above
Operating temperature : -10°C~50°C (32°F~122°F)

Packing Lists

BT200 Max connector
User Manual
Carrying case

FAQ

Q: What do the different lights on the device indicate?
A: There are three different lights on the device:
Green light is always on: the device is powered on, but not
connected to the APP.
Blue light is always on: the device has successfully connected to
the APP.
Blue light flashes: the device is working.
Red light is always on: when the device is updating the firmware
or the update fails.
Light off: the device is in sleep mode.

Q: Why do I need to download the diagnostics software after
downloading the app?
A: Due to the wide variety of vehicle manufacturers, each requires
specific diagnostics software. The device will first recognize the
vehicle manufacturer during the diagnostic process and then
download the corresponding software to ensure compatibility.

Q: Does the device need a firmware upgrade?
A: Yes. When the device connects to your smartphone via
Bluetooth, it will automatically check if the firmware is up to
date. If not, the firmware will be updated automatically.
Important: Do not disconnect the device during the firmware
upgrade process, as it may cause damage requiring repair

Q: Can the same app account bind to multiple devices?
A: Yes, you can bind multiple devices to the same account through
the app.

Q: What should I do if I experience a Bluetooth connection issue
with the Dollarfix app?
A: 1. Ensure the connector is powered on. If not, try connecting to
another vehicle.
2. Verify that the SN (serial number) printed on the connector
matches the one displayed in the Bluetooth list. If you have
multiple devices, ensure you select the correct one from "My
Devices".
3. Follow these steps based on your device:
For Android: Unpair the device from the Bluetooth list, then
pair it again and switch to the app to connect.
For iOS: Connect directly within the app without pairing the
SN in the phone’s Bluetooth settings.

Customer Service

If you have any questions, please contact us in the following ways:
1.Contact the store customer service by sending a message on AliExpress
2. Download the Dollarfix app from the App Store, register and log in, and click "customer service" in the Message module of the app

3. Scan the QR code on the instruction manual through the browser
(If you don’t know how to scan the QR code, please use the third
method to contact customer service.)
4. Enter the URL during browsing:
https://community.dollarfix.com/serviceIm/app/dollarfix

Warranty Card

Life-time technical support and 12 months warranty (including
electronic products for damages caused by defects in materials or
workmanship) are provided as a standard service. Damages to the
device or components caused by abuse, unauthorized modifica-
tions, Usage beyond the intended purposes, operation in a manner
not specified in the instructions, etc. are not covered by this
warranty. Compensation for dashboard damage caused by defects
in this device is limited to repair or replacement. Does not bear any
indirect and incidental losses.
