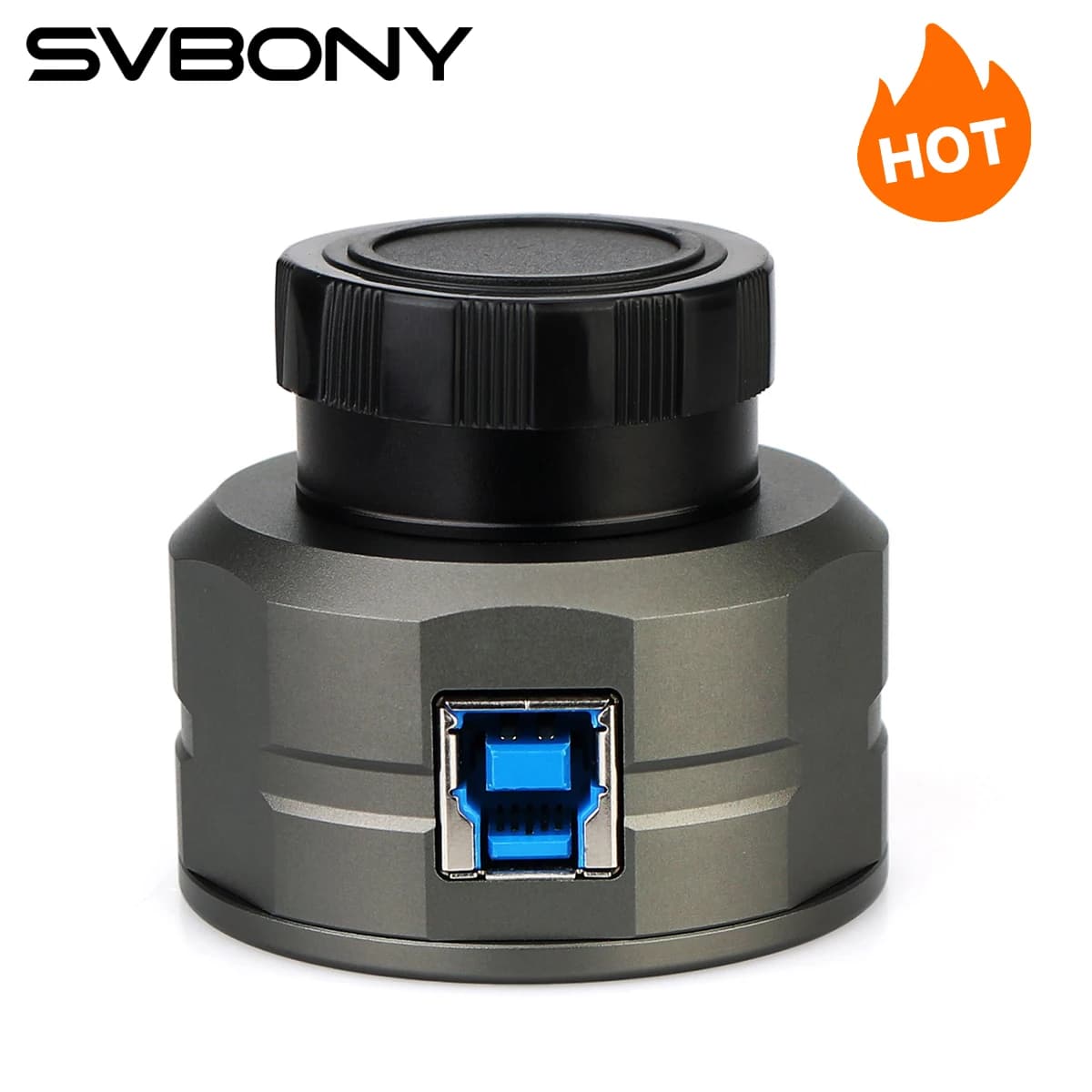

Svbony SV205/SV105 Planetary Camera Electronic Telescope Eyepiece

Svbony SV205 Astronomy Planetary Camera review

https://www.youtube.com/watch?v=vL97eh0ANnc

Author:Astrotivissa

SV205 8MP USB 3.0 Electronic Eyepiece Camera 1.25-inch Astronomical Photography

To address the pixel vignetting issue of the original SV205 camera, we cropped a new version from a portion of the pixels. The parameters are 7.05MP, and the resolution is 3264x2160. The selected SV205 is equipped with an IMX415 sensor with a resolution of 8.29 megapixels, achieving a resolution of 3840x2160 under ideal conditions. The pixel size has been adjusted to 1.45um x 1.45um.

This newly developed IMX415 stacked CMOS image sensor utilizes Sony's unique high-sensitivity, low-noise technology, reducing the pixel size to 1.45 square micrometers, approximately 80% smaller than the previous generation IMX274. This results in a record-breaking 1/2.8-inch stacked 4K CMOS image sensor with excellent low-light performance.

It is ideal for photographing the Moon, Jupiter, Saturn, and binary stars. It is also suitable for observing some bright deep-sky objects.

Plug and Play

*SV205 astronomy camera can`t focus automatically, and you need to focus your telescope to see a clear image.

Plug and play without driver, easier to use. USB 3.0 is much faster than USB 2.0. And the camera supports a real-time dynamic observation and crystal clear image. The photosensitive area of the IMX415 is 1/3.2 inch, and the unit area per pixel is 1.4 microns. The sensitivity of the IMX415 has been significantly improved.

Software Download

Download Sharpcap Capture for windows system;

Download AstroDMx Capture for Linux system;

Download USB Camera for Android system;

Dark Light Compensation

The image processor uses dark light compensation technology to greatly improve the telescope camera's image clarity in low light conditions.

8MP: 3264x2448

When enter the sharpcap software, all camera settings are automatically. You may see the picture is out of color balance or maybe a little blurry. You need to choose a resolution (8MP 3264×2448 is most clear), then choose the YUV video format. This is the best image resolution.

MJPG/YUV Format to Choose

In MJPG video format, you can record video quickly and the frame rate up to 30FPS at 2K resolution 1920x1080, which is extremely smooth during preview and shooting. If you want a high quality image, please choose YUV uncompressed video format. The speed will be 15FPS per second at 3264*2448 resolution.

1.25" Adapter Barrel

The 1.25" Adapter Barrel is available for standard 1.25” filters and other 1.25” accessories. SV205 camera just replaces the eyepiece, for electronically enhanced viewing, or astrophotography. It would NOT work with most finder scopes that do not have a removeable eyepiece, or one that has an eyepiece smaller than 1.25".

IR-650 Filter

The IR650 filter, high transmittance of visible light, infrared transmittance low. The human eye cannot detect the infrared part of filter, and can adjust the scenery within react to the color of the image rendering color to achieve the best visual effect, greatly improve the image quality.

High Quality

Operating Temperature: 0°C~50°C

Storage Temperature: -10°C~60°C

Working Humidity: 30%-80%

Storage Humidity: 20%-90%

Used as a Guiding Camera

*The camera can not expose for a long time, and is not really sensitive, so it is better to guide brighter objects.

Used as Planetary Camera

*Suited for planetary, lunar and solar photography.

Connect the Spotting Scope (SV28) and Microscope.

Note:

Can SV205 camera work with smartphone?

First, you can download "USB Camera" from my smartphone [APP Store] and install it. This is a particularly good application because it presents the main control of the camera so that the correct exposure, etc. is set. It works with UVC webcams. Check the icon with the USB camera.

The SV205 camera was placed at the telescope focus of a refractor and was connected to the smartphone. Also need a USB 3.0 to type C connector. Then the SV205 camera could connect to smartphone now.

A drop-down menu allows the selection of the camera controls which can be hidden. People could set all the settings they want. USB Camera can capture mp4 movies/videos or still images.

Buyers Show

Saturn and Jupiter

Powerseeker 114eq telescope with a sv205 planetary camera and a barlow 2x

Processing softwares: Pipp, autostakkert and registax6.

Author:Micael Mike

Author:Stanislav Rudenko

Sky-Watcher BK 707AZ2 + SV205 + telescope

Picture was taken in Budapest, Hungary from 21:55 to 22:05 UTC. It is a mosaic of 6 pictures processed by Sharpcap, Autostakkert and Fitswork. Equipment: Telescope ED 80/600, AZGTi mount, Svbony SV205 camera.

Author:Tamás Fehér

Original Author: Alain Mahy

Set up : Newton 114/900, caméra SVBony SV205

Processing: PIPP; AstroSurface R3; AstroSurface

Distance: 393617 km

Illumination increasing phase: 25.6%

Azimuth: 239°55'

Height: 41°50'

Vazhorov Eduard and lunar
