24 Levels Coilover Kit For BMW 3 Coupe E92 / Convertible E93 320i 325i 330i 335i Racing Lowering For Coupe E93 Convert RWD 07-12

Coil Spring Shock Coilovers For BMW 3-Series E92 E93 320d 325d 330d Suspensions

Applications

For BMW 3 Coupe (E92) (2005-2013) 330i,335i,320i,320d,325i,323i,325d,330d,335d,318i,328i,316i

For BMW 3 Convertible (E93) (2006-2013)330i,335i,325i,320d,320i,330d,323i,325d,318i

Note: fit RWD only!

Specifications

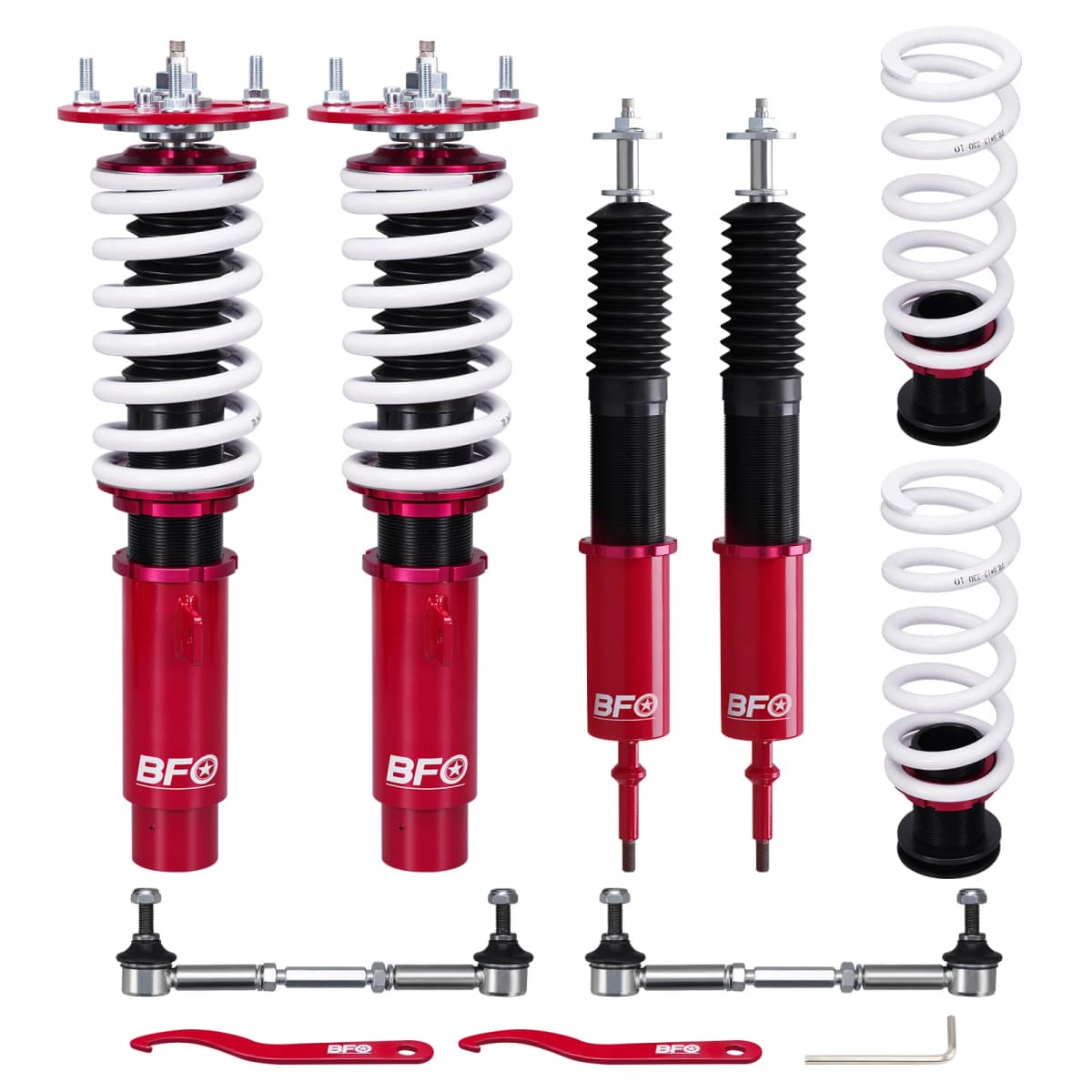

Product included: complete coilovers 2 front and 2 rear as shown in the picture

- Top mounts: front - pillow ball top mount with camber plate; Rear - OE top mounts required

- Damping: 24 levels rebound damping adjustable

- Spring rate Front: 6 kg/mm (356 lbs/in)

- Spring rate Rear: 10kg/mm (560 lbs/in)

- Spring length Front: 180mm

- Spring length Rear: 230mm

- Adjustable height: lowering 1-3inch

- Coilover overall length Front: 540mm-640mm

- Coilover overall length Rear: 550mm-660mm

- Shock type: Twin tube

- Spring Preload: 7-10 mm

- Color: Red

Warranty:2 year warranty for any manufacturing defect

Feature

*Pillow ball top mount -- this design helps combat noise while tuning. It also improves the steering feel and response.

*Twin-Tube Structure - For Low Resiliency & Securing Sufficient Stroke

*24 levels of adjustable damper--This allows you to perfectly dial in your coilover system for both handling and comfort

*Full Length Adjustment--separate height adjustment without sacrifice of damper stroke & without removing the coilover out from the car

*High Tensile performance spring - Under 600,000 times continuously test, the spring distortion is less than 0.04%. Plus, the special surface treatment is to improve the durability and performance

*Most pieces in our Coilover systems, including mounts, collars and spring perches, are designed from 6061-T6 Billet Aluminum resulting in lightweight, durable and rust resistant components.

*Steel shock bodies are electroplated with Zinc for anti Anti-corrosion

*Full rebuildable
