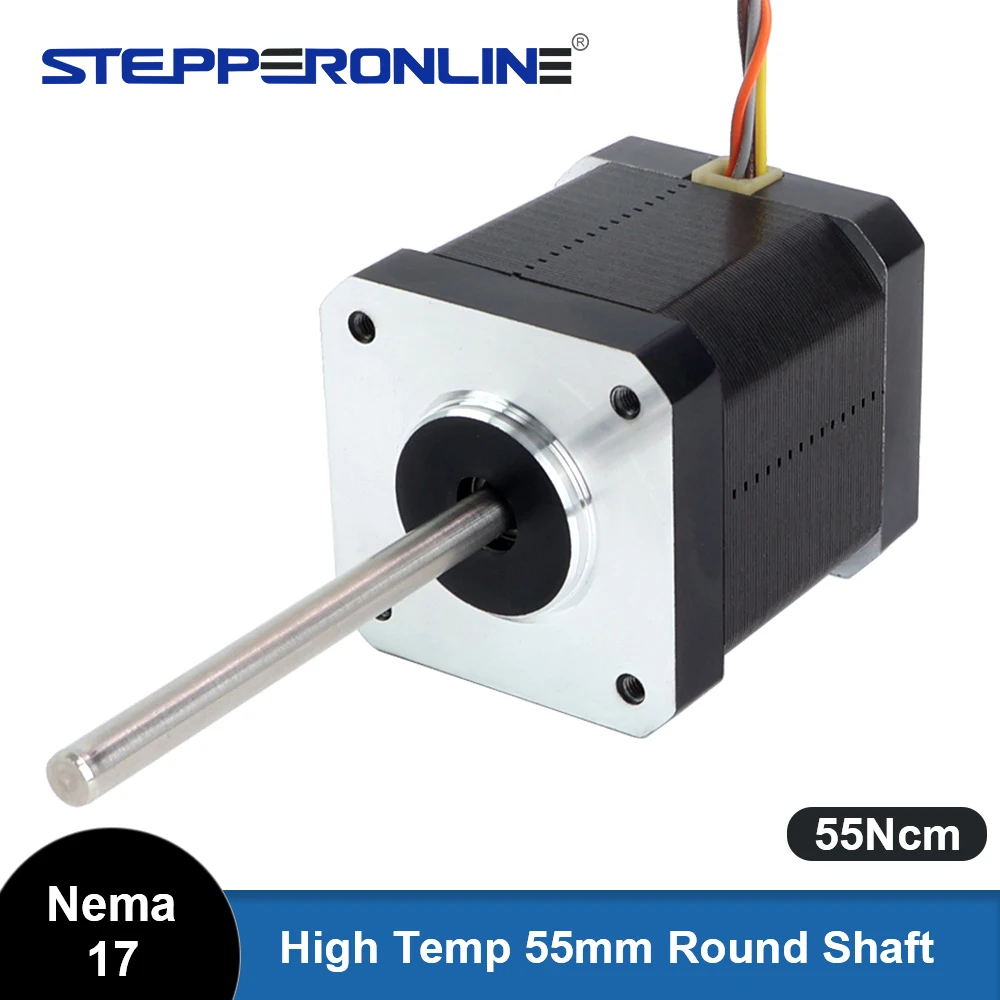

STEPPERERONLINE Nema 17 Stepper Motor 55mm Round Shaft 55Ncm 17HS19-2504S-H-V1High Temp Insulation Class H 180C for 3D Printer

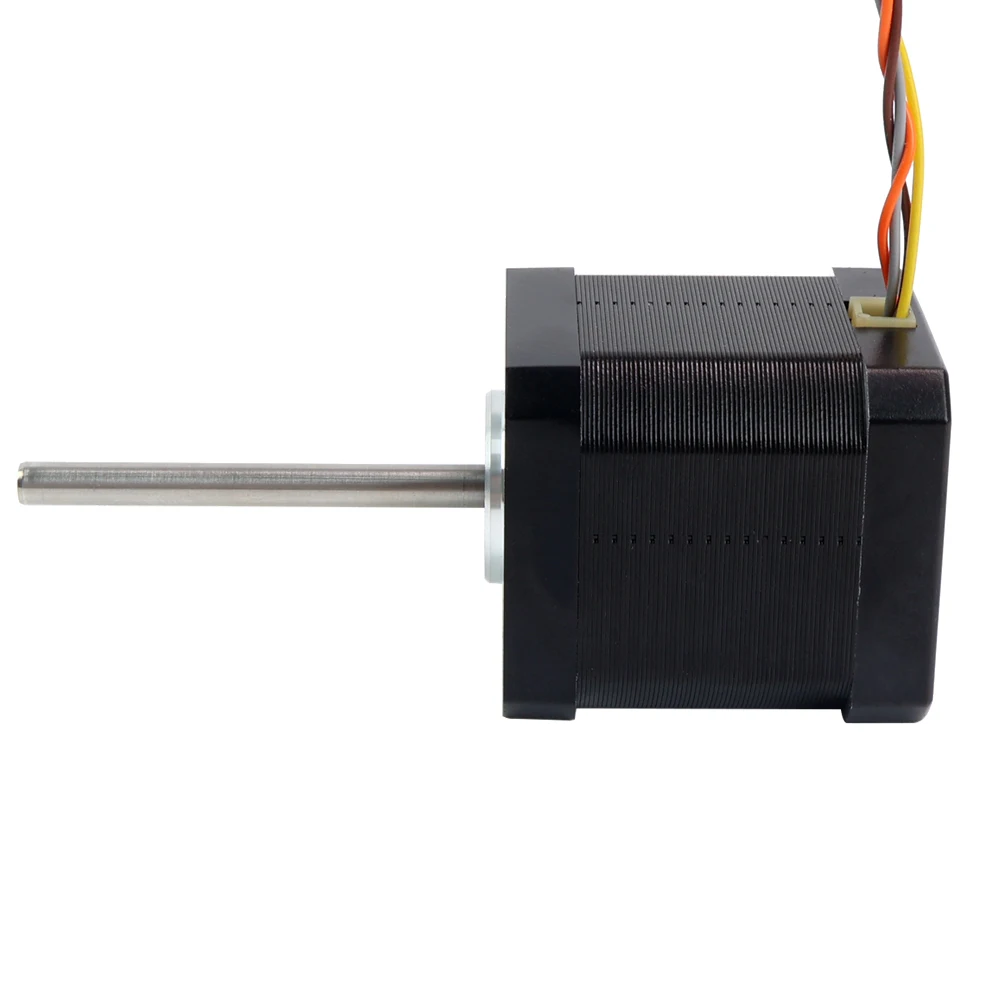

This NEMA 17 stepper motor features a 1.8-degree step angle, a holding torque of 55Ncm(77.93oz.in), and draws 2.5A per phase. It comes equipped with a 55mm round shaft and 1m cables.

This motor boasts an insulation class of H, making it suitable for operating environments up to 180°C. It is specially designed and manufactured for 3D printers.

Manufacturer Part Number: 17HS19-2504S-H-V1

Motor Type: Bipolar Stepper

Step Angle: 1.8deg

Holding Torque: 55Ncm(77.93oz.in)

Rated Current/phase: 2.5A

Phase Resistance: 1.1ohms

Inductance: 1.6mH±20%(1KHz)

Insulation Class: H 180C(356F)

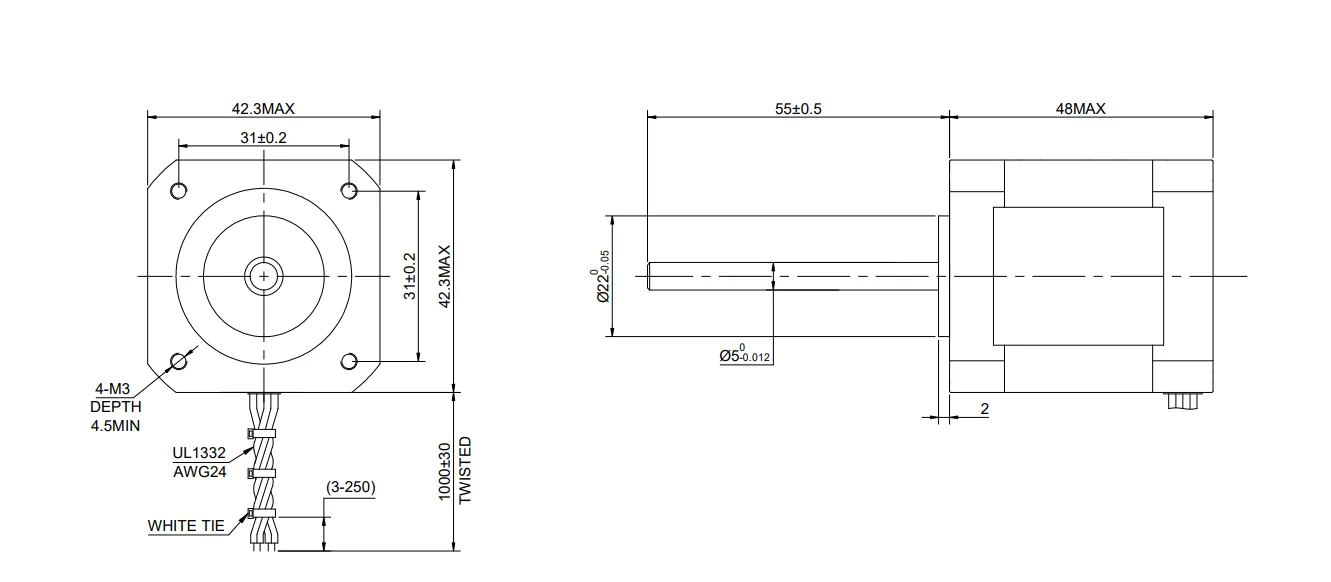

Frame Size: 42 x 42mm

Body Length: 48mm

Shaft Diameter: Φ5mm

Shaft Length: 55mm

Shaft Type: Round

Number of Leads: 4

Lead Length: 1000mm

MOTOR CONNECTION

PIN NO

BIPOLAR

LEADS

WINDING

1

A+

GRAY

2

A-

BROWN

3

B+

ORANGE

4

B-

YELLOW
