KUAIQU 4K Electronic Digital Microscope For Soldering, IMX678 IMX415 IMX323 Optional UHD Microscope For PCB Welding Phone Repair

🔥There are 5 types of microscopes for you to choose from. Whether you pursue quality or affordability, you can find a satisfying one here. The best option is the microscope set with an IMX678 sensor, while the most economical one is with an IMX323 sensor. If you want both good quality and great value for money, go for the Sony IMX415 set. You can easily pick the right microscope for you based on your budget and needs.

🔥The first step to operate after installing the microscope

After assembling the microscope, the first step is to prioritize using the one-click exposure function. Then, place a piece of white paper horizontally directly below the lens and perform a one-click white balance. In most cases, this will achieve the most suitable results for your working environment.(Don't forget to turn on the LED light)

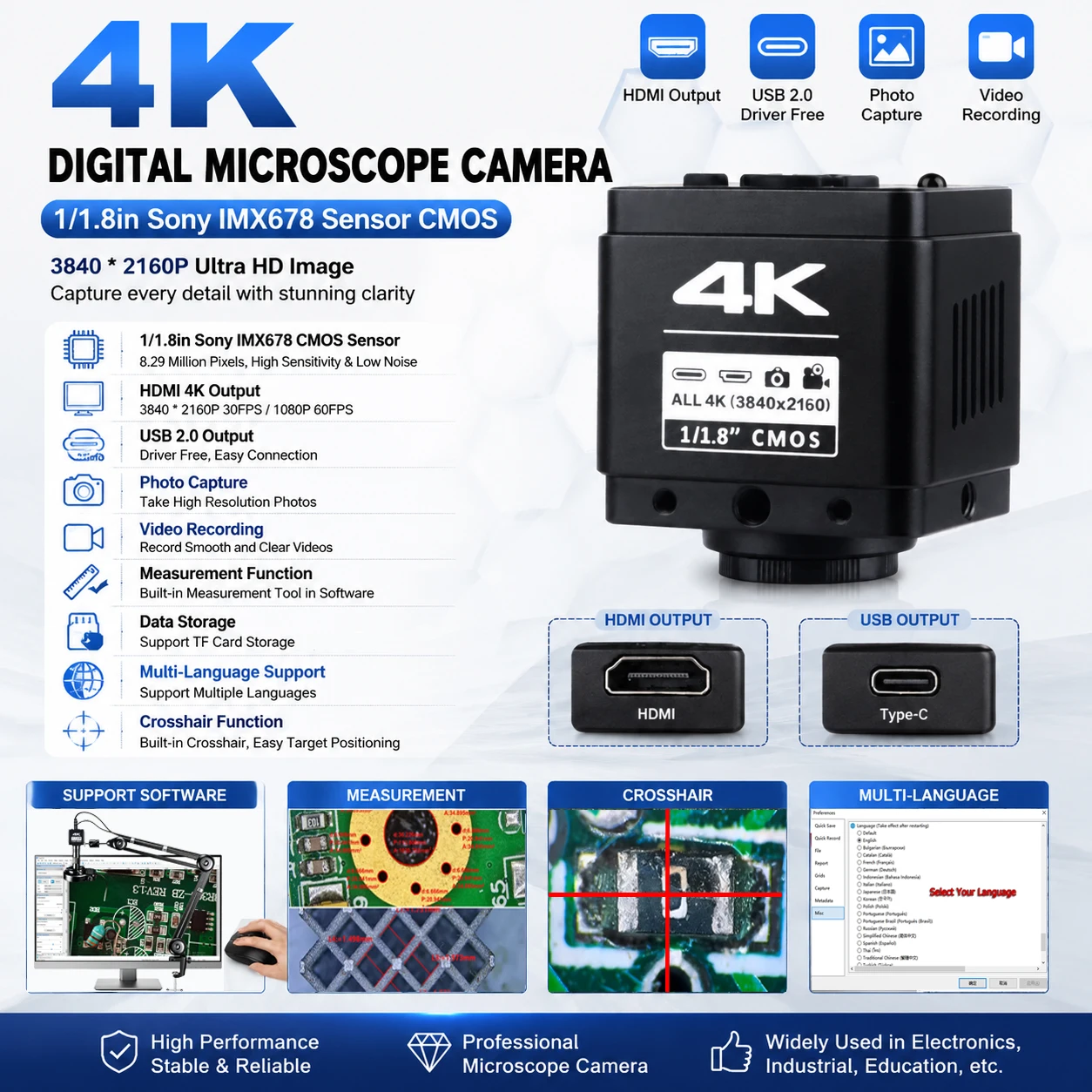

🔥4K UHD 1/1.8in Sony imx678 Senor Camera Parameter

◆Using 8.29 million pixel Sony CMOS image sensor;
◆Using 1/1.8 inch image sensor;

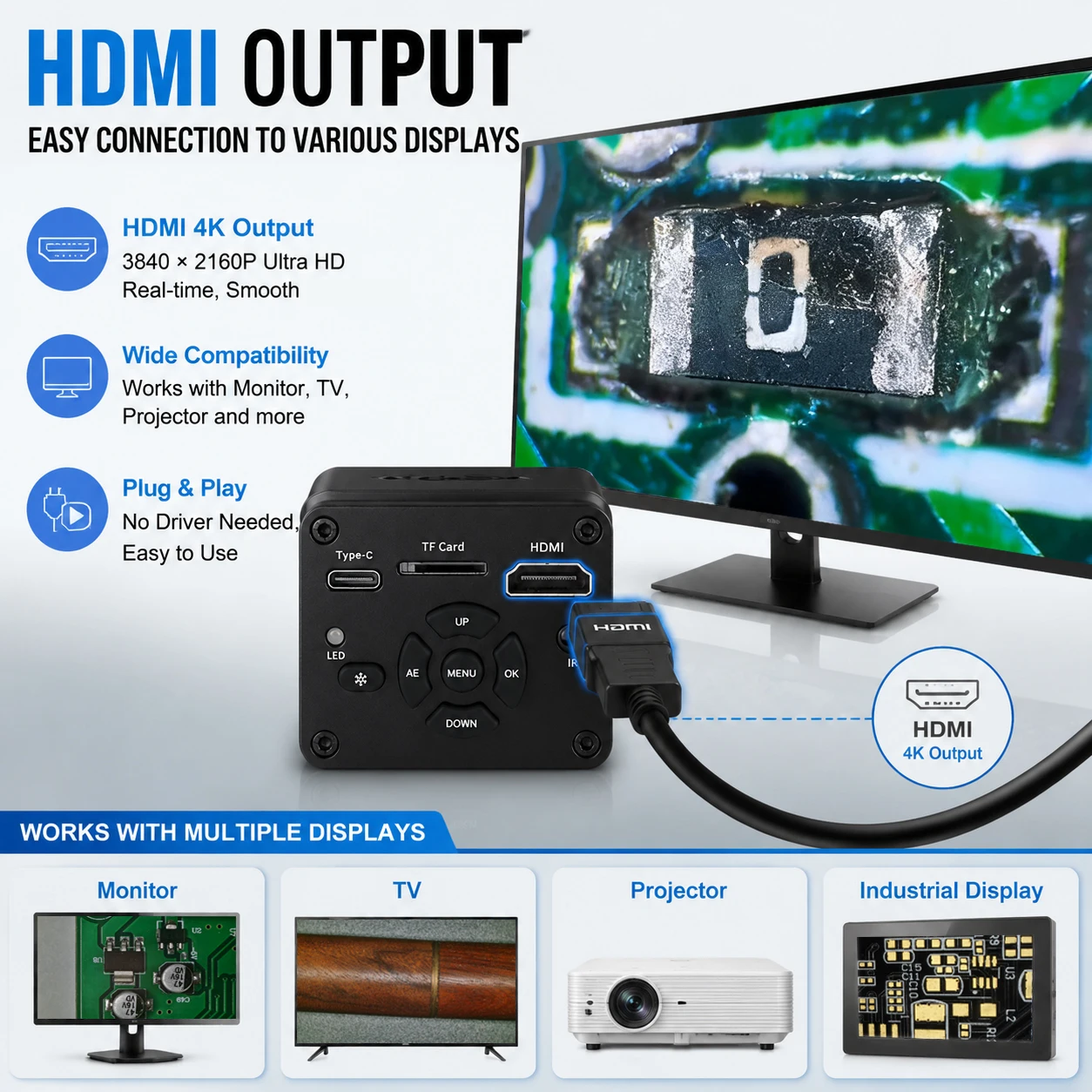

◆HDMI 3840*2160 30 frames/1080P 60 frames image output;
◆USB2.0 driver-free output 3840*2160 30 frames of image output;
◆4K video recording;
◆4K photo taking
◆Pixel size: 2µm × 2µm
◆HDMI output: 3840*2160 30 frames/1920*1080 60 frames
◆USB output: 3840*2160/2560*1440/1920*1080/1280*720/640*480/424*240/320*240 (MJPG)
◆Lens interface: C/CS
◆Remote control: support
◆One-button freeze/thaw function;
◆Electronic zoom function;
◆Support manual/automatic exposure, exposure compensation value adjustment;
◆Support manual/automatic white balance, red, green, blue adjustable;
◆Provide 16-line drawing function, line color, thickness, position adjustable;
◆Provide center crosshair display/off;
◆Support TF card storage, maximum support 64GB;
◆Support remote control operation, no shaking when taking pictures, clearer images;
◆Support Chinese and English menu languages (default English);
◆Support shutdown setting parameter saving;
◆Sturdy metal shell;

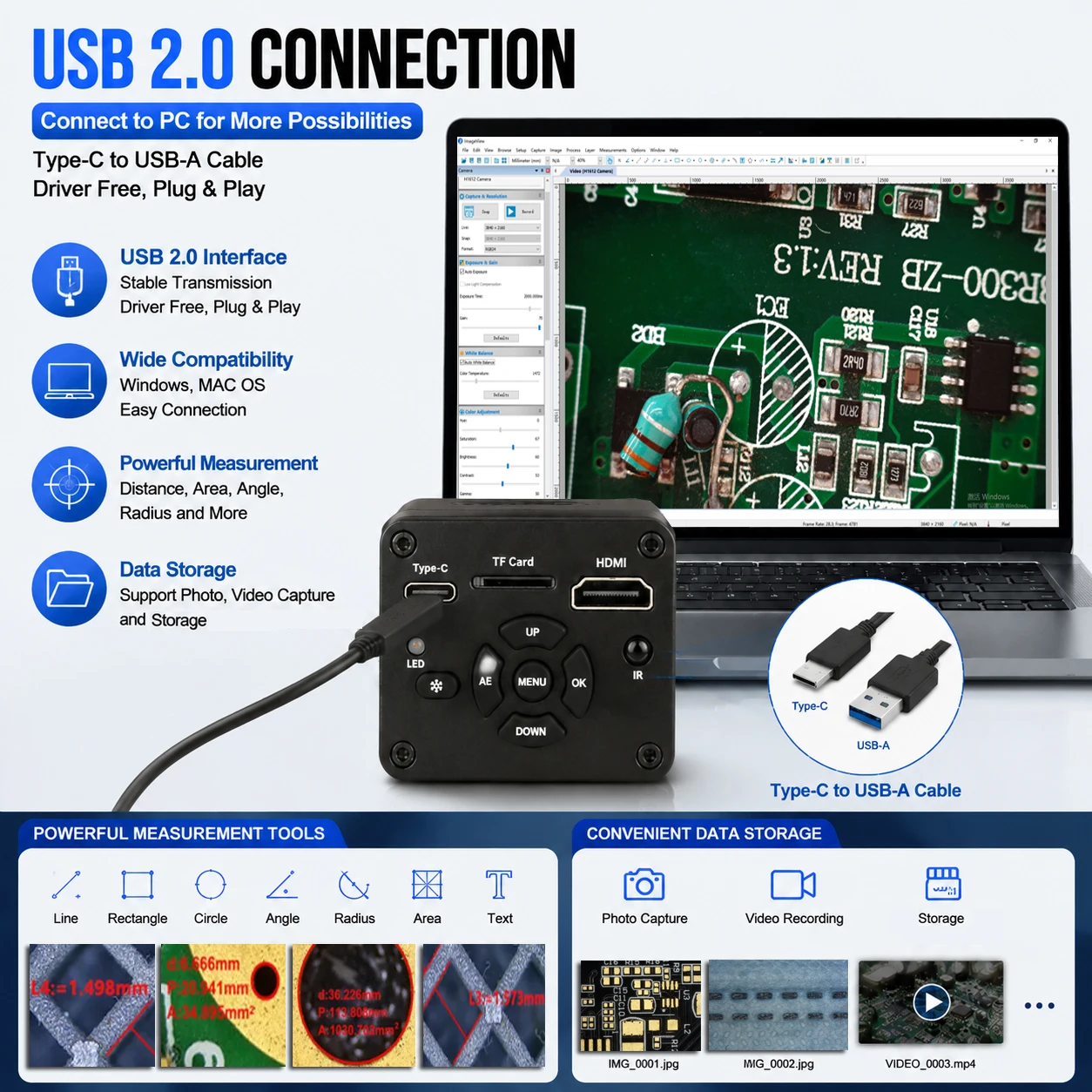

🔥Connect to PC via USB for operation.

You can first switch the language to your preferred one in the PC software. It allows you to take photos, record videos and adjust the video image more conveniently. There is also an additional measurement function, which will be of great help to your work.

🔥Effect of Exposure Adjustment on the Image

Whether you connect the device to a monitor or TV via HDMI, or connect it to a computer via USB, exposure is a key parameter. Properly setting the optimal value will help you obtain the best image quality.
How to adjust:
Under unchanged lighting conditions, turn on Auto Exposure and increase the gain value when ambient light is insufficient. When ambient light is too strong and causes overexposure, turn on Auto Exposure and lower the gain value.

🔥Function of White Balance

Correct light color cast and restore the true original color of objects.
1, Different light sources (indoor yellow lights, fluorescent lamps, natural overcast light and ambient lights) all have inherent color cast. White balance can correct yellowish, bluish and reddish tones in the image.
2, Under any ambient light environment, it ensures white paper, white housings and white electronic components are captured without yellow or cold tint. It calibrates the overall image color with white as the reference standard.
3, When shooting circuit boards, metal accessories and product appearances, the presented colors are exactly the same as what the naked eye sees, without color distortion or color cast. It is perfectly suitable for taking photos and recording videos for product display.

🔥You may be wondering what the actual difference is between different microscope chips.

Both use a 150X lens, and the stand and LED lights are exactly the same. As you can see, under the same distance and with the same accessories, the microscope kit with the Sony IMX678 chip produces more vibrant colors and a wider field of view than the one with the Sony IMX415 chip.

🔥Application Scenarios:

PCB inspection, electronic component documentation, mobile phone PCB repair, SMD soldering repair, PCB rework and repair, PCB dimensional inspection, PCB solder joint defect detection, SMT assembly inspection, PCB manufacturing quality control, PCB repair, Electronics rework, Phone motherboard repair, Soldering, SMT inspection, SMD component inspection, PCBA inspection, FPC inspection, PCB solder joint inspection, PCB trace inspection, metalworking, Tool inspection, Tool edge inspection, Die & mold inspection, Mechanical parts inspection, Bearing inspection, Gear inspection, Metal surface inspection, Plating layer inspection, Jewelry microscope, Gemstone microscope, Watch repair, Precision jewelry inspection, Gem grading, Watch movement inspection, Dentistry, SA care, Vet care, Pet care, Animal med, Vet med

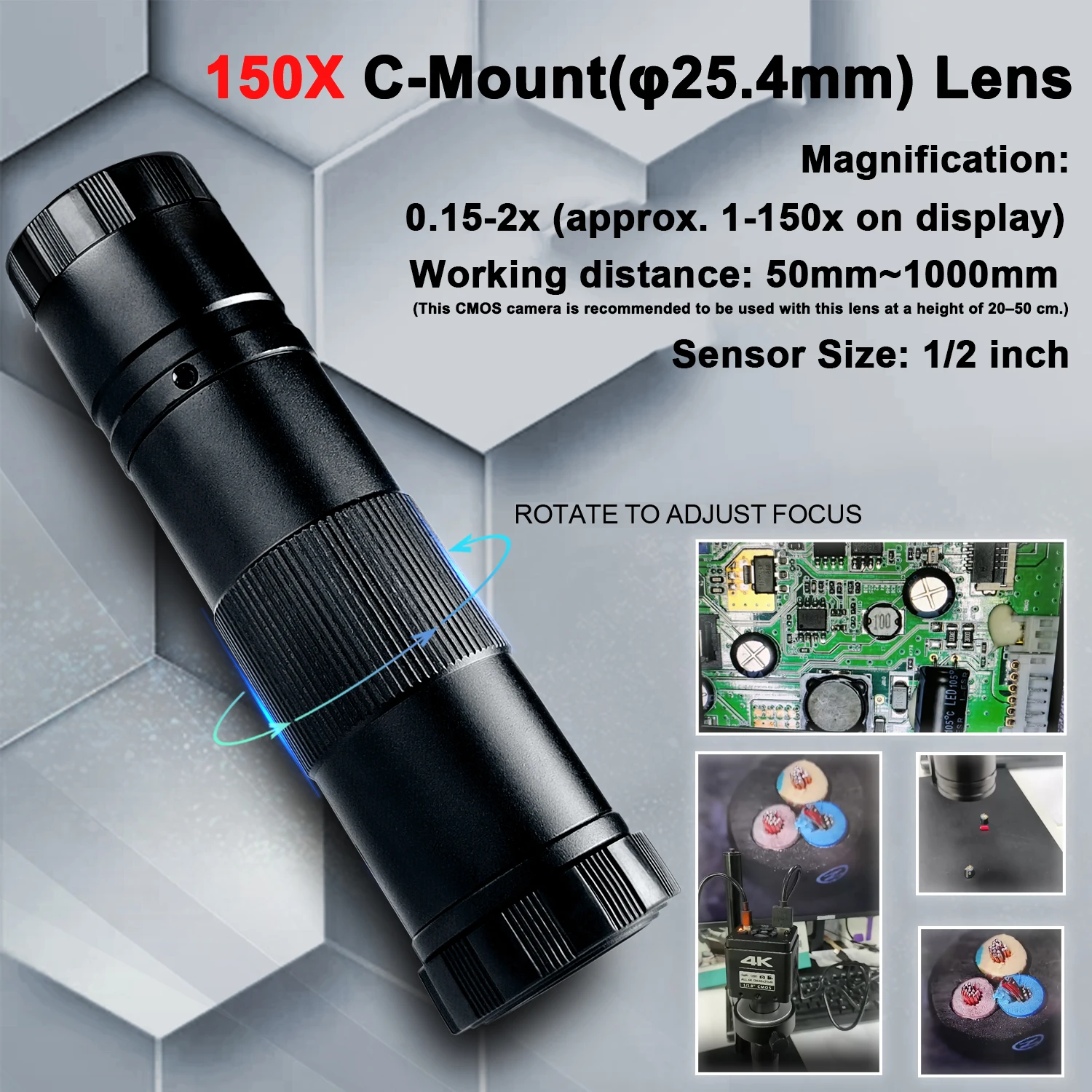

🔥1X-150X zoom C-mount lens：

Working distance: 50mm-1000mm
Zoom ratio: 1:15
Magnification: 0.15-2X (approx. 1-150X on display)
Maximum magnification field of view: 4.2mm*2.4mm
Minimum magnification field of view: 130mm*70mm
Size: 30mm (diameter) * 99mm (length)
Weight: 195g

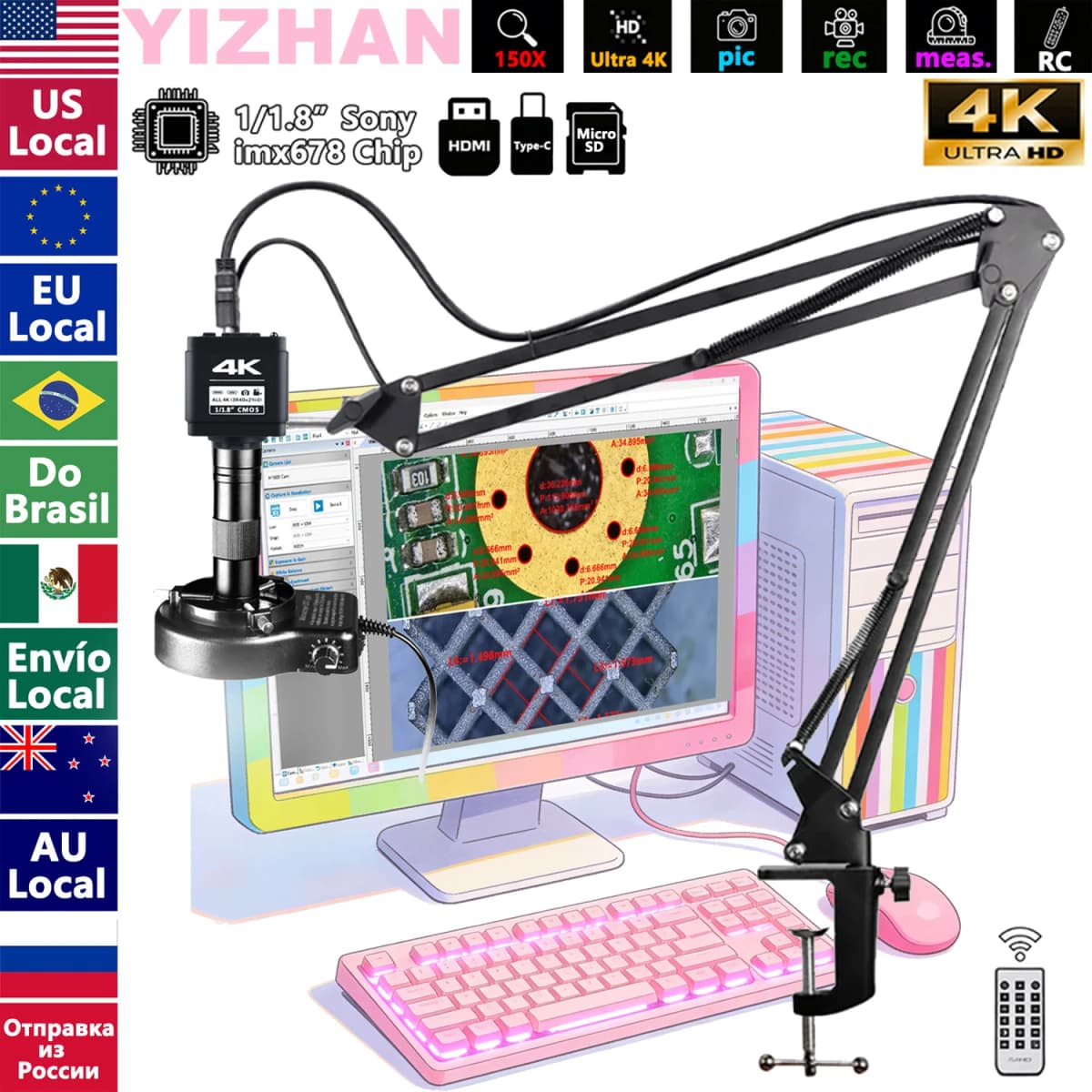

🔥Sony imx678 Set List of packing：

1 * Microscope camera
1 * Microscope lens
1 * Remote Control
1 * LED light
1 * Folding bracket
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * Software (not included in the package, please contact customer service for assistance)

🔥4K UHD 1/2.7in GC8613 Senor Camera Parameter(60MP Photo)

◆ Chip: GC8613
◆ Using 8.29 million pixel CMOS image sensor;
◆ Using 1/2.7 inch image sensors;
◆ HDMI 3840 * 2160 30 frames/1080P 60 frames image output;
◆ Type-C driver free output 3840 * 2160 30 frame image output;
◆ 4K video recording;
◆ 4K photography
◆ 60 million photos, JPG format;
◆ One click freezing/unfreezing function;
◆ 48 million pixel photography and 4K video recording;
◆ Electronic zoom function;
◆ Support manual/automatic exposure/one key exposure and exposure compensation value adjustment;
◆ Support manual/automatic white balance/one button white balance, red, green and blue can be adjusted;
◆ Provide 16 lines with adjustable color, thickness and position;
◆ Provide central crosshair display/closing;
◆ Support TF card storage, with a maximum of 64GB;
◆ Support remote control operation, and take pictures without shaking images more clearly;
◆ Support English Arabic, Russian, Japanese, Portuguese, Italian, Spanish, German, French menu languages;
◆ Support the saving of shutdown setting parameters;
◆ Aluminum alloy shell processed by CNC precision milling technology;

🔥GC8613 Set(60MP) List of packing：

1 * Microscope camera
1 * Microscope lens
1 * Remote Control
1 * LED light
1 * Folding bracket
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * Software (not included in the package, please contact customer service for assistance)

4K UHD 1/2.8in Sony imx415 Senor Camera Parameter(48MP Photo)

1/2.8in SONY Chips
4K video Recording(3840*2160)
48 Million PX Photo Output(8000*6000)
TYPE-C 1080@30 Video Output
TYPE-C 1080 Picture Output
Measured By Computer
Input Voltage : 12v/1A
C-Mount Lens
One Click Freeze/Defrost
Zoom In/Out
TF Storage/PC Storage
Language English
Supports 16 Datum lines with
adjustable color,thickness and position.
Manual/automatic exposure/one-click exposure,
exposure compensation.
Manual/automatic white balance/one-button
white balance.RGB adjustable
Cross center line open/close.
Working Distance : 20 mm—700mm
Magnification : 10X-150X (32in displayer)
X-axis Visual Field : 4.2mm-130mm

Buyer Show

13MP 1/3in GC2083 Senor Camera Parameter

Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English, Chinese, Spanish, Portuguese, Russian, French, German, Japanese, Korean, etc.
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:Above 1920*1080P

GC2083 Set List of packing：

1 * Microscope camera
1 * Microscope lens
1 * Remote Control
1 * LED light
1 * Folding bracket
1 * Instruction manual
1 * HDMI cable
1 * Power cord

🔥1/2.8" Sony imx415 Sensor microscope imaging cameras(3-IN-1)

◆ Chip Type: Sony IMX415
◆ Magnification: 160X
◆ Systems Supported by the Software: Windows 7, Windows 10, Windows 11, macOS
◆ Standard Working Distance: Approximately 50cm
◆ Adopting 8.29 million pixel Sony CMOS image sensor;
◆ Adopting a 1/2.8 inch image sensor;
◆ HDMI 3840 * 2160 30 frame/1080P 60 frame image output;
◆ USB 2.0 connection to computer driver free output 3840 * 2160 30 frame image output;
◆ 4K video recording;
◆ 4K photography;
◆ One click freeze/thaw function/same screen comparison;
◆ Remote focusing without shaking;
◆ Electronic zoom function;
◆ Supports manual/automatic exposure and exposure compensation value adjustment;
◆ Supports manual/automatic white balance, with adjustable red, green, and blue colors;
◆ Supports USB storage, with a maximum capacity of 64GB;
◆ Support remote control operation, taking photos without shaking, resulting in clearer images;
◆ Supports 8 menu languages (default English);
◆ Integrated design, built-in camera, light source, and microscope lens
◆ Support saving shutdown settings parameters;

🔥Sony imx415 Set(3-IN-1) List of packing：

1 * Microscope camera
1 * Remote Control
1 * Folding bracket
1 * Instruction manual
1 * Type-C cable
1 * HDMI cable
1 * Power cord
1 * Software (not included in the package, please contact customer service for assistance)

🔥The Size of Bracket
