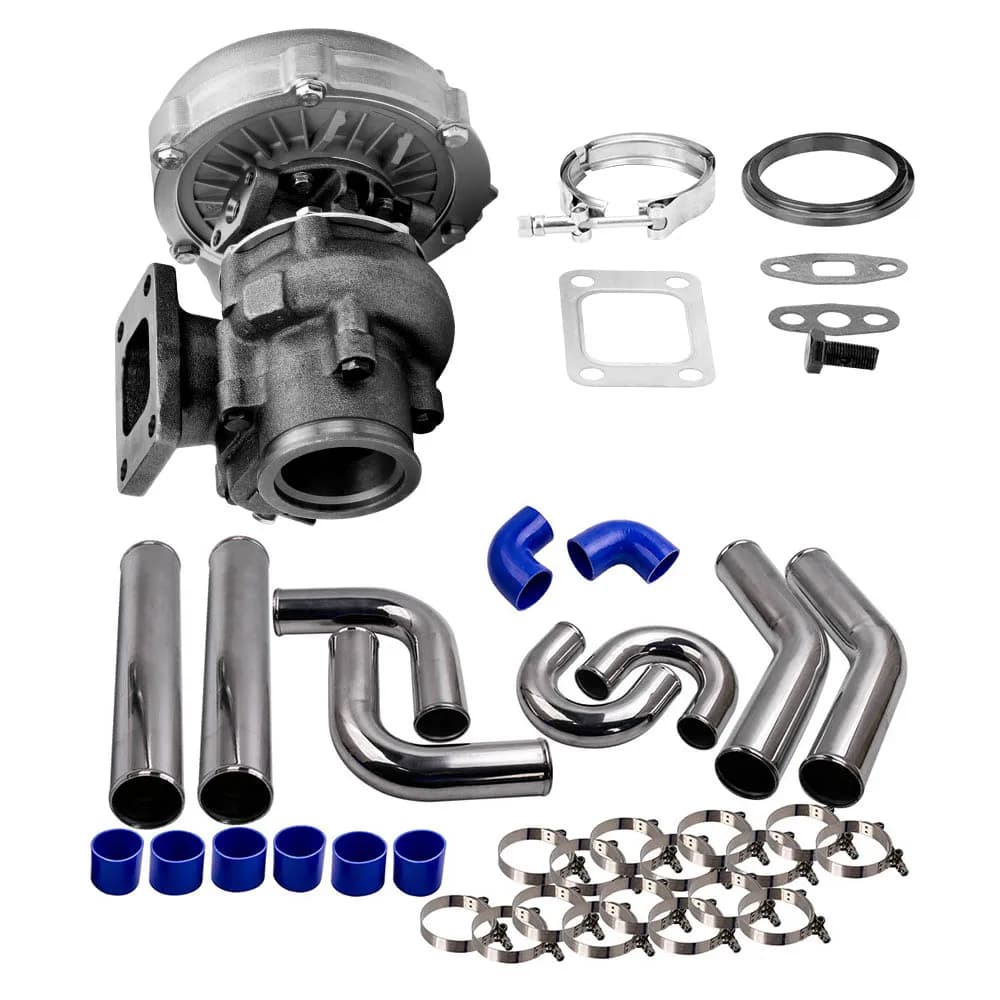

Universal 76mm 3" turbo intercooler pipe Kit + t3 Turbo Oil Cooled V-Band

Universal 76mm 3" turbo intercooler pipe Kit + t3 Turbo Oil Cooled V-Band

This turbo is an universal application turbo, some modification may be required based on individual vehicle. The dimension picture is available, please contact us if needed. Please check the details carefully before purchasing.

3.0" 76mm Aluminum Universal Intercooler Turbo Piping Pipe Kit fits all Turbo Projects.

Application

Perfect for all 4 or 6 CYL, 1.5L- 2.5L engines

Horse Power: Capable of Boosting Horse Power up to 420HP

Bearing: Journal Bearing

Specification:

Exhaust Inlet (Turbo Manifold) Flange: T3 4 bolt Flange Patterns

Exhaust Outlet (Downpipe) Flange: V-Band Flange

Bearing: Journal Bearing

Cooling Type: Oil Cooled

Wastegate: Internal Wastegate

Compressor：

Trim: 48.1

A/R: 0.5

Inducer: 52.7mm

Exducer: 76mm

----------------------

Turbine:

Trim: 74.2

A/R: 0.63

Inducer: 64.8mm

Exducer: 55.8mm

----------------------

Turbine exhaust outlet : 79mm

Turbine exhaust inlet：44.7mm/85.8mm

Compressor outlet：78 mm

Compressor inlet：51.5 mm

Piping Pipe Kit
