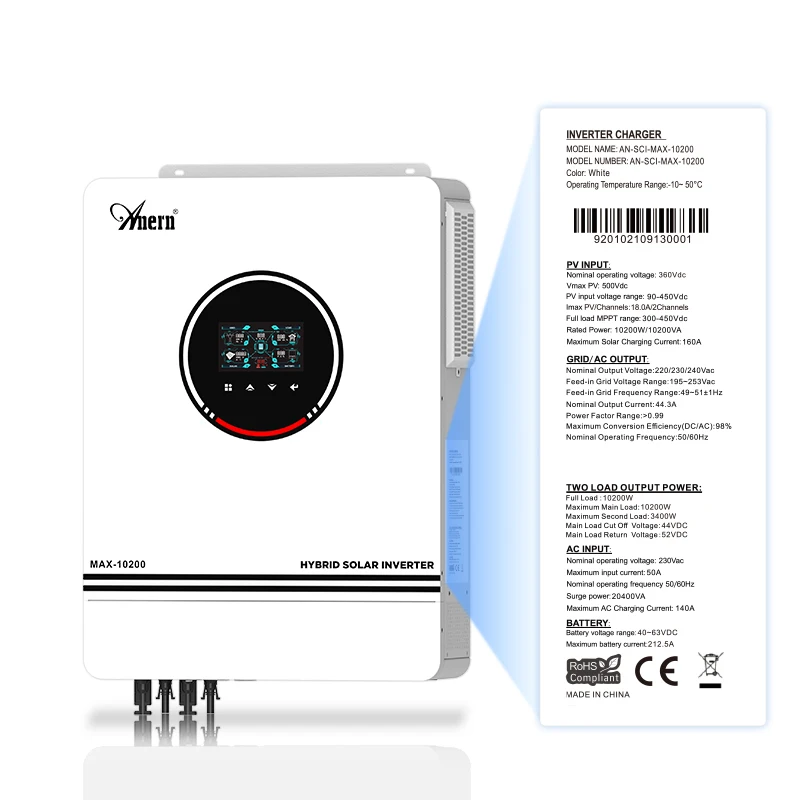

10.2KW 8200W 10200W Off Grid Dual MPPT Solar Inverter Hybrid 160A 230V Pure Sine Wave DC 48V for Battery Charger

Features:

Pure sine wave solar inverter.
Inverter can run without battery.
One-key restoration to factory settings.
PV automatically activates lithium batteries.
Bulit-in 160A MPPT solar controller.
High PV input voltage range(90-450VDC).
Built-in anti-dusk kit for harsh environment.
Smart battery charge design to optimize battery life.
Dual output.

Note:

1: Free return and refund service, return to local warehouse in the European Union
2: Buyer protection for over 90 days
3: Provide a two-year warranty period
4: If you have any questions, please contact us and we can provide technical support.

Dual AC output：When there is no PV and Utility input and the battery voltage is lowest than 44V,turn on the super power saving mode.
Dual PV input, 2x18A.

Each PV input can be connected to the solar panel voltage range: 90V-450V, the maximum power of each PV input solar panel does not exceed: 5400W.

Number 8 is the main output mainly used for carrying high-power loads, and Number 9 is mainly used for carrying low-power loads, emergency use electricity.

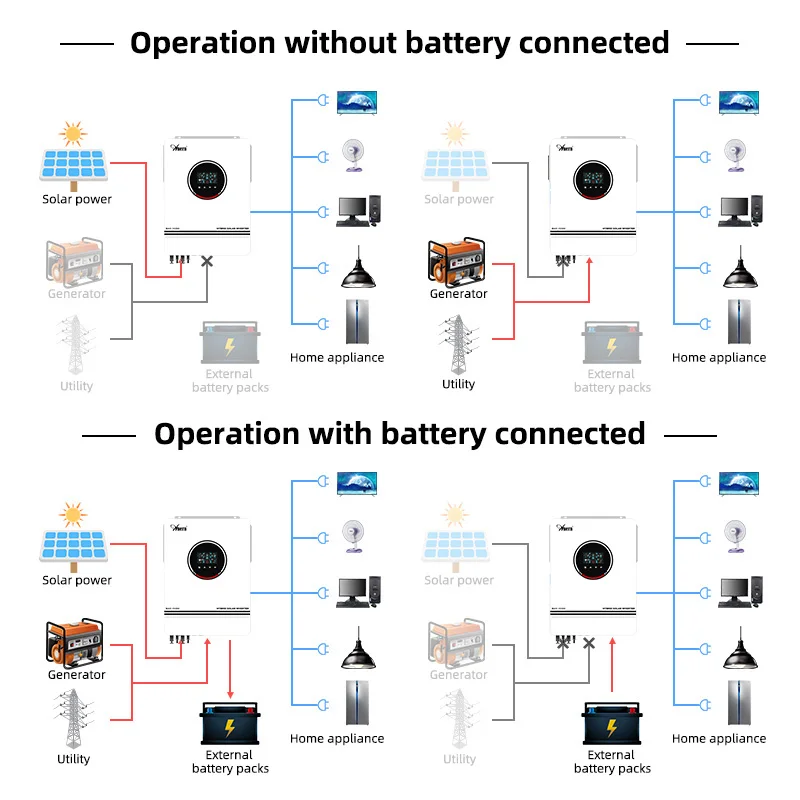

Three Output modes can be choose：
Utility first （USB）:Utility will provide power to the loads as first priority, Then Solar Power, Solar and battery energy will provide power to the loads only when uility power is not available.
Solar first:《default（SUB) 》Solar energy provides power to the loads as first priority. If solar energy is not sufficient to power all connected loads, utility will supply power to the loads at the same time，then battery power.
SBU Priority（SBU）: Solar energy provides power tothe loads as first priority. If solar energy is not sufficient to power all connected loads, battery energy will supply power to the loads at the same time，then utility .

The 10200W model can operate with or without a battery.
Can work with the following types of batteries: Lead acid/Gel/AGM/Lithium Iron Phosphate (LiFePo4)/Lithium battery.
Built-in lithium activation along with comprehensive battery protection features including short circuit protection, over/under voltage protection effectively protects battery life.

Inverter Use Notice

1. The starting power of inductive load electrical appliances shall be at least three times of the rated power of the electrical appliances. If the starting power exceeds the inverter power, the inverter may be damaged. Please select a suitable model before purchasing.
2. Please connect the circuit correctly according to the instructions, and install switches for each circuit.
3. Starting sequence: first turn on the battery switch, start the inverter, and turn on the PV, mains and load switches.
4. Shutdown sequence: turn off the switches of load, PV and mains, turn off the inverter, and finally turn off the battery.
