STEPPERONLINE High Temperature Nema 17 Stepper Motor 16Ncm 1A 4-Lead 17HS08-1004S Motor for CNC Extruder 3D Printer

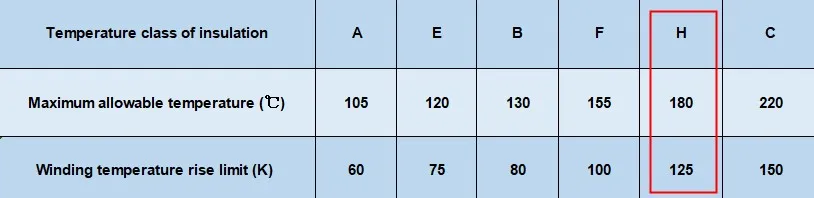

Generally speaking, high temperature resistant motors are defined by their insulation class. The field of stepper motors usually involves six insulation classes.  this motor is class H.

This motor is desighed for high temperature application. We have customed motor's winding, bearing, magnetic steel and also the plastic skeleton to achivel insulation class of H, the teprature reach up to 180C degree. This motor is widely used in 3D Printer.

Manufacturer Part Number: 17HS08-1004S-H

Motor Type: Bipolar Stepper

Step Angle: 1.8deg

Holding Torque: 16Ncm(22.7oz.in)

Rated Current/phase: 1.0A

Phase Resistance: 3.7ohms

Inductance: 4.5mH ± 20%(1KHz)

Insulation Class: H 180℃(356F)

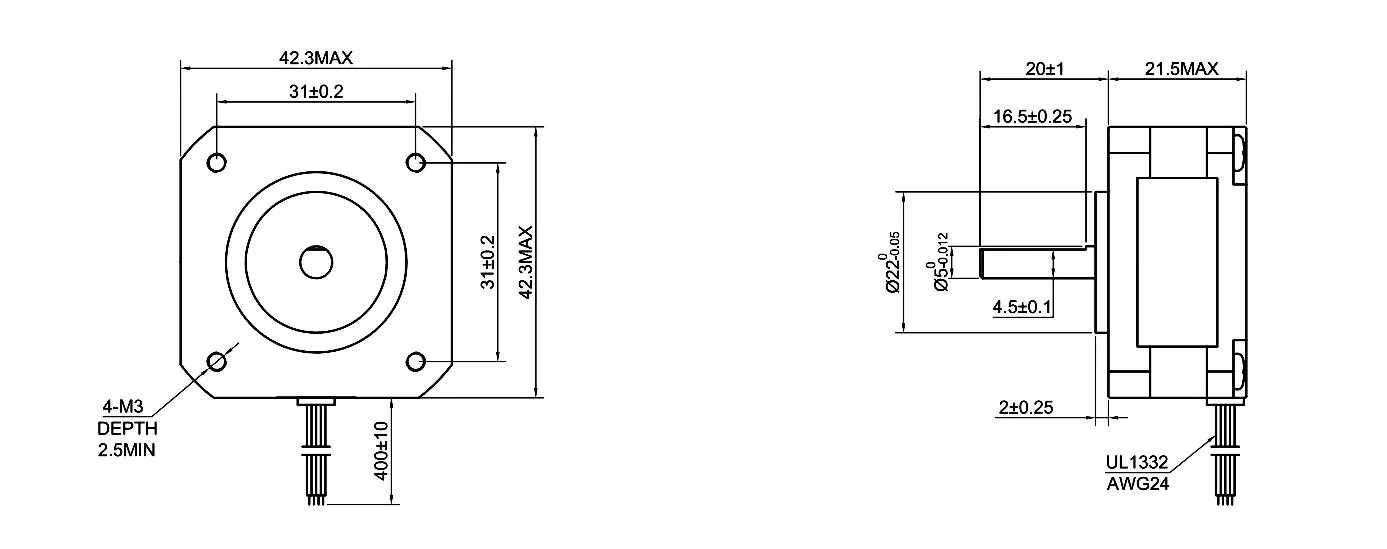

Frame Size: 42 x 42mm

Body Length: 21.5mm

Shaft Diameter: Φ5mm

Shaft Length: 20mm

D-cut Length: 16.5mm

Number of Leads: 4

Lead Length: 400mm

Weight: 150g
