YIZHAN 60MP 48MP 4K USB HDMI VGA Digital Video Monocular Microscope Camera Continus Zoom 180X 215x Soldering Phone Repair Tools

YIZHAN precision electronic repair microscope / microscope camera applicable scenarios:
1️⃣ Precision electronic repair
✔ Mobile phone/computer motherboard chip welding ✔ Micro circuit board defect detection ✔ SMT patch component precise positioning
▸ The lens magnification is optional, and it can be matched with a ring LED cold light source to easily capture micron-level defects such as solder joint cracks and component cold soldering, and say goodbye to the blurred vision of traditional magnifying glasses.
2️⃣ Industrial equipment maintenance
✔ Mechanical parts wear analysis ✔ Precision mold detection ✔ Micro gear set assembly calibration
▸ Long working distance design, no obstruction of operating space, single-handed adjustment of focal length, helping engineers to quickly complete troubleshooting.
3️⃣ Watch and jewelry finishing
✔ Swiss movement gear calibration ✔ Jewelry claw fine-tuning ✔ Antique cultural relics restoration
▸ Rotatable + metal shockproof bracket, meet the needs of sitting/standing multi-posture operation, 24-hour continuous observation without fatigue, so that the 0.1mm gem setting error can be seen.
4️⃣ Quality inspection and scientific research
✔ PCB gold wire quality inspection ✔ Material surface microstructure observation ✔ 3D printed finished product defect screening
5️⃣ Medical equipment maintenance and calibration
6️⃣ Automotive/aviation precision manufacturing
7️⃣ Teaching and skills training
8️⃣ Artwork restoration and miniature model making

Note:
For all models with remote control, batteries are not included due to logistics reasons. The battery model is CR2025. The buttons of the remote control and microscope camera can only be used in HDMI mode. When USB output is used, the default software operates the microscope.

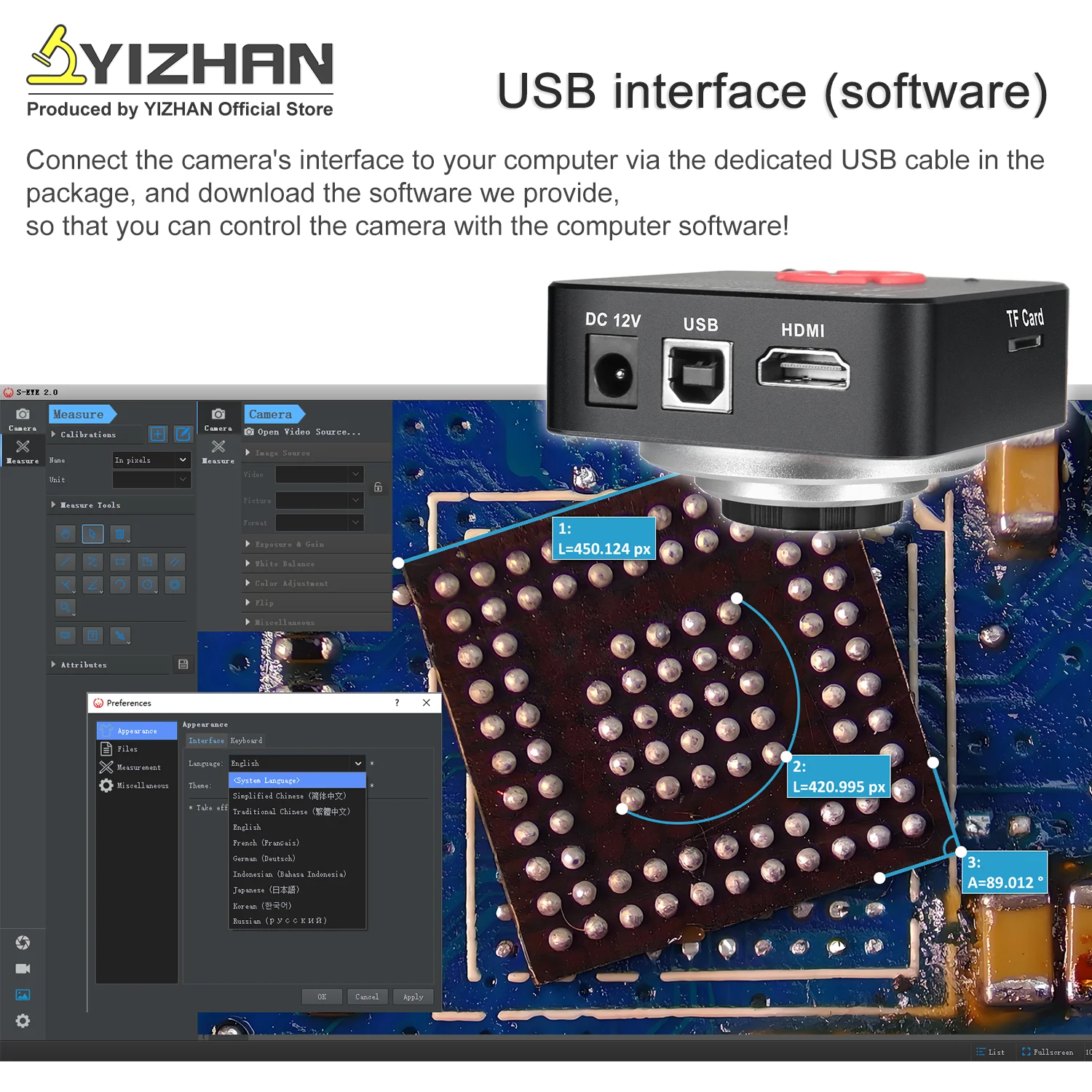

All trinocular microscope cameras with a USB image output interface can be connected to a computer to use the software. Software download address: https://drive.google.com/file/d/1uhIXHPESUhsn4dt3KSQ0sBGb4_ta6aWO/view?usp=sharing

Some countries need to split a single package into two packages due to weight restrictions. If you only receive part of it, don’t worry, there is another part on the way!
Different pixel quality and output interface for you to choose:
Interface options: USB/HDMI/VAG
Pixel quality can be selected: 1080P/48MP(4K)/60MP (4K)
The number of frames transmitted per second: 30Fps/60Fps
Please pay attention to the picture and the parameter description in the packing list when purchasing!

Packing List:

​1* Camera set (Please pay attention to choosing styles with different pixels and output interfaces.)
​1* LED ring light
​1* Lens (Please note the different magnifications 130x/180x/215x can be selected.)
​1* Microscope bracket(Please note that you can choose different bracket styles: standard bracket/extra large bracket/heightened extra large bracket/super large bracket)

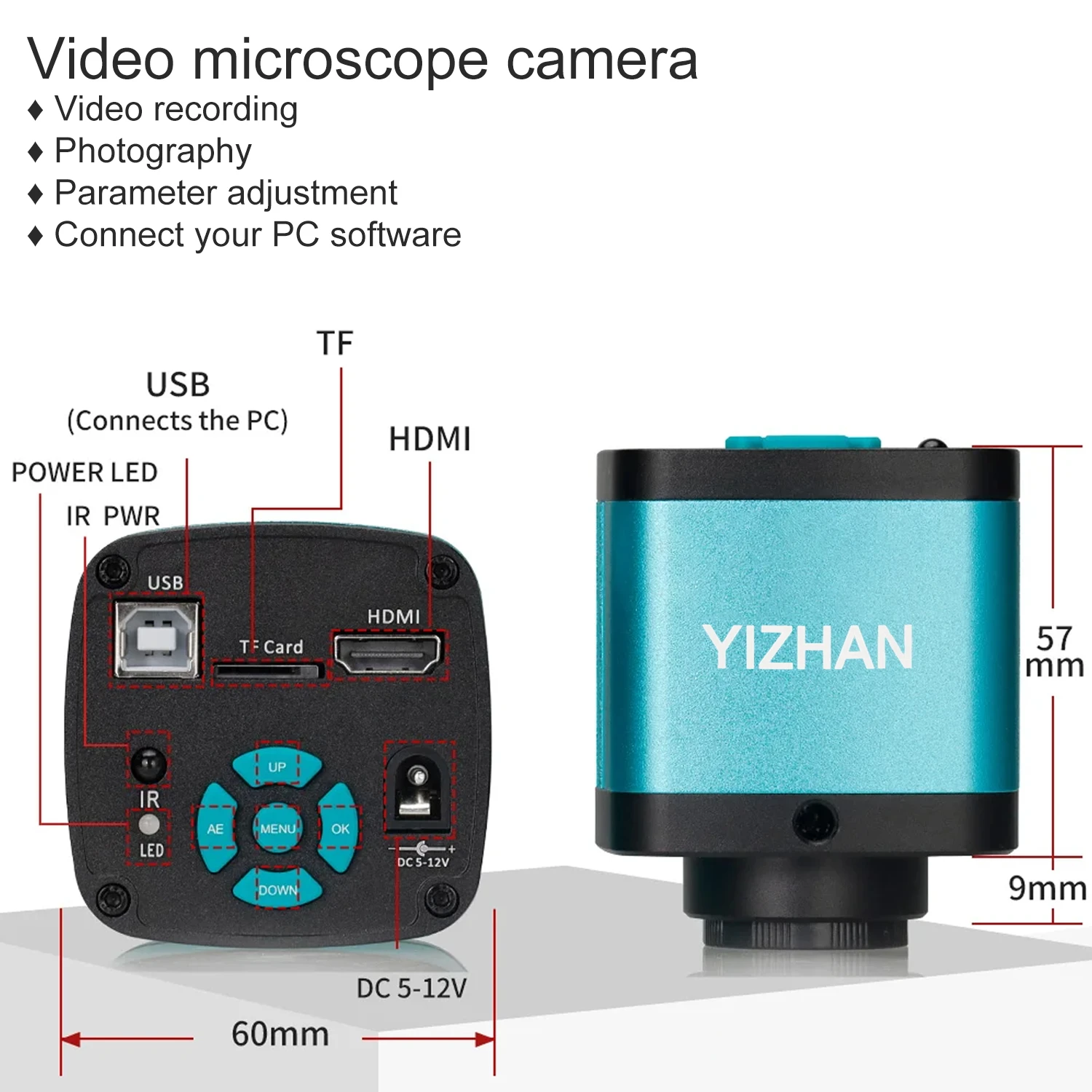

48MP 4K 60FPS HDMI USB Camera YIZHAN-4002

◆Sensor: 1/2.33 inch ,Sony imx327 megapixel CMOS sensor
◆48 million pixel imported Sony CMOS image sensor;
◆Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;
HDMI 1080P 60 frame image output;
◆USB2.0 driver free output 1080P 30 frame image output;
4K video recording;
◆48 million photos, JPG format,One-click freezing/thawing function;
◆5x electronic magnification!
◆48 megapixel photography and 1080P video recording;
Support manual/automatic exposure, exposure compensation value adjustment;
Support manual/automatic white balance, red, green, blue adjustable;
◆ Provide 8 line drawing functions, line color, thickness, position adjustable;
Display/close center cross;
Support TF card storage, up to 64GB;
Support remote control operation, take photos without jitter image more clear;
◆ Support Chinese and English menu language (default English);
Support shutdown setting parameters save;
◆ Strong metal shell;
Pixel size : 1.335µm × 1.335µm
HDMI output : 1920*1080 60PFS
USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Camera interface : C/CS
Exposure : Automatic/manual
Exposure compensation : Support
White balance : Automatic/manual, RGB adjustable
Storage : Supports a maximum of 64GB
Input voltage : Dc 5v-12v
line : Supports 8 straight lines with adjustable color, thickness and position
Center line : Support
Menu language : English/Chinese
Remote control : Support remote control operation
Net weight : 250g
Rough weight : 450g
Product size : 66*66*49mm
Packing size : 145*130*70mm

Packing List of camera set:
1* Camera body
1* Power adapter
1* HDMI cables
1* USB cable
1* Remote control (no battery due to logistics requirements)

60MP 4K 60FPS HDMI USB Camera YIZHAN-4011

Sony Chip: IMX415L
Video Interface：HDMI USB-PC TF Card
Record：4K/1080p
Photo：Max 60MP(10368x5888)/4K
HDMI:4K/1080p
USB:4K/2K/1080p
Lens:CS
working voltage:12V
working current:190mA
optical format:1/2.7"
pixel size:1.5um*1.5um
scanning mode:progressive
shutter mode:electronic shutter"
dynamic range:69dB
S/N radio:40dB

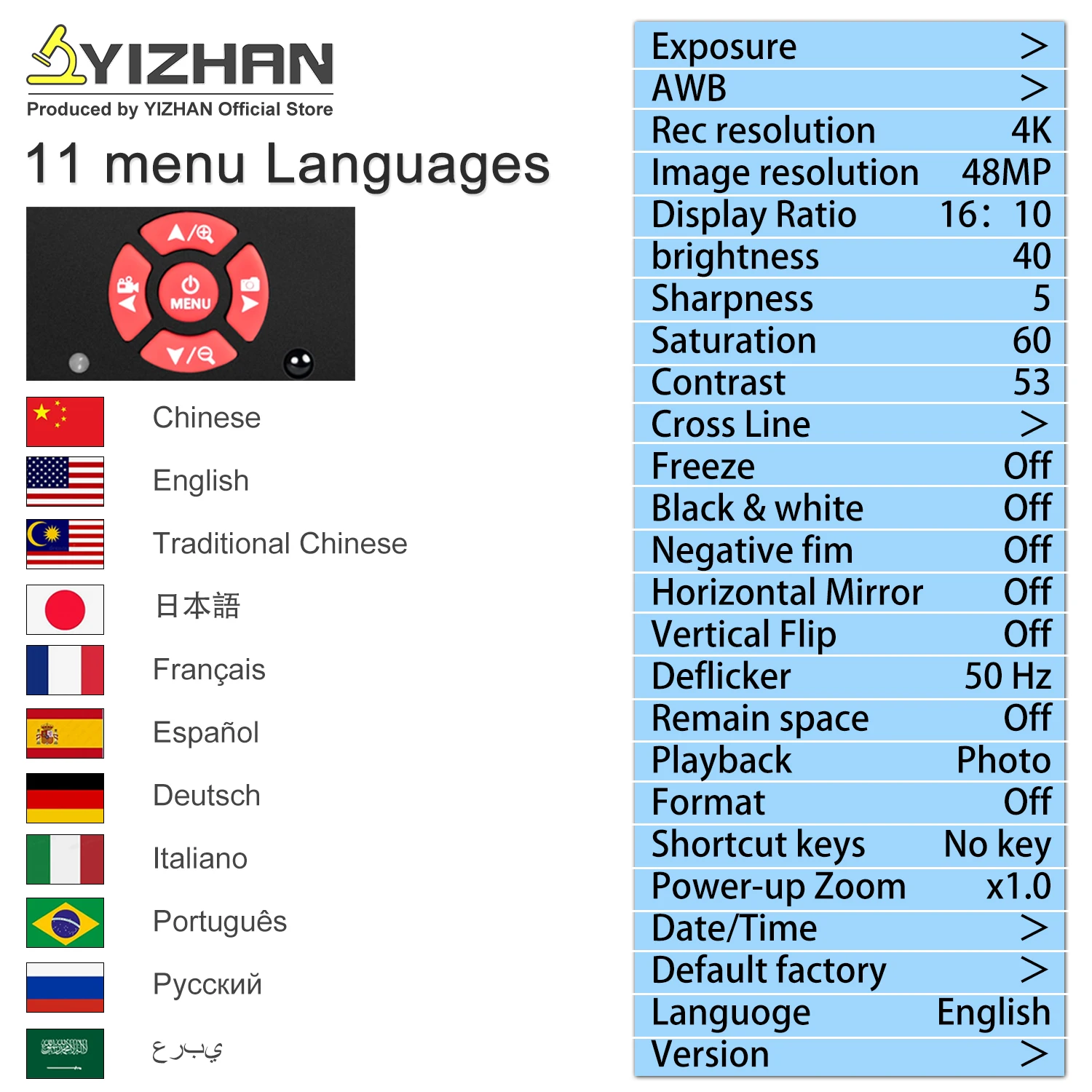

OSD language:11 languages: Chinese/English/Traditional Chinese/Japanese/French/Spanish/German/Italian/Portuguese/Russian/Arabic
AWB mode:One-shot white balance/manual/auto
Cross:Support 4 groups: 32 horizontal and vertical lines
line:Color/line width adjustable"
B/W:√
negative:√
mirror flip:√
Freeze:√

Packing List of camera set:
1* Camera body
1* Power adapter
1* HDMI cables
1* USB cable
1* Remote control (no battery due to logistics requirements)

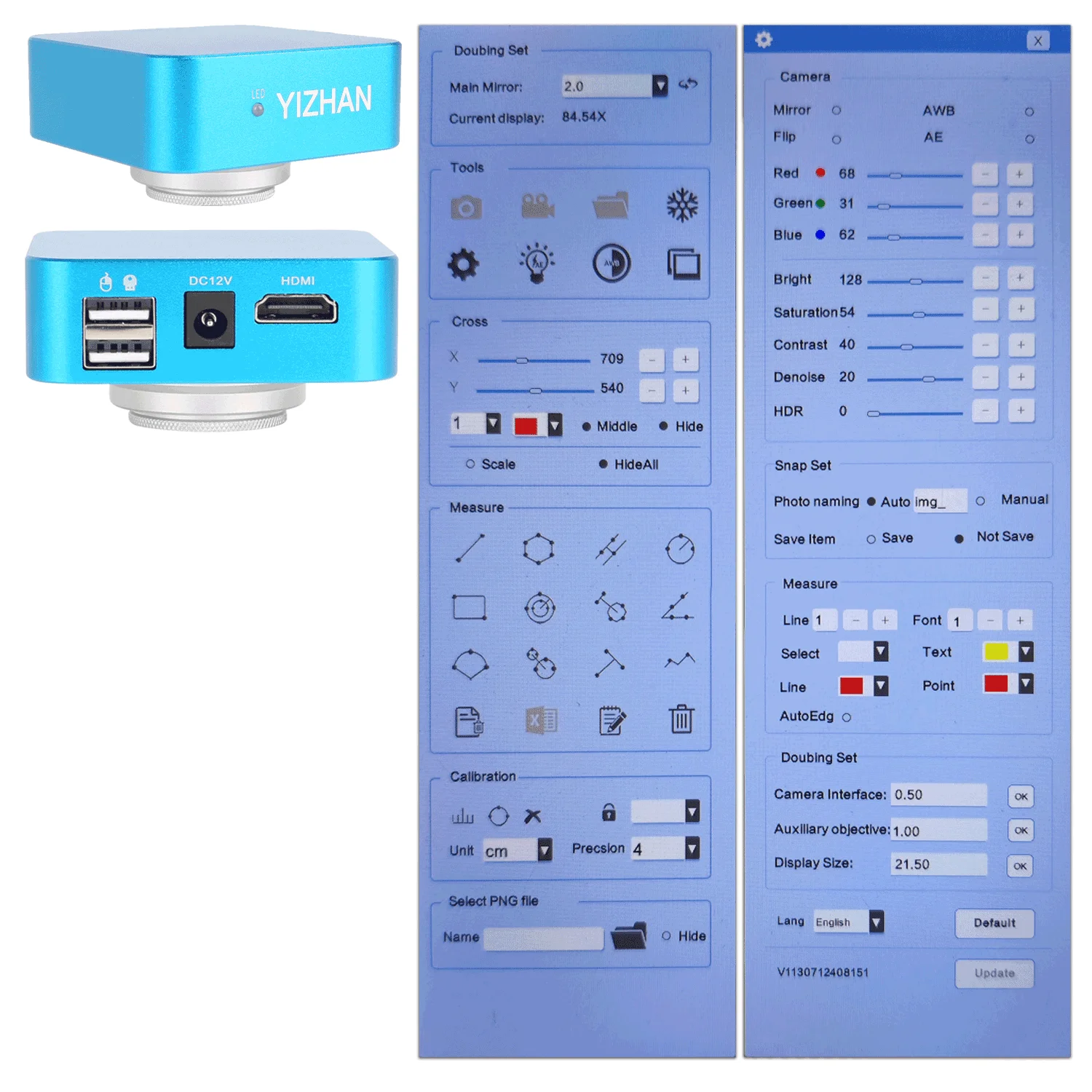

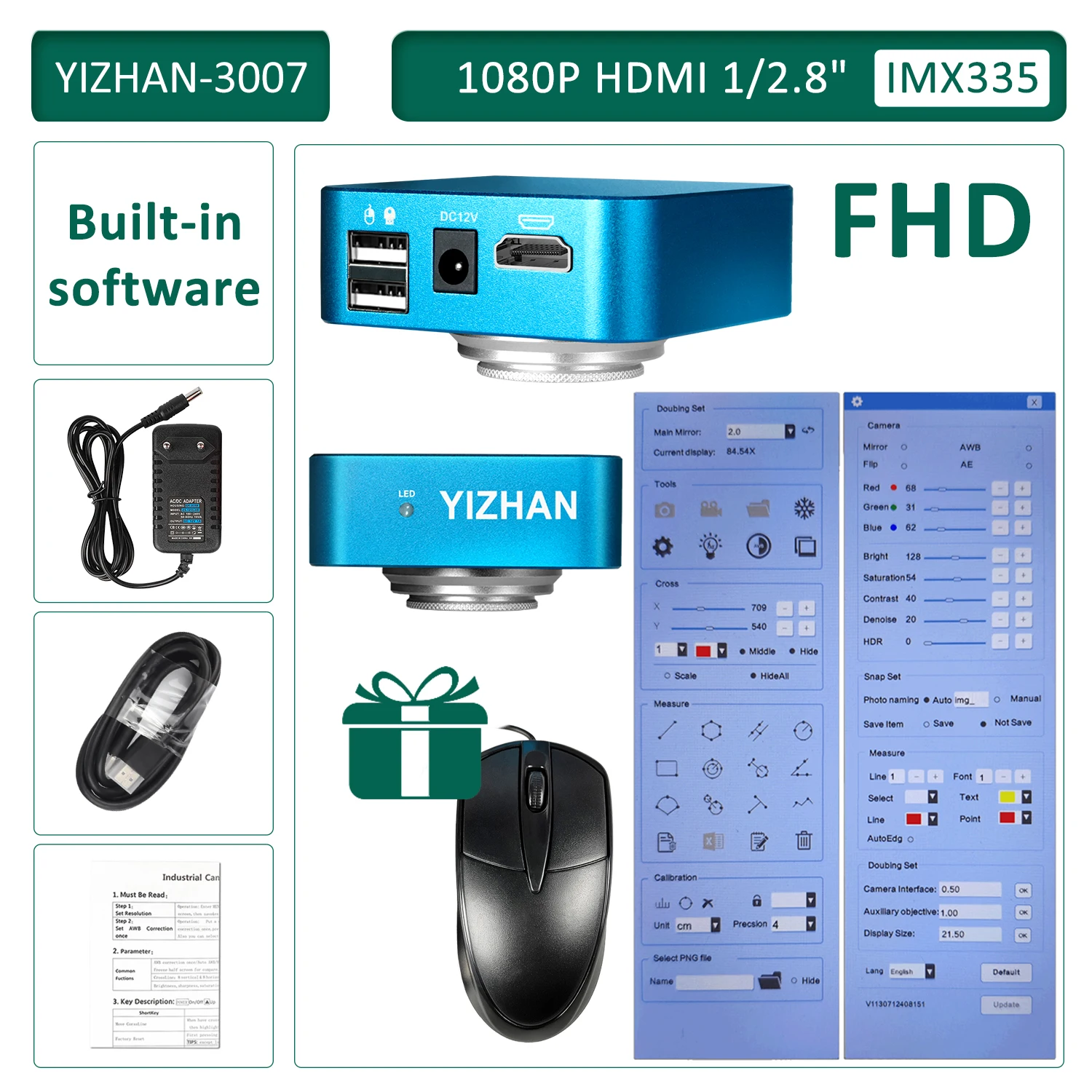

1080P 60FPS HDMI Built-in software Camera YIZHAN-3007

◆Using Sony IMX335 CMOS image sensor;
◆Using 1/2.8 inch image sensor;
◆HDMI ：1920*1080P 60 frame image output;
◆USB interface: USB2.0 X2 (plug U disk, connect mouse)
◆Support photo, video, JPG format;
◆Support manual one-key exposure;
◆Support manual one-key white balance, red, green and blue adjustable;
◆Support cross line function;
◆Support U disk storage and mouse operation;
◆The picture is clearer without shaking;
◆Support Chinese and English menu languages ​​(default English);
◆Support shutdown setting parameter saving;
◆Support user-defined startup screen.
◆Using CNC precision milling technology to process aluminum alloy shell;
◆Support 12 kinds of measurement functions such as line drawing, straight line and circle.
◆Support measurement data calibration.
◆Support to import PNG files

Lens interface: C interface
Exposure: One-button exposure/automatic exposure
White balance: one-key white balance/auto white balance
Storage: Support U disk storage, mouse operation
Import PNG: Support U disk to import PNG files to the camera
Input voltage: DC 5V-12V
Cross line: Support center cross line, a total of 8 (color, position adjustable)
Line drawing: 12 kinds of measurement functions such as line drawing, straight line and circle are supported.
Boot screen: Support custom boot screen
Calibration: support line calibration, circle calibration
Mirroring: support horizontal/upside down
Menu language: English/Chinese/Traditional
Net weight: 150g
Gross weight: 350 grams
Product size: 70*70*38mm
Packing size: 145*130*70mm

Packing List of camera set:
1* camera body
1* adapter
1* mouse
1* HDMI cable

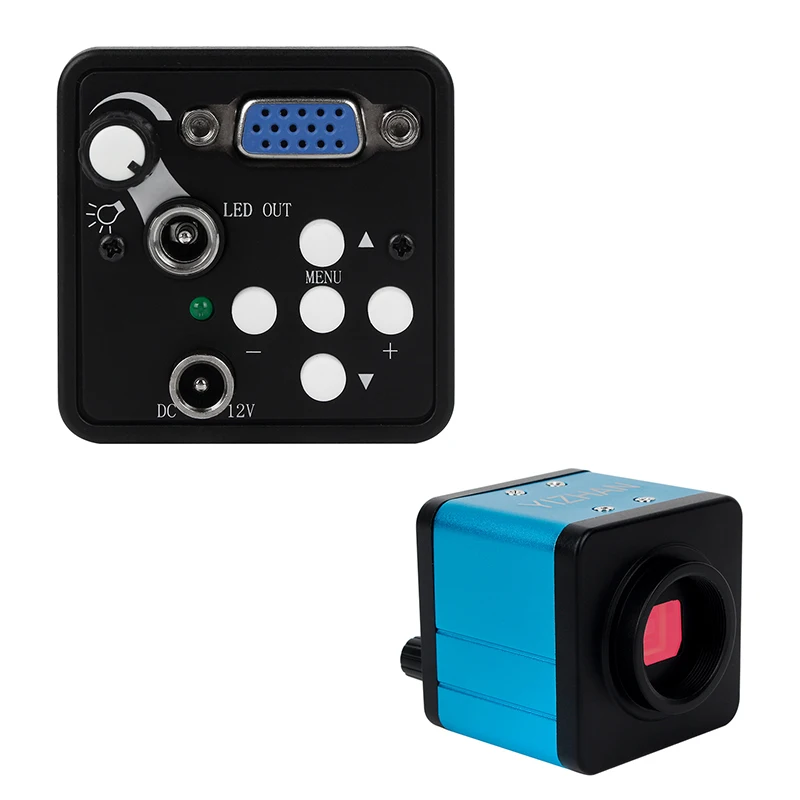

1080P 30FPS VGA Camera YIZHAN-1001

Sensor: Sony imx323
Pixel array:2MP
Video Interface：VGA
Lens：C/CS
working voltage：12V
working current：150mA
optical format：1/2.7"
pixel size：3.0um*3.0um
Pixel array：1920*1080
TV Lines：1200TVLine
FPS of max image：30FPS
scanning mode： progressive
shutter mode：electronic shutter
dynamic range：60dB
S/N radio：45dB
Ten languages: Chinese/English/Traditional Chinese/Japanese/French/Spanish/German/Italian/Portuguese/Russian
AWB mode：One-shot white balance/manual/auto
HDR：√
Cross：Supports 8 horizontal and vertical lines
line：Color/line width adjustable
B/W：√
negative：√
mirror flip：Support left/right/up/down
Freeze：√
compare：√
Manual set bright,contrast,sharp,saturation：√
output of display resolution：1920*1080/1600*1200/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600
remote control：×
SD Card：×

Packing List of camera set:
1* Camera body
1* Power adapter
1* LED cables
1* LED Light

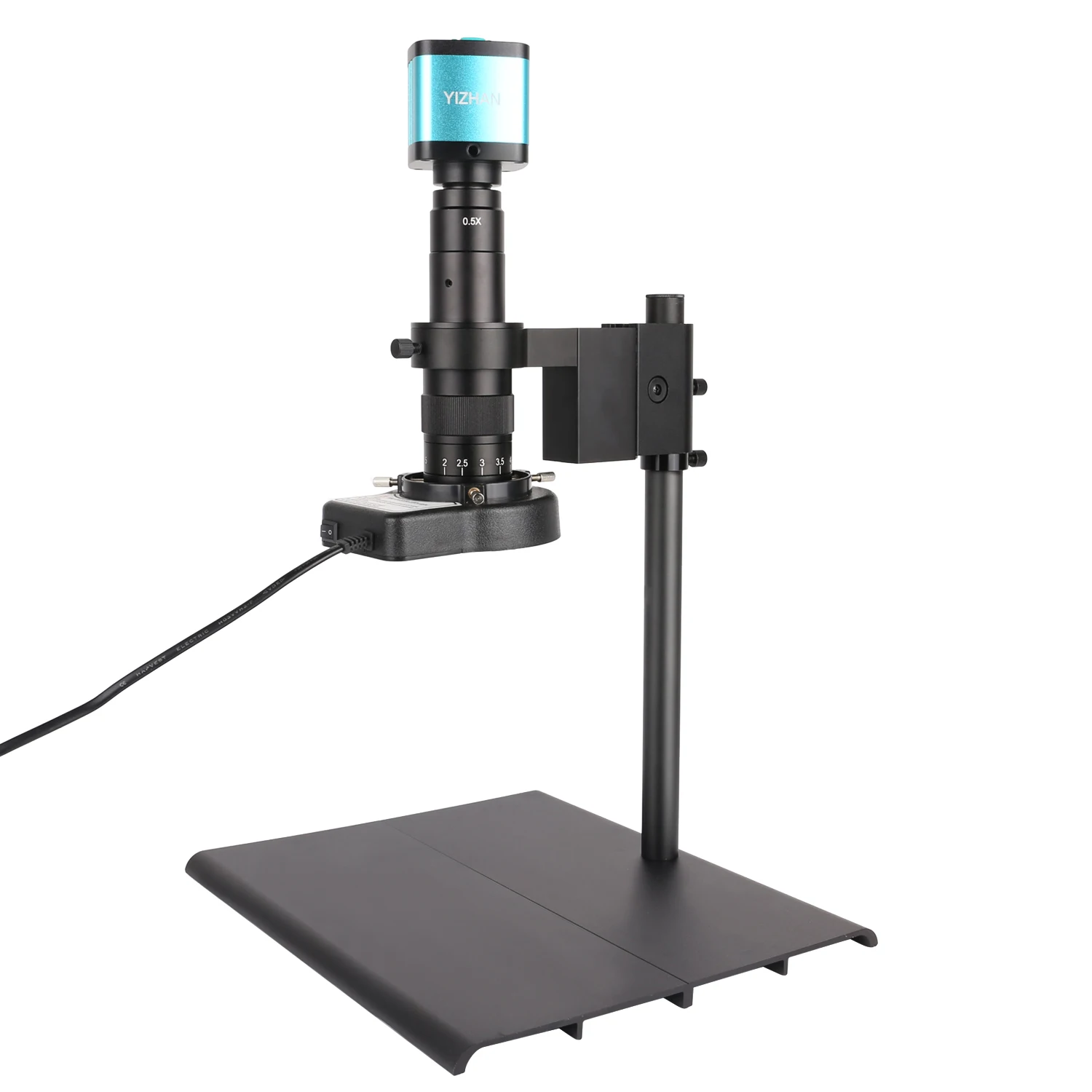

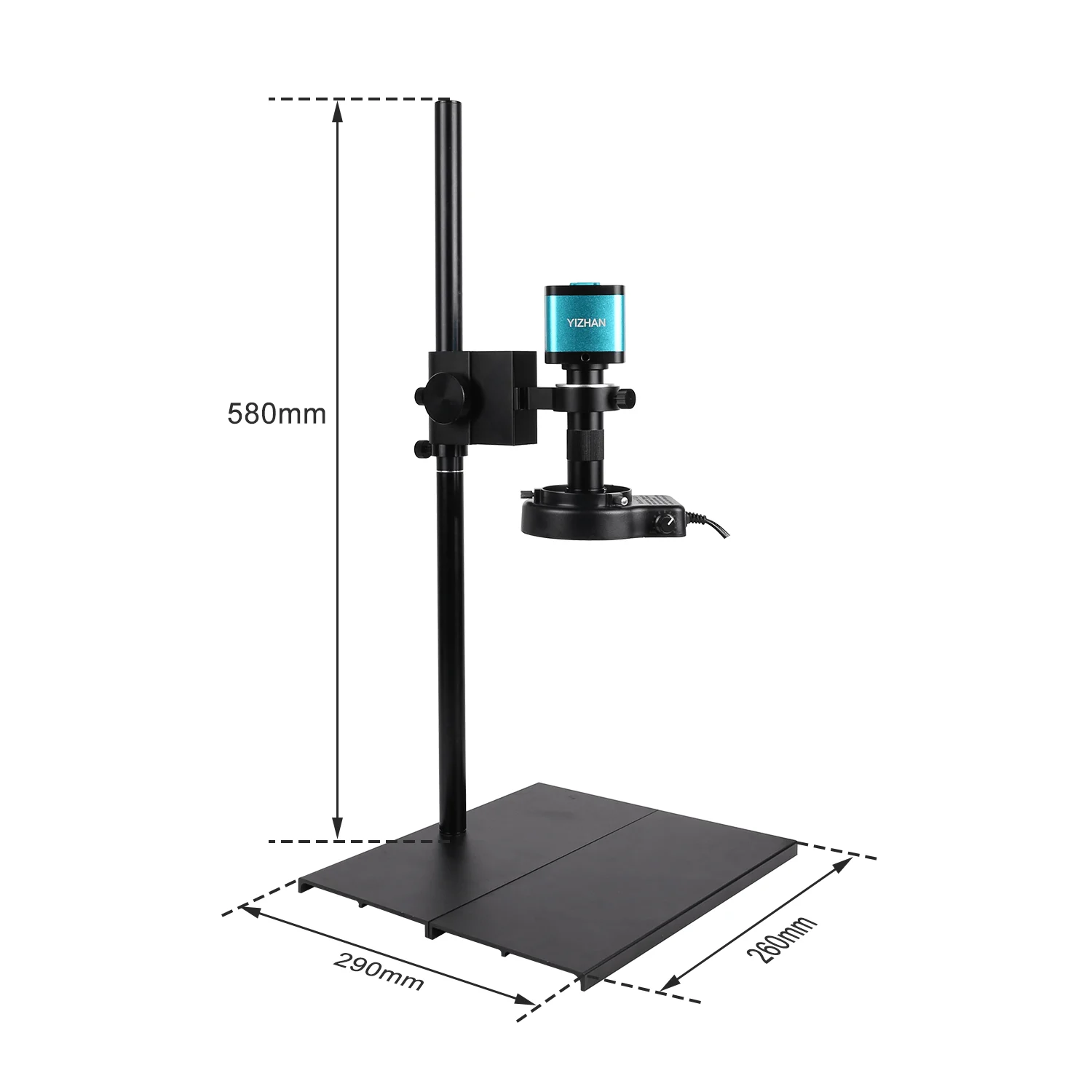

Stand Sizes

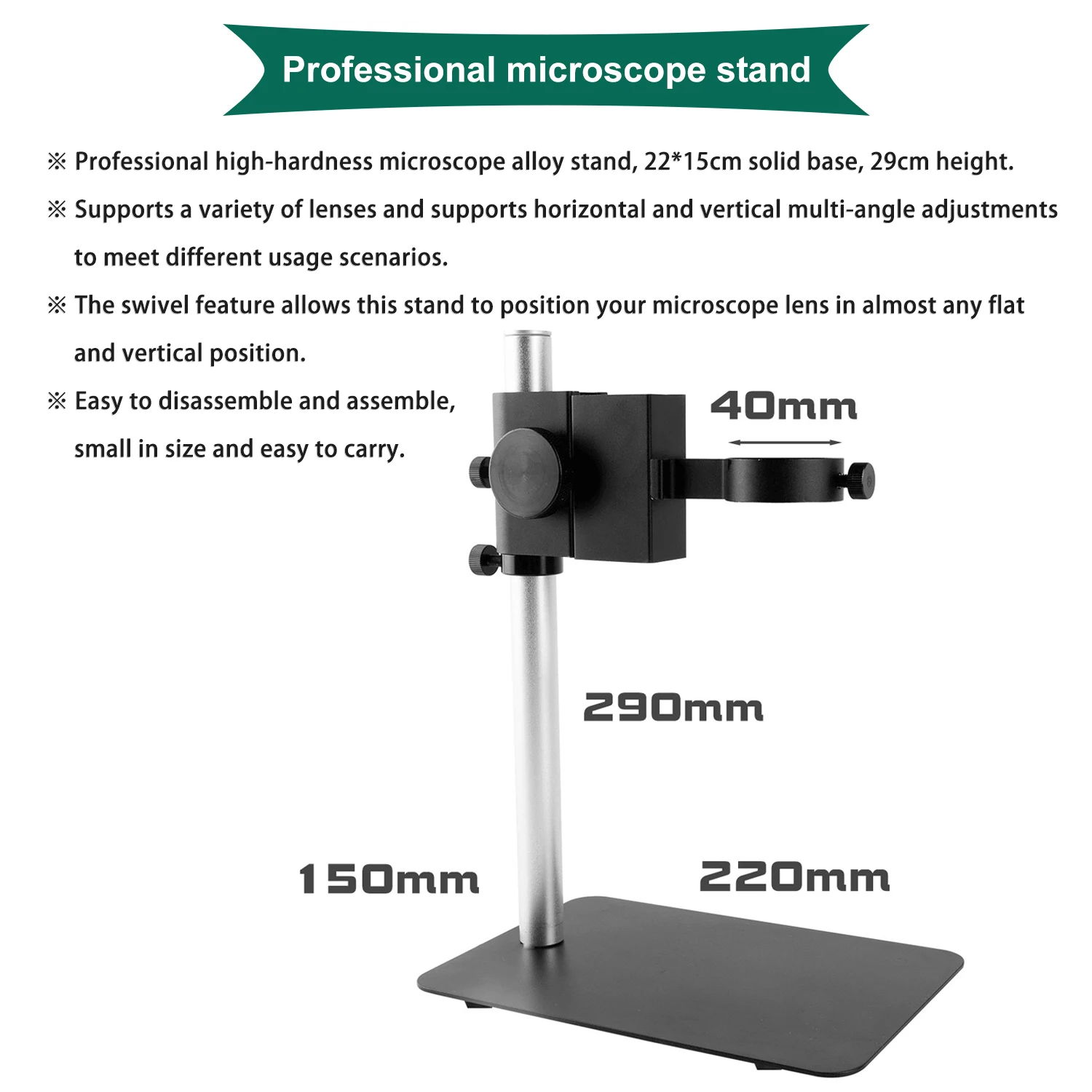

Standard Bracket

Extra Large Stand

Extra Height Stand

Super Extra Large Stand

1X-130X Zoom C-mount Lens:
Work distance: 40mm-220mm
Zoom ratios: 1:17
Magnification Power by 0.1 - 1.3X (about 1 - 130X on the display)
view field of Max multiple : 8mm*4.5mm
view field of Min multiple : 40mm*33mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g

1X-150X Zoom C-mount Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Installation diameter: 42/50mm
Magnification Power by 0.15- 2X (about 1 - 150X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g

1X-180X Zoom C-mount Lens:
Working distance: 100-150mm
Zoom ratios: 1:6.5
Magnification Power by 0.7 - 4.5X(about 1 - 180X on the display)
view field of Max multiple : 2.8mm*1.5mm
view field of Min multiple : 25mm*14mm
Eyepiece lense : 0.5X
Size: 168mm(L) * 50mm(DIA)
Weight: 570g

1X-215X Zoom C-mount Lens:
Working distance: 50-150mm
Optical magnification: 215 times
Installation size: Φ50mm
Zoom ratio: 1:6.5
Main body magnification: 0.7X-4.5X
System magnification: 0.39X-2.53X
Numerical aperture: 0.012-0.053
Diagonal field of view (mm): 22.86-3.56
Lens diameter Φ25.5mm
Net weight: 260g
Packing weight: 330g
