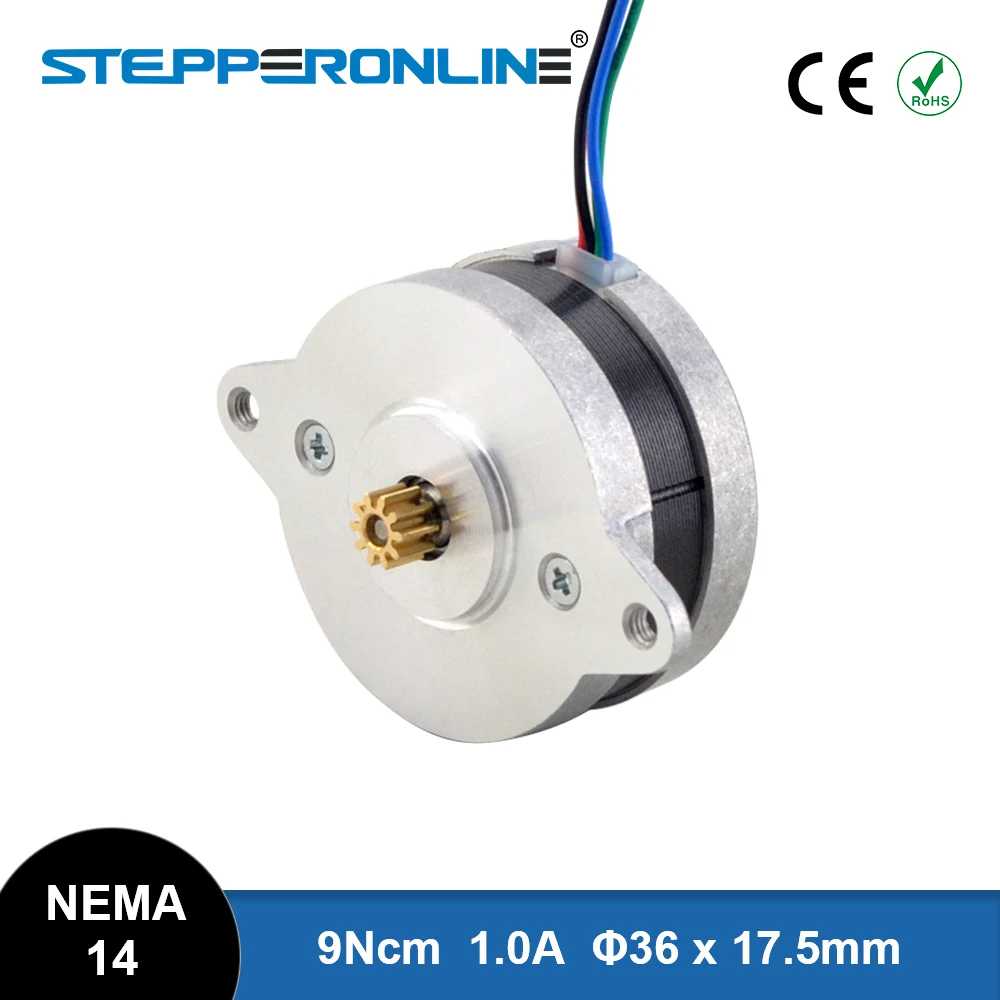

STEPPERONLINE Round Nema 14 Stepper Motor Bipolar 0.9deg 9Ncm(12.75oz.in) 1A Φ36x17.5mm 4 Wires for 3D Printer CNC
21.51$
21.51$
Quantity:
1
Availability:
Ships From
Card Payments
Crypto Payments
Easy return
Reliable Shipping
Manufacturer Part Number: 14HR07-1004VRN
Motor Type: Bipolar Stepper
Step Angle: 0.9deg
Holding Torque: 9 Ncm(12.75 oz.in)
Rated Current/phase: 1.0A
Phase Resistance: 3.9ohms
Inductance: 2.0 mH ± 20%(1KHz)

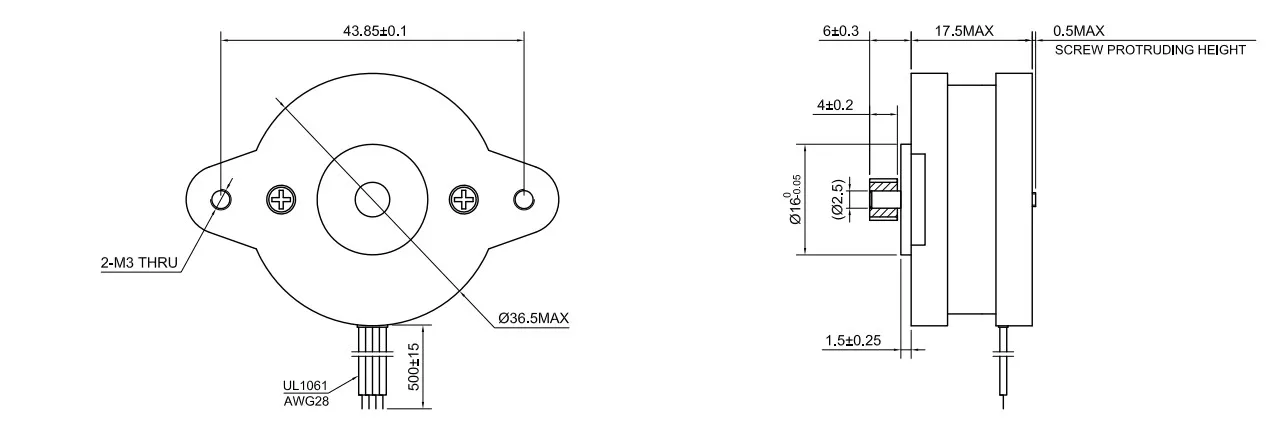

Frame Size: 36.5 x 36.5mm
Body Length: 17.5mm
Shaft Diameter: Φ2.5mm
Shaft Length: 4mm
Number of Leads: 4
Lead Length: 500mm
Weight: 0.08kg
