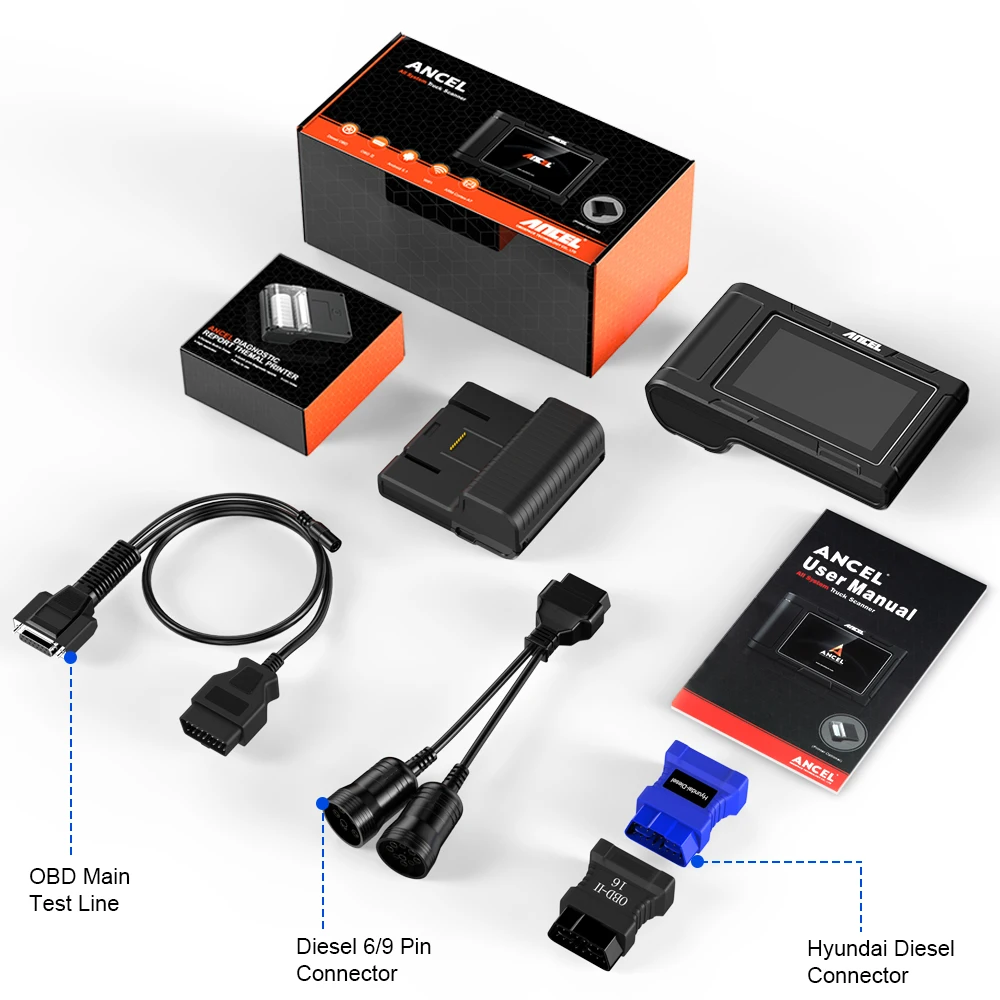

ANCEL HD3200 24V Heavy Duty Diesel Truck Scanner D.P.F Regeneration Oil Reset All System Car Diagnostic Tool for FUSO Hyundai

ANCEL HD3200 Heavy Duty Truck Diesel Scanner with D.P.F Regen&Oil Reset, OEM Level Full System Diagnostic Tool for UD Volvo/Isuzu/Hino/Hyundai/KIA/Fuso/Mack and More

ANCEL HD3200 auto scanner is an excellent OBD2, HDOBD and EOBD tool capable of full system diagnostics. HD3200 also regenerates the D.P.F and resets the oil service light. It runs complete systems diagnostics on most 12/24V heavy-duty trucks, light trucks and is a perfect option for any truck owner.
ANCEL HD3200 diesel scan tool is compatible with the 5 OBD2 protocols KWP2000, ISO2000, ISO9141, J1850 VPW, J1850 PWM and heavy-duty trucks’ protocols like J1587, J1939 and J1708, what's more important, HD3200 support Hino, Isuzu, Fuso, UD, Volvo, Hyundai, Kia trucks' Proprietary CAN Protocols.

Also ,HD3200 support to do D.P.F service Function ( D.P.F diagnosis , reset ,regen function ) for FUSO/HINO/ISUZU/UD/VOLVO HD/HYUNDAI/KIA . Thus, HD3200 heads this heavy duty truck scanner category.

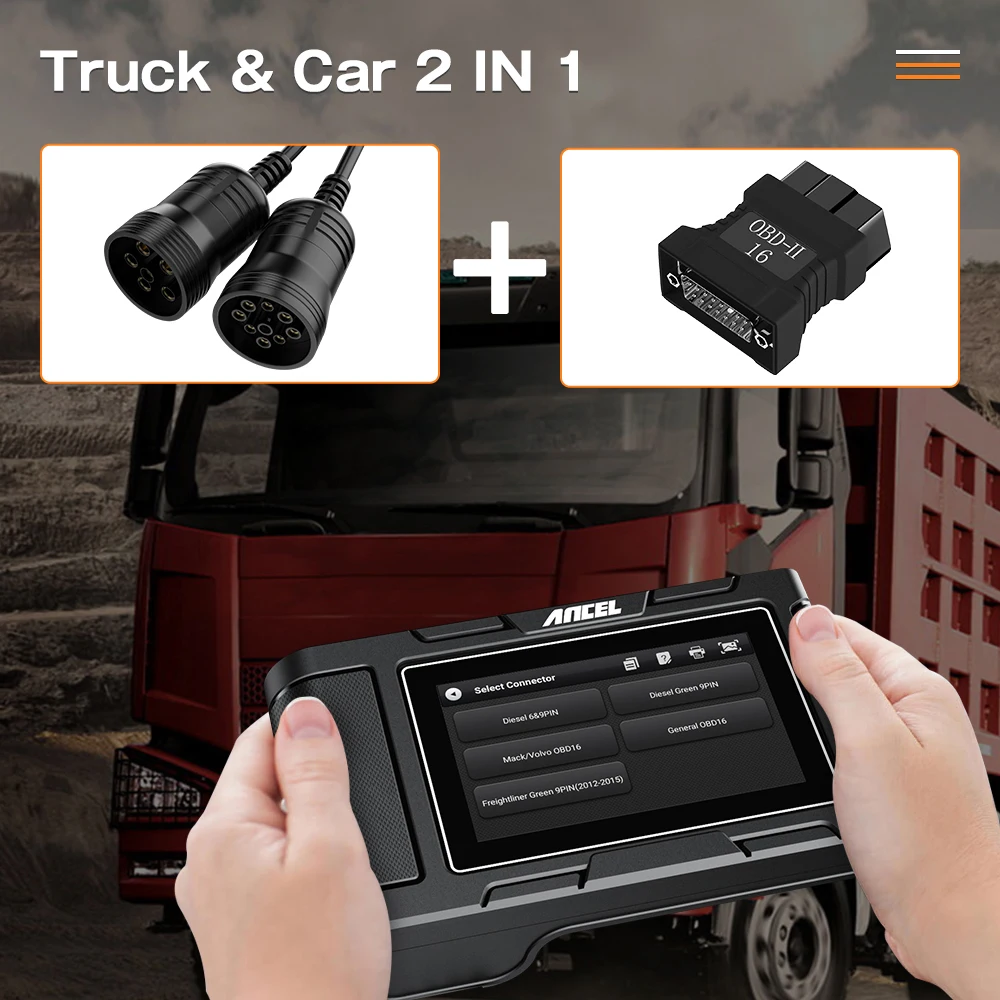

ANCEL HD3200 support 12V/24V Truck and 12V Cars

Please enter the menu “OBD-II” if you want to diagnostic 12V cars.
Please kindly note that you should enter menu "Diesel OBD" if you want to diagnose heavy duty trucks.

Why ANCEL HD3200 Professional Diesel Scan Tool Can Benefit You?

1.The HD3200 heavy truck scanner not only supports standard protocols (OBDII &HDOBD), but also supports private protocols diagnosis of FUSO, HION, ISUZU, UD, VOLVO, HYUNDAI, and KIA.

2.Supports all-system diagnosis of heavy-duty trucks, including Engine, ABS, SRS(Airbag), Transmission, TPMS, EPS, Fuel System, Instrument Panel, Drive-train, Braking System, Headlamp Auto-leveling, BCM, Integrated Security System, Immobilizer, AT System, Meter System, Suspension System, Clutch System, Anti-theft devices, and more.

3.Compared with its competitors, HD3200 diesel OBD scanner can provide OE-Level diagnostic functions on FUSO, HINO, ISUZU, UD, VOLVO, HYUNDAI, and KIA trucks. It supports diagnosing more systems, support more models of the year, reading more data streams, and comes with several exclusive special functions such as D.P.F regeneration and oil service reset.

4.With a clear operation interface, commercial vehicles can be classified according to vehicle information, which is more convenient to use. It also provides one-click upgrade, screenshot and activation functions, and can print diagnostic reports at any time. We also provide an official optional printer (see bundled product) that can be used for diagnostic data and report printing.

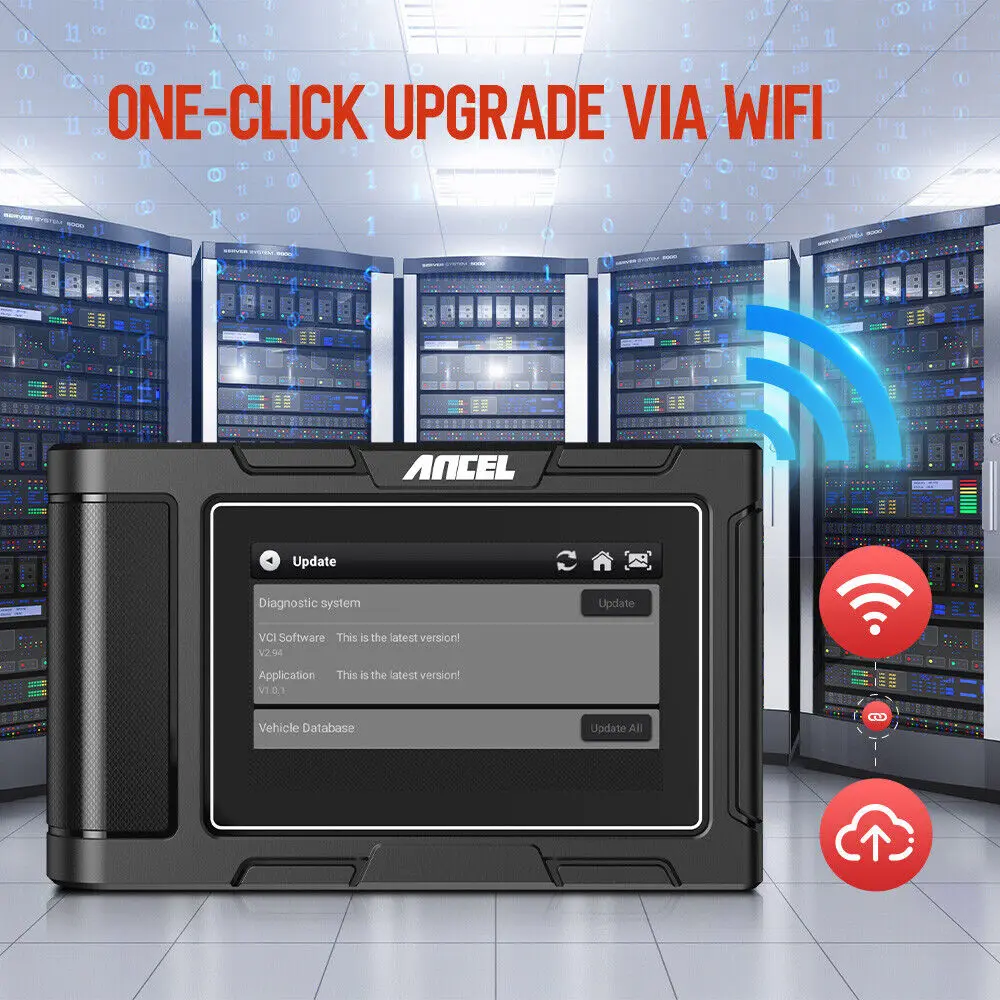

5.WiFi One-key Activate and Update: Enter the "Settings" of the truck scanner interface, and click "Activate" online to activate the machine. Diagnostic programs and diagnostic data support a one-click upgrade online and free lifetime!

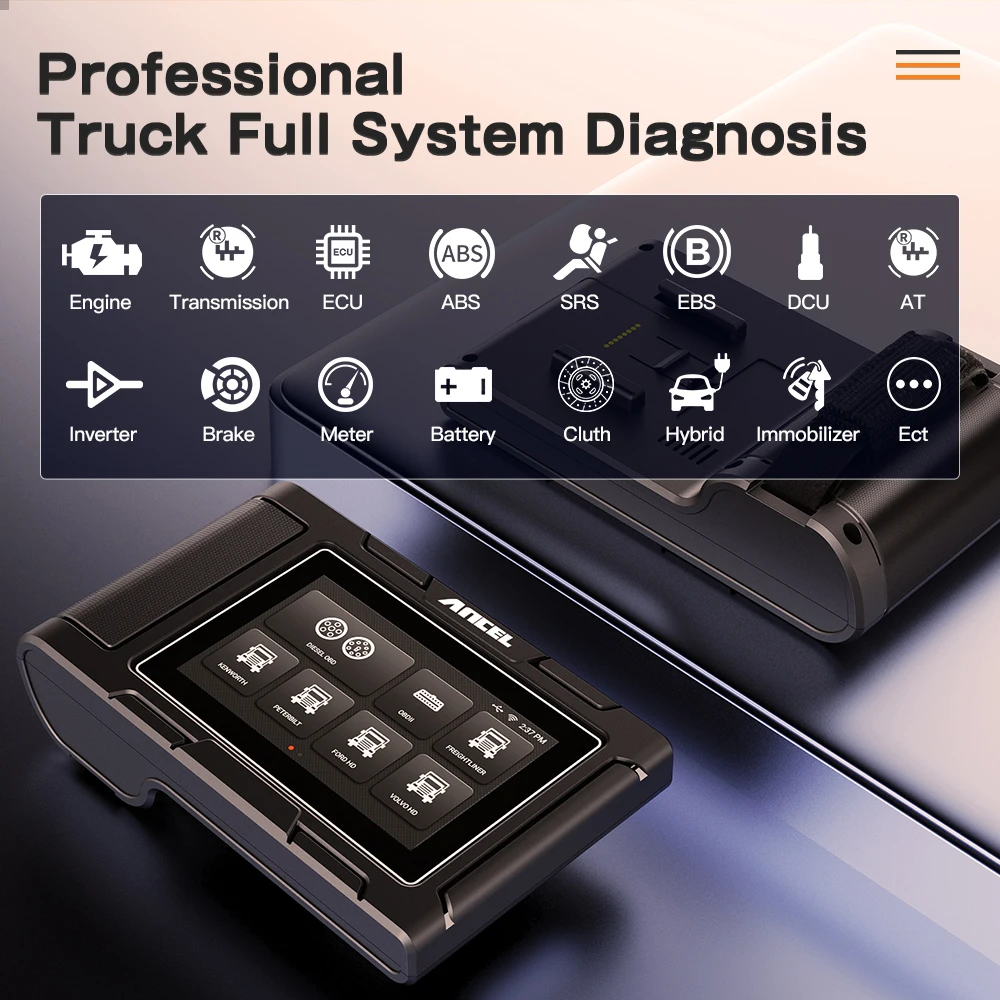

ANCEL HD3200 Professional Truck Full System Diagnosis

1, Engine drive system check
2, Automatic Transmission Diagnostic
3, ABS EPB Anti-lock Brake System
4, SRS Airbag Crash Data Reset
5, SAS Steering Angle Sensor Reset
6, Oil Light Serive Reset
7, Suspension System Adjustment
8, Audio System
9, IMMO Immobilizer System
10, ESP ASC Brake System
11, SAS Steering Angle System
12, Air Conditioning System
13, D.P.F System
14, Air Condition System
15, Auto Headlamp System
16, ACC System
17, Car Radio Audio System
18, Car Door Windows System
19, Battery Manager System
20, TPMS Tire Pressure Monitor System and So On System, Support Most of Car Drive, Power-train, Chassis and Body System Diagnose, Error Scan, Reset, Activate, Reprogramming, Relearning,Coding etc Function.

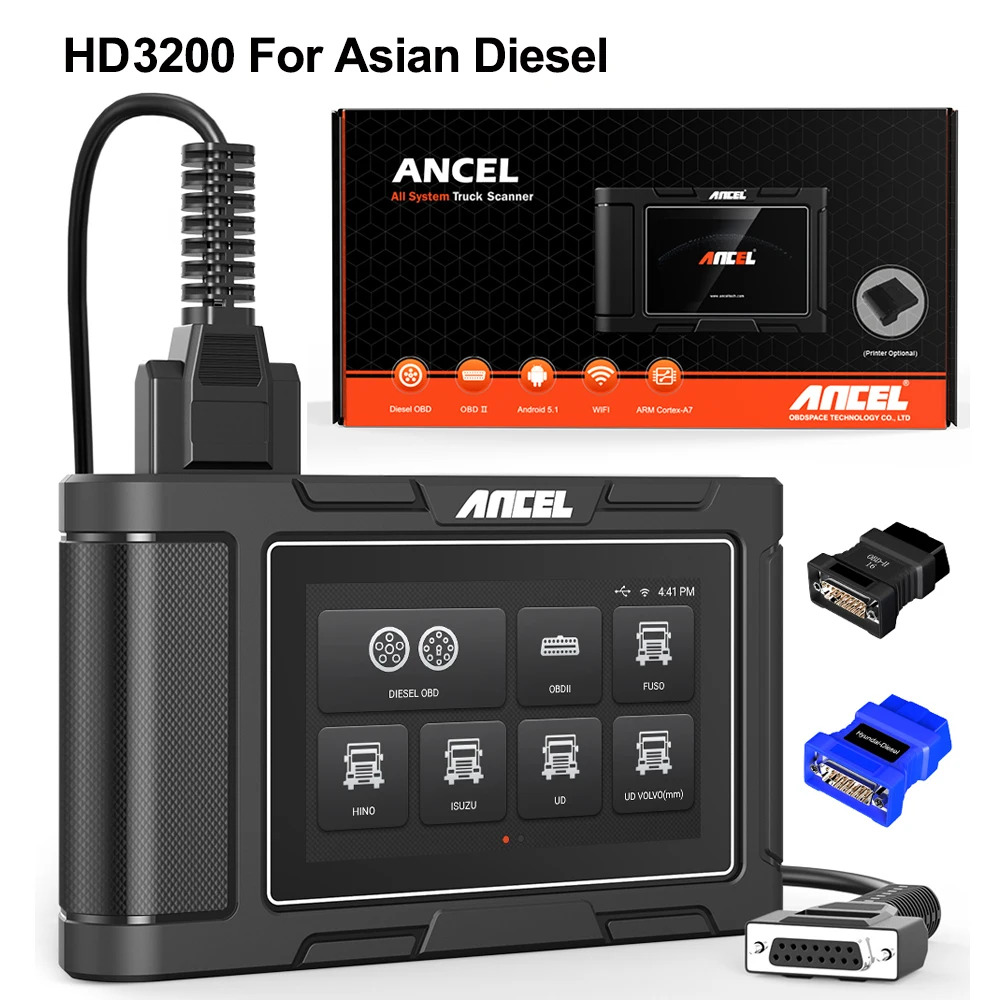

ANCEL HD3200 Asian Diesel truck support D.P.F & Oil Reset

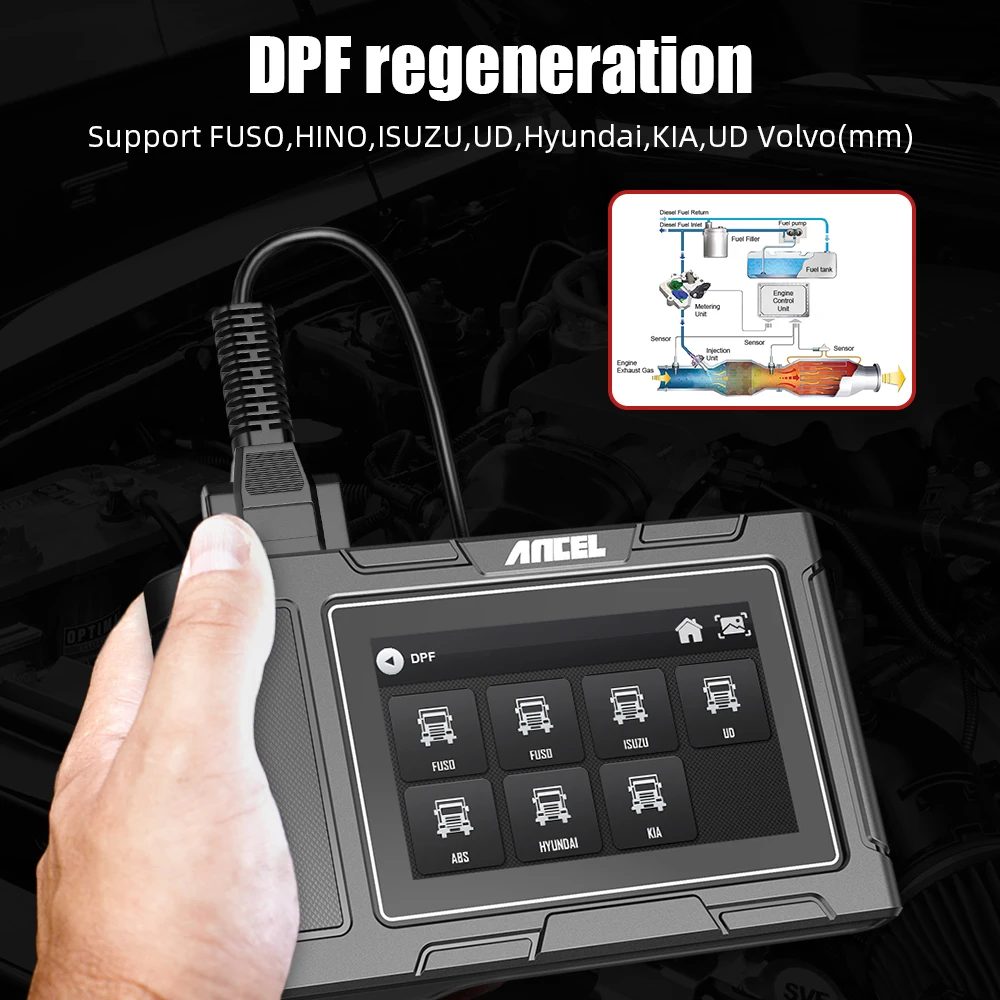

✅D.P.F Regeneration:
D.P.F regeneration let you perform the D.P.F cleaning to clear blockage through continuous buring of particulates captured in the D.P.F filter, when a D.P.F regeneration cycle is completed, the D.P.F light automatically goes off.

This function supports FUSU, HINO, ISUZU, UN, HYUNDAI, KIA, VOLVO.

PIN detect

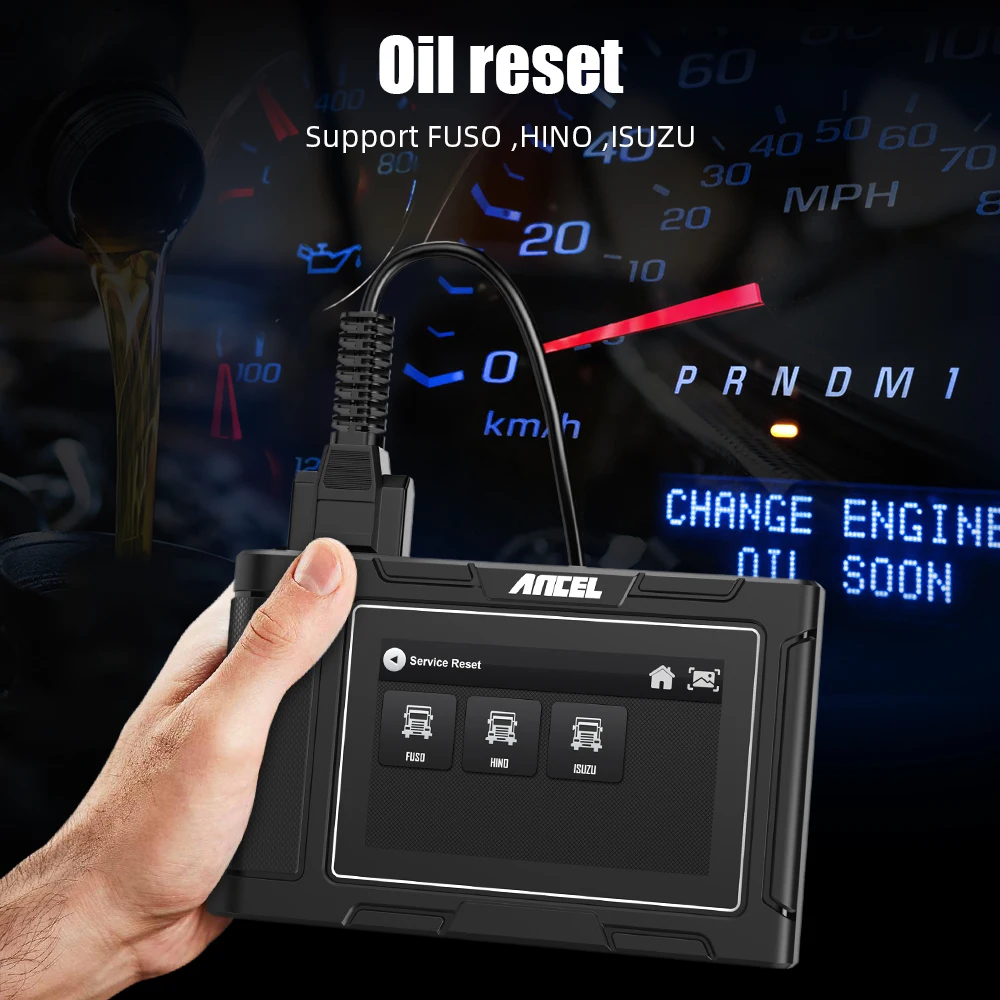

✅Oil Reset:

✅Oil Reset:
Allows you to perform reset maintenance mileage and data intervals for a new calculation of Engine Oil Life system once changed the oil.

This function supports FUSU, HINO, ISUZU.

Full OBD2 function for cars

✅1. Reading Codes: Present some diagnostic trouble codes after scanning the vehicle.

✅2. Erase Codes: Clear the fault codes after doing the repair according to the prompt of the scanner.

✅3. Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

✅4. I/M Readiness Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

✅5. Freeze Frame: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

✅6. On-Board Monitor Test: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

✅7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer. (Note:If the vehicle uses a controller area network (CAN) protocol to communicate, this function is not supported by vehicle)

✅8. Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

✅9. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

✅10. DTCs Lookup

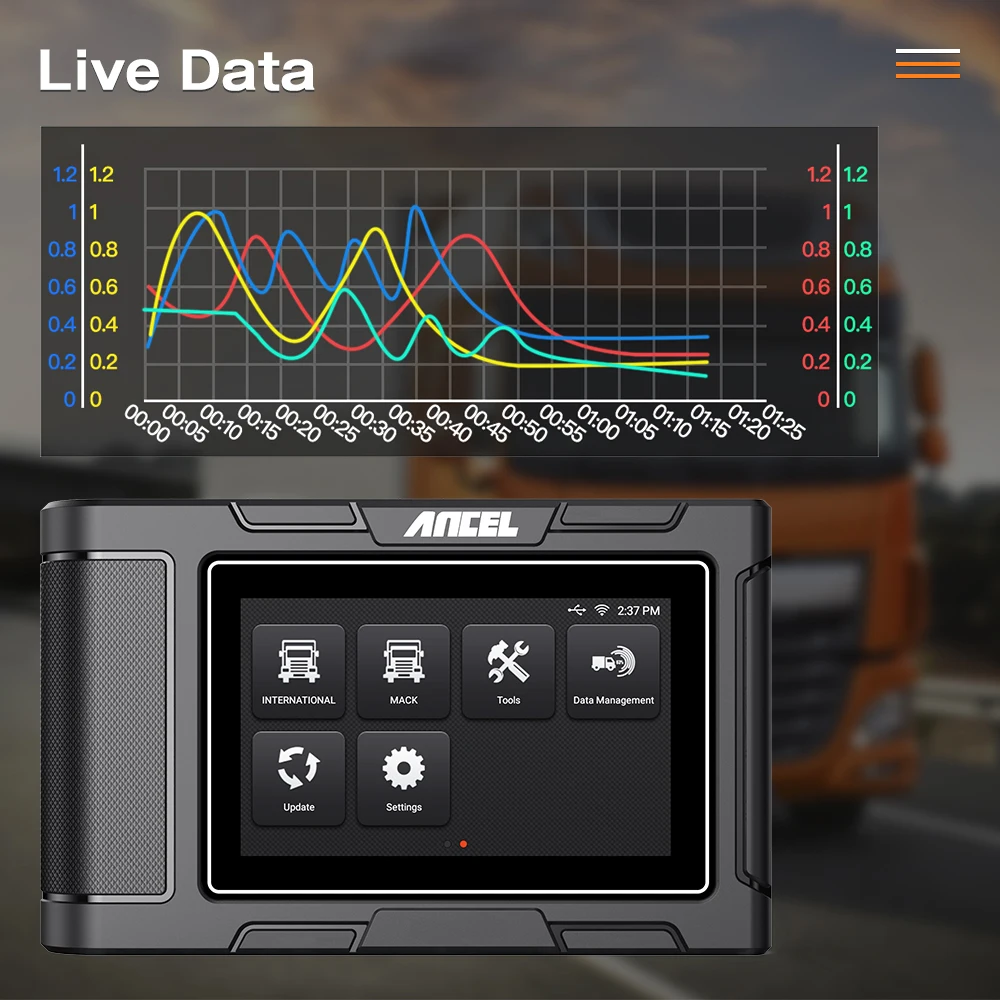

Support Live Data

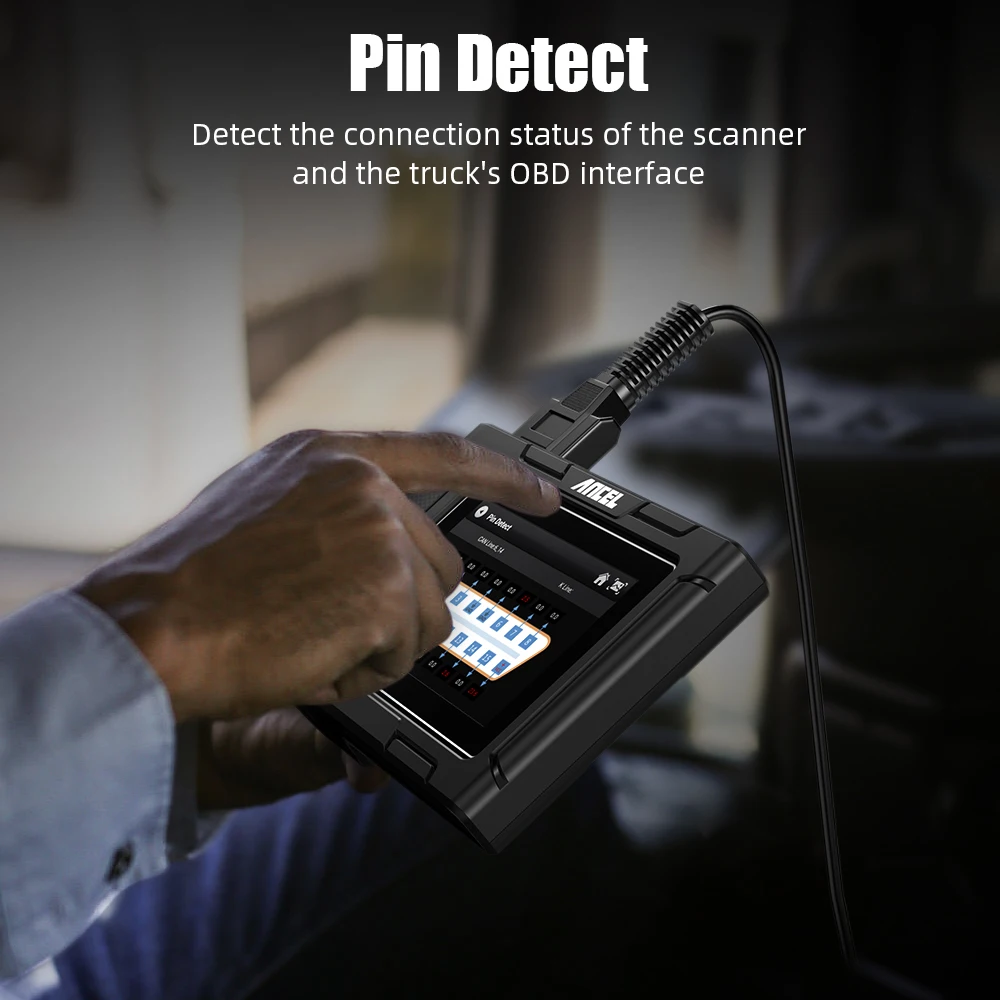

PIN Detect

Diagnose the connection status of the OBD inter face

This function can be used to detect whether the pins are damaged

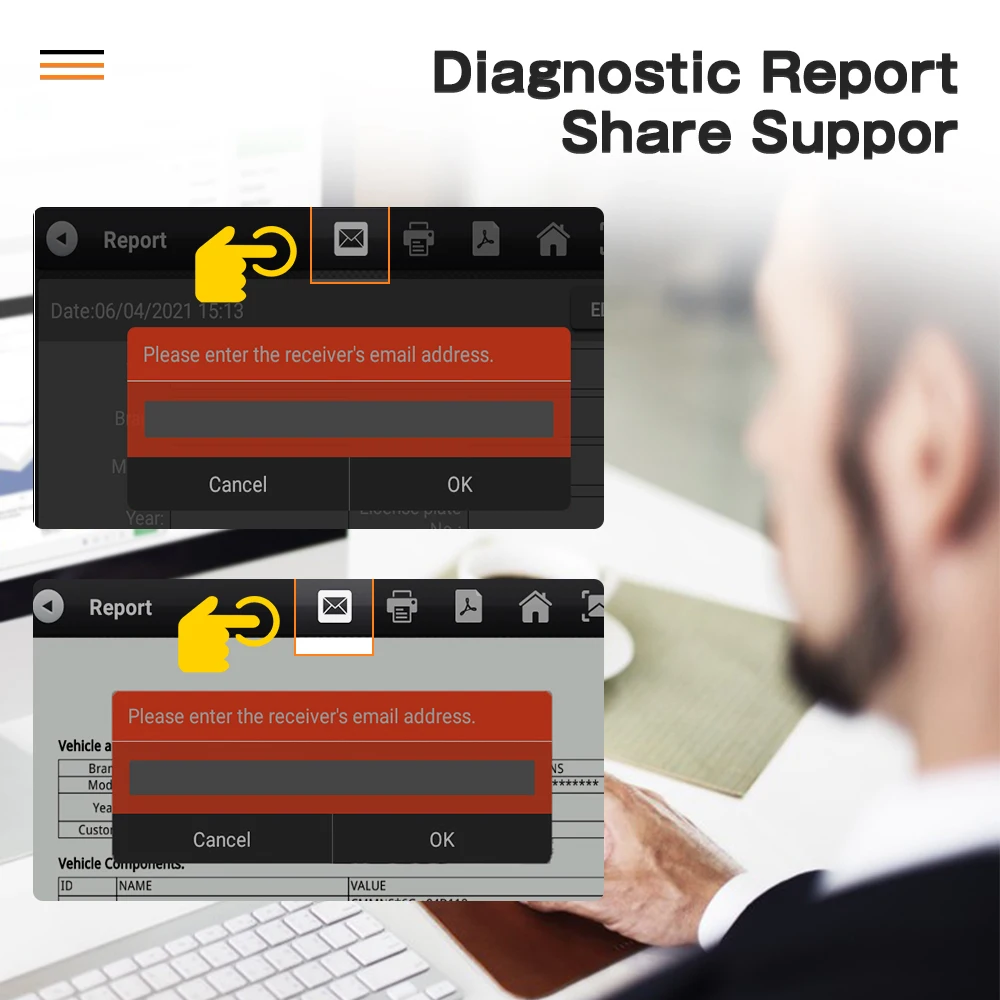

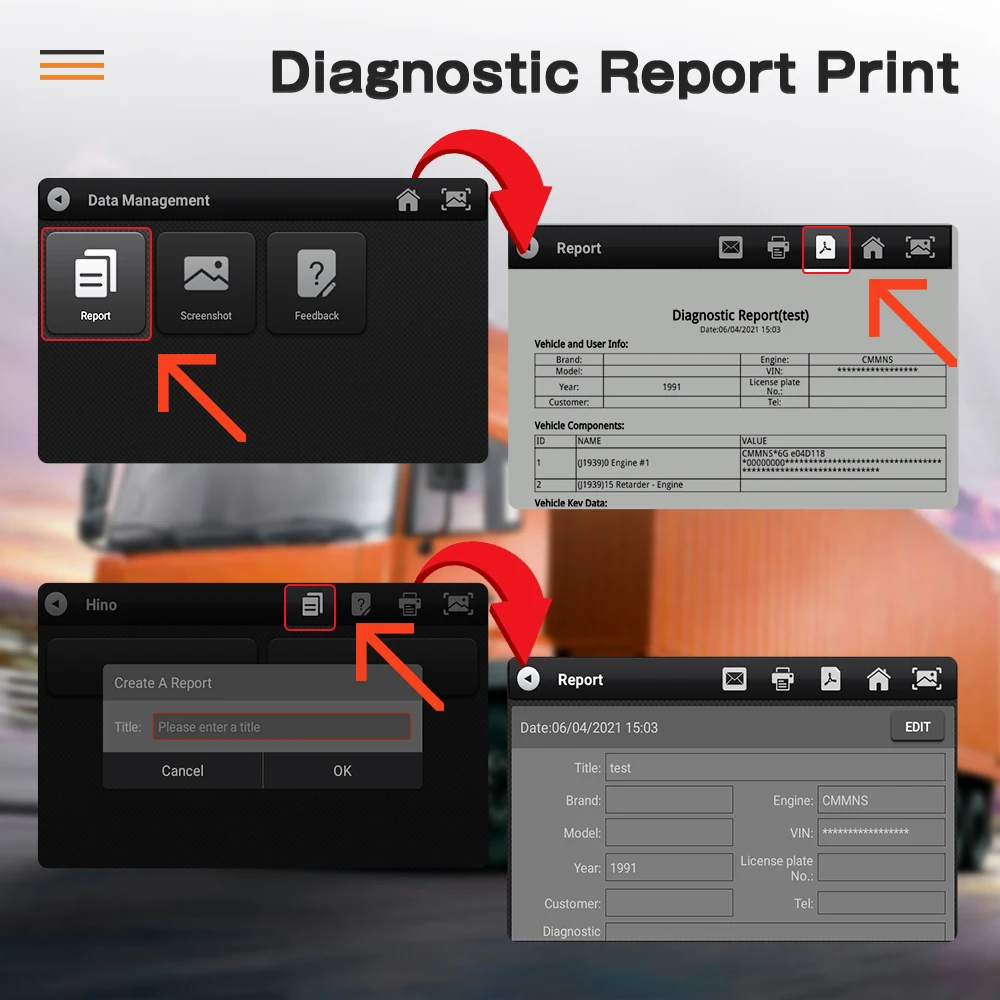

Print diagnose report + share report

No extra updated fees --- free update forever

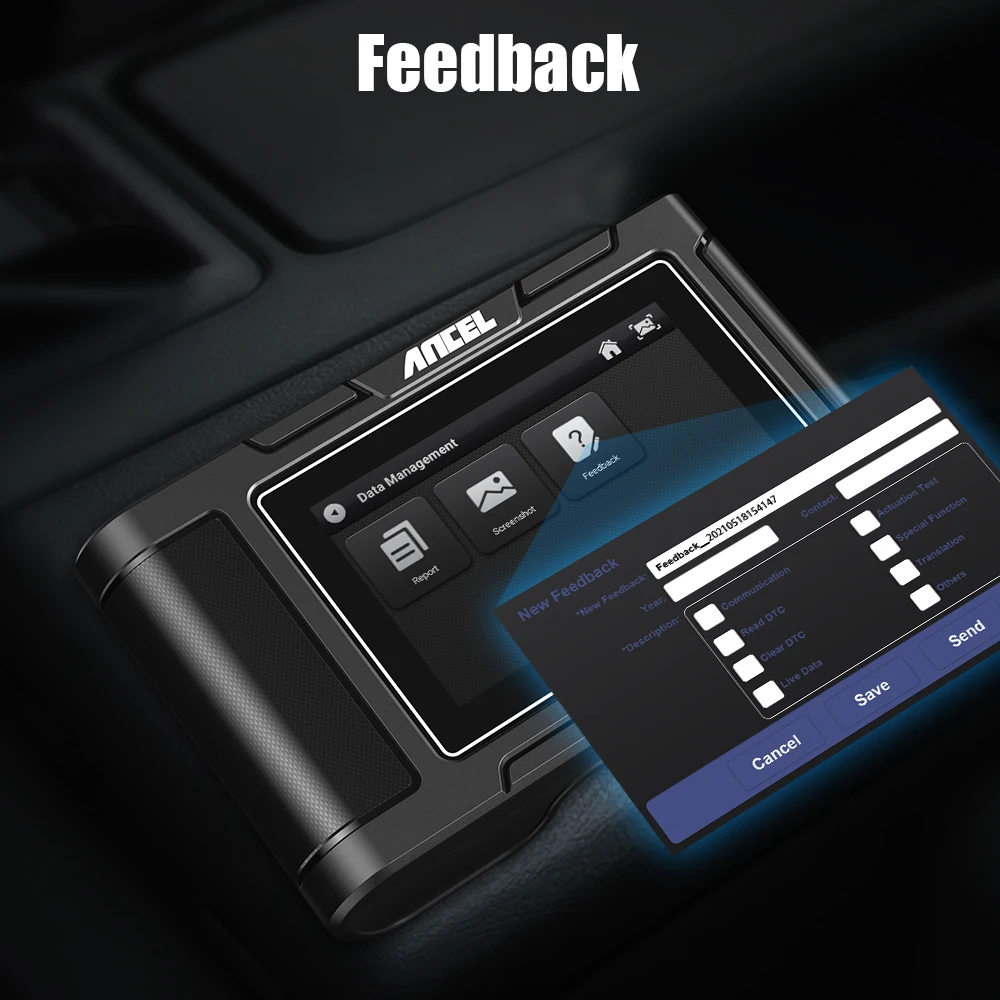

You can provide feedback to help you solve the problems encountered during the diagnosis process

OEM Level-Full System Diagnostic for ISUZU HINO UD FUSO

Diesel Truck Scanner Heavy Duty Truck Diagnostic Scan Tool D.P.F Regen Oil Reset

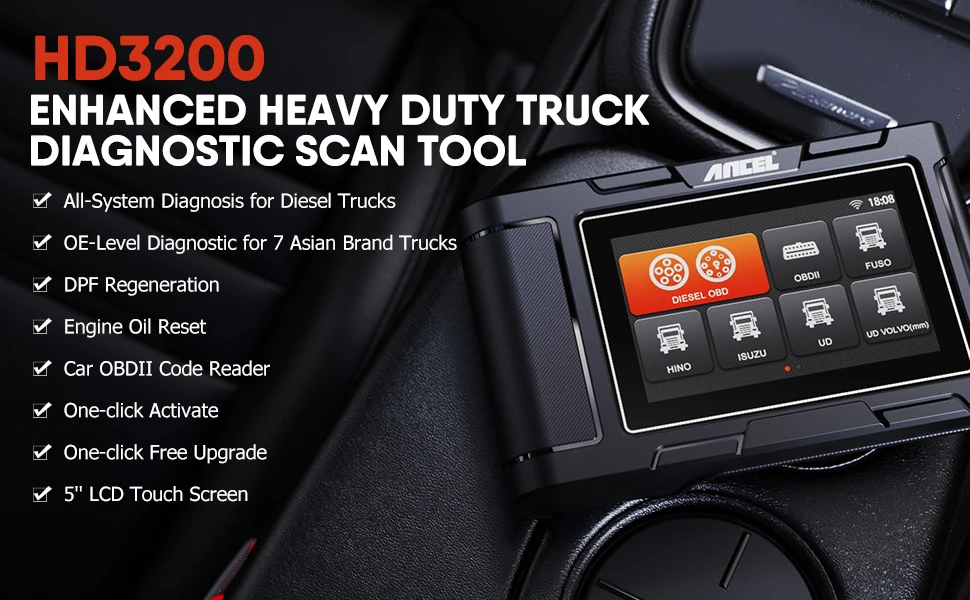

2023 New Upgraded , ANCEL HD3200 Heavy Duty Diesel Truck Diganostic Tool
** OE-Level All System Diagnosis for HD trucks
** DPD/D.P.F Regeneration: for Hino, Isuzu, Fuso, UD, Hyundai, Kia Trucks
** Oil Reset Service for Hino, Isuzu, Fuso, Kia, Hyundai trucks
**Compatible with Private protocol for diagnosing heavy trucks made by Fuso, HINO, Isuzu, UD, Volvo, Hyundai and Kia.
** Diesel OBD diagnostic on Asian ,America ,European heavy trucks and construction machinery.
**Compatible with OBDII protocols: check engine for all standard OBDII passeneger vehicles test.
**Pin Detect Function: This function to diagnose the connection status of the OBD inter face and detect whether the pins are damaged.
**Advance Additional Functions: One-click screenshot, one-click update, one-click printing, one-click feedback, create a test report with one click and send it by email,ect.
**Language: English ,Spainish and Traditional Chinese.

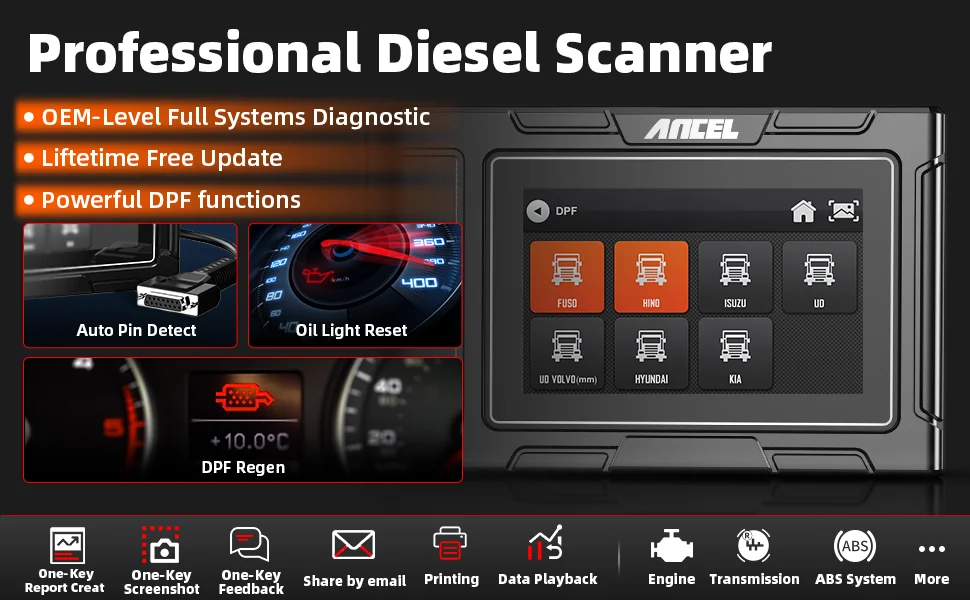

✔️Powerful D.P.F Service Functions ( Work for FUSO, HINO , ISUZU , UD , VOLVO , HD HYUNDAI & KIA HD Trucks )

D.P.F service functions includes:
DPR state check,
DPR state reset,
DPR differential pressure detection,
Forced DPR regeneration,
DPD Forced Regeneration,
DPD Regeneration Data Reset,
DPD Automatic regeneration,
DPD normal regeneration control,
DPD slow regeneration control,
DPD status resetting,
Clear D.P.F Data, etc.

D.P.F regeneration ensures that the vehicle state meets the following requirements:

1. First of all, when D.P.F is regenerated, the vehicle needs to ensure that the vehicle speed is 0, and the brake pedal, clutch pedal and accelerator pedal of the vehicle are in a normal relaxed state, that is to say, the accelerator, brake and clutch pedal of the vehicle are not stepped on.

2. In addition, the gear of the car needs to be kept in the neutral position, and the D.P.F regeneration function cannot be turned on with gear. At the same time, the hand brake of the car should be tightened.

3. In the process of starting the regeneration function of automobile D.P.F, it is also necessary to ensure that the engine of the automobile is always in an idle state, and the temperature of the automobile water tank is best kept above 40 degrees Celsius.

4. Engine running at idle speed, and water temperature should be higher than 80 Celse Degree.

5. Coolant temperature is higher than 60"C Degree; Fuel temperature is lower than 70"C degree;

The above conditions are necessary for the D.P.F regeneration process. If any of the above conditions are not met, the D.P.F function of the car will not work normally at this time.





✔️Service/Engine Oil Light Reset (for FUSO/HINO/ISUZU )

ANCEL HD3200 diesel scan tool support Oil Light Reset. If the car owner replaced the relevant parts, but does not reset maintenance lamp, it will not affect the performance of the vehicle, but it will bring trouble to the next replacement of the car parts: it is impossible to know exactly when the new parts are used. The intelligent maintenance system CBS permanently monitors oil levels and the degree of wear and tear on individual components of your vehicle. It also checks the time/mileage recommendations for fixed services and it analyses this data and tells you when a service is next due.


HD3200 Most SYSTEM Diagnostic Scanner Tool for Heavy Duty Trucks

HD Truck full System

Engine, transmission, instrument panel, drivetrain, braking system, suspension, ABS, ESP, EPS, fuel system and etc

System Functions:

Read codes, erase codes, I/M Readness, Live data, EVAP Test, O2 sensor Test...etc

ABS:Like other systems, braking systems have evolved and become more complex, with multiple sensors and actuators operating together to make braking more smooth, consistent and safe for everyone. The HD3100 Pro truck scanner allows the user to monitor and diagnose critical ABS systems to ensure that repairs to this critical system are effective, and complete.

Transmission: Today’s transmissions provide a wealth of information about the success of up and downshifts, solenoid action (too harsh, too soft), clutch engagement, fluid temperature, fluid level, pressure, and other, critical, operational and diagnostic information.HD3100 Pro can easily solve the troubles caused by the Transmission for you.

Instrument panel：A well-functioning, always ready, Supplemental Restraint System (instrument panel) is absolutely critical for occupant and driver safety. Even minor issues might impact the operation, and performance, of the instrument panel system. The HD3100 Pro truck scanner quickly, and efficiently, allows the user to retrieve, read and interpret instrument panel issues and monitor system system functionality to rapidly diagnose, and repair, the cause of the issue.

Drivetrain：When the drivetrain light turns on, you will feel difficult to start the vehicle and it will consume more fuel. This scanner can turn off the light to make the vehicle have good power and fuel economy.

Braking：ABS automatically control the braking force of the brake when the car is braking, so that the wheels are not locked and in the state of edge rolling slip (slip rate is about 20%) to ensure the maximum adhesion between wheels and ground. HD3100 Pro can Performs various bi-directional tests, turn off the light,locate in the error part.

Cab climatie：Cab climatie plays an important role during driving. It can ensure the driving comfort and driving safety of the driver. When there is a problem on the cab climate, the HD3100 Pro scanner will help you to read the fault codes, show codes definitions and clear the fault codes

Suspension：If there is a problem with the suspension, the truck will bump when driving on uneven roads. The HD3100 Pro scanner can clear the relevant fault codes to ensure that the vehicle can run smoothly to give you a comfortable driving experience.

Particulate：The HD3100 Pro scanner is able to monitor vehicle exhaust emissions in order to protect the environment

and so on

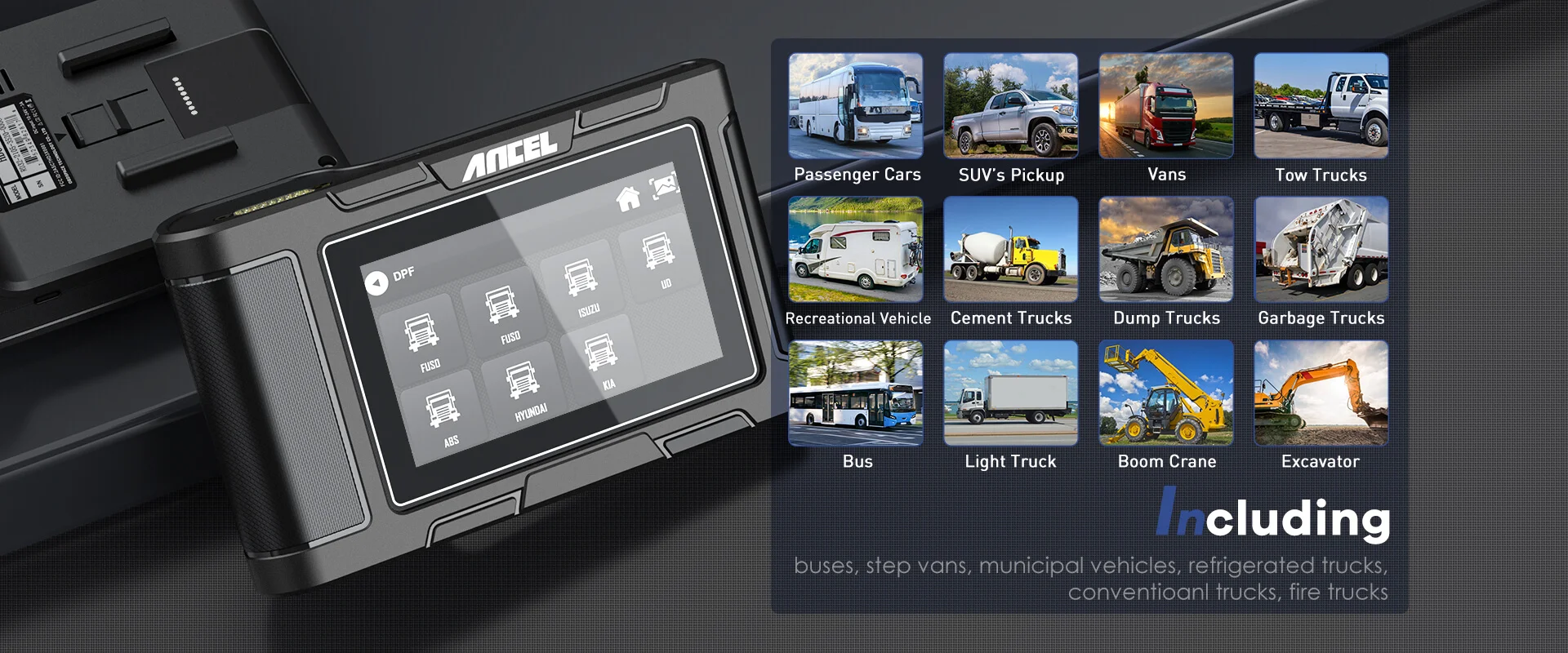

For HD Truck(12V/24V) for Full System Diagnostic:
Covers more heavy duty trucks like HINO/ISUZU/FUSO/UD/UD VOLVO/HD VOLVO/Hyundai/KIA /Ford(6/9PIN), Ford(16PIN), Freightliner, HD Volvo, International, Kenworth, Mack, Peterbilt, Caterpillar, Terex, Case, Bobcat, ATLAS, BLACK, CAT, John Deere etc



OEM Level-Full System Diagnostic for ISUZU HINO UD FUSO

It’s mean that HD3200 advanced truck diagnostic scanner can OEM level support all the systems that ISUZU HINO UD FUSO truck

HINO[Supported engine models]:E13CTJ, E13CTK, E13CTM, E13CTL, E13CTN, E13CTP,E13CTR, E13CTS,E13CTT, J08ETB, J08ETE, J08ETA,J05DTA,J05DTA, P11CUH, P11CUJ, E13CUN ,E13CUR, E13CUK, E13CUL, E13CUP,J07ETB, J05DTC,E13CVT, E13CUT,J08ETN,J08ETT,[Supported model]:General, Dutro, Ranger, Profia, Selega, Blue Bibbon City, Poncho, Melpha, Liesse, Liesse2, Rainbow, 700 series, 600 series, 500 series, 300 series, Bus/Coach, Industrial Engine.

FUSO is developed by the original factory agreement (Fuso original equipment), through system diagnosis (diagnosis by system)，Support almost all FUSO trucks on the market.

ISUZU[Supported engine models]:Euro 2, SOHC, 4HE1-TC, 4HF1, 4HG1, 4HJ1, 4HK1, 4HK1-TC, 4HLT, 4HV1(CNG), 4JB1, 4JG2, 4JJ1, 4JH1, 4JK1-TC, 4JX1(3.0 L4), 4KH1, 4ZE1, 6HK1, 6HL1, 6SD1-TC, 6UZ1, 6WF1, 6WG1, 4JJ1-TC，4HK1-TC，SCR, AT-JR405E, Chaoyang Diesel engine(Bosch diesel), Commins unit pump diesel engine, Isuzu alarm, Wuxi Diesel Engine(Bosch Diesel), Weifang diesel engine, Perkins diesel engine, Large diesel engines(Bosch diesel).[Supported models]:ELF200, ELF300, ELF400, ELF500, ELF500, ELF600,N-series w/3.0L Diesel(4JJ1),N-series w/5.2L Diesel(4HK1),N-series w/6.0 Gas,N-series w/6.0 Propane,Stripped Chassis w/3.0L Diesel(4JJ1),N/W Series w/4.8L Diesel(4HE1),N/W Series w/5.2L Diesel(4HK1),N/W Series w/5.7L (CAL) Gas,N/W Series w/5.7L (FED) Gas,N/W Series w/6.0L Gas,F/T Seires w/7.8L diesel(6HK1), ,N/W Series w/6.0L Gas, ,N/W Series w/4.8L Diesel(4HE1),N/W Series w/5.2L Diesel, ,N/W Series w/6.0L Propane, ,F/T Series w/7.8L Diesel(6HK1),,C-series w/7.8L Diesel(6HK1), H/C Series w/7.8L Diesel(6HK1),FRR/WT5500 w/7.8L Diesel(6HK1),FTR W/5.2L Diesel(4HK1),Isuzu Taiwan,NL series/NM series/ELF series：4JJ1-TC Euro 2,3,4,5,NP series：4HK1-TC Euro 2,3,4,5,ELF series.

UD[Supported engine models]:Nissan UD engine system, Hino engine, UD2004 and earlier, Volvo engine(8 pin square), FE6, RG8, RH8, RF8, GE13(KWP), MD92(KWP).[Supported models]CONDOR, DUMP U-CW520HVD,THUMB TRATOR HEAD KL-CK482BAT.

Kind reminder :
Due to the different system limitations of different vehicle models. So this product does not support all vehicles to do all functions. If you are not sure please contact us and tell us your vehicle information before purchasing.

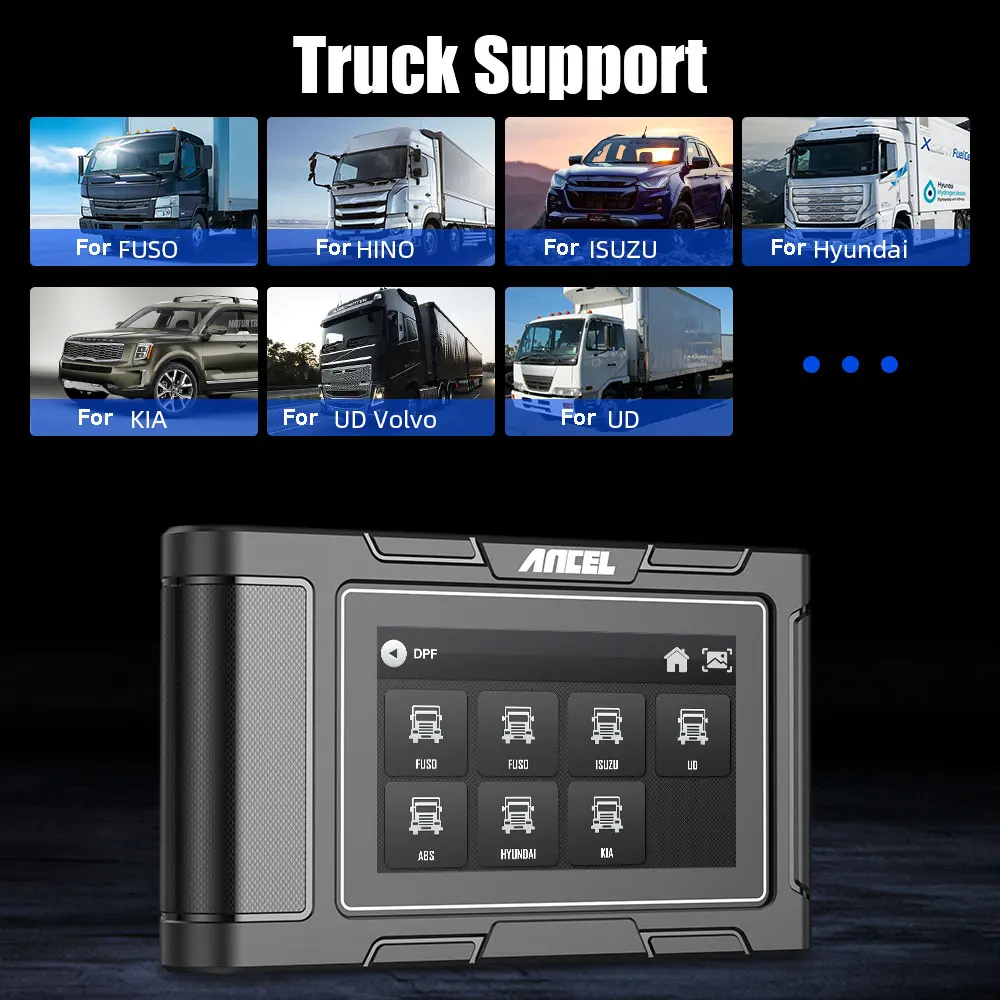

Support truck models

The only code reader on the market with the proprietary protocol of these car models, with more powerful diagnostic functions. For example, other brands of diesel scanners can also support diagnosis HINO and Isuzu, they can only support models with J1939 protocol after 2012, but the HD3200 diagnostic scan tool can support Hino and Isuzu with the private protocol from 1998 to 2020.

For HD Truck(12V/24V) for Full System Diagnostic:

Covers more heavy duty trucks like HINO/ISUZU/FUSO/UD/UD VOLVO/HD VOLVO/Hyundai/KIA /Ford(6/9PIN), Ford(16PIN), Freightliner, HD Volvo, International, Kenworth, Mack, Peterbilt, Caterpillar, Terex, Case, Bobcat, ATLAS, BLACK, CAT, John Deere etc

For Cars(12V) for OBDII Engine Check :

Wide Compatibility: Compatible with OBD standard diagnostic protocol, including SAE J1939, SAE J1708, SAE J1850 PWM, SAE J1850 VPW, ISO 14230-4, ISO 9141-2, ISO 15765-4 and ISO 27145-4. Support standard OBDII protocol cars, like following cars.

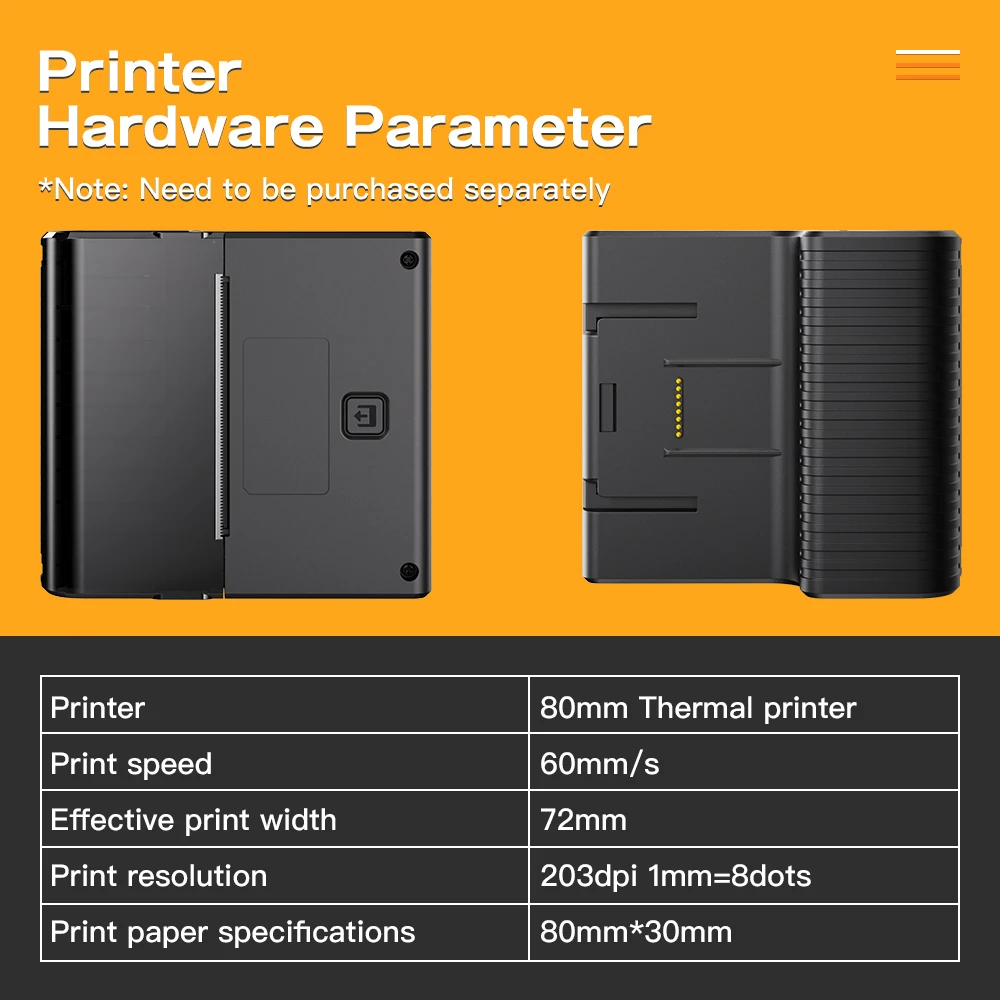

Printer Hardware Parameter

Printer 80mm Thermal printer
Print speed 60mm/s
Effective print width 72mm
Print resolution 203dpi 1mm=8dots
Print paper specifications 80mm*30mm

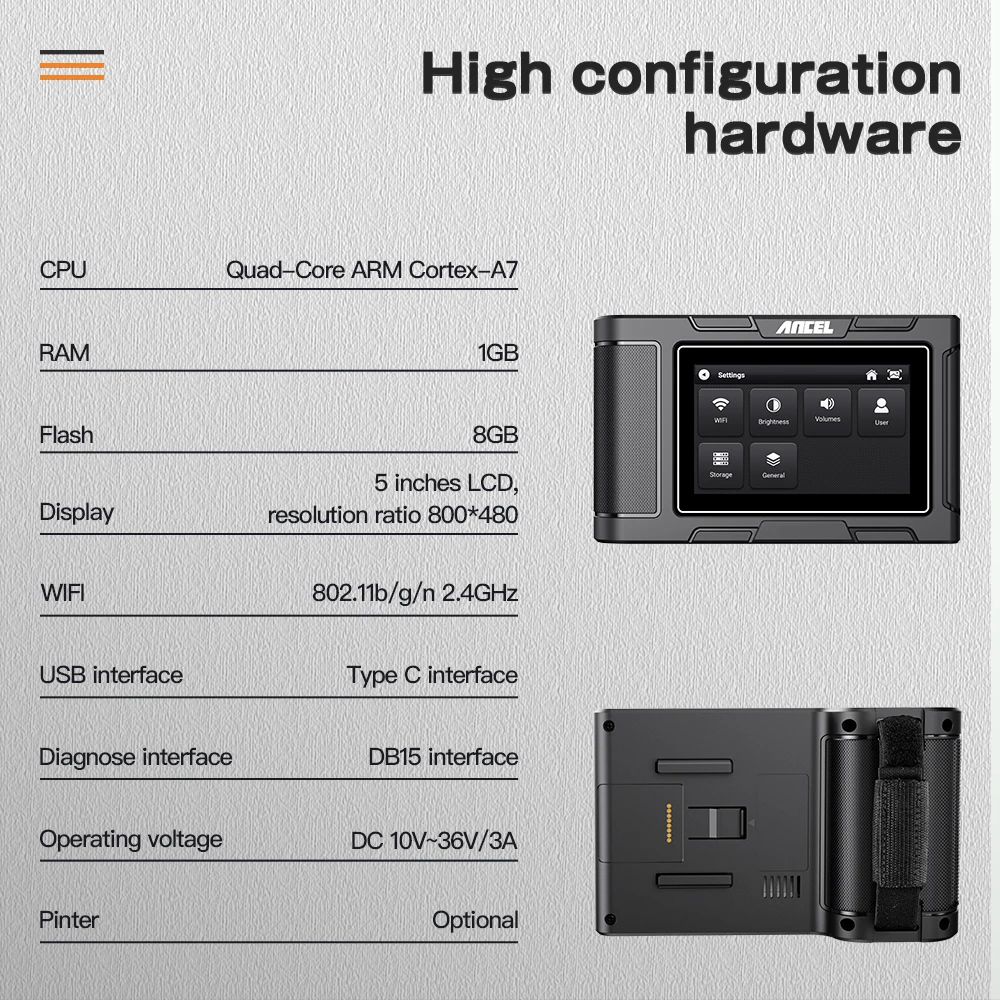

High configuration hardware

CPU Quad-Core ARM Cortex-A7
RAM 1GB
Flash 8GB
Display 5 inches LCD，resolution ratio 800*480
WIFI 802.11b/g/n 2.4GHz
USB interface Type C interface
Diagnose interface DB15 interface
Operating voltage DC 10V~36V/3A

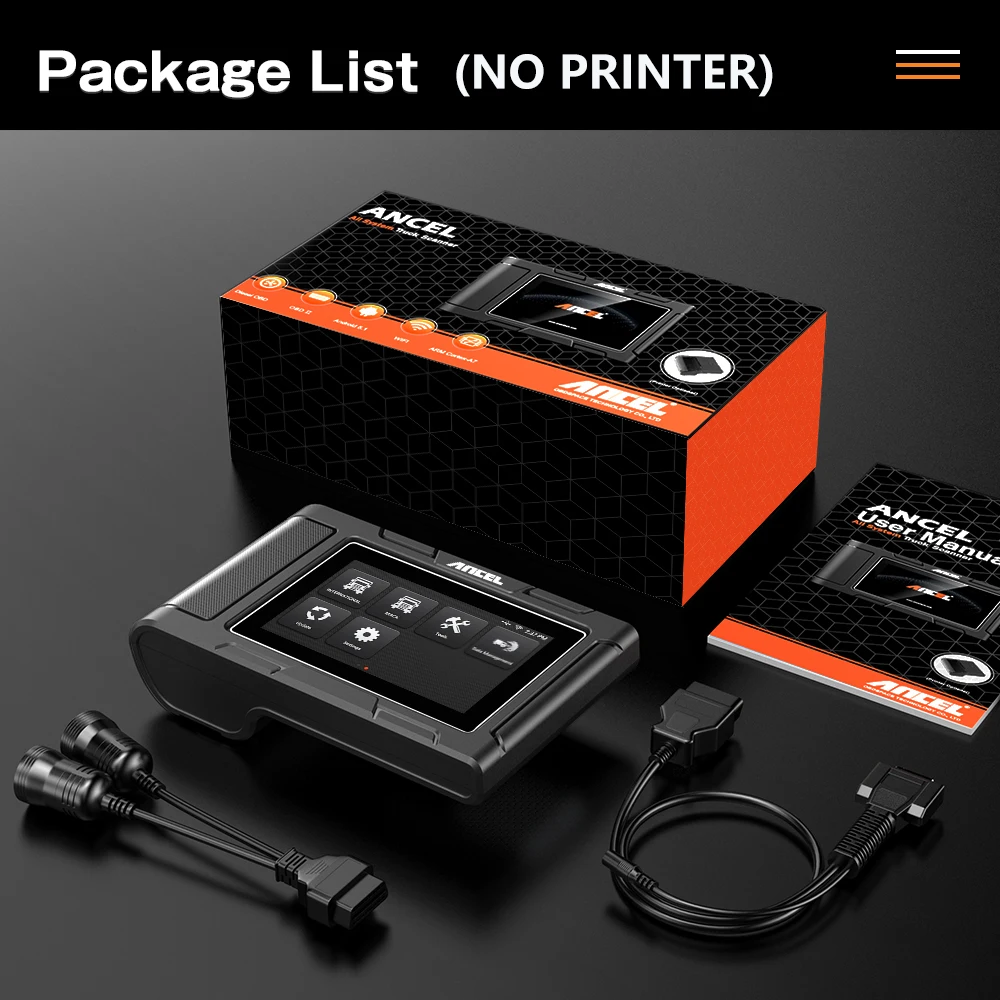

Pinter Optional
