HUION Kamvas 12 Graphic Tablet Monitor Portable 11.6 Inch Anti-glare Screen Drawing Pen Display Support Windows Android MacOS

AG Screen Protector

① Alleviate the glare effect caused by surroundings and impove the brightness.

② Matte finish that is more similar to the texture of paper.

Full-laminated screen

①Parallax is minimized as the air gap between the IPS screen and AG glass is eliminated.

②More luminace comes through the AG glss and thus an optimized drawing experience.

120% sRGB color gamut

*Boasting 16.7M（8bit）display colors, 120% sRGB color gamut ensures a better display effect with more natural colors.

8192 levels of pressure sensitivity

Enables lines input to be rendered in various thickness just like real pen work on the paper.

5080LPI Pen Resolution

Works together with the latest battery-free digital pen PW517 to ensure a more clear image with delicate details.

PenTech 3.0 Battery-free Pen

① Lower Magnetic Core Position, Higher Drawing Accuracy

② The magnetic core is only 3.5mm above the pen nib of PW517, and thus brings higher drawing accuracy.

Tilt support

① Brush can be tilted in the range of 60 degrees without compromising accuracy.
② Various drawing techniques.
③ A more lifelike drawing experience.

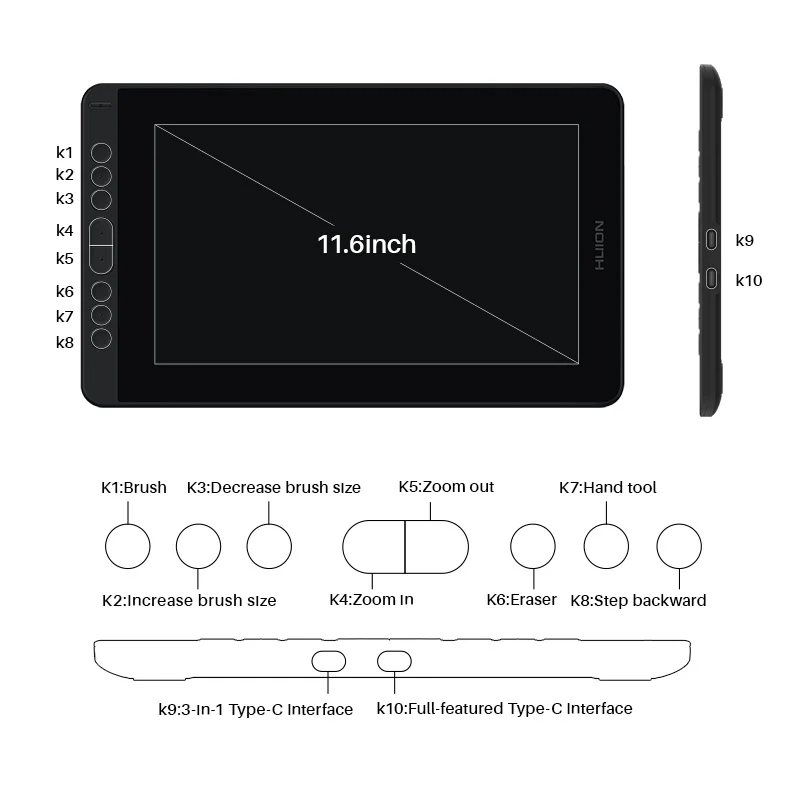

Press Key

① 8 programmable press keys are created to maximize your working efficiency.
② The concave surface of press key to optimize user experience.
③ User-friendly design with Braille on keys to facilitate your operation.

OSD Menu

switch between OSD menu & shortcut key functions:

① Long press K4 and K5 for about 3 seconds to call up the OSD menu. The green power indicator will flash and the function of K2, K3, K6 and K7 will be switched as follow.

② K2:This button can be used to automatically adjust the canvas, and when it comes to the OSD menu, it will serve as a return key.

③ K3：Button to call up OSD menu. On OSD menu, it will serve as a key for you to confirm your operation.

④ K6: Button that is equivalant to “+”. You can use it as Up or Right key.

⑤ K7: Button that is equivalant to “-”. You can use it as Down or Left key.

⑥ quit OSD menu: Long press K4 and K5 for about 3 seconds.

Connectivity with Android Device

*Support usability on phones via USB-C to USB-C cable (optional) connection.

Pen Tablet Mode

*Pen Tablet mode will be activated when the screen is off, which helps save power to offer a longer working time.

Method to activate Pen Tablet Mode:

① In case the pen display is off, just connect the pen display to the laptop with a USB cable and power the laptop on.

② In case the pen display is on, please power it off first and then reinsert the male plug of the USB cable to the pen display.

3-in-1 Cable（HDMI Mode）:

*Insert the USB-C male plug of the 3-in-1 cable to the USB-C port on the device ①, and then connect the HDMI and the black USB-A cables to the PC respectively.

*If the output voltage of PC is insufficient, in such case, you need to insert the red male plug of 3-in-1 cable into a power adapter/USB 3.0(or above) port.

USB-C to USB-C Cable（DP Mode）：

*Connect the pen display to PC or Android device with the USB-C to USB-C cable(optional) via port ②,

* When an Android phone/tablet is connected or the guage of laptop is insufficient, please use the USB power adaptor(optional on K12/K13,standard on K16 ) and USB charger cable(optional) /3-in-1 cable to power up the device via port ①.

What's in the box

1, digital pen
2, pen nib×10
3, pen holder
4, pen clip
5, pen display (2 colors)
6, 3-in-1 USB-C cable
7, extension cable
8, quick start guide
9, warranty card
10, cleaning cloth
11, glove

*USB-C to USB-C cable and foldable stand are optional
