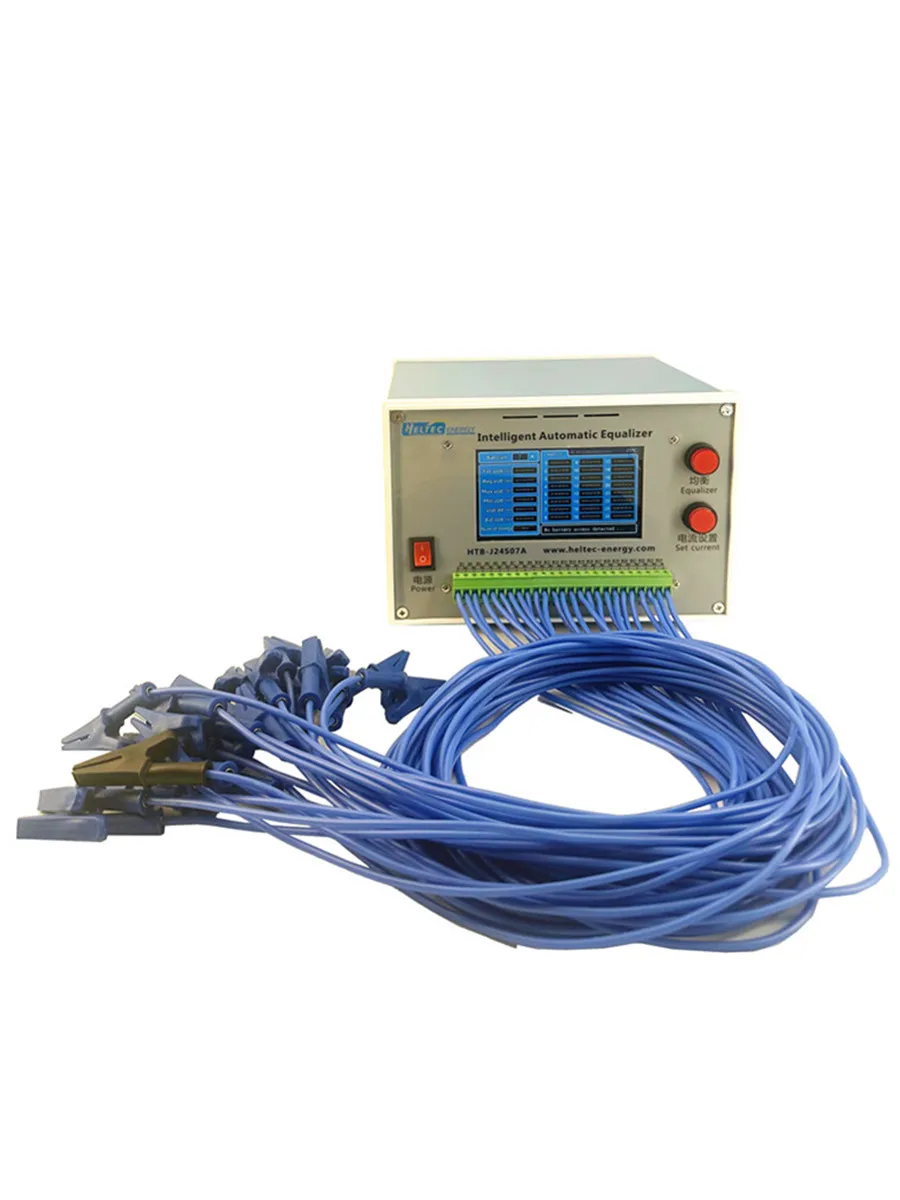

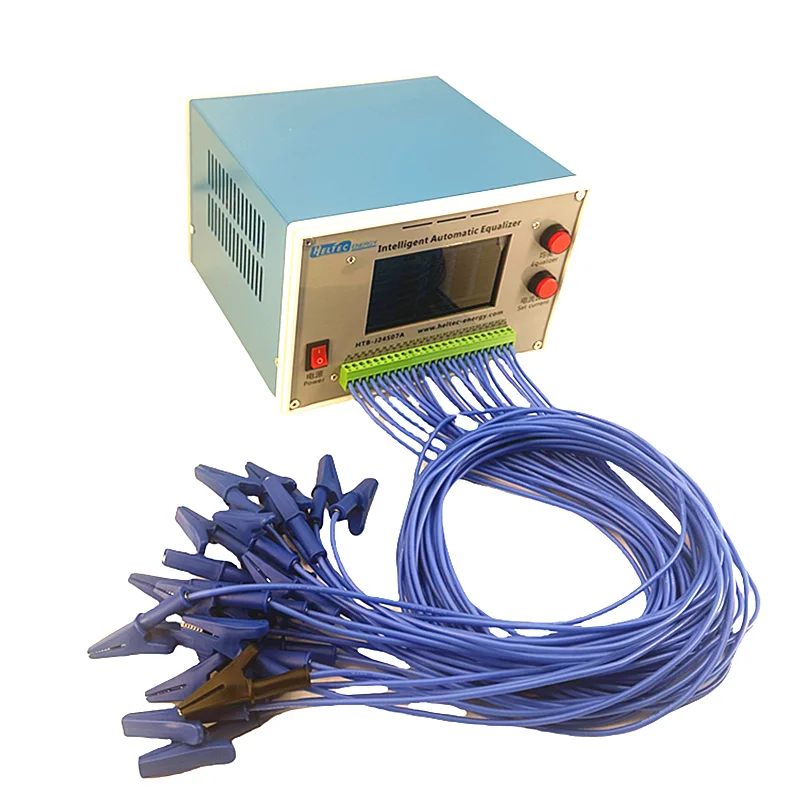

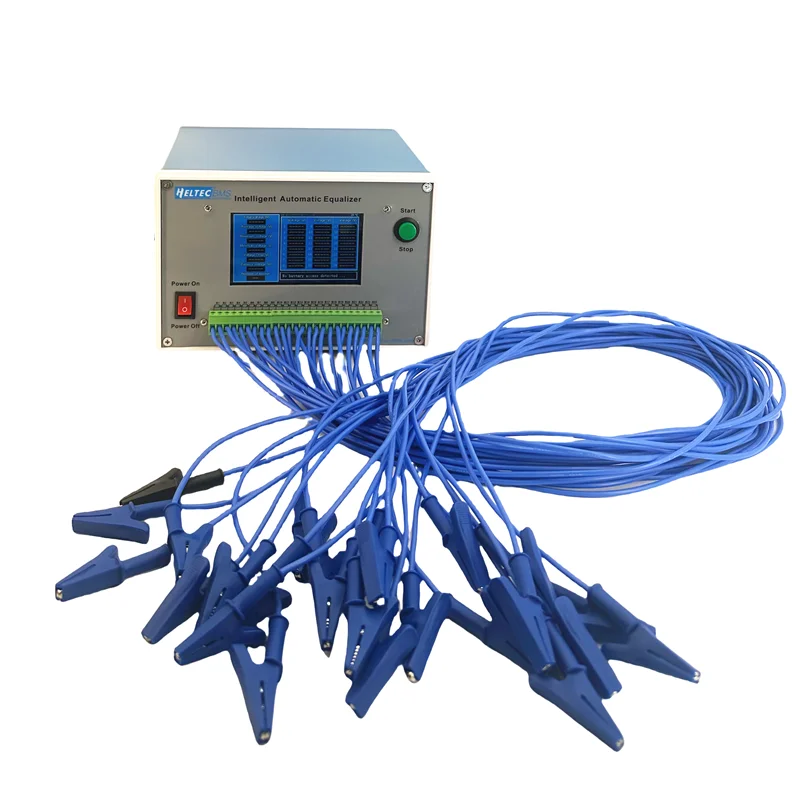

2~24S 3A 4A Intelligent Automatic Equalizer/Discharge Balancer for Lipo/Lifepo4/LTO 1.5-4.5V Battery Balancer Maintenance/Repair

Summary

This equalizer directly displays the sum and voltage difference of each string

Solves the problem of battery pack unbalance with one button

The equalizer starts the equalization with one button, and automatically stops after the equalization is completed, and warns

Our equalizer will not charge the batteries during the equalization process. So don't worry about the danger of overcharging the balance

Note:

Before balancing, please check whether the lowest voltage is lower than the battery's over-discharge voltage. If it is lower than the battery's over-discharge voltage, please charge the balance first, and the battery is fully charged and then balance, the effect will be better.

Feture

Support 2~24 series lithium battery pack, support ternary lithium, lithium iron phosphate, too cobalt lithium, support 1.5V~4.5V battery, the voltage is out of range, it will sound a warning and display

Reverse connection warning and reminder: after connection reverse, overvoltage (greater than 4.5V), low voltage (less than 1.5V) protection functions are balanced, it will automatically stop, and a warning sound will sound to indicate that the balance is complete.

Power supply: DC12V 4A

Single channel voltage measurement range: 1-5V

Single channel voltage display accuracy: 0.001V

Single channel voltage acquisition accuracy :±(0.05%+0.003v)

Single channel voltage operating range: 2.0-4.5V

Adjustable balance current: 1A-4A/1A-7A(The smaller the voltage, the larger the impedance, the smaller the balance current)

Applicable battery type: ternary lithium, lithium iron phosphate and other battery voltage between 2.0v-4.5v

Operating temperature: 0°C-50°C

Working humidity: 20%-80%RH

Working environment: no corrosion, explosive and damage insulation gas and conductive dust

Cable

Pure copper crocodile clip

16AWG silicone wire 1 meter

Battery maintenance steps:

There is a bad battery cell:

1)replace the battery cell

2)fully charged

3)balancing

4)fully charged

5)battery maintenance completed

There is a bad battery cell:

1)replace the battery cell

2)fully charged

3)balancing

4)fully charged

5)battery maintenance completed

●Discharge method:

Advantage:

1. Don't charge the batteries, don't worry about overcharging problems

2. The speed of the whole equalization process is the same, and the equalization speed is fast

Disadvantages:

Since the equalization method is to discharge the high-voltage string energy until it is equal to the lowest voltage string, the excess energy is wasted.

Package Include A

Package Include B
