2 In 1 AM/FM DAB 10 DB Car Ceiling Antenna Set 1452-1492 MHz Aerials Amplifier 12V 58 Cm GPS Receiver Antenna Cables Adapters

Features:
1. Very competitive high-performance hoisting DAB and AM/FM antennas.
2. FM and DAB combined antenna for ceiling installation. In this way, the factory roof antenna can be replaced to use it with DAB and FM without adding other DAB antennas.
3. The built-in amplifier of the antenna will increase the DAB and FM signals, which can receive signals even in areas with poor radio reception.
4. Install active AM/FM DAB and car antenna on the roof. DAB frequency range: 174-237MHz/1452-1492MHz| Gain: 10dB| AM/FM frequency: 525-1700Khz/ 87.5-108MHz| Gain: 7dB
5. Scope of Application: Digital broadcasting DAB and AM/FM.
Specifications:
Gain: about 10 dB
Antenna angle: about 75°

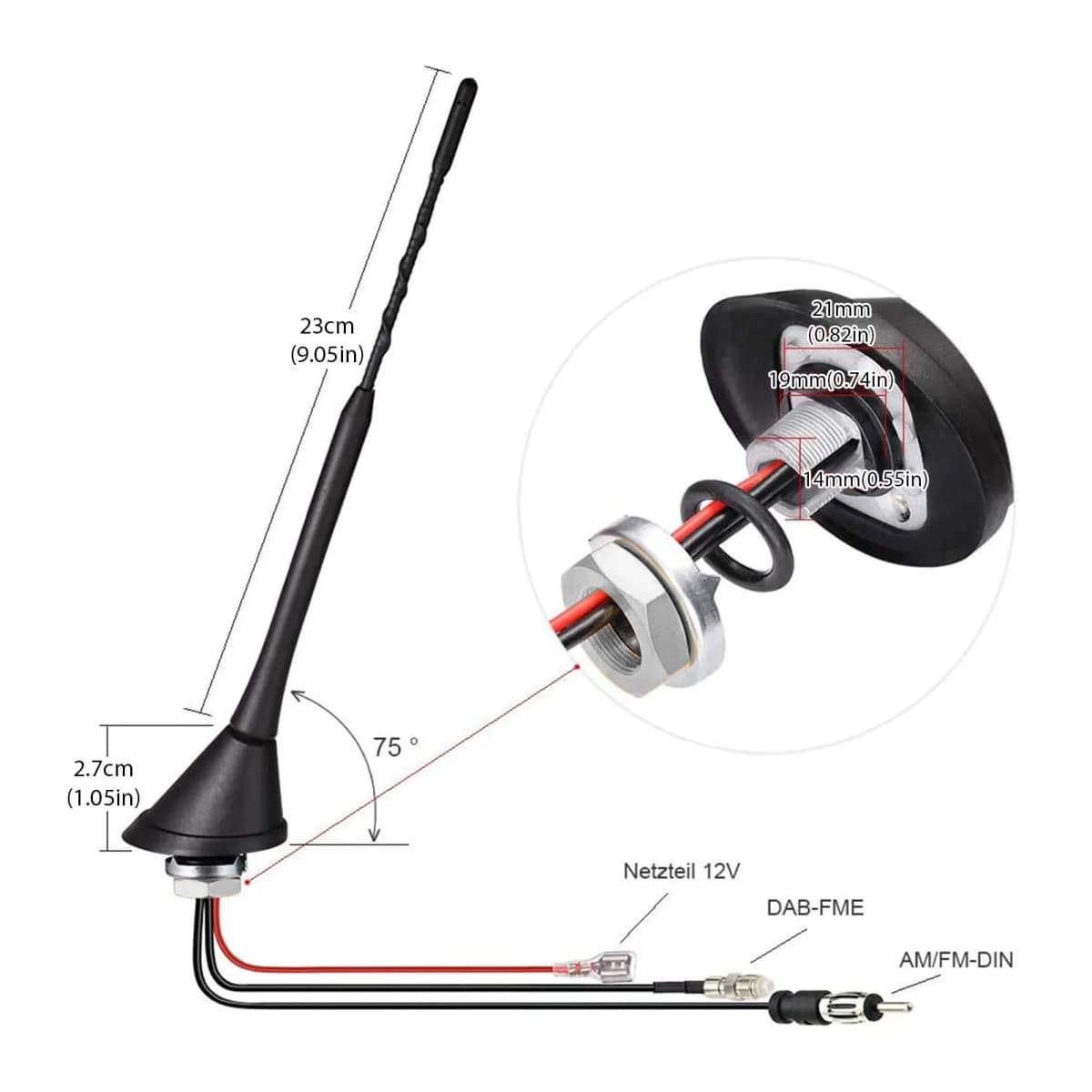

Antenna size: about 58x45x270mm/2.28x1.77x10.63 inch
Material: rubber/glass fiber antenna pole
Mechanical cable: RG174
Cable length: about 5m/196.85 inch
Connector: DAB antenna: AM/FM antenna
DAB antenna and amplifier:
Frequency range: 174?237MHz/ 1452?1492MHz
Band: DABBⅢ/L band
Linear polarization
Impedance: 50Ω
Gain: 10±2dB
Power supply voltage: 12V DC
Current consumption: 40mA
FM/AM antenna and amplifier:
Frequency range: 520 to 1629KHz/ 76 to 108MHz
Band: AM/FM
Connector: DIN connector
Linear polarization
Impedance: I<90 pF FM: 75-150Ω
Gain: AM 6dB FM: 7dB
Power supply voltage: 12V DC
Current consumption: 60mAh
Surroundings:
Working temperature: -40°C- + 85°C
Relative humidity: up to 95%
Protection grade: IP65- IP66 (excluding cable outlet)
Vibration: 10 to 55Hz, amplitude 1.5mm 2 hours
Meet: ROHS
Packing List:
1 Set of Antenna
