(Custom)UART2 Electric Bike Bicycle LCD Display Meter SM/Waterproof Connection Plug Ebike Intelligent Display

Q: What kind of car is suitable?

A: Sorry, due to the different internal parts of the vehicles, we cannot determine which model is suitable. We only apply the UART2 protocol controller.

Q: I don't know the agreement. How can I check it?

A: You can look for it from the appearance of the controller, the manual of the controller or the old display screen, and the seller of the controller or the old display screen.

Q: Can the UART protocol be used?

A: No, there are many protocols in UART, such as bafang, kds, etc. UART2 is just one of them

Q: May I ask if the speed limit can be lifted?

A: It depends on whether your car is limited by the controller or the display screen. If the controller limits the speed, there is no way to lift the speed limit. If the display screen limits the speed, the speed limit can be lifted

Q: Can I try out this product? If it doesn't suit me, can I return it?

A: No, no returns or exchanges for non-quality issues.

Q: What voltage range does your display screen support?

A: Our display supports 24V/36V/48V/60V.(The S810 only supports 36v.)

Q: How to change the speed?

A: You can enter the menu by long pressing the + and - keys, and then short press the power button to switch to P08. After entering P08, use the + key to set the desired speed. After adjusting, long press the + and - keys to save and exit the menu.

Q: Is an immediate speed limit of 25 kilometers supported?

A: The specially customized version can support a fast speed limit of 25 kilometers per hour, while the regular version does not.

Product Name: H6C Bicycle Accessory（3252）

Dimensions: 71.3mm x 116.1mm x 22.8mm

Functions: Battery indicator; headlight control; boost function; assist levels; speed display; trip/total mileage; running time; metric/imperial conversion; fault indicator; walking; PAS levels; speed; riding time; error warning

Communication Method: UART 2

Compatible Handlebar Sizes: 22.2mm / 25.4mm / 28.6mm / 31.8mm

Compatible Voltage: 24V / 36V / 48V / 60V

USB Charging: 5V / 500mA

Product Name: M6C Cycling Speed Odometer  （3252）

Dimensions: 98.1mm x 61.9mm x 24.6mm

Functions: Battery indicator; headlight control; boost function; assist levels; speed display; trip/total mileage; running time; metric/imperial conversion; fault indicator; walking; PAS levels; speed; riding time; error warning

Communication Method: UART 2

Compatible Handlebar Sizes: 22.2mm / 25.4mm / 28.6mm / 31.8mm

Compatible Voltage: 24V / 36V / 48V / 60V

USB Charging: 5V / 500mA

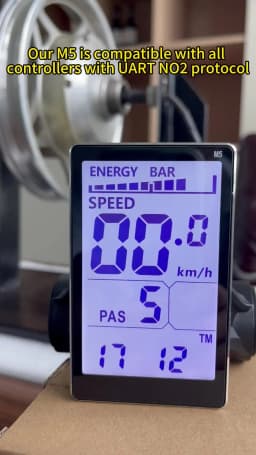

Product Name: M5 Cycling Speed Odometer（3252）

Dimensions: 93.4mm x 56.4mm x 9mm

Functions: Battery indicator; headlight control; boost function; assist levels; speed display; trip/total mileage; running time; metric/imperial conversion; fault indicator; walking; PAS levels; speed; riding time; error warning

Communication Method: UART 2

Compatible Handlebar Sizes: 22.2mm / 25.4mm / 28.6mm / 31.8mm

Compatible Voltage: 24V / 36V / 48V / 60V

USB Charging: 5V / 500mA

Q: What kind of car is suitable?

A: Sorry, due to the different internal parts of the vehicles, we cannot determine which model is suitable. We only apply the UART2 protocol controller.

Q: I don't know the agreement. How can I check it?

A: You can look for it from the appearance of the controller, the manual of the controller or the old display screen, and the seller of the controller or the old display screen.

Q: Can the UART protocol be used?

A: No, there are many protocols in UART, such as bafang, kds, etc. UART2 is just one of them

Q: May I ask if the speed limit can be lifted?

A: It depends on whether your car is limited by the controller or the display screen. If the controller limits the speed, there is no way to lift the speed limit. If the display screen limits the speed, the speed limit can be lifted

Q: Can I try out this product? If it doesn't suit me, can I return it?

A: No, no returns or exchanges for non-quality issues.

Precautions:

If the display shows E10 after connecting, there are two possibilities:

1.The communication protocol between the display and the controller is incompatible.

2.The vehicle’s overall condition is poor, potentially affecting the boost controller, knob, or motor, which may cause communication failure with the dashboard.
