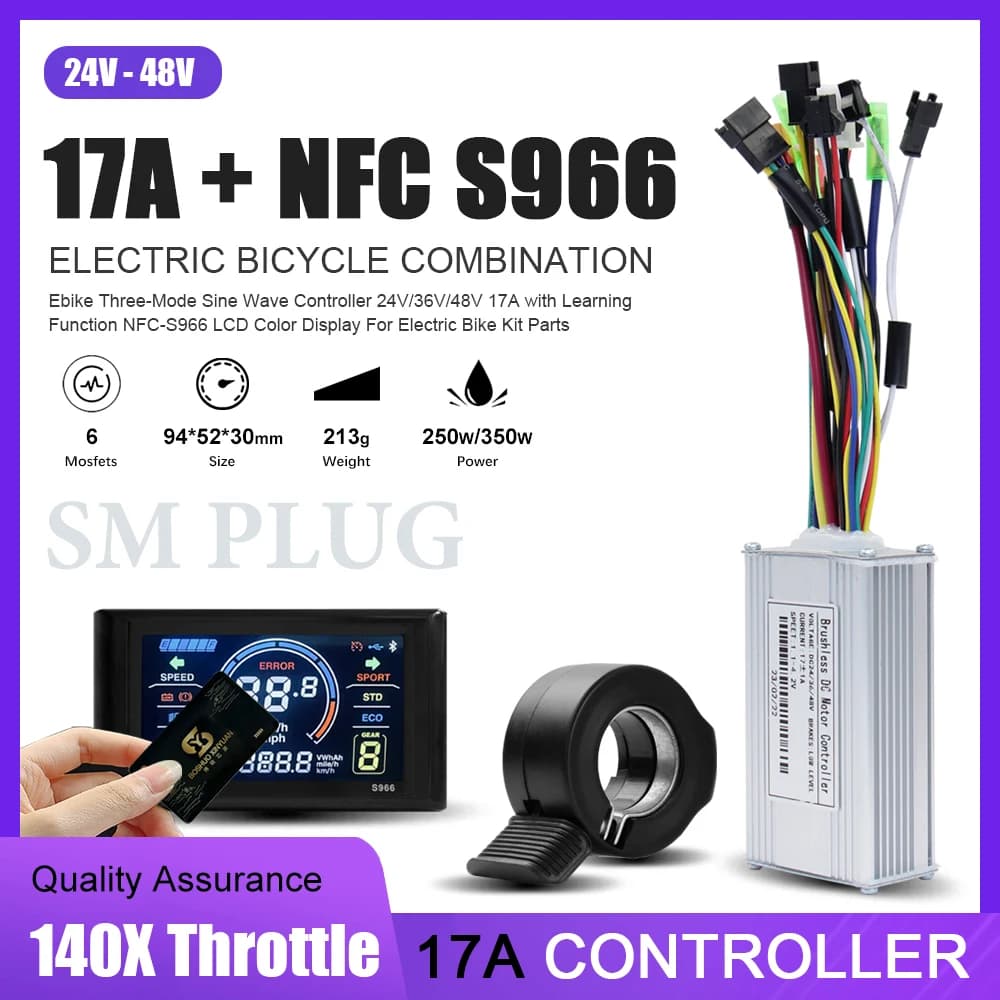

3mode 17A Sine Wave Controller 36V48V 250W350W Brushless Motor Controller UART Protocol No.2 ,No Hall Work ,for E-Scooter Bike

Code (Decimal) Indication Note
0 Normal
1 Reserved
2 Brake
3 Power Sensor Error (riding mark) Not realizable
4 Reserved
5 Reserved
6 Low Battery Voltage
7 Motor Error
8 Throttle Error
9 Controller Error
10 Communications Receiving Error
11 Communications Sending Error
12 BMS Communications Error
13 Light Error

S966-NFC LCD Display Parameter：
Voltage : 24V 36V 48V 52V
Plug : 5Pin male Waterproof Plug
Holder Diameter :φ22mm
Cable Length:20cm (Waterproof Plug)
S966-NFC Functions:
❶It has most practical functions, such as battery display, speed indicator, mileage statistics, etc
❷Comes with 2 NFC cards, which can realize keyless start and lock functions.Can be combined with the NFC function of mobile phones (NFC function is required for mobile phones) to achieve the functions of opening and locking the E-Bike.
P03: Voltage Level: 24V /36V (default) / 48V
P06: Wheel Size. Unit: inch Precision: 0.1
P07: Magnetic Steel Number for Speed Test. Range: 1-100
P08: Speed Limit ,Range: 0-50km/h, parameter 50 indicates no speed limit.

17A Sine Wave Controller
Size(L*W*H):About 97*30*52mm
Rated Power:350W
Speed Set:1.1-4.2V
Mosfet:Big 6 Mosfets
Booster:1:5
Brakes:Low-Level
Rated Voltage:DC24/36/48/52V
Compatible with motors with or without Hall
With motor forward and reverse learning function
