LinHi Electric Bicycle Modified Bike Light Waterproof kit Universal 24V 36V 48V 60V BAFANG KUNTENG JULET Steering Brake lights

Features:

1, easy to install fast installation

2, high power low light headlight with horn, taillight with turn signal, daytime running light, flash brake light.

3. Complete set of waterproof cables.

Combination configuration description:

1, custom version: suitable for most controllers, convenient for customers to connect to the controller

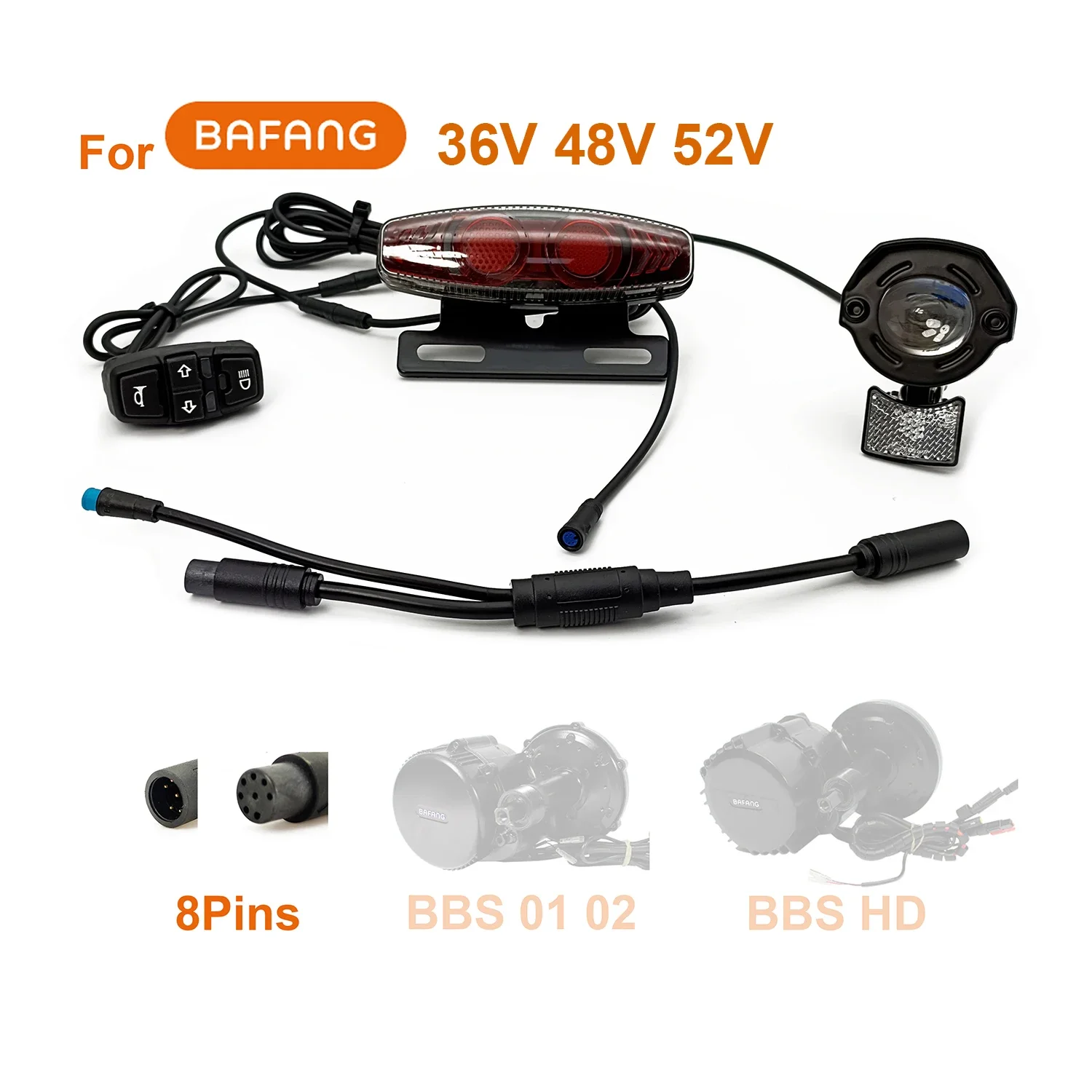

2, Bafang central BBS 01 02 HD: The lighting modification for the Bafang central five-way motor is only for these series, if you can not determine the model, please consult customer service

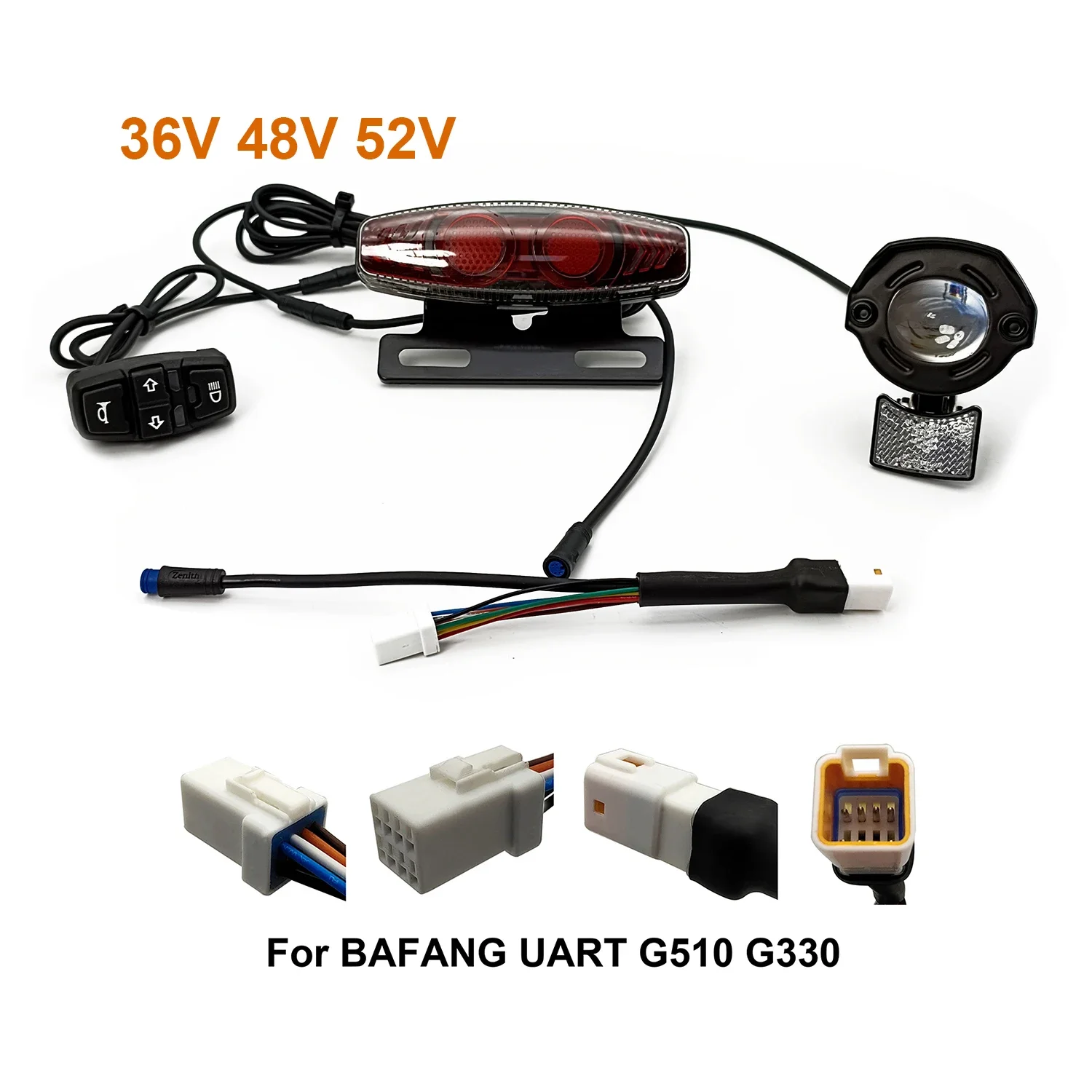

3, Bafang G510 G330 series: targeted special, Bafang central motor G510 is currently suitable for UART protocol type, not compatible with the new version of CAN protocol, please confirm the plug model before purchase please see the picture

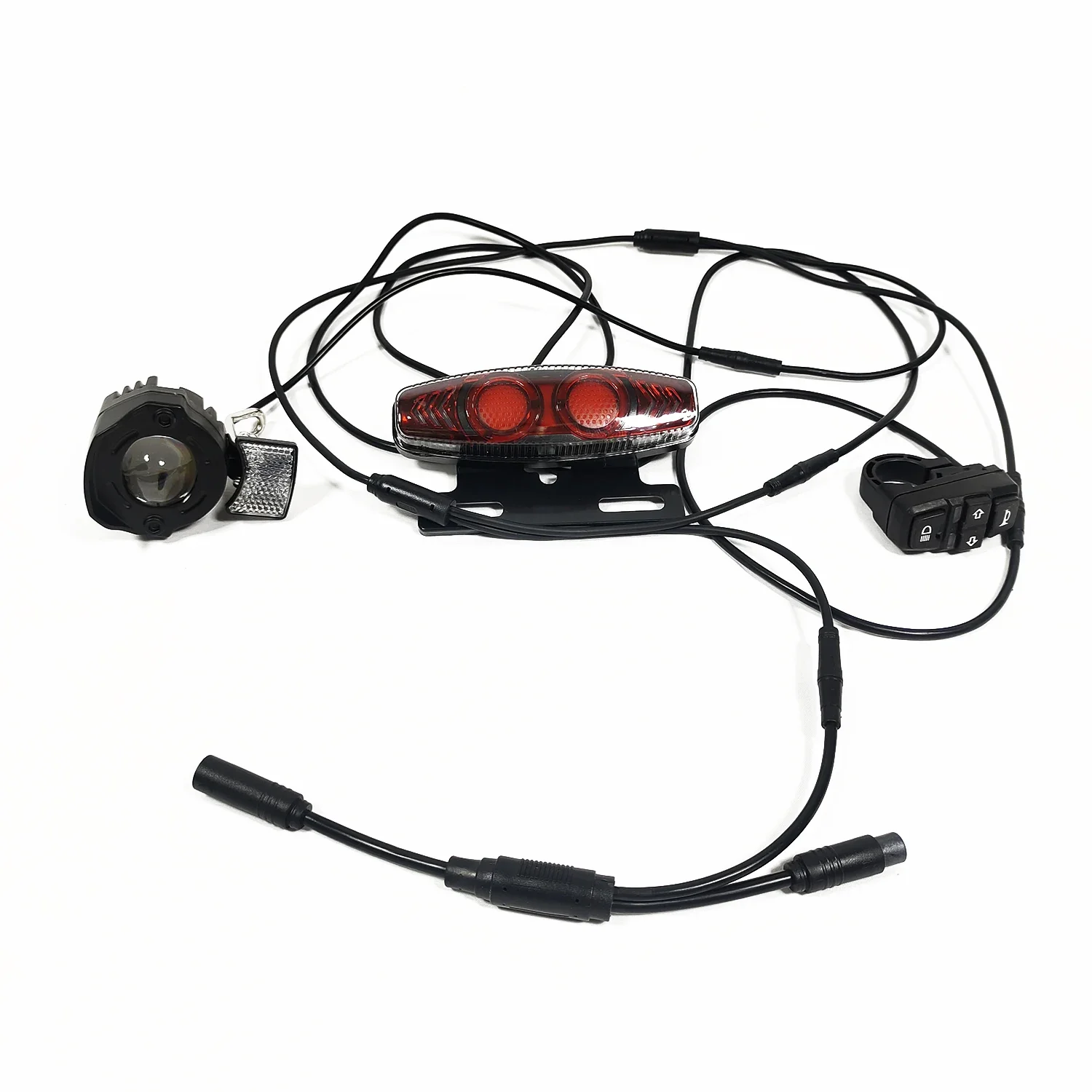

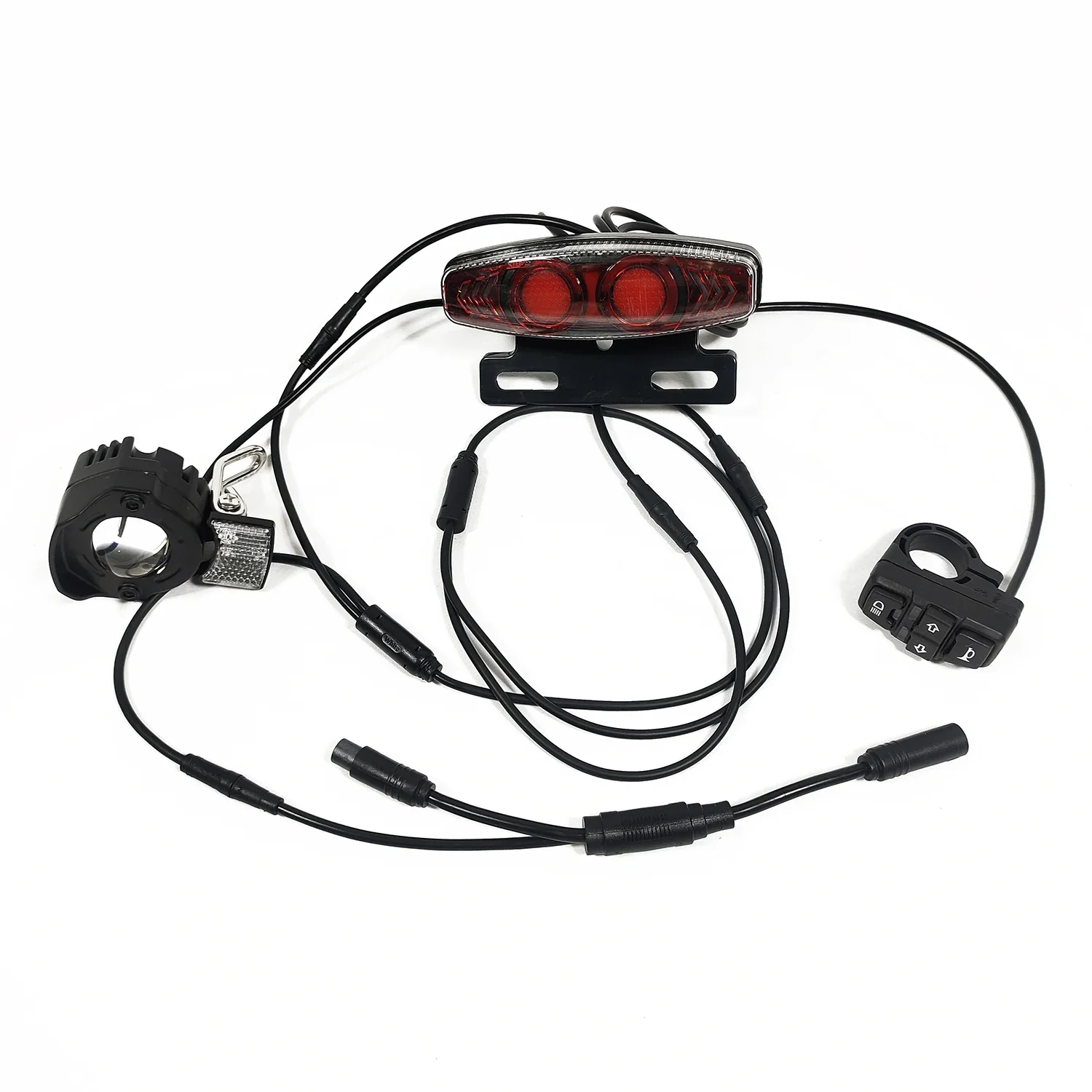

Packing list:

1, headlight *1

2, rear light *1

3, switch *1

4, integrated harness *1

Model: 30336205SF

Waterproof wire length:

Headlight: 27.5CM+ bus 28.5CM

Switch: 37CM+ bus 28.5CM

The bus contains a separated big head part: 42CM

Taillight: bus 15.5CM+145CM

Power supply: Bus 20CM

Please see the image for other data

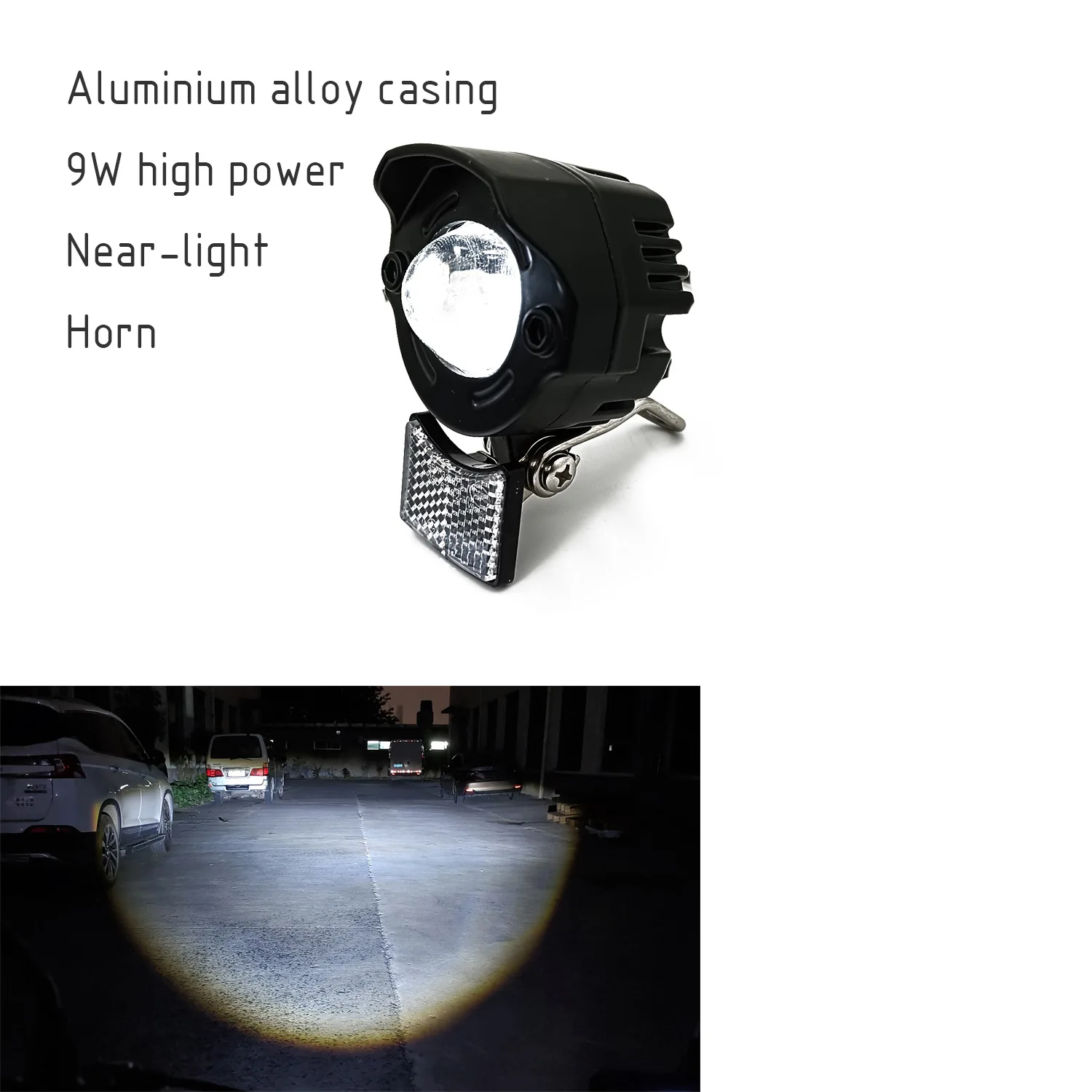

Headlights:

Weight: 133g

Product Model: Headlight Y30

Power input voltage: 24~48V (MAX60V)

Lamp current/power: 6W

Light bright [LM]: 650LM

Horn current/power: 44mA/2.1W

Speaker volume: 80~100dB

Product shape (50*62*73)

Taillight parameters:

Code: WD19

Tail light net weight: 125g

Case material: plastic

Applicable voltage range: 24-80V

Power: 1.5W

Number of light sources: 14

Luminous flux: 15LM

Product size: 110*65*25mm

Line length: about 1.45M

Taillight reflector:

Code: KM206

Size: 95*23*10mm

Certification: IA E4 02.3713 CQC GB/T 31887.2

Color: Red

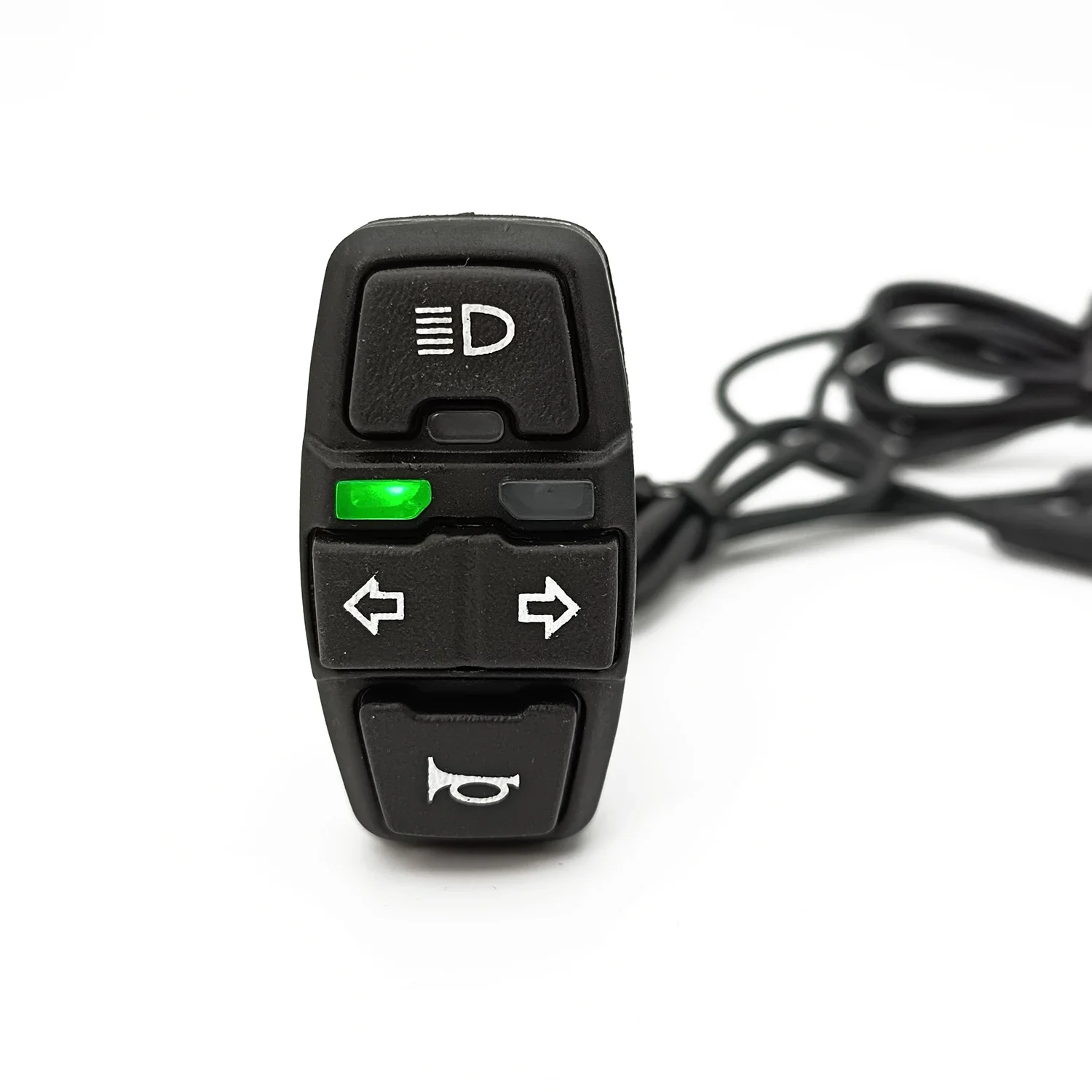

Switch parameters:

Code: Five Star DK2402

1, switch net weight: 92g

2, shell material: plastic

Product size: 30*55*80mm

Line length: about 1.45M

The following is compatible with eight central motor five tong BBS 01 02 HD version dedicated,

If you do not know, please provide a picture and text to confirm the order

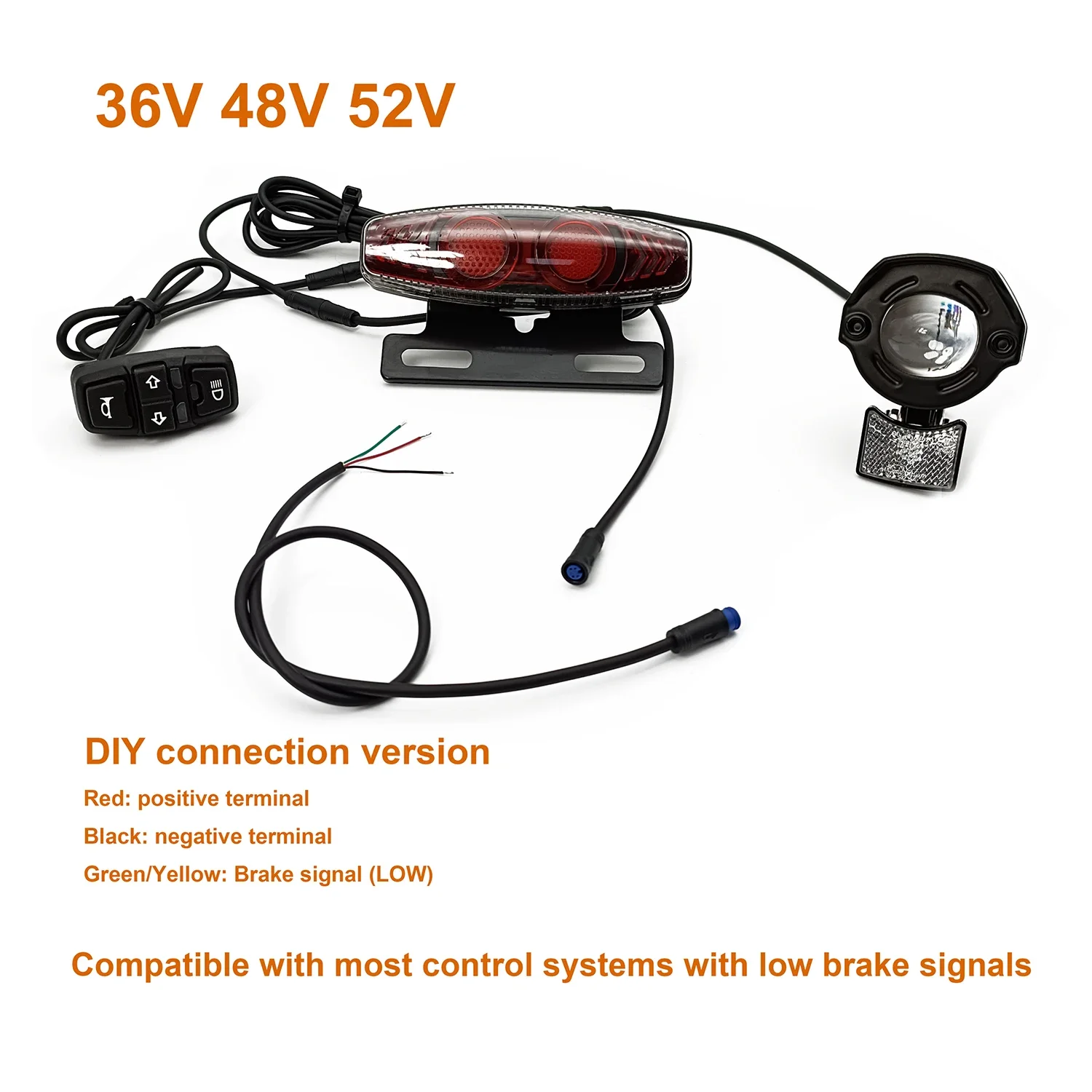

The following is the modified version of the custom wire, with a total of 3 cores.

Red: positive terminal of the power supply

Black: GND, the negative terminal of the power supply

Yellow: brake control signal (LOW brake LOW)

  Other pictures show：
