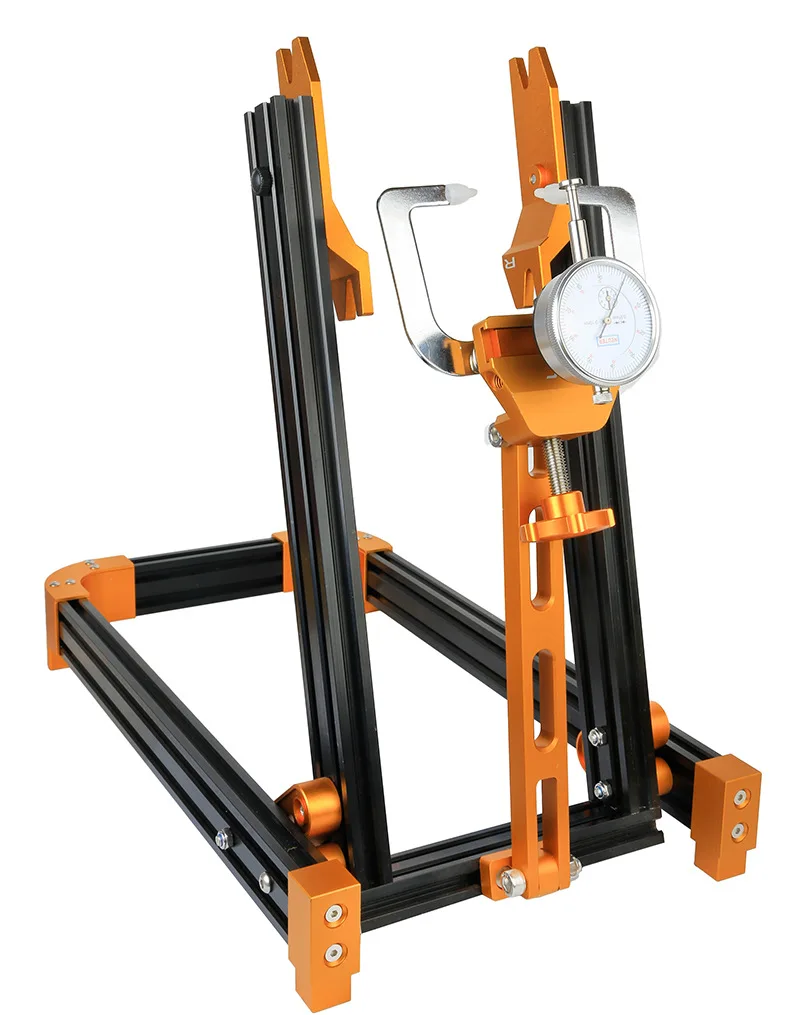

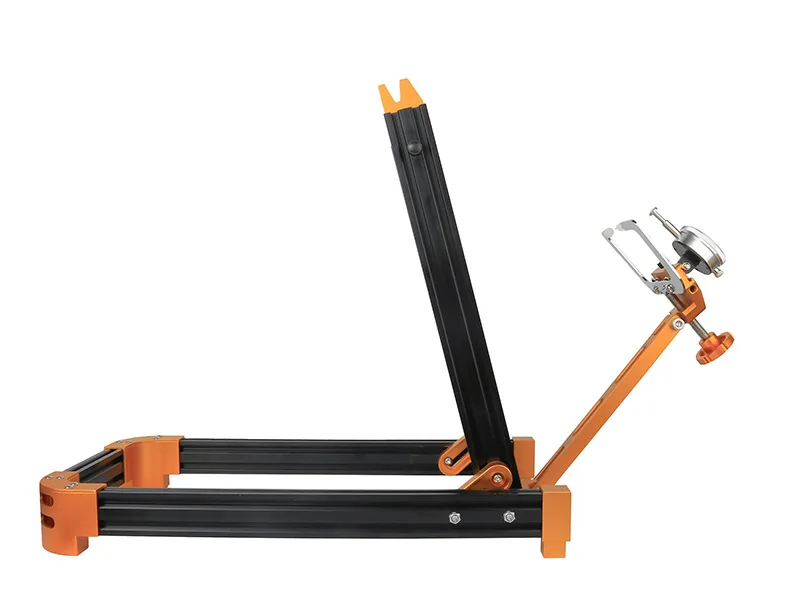

Name: Simple Folding Aluminum Wheel Alignment Table
Weight: approx. 3.35kg
Material: aluminum alloy, steel
Surface: anodized
Color: black gold
Process: CNC cutting
Measurement: Mechanical Percentage Gauge

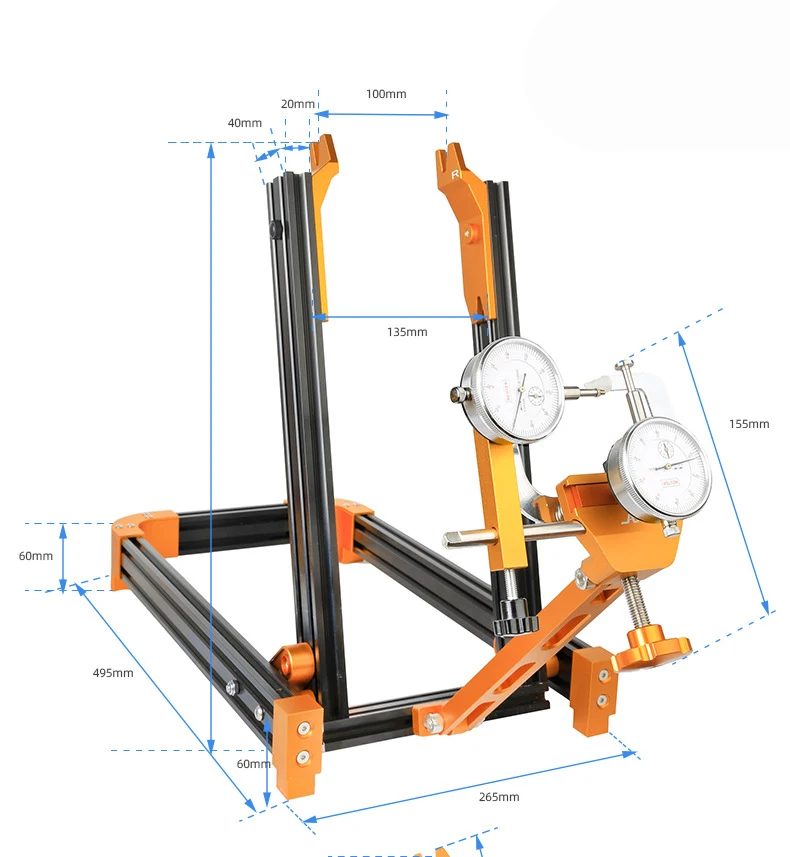

Opening: Quick release: 100-135mm Barrel shaft: 110~150mm
Applicable: Barrel axle, quick release can be used

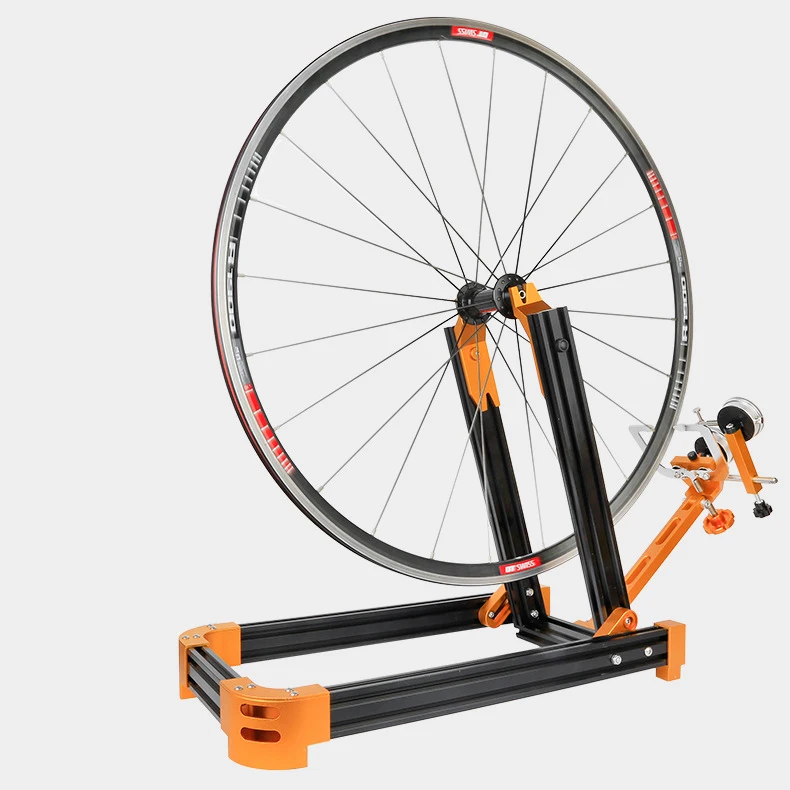

Wheelset for 14-16-18-20-22-24-26-27.5-700c-28-29
Box specification: 495*266*80mm
Note: The above information is measured manually or there is a slight difference, please prevail in kind!

Both quick release and barrel shaft models can be used.

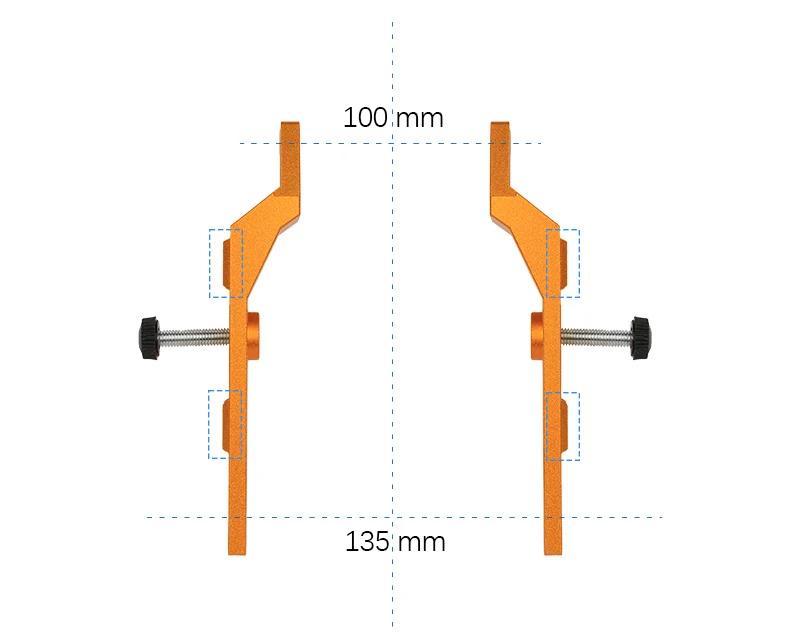

The quick release model is suitable for the front 100mm and the rear 135mm.
The barrel shaft model can be used for the front 110mm and the rear maximum 150mm.

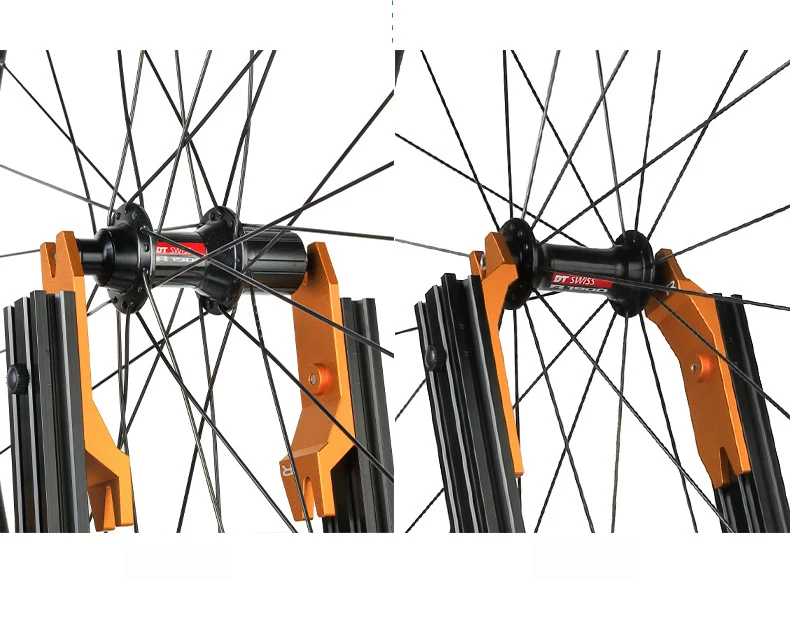

rear wheel front wheel

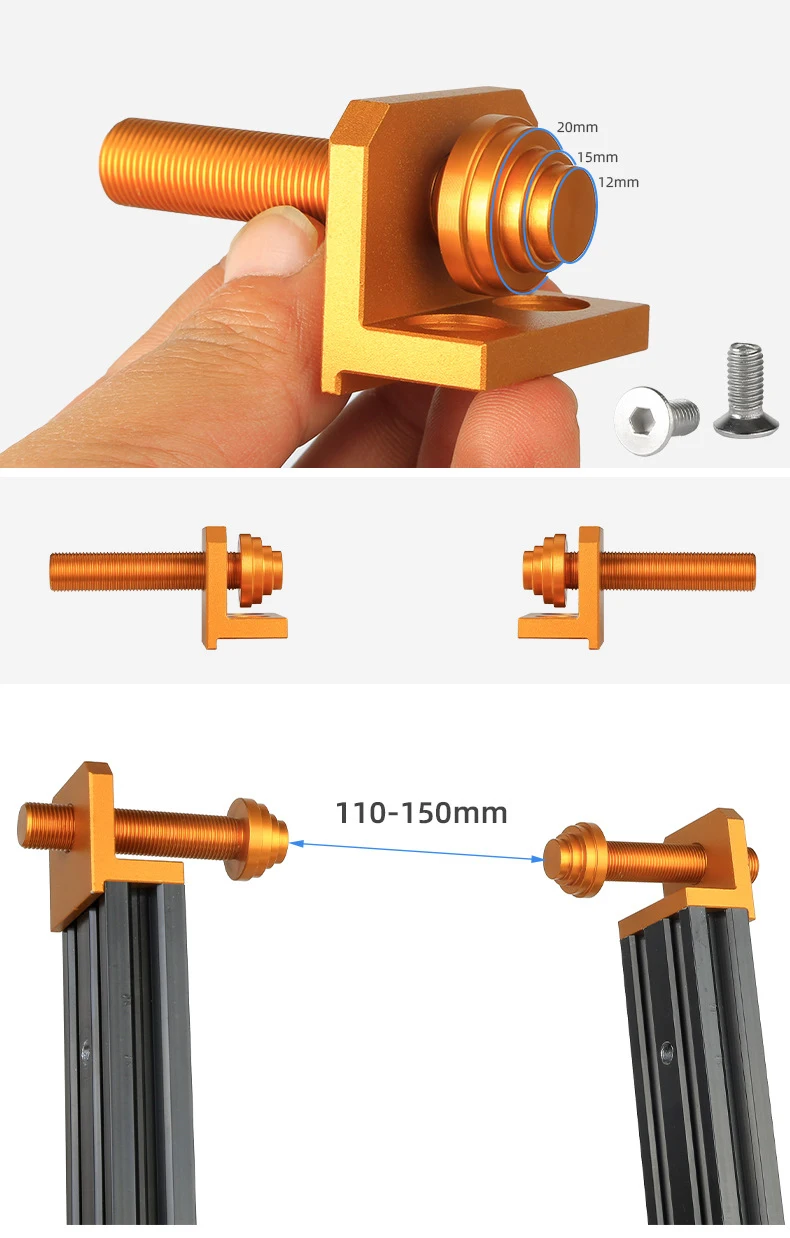

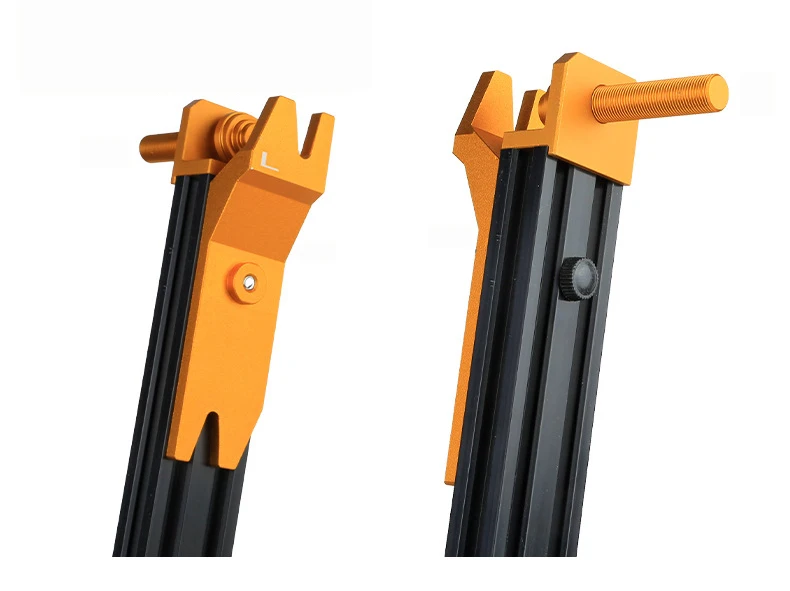

Applicable installation dimensions for barrel shaft hubs
12mm-15mm-20mm

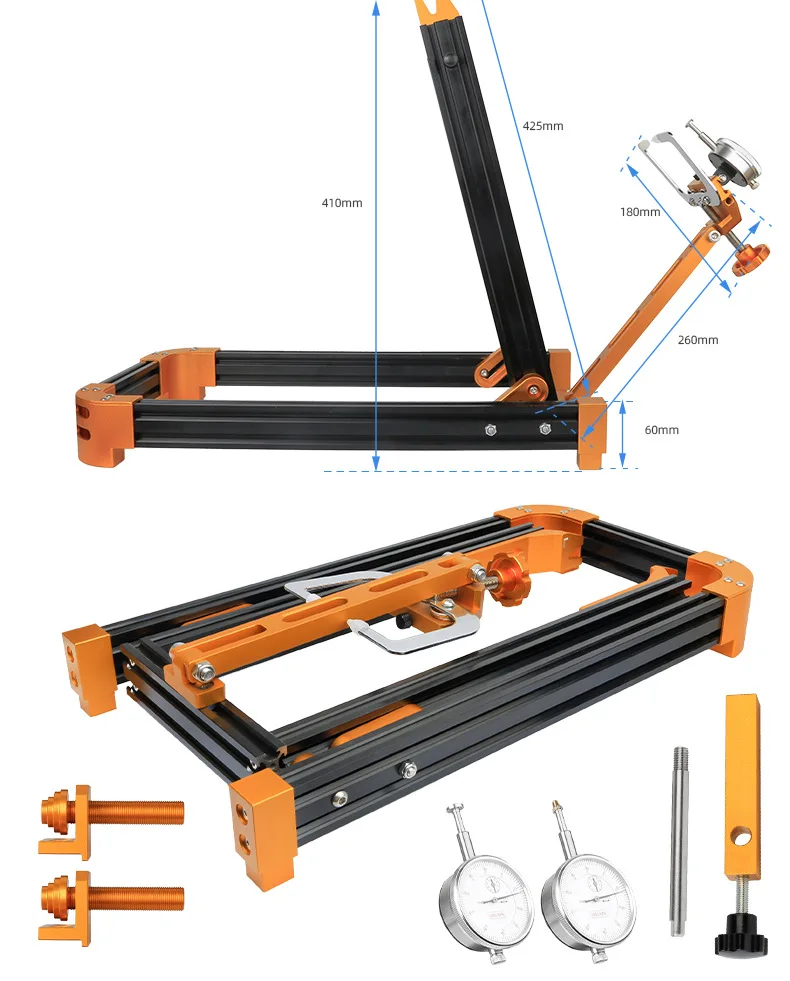

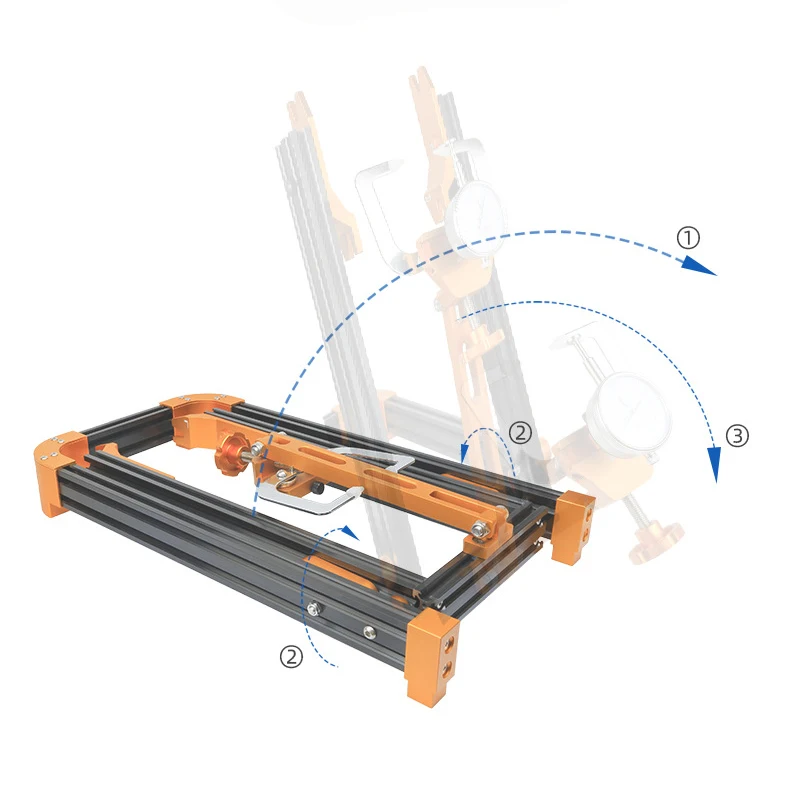

Folding/Use Steps

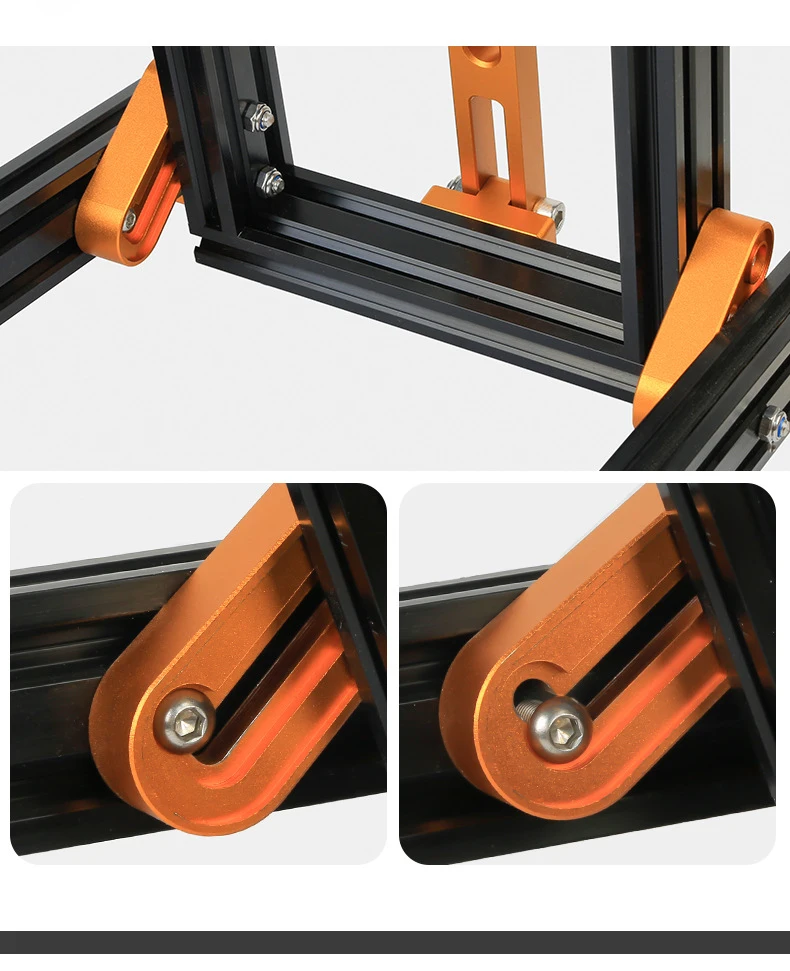

With its own buckle design, pull open and press down to preset the measurement angle according to the size of its own wheelset.

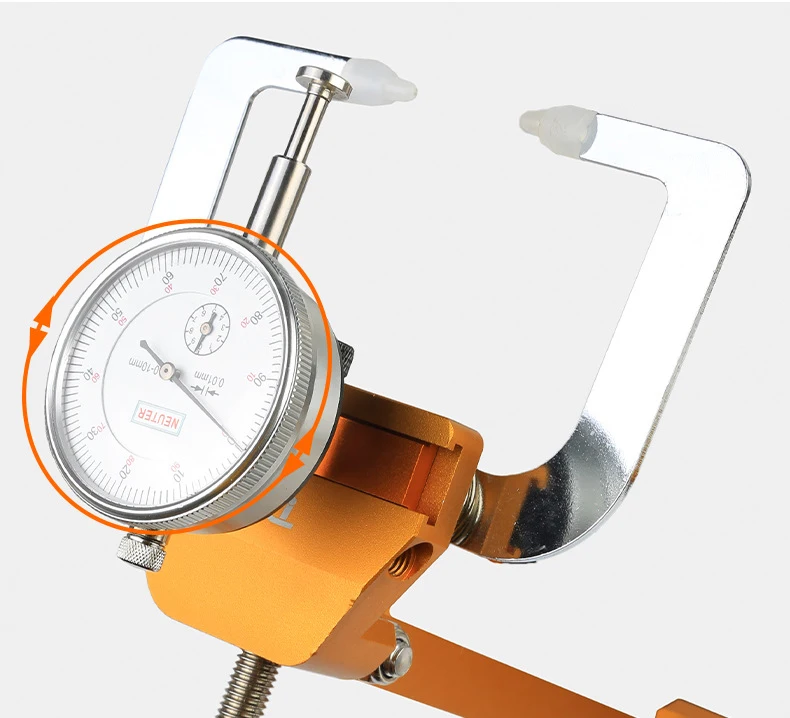

Mechanical watch manual adjustment reading zero
Zeroing by manual turning is easy and convenient

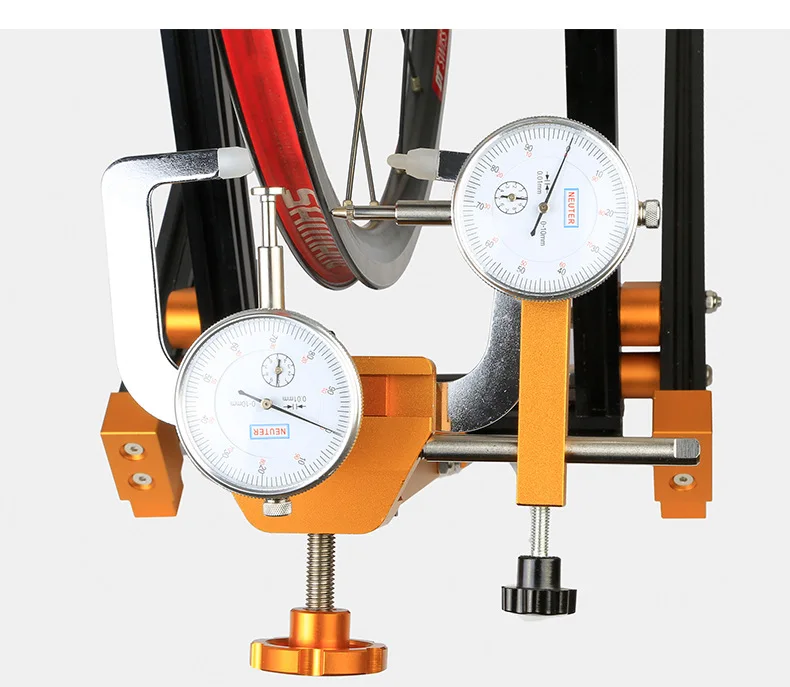

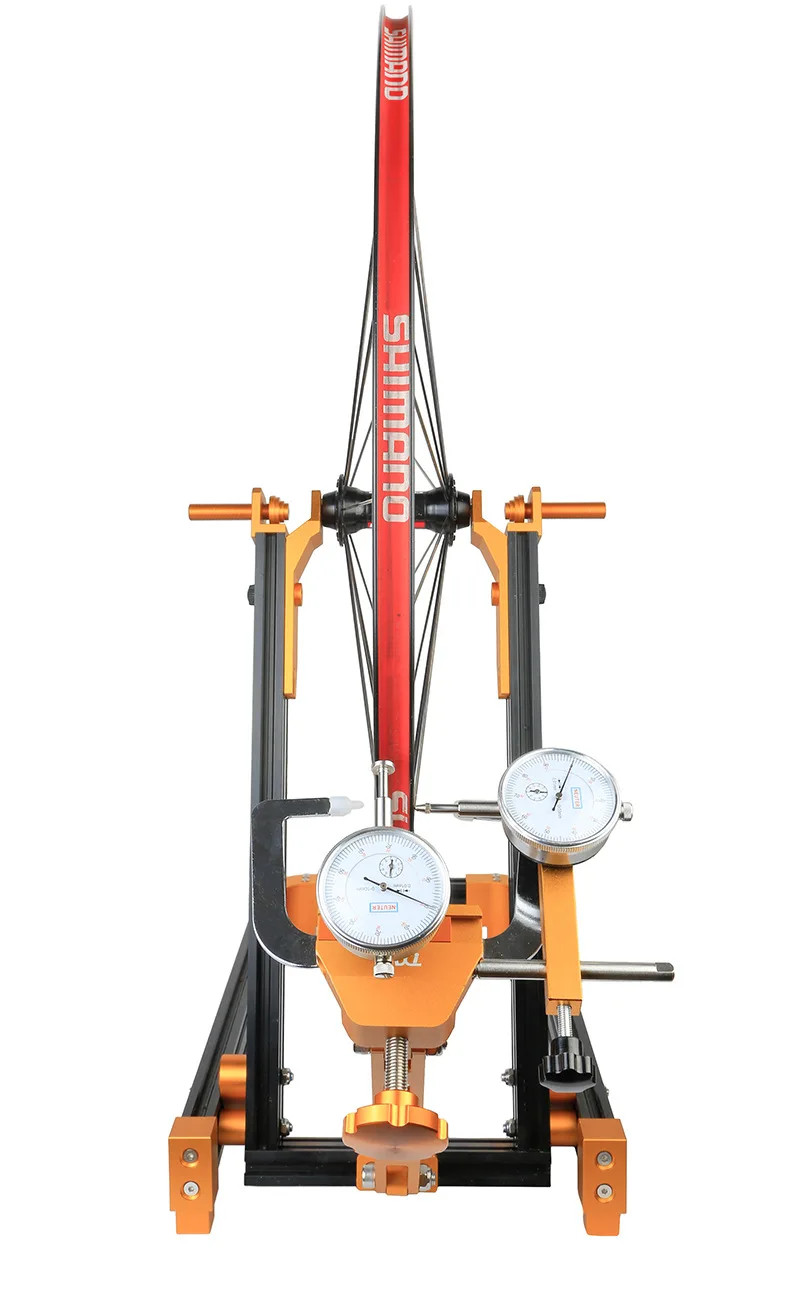

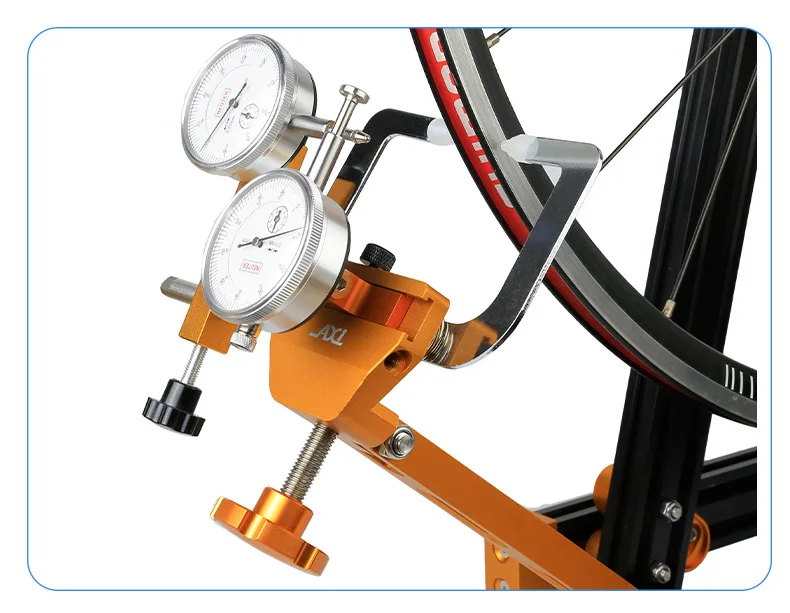

Percentage table measurement
High-precision percentage gauge for more accurate readings

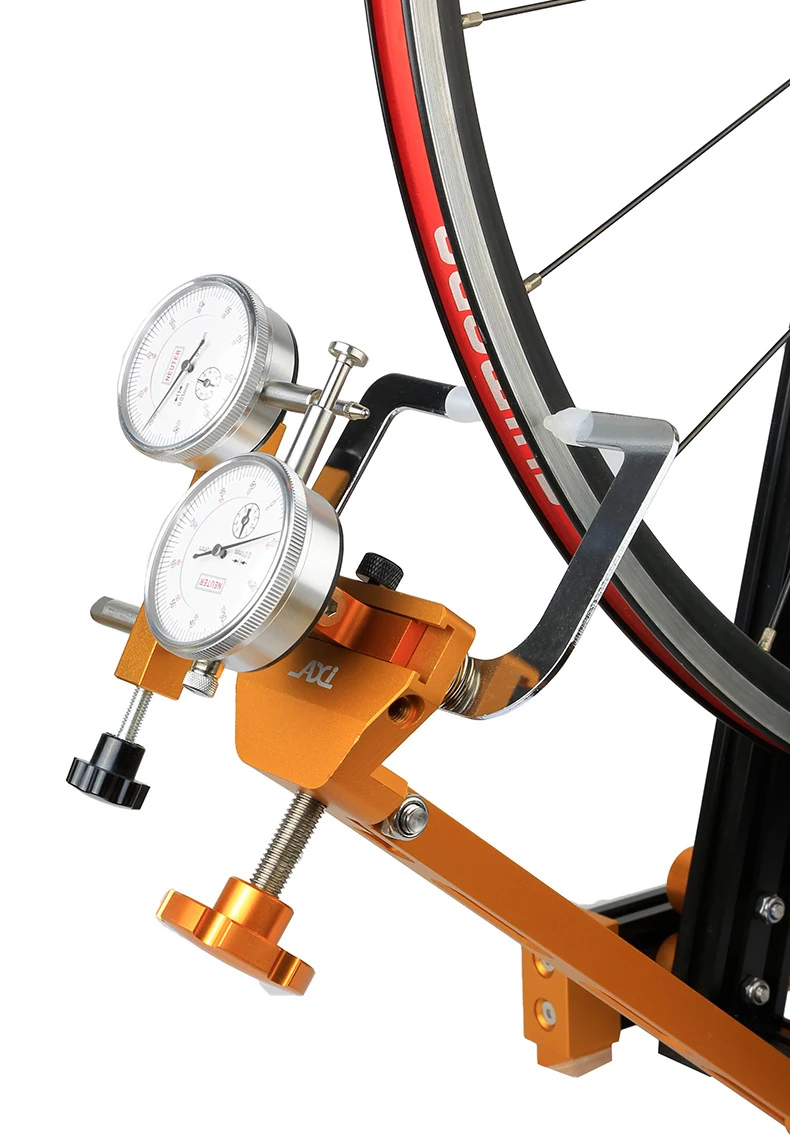

Rim elliptic coefficient rim preset tension when the detection of rim swing left and right to refine the rim swing adjustment.

Problems of swinging out of alignment
Can be adjusted left or right to install
