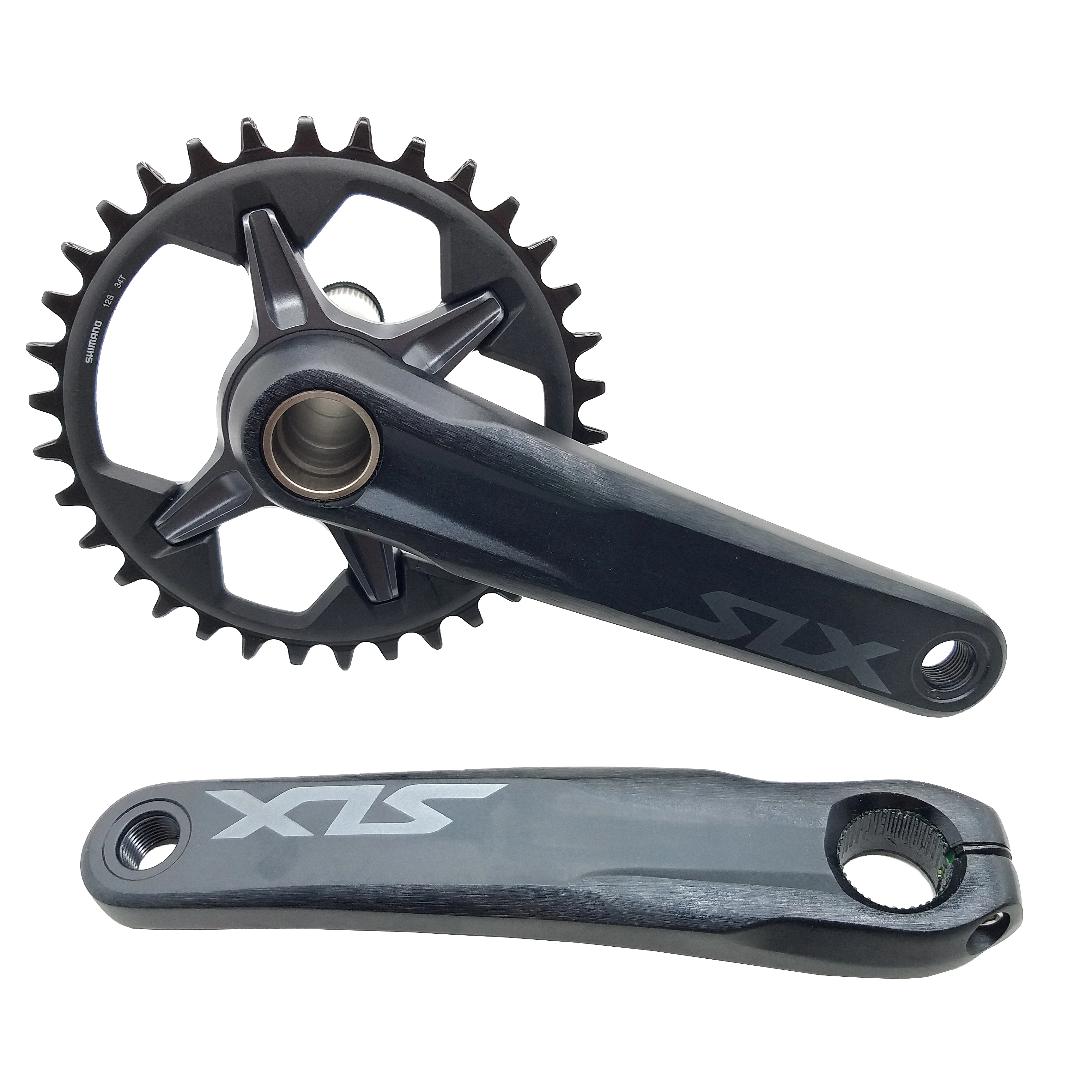

SHIMANO SLX M7100 Crankset 1X12Speed MTB Bike Chainwheel FC-M7100 170mm 175mm 32T 34T MT501 MT801 MT800-PA Bottom Bracket Bike

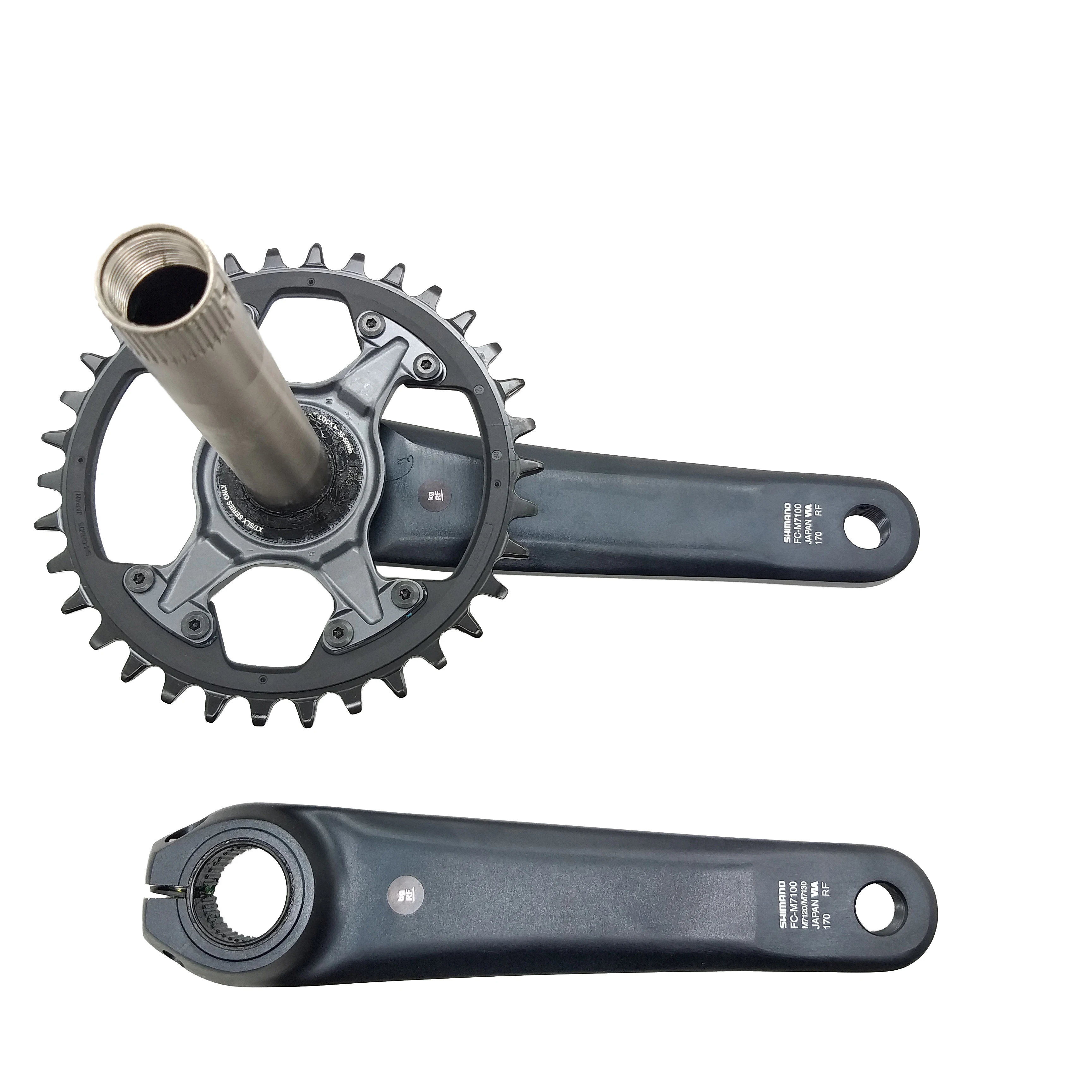

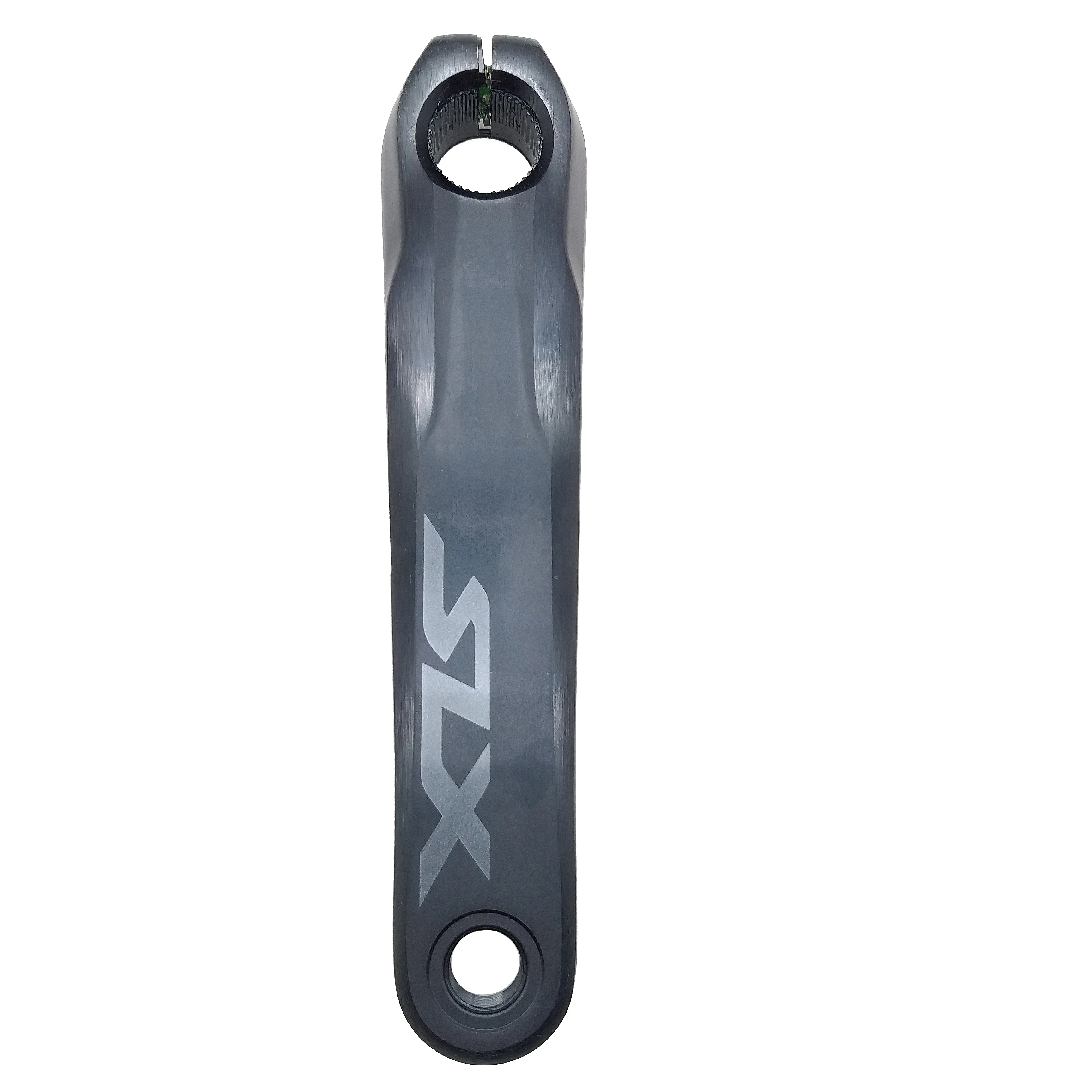

SLX HOLLOWTECH II MTB Crankset 172 mm Q-Factor 1x12-speed

FC-M7100-1

SLX - HOLLOWTECH II - MTB Crankset - 172 mm Q-Factor - 1x12-speed

The SLX FC-M7100-1 crank features an entirely new construction, using direct mount chainrings, special gear tooth profile for improved chain retention, and a 172mm Q-factor.

FEATURES

Superior chain retention

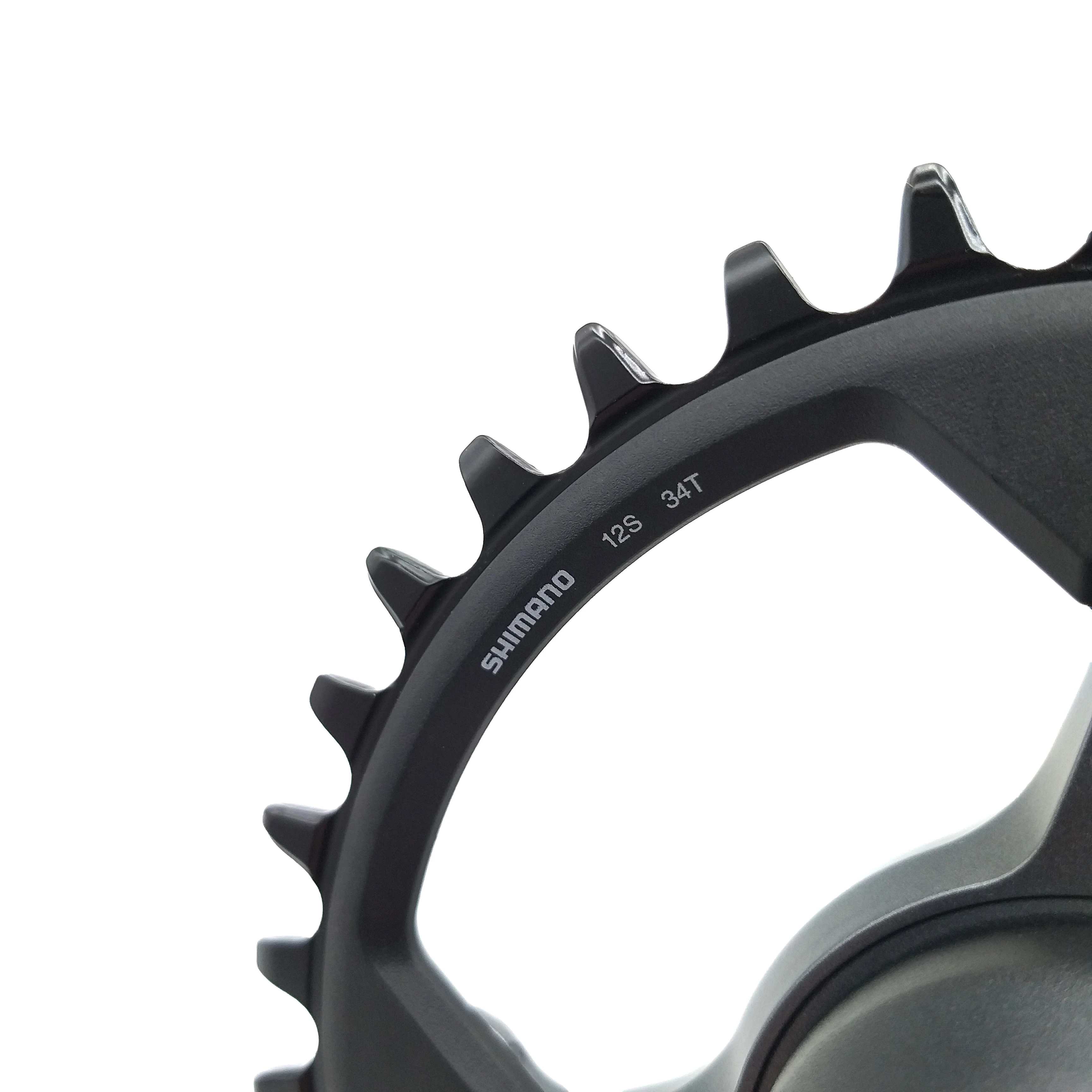

Special MTB gear teeth profile improves chain engagement and retention

DYNAMIC CHAIN ENGAGEMENT+

Rigid and lightweight design boosts trail-riding enjoyment

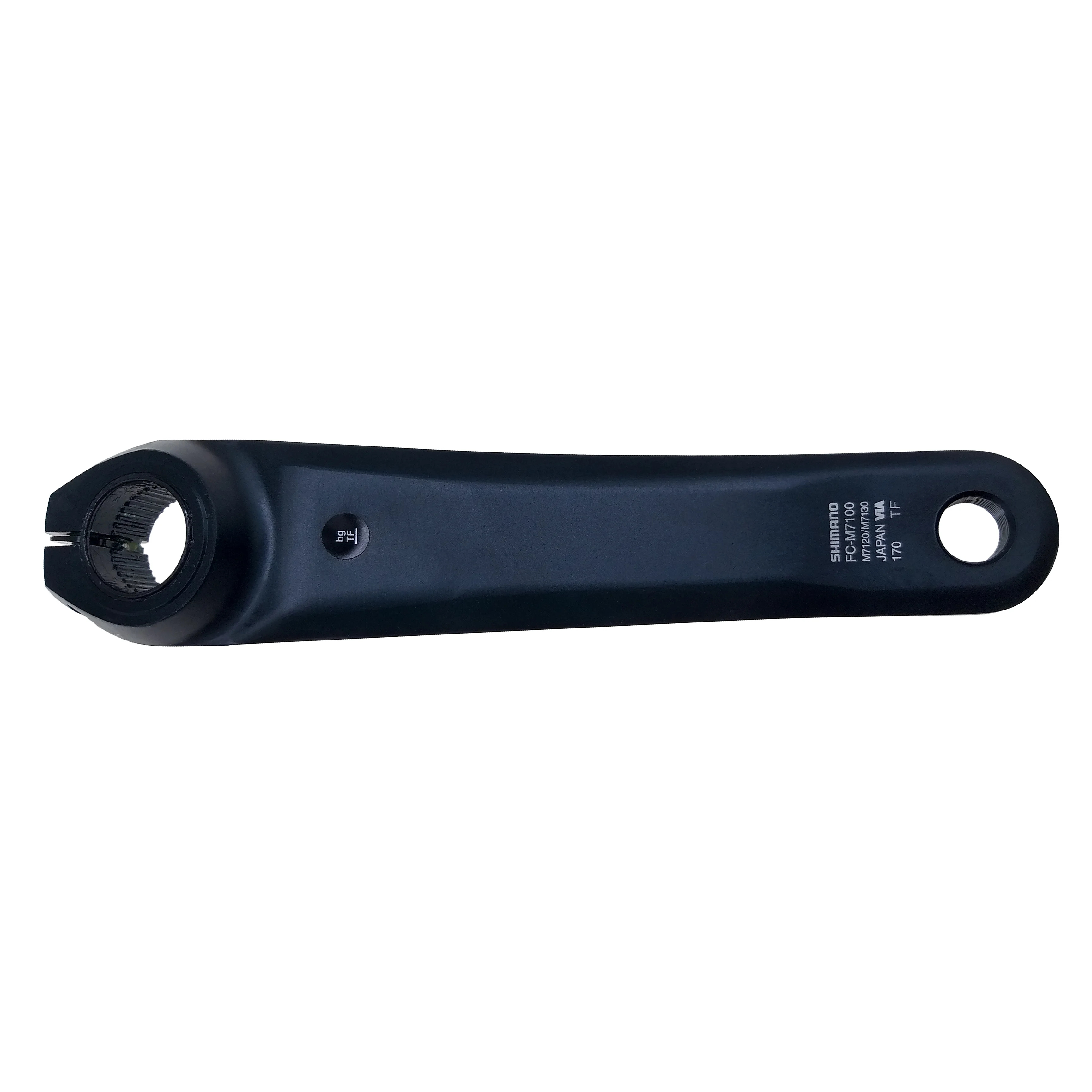

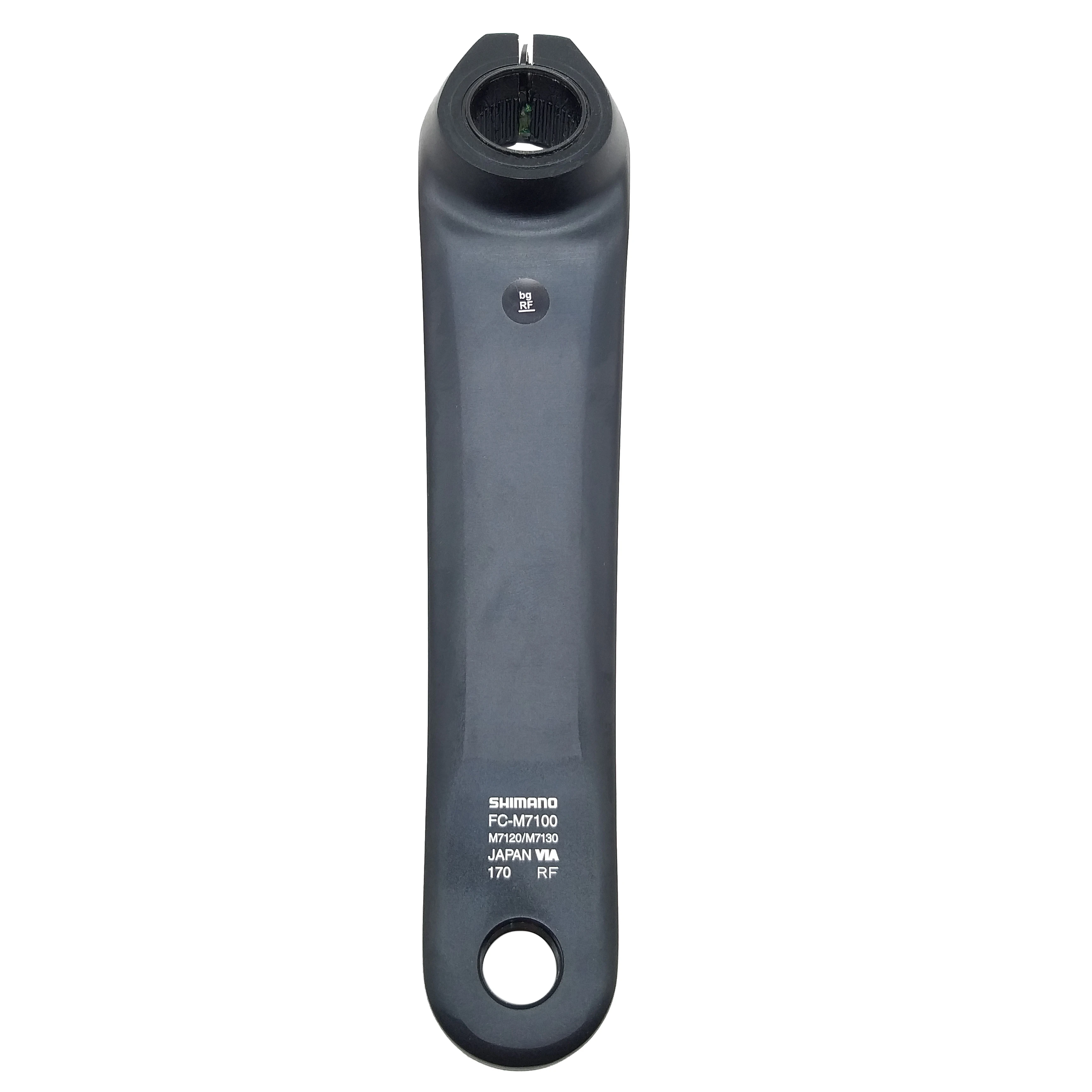

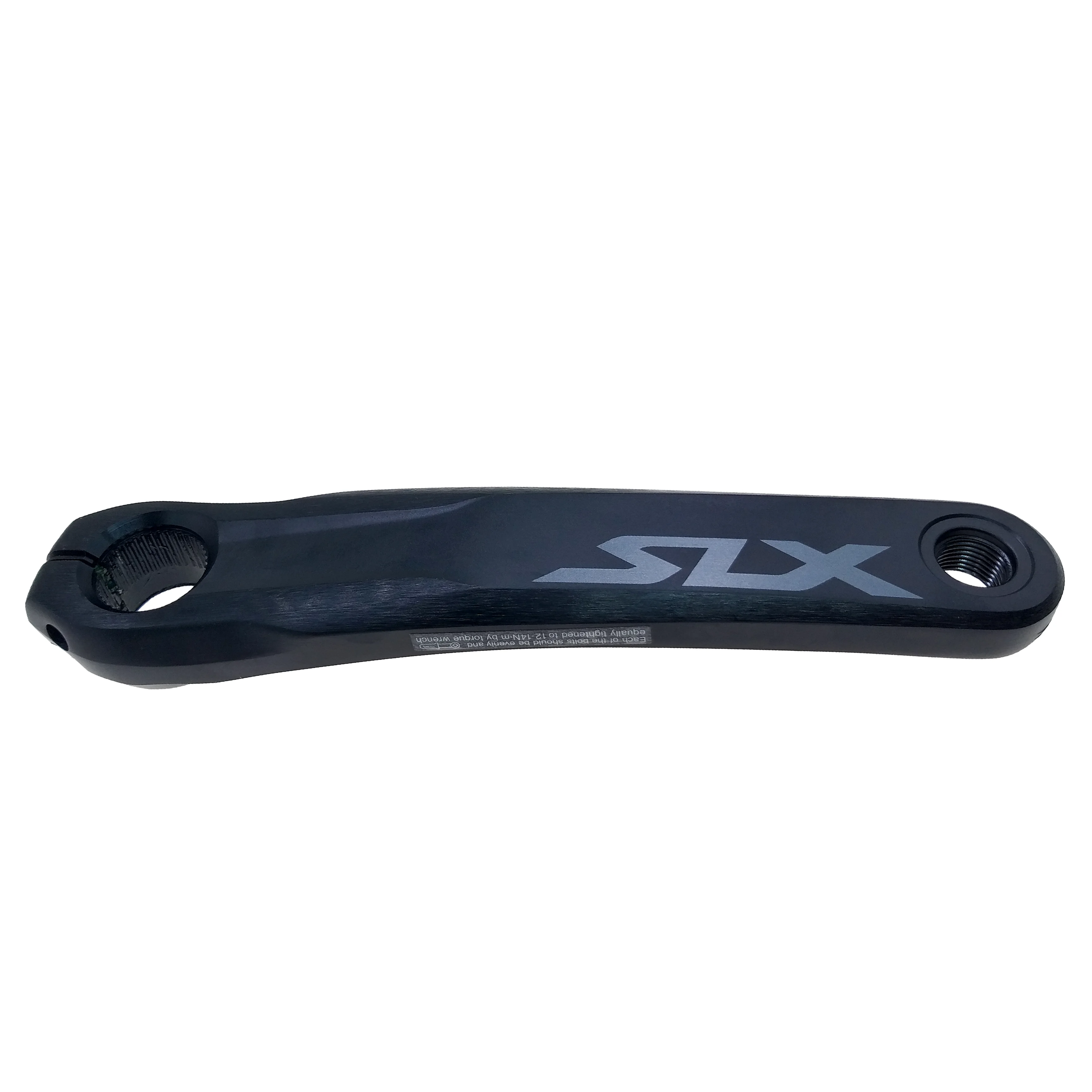

Hollow forged crank maximizes power transfer while limiting weight

HOLLOWTECH II

Easier gearing than racing groupsets

Q-factor: 172 mm

Chainline: 52 mm

PRODUCT SPECIFICATIONS

MODEL NO FC-M7100-1

SERIES SLX M7100 Series

Color Series color

Average weight 634 (30T) 631 (32T) 646 (34T)

Rear speeds 12

Compatible chain HG 12-speed

Chain line (mm) 52

O.L.D.|Thru (mm) 142, 148

O.L.D.|QR/Nut (mm) 135, 141

P.C.D. (mm) Direct

Spider/gear arms 4

Chainring combination 30T, 32T, 34T

Q-factor (mm) 172

Crank arm length (mm)|165 ✔

Crank arm length (mm)|170 ✔

Crank arm length (mm)|175 ✔

Optional chain guard|Without chain/bash guard ✔

HOLLOWTECH II ✔

Compatible bottom bracket type|Outboard ✔

Recommended bottom bracket|Threaded (normal) BB-MT801

Recommended bottom bracket|Press-Fit BB-MT800-PA

Threaded bottom bracket shell width (mm)|68 ✔

Threaded bottom bracket shell width (mm)|73 ✔

Crank fixing screw included ✔

TECHNOLOGIES

dynamic_chain_engagement_plus

hollowtech

hg

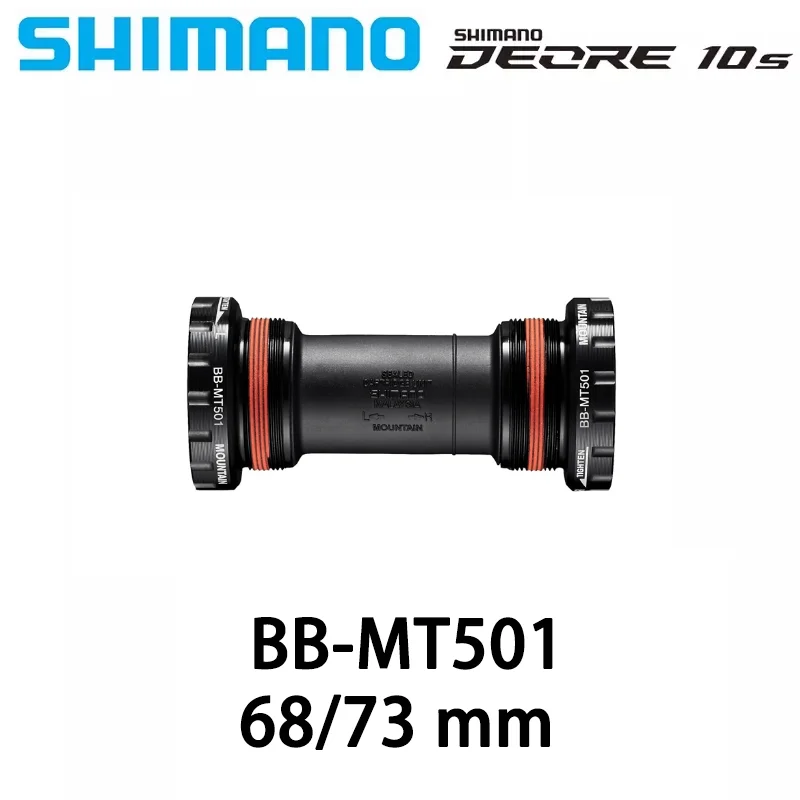

SHIMANO Threaded Bottom Bracket 68/73 mm shell width

BB-MT501

SHIMANO - Bottom Bracket - Threaded - HOLLOWTECH II - 68/73 mm shell width

With better sealing and rotation the SHIMANO DEORE bottom bracket delivers high driving efficiency.

FEATURES

Better sealing performance

PRODUCT SPECIFICATIONS

MODEL NO BB-MT501

SERIES SHIMANO

HOLLOWTECH II bottom bracket|Threaded bottom bracket type ✔

Threaded bottom bracket shell width (mm)|68 ✔

Threaded bottom bracket shell width (mm)|73 ✔

TECHNOLOGIES

hollowtech

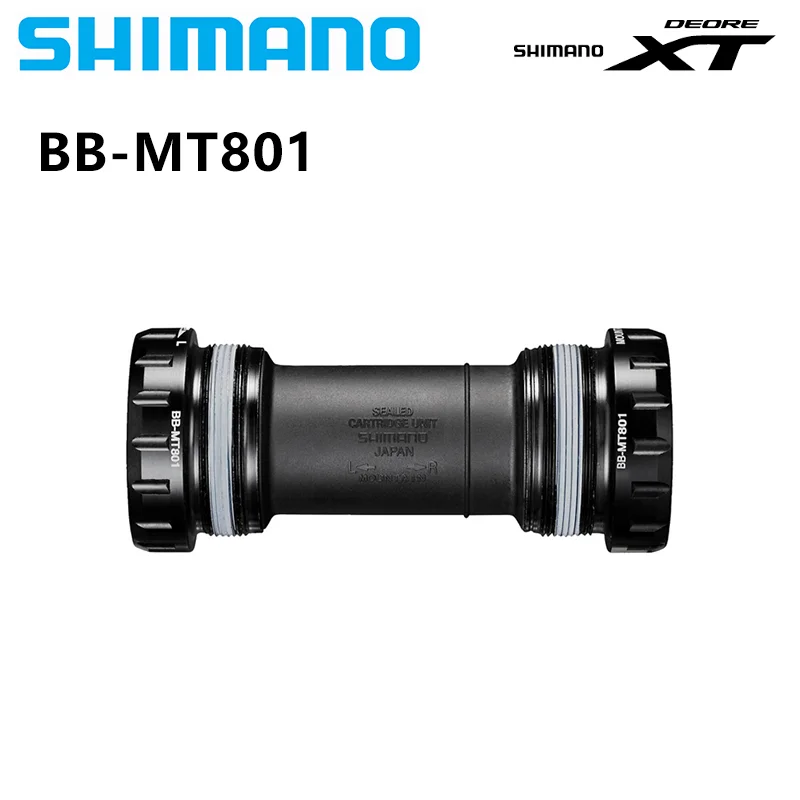

SHIMANO DEORE XT Threaded Bottom Bracket 68/73 mm shell width

BB-MT801

SHIMANO DEORE XT - Bottom Bracket - Threaded - HOLLOWTECH II - 68/73 mm shell width

For SHIMANO 24mm MTB cranks, the SHIMANO DEORE XT bottom bracket uses high quality sealed bearings and is offered in threaded and pressfit options.

PRODUCT SPECIFICATIONS

MODEL NO BB-MT801

SERIES SLX M7100 Series

Average weight 84

HOLLOWTECH II bottom bracket|Threaded bottom bracket type ✔

Threaded bottom bracket shell width (mm)|68 ✔

Threaded bottom bracket shell width (mm)|73 ✔

TECHNOLOGIES

hollowtech

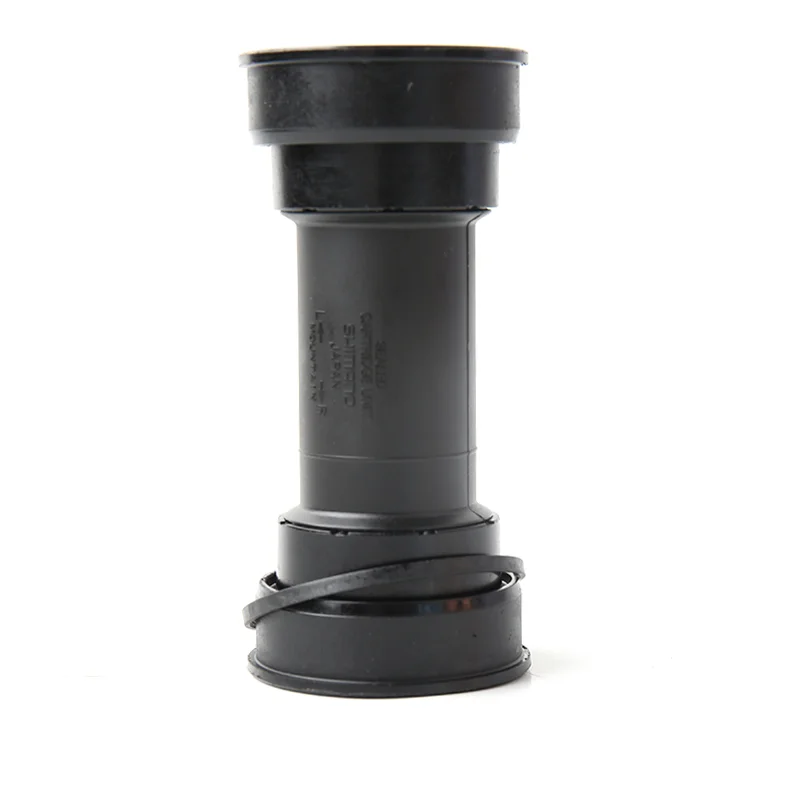

SHIMANO DEORE XT Press-Fit Bottom Bracket 89.5/92 mm shell width

BB-MT800-PA

SHIMANO DEORE XT - Bottom Bracket - Press-Fit - HOLLOWTECH II - 89.5/92 mm shell width

For SHIMANO 24mm MTB cranks, the SHIMANO DEORE XT bottom bracket uses high quality sealed bearings and is offered in threaded and pressfit options.

PRODUCT SPECIFICATIONS

MODEL NO BB-MT800-PA

SERIES SLX M7100 Series

Average weight 69

HOLLOWTECH II bottom bracket|Press-Fit type ✔

Press-Fit bottom bracket shell width (mm)|89.5 ✔

Press-Fit bottom bracket shell width (mm)|92 ✔Close

TECHNOLOGIES

press_fit_bottom_bracket
