JRAHK BLDC 72v 3000w Sine Controller Electric motorcycle 60V 84V Controller 48V Electric Bike Accessories

What is a Three-mode controller?

Quiet start(Except for special circumstances)

strong power and power saving.

The three-mode controller is a sine wave controller.

It can operate in three modes, sine wave mode, square wave mode, and no hall mode (that is, it can be used without a hall sensor).

The mode cannot be selected, the default is sine wave mode.

When the hall sensor is damaged it will automatically switch to square wave mode.

Runs no-Hall mode when no Hall sensors are connected.

Suitable for in-wheel motors.Differential motor, etc.

Tips:

Applicable to a variety of motors, but only in-wheel motors with Hall sensors can use sine wave mode.
When running other motors, it will automatically switch to square wave mode or no Hall mode.

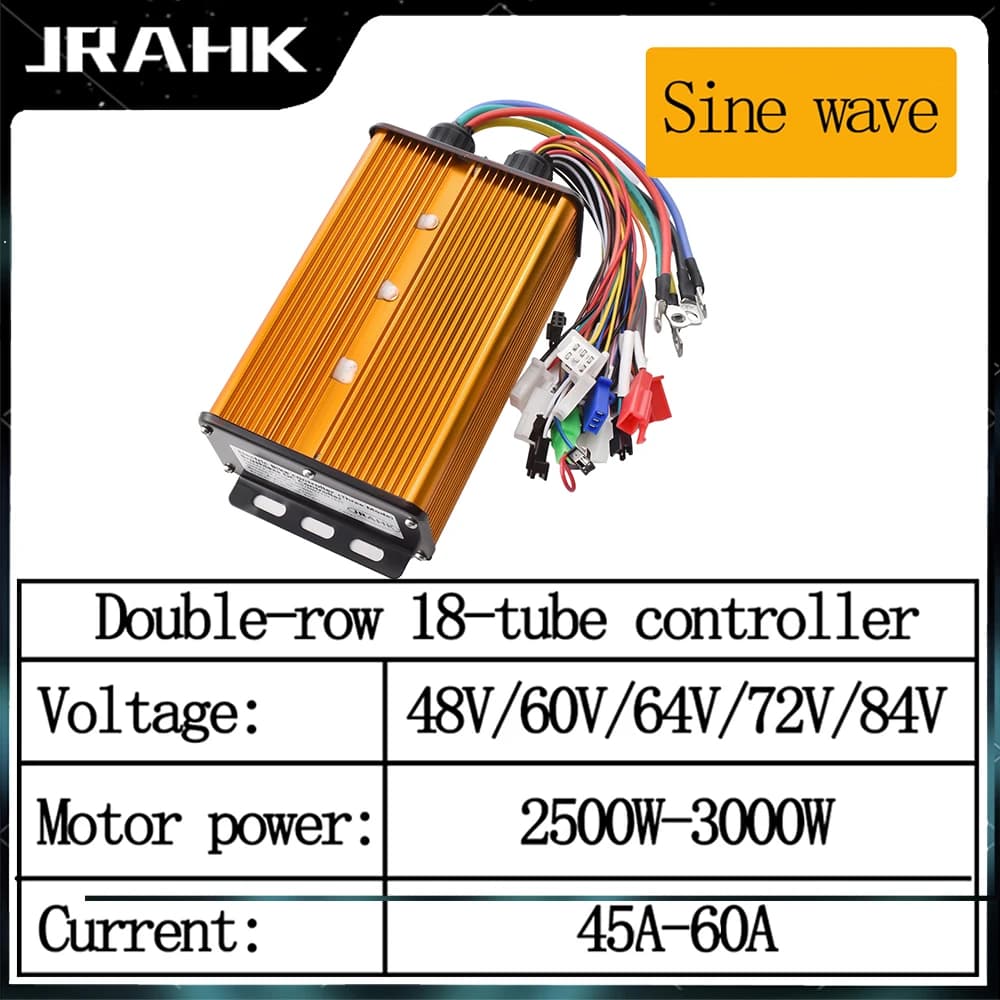

Product parameters:

Color:Glod

Condition: 100% brand newItem

type: Sine Motor Controller

Material: Aluminium alloy

Voltage: 48V-60V-64V-72V-84V

Weight: .1055g

Power: 2500W-3000W

Current limit:45A-60A

Tips
This color is the color under strong light/sunlight, it will change during the light period, if you mind, you don't need to buy it. Thank you so much.

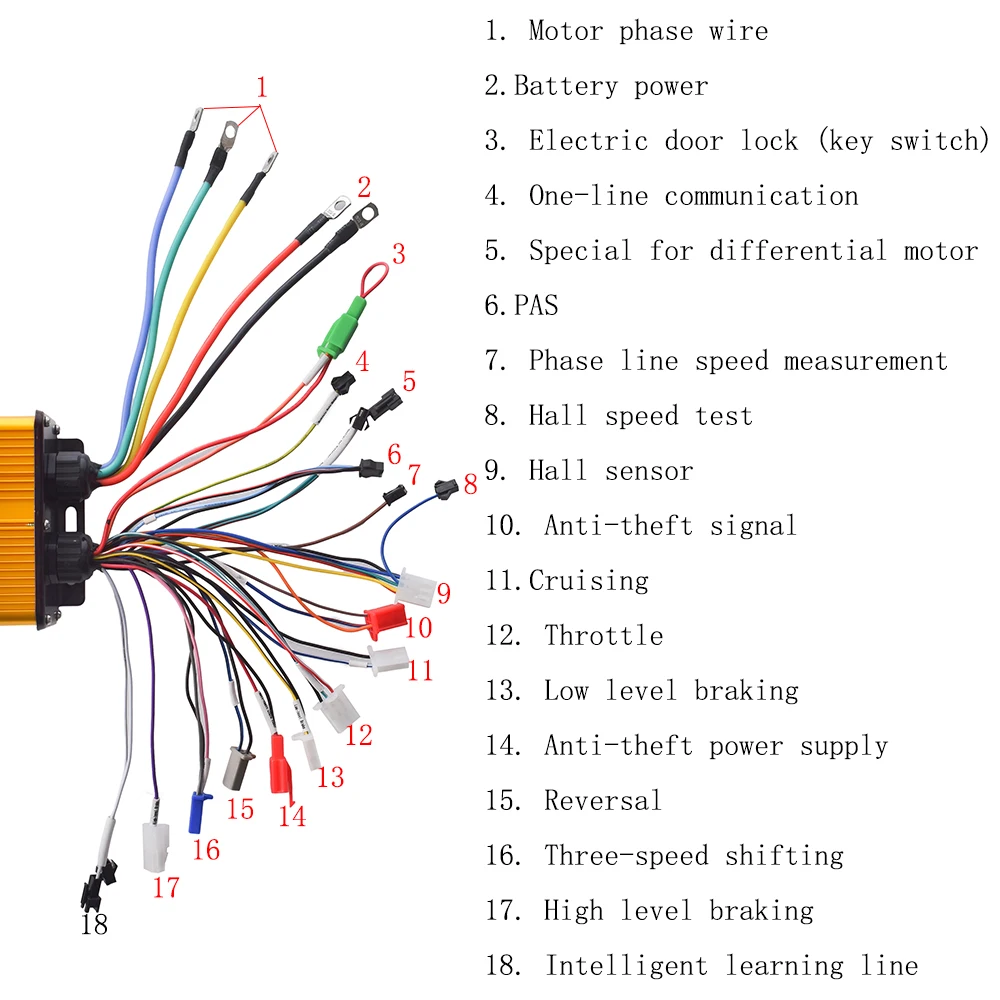

Line Description

1. Motor phase wire
2.Battery power
3. Electric door lock (key switch)
4. One-line communication
5. Special for differential motor
6.PAS
7. Phase line speed measurement
8. Hall speed test
9. Hall sensor
10. Anti-theft signal
11.Cruising
12. Throttle
13. Low level braking
14. Anti-theft power supply
15. Reversal
16. Three-speed shifting
17. High level braking
18. Intelligent learning line

Installation Instructions

Step 1. Connect wires 1, 2, 3, 9, 12

Step 2. Connect the No. 18 wire with the motor suspended. (Note: the motor needs to be in the  overhang position for docking wire #18)

Step 3. The motor will perform a forward/reverse state. (If there is a reversal you will need to disconnect the 18 wire and reconnect it) Wait 10 seconds in the forward state to complete learning.

Step 4. Make the wiring connections according to the vehicle.
