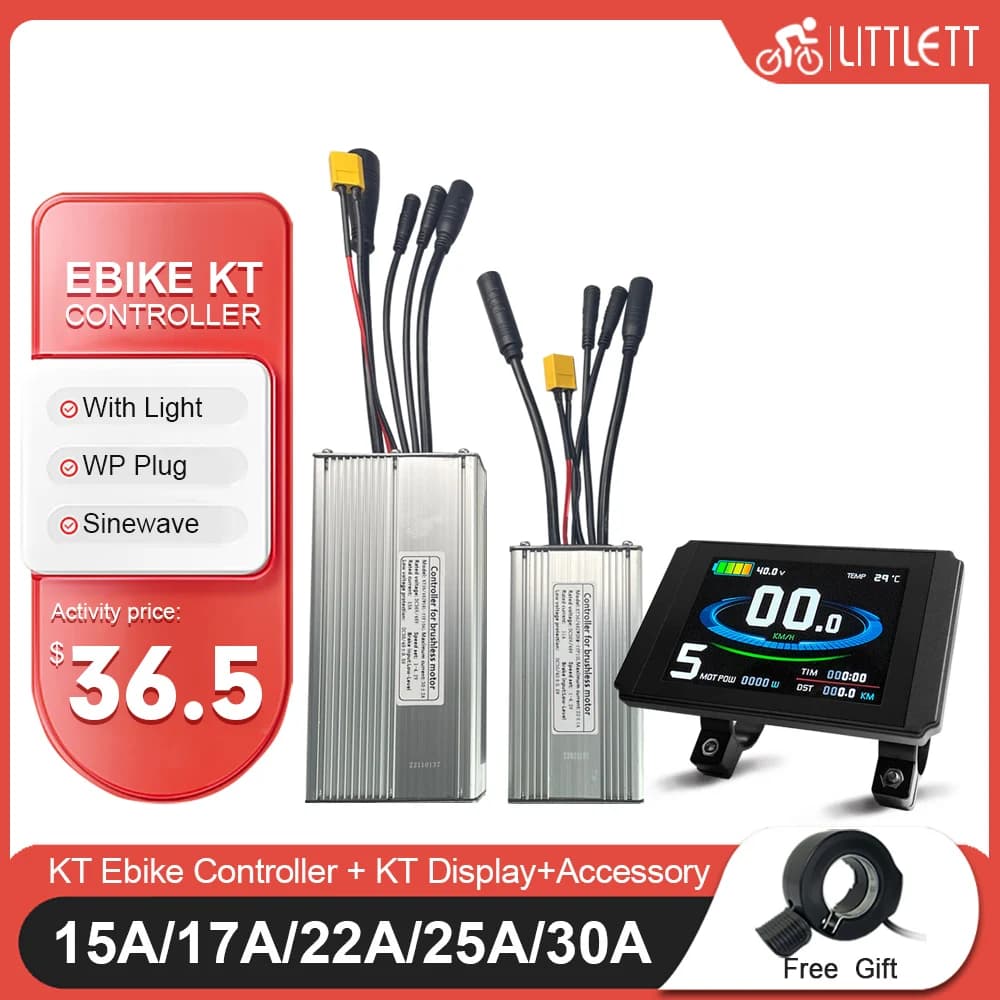

Ebike SineWave KT Controller 36V 48V 15A/17A/22A/25A/30A with LCD3 LCD8H LED880 Display For Electric Bike Conversion Kit Parts

Attention

1.KT controller only compatible with KT display .Same communication protocol.We have given pictures to teach you how to distinguish.Please check before place the order .

2.The cable length is manually measured, there may be some difference, please understand.

Type：KT-15A Controller(Sine wave)

◆Size:82 * 53 * 32 mm
◆Weight:200g
◆Mosfets:6 mosfets
◆Maximum current:15±1A
◆Rated voltage:DC36V/48V
◆Rated current:7A

Type：KT-17A Controller(Sine wave)

◆Controller dimension :about 94 * 62 * 35 mm
◆weight:250g
◆cable length :all about 10-13cm
◆Mosfets :Big6 better mosfets
◆Maximum current:17±1A
◆Rated voltage:DC36V/48V
◆Rated current:8A

Type：KT-22A Controller(Sine wave)

◆Color :Silver
◆Dimension :about 128 * 68 * 38 mm
◆Mosfet :9 Mosfets
◆Maximum current :22±1A
◆Rated current :11A
◆Rated voltage :DC36V/48V
◆Weight:450g

Type：KT-25A Controller(Sine wave)

Color :Silver
Dimension :about 128 * 68 * 38 mm
Mosfet :9 Mosfets
Maximum current :25±1A
Rated current :11A
Rated voltage :DC36V/48V
Weight:450g

Type：KT-30A Controller(Sine wave)

◆Color :Silver
◆Dimension :about 170 * 88 * 43 mm
◆Mosfet :12 Mosfets
◆Maximum current :30±1A
◆Rated current :17A
◆Rated voltage :DC36V/48V
◆Weight:about 650g

KT LCD LED Display Parameter

Type:KT LCD/LED/Colourful Display
Color:Black
Voltage:24V 36V 48V universal,72V for LCD3/LCD8H
Cable length:About 25cm(WP),
Plug:5 Pin Waterproof Connector
