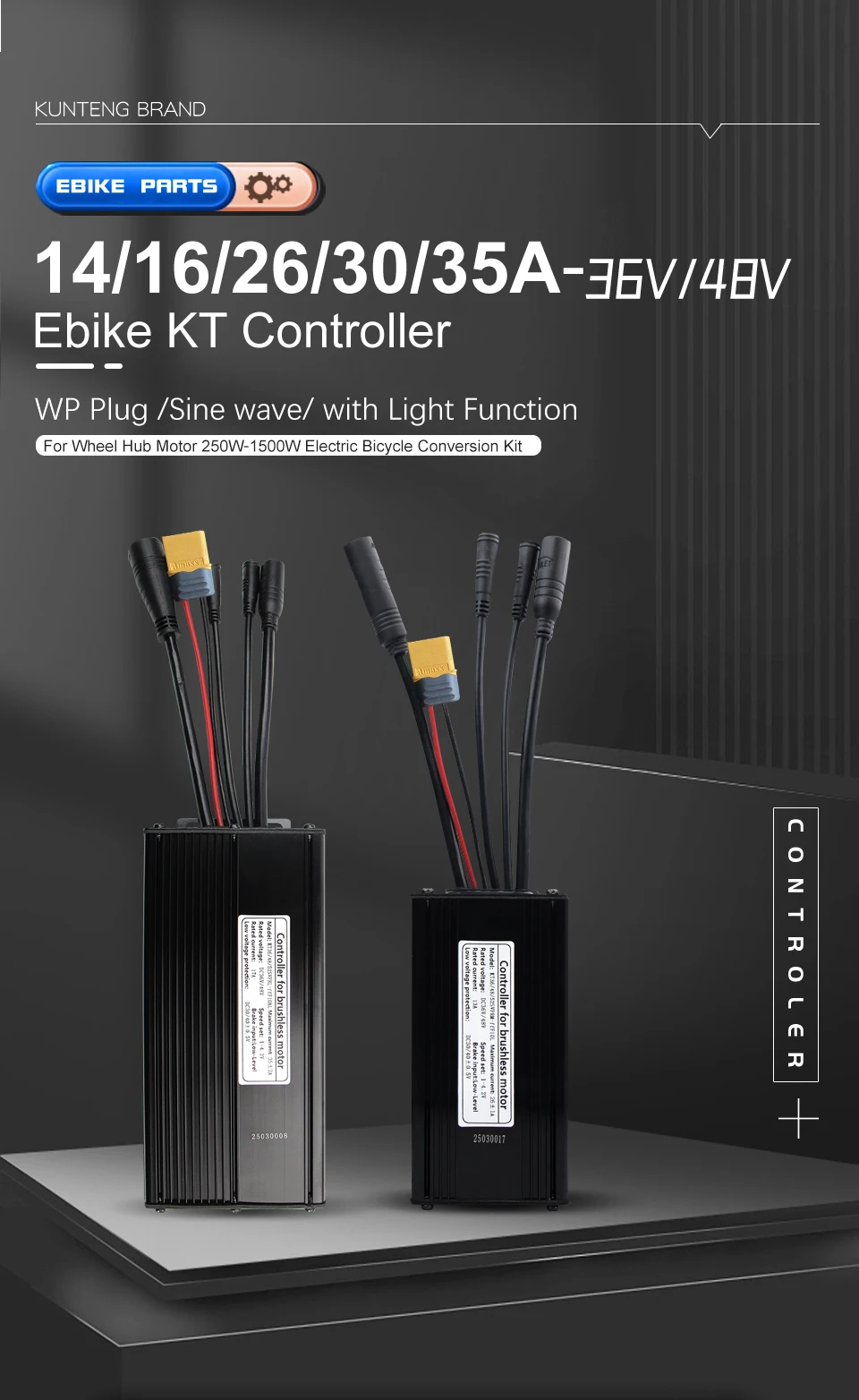

KT Ebike Sinewave Waterproof Controller 36V48V 250W350W500W1000W1500W LCD5 TF01U Display Electric Bicycle Conversion Kit Parts

  Attention：

●KT controller only compatible with KT display .Same communication protocol.We have given pictures to teach you how to distinguish.Please check before place the order .

●The cable length is manually measured, there may be some difference, please understand.

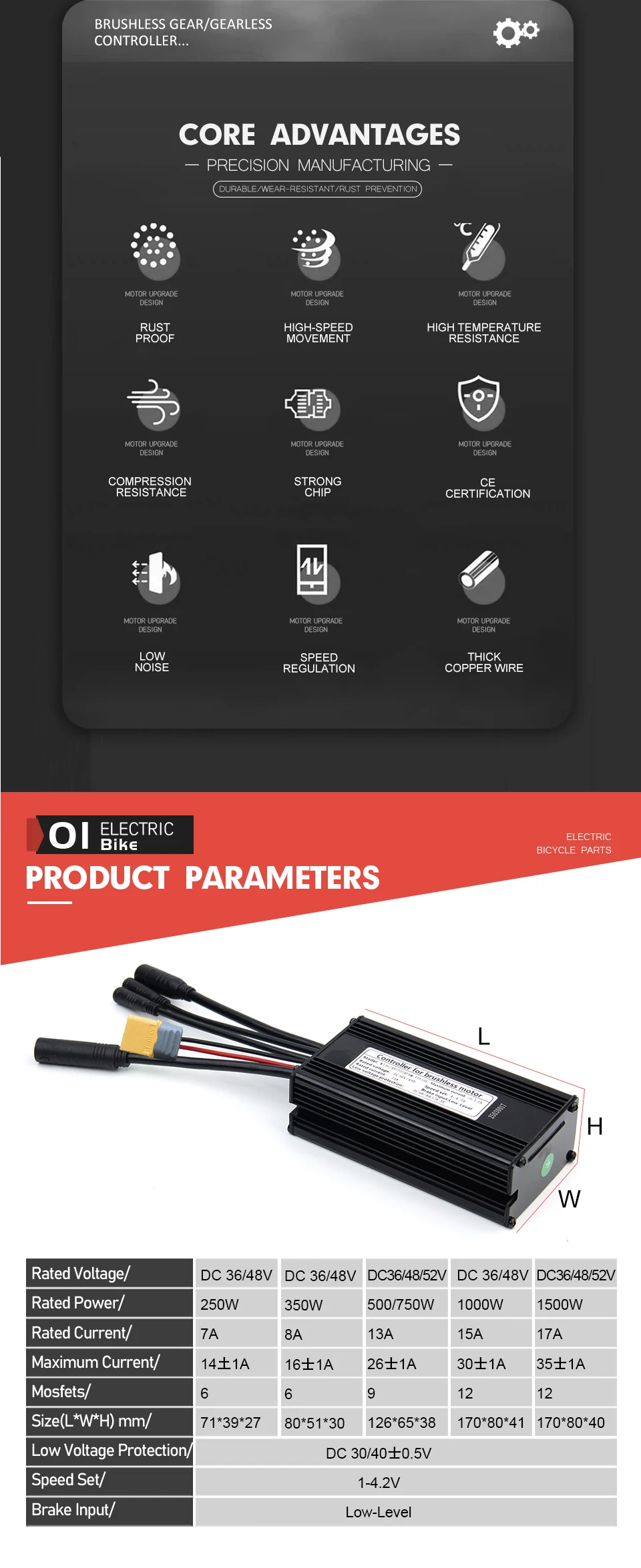

  Parameter:

  KT-14A Controller:

◆Mosfets :6 mosfets
◆Size :71*39*27mm(2.8*1.54*1.06in)
◆Maximum current :14±1A
◆Rated current :7A
◆Rated power：250W
◆Rated voltage :DC36V/48V
◆Brake input :Low-Level
◆Speed set :1-4.2V

  KT-16A Controller:

◆Mosfets :6 mosfets
◆Size :80*51*30mm(3.1*2*1.2in)
◆Maximum current :16±1A
◆Rated current :8A
◆Rated power：350W
◆Rated voltage :DC36V/48V
◆Brake input :Low-Level
◆Speed set :1-4.2V

  KT-26A Controller:

◆Mosfets :9 Mosfets
◆Size :126*65*38mm(4.9*2.6*1.5in)
◆Maximum current :26±1A
◆Rated current :13A
◆Rated power：500W/750W
◆Rated voltage :DC36V/48V/52V
◆Brake input :Low-Level
◆Speed set :1-4.2V

  KT-30A Controller:

◆Mosfets :12 Mosfets
◆Size :170*82*41mm(6.7*3.2*1.6in)
◆Maximum current :30±2A
◆Weight :503g
◆Rated current :15A
◆Rated power：1000W
◆Rated voltage :DC36V/48V
◆Brake input :Low-Level
◆Speed set :1-4.2V

  KT-35A Controller:

◆Mosfets :12 Mosfets
◆Size :170*80*40mm(6.7*3.2*1.6in)
◆Maximum current :35±1A
◆Rated current :17A
◆Rated power：1500W
◆Rated voltage :DC36V/48V/52V
◆Brake input :Low-Level
◆Speed set :1-4.2V
