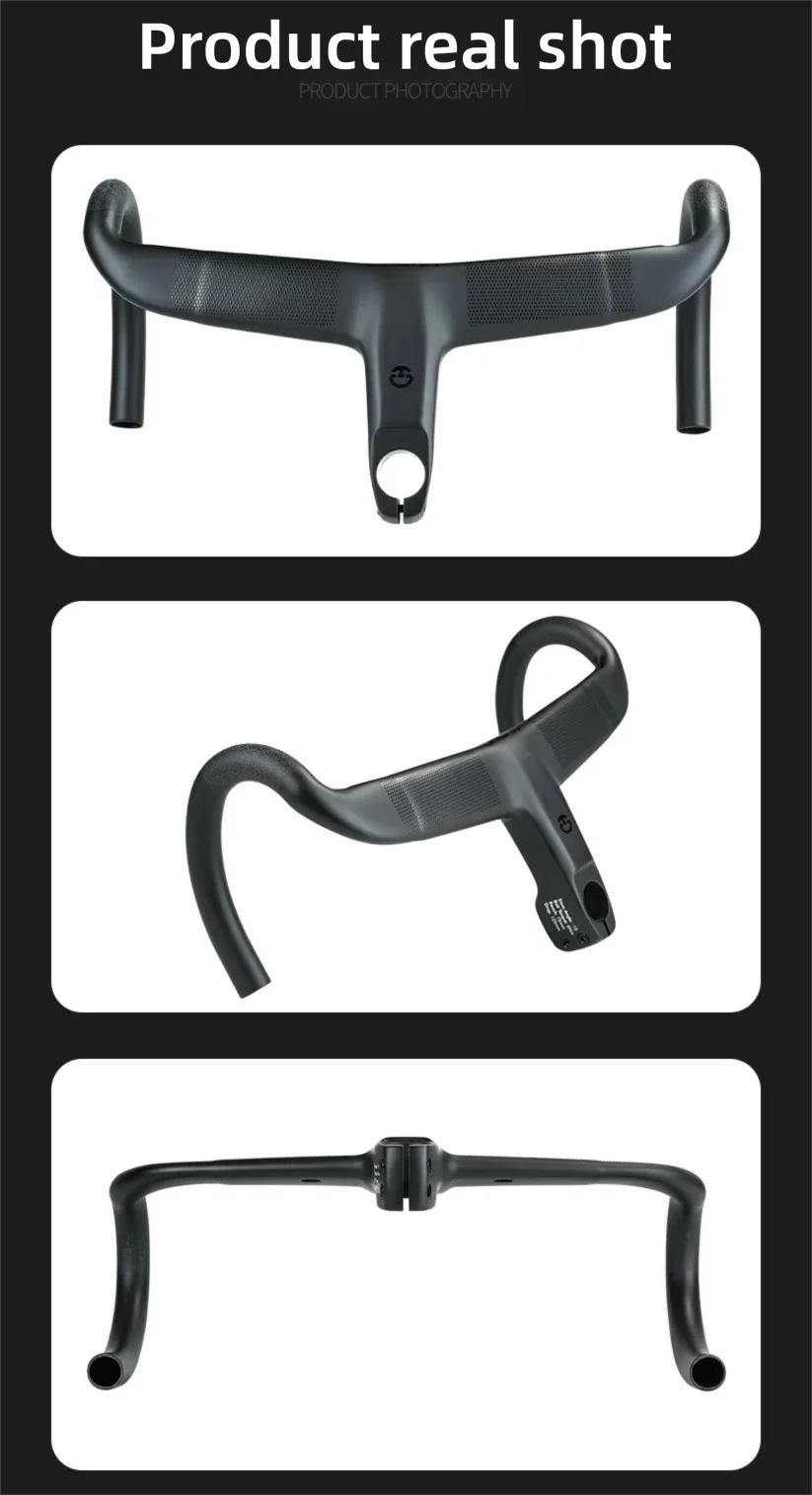

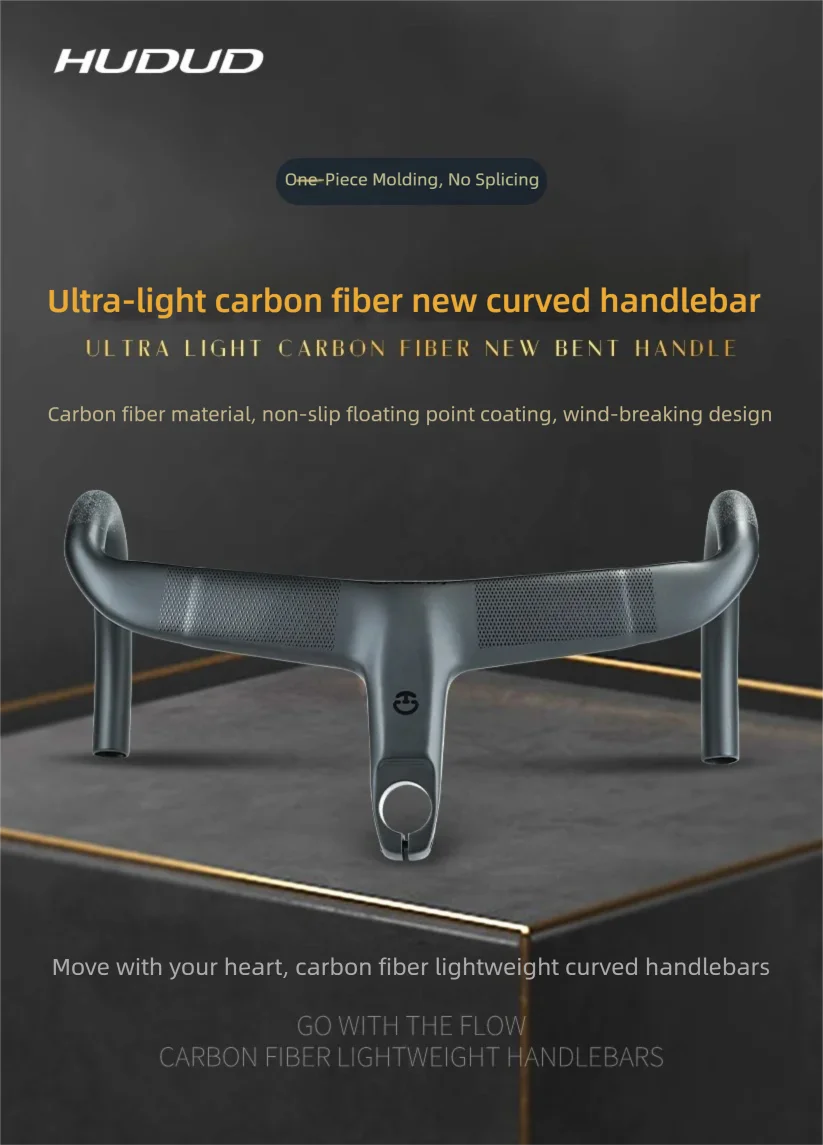

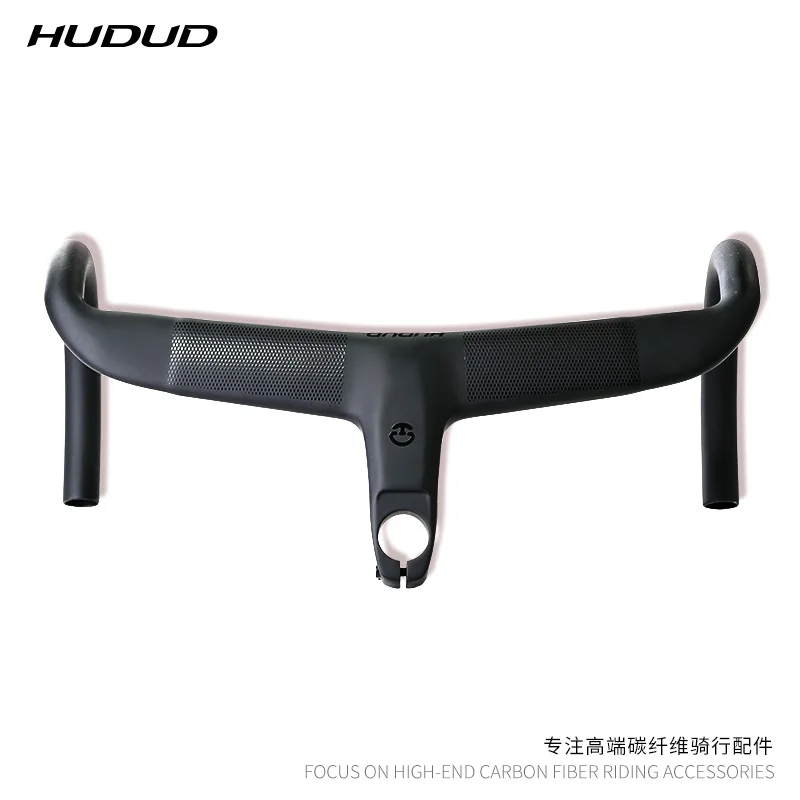

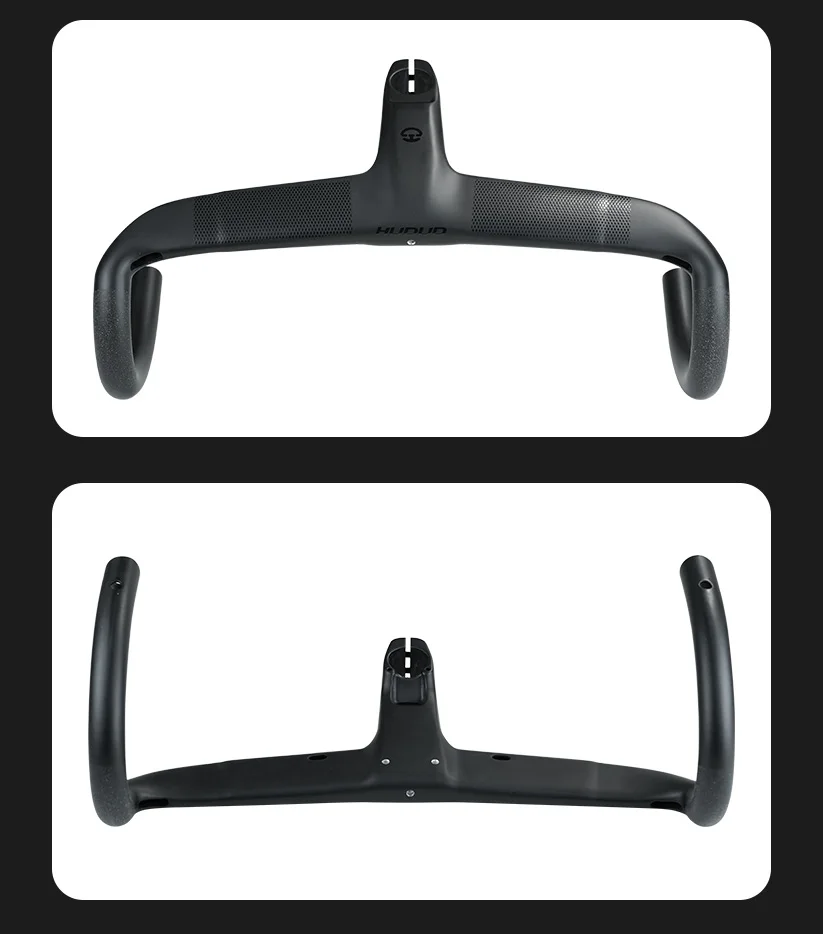

HUDUD Arc Road Bike Full Carbon Fiber Ultra-Light T800 Aerodynamic Internal Cable Routing Integrated Handlebar 360g

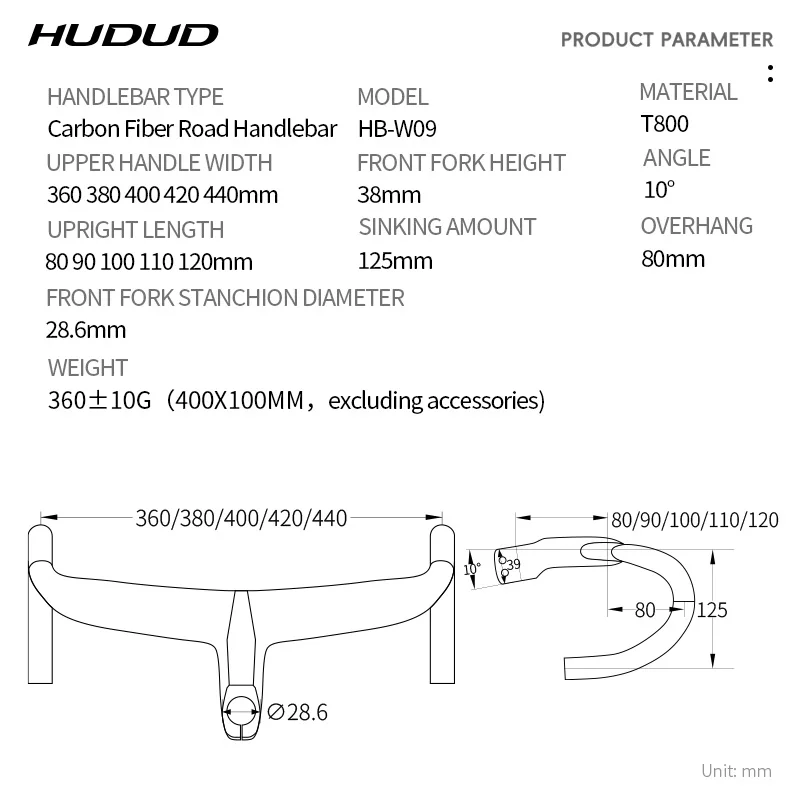

Product Description and Specifications

Brand: Hudud
Model: Road Bike Integrated Handlebar HB-09
Material: Full Carbon Fiber (T800)

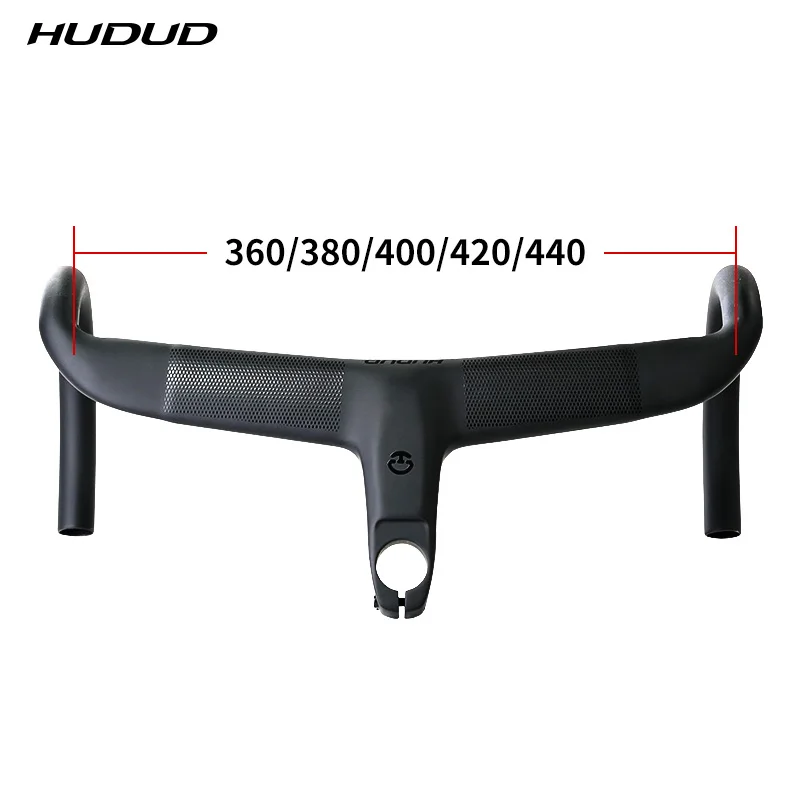

Upper Handlebar Width: 360/380/400/420/440mm (Please select desired size)

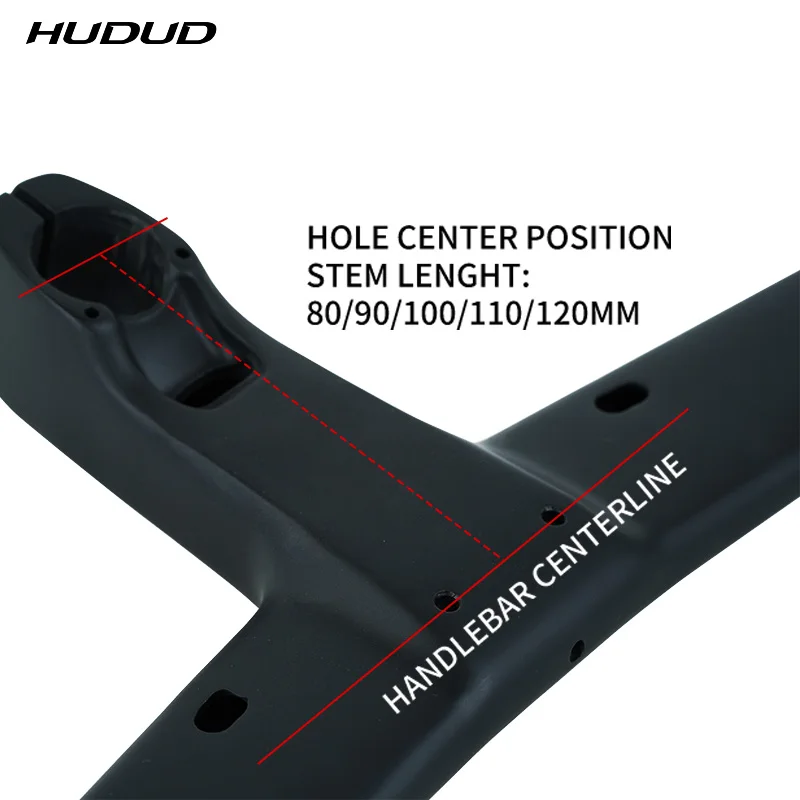

Stem Length: 80/90/100/110/120mm

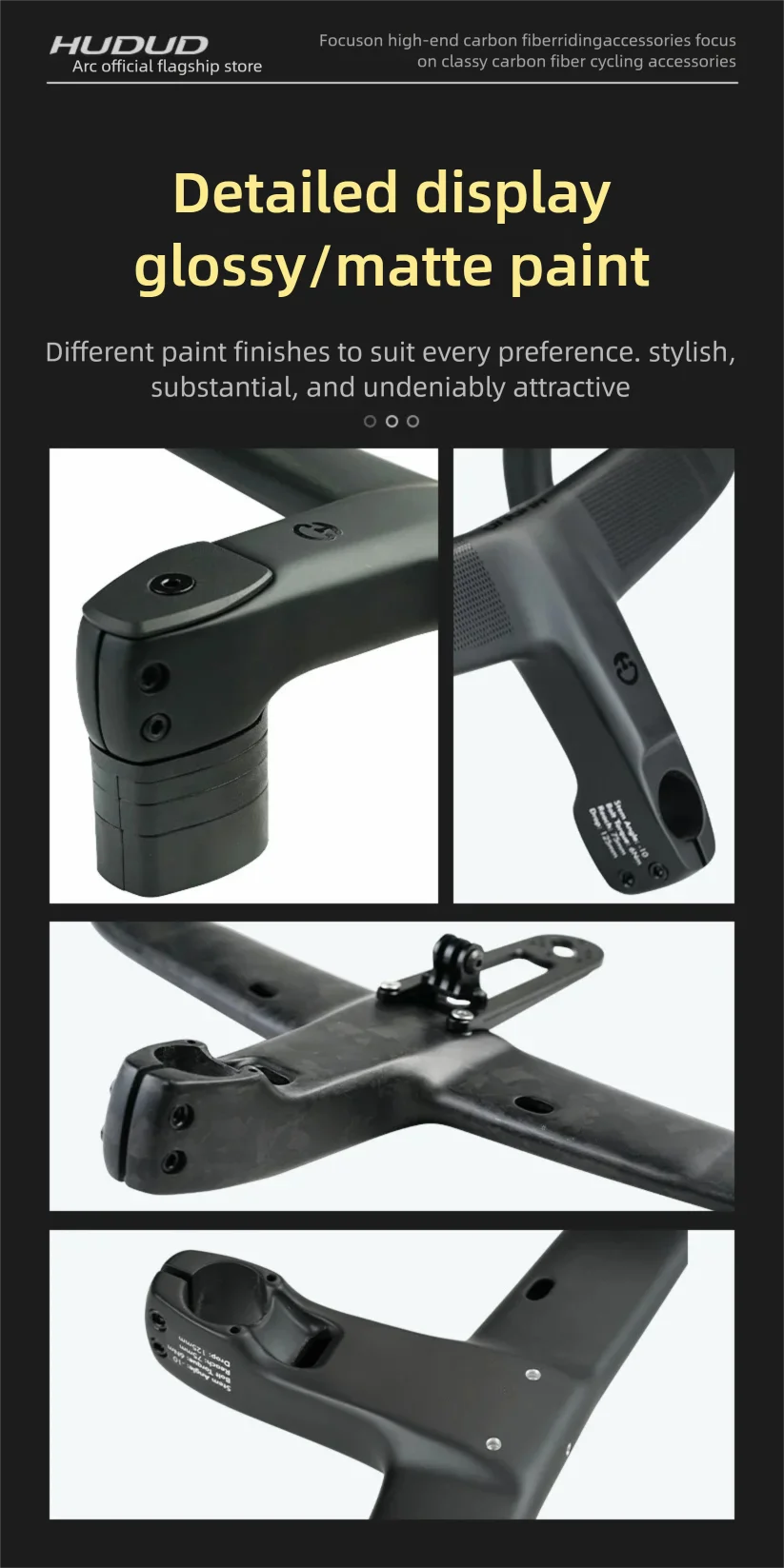

Color: UD Matte Black (as shown)
Stem Height: 38mm
Stem Clamp Diameter: 28.6mm

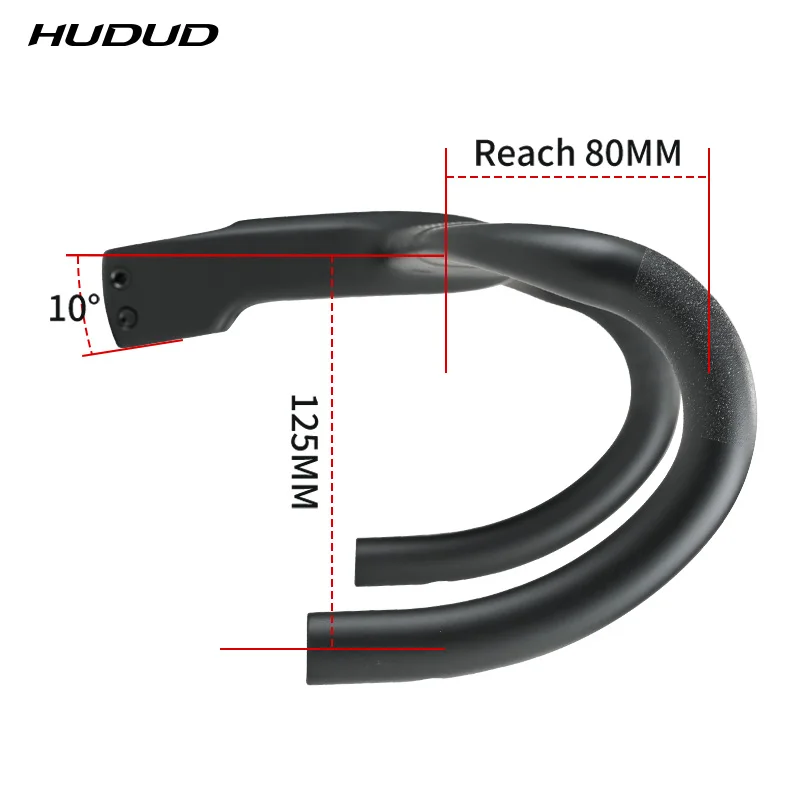

Stem Reach: 80mm
Stem Drop: 125mm
Angle: 10°
Weight: 360±10g (400x100mm, accessories excluded)
Warranty: 1 year
Compatible Bikes: Disc-brake road bikes

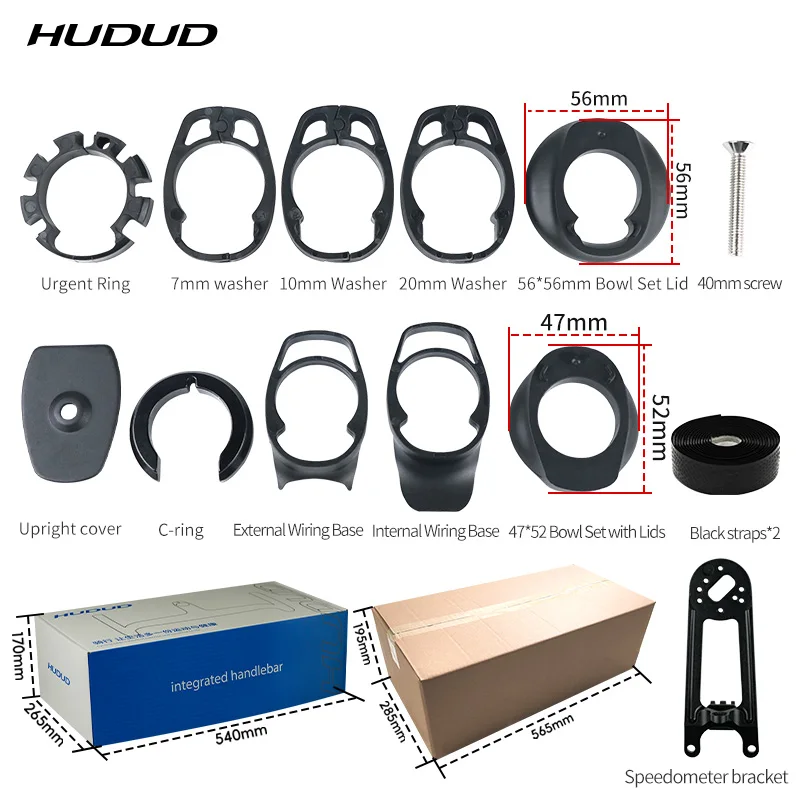

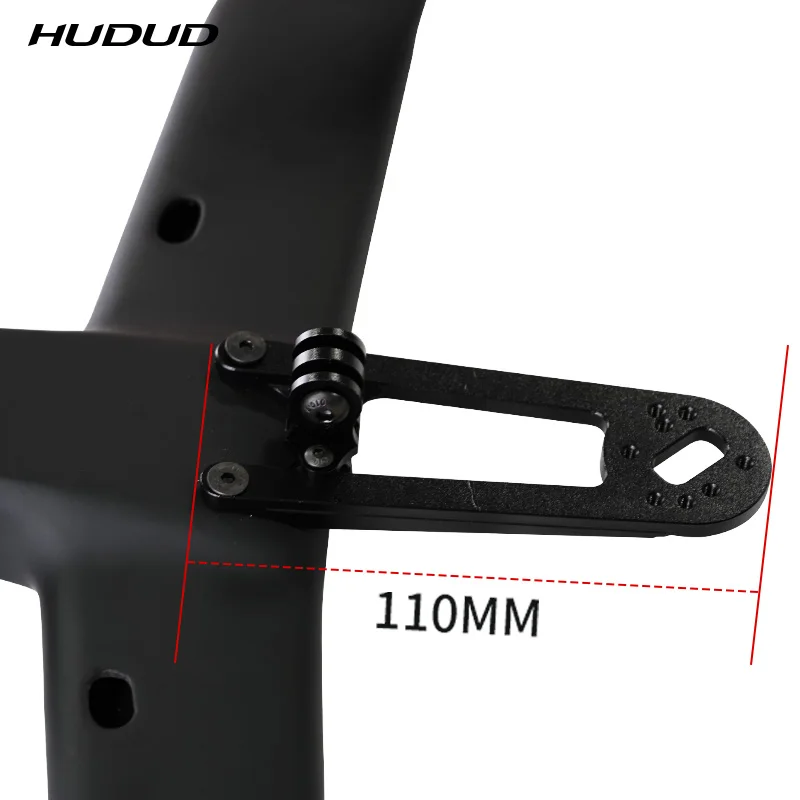

Includes All Items: 1 Handlebar, 1 Clamp Ring, 1 7mm Washer, 1 10mm Washer, 1 20mm Washer, 1 Stem Cap, 1 C-Ring, 1 External Cable Routing Base, Internal routing base x1, 56x56mm headset cap x1, 47x52mm headset cap x1, black handlebar tape x2, 40mm screw x1, computer mount kit x1

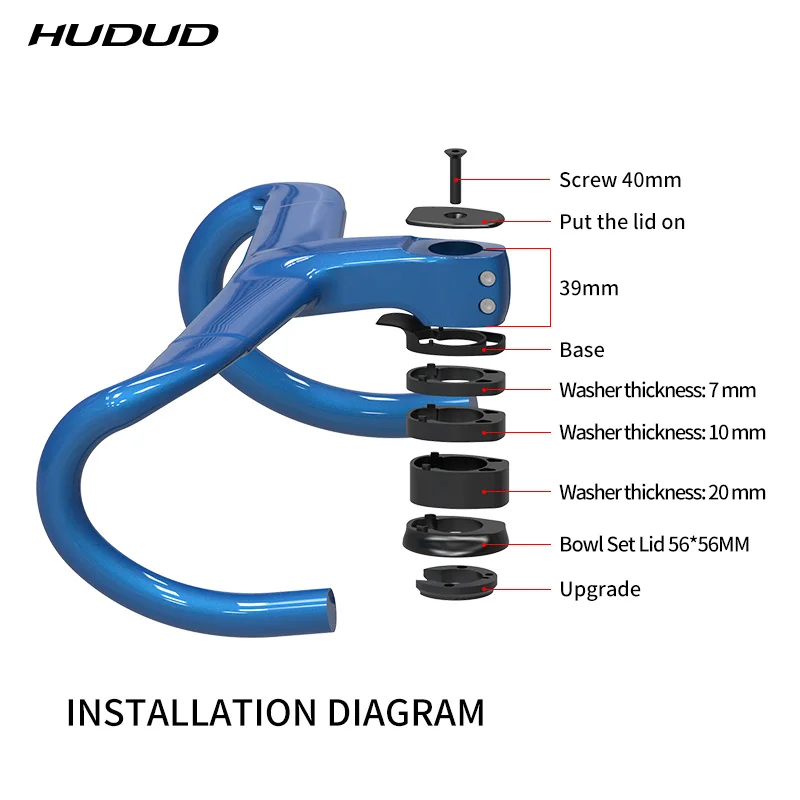

Installation Instructions

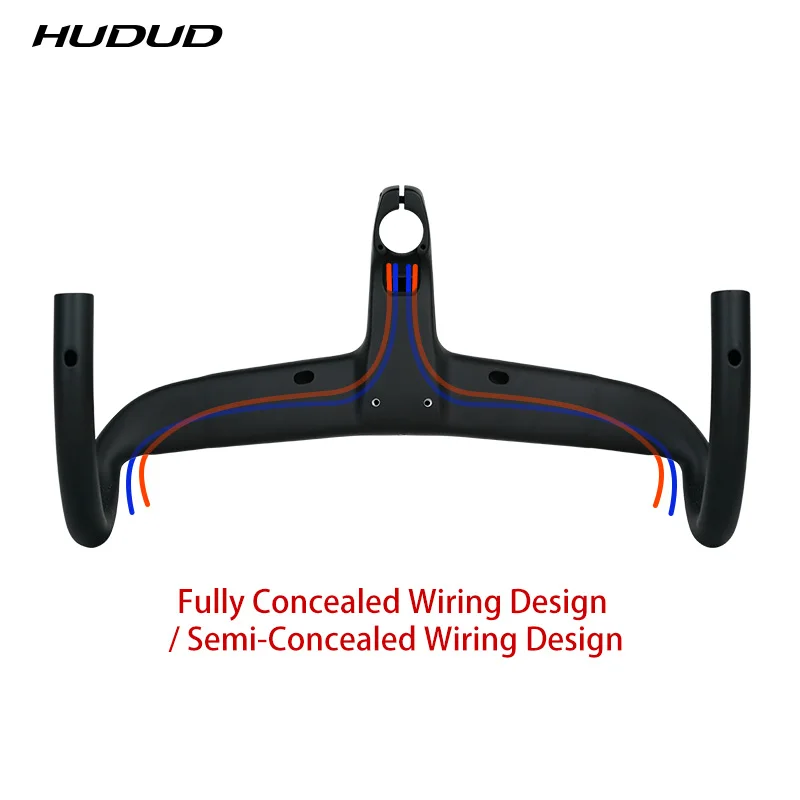

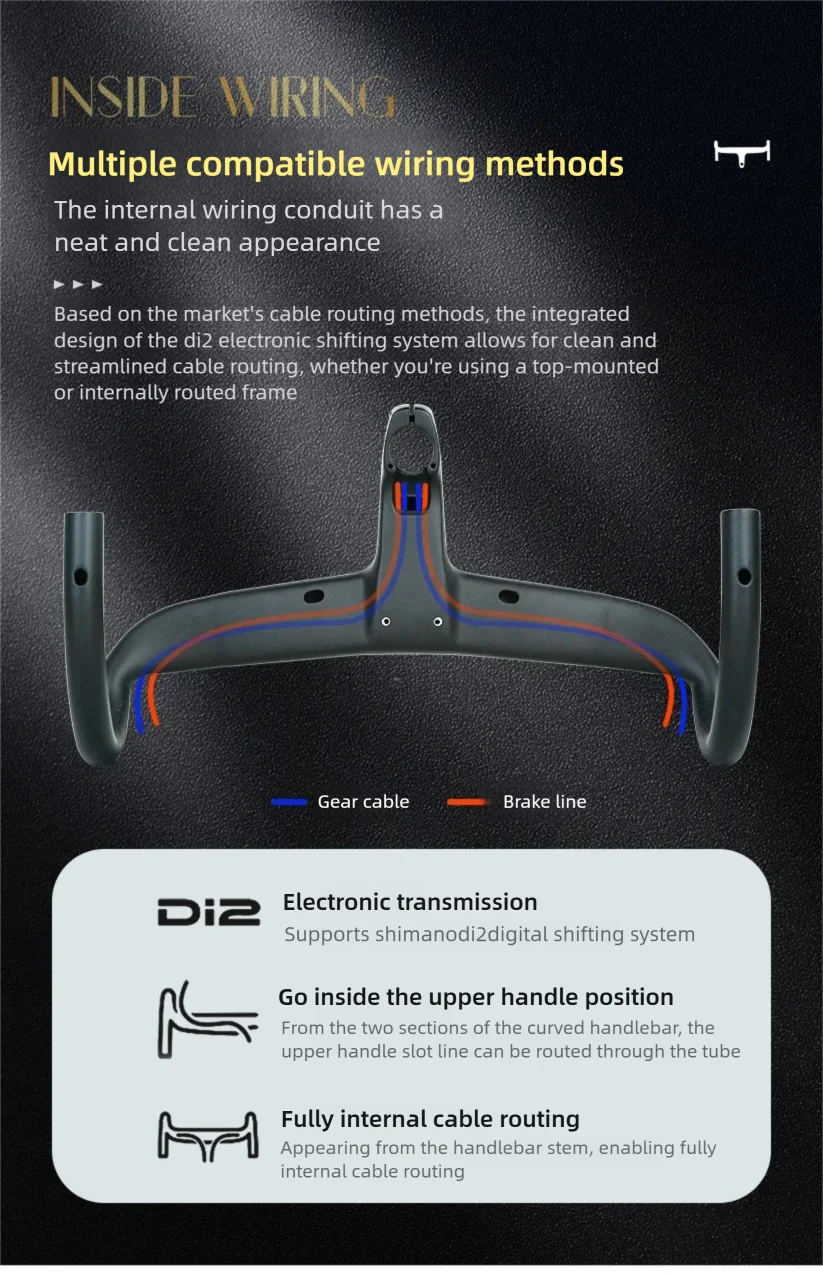

This handlebar is compatible only with OD02 head tubes and 28.6mm head tubes, supporting full internal cable routing and semi-hidden routing. (If your frame features a non-standard head tube, please contact customer service to confirm compatibility. We can print a custom adapter for you.) Standard head tubes can be installed directly using the components included in your shipment.
