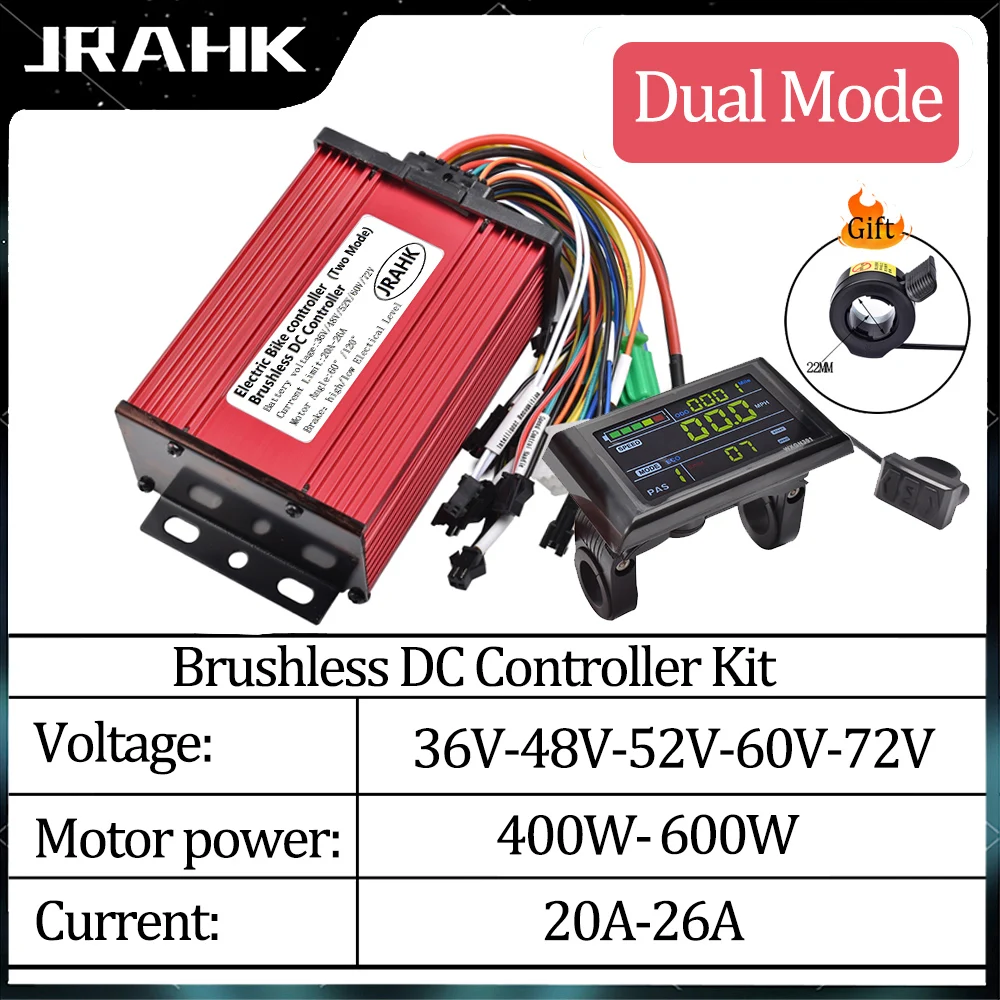

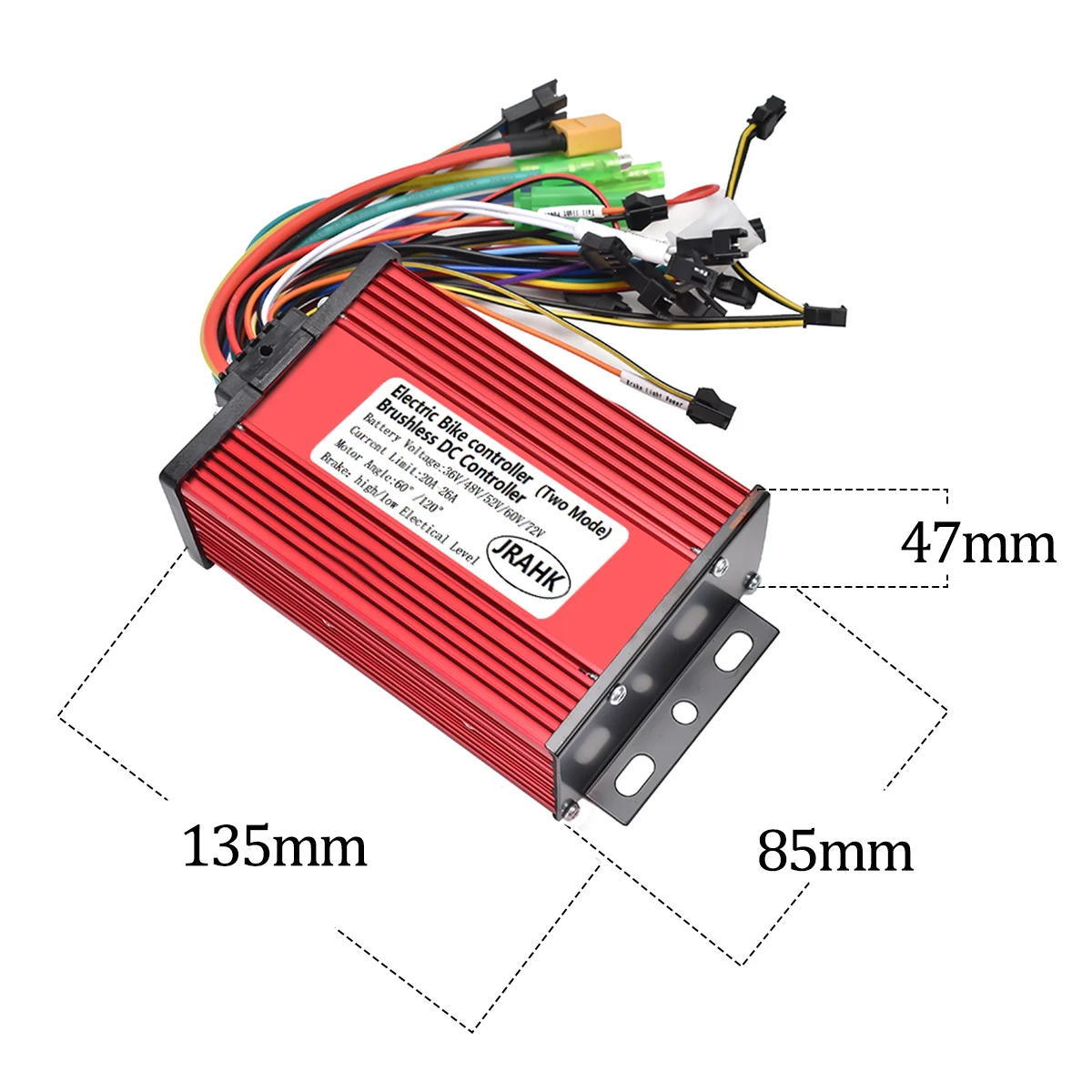

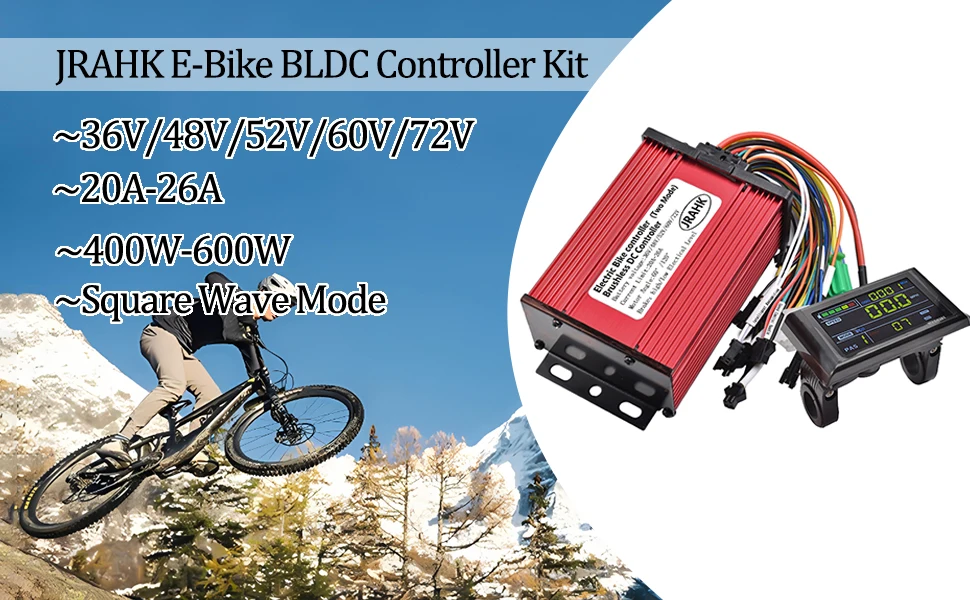

JRAHK 36V-72V 400W-600W E-Bike Controller Kit Electric Scooter BLDC Controller With LCD Display for Accessories

【Product parameters】

Color:Red

Condition: 100% brand newItem

type: Motor Controller

Material: Aluminium alloy

Voltage: 36V-48V-60V-64V-72V

Weight: .862g

Power: 400W-600W

Current limit:20A-26A

Notice:

This product cannot be used for dual-motor modification. If your electric scooter has front and rear motors, please purchase a dual-drive controller.

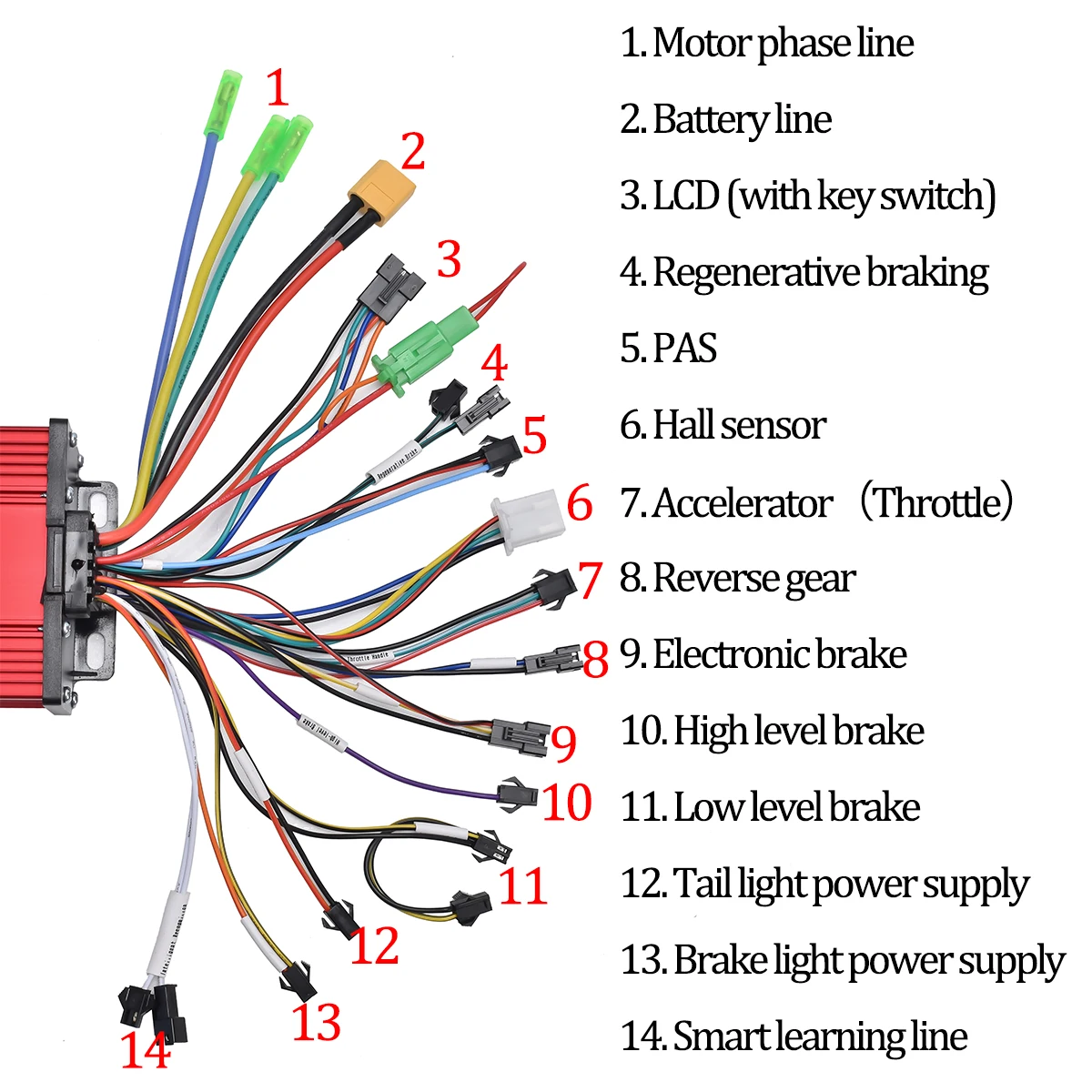

【Line Description】

1. Motor phase line

2. Battery line

3. LCD (with key switch)

4. Regenerative braking

5. PAS

6. Hall sensor

7. Accelerator（Throttle）

8. Reverse gear

9. Electronic brake

10. High level brake

11. Low level brake

12. Tail light power supply

13. Brake light power supply

14. Smart learning line

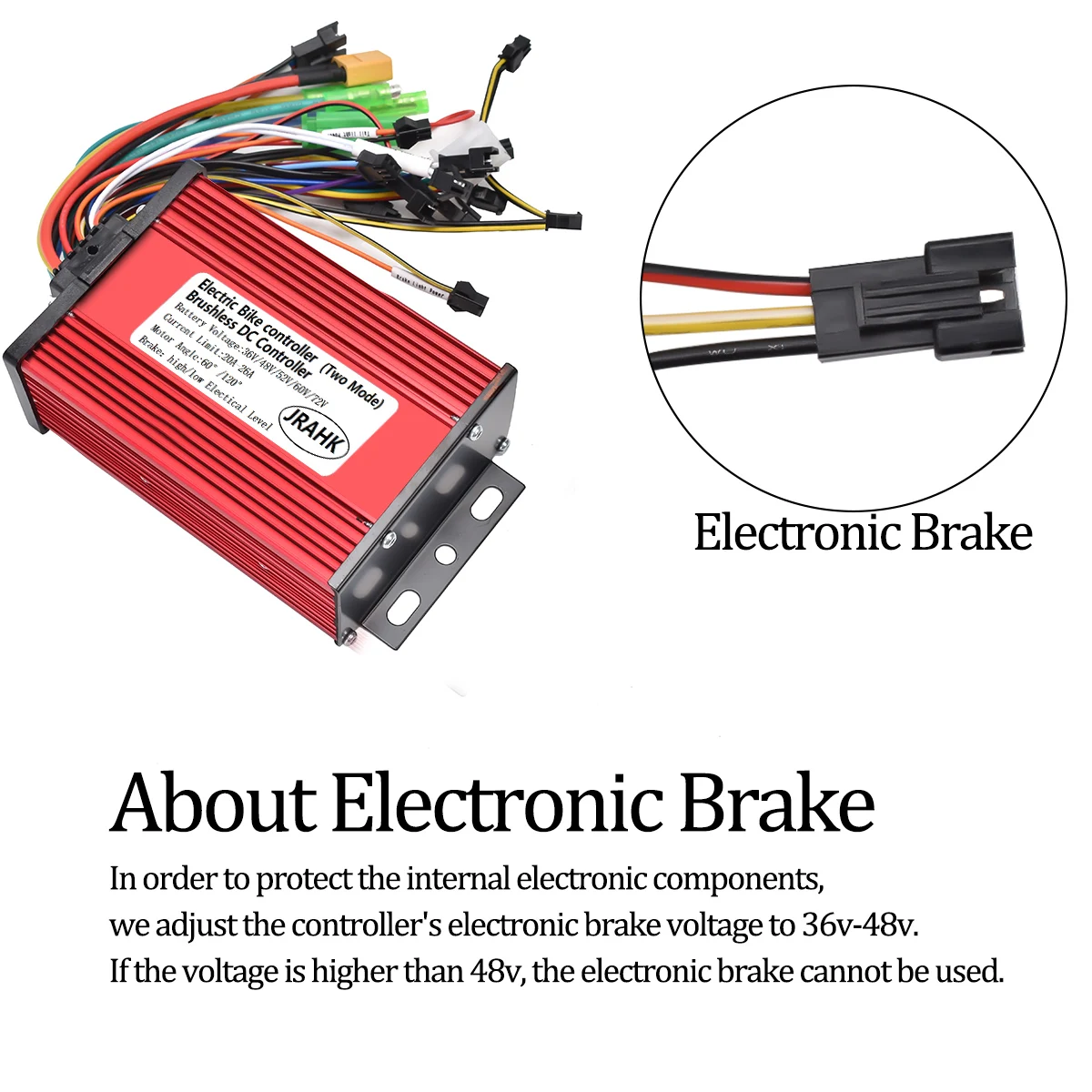

【About Electronic Brake】

In order to protect the internal electronic components, we adjust the controller's electronic brake voltage to 36v-48v. If the voltage is higher than 48v, the electronic brake cannot be used.

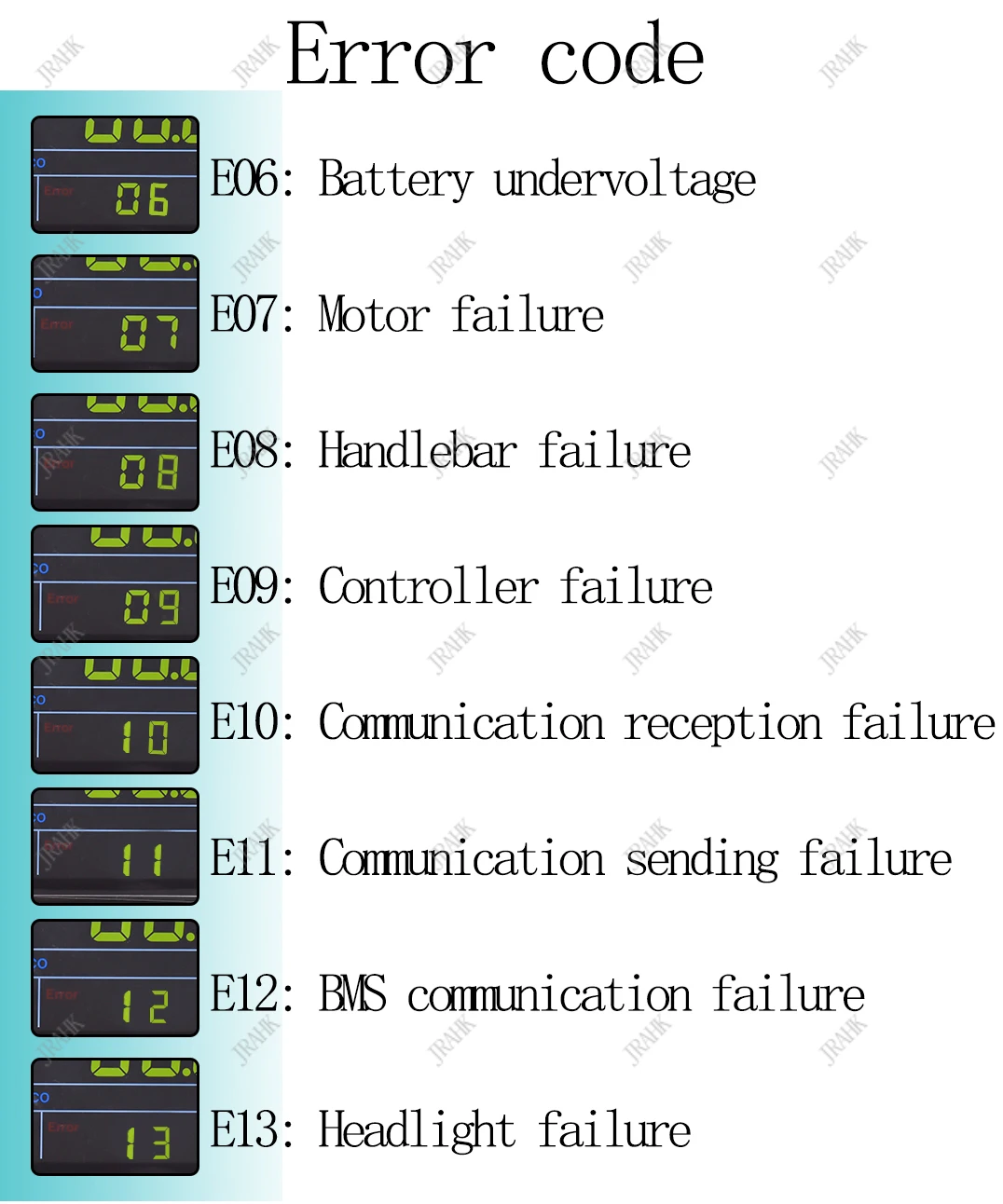

【Error code】

E06: Battery undervoltage
E07: Motor failure
E08: Throttle failure
E09: Controller failure
E10: Communication reception failure
E11: Communication sending failure
E12: BMS communication failure
E13: Headlight failure
