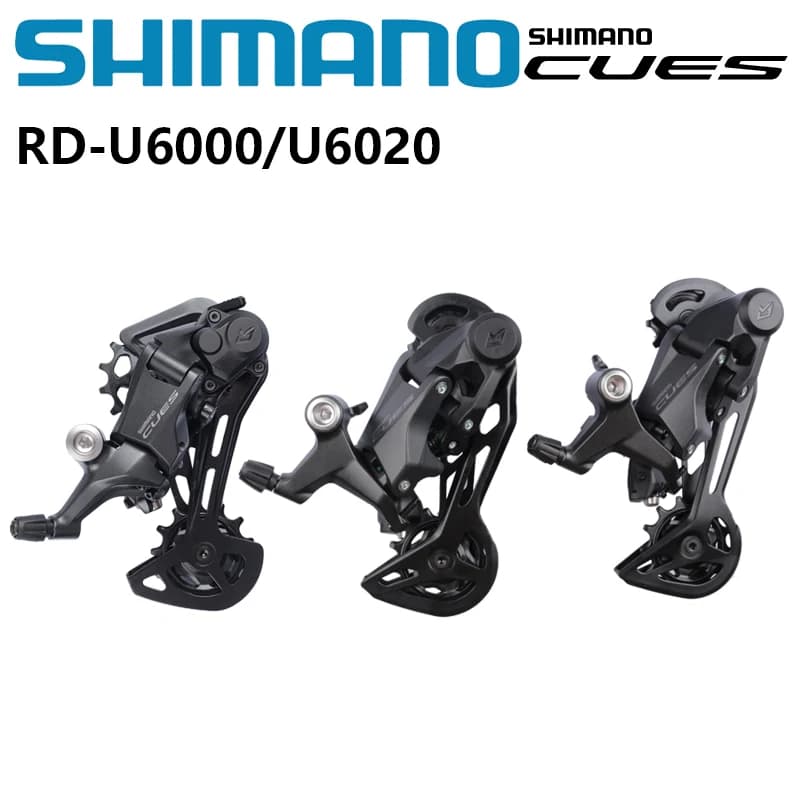

SHIMANO CUES RD-U6000 RD-U6020-10 RD-U6020-11 SHIMANO CUES SHADOW RD 10/11 Speed For Mountain Bike Original Shimano Bike Parts

SHIMANO CUES RD-U6000 RD-U6020-10 RD-U6020-11 SHIMANO CUES SHADOW RD 10/11 Speed For Mountain Bike Original Shimano Bike Parts

Model: RD-U6000
Series: CUES U6000 Series 11-speed
Colors: Series Colors
Note: E-BIKE level
Rear transmission: 11/10
Compatible chains: LINKGLIDE, HG 11 speed
High standard spring type | SHIMANO SHADOW RD+(hidden rear shift): ✔
Base | Direct Connection (Traditional): ✔
Line regulator: ✔
Difference between maximum and minimum sprocket teeth: 0T
Total value of gear change range: 39T
Low position flywheel plate | Maximum teeth: 50T
Low position flywheel plate | Minimum tooth: 48T
High position flywheel plate | Maximum teeth: 11T
High position flywheel plate | Minimum tooth: 11T
Chain link bushing with fluorine coating: 3
Guide wheel | Number of teeth combination: 13/13T
Guide wheel | concave guide wheel screw: ✔
Maximum low-speed flywheel plate: 50T (1x11 speed), 48T (1x10 speed)

Model: RD-U6020-10
Series: CUES U6000 Series 10-speed
Rear transmission: 10
Compatible chains: LINKGLIDE, HG 11 speed
High standard spring type | SHIMANO SHADOW RD: ✔
Base | Direct Connection (Traditional): ✔
Line regulator: ✔
Difference between maximum and minimum sprocket teeth: 16T
Total value of gear change range: 44T
Low position flywheel plate | Maximum teeth: 39T
Low position flywheel plate | Minimum tooth: 39T
High position flywheel plate | Maximum teeth: 11T
High position flywheel plate | Minimum tooth: 11T
Chain link bushing with fluorine coating: 3
Guide wheel | Number of teeth combination: 11/13T
Guide wheel | concave guide wheel screw: ✔

Model: RD-U6020-11
Series: CUES U6000 Series 11-speed
Rear transmission: 11
Compatible chains: LINKGLIDE, HG 11 speed
High standard spring type | SHIMANO SHADOW RD: ✔
Base | Direct Connection (Traditional): ✔
Line regulator: ✔
Difference between maximum and minimum sprocket teeth: 14T
Total value of gear change range: 48T
Low position flywheel plate | Maximum teeth: 45T
Low position flywheel plate | Minimum tooth: 45T
High position flywheel plate | Maximum teeth: 11T
High position flywheel plate | Minimum tooth: 11T
Chain link bushing with fluorine coating: 3
Guide wheel | Number of teeth combination: 11/13T
Guide wheel | concave guide wheel screw: ✔
