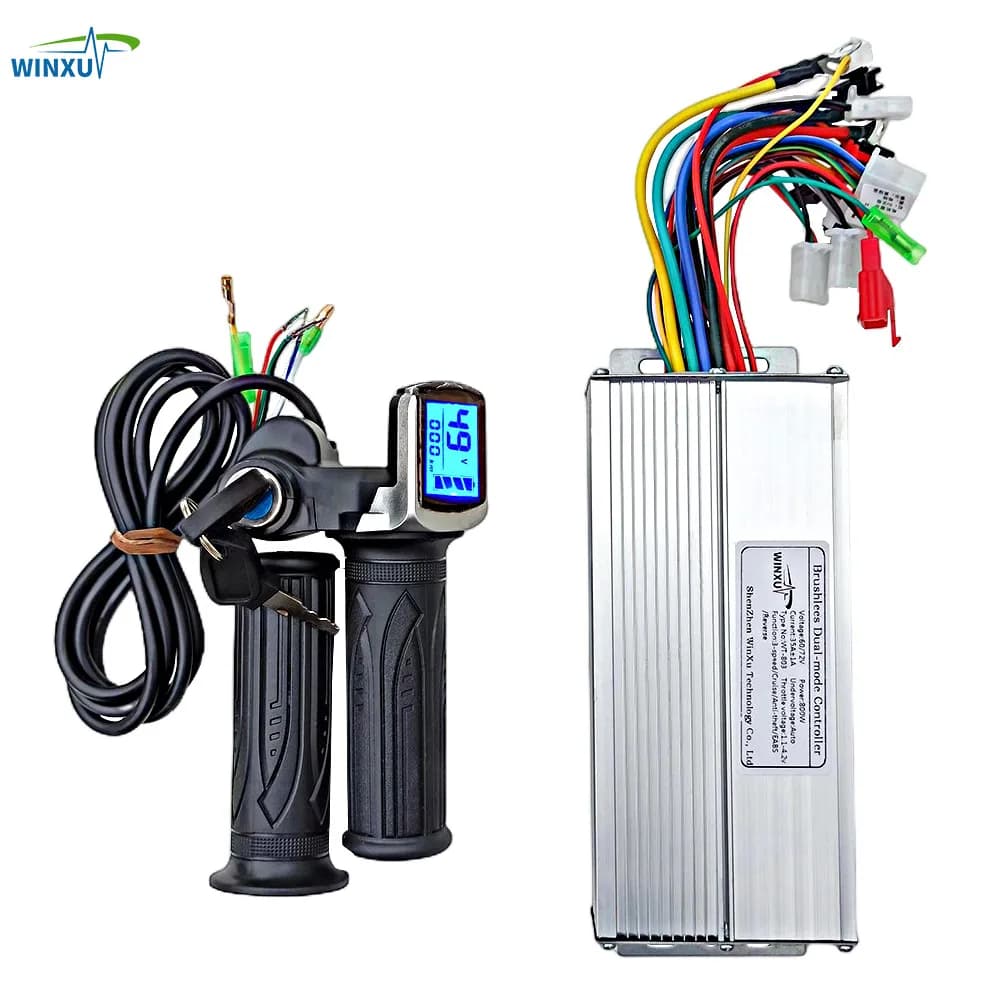

36V 48V 800W 35A Electric Scooter Brushless Motor Universal Controller LCD Speed Display Throttle Kit for Motorcycle Bicycle

Packing list:
1 PCS of controller

We are factory store and support wholesale. If you order a large quantity, please contact our online customer service and we will provide you with wholesale price

Electric Bicycle Brushless Motor Controller

WinXu Tech brushless motor drive controller, automatically compatible with all motors on the market

PRODUCT DATESHEET

●product size：180x33x80mm
●Rated Voltage：DC 36V 48V or 48V 64V or 60V 72V
●Rated Power: 800W
●Rated Current:: 35A
●Low Voltage Protection: 30V 42V 52V 63V
●Standby Power Consumption: ＜5mA
●Housing Materials: Aluminium alloy
●Water proof: IPX6
●Motor Matching： Brushlees Motor
●Display Matching: Ordinary LED & LCD display

FUNCTIONS & FEATURES

●Super low noise:
Reduce the motor torque ripple to minimum ;Achieve vehicle noise -Free vibration -Free and Comfortable riding feeling (Imitation torque )

●High efficiency;
Field oriented control (FOC)Driving technology allows higher system efficiency ,Lower heat loss and longer riding mileage.

●Multiple protections;
Over-current protection ,Over voltage /Under voltage protection ,Overhead protection runaway protection ,Short-Circuitprotection

Phase wire disconnect protection ,Blockage protection .

●Flexible configurations;
All the functions of the controller depend on the needs of customers

Strong Power and Stable Quality

Electric motorcycle/bicycle controller

Aluminum Alloy Material/ Smooth Texture/ IPX7 Waterproof/ No Rust

AI Intelligent Processing Chip, Stable Operation

Automatic recognition of motor mode, automatic compatibility with all brushless motors, multi-automatic protection function

High power controller for stable climbing

250W To 3000W multi-power model available, strong driving motor, high climbing efficiency and fast speed

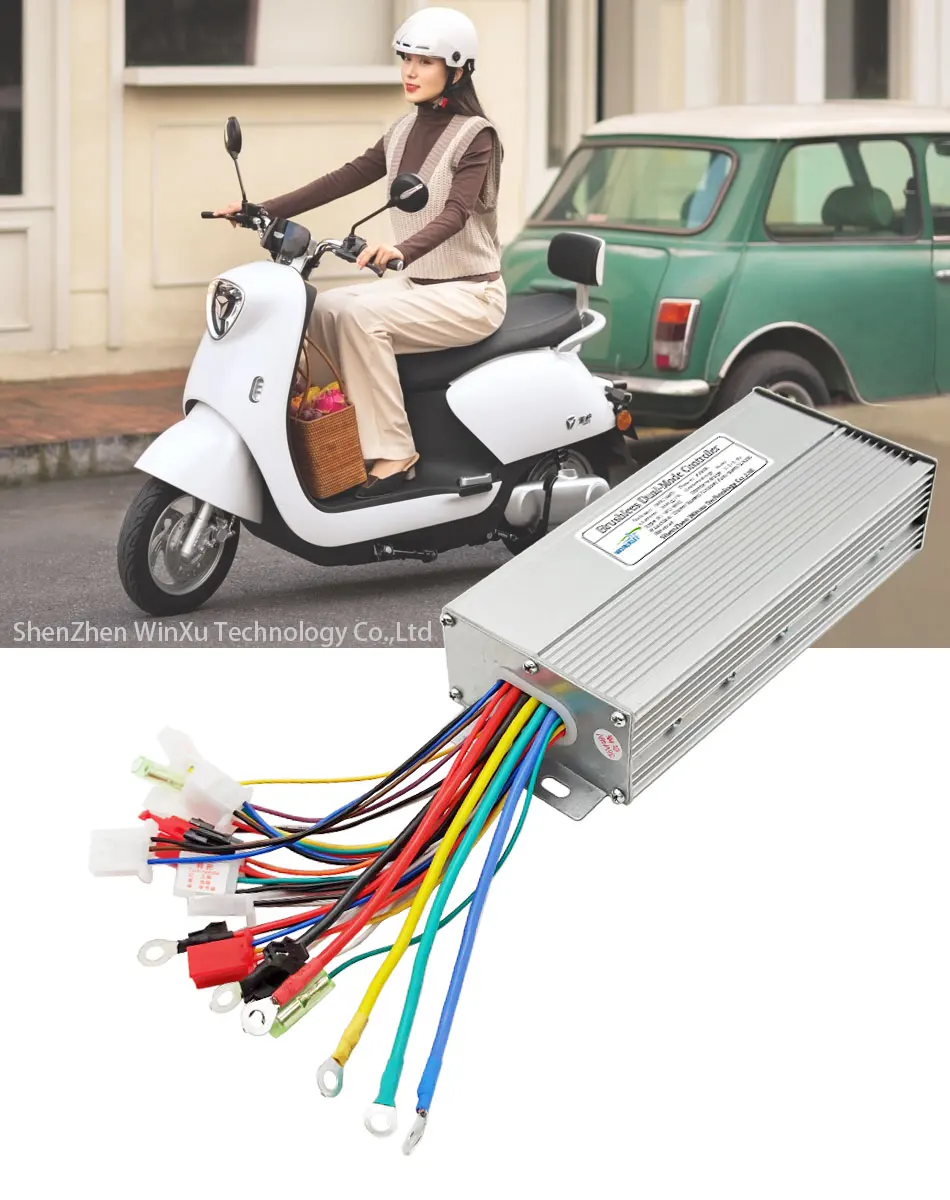

WinXuTech Brushless Controller Suitable For Various Electric Bicycles/ Scooters/ Tricycles

IPX7 deep waterproof, no fear of wind and rain

WniXu Tech brushless series controller adopts deep waterproof seal design, and the waterproof grade can reach IPX7. You do not need to worry about thunderstorm weather or riding in the water.

Pure aluminum alloy radiator shell, fast cooling and stable operation

The controller uses aluminum alloy radiator as shell material. Scientific research has found that aluminum alloy material can perfectly realize rapid heat dissipation and cooling, keep the internal MOS in a low temperature state all the time, and prolong the service life of the controller.

Product Size

Small figure, big function. Perfect pure aluminum alloy material, using industry standard size, compatible with more electric bicycles/scooters

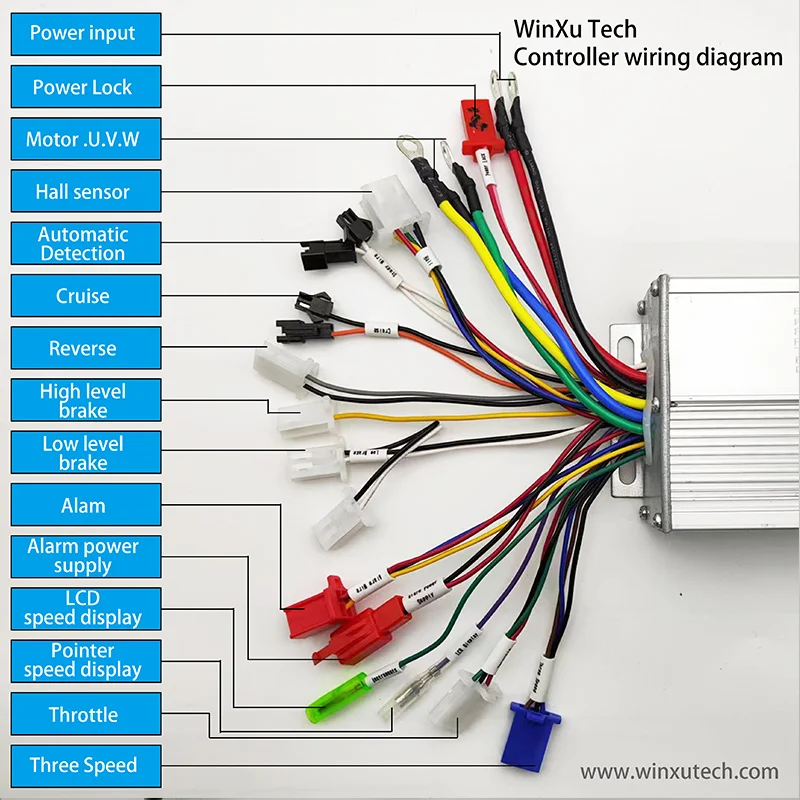

Controller Wiring diagram

Support custom service. Please contact online customer service

General Controller Function Description

Please follow the steps described below to connect the controller to your Ebike motor

1. Motor A.B.C
Brushless motor are usually 3 motor wires (thick blue, green, yellow) and 5 Hall wires (5P connectors).
Please connect the 3 motor wires ABC of the controller to your motor wires, please note that the same colours are connected together.

2. Hall sensor
In the second step please connect the 6P Hall sensor connector to the Hall wire of your motor, if the connectors are not the same you can cut the wires to connect. Please note that the same colour must be connected correctly.
Red is 5V+. Black is 5V negative.

3. Throttle
Red: 5V + pole, white (green): throttle signal, black: 5V - pole. 3P male connector
Please connect the controller throttle wires to your throttle connector, if your throttle connector is not the same as the controller connector you can cut the wires to connect, please note the 5V + and - and signal wires. Please take care to connect the wires correctly.

4. three speeds
Blue: high speed, black: negative, brown: low speed.
3P male connector.
High speed: speed 120%, medium speed: speed 100%. Low speed: speed 80%.

Please connect to your 3 speed switch wires as described above, the controller uses medium speed when vacant and not connected.
If your 3 speed switch connector is different you can cut the wires to connect, please take care to connect correctly.

5. Reverse
Grey and black wire 2P male connector.
Please connect to your reversing switch, if your connectors are not the same, you can cut the wires to connect.
This function is when the reverse switch is on, the electric scooter/bike motor will turn in reverse, at a low speed.

6. Low level brakes
White and black wire 2P male connector.
The controller has 2 brake wire connectors, please connect to your left and right manual brakes. When the black and white wires are shorted together, the controller will cut off power to the motor.

7. Automatic cruise
Pink wire and black wire with black male and female connectors.
Please connect to your throttle cruise button cable. If the connectors are different, you can cut the wires to connect.
This feature means that when switched on the speed will be constant at the speed you had before you switched on the automatic cruise.
If you do not use this function then you can leave this connector unconnected.


8. Alarms
Red, blue, yellow, 3 wire 4p red connector.
Please connect to your alarm 4p connector, this is the alarm signal control function connector, if you do not need this function then you can leave it unconnected.

9. Alarm power supply
Red:power supply +, black: negative, 2p red female connector.
This connector is the alarm power supply, which is connected to the alarm power supply and is used to power the alarm.

10. Speed display
Green wire
Connected to the speed wire of your ebike/ebike LCD display, this function uses the motor phase wire to measure speed. Please use the normal speed display.
If your ebike does not have this function, then you can leave it unconnected.

11. Power lock
The thin red wire on the power input connector.
Please connect to your key lock input and the key lock output wire to the negative terminal. If your key lock connector is different, you can cut the wire to connect.
If you do not need a power lock for your e-bike. Then you can connect it directly to the power input +.

12. Power input
Thick red: power input +, black: power input -.
Thick red and thick black wires 3P male connector.
Please connect to your battery, please note that red is the + pole and black is the negative pole. Special care needs to be taken when connecting, do not connect the wrong power input + and -, otherwise you will damage the controller. Please pay special attention to this step.

13. Automatic detection (learning)
White wire connector.
When you have done all the above, please leave your Ebike motor wheel hanging. and turn on the key lock and power input, short the auto-detect wire for 10 seconds while the controller checks your motor parameters, after 10 seconds please disconnect the auto-detect. If your motor is running in reverse, then you connect the auto-detect cable for another 10 seconds to retest and select the correct motor running direction. After this operation you have completed all connections. You can use your e-bike normally.

14. High level brake
If your electric scooter uses high level brakes, then you can use the high level brakes and cancel the low level brakes.

If you are ordering one of our 24V/36V 350W controllers, please refer to the 250W controller link for instructions on how to use it.

● Product size:180x43x85mm
● Voltage：36V/48V or 48V/64V or 60V/72V
● power：800W
● MOS: 15
● Current：35A±1A
● Undervoltage：automatic
● Function: Three-speed / Cruise / EABS

Product Process Details Display

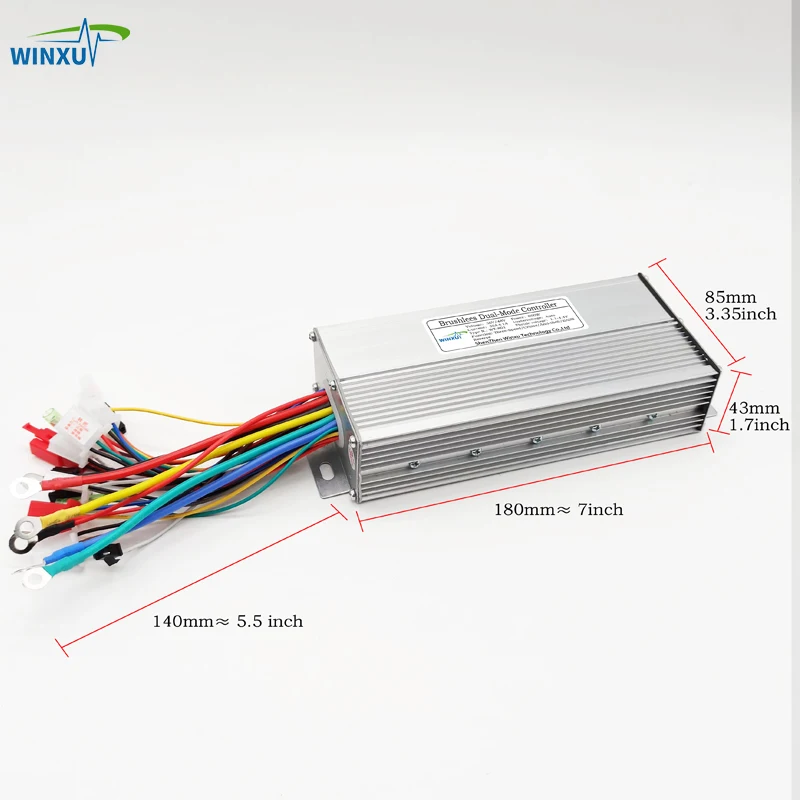

WinXuTech Controller Size Display

Product Features:

1. The controller shell is made of aluminium alloy with groove design, which can protect the inner circuit and good for heat dissipation to avoid thermal overloading.

2. This item is a brushless motor controller, it can provide steady speed and sensitive control of braking and direction changes. dual mode controller works smoothly and silently.

3. The wires and interfaces are durable, and ensure low malfunction of long time use.

4. The interfaces have instruction labels on them for your easy installation.

5. Suitable for electric bicycles, scooter, etc.

FAQ

1​. When will you deliver the goods?
● We ship from China and the AliExpress worehouse will receive the goods and start shipping to your country within 1-3 working days.


2​. Is the controller compatible with my motor?
● Compatible with all electric bicycle/scooter brushless motors, as long as your motor is brushless motor, the controller will be fully compatible.


3​. If I can't connect the wires, will you provide technical support?
● Of course, we will always provide technical support to all customers. Please contact our online customer service and apply for technical support.


4​. Does the controller in your store support wholesale?
● We are factory store and an original manufacturer. We will provide wholesale prices for your bulk order


5​. Do you sell other electric bicycle accessories?
● Yes, we sell a lot of electronic accessories for electric bicycle, including Controller, Charger, BMS, Alarm, Throttle
