EBKE Electric Bicycle Ebike LightKit Universal 24V 36V 48V 52V BAFANG UART CAN KT JULET Steering Brake Light

Special note:

Currently our headlight conversion system does not support any CAN protocol bbs motor system, please check the version before buying.

Please note:

As for the connection cable of G510 version, currently only G510 or G330 version of UART protocol is supported. If you are the version of CAN protocol, please do not buy it, and contact us to make a new cable for you!

This product has a variety of options, please reconfirm the light touch before purchase, if you need our help, please contact us.

Waterproof line light set is used in Bafang BBS01 BBS02 BBSHD full series,

The SM terminal cable version is compatible with most controllers with low-voltage brakes.

This lamp group is controlled by an independent external switch and is not suitable for 6V instrument control switches.

Package composition:

1. Aluminum alloy 9W headlight

2. Tail lights (turn lights, brake lights, driving lights)

3. Switch (steering, driving lights, horn)

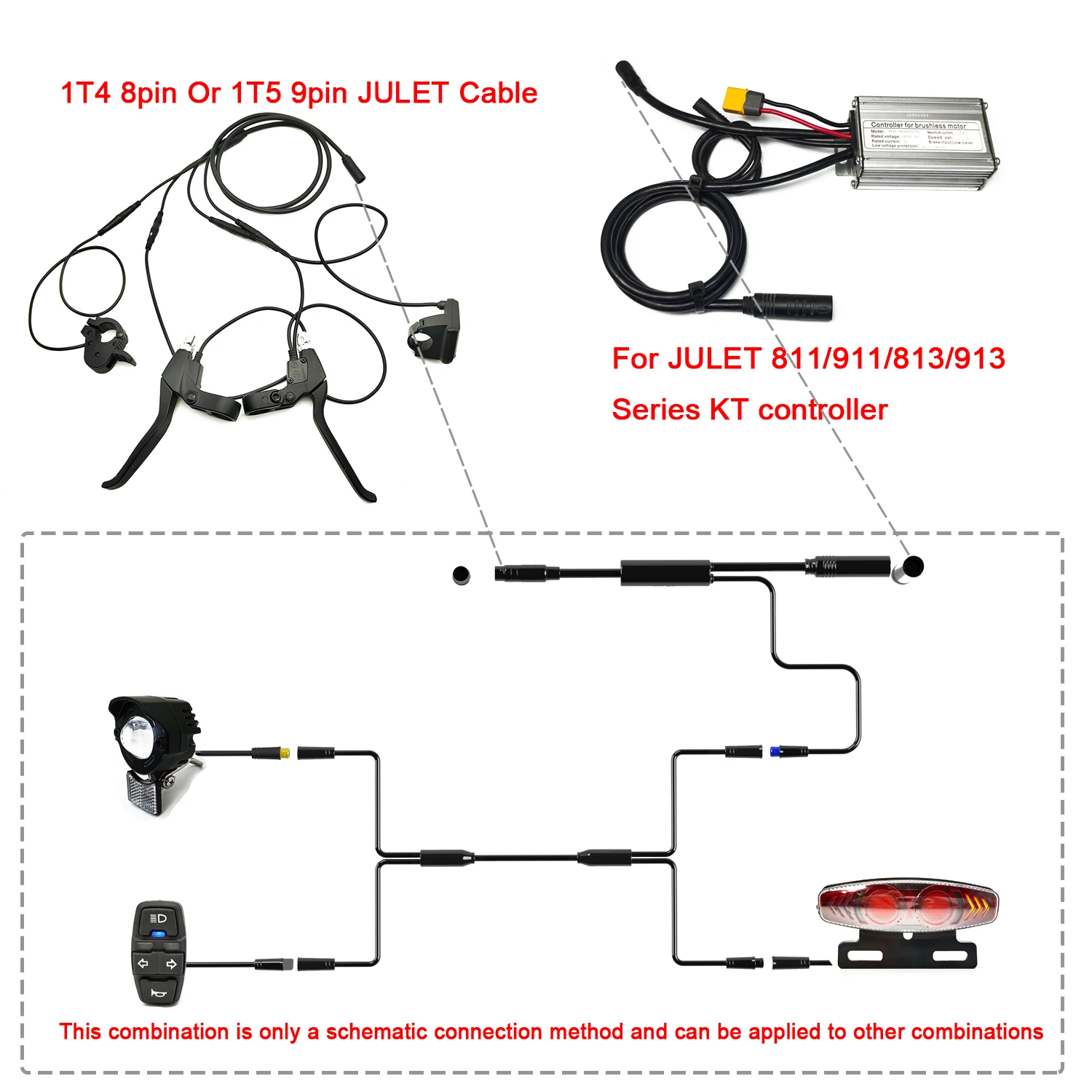

4. Convert cable for bafang or for SM connector

Features:

1. The installation is convenient, quick and quick to install, and the tail lamp is equipped with a seat tube mounting bracket.

2. Front and rear running lights, turn signals, brake lights, double flashing lights.

3. A complete set of waterproof lines.

Headlight:

feature of product

1. High power and high brightness;

2. Adopt high-power LED lamp beads, front light emitting mode, uniform light color and no dark areas;

3. The outer cover is made of PMMA material, with high transparency and anti-glare;

4. It can be switched on and off frequently, without flicker and glare, and has good color rendering performance;

5. Using high-efficiency LED flow driver chip, the efficiency can be as high as 90% or more:

6. The service life is 35000 hours

7. Tested at an ambient temperature of 50℃, the luminous flux maintenance rate for 6000 hours is ≥93%, and the luminous flux maintenance rate for 35000 hours is ≥70%

Electrical parameters:

Model: Y-030 (aluminum alloy)

Applicable voltage: 24V/36V/48V/60V

Low beam current: 48V/190mA, 36V/250mA

Power: 6W

Function: low beam, horn

Light brightness: 650 LM

Speaker volume: 75-100 dB

Outgoing wire: three-core wire

Product appearance (50*62*73)

Cable length: ~15CM

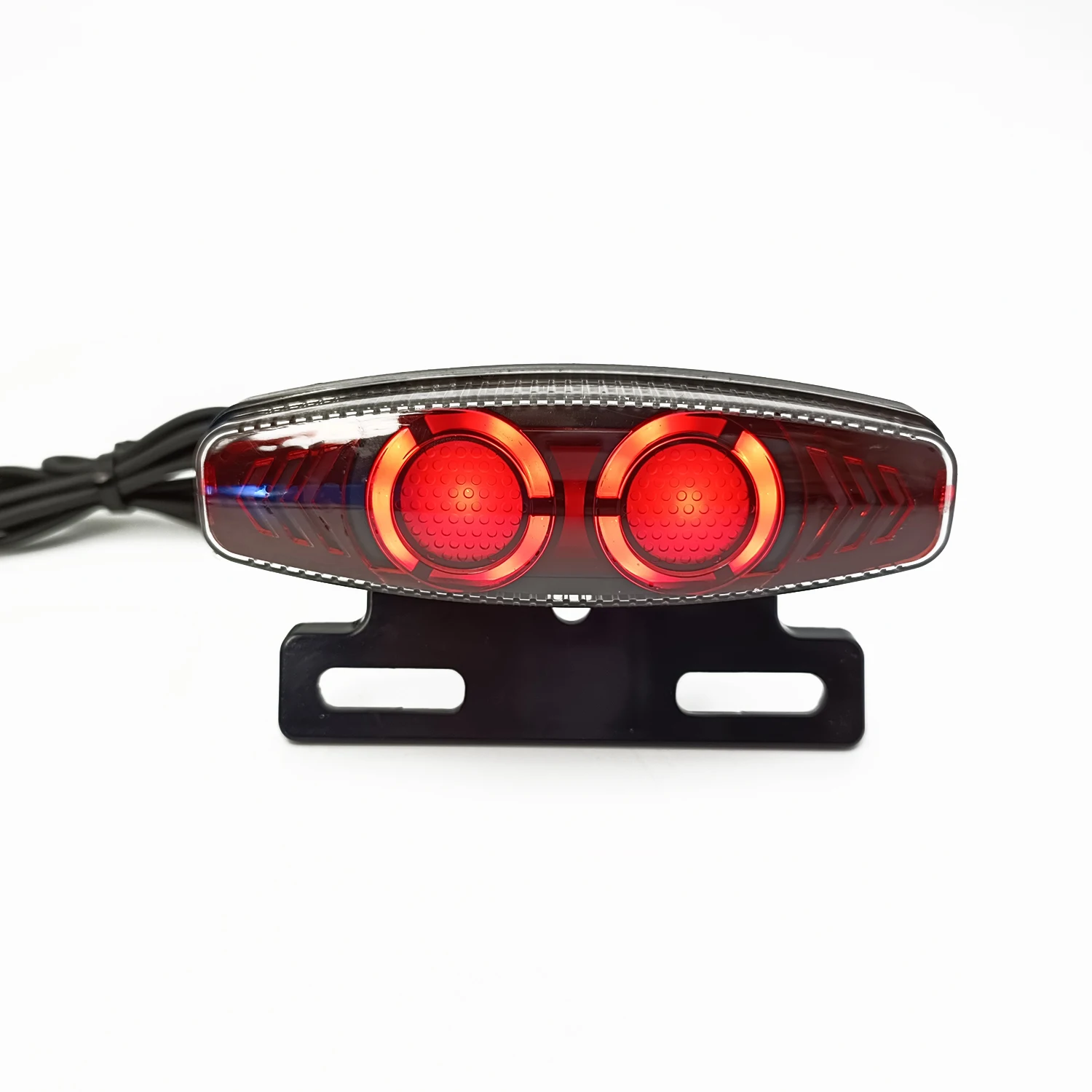

Taillight parameters:

Code: DZ0275-WD05S

Net weight of taillight: 120g

Shell material: plastic

Applicable voltage range: 24-60V

Power: 1.5W

Number of light sources: 14

Luminous flux: 15LM

Product size: 132*65*40mm

Cable length: ~120CM

Switch parameters:

Code: PT0362

DK-3362

1. Net weight of switch: 92g

2. Shell material: plastic

Product size: 26*53*61mm

Cable length: ~37CM

Single package size: 23*12.5*8.5CM

Net weight is about 380g

Gross weight about 450g
