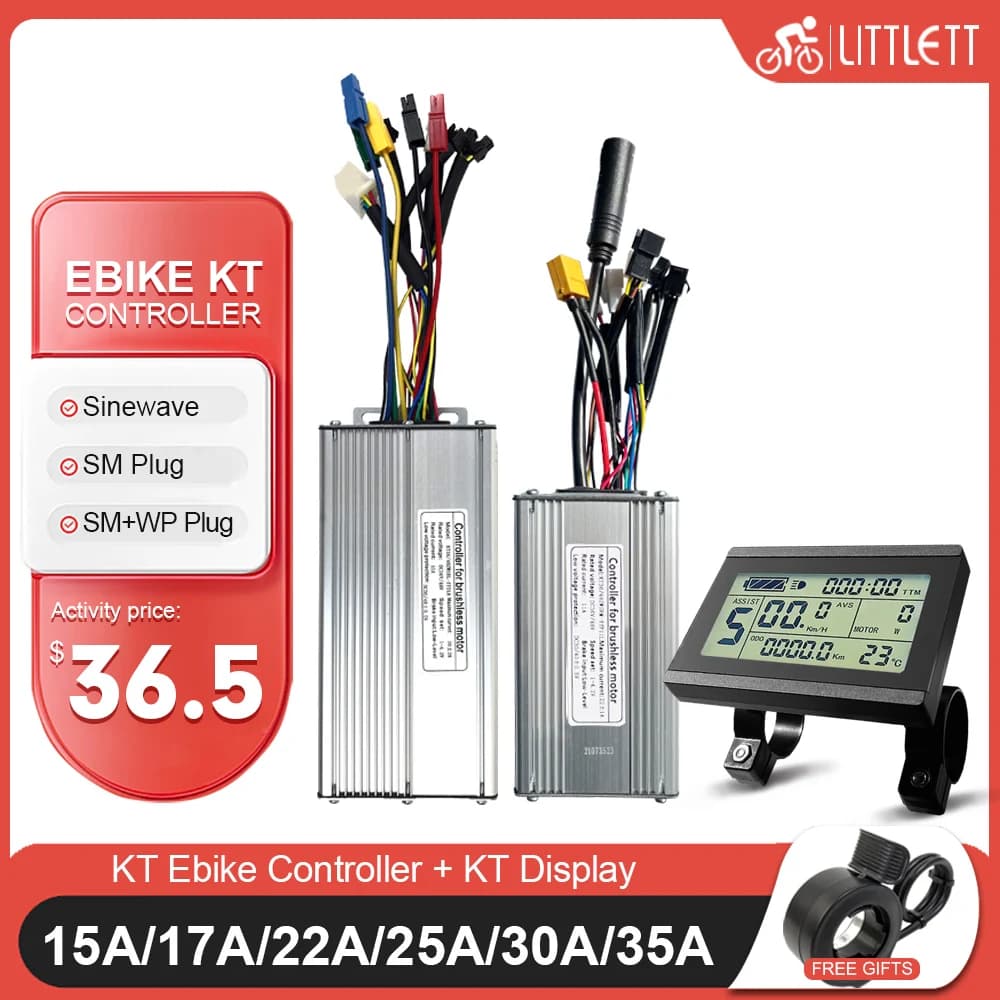

KT Ebike Sinewave Controller 36V48V 15A/17A/22A/25A/30A With LCD3 LCD5 LCD11 Display For Electric Bicycle Conversion Kit Parts

Type：KT-15A Controller(Sine wave)

◆Controller Brand :KT (KUNTENG)
◆Size:82 * 53 * 32 mm
◆Weight:200g
◆Cable length :all about 10-13cm
◆Mosfets:6 mosfets
◆Maximum current:15±1A
◆Rated voltage:DC36V/48V
◆Speed set:1-4.2V
◆Rated current:7A
◆Brake input :Low-Level
◆Low voltage protection:DC30/40±0.5V

Type：KT-17A Controller(Sine wave)

◆Controller Brand :KT (KUNTENG)
◆Controller dimension :94 * 62 * 35 mm
◆Weight:250g
◆Cable length :all about 10-13cm
◆Mosfets :Big6 better mosfets
◆Maximum current:17±1A
◆Rated voltage:DC36V/48V
◆Speed set:1-4.2V
◆Rated current:8A
◆Brake input :Low-Level
◆Low voltage protection:DC30/40±0.5V

Type：KT-22A Controller(Sine wave)

◆Dimension :about 128 * 68 * 38 mm
◆Mosfet :9 Mosfets
◆Maximum current :22±1A
◆Rated current :11A
◆Rated voltage :DC36V/48V
◆Speed set :1-4.2V
◆Brake input :Low-Level
◆Low voltage protection :DC30/40±0.5V
◆Cable Length :all about 13-18cm
◆Weight:450g

Type：KT-25A Controller(Sine wave)

Dimension :about 128 * 68 * 38 mm
Mosfet :9 Mosfets
Maximum current :25±1A
Rated current :11A
Rated voltage :DC36V/48V
Speed set :1-4.2V
Brake input :Low-Level
Low voltage protection :DC30/40±0.5V
Cable Length :all about 13-18cm
Weight:450g

Type：KT-30A Controller(Square wave)

◆Dimension :about 170 * 88 * 43 mm
◆Mosfet :12 Mosfets
◆Maximum current :30±1A
◆Rated current :17A
◆Rated voltage :DC36V/48V
◆Speed set :1-4.2V
◆Brake input :Low-Level
◆Low voltage protection :DC30/40±0.5V
◆Cable Length :all about 13-18cm
◆Weight:about 650g

Type：KT-35A Controller(Square wave)

◆Dimension :about 170 * 88 * 43 mm
◆Mosfet :12 Mosfets
◆Maximum current :35±1A
◆Rated current :17A
◆Rated voltage :DC36V/48V
◆Speed set :1-4.2V
◆Brake input :Low-Level
◆Low voltage protection :DC30/40±0.5V
◆Cable Length :all about 13-18cm
◆Weight:about 650g

KT LCD LED Display Parameter

Type:KT LCD/LED/Colourful Display
Color:Black
Voltage:24V 36V 48V universal,72V for LCD3/LCD5
Cable length:About 180cm(SM)
Plug:5 Pin SM Connector
