Ebike Front Brake Rear Light Set For 36V 48V Battery Contain Horn Headlight Switch And With Ebike Turn Functional Tail Light

Warning

1: This product will not work in a Bafang or TSDZ mid motor.
2: It needs to be in a 36V or 48V battery to work properly.
3: This product needs to be connected to the same battery as the controller, otherwise the brake function cannot be activated. 4: Connecting the brake requires the controller to be a low brake.

Ebike Brake Light And Turning Light Set Input 24V 36V 48V Electric Bike Scooter Headlight With Horn And Turn Tail Light

Pplication: LED headlights for electric bicycles, shared electric vehicles, and motorcycle

Net weight of the whole set: 400g

Package weight: about 0.65KG (small carton)

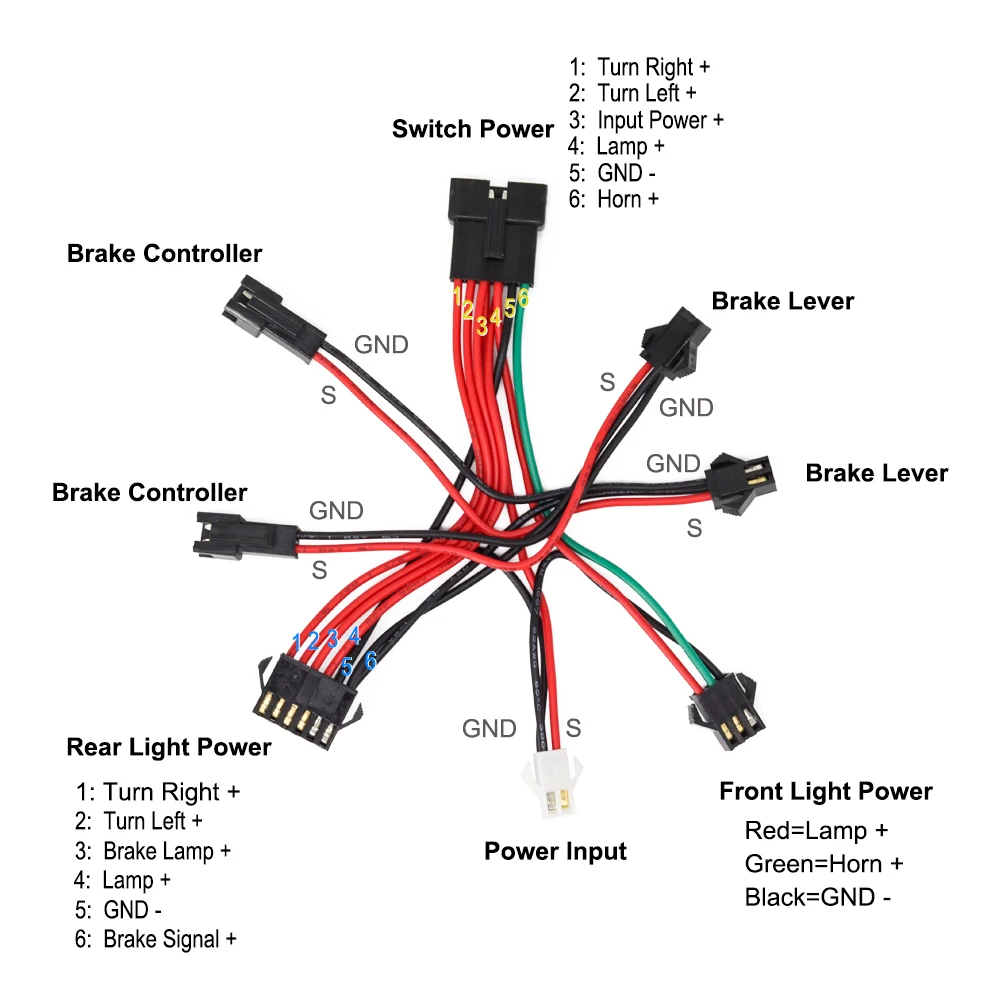

Work status description:

Driving lights: When the switch of driving lights is turned on, the headlights and tail lights are on

Horn: When the horn button is pressed, the horn starts to work, release it to cancel

Brake light: When the brake signal line and the controller brake low voltage signal are connected normally, the brake light will light up while braking, and the brake light will go out when the brake is cancelled

Turn signal: When the turn switch of the designated direction is toggled, the turn signal of the corresponding direction starts to work and flashes, the flashing frequency is about 800ms each time

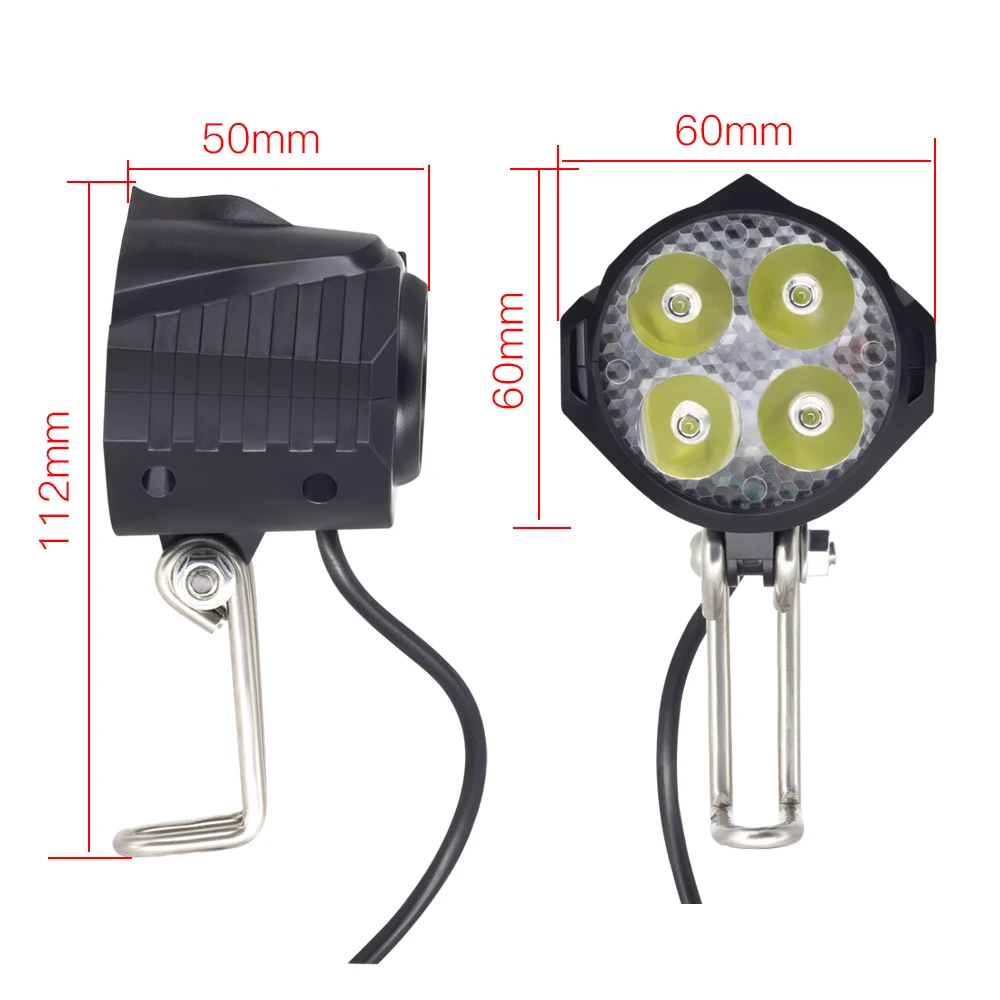

Headlight

1. Net weight of headlight: 100g

2. Shell material: plastic

3. Applicable voltage range: 24V-48V

4. Power: 59mA/2.8W

5. Luminous flux: 180-220LM

6. Horn Power: 44mA/2.1W

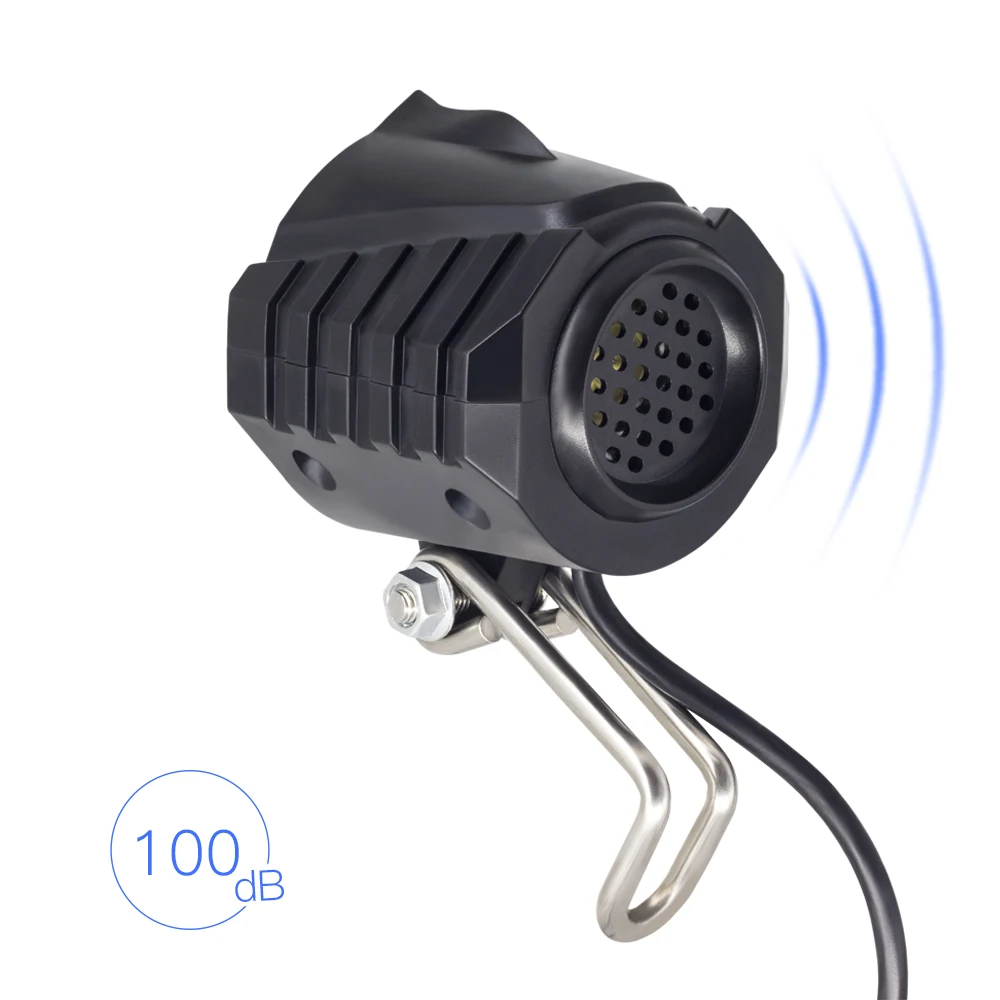

7. Horn Volume: 80-100dB

8. Product size: 62*50*70mm

9. Cable length: about 1.5M

10. Light Power: 3W

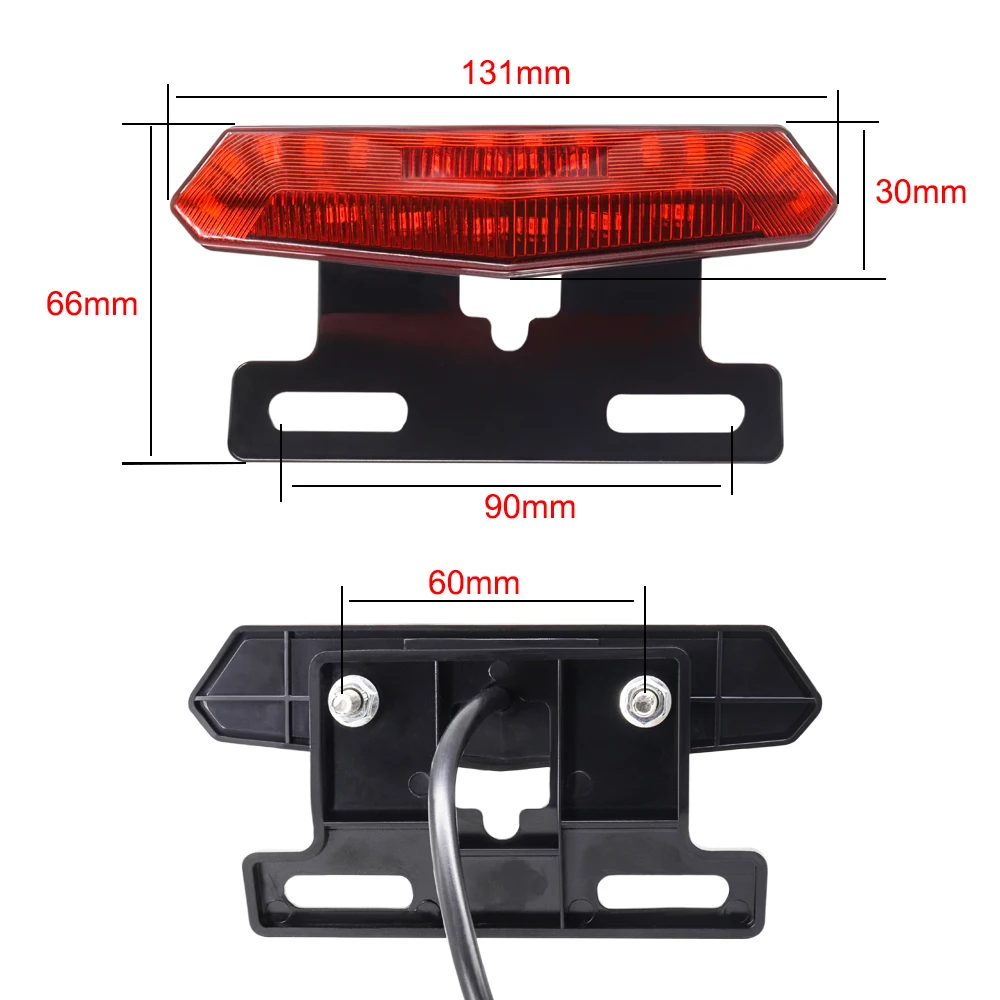

Rear Light

1. Net weight of taillight: 120g

2. Shell material: plastic

3. Applicable voltage range: 36-48V

4. Power: 1.5W

5. Number of light sources: 14

6. Luminous flux: 15LM

7. Product size: 132*65*40mm

8. Cable length: about 1.2M

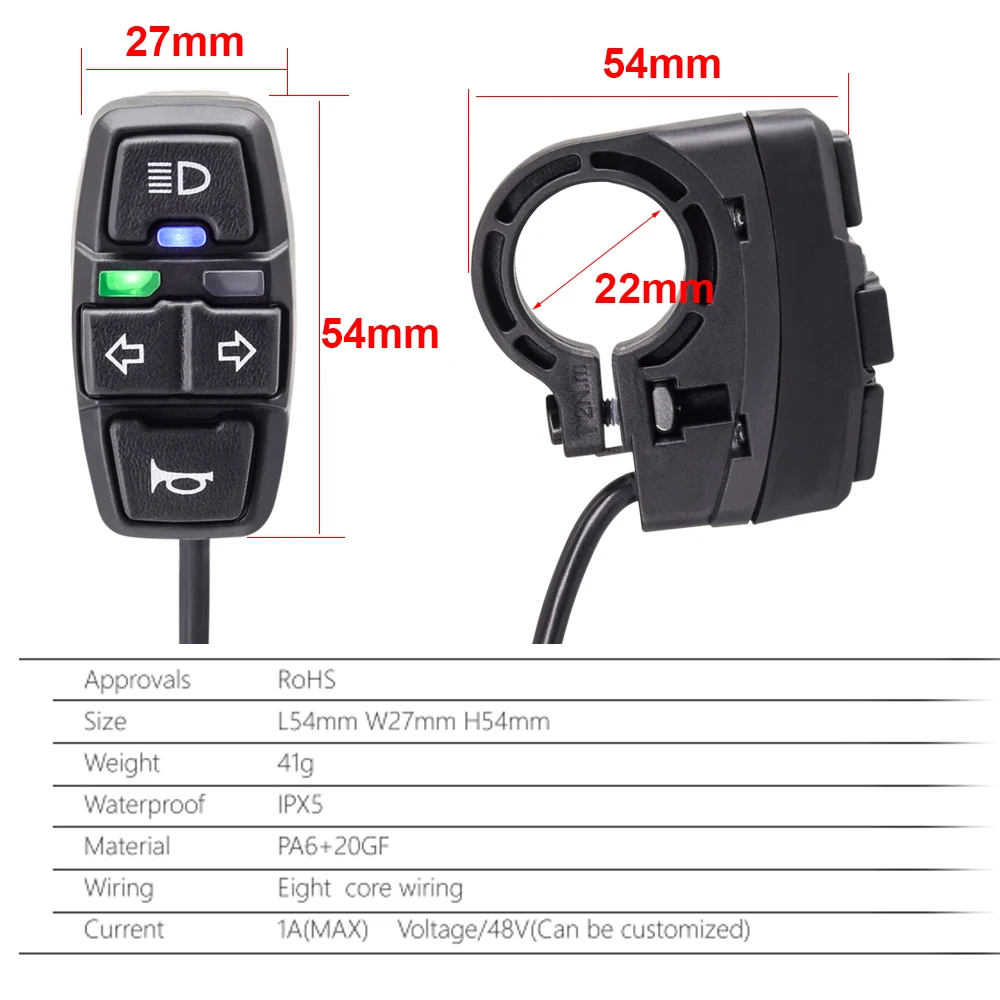

Switch:

1.For handlebar size:22.0mm
​
​2.Product size:L54*W27*H54MM
​
​3.Waterproof:IP65
​
4.Cable length:1.5 M
​
​5.Applicable voltage range:36V-48V

6.Maximum working current: 1A

7.Shell material: plastic
