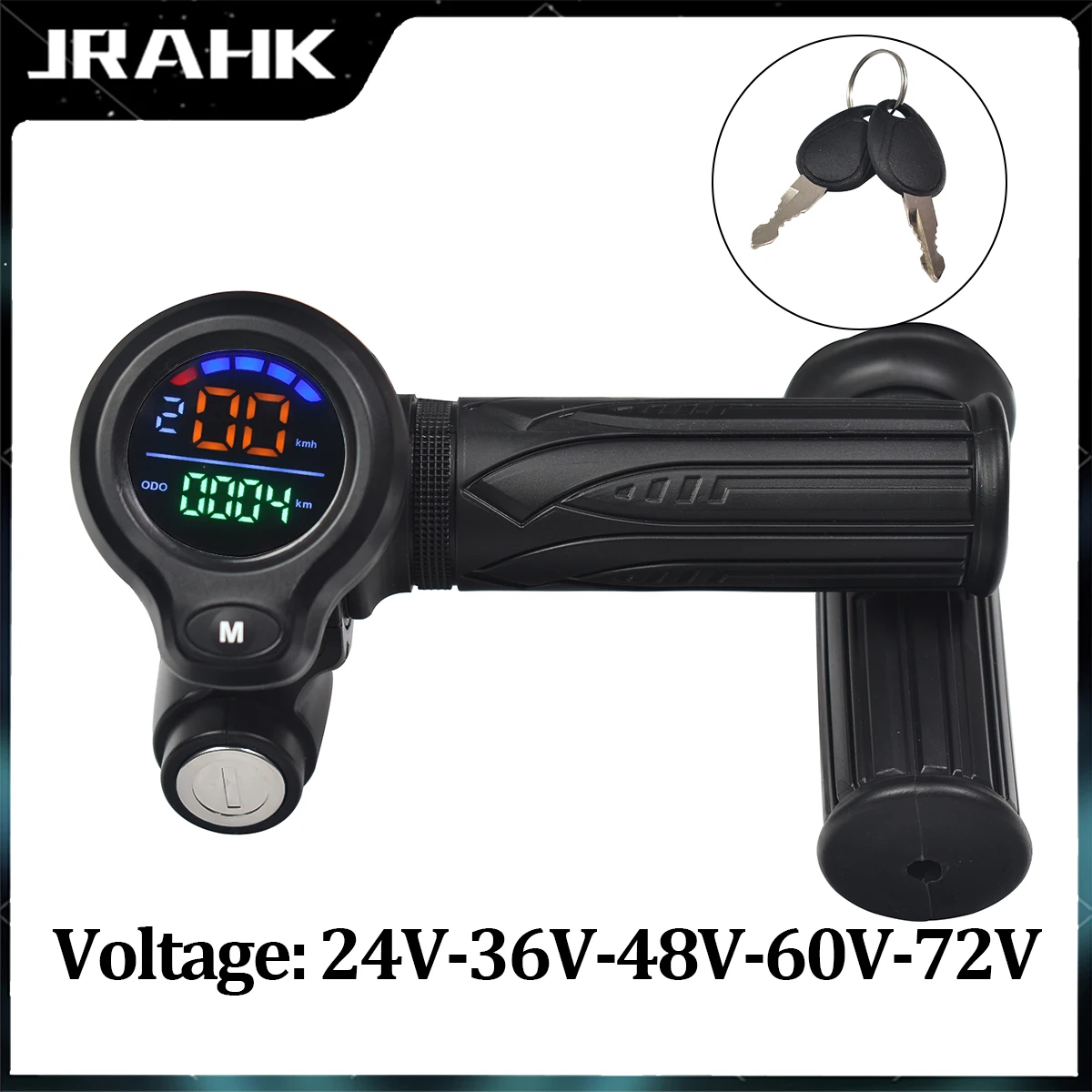

JRAHK Bike Electric Scooter Accelerator Display Ebike Throttle Digital Monitor For Bicycle 48v Electric Scooter Trigger

【Functions and Parameters】

1. With the instrument panel powered on, briefly press the M button to switch between the three speed settings. Long press the M button to select ODO Total Mileage → TRIP Single Trip Mileage → Battery Voltage → ODO Total Mileage.

2.With the instrument panel powered off by throttle, press and hold a button on the instrument panel, then turn the key to turn on the ignition. This will enter the instrument panel settings:

P01: Voltage Level: 24V, 36V, 48V, 60V, 72V, default setting 36V.

P02: Speed ​​Percentage: Default 100%, adjustable.（This refers to the displayed speed value and will not affect the actual speed.

P03: Mileage Percentage: Default 100%, adjustable.

P04: Backlight Brightness: Level 1 (dimmest), Level 3 (brightest), default setting Level 2.

P05: Mileage Unit: 0: KM; 1: MILE. Default setting 0

P06: Motor diameter: unit, inch; accuracy: 0.1; default setting 26 (refers to motor size, not tire size)

P07: Number of speed measuring magnets: range: 1～100; default setting 26

P08: Invalid setting, no effect.

P09: Starting speed setting (1, 2, 3). Default setting 2.
