ZENOBBQ Rotisserie Basket Rotating Fish Grill BBQ Spit Automatic Meat Shelf Baking Free Length Adjustment Roaster Accessories

DESCRIPTION

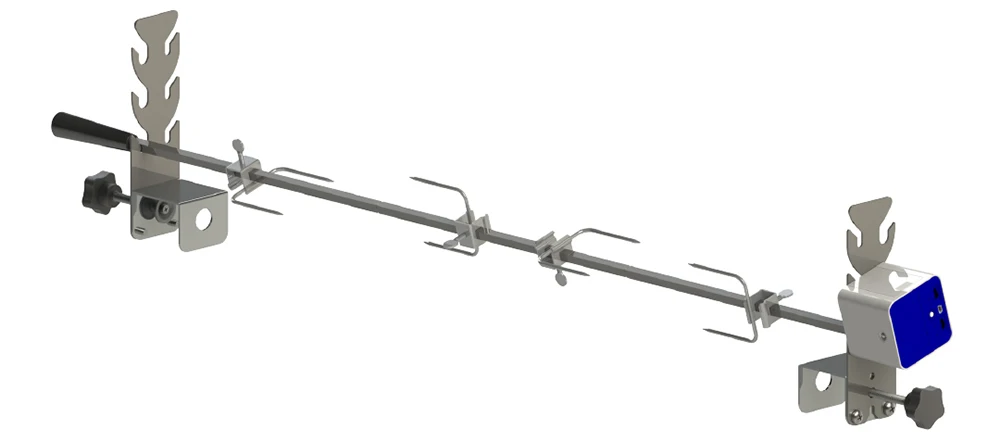

Electric Rotisserie is composed of the following parts:

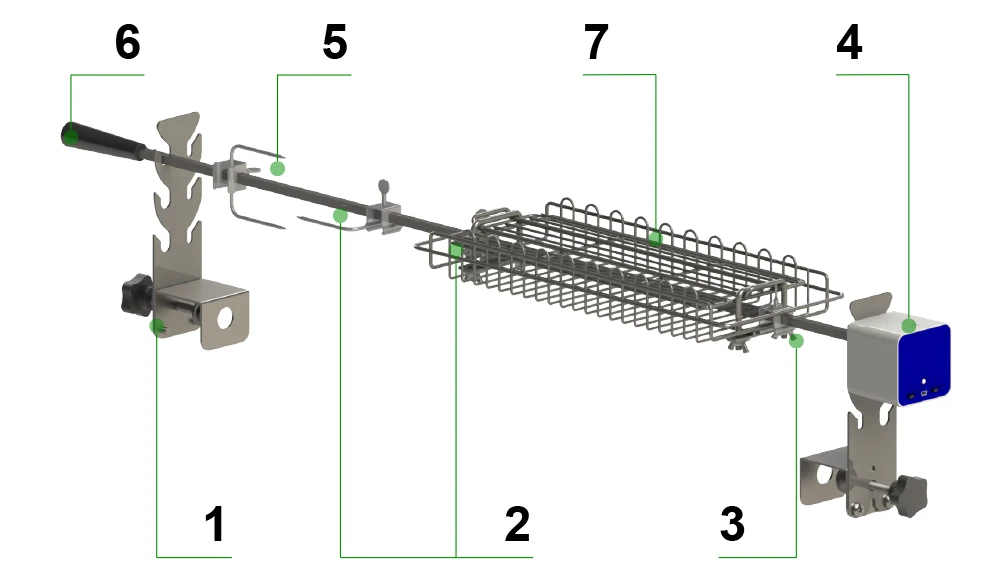

1 Bracket 2 Extension rod 3 Rotating rod 4 Multi-function DC motor 5 Fork(304 stainless steel) with thumb screws(304 stainless steel) 6 Nylon Handle 7 X net
It can be installed on the ovens(BBQ stoves) to automatic rotate roast whole chicken, roast fish, roast vegetables, etc. Quick to install without tools and easy to carry. The length can be adjusted freely within the effective range.

DIMENSION

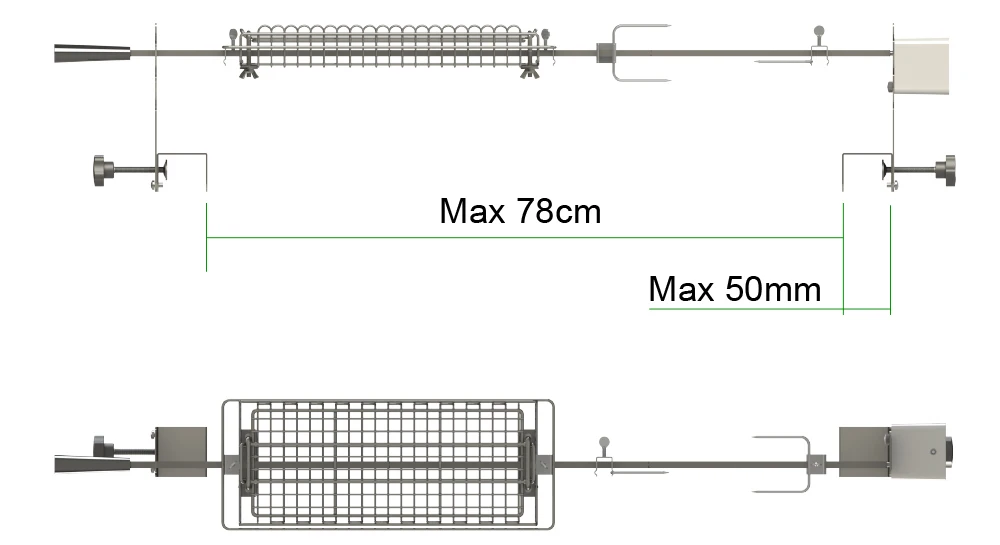

Supports ovens(BBQ stoves) with inner diameters below 78cm. They all clamping ovens(BBQ stoves) wall thickness are not exceeding 50mm. If you are not sure whether your oven(BBQ stove) is suitable, you can provide a picture of your oven(BBQ stove) inner diameters and wall thickness to the customer service online.

BRACKET

NOTE: The default are V(vertical) brackets.
There are two kinds of brackets: V(vertical) brackets and H(horizontal) brackets and Use V(vertical) brackets by default, If you need H(horizontal) brackets, please contact customer service. All brackets using 2mm thickness stainless steel plates, with three heights, and using thread locking devices.

THREE HEIGHTS

High - Middle - Low

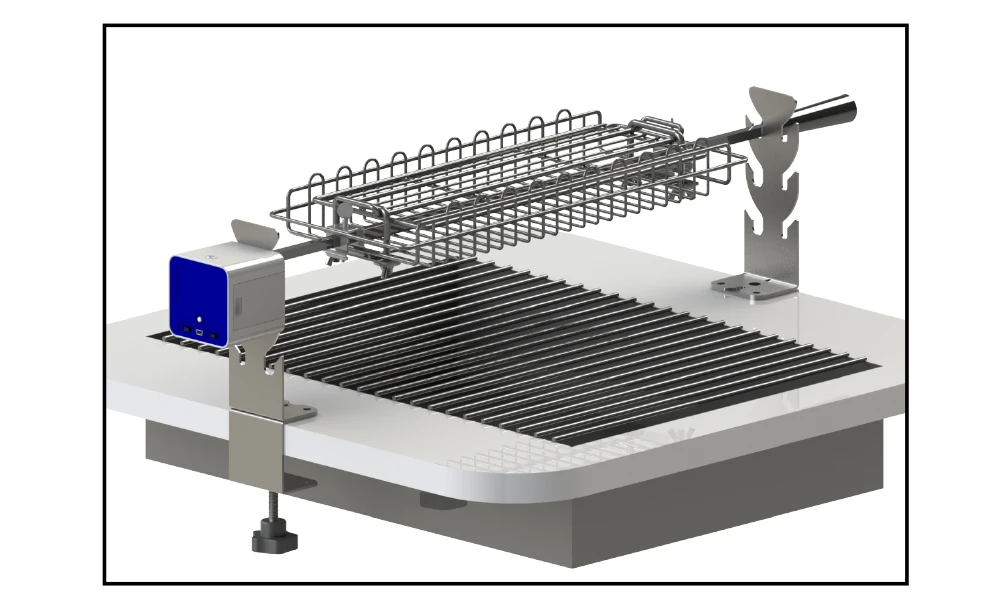

DEFAULT USE THE V(VERTICAL) BRACKET TO INSTALL ON THE OVEN (BBQ STOVE)

NOTE: The oven(BBQ stove) below not included

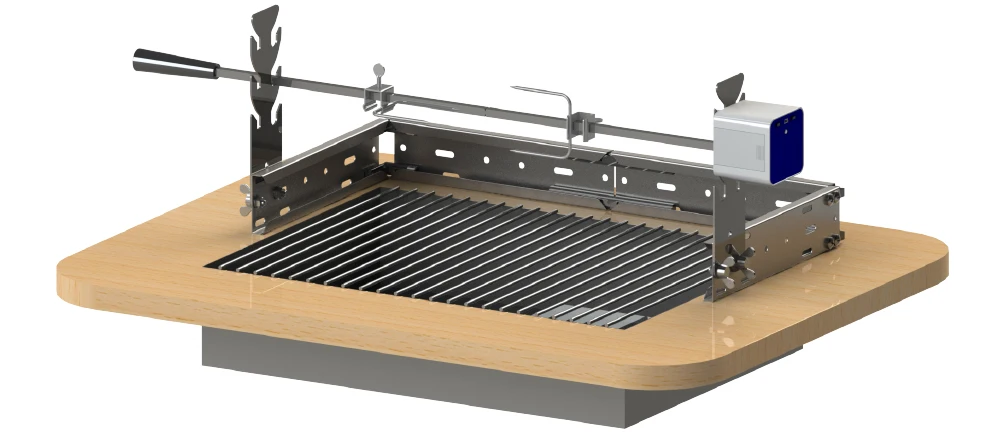

USE H(HORIZONTAL) BRACKET TO INSTALL ON THE BBQ TABLE (please contact customer service)

NOTE: The BBQ table below not included

MULTI-FUNCTION DC MOTOR（DON'T USE rechargeable battery）

Specifications:
Condition: 100% Brand New
Material: Nylon + Metal
Main Color: White
No Load Current: Below 180MA
Output : 2~5RPM
Rotary Direction: CW
Voltage: DC 5V(With 1 meter USB wire)
Battery: 3pcs AAA batteries (not included, DON’T USE rechargeable battery)
NOTE:DON'T USE rechargeable battery
Rotator Port : 0~5.0kgf.cm(0~11 lbs)
Roast Branch Size: 8 * 8mm / 0.32 * 0.32in
Motor Size: 6.8 * 6.8 *6.5cm / 2.7 * 2.7 * 2.6in

1 Battery 2 Power 3 Mini-USB 4 Off 5 Slow 6 Fast 7 Limit Pin 8 Output Shaft 9 Parameter Tag 10 LED Switch 11 Battery Compartment Cover 12 LED

MOTOR INSTALLATION INSTRUCTIONS

STEP1
Press and slide out the Battery Compartment Cover.
STEP2
Put in 3pcs AAA batteries (prepared by customer，DON'T USE rechargeable battery) or connect with a power bank (prepared by customer) use the USB wire.
NOTE:Many power banks on the market have over-current protection functions. When the motor is used, the current passing through increases as the load increases. Once the allowable current is exceeded, the power bank will automatically cut off the power, which will cause the motor to stop, which is not the quality of the motor. For this reason, we recommend using a power bank without over-current protection function.
STEP3
Insert the motor output shaft to the Rotating rod.
STEP4
Option A
If the limit pin is pre-screwed onto the motor, as shown in the figure below, lift the motor slightly and rotate it at an angle to allow the limit pin to slide into the large groove, and then let it fall freely.

Option B
If the limit pin is not screwed on the motor in advance, as shown in the figure below, insert the limit pin and tighten it clockwise to fix it.

INSTALLATION STEPS

Step1
Turn the locking screws on the one bracket counterclockwise to loosen to the appropriate position. Then clamp this bracket to the appropriate position of the oven(BBQ stove) (sold separately, the same below), Turn the locking screw clockwise not to tighten.

Step2
In the same way, clamp the other bracket to the other side of the oven(BBQ stove).

Step3
Turn the one or two Extension rods(2) clockwise to the Rotating rod(3), do not tighten, Screw the Nylon Handle(6) to the Extension rod (2) in the same way and tighten it.

Step4
Put it on the brackets to test as shown (the Rotating rod is placed in the small groove, the Extension rod is placed in the large groove), that it can rotate smoothly, and then tighten the locking screws on the brackets.

Step5
The forks through the rod, screw the thumb screws to the forks. After loading the food, adjust it to the proper position and tighten the thumb screws.

NORMAL MISALIGNMENT
NOTE: Thread processing needs to have a certain clearance, so it is difficult to have the same plane after the rod is tightened, and there will be a normal misalignment. At this time, you only need to loosen the rod a little, then put on the fork to the rod after the plane coincides. Tighten the rod after all the food is loaded.

Step6
Refer to step 4 place it in the proper height on the brackets to rotate.

Step7
Refer to motor installation instructions.

Step8
The installation is complete.
Option A is suitable for ovens(BBQ stoves): Supports ovens(BBQ stoves) with inner diameters below 78cm. They all clamping ovens(BBQ stoves) wall thickness are not exceeding 50mm.
Option B provides you with more DIY imagination.

Purchase accessories separately

Please click on the picture below to purchase the HANDLE

Please click on the picture below to purchase the GRILL COUNTER BALANCE

Please click on the picture below to purchase the FORKS

Please click on the picture below to purchase the ROTATING SKEWERS

Please click on the picture below to purchase the Auto Flip Skewer

MOTOR WITHOUT BATTERY

The motor does not have a battery, you need to bring your own power bank or mobile phone charger for power supply. For the LED multi-function motor, you can also bring your own 3pcs AAA batteries (rechargeable batteries are not allowed) for power supply.
Because the motor is generally used in a high temperature environment, the built-in lithium battery is prone to explosion hazard.

About Power Bank

NOTE:Many power banks on the market have over-current protection functions. When the motor is used, the current passing through increases as the load increases. Once the allowable current is exceeded, the power bank will automatically cut off the power, which will cause the motor to stop, which is not the quality of the motor.

If your BBQ stoves (ovens) or BBQ table can not be clamped

please click here
